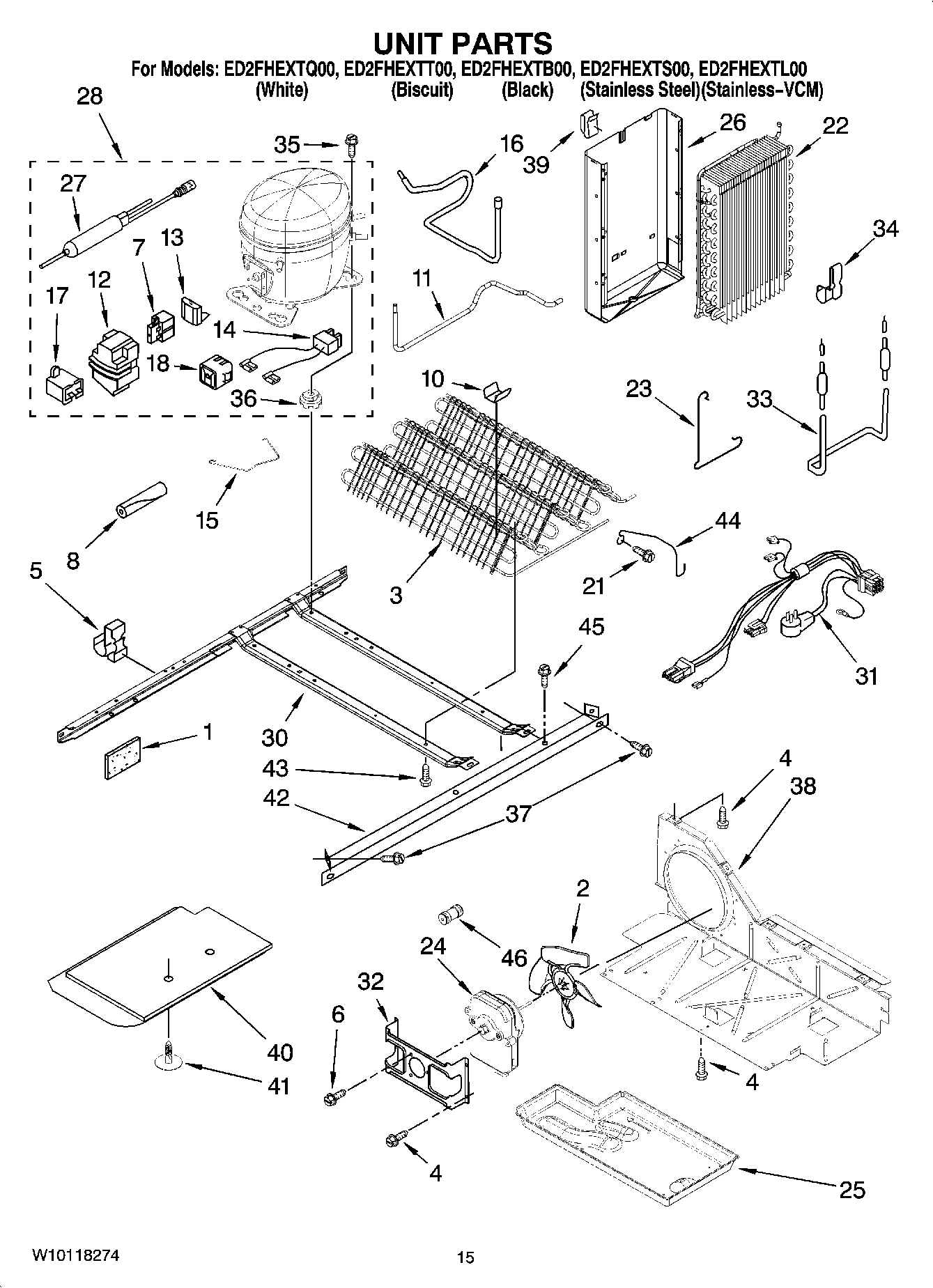

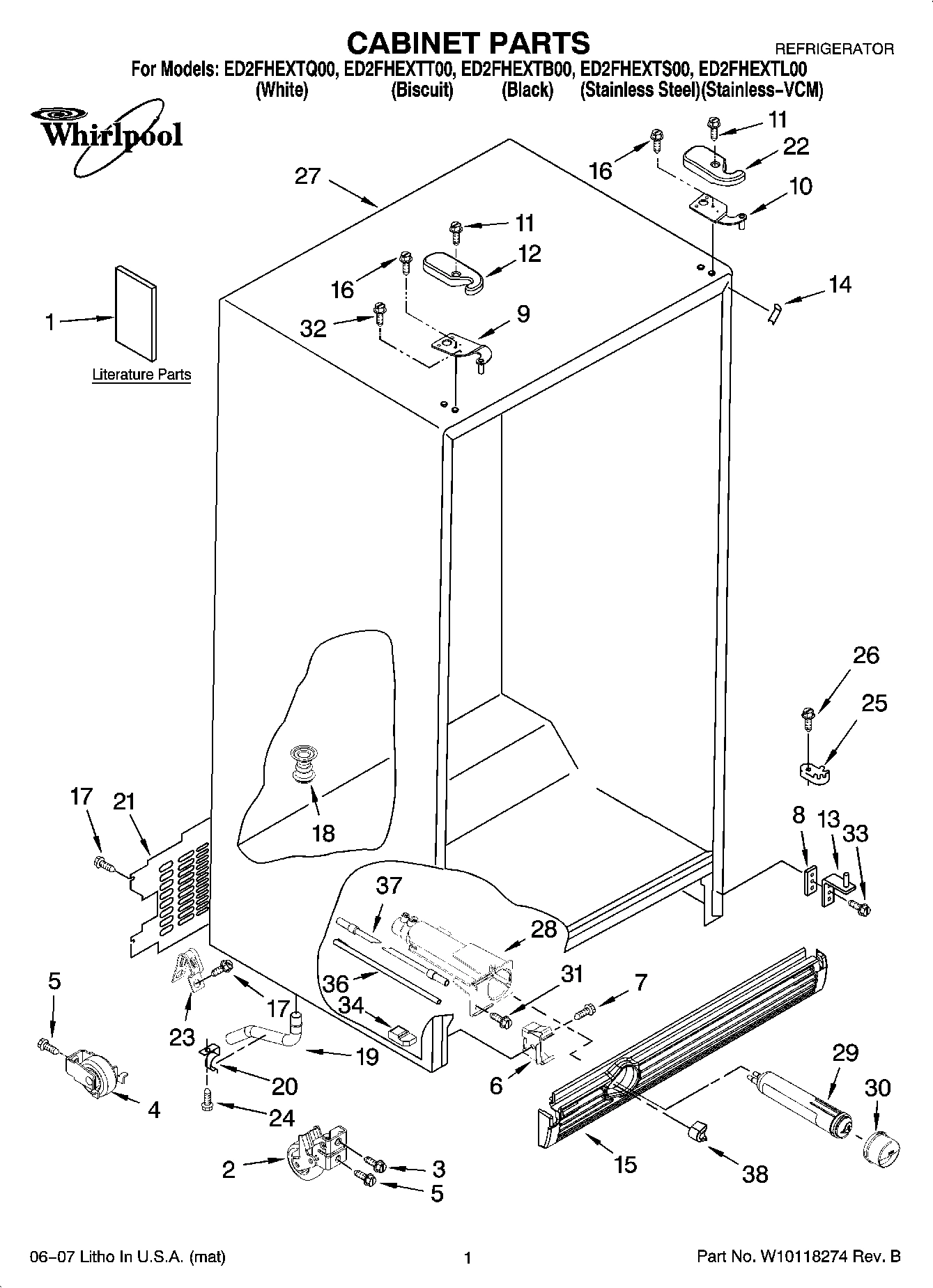

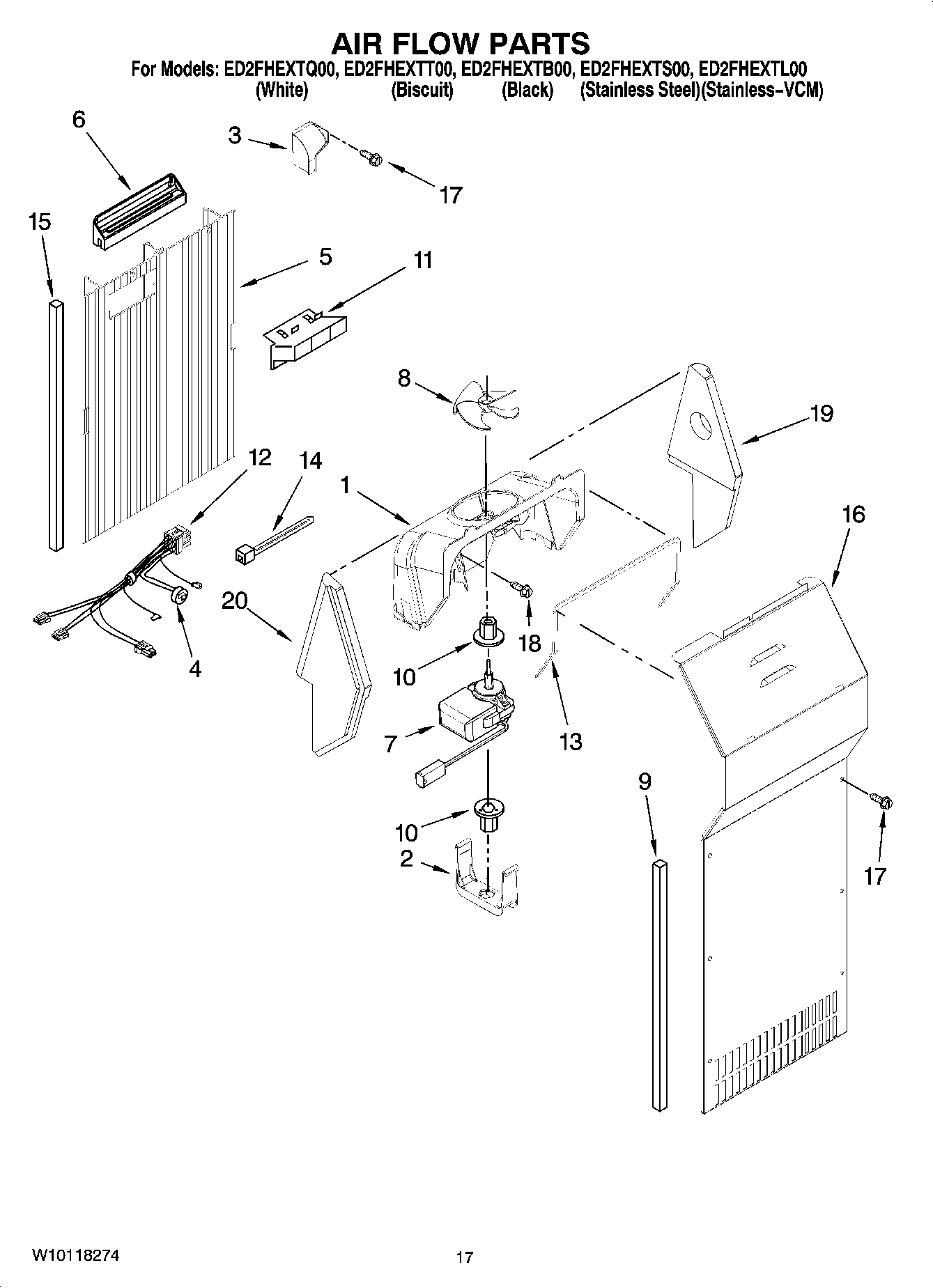

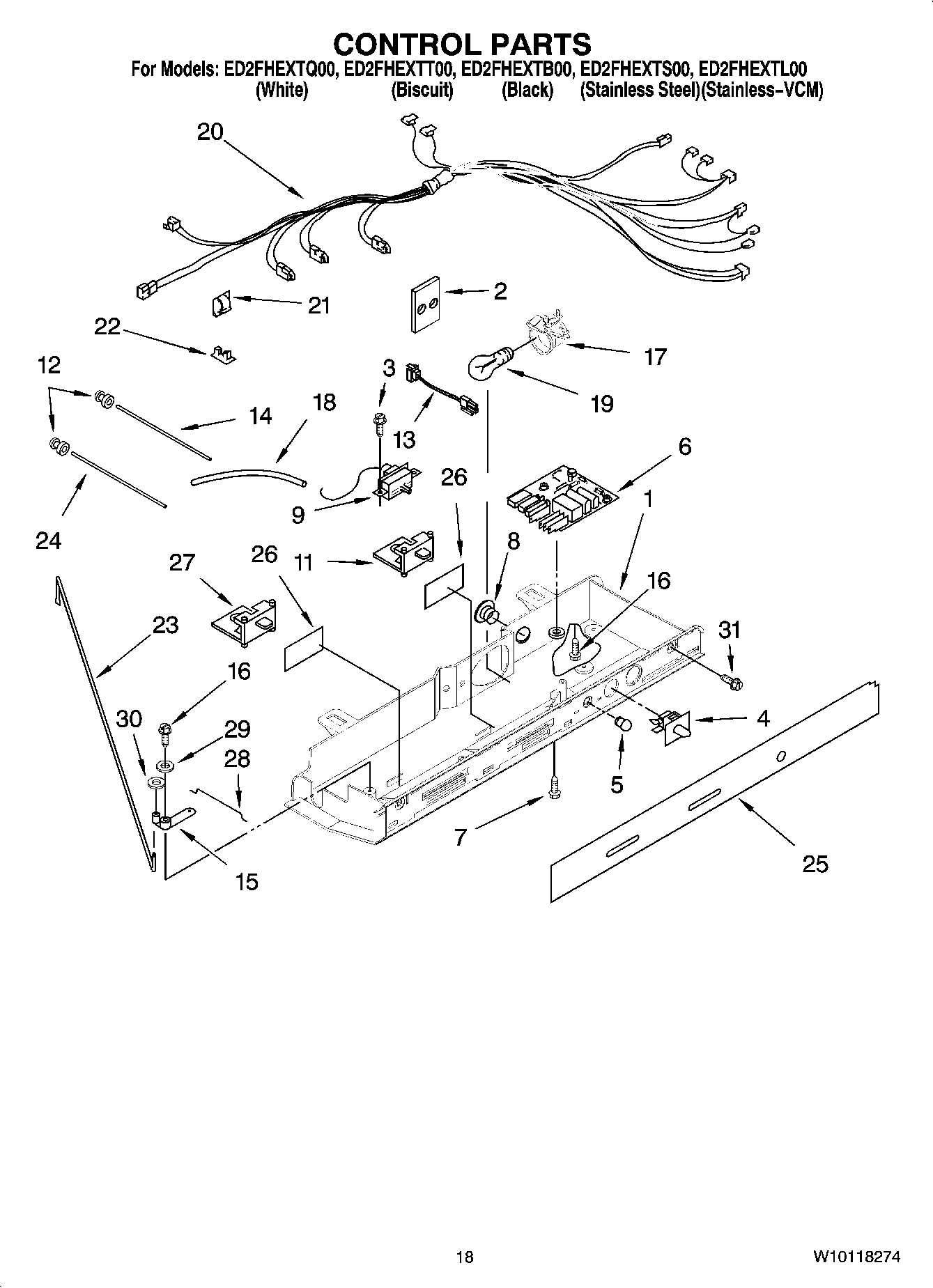

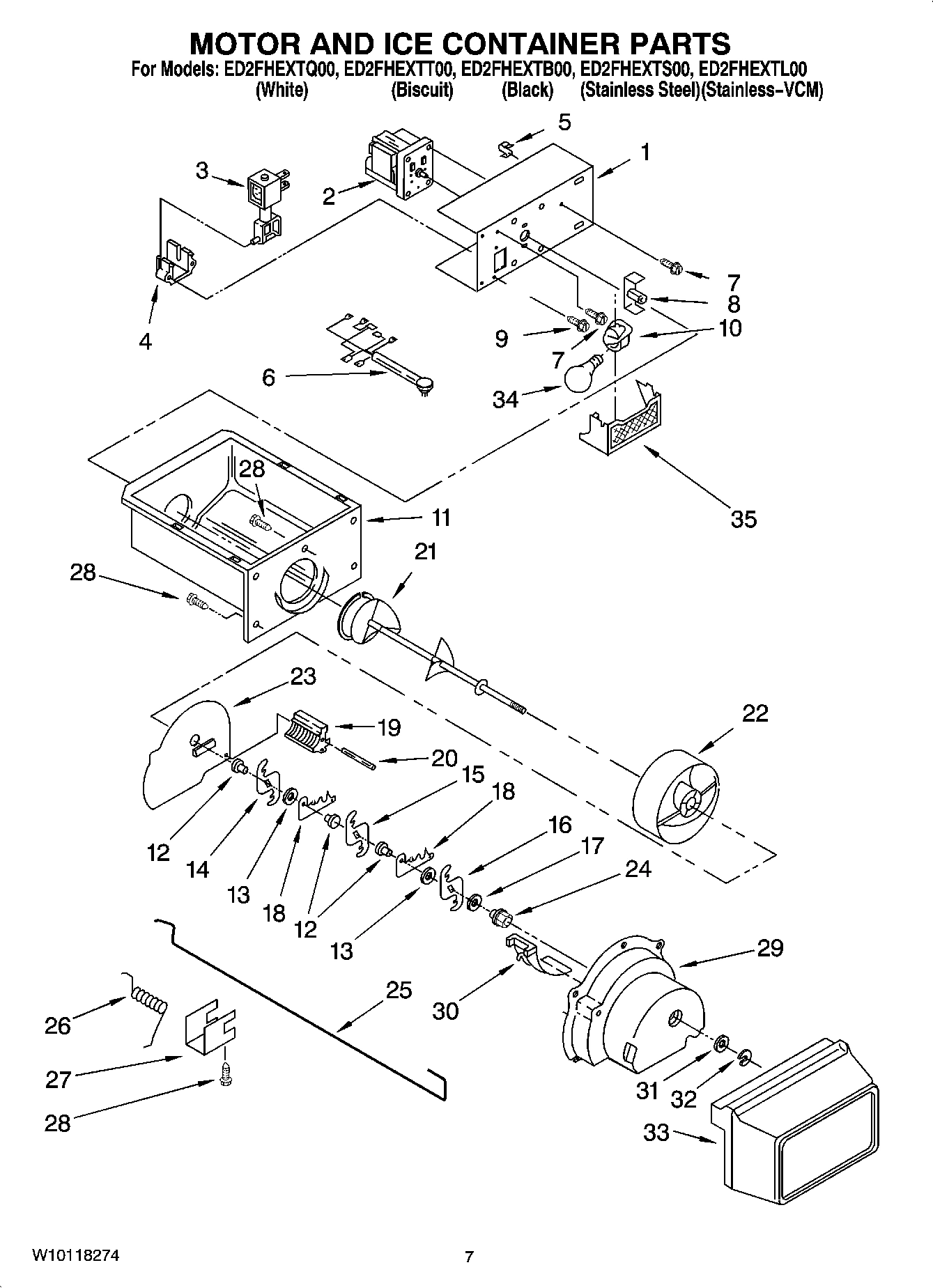

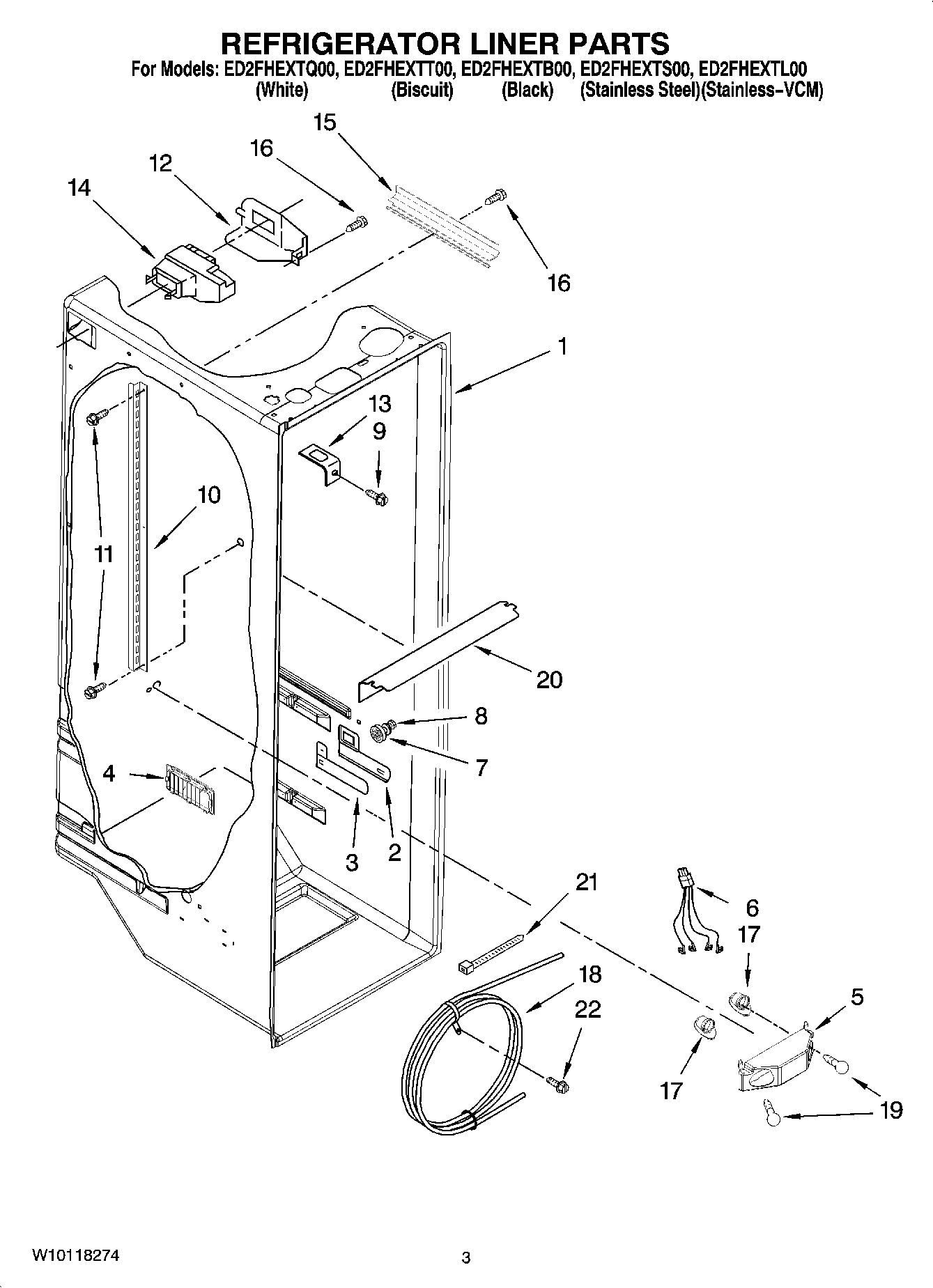

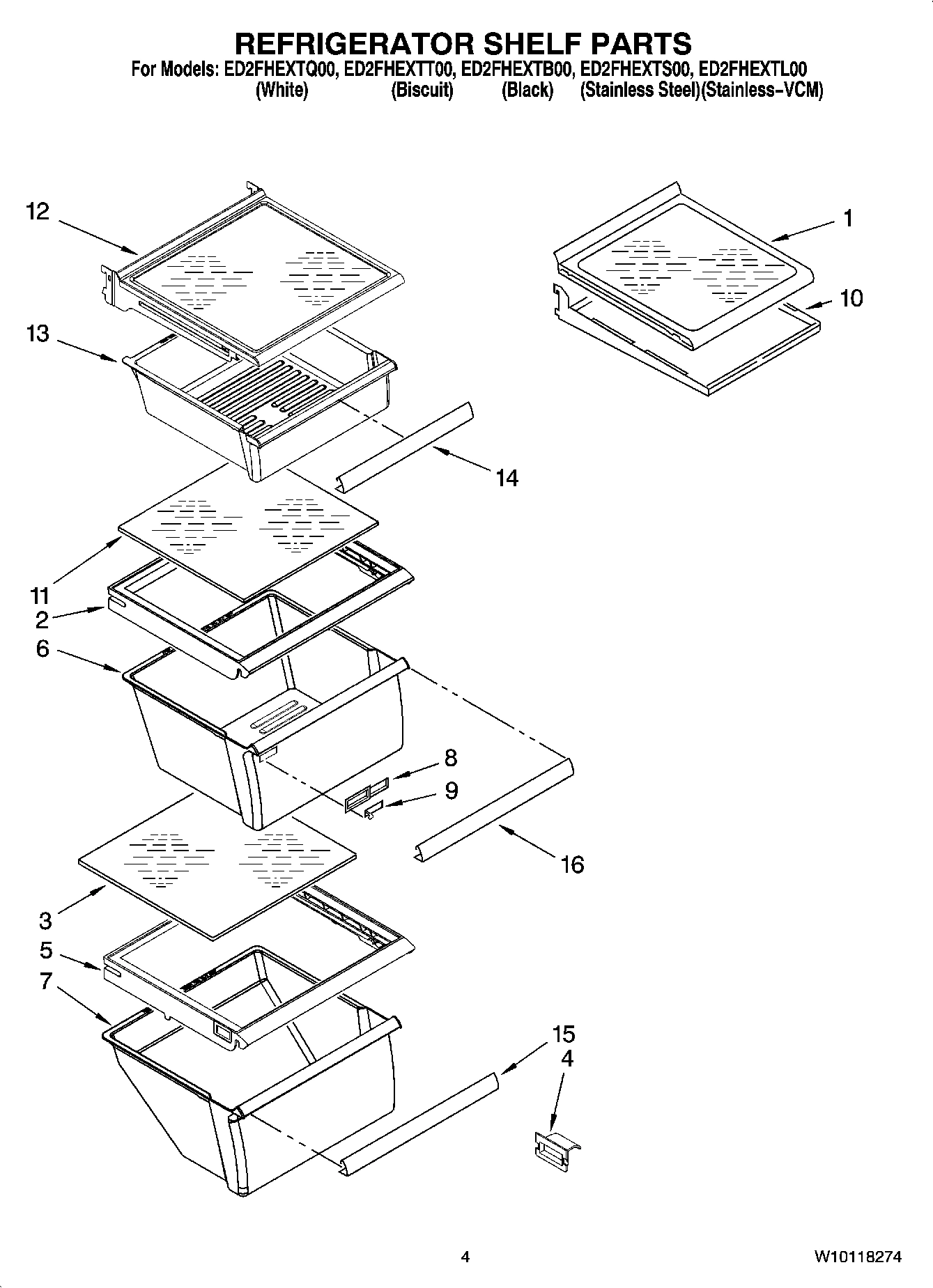

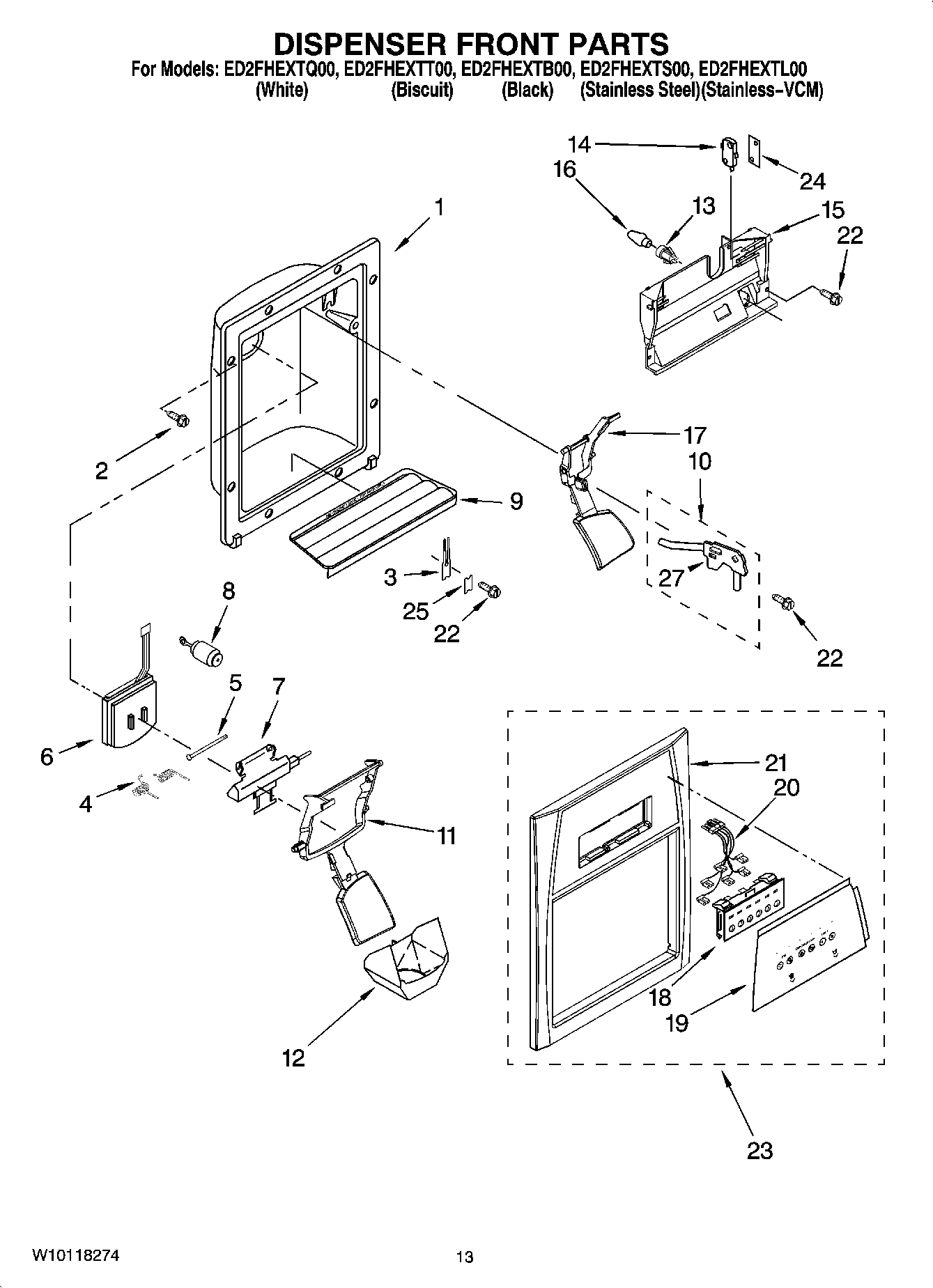

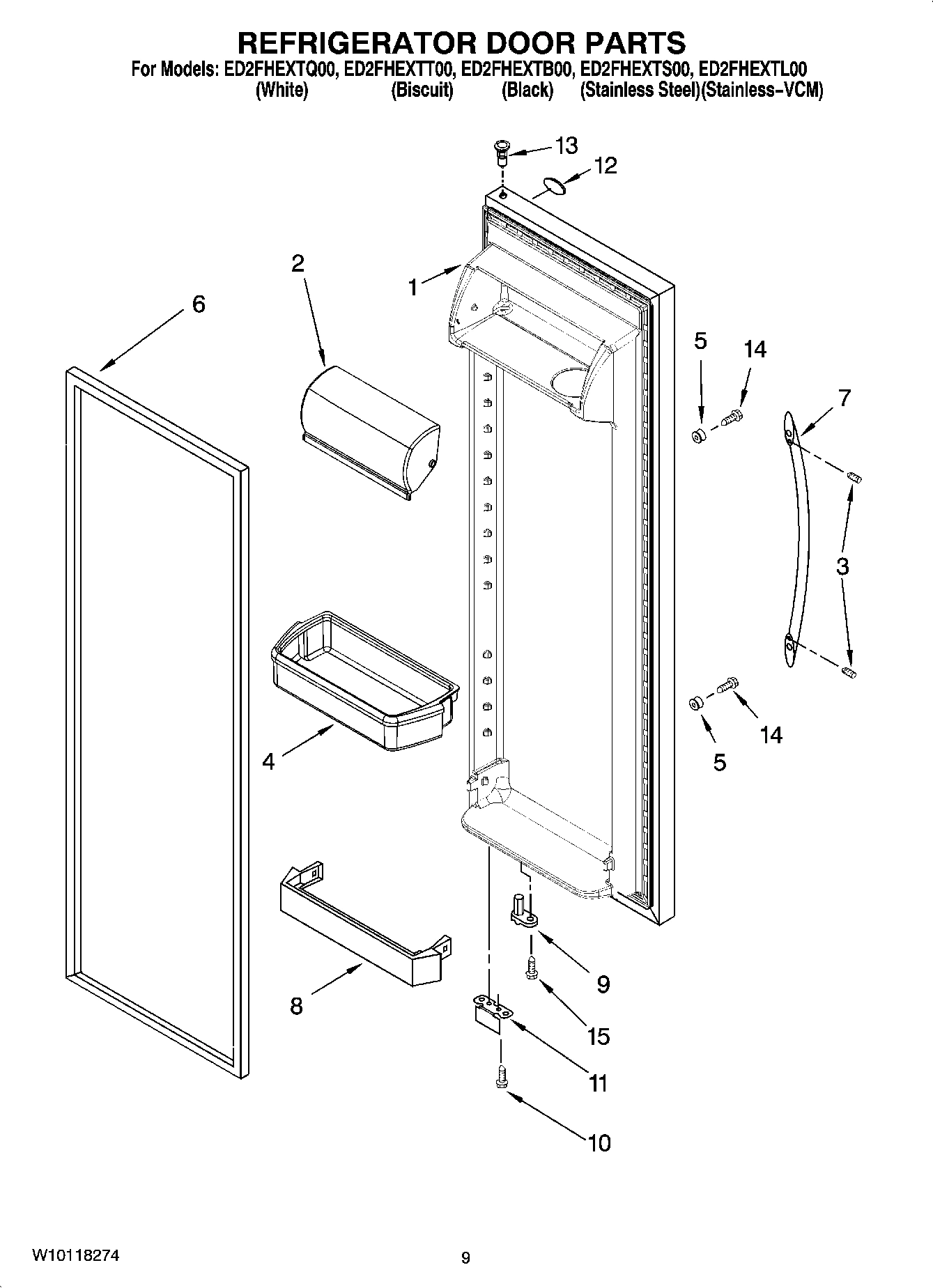

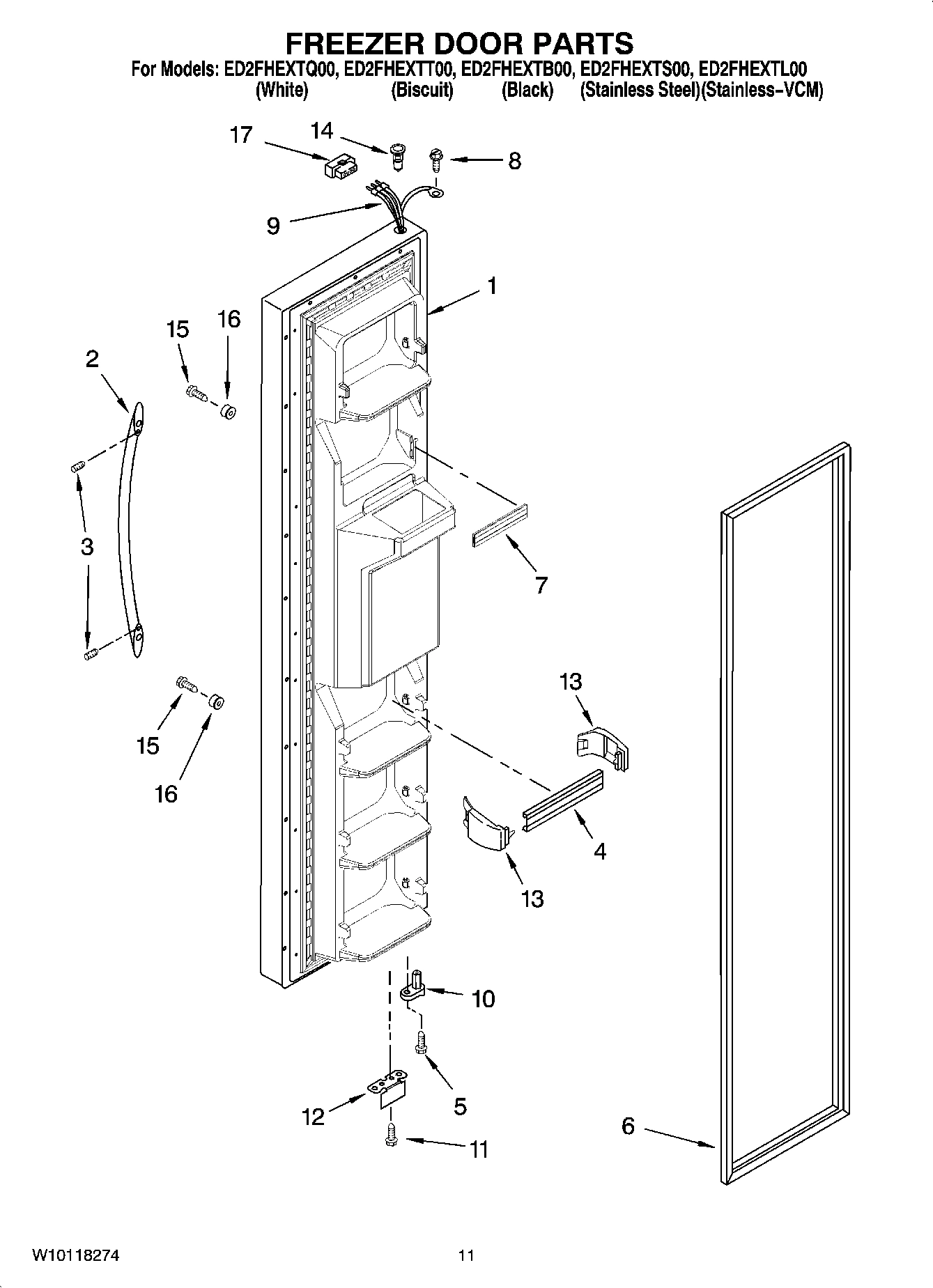

Model Whirlpool ED2FHEXTL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.39

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $143.67

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $193.60

1

Bracket, Motor WPL 2254588 Contact Us For Availability

1

Service & Wiring Sheet WPL 2255384 Contact Us For Availability

1

INSTRUCTION SHEET (DOOR REMOVAL) WPL 2261037 Contact Us For Availability

1

Use & Care Guide WPL 2318594 Contact Us For Availability

1

Energy Guide WPL 2326310 Contact Us For Availability

1

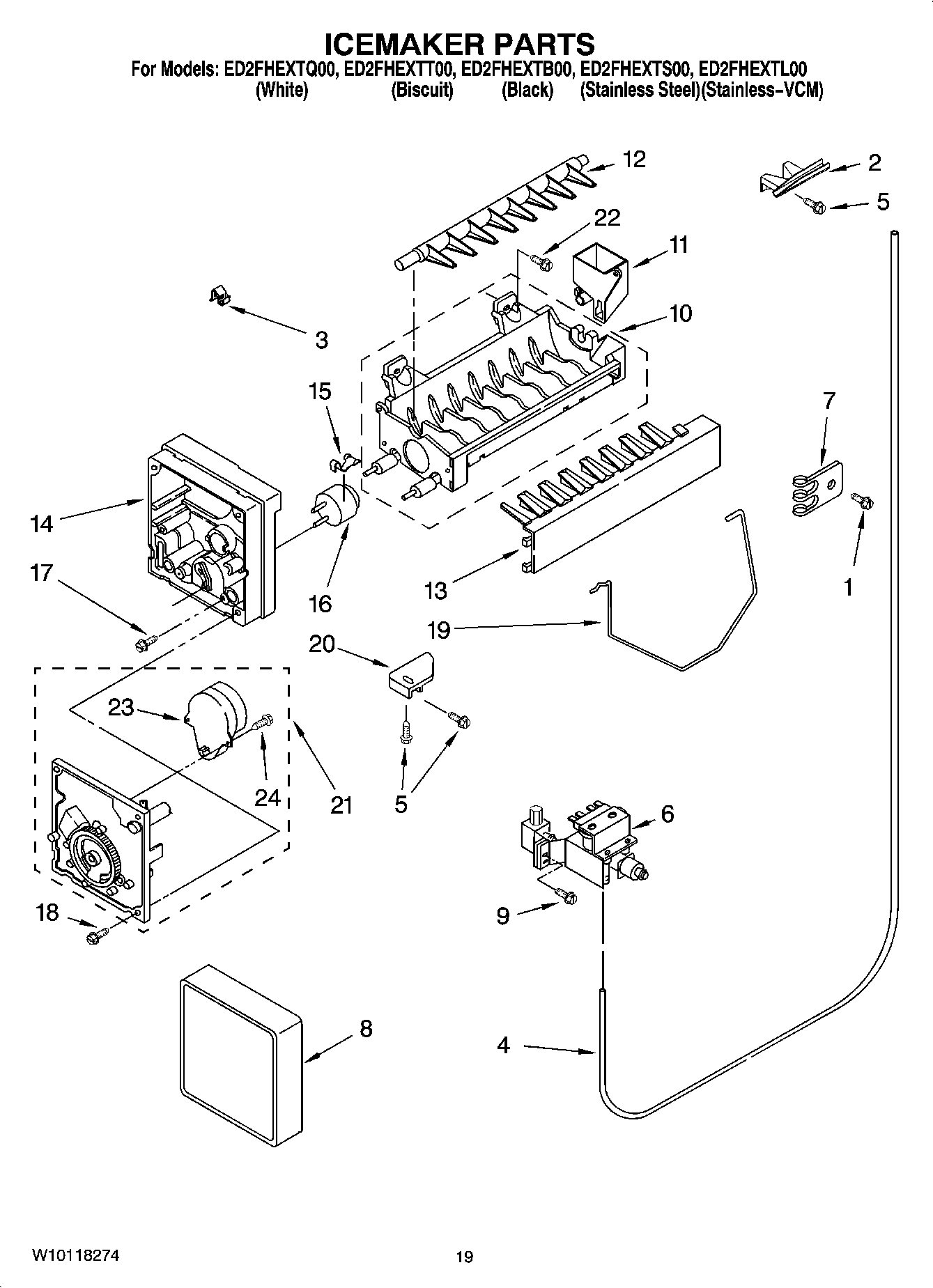

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI29851A8 Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.05

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $61.68

2

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $129.51

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.48

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $58.04

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $46.77

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.35

3

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.39

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $99.61

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.36

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

4

Louver WPL 2257741 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Cover, Meat Pan WPL 2217039 Contact Us For Availability

5

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

6

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $157.27

6

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $99.21

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.82

6

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $77.39

7

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

7

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $52.03

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

7

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.40

8

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $40.56

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

8

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $14.41

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $65.04

8

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $3.22

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $5.84

9

2311642 Whirlpool Refrigerator Wire Harness Backorder WPL 2311642 $154.17

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $12.90

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $36.39

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $39.25

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $39.04

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $69.36

9

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $5.76

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

9

Grommet WPL 2176134 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $38.78

Freezer Bin WPL 2216111 Contact Us For Availability

Frame, Shelf WPL 2195975 Contact Us For Availability

Shelf Ladder WPL 2206270 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $16.76

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $35.85

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $200.75

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $126.87

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $82.55

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $43.76

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $43.87

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $5.85

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $39.78

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $21.55

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $14.30

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.73

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $17.66

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $58.91

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.32

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $34.10

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $88.13

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $115.77

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $62.83

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $8.69

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.62

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

WP2179243 Whirlpool Refrigerator Pan Trim In Stock WPL WP2179243 $35.59

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.19

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $42.74

Light Bar (RC) WPL 2179920 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2304849 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $17.30

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.35

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $56.83

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.41

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $5.76

Grille (Black) WPL 2260501B Contact Us For Availability

Grille (Biscuit) WPL 2260501T Contact Us For Availability

Grille (White) WPL 2260501W Contact Us For Availability

16

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.77

16

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.30

16

Stud, Rear WPL 2196207 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $37.17

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $55.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $61.51

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $16.76

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $43.11

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $43.32

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $43.37

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

W11566763 Whirlpool Fitting In Stock WPL W11566763 $22.78

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $141.18

WP2188831 Whirlpool Refrigerator Start Device Backorder WPL WP2188831 $74.52

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $98.02

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $16.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.99

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $13.86

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $118.38

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.97

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $7.21

Shelf (2) WPL 2174265K Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

21

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $79.68

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

21

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $231.58

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.03

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.92

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

Screw (2) WPL 488280 Contact Us For Availability

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $10.80

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $16.84

23

Clamp WPL 2161324 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.19

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.46

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $16.69

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.15

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.67

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $5.07

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.02

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $8.13

Cabinet, (Not A Serviceable Part) WPL ARI29850A5 Contact Us For Availability

28

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $12.65

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.52

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $5.76

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.87

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $19.91

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $14.93

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.77

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $6.52

33

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

33

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $36.47

36

WPW10350006 Whirlpool Refrigerator Water Tube In Stock WPL WPW10350006 $48.17

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $62.28

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.46

38

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $32.30

41

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

43

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $14.93

45

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
