Model Whirlpool ED22PSXDN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

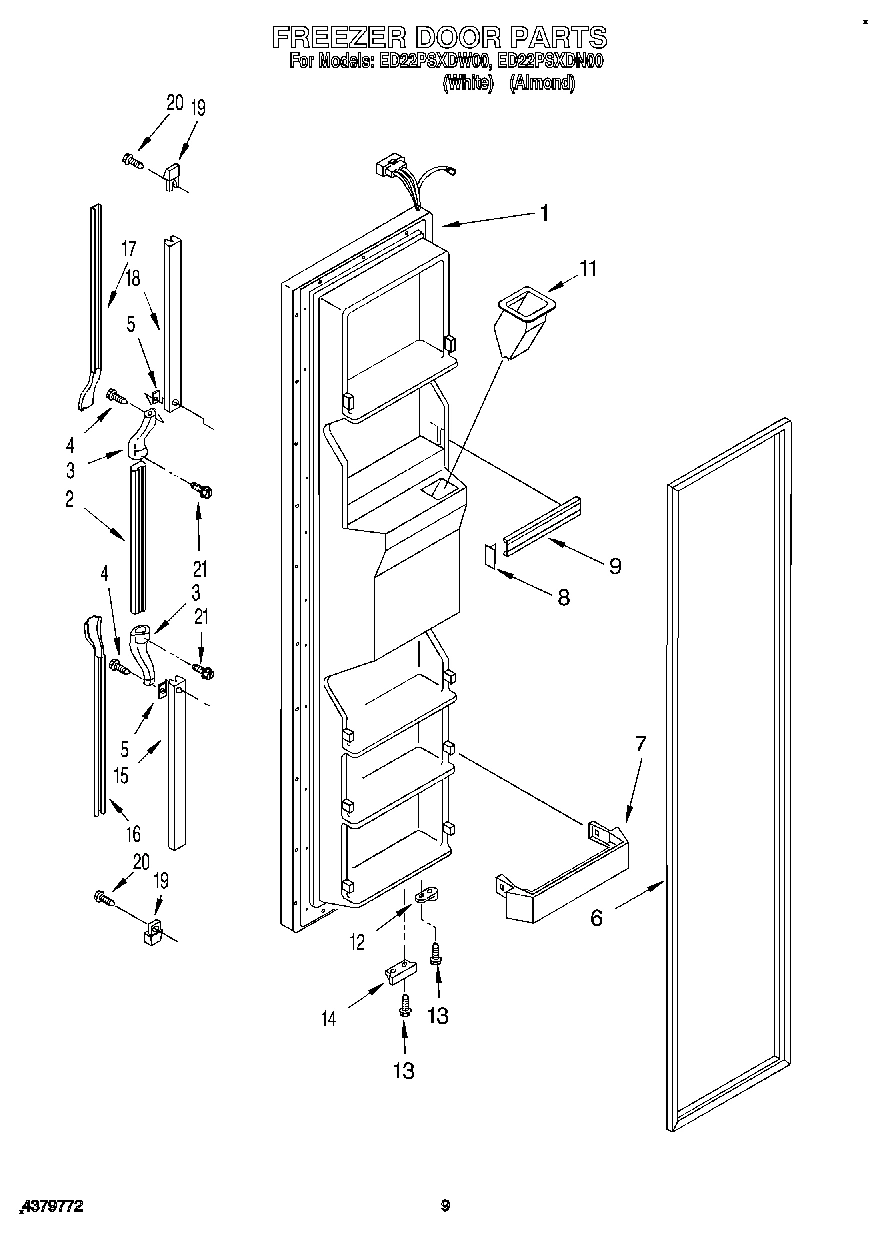

07 - FREEZER DOOR

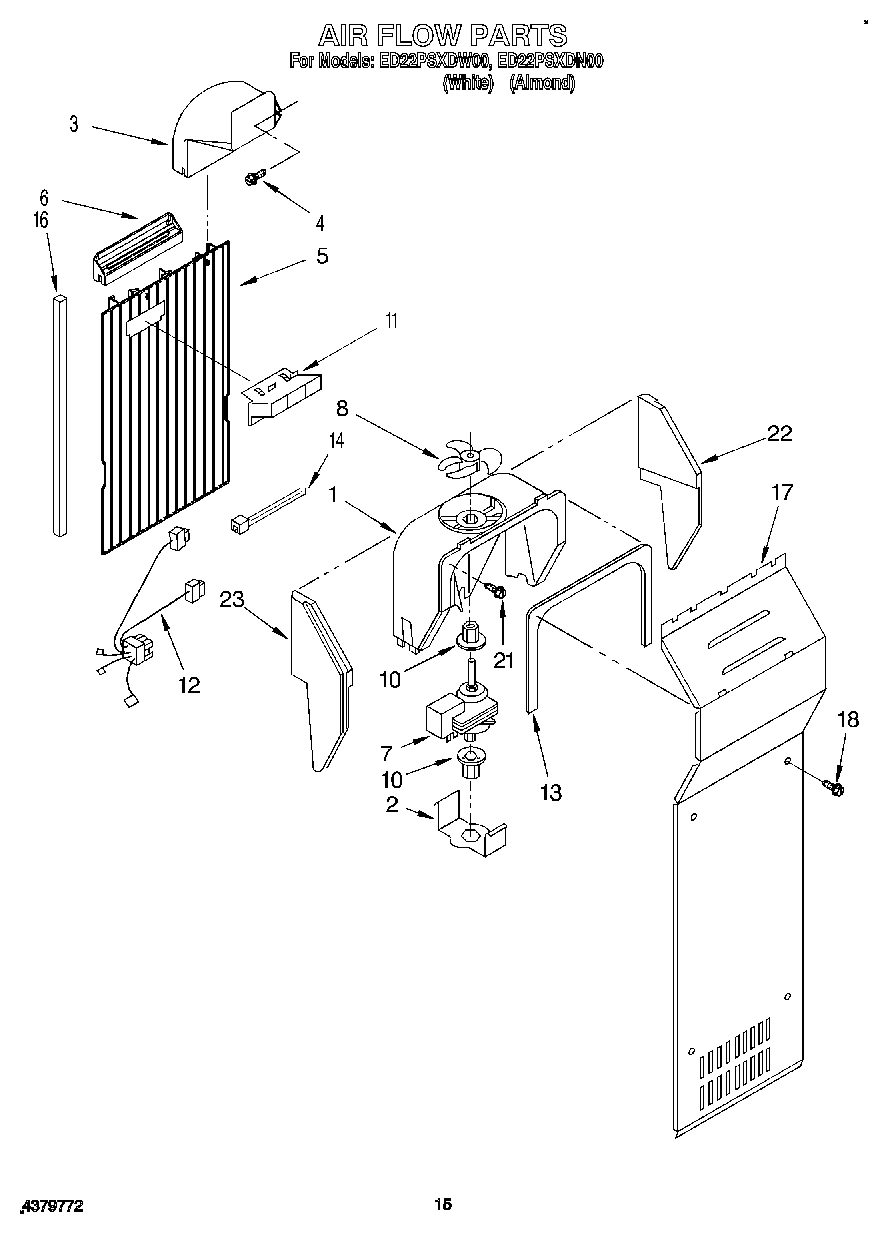

10 - AIR FLOW

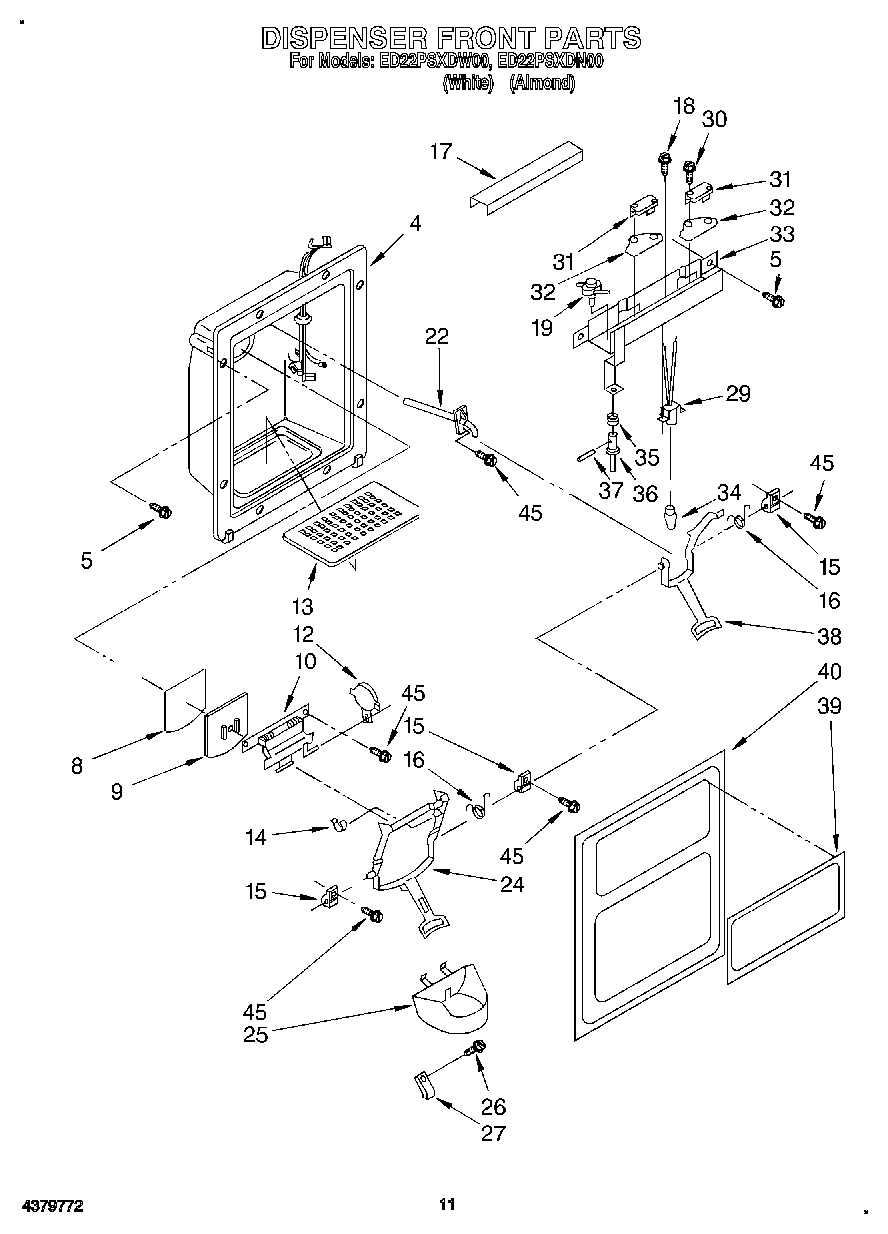

08 - DISPENSER FRONT

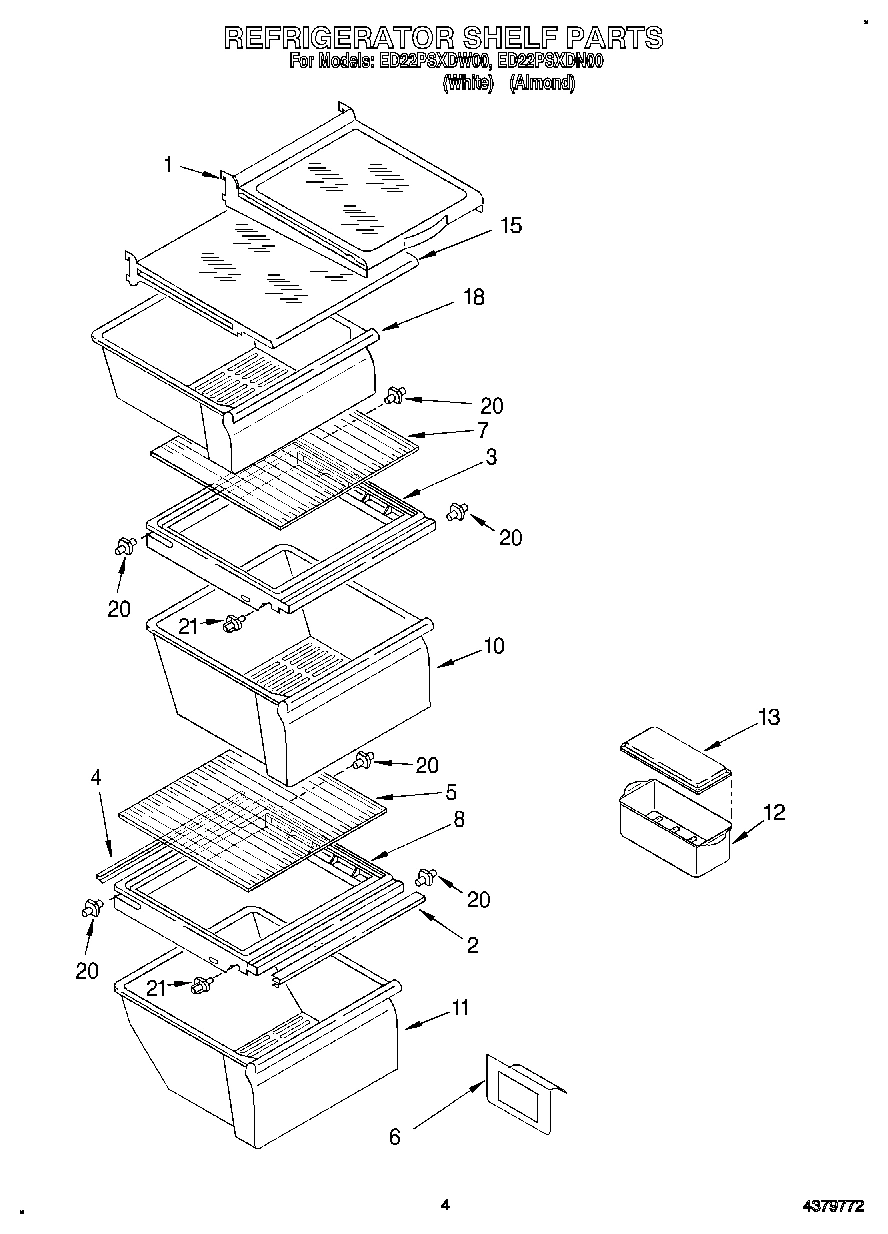

03 - REFRIGERATOR SHELF

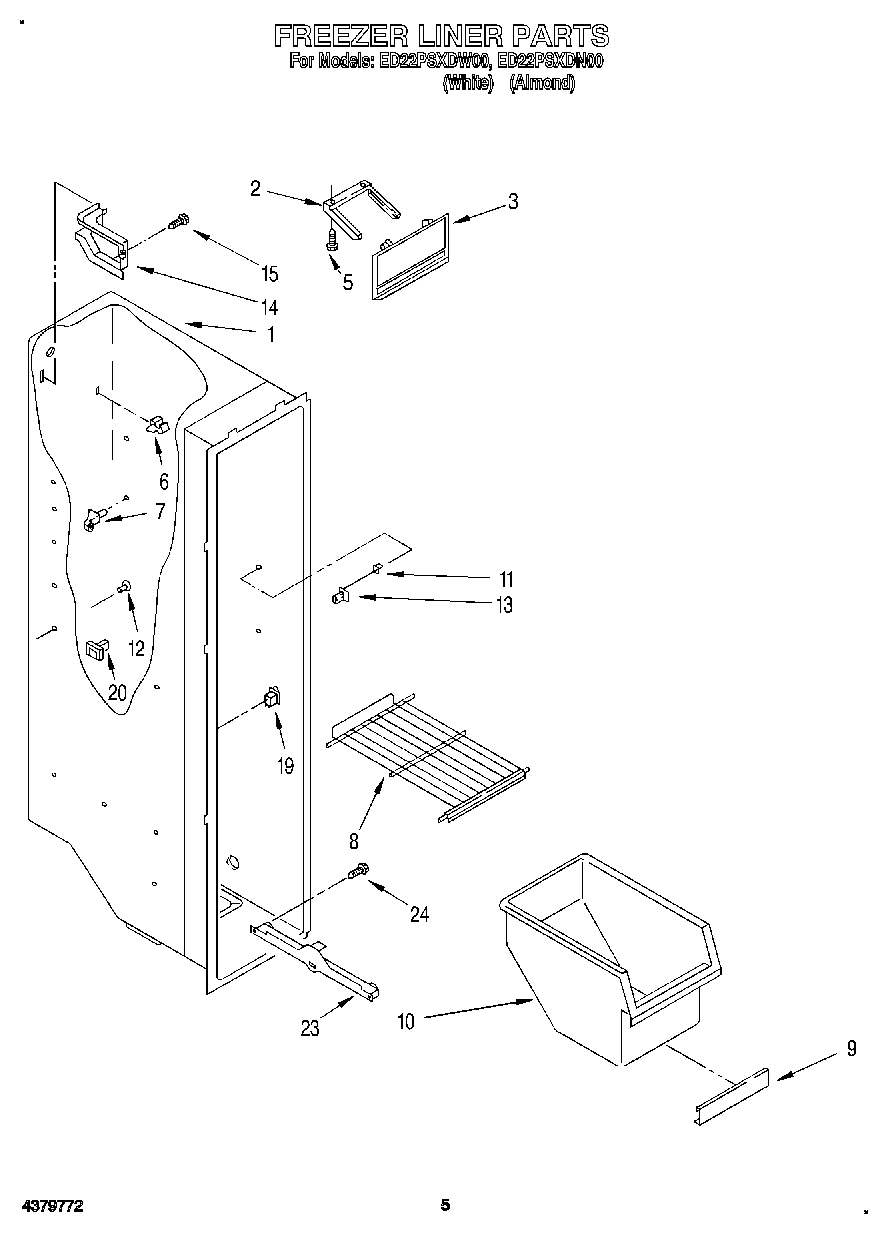

04 - FREEZER LINER

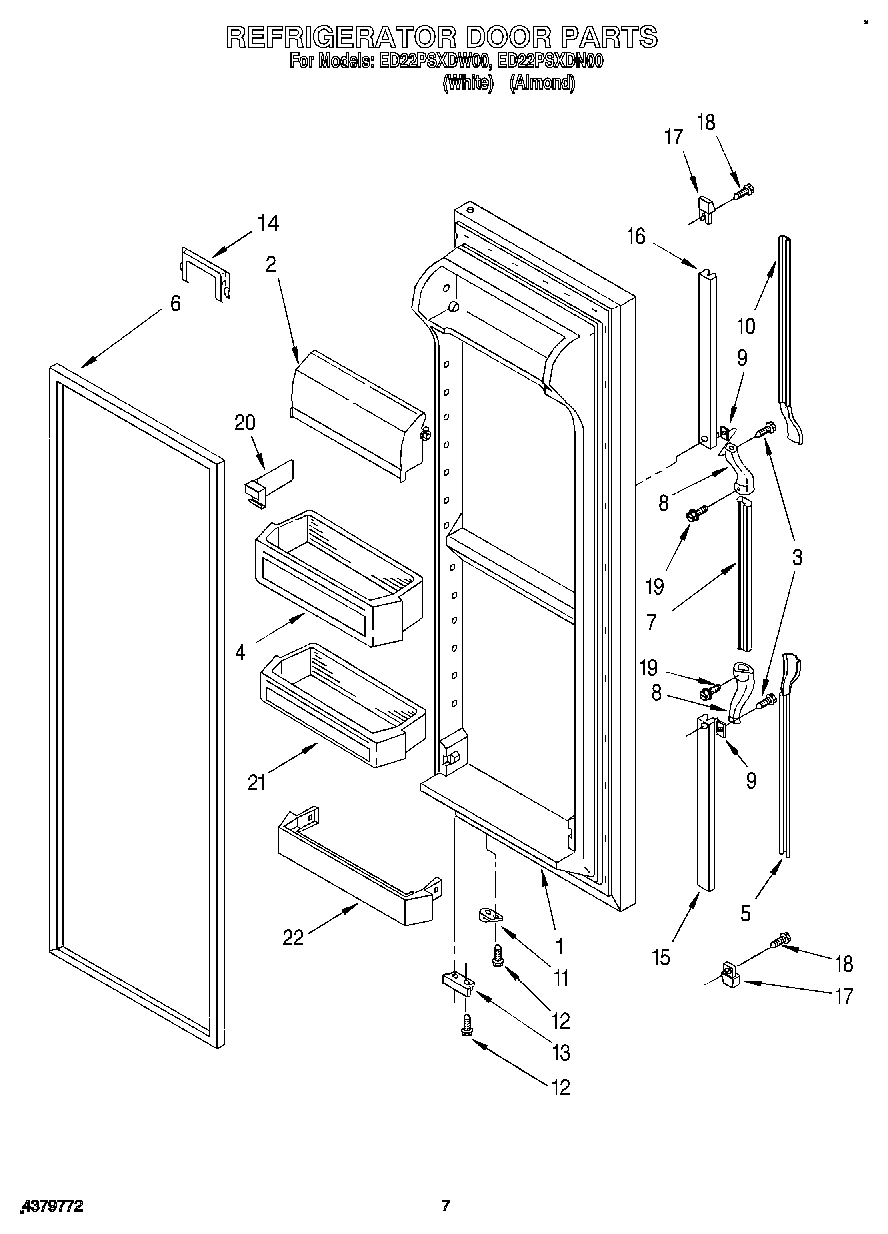

06 - REFRIGERATOR DOOR

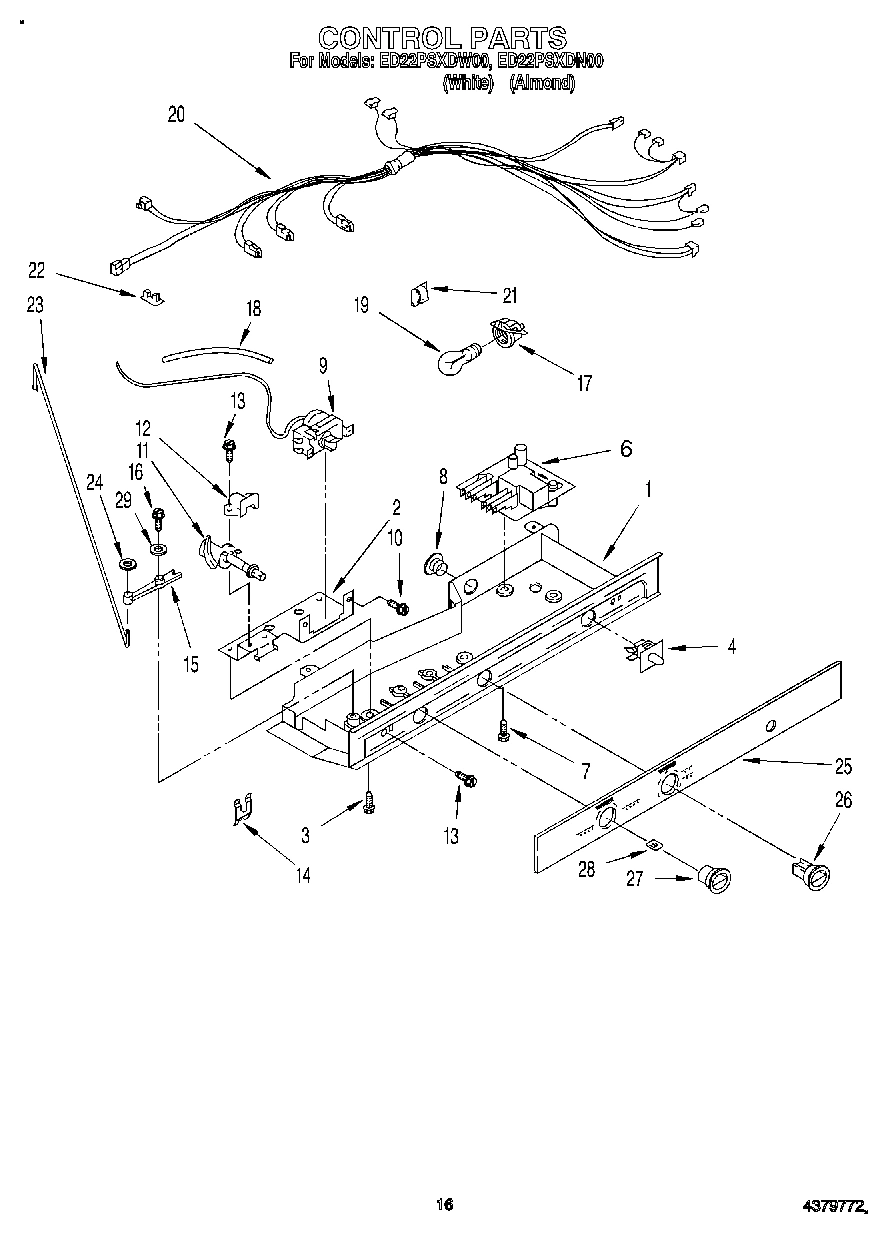

11 - CONTROL

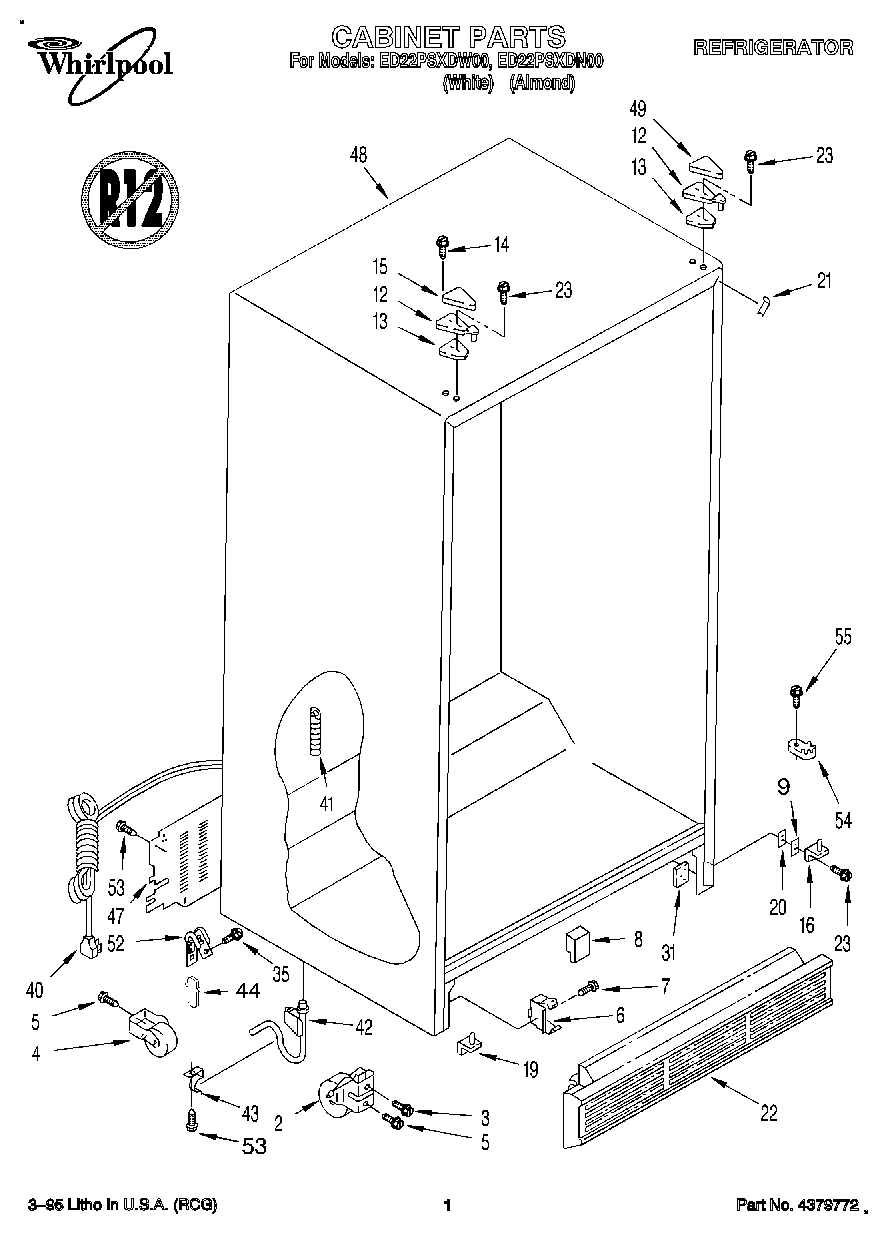

01 - CABINET

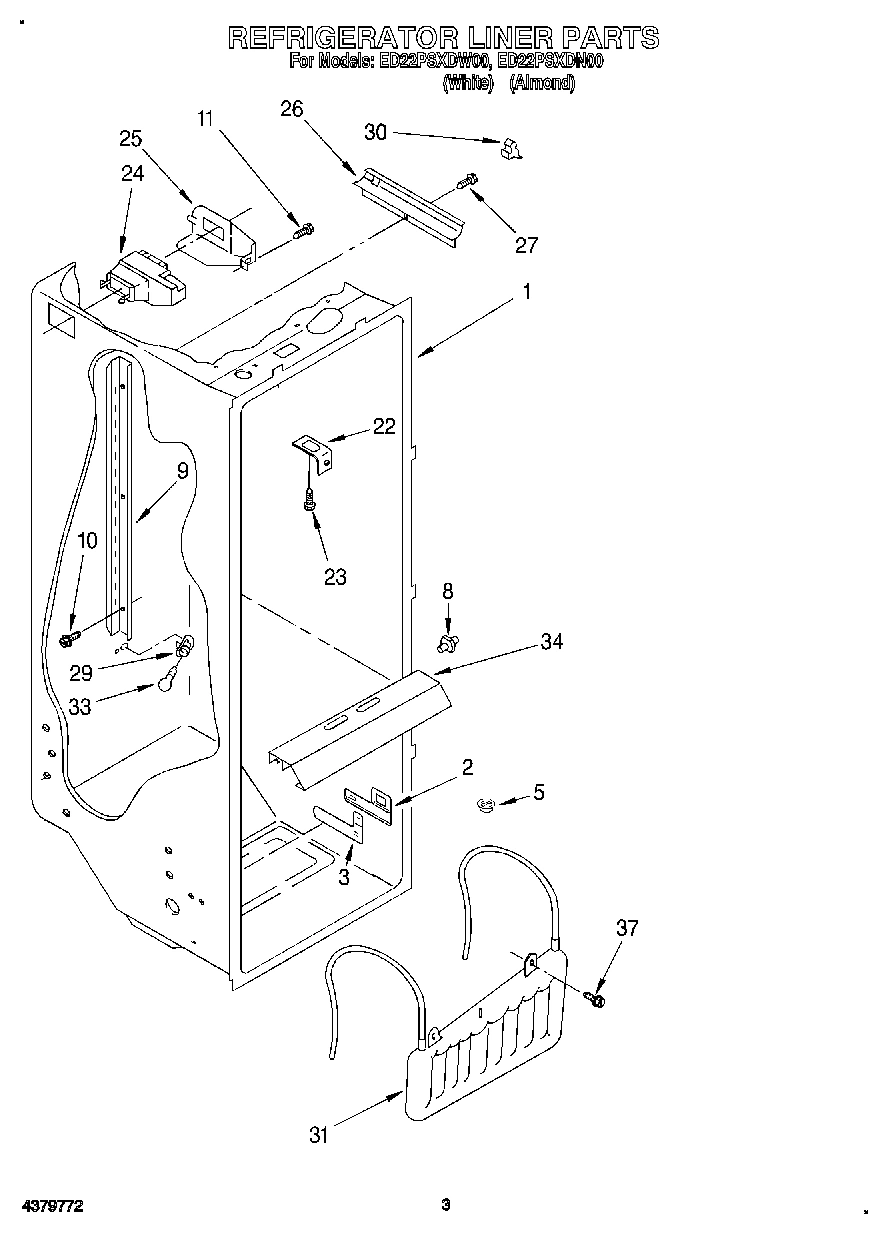

02 - REFRIGERATOR LINER

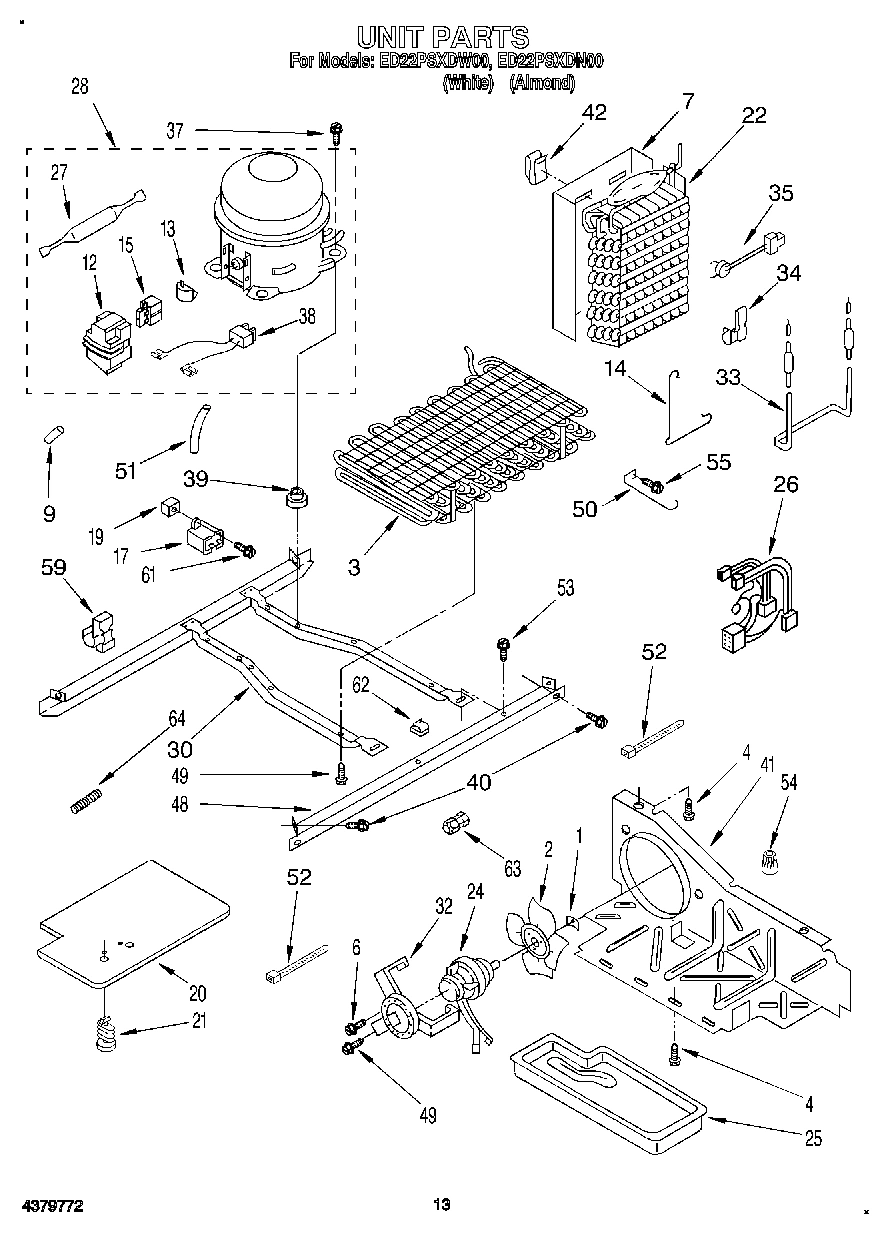

09 - UNIT

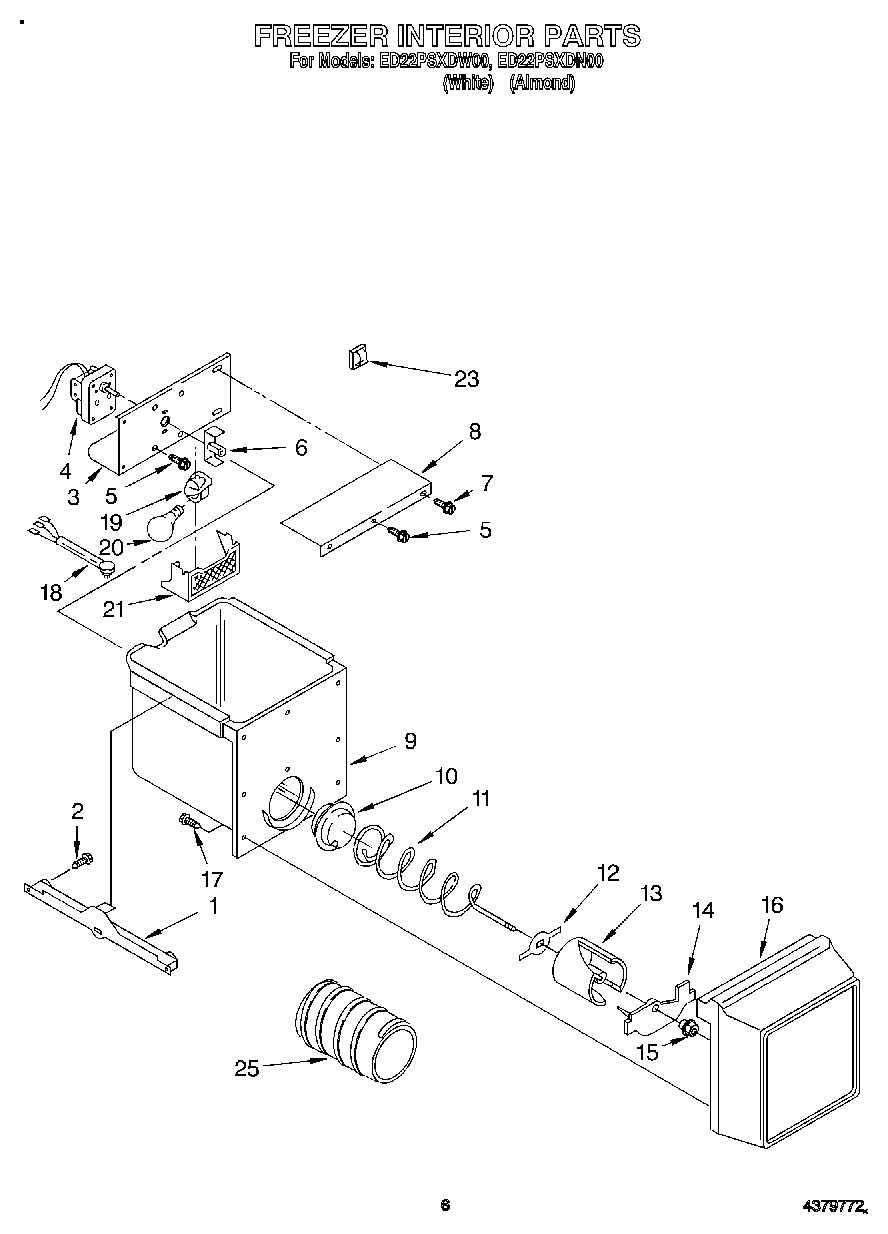

05 - FREEZER INTERIOR

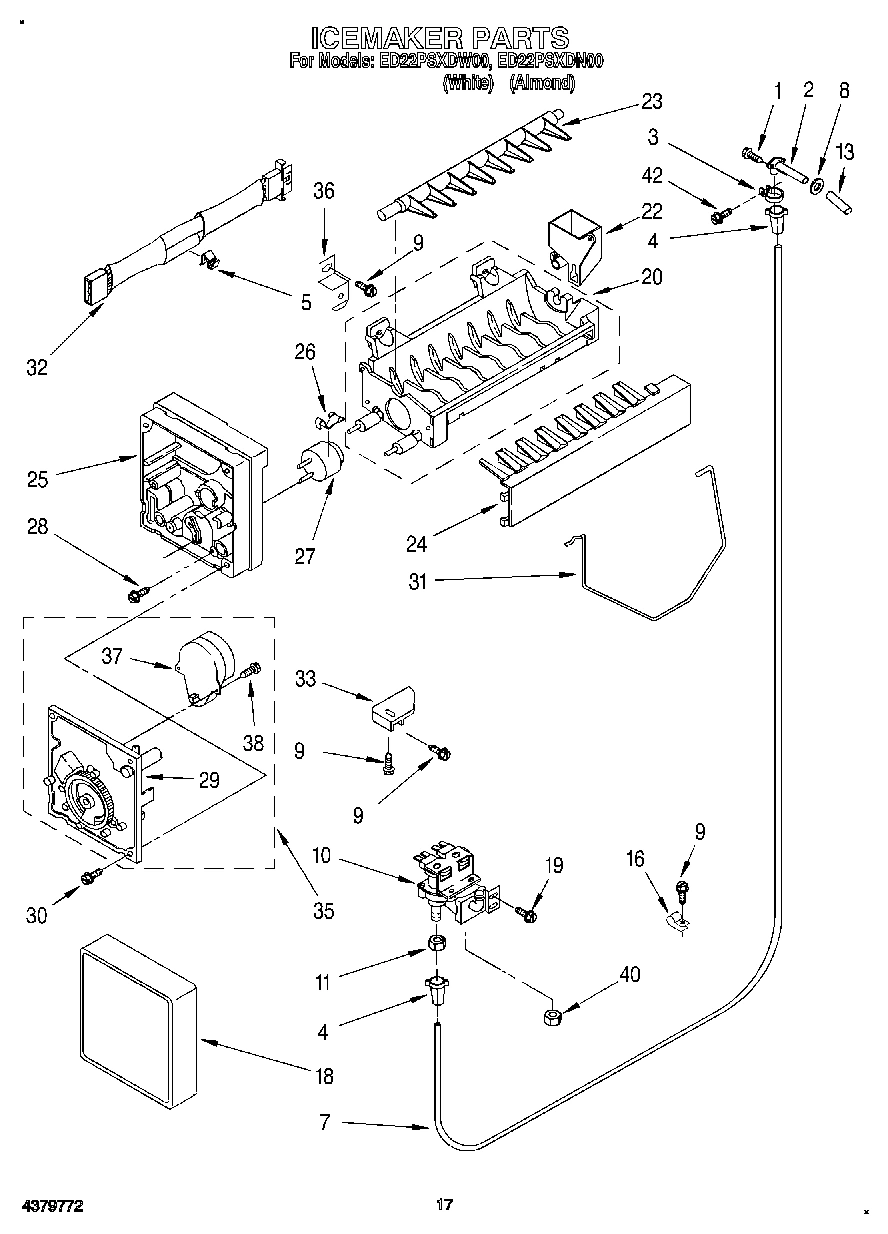

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED22PSXDN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176771 WPL LIT2176771 Contact Us For Availability
WPL LIT2179284 WPL LIT2179284 Contact Us For Availability
WPL LIT2180535 WPL LIT2180535 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26801A2 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2171086 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2171087 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26800A1 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
5
Insert, Handle (White) WPL 1119361 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Handle, Center (White) WPL 1124713 Contact Us For Availability
7
Handle, Center (Almond) WPL 943079 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Trim, Basket WPL 2171775 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171995 Contact Us For Availability
10
Freezer Basket WPL 2171699 Contact Us For Availability
10
Insert, Handle (White) WPL 1119367 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Bracket, Door Stop WPL 2155331 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Relay (See Overload) WPL ARI26803A7 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119366 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
woodgrain handle insert WPL 4210445 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4318948 Contact Us For Availability
22
Black Handle Insert WPL 4319080 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 2171777 Contact Us For Availability
23
Slide, Freezer Bin (Right Side) WPL 2171778 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever, Water (White) WPL 2177149 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI26799A2 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
