Model Whirlpool ED22DKXAW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

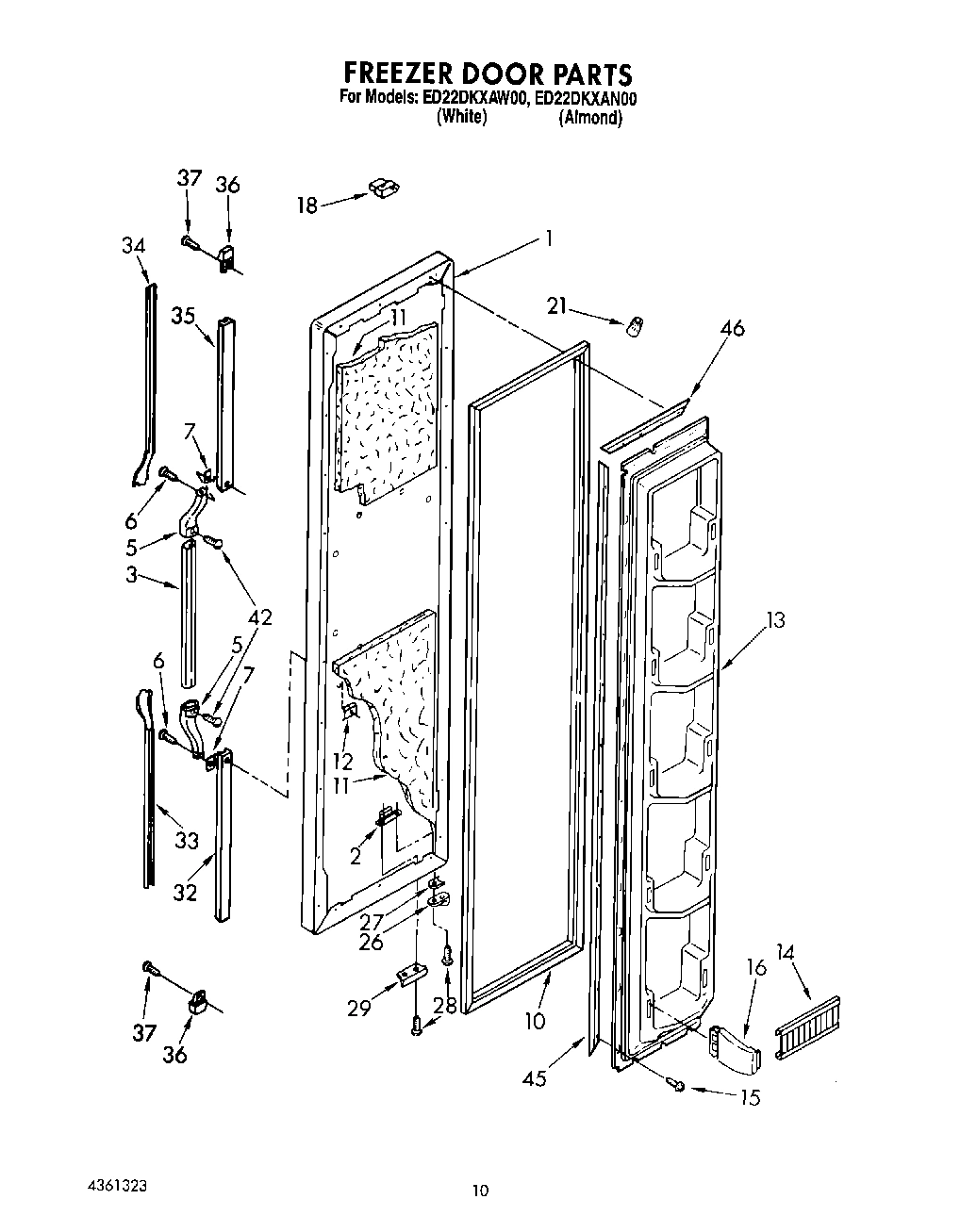

08 - FREEZER DOOR, LIT/OPTIONAL

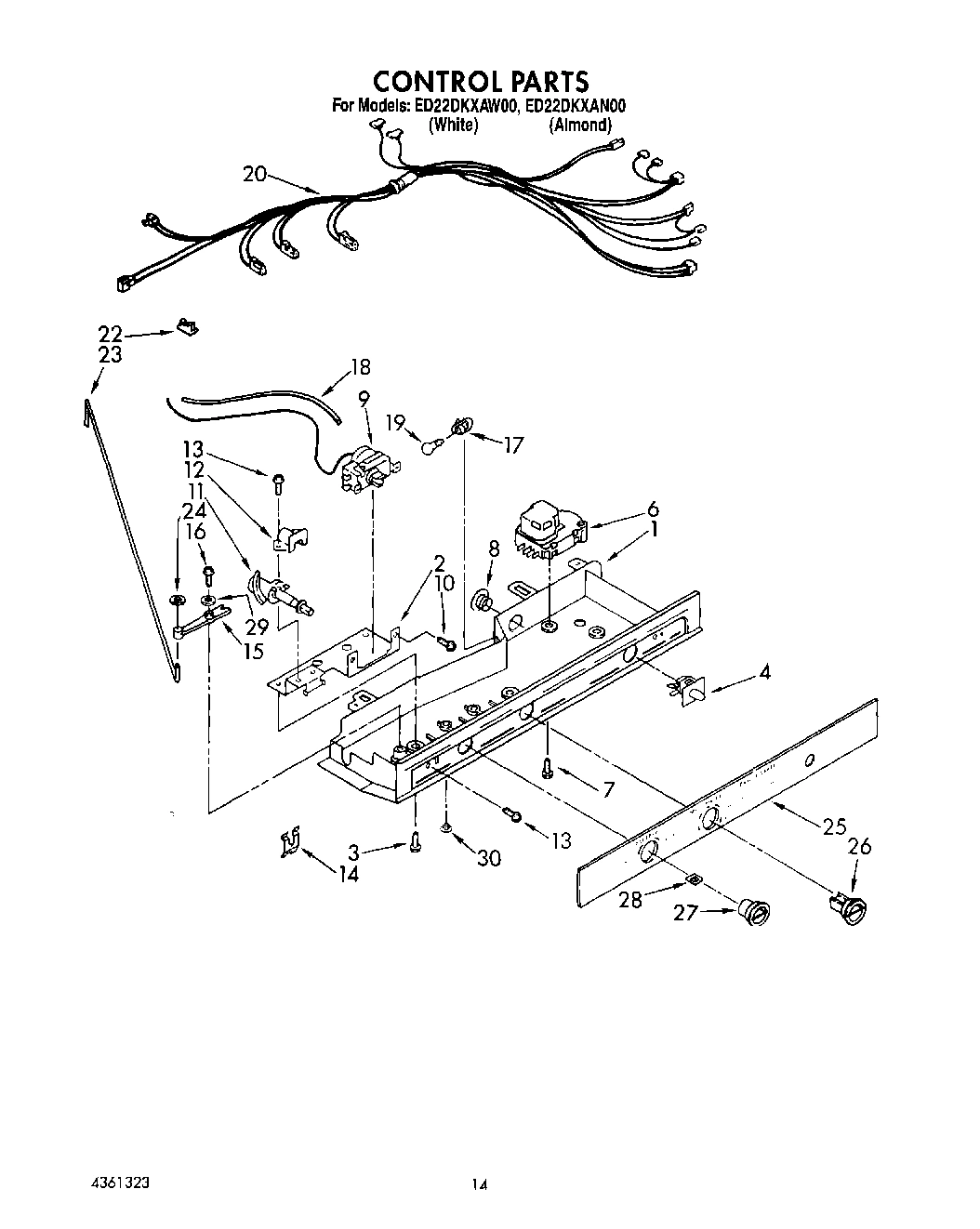

10 - CONTROL

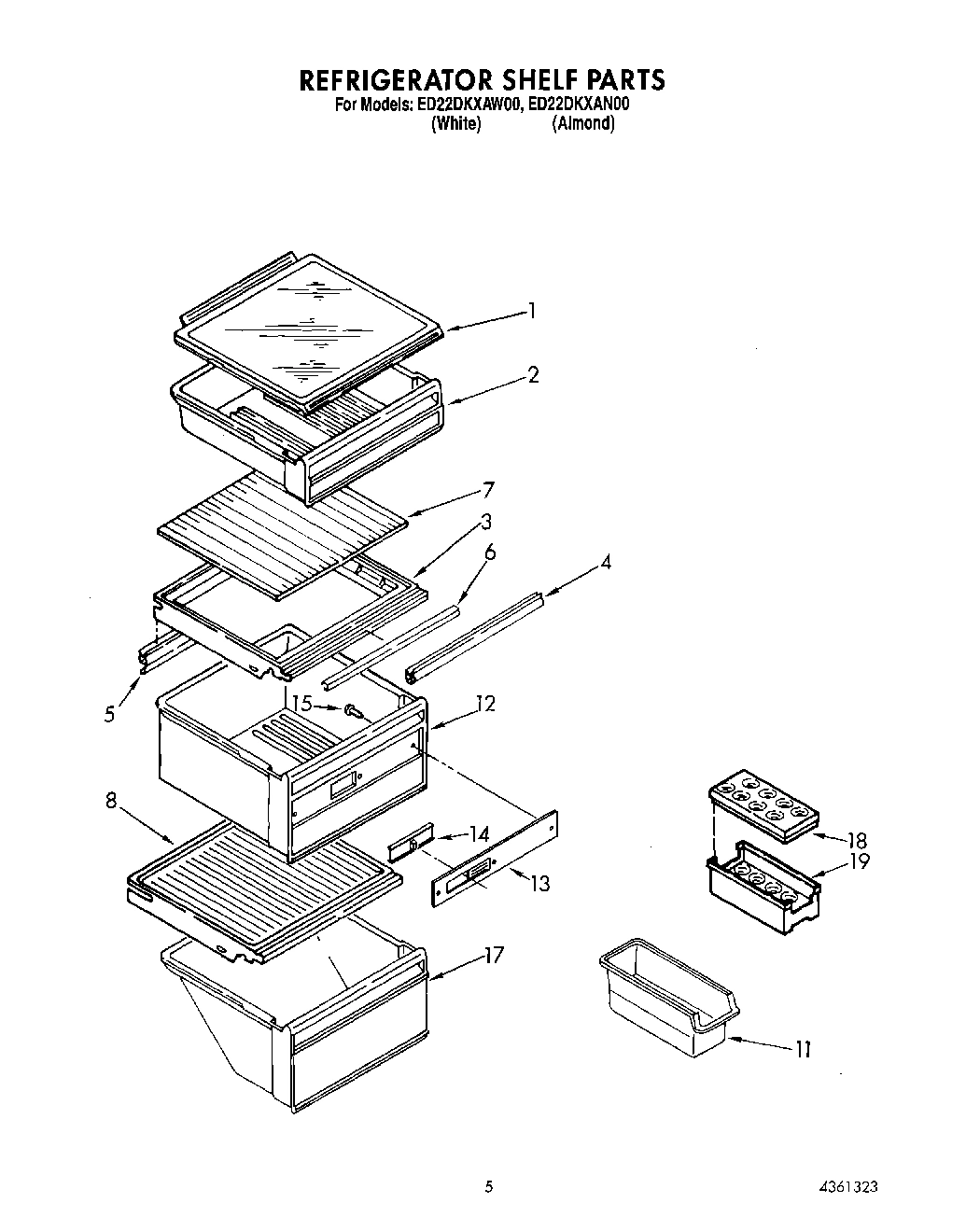

04 - REFRIGERATOR SHELF

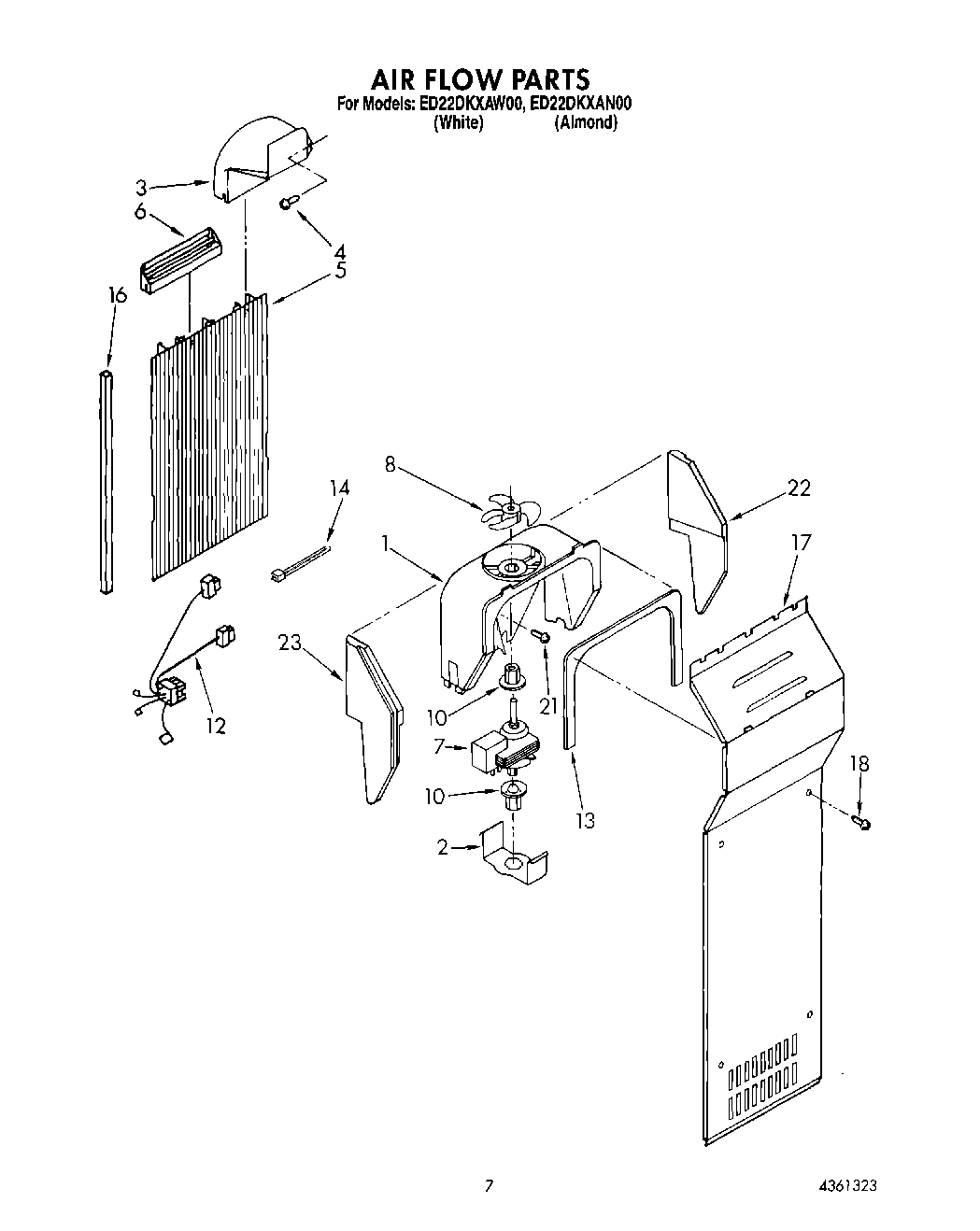

06 - AIR FLOW

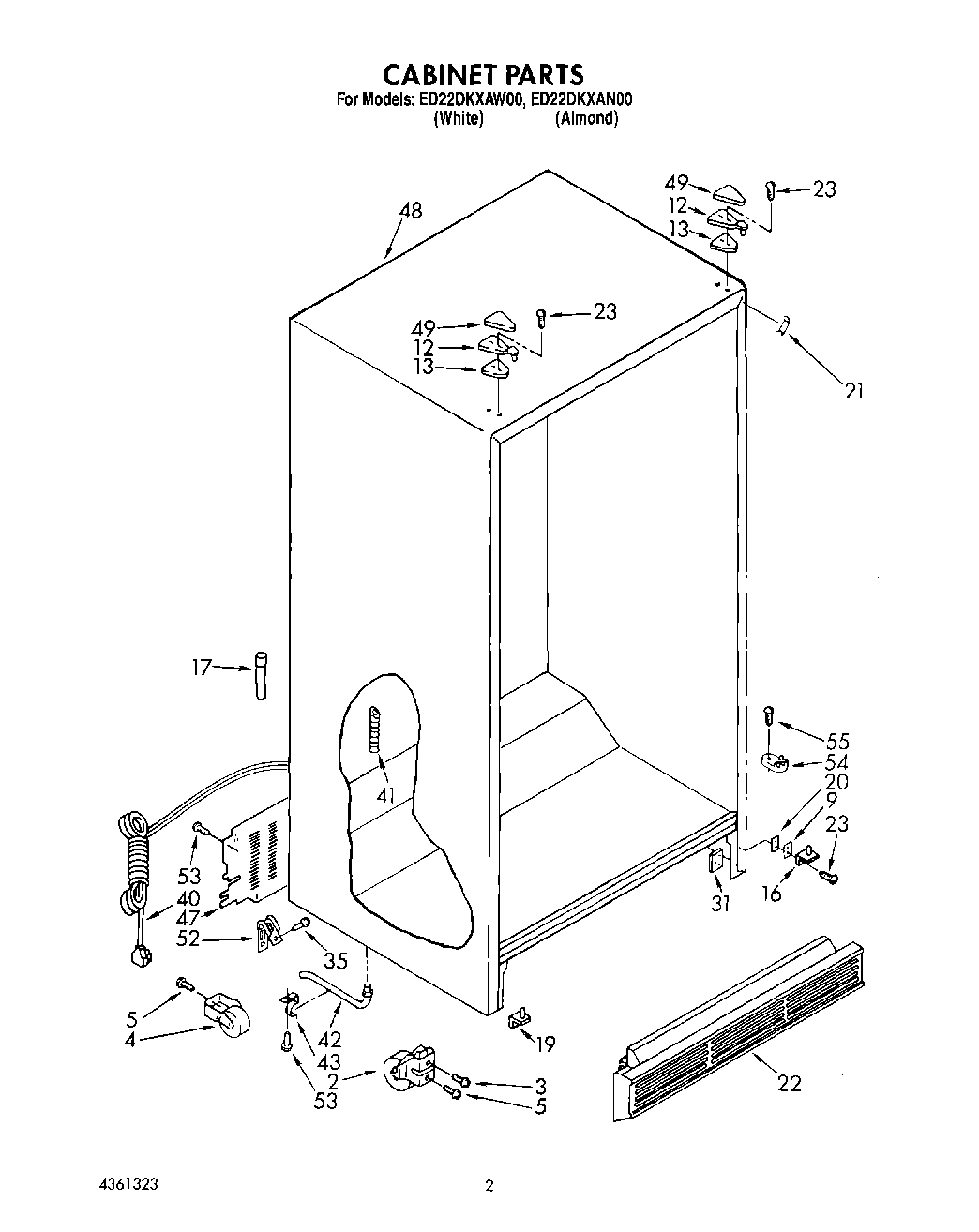

02 - CABINET

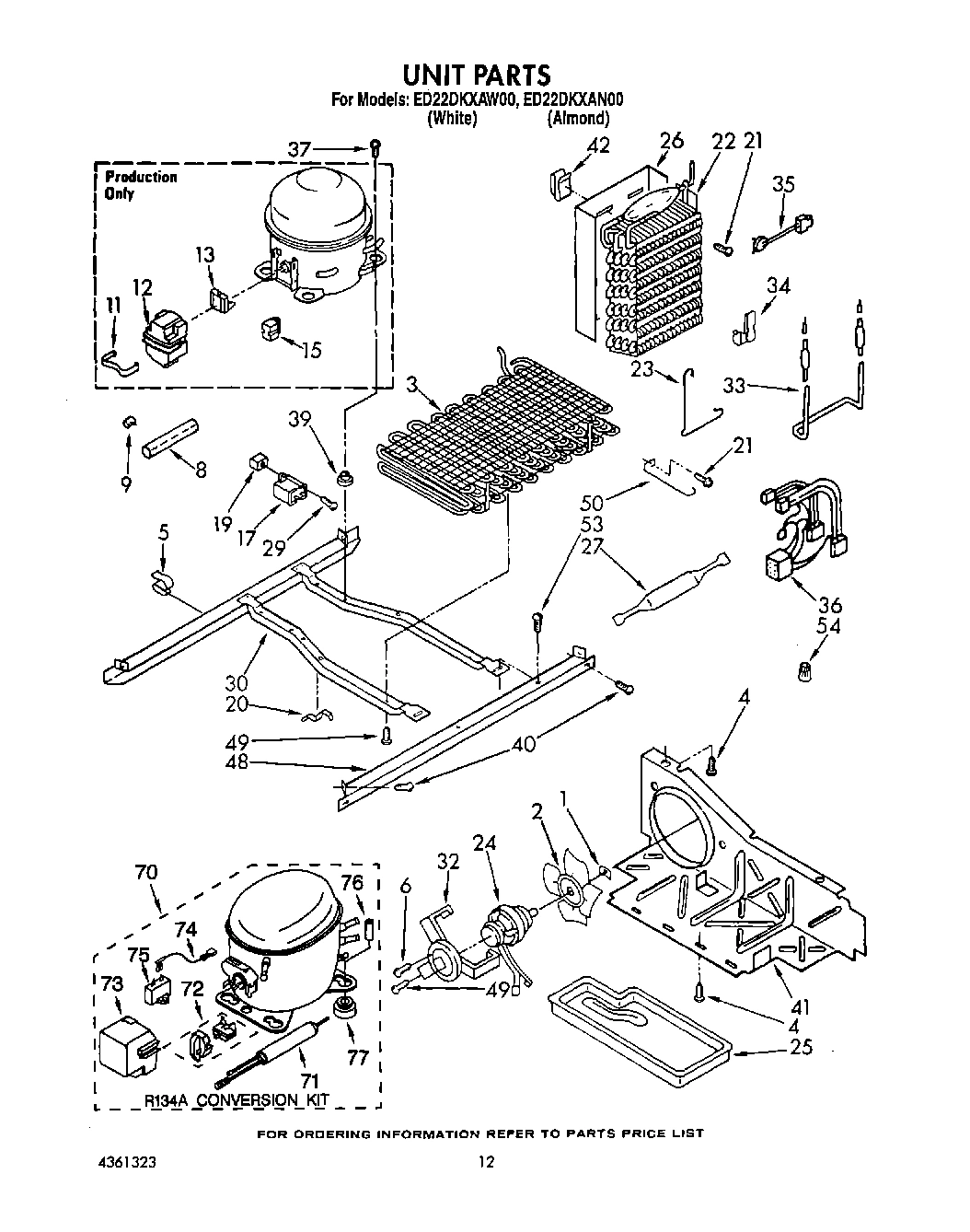

09 - UNIT

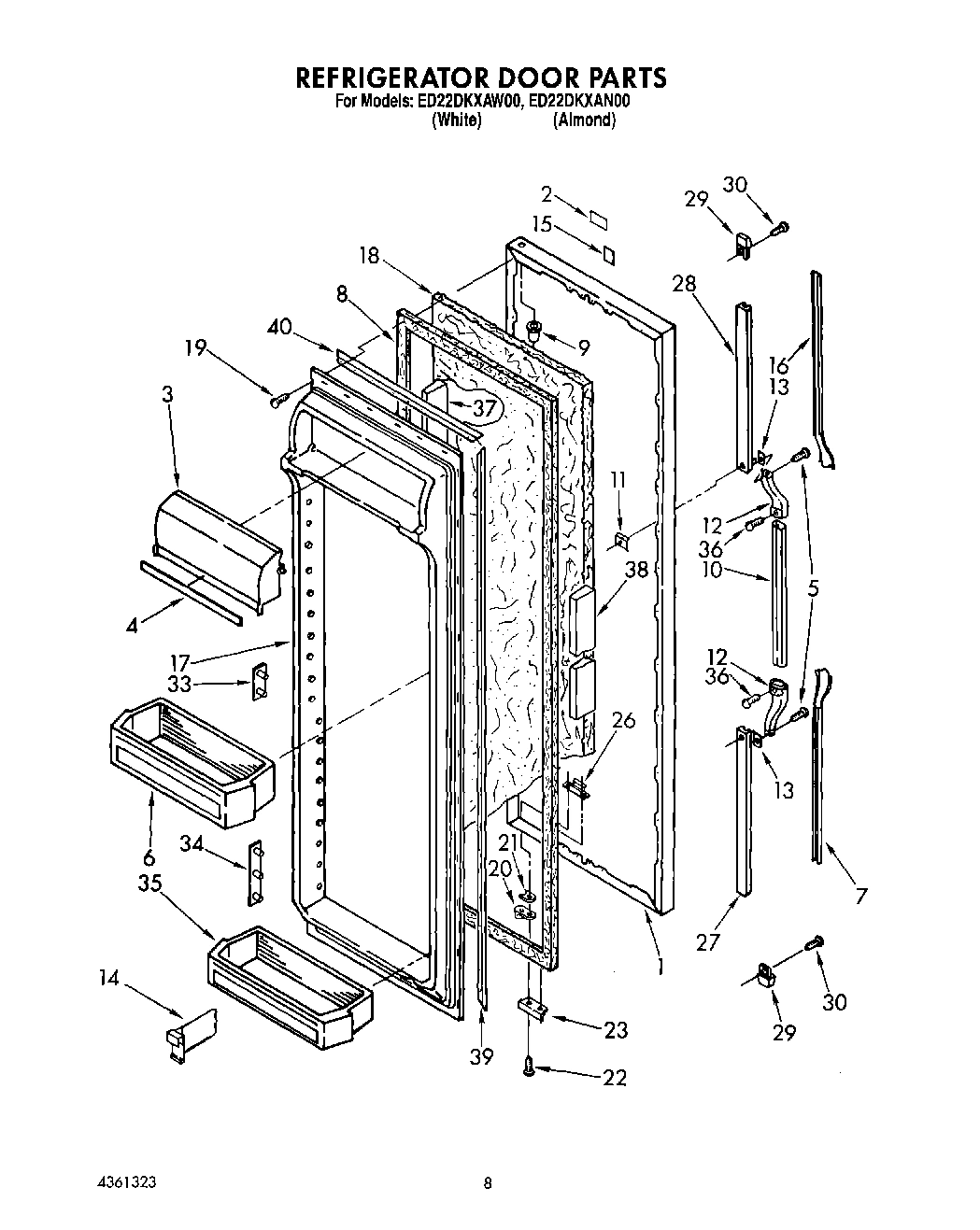

07 - REFRIGERATOR DOOR

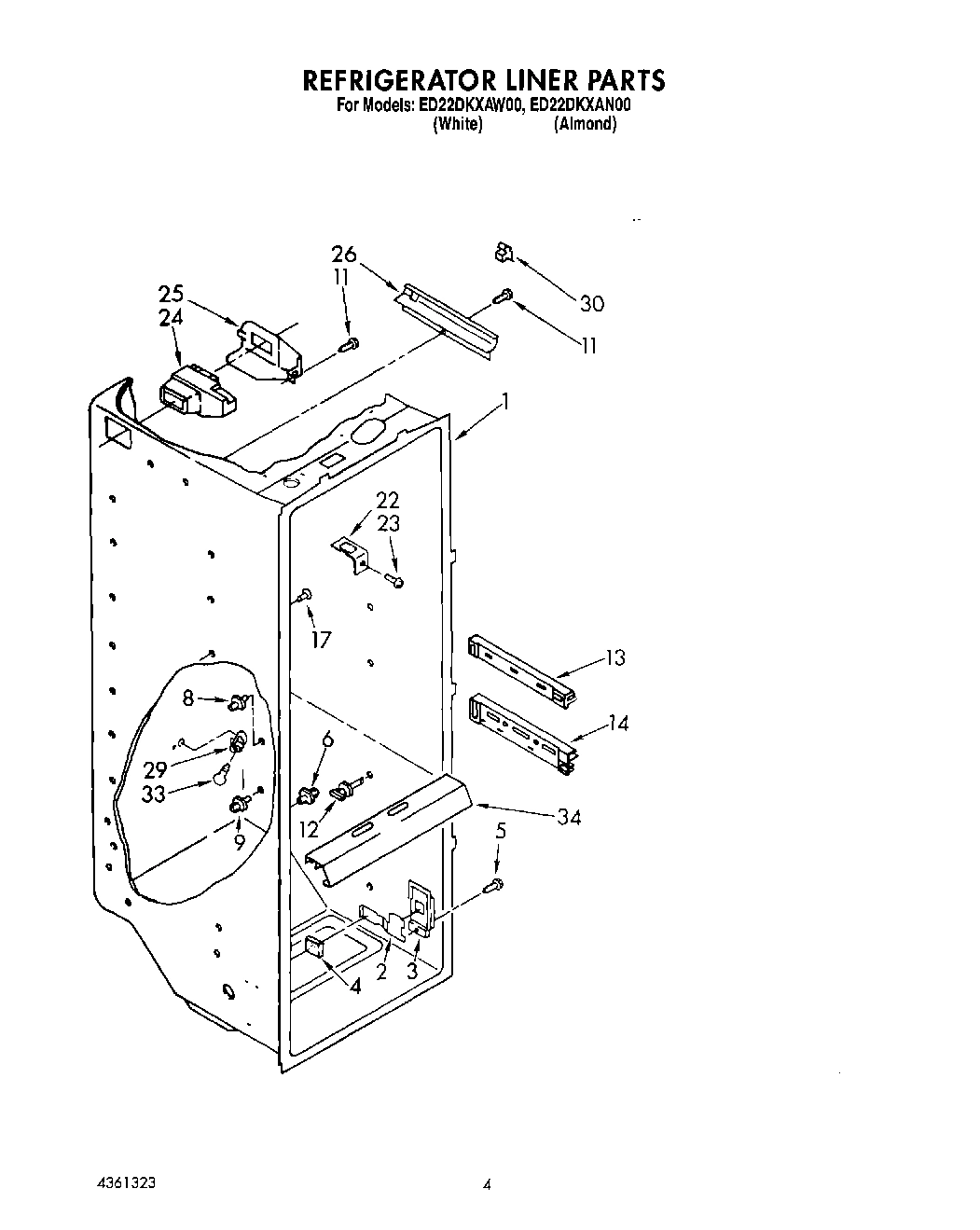

03 - REFRIGERATOR LINER

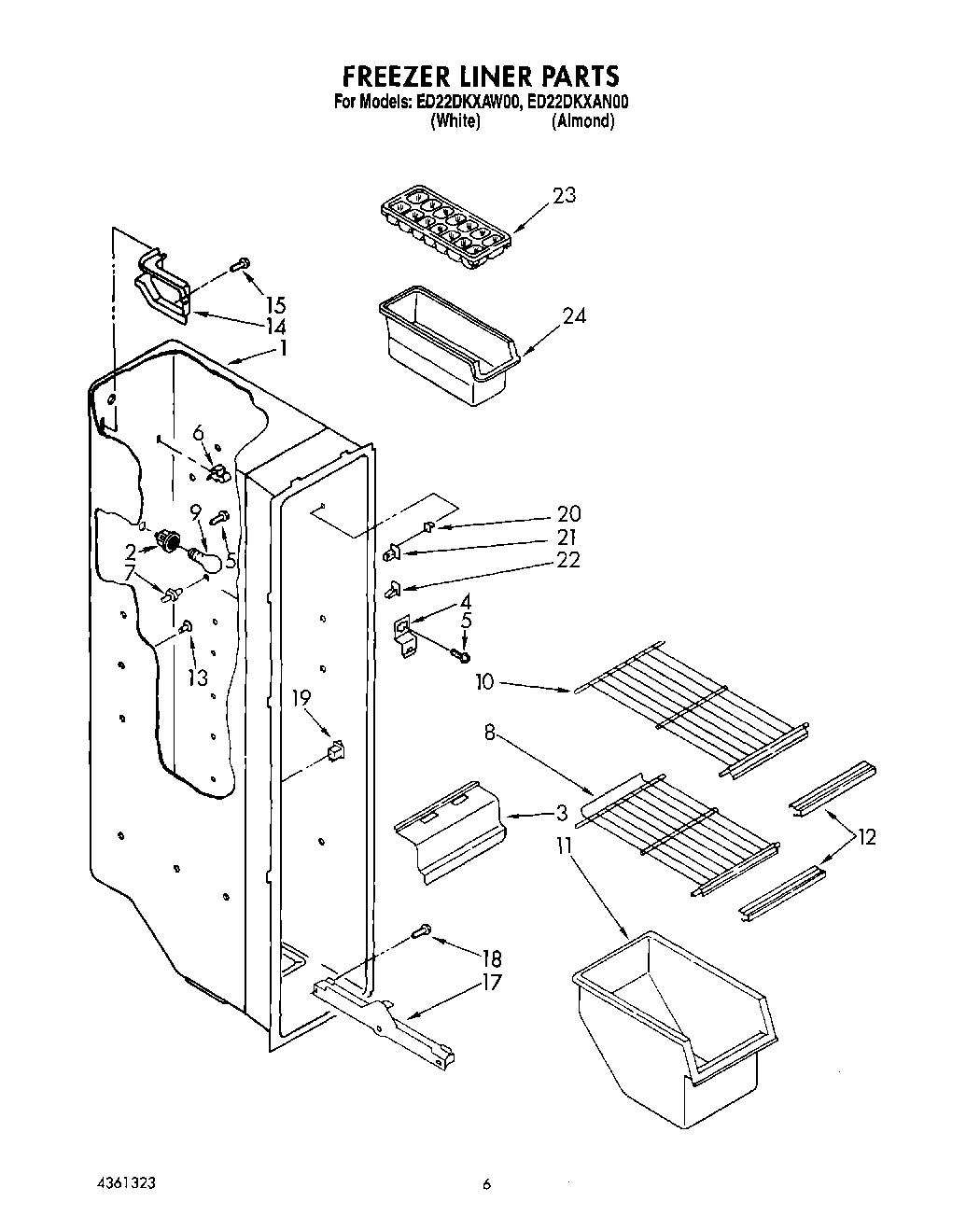

05 - FREEZER LINER
Common parts from model Whirlpool ED22DKXAW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
1
refrigerator door (white) WPL 1115273 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1115276 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26260A3 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26261A6 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Nameplate WPL 2148544 Contact Us For Availability
2
Nameplate (For Model ED22DKXAN00) WPL 2162698 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Support Clip Ice Maker WPL 2155021 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
8
Shelf (Large 2) WPL 1114609 Contact Us For Availability
8
Shelf (Small 1) WPL 1118165 Contact Us For Availability
9
Stud (4) WPL 1115290 No Longer Available
9
Shim WPL 836196 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Handle, Center (White) WPL 1124713 Contact Us For Availability
10
Handle, Center (Almond) WPL 943079 Contact Us For Availability
10
Shelf WPL 1114608 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
12
Pan, Crisper WPL 2162711 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Trim, Shelf WPL 2149090 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Front, Crisper Pan WPL 2162712 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154857 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Slide, Humidity Control WPL 2148524 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Cover, Wiring WPL 2152644 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Screw (3) WPL 489268 Contact Us For Availability
15
Relay (See Overload) WPL ARI26262A3 Contact Us For Availability
15
Tape Strip WPL 991259 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Insert, Handle (White) WPL 1119367 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
17
Meat Pan WPL 2162710 Contact Us For Availability
17
Water Inlet Tube WPL 2155247 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Slide, Freezer Bin WPL 1115383 Contact Us For Availability
18
Egg Container-Top WPL 2164174 Contact Us For Availability
18
screw WPL 487979 Contact Us For Availability
19
Egg Container- Bottom WPL 2164173 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 1125663 Contact Us For Availability
22
Grille (Almond) WPL 1125667 Contact Us For Availability
22
Stud, Rear WPL 1106982 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Clamp WPL 2161329 Contact Us For Availability
23
Bracket, Door Stop WPL 988420 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
30
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Pin Plate (8) WPL 1116986 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Shelf Bin (2) WPL 1124847 Contact Us For Availability
36
Unit, Harness WPL 2153994 Contact Us For Availability
36
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
46
WPL 876029 WPL 876029 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
WPL 799344 WPL 799344 Contact Us For Availability
47
Cover, Unit WPL 2161316 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI26259A2 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388006 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
