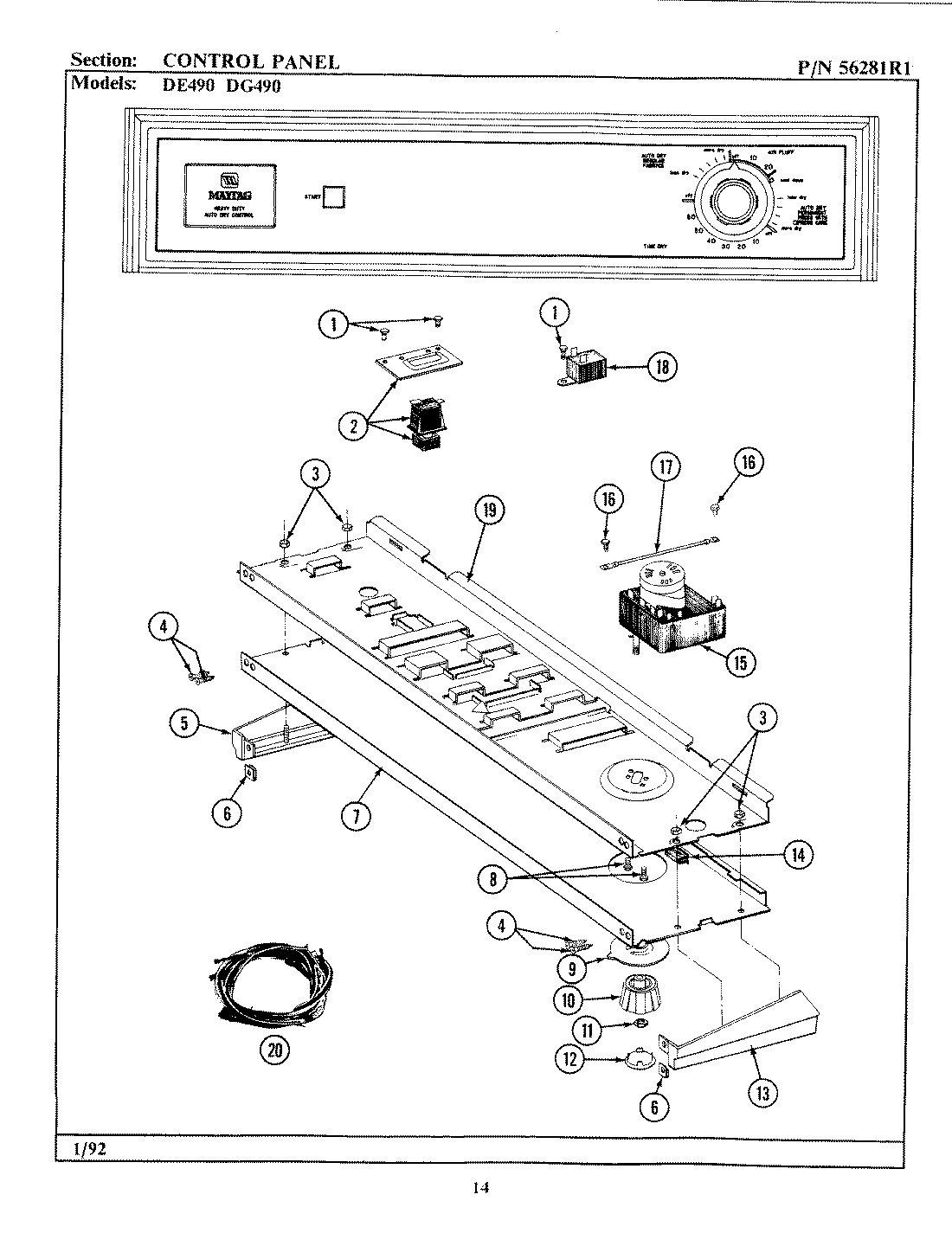

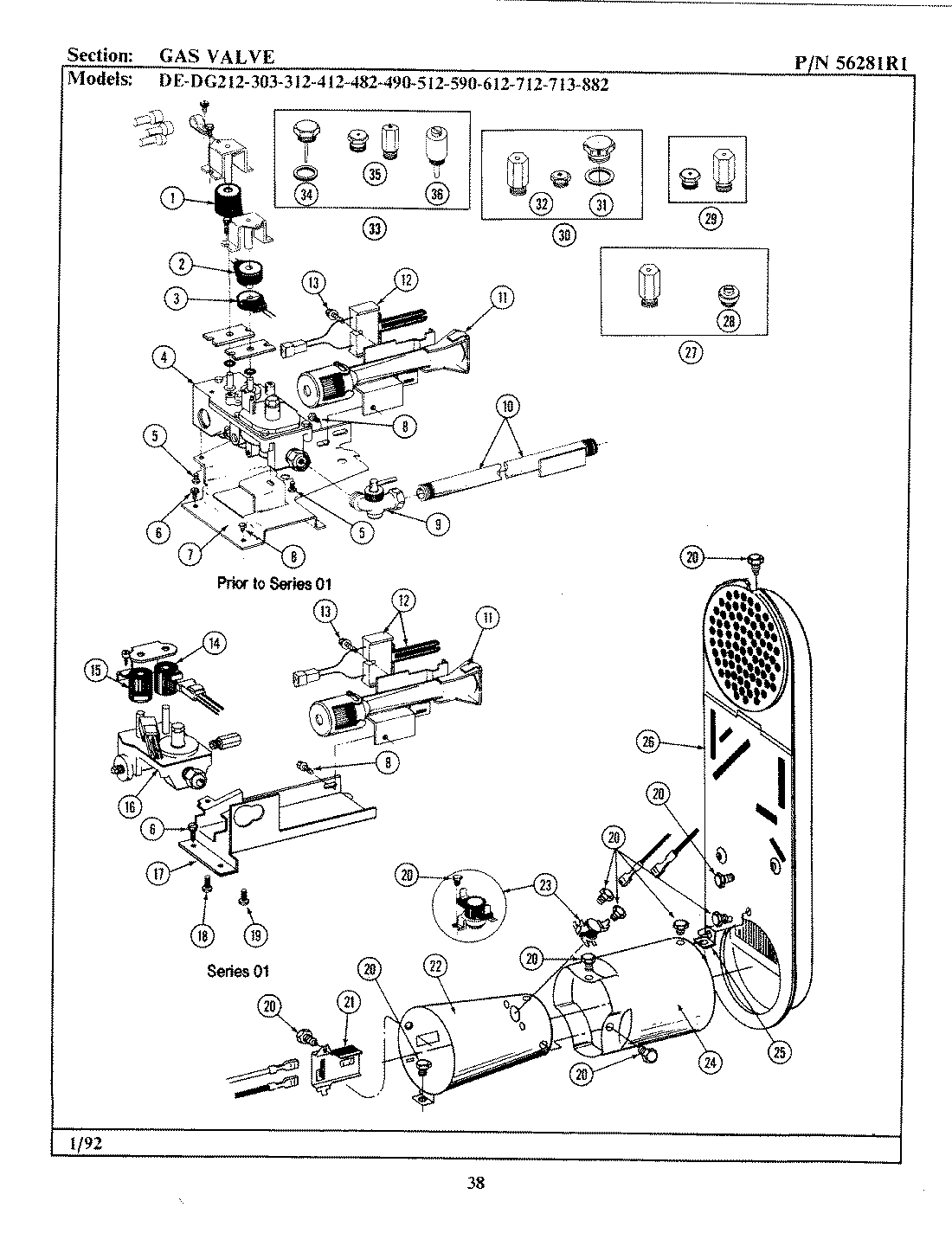

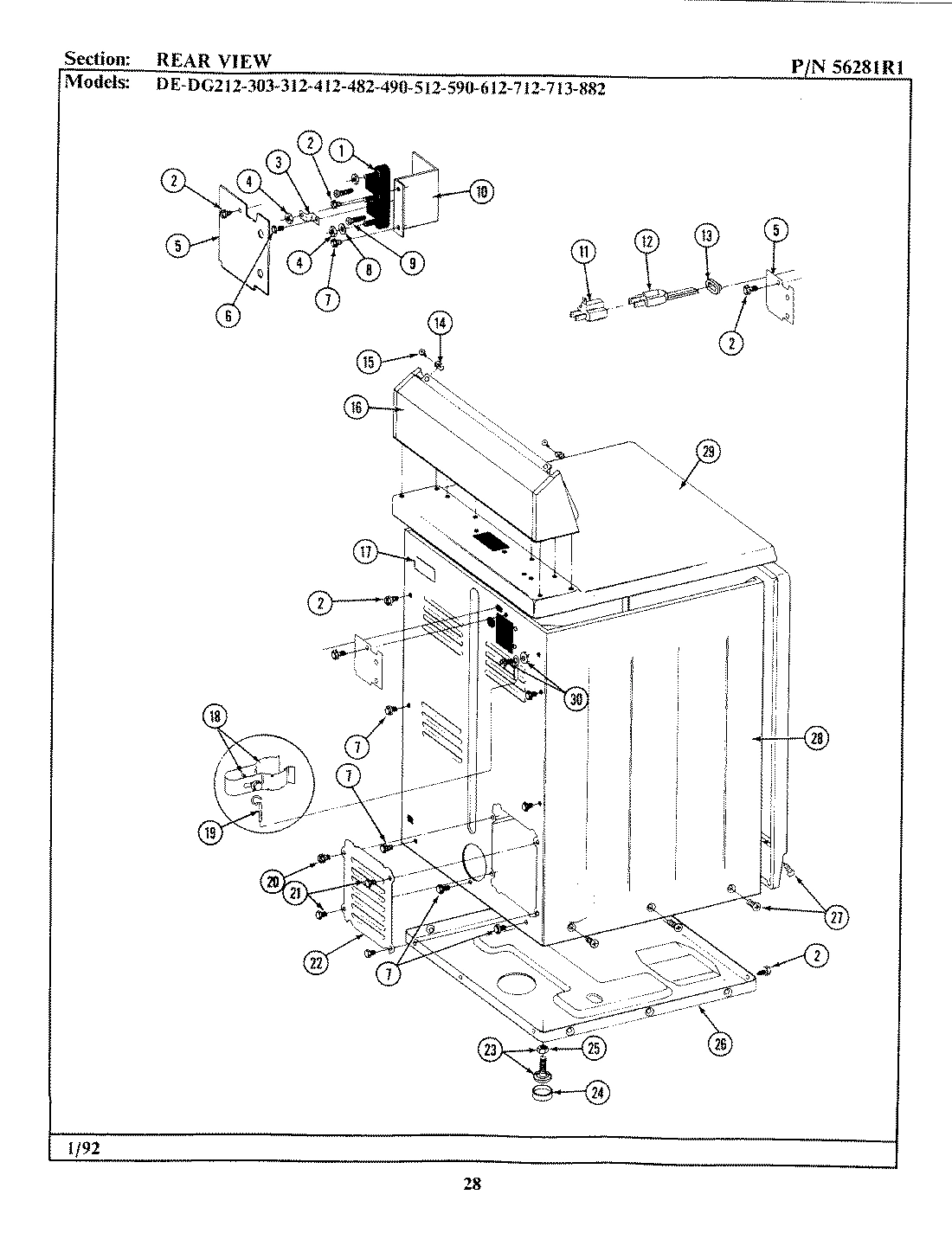

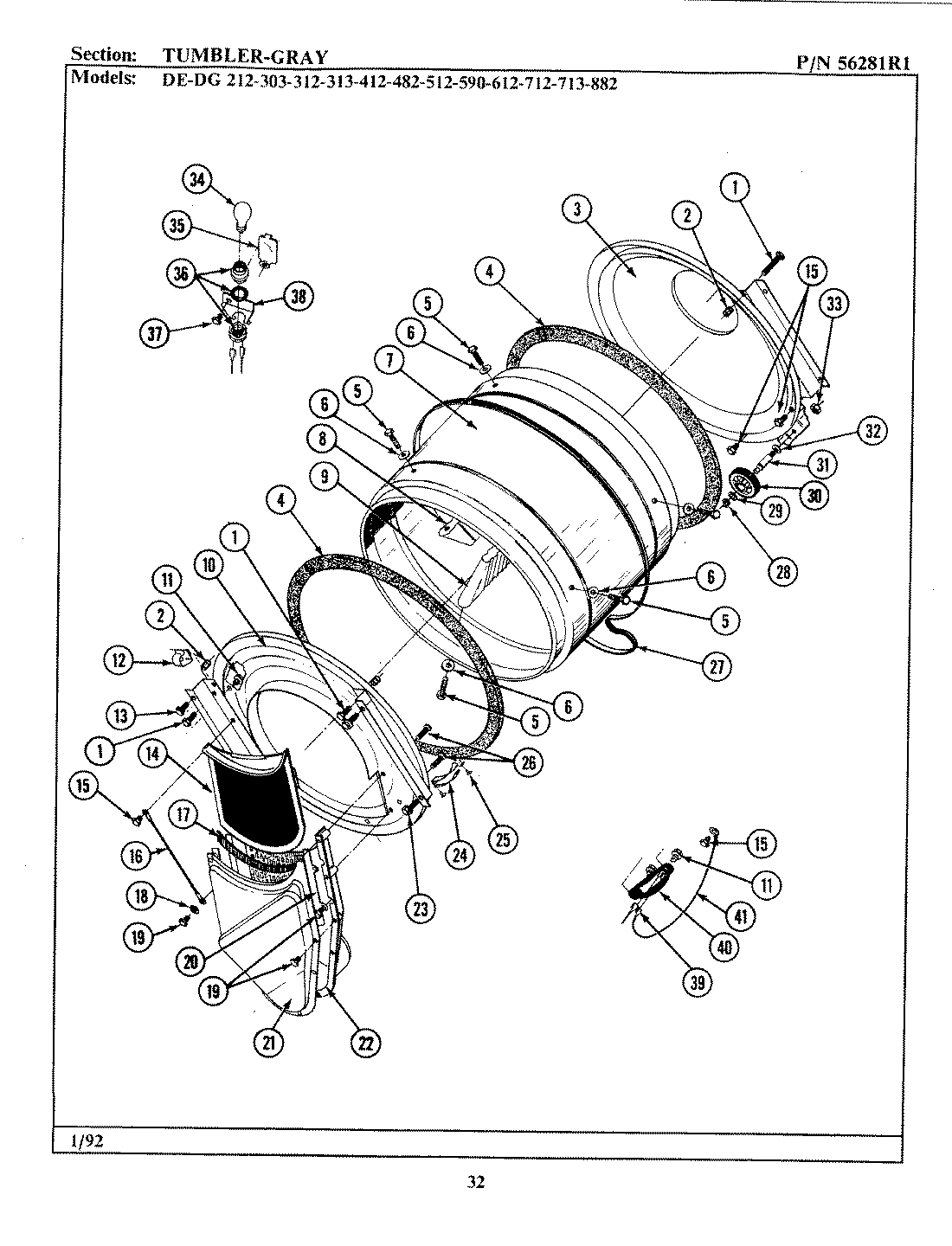

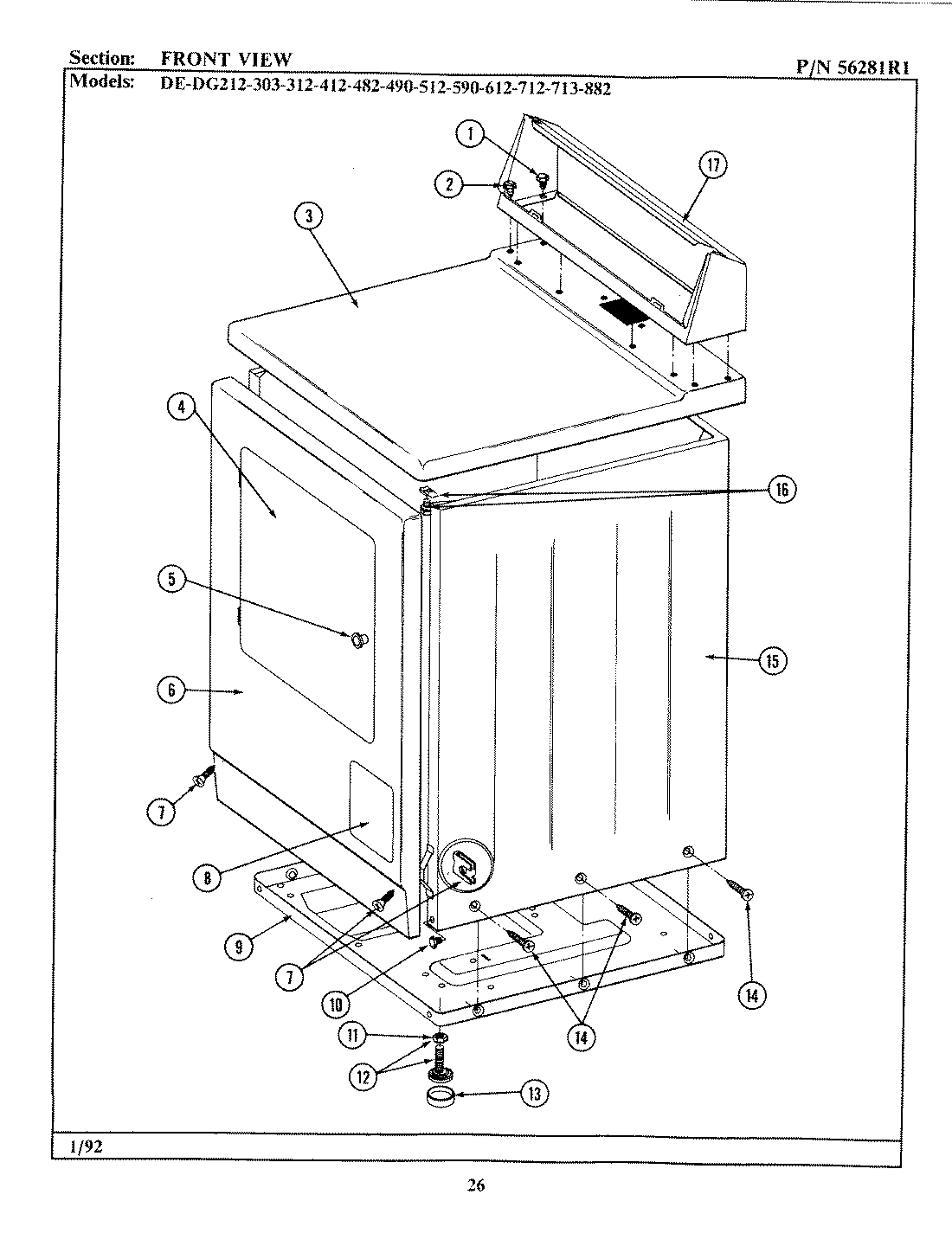

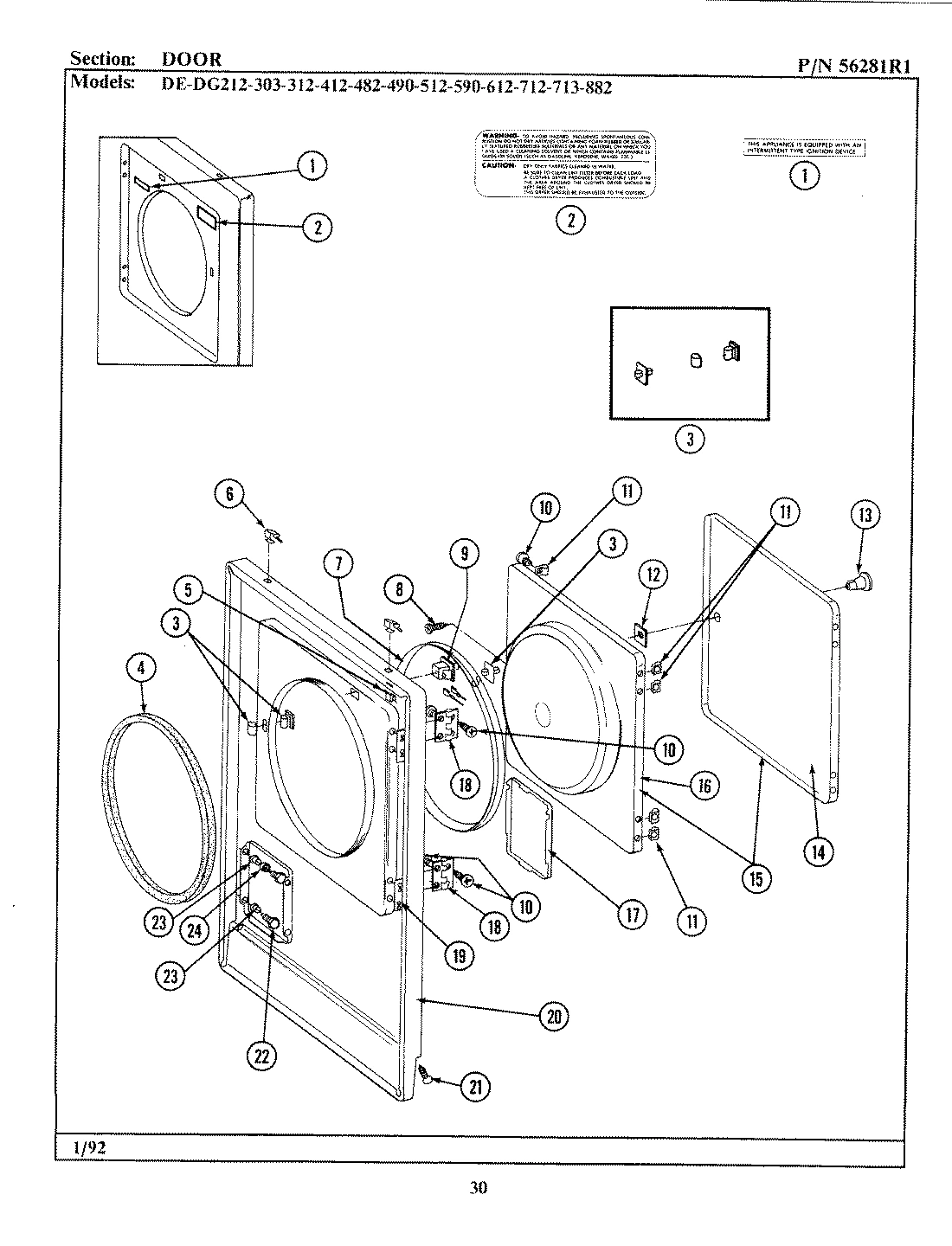

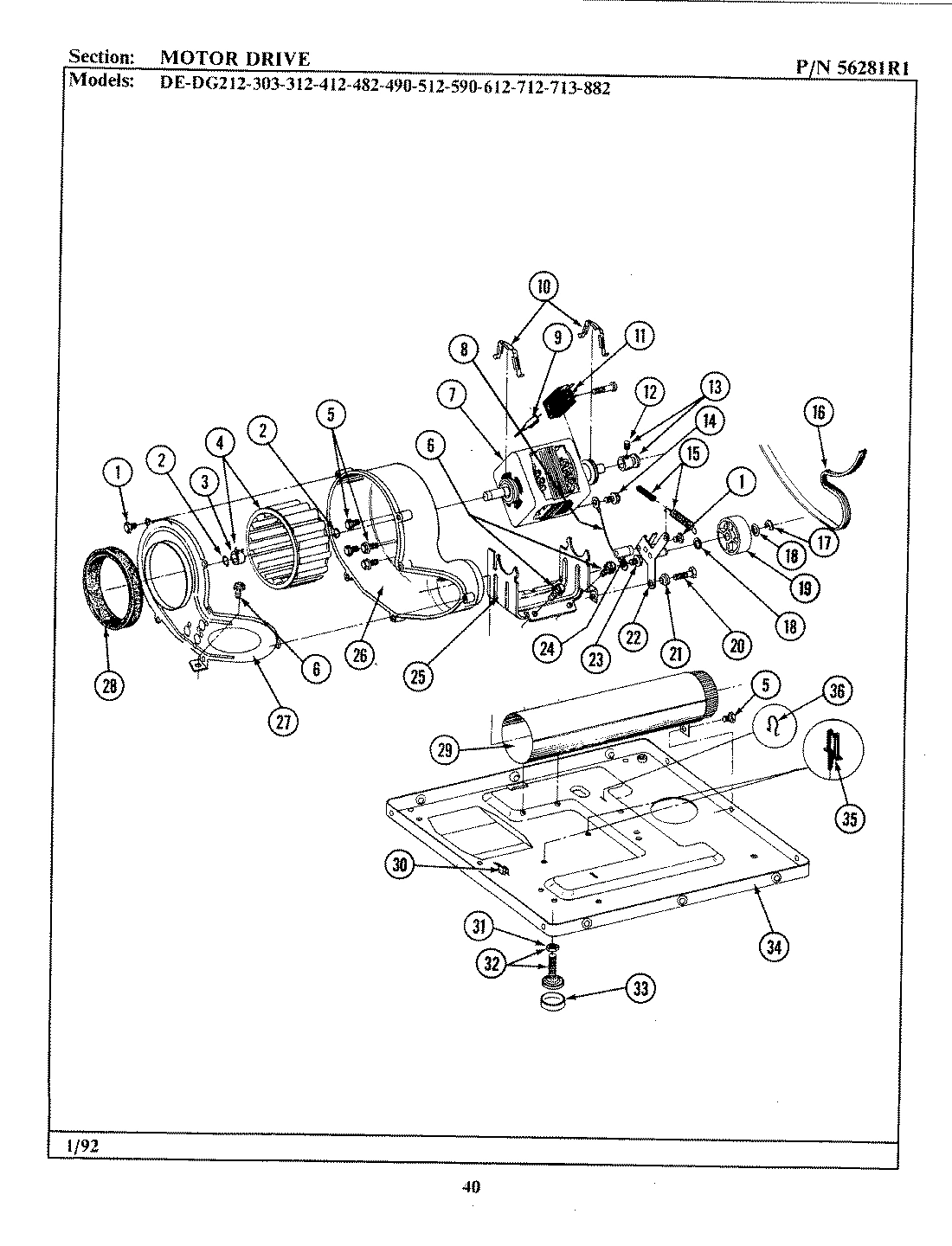

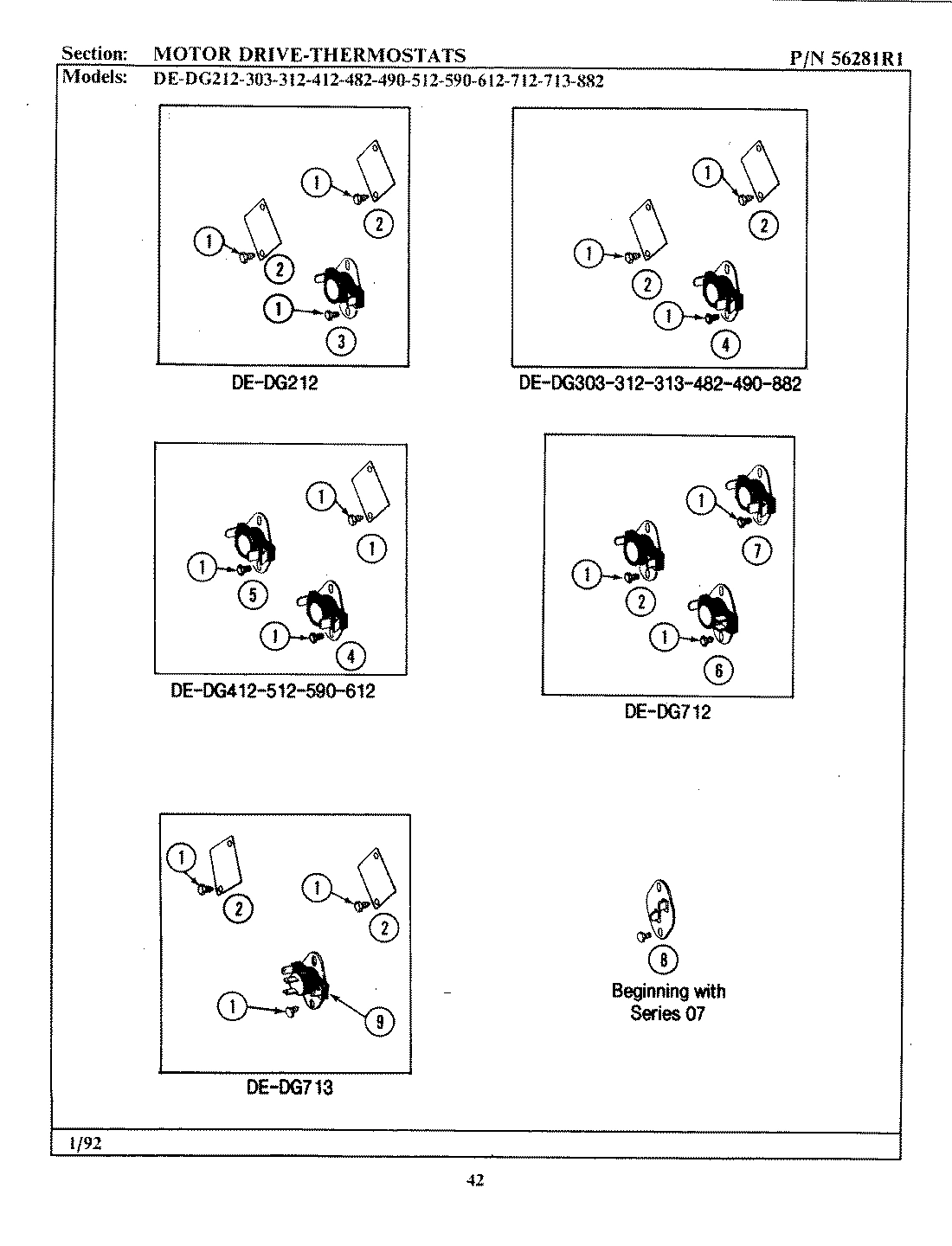

Model Whirlpool DG490 GAS DRYER – Common Parts &amp; Diagrams

1

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

1

SCREW WPL 313764 Contact Us For Availability

1

GAS IGNITION LABEL WPL 314119 Contact Us For Availability

1

LOCK WASHER WPL 211194 Contact Us For Availability

2

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

2

SCREW----NA WPL Y313561 Contact Us For Availability

2

COVER, THREAD WPL 313915 Contact Us For Availability

2

SWITCH, PUSH/TO/START W/BKT WPL 306533 Contact Us For Availability

2

INSTRUCTION LABEL WPL Y313927 Contact Us For Availability

2

HOLDING COIL WPL 305604 Contact Us For Availability

2

COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability

3

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

3

WP305605 Whirlpool Coil Assembly Backorder WPL WP305605 $84.36

3

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

3

TUMBLER BACK WPL Y306660 Contact Us For Availability

3

PALNUT, END CAP WPL 214872 Contact Us For Availability

3

TOP COVER ASSY WPL 307104 Contact Us For Availability

4

WP33313541 Whirlpool Tumbler Seal In Stock WPL WP33313541 $37.77

4

WPY304475 Whirlpool Dryer Cycling Thermostat In Stock WPL WPY304475 $58.57

4

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $27.73

4

GAS VALVE WPL W10116794 Contact Us For Availability

4

SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability

4

DOOR WPL Y306668 Contact Us For Availability

5

SCREW WPL Y310759 Contact Us For Availability

5

END CAP F/CONTROL PANEL-LH WPL 214815 Contact Us For Availability

5

KNOB AND SCREW WPL 303942 Contact Us For Availability

5

SCREW, HEX HD No.8 X 3/8 INCH WPL 211410 Contact Us For Availability

5

COVER, TERMINAL WPL Y312905 Contact Us For Availability

6

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

6

WASHER WPL 314158 Contact Us For Availability

6

FASTENER, END CAP WPL 214894 Contact Us For Availability

6

FRONT PANEL-WHITE WPL 304594 Contact Us For Availability

7

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $130.21

7

TUMBLER WPL 305187 Contact Us For Availability

7

TUMBLER WPL Y314153 Contact Us For Availability

7

CONTROL PANEL WPL 306132 Contact Us For Availability

7

CONTROL PANEL WPL 306387 Contact Us For Availability

7

DOOR SEAL WPL 314077 Contact Us For Availability

7

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

7

GAS VALVE BRACKET WPL 312929 Contact Us For Availability

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

8

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $20.71

8

TUMBLER BAFFLE - SHORT WPL 314154 Contact Us For Availability

8

ACCESS DOOR-WHITE WPL 302542 Contact Us For Availability

8

WIRE, GROUND WPL 901220 Contact Us For Availability

9

33001004 Whirlpool Baffle In Stock WPL 33001004 $71.41

9

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

9

TIMER DIAL INDICATOR WPL 314422 Contact Us For Availability

9

SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability

9

WIRE WPL 306448 Contact Us For Availability

9

BASE ASSY. WPL Y303361 Contact Us For Availability

WFR314421 Whirlpool AD-25,50 T Backorder WPL WFR314421 $31.80

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

SCREW WPL Y310632 Contact Us For Availability

TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability

SCREW WPL Y314062 Contact Us For Availability

PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability

W10155650 Whirlpool Nut Backorder WPL W10155650 $8.89

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $132.39

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

CONVERTER WPL Y201808 Contact Us For Availability

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $22.45

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

CAP FOR KNOB WPL 215164 Contact Us For Availability

DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

POWER CORD WPL 302521 Contact Us For Availability

END CAP F/CONTROL PANEL-RH WPL 214816 Contact Us For Availability

SCREW WPL 304971 Contact Us For Availability

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

GROMMET, CORD WPL 211881 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

WP33001003 Whirlpool Lint Filter In Stock WPL WP33001003 $31.97

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

WP306040 Whirlpool Timer Assembly Backorder WPL WP306040 $225.08

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

DOOR-WHITE WPL Y304579 Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

CABINET-WHITE WPL 305302 Contact Us For Availability

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $23.84

WIRE, GROUND WPL 205810 Contact Us For Availability

INNER DOOR WITH KNOB & SCRE WPL 305835 Contact Us For Availability

INNER DOOR WITH KNOB WPL 306676 Contact Us For Availability

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

LINT SEAL WPL Y313796 Contact Us For Availability

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

BRACKET, GAS VALVE WPL 314566 Contact Us For Availability

CONSOLE (WHT) WPL Y305193 Contact Us For Availability

LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

WASHER WPL 310557 Contact Us For Availability

DOOR HINGE WPL Y304577 Contact Us For Availability

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

19

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $18.21

19

BACK UP PLATE WPL 314184 Contact Us For Availability

19

TWIN FASTENER WPL Y313907 Contact Us For Availability

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability

WIRE HARNESS WPL 306143 Contact Us For Availability

WIRE HARNESS WPL 306183 Contact Us For Availability

WIRE HARNESS WPL 306809 Contact Us For Availability

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $56.49

OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability

OUTLET DUCT & GRID WPL 306657 Contact Us For Availability

OUTLET DUCT ASSEMBLY WPL Y304810 Contact Us For Availability

SCREW WPL 212949 Contact Us For Availability

CONE, COMBUSTION WPL Y303368 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

23

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

23

BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $33.58

SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

25

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

25

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

25

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

26

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

26

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

26

INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability

27

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $57.79

27

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

27

COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability

28

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

28

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $46.55

29

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

29

MAIN BURNER ORIFICE KIT-MIX WPL 305862 Contact Us For Availability

29

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

CONVERSION KIT-LPG TO NAT. WPL Y304672 Contact Us For Availability

31

SCREW ASSEMBLY - LEAK LIMIT WPL 302809 Contact Us For Availability

32

MAIN BURNER ORIFICE KIT-NAT WPL 305860 Contact Us For Availability

33

MAL9000AXX Whirlpool LP Gas Conversion Kit In Stock WPL MAL9000AXX $43.50

33

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

34

SCREW ASSM - BLUE BLOCK OPE WPL 302810 Contact Us For Availability

35

MAIN BURNER ORIFICE KIT-LPG WPL 305861 Contact Us For Availability

35

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability

36

PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability

36

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
