Model Whirlpool DG22CA GAS DRYER – Common Parts & Diagrams

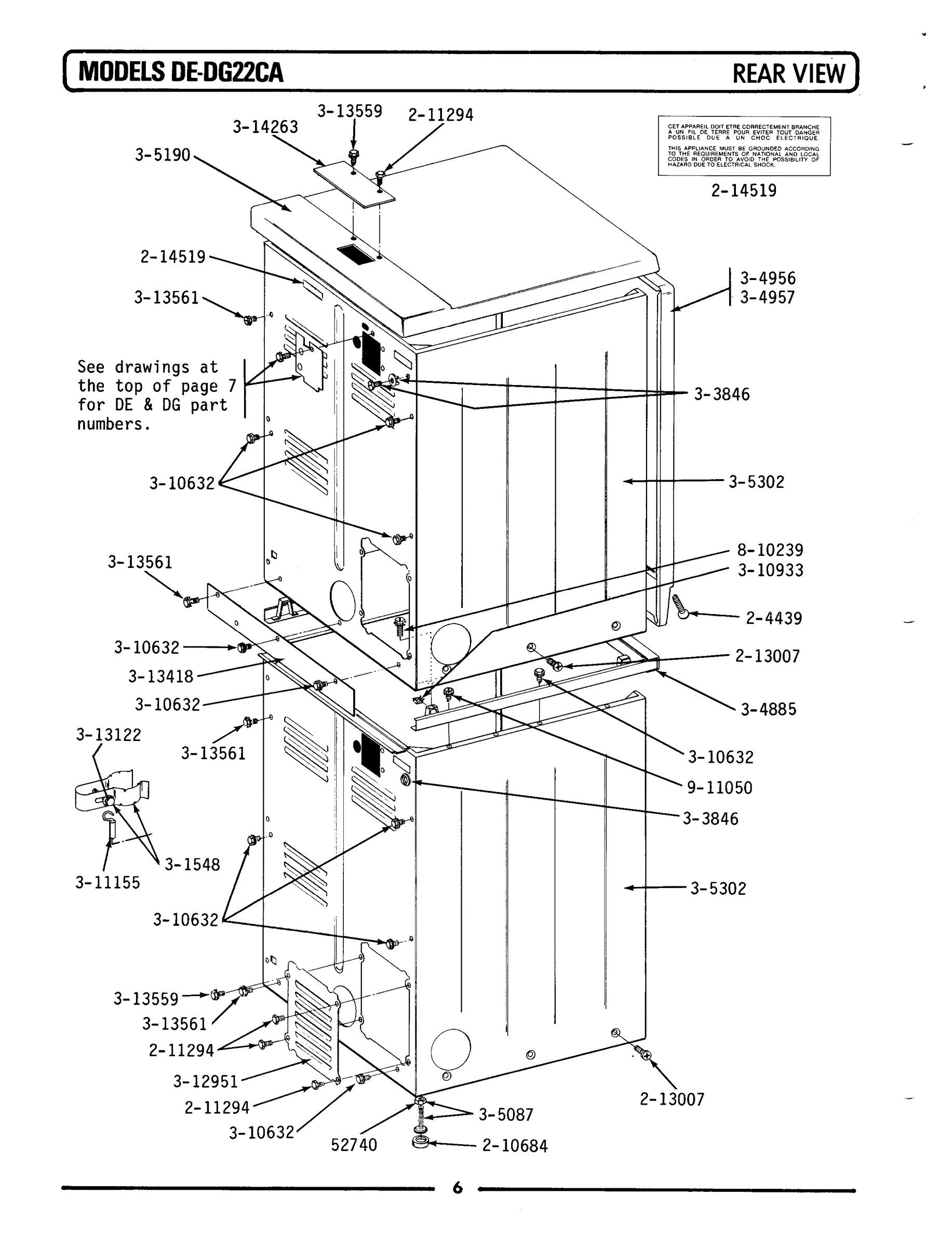

02 - REAR VIEW

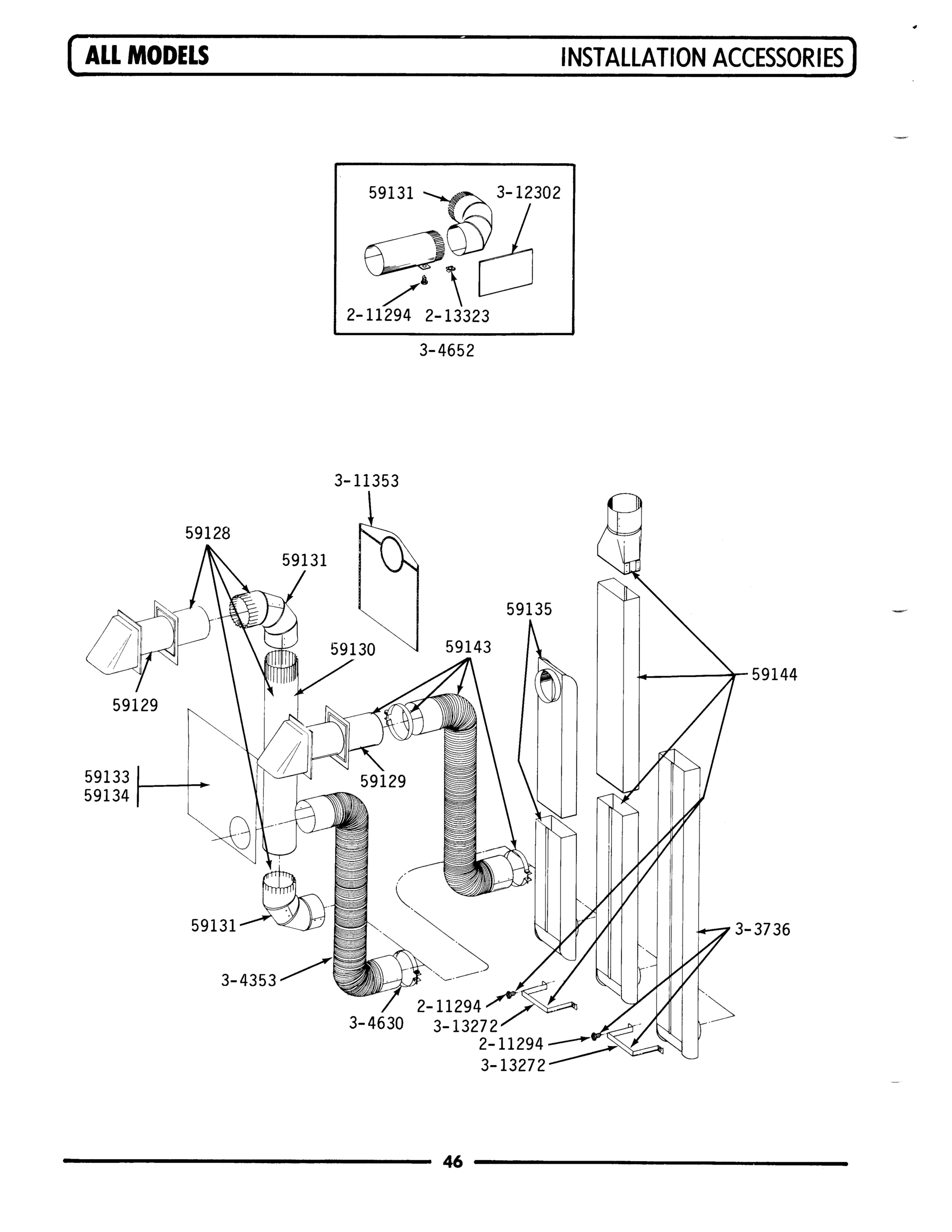

10 - INSTALLATION ACCESSORIES

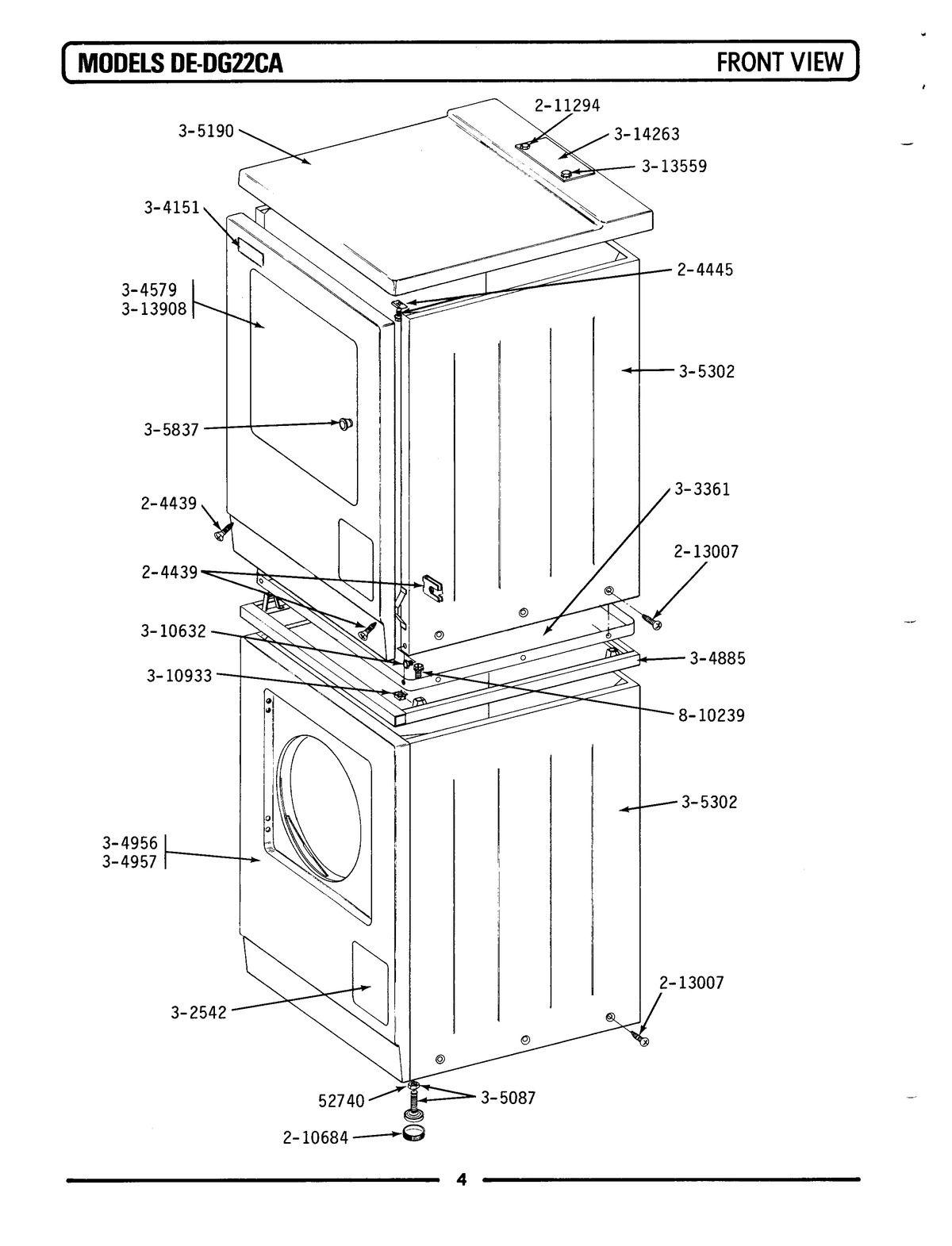

01 - FRONT VIEW

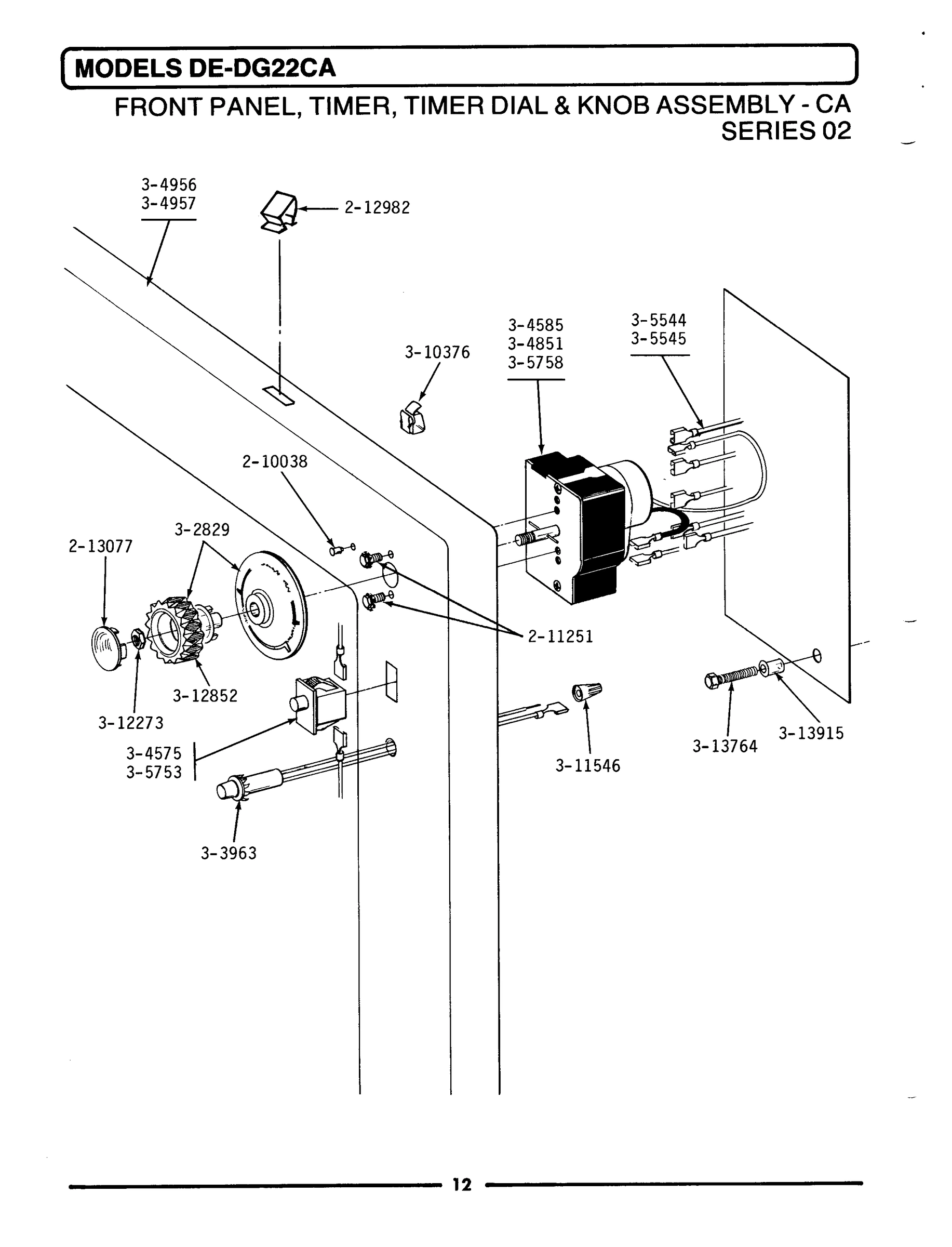

03 - FRONT PANEL, TIMER, TIMER DIAL & KNOB

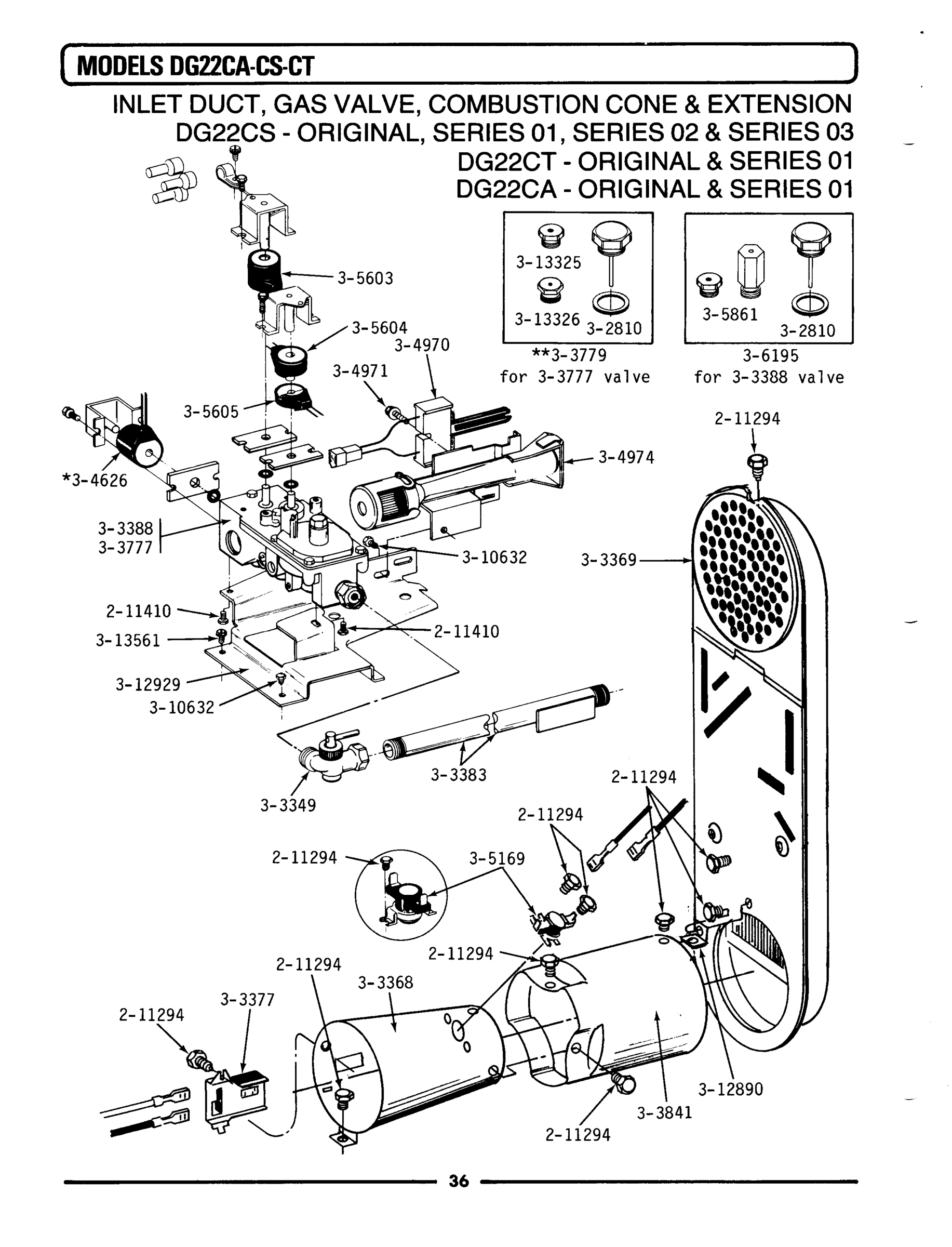

07 - INLET DUCT, GAS VALVE & COMBUSTION CONE

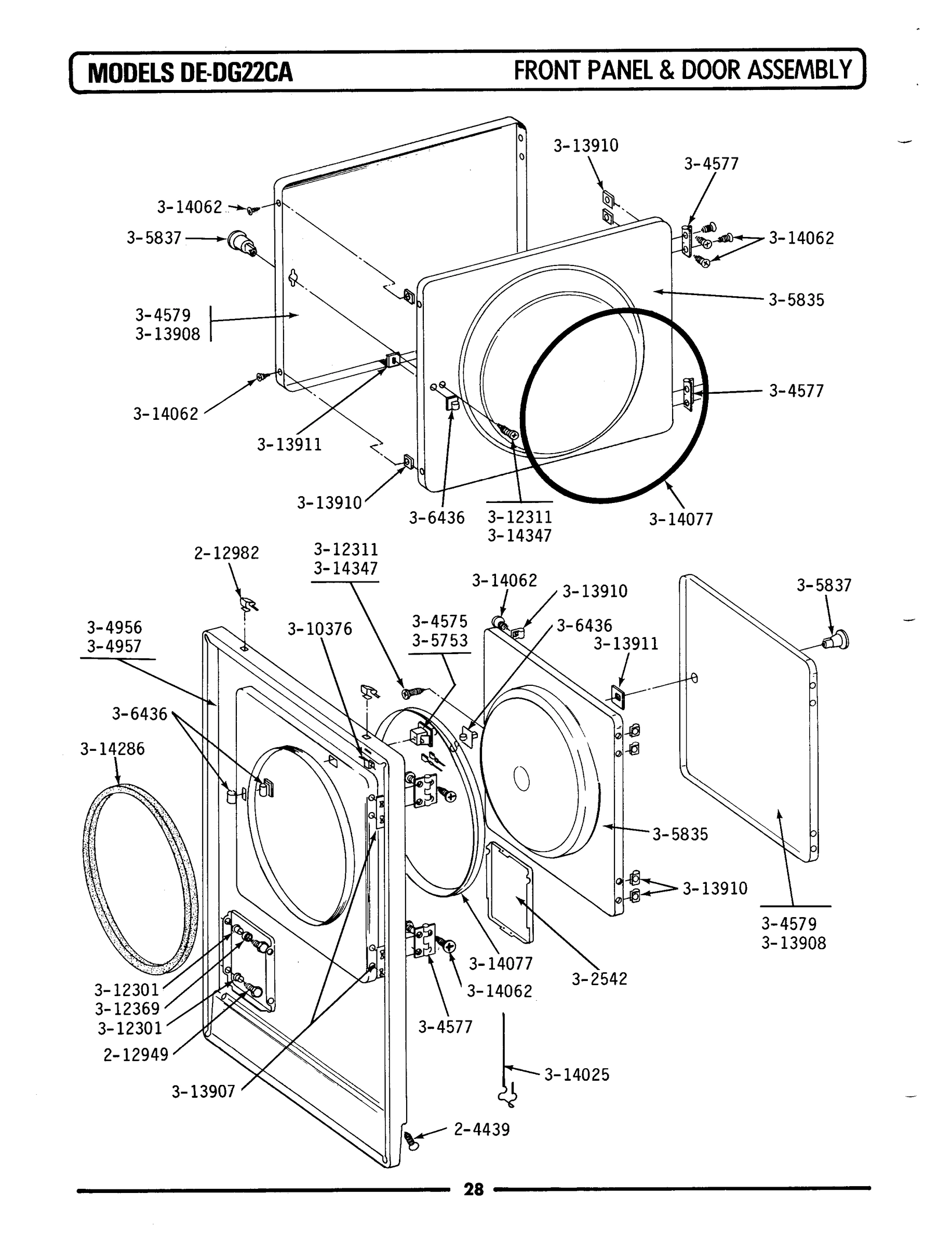

04 - FRONT PANEL & DOOR ASSEMBLY

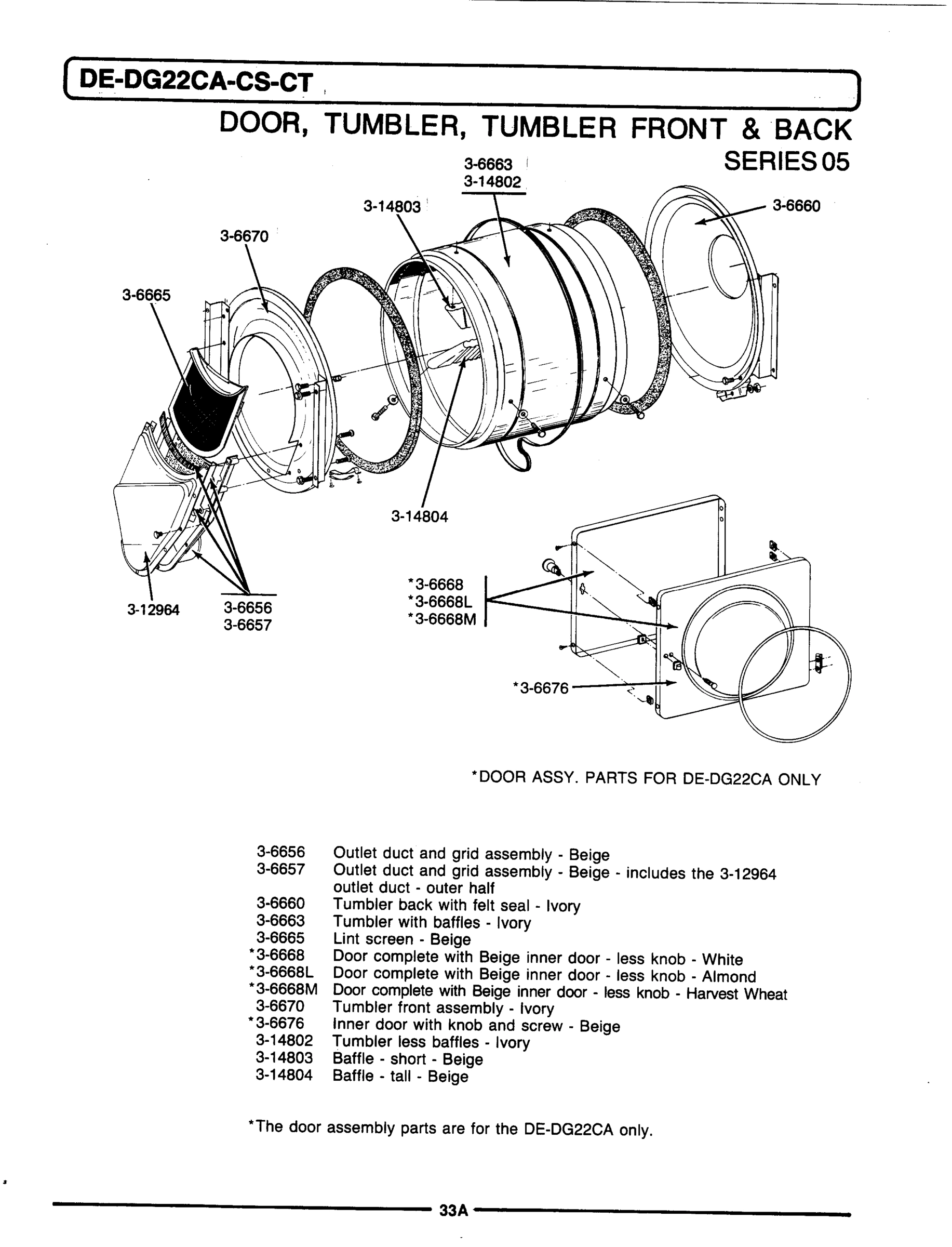

06 - DOOR, TUMBLER, TUMBLER FRONT & BACK

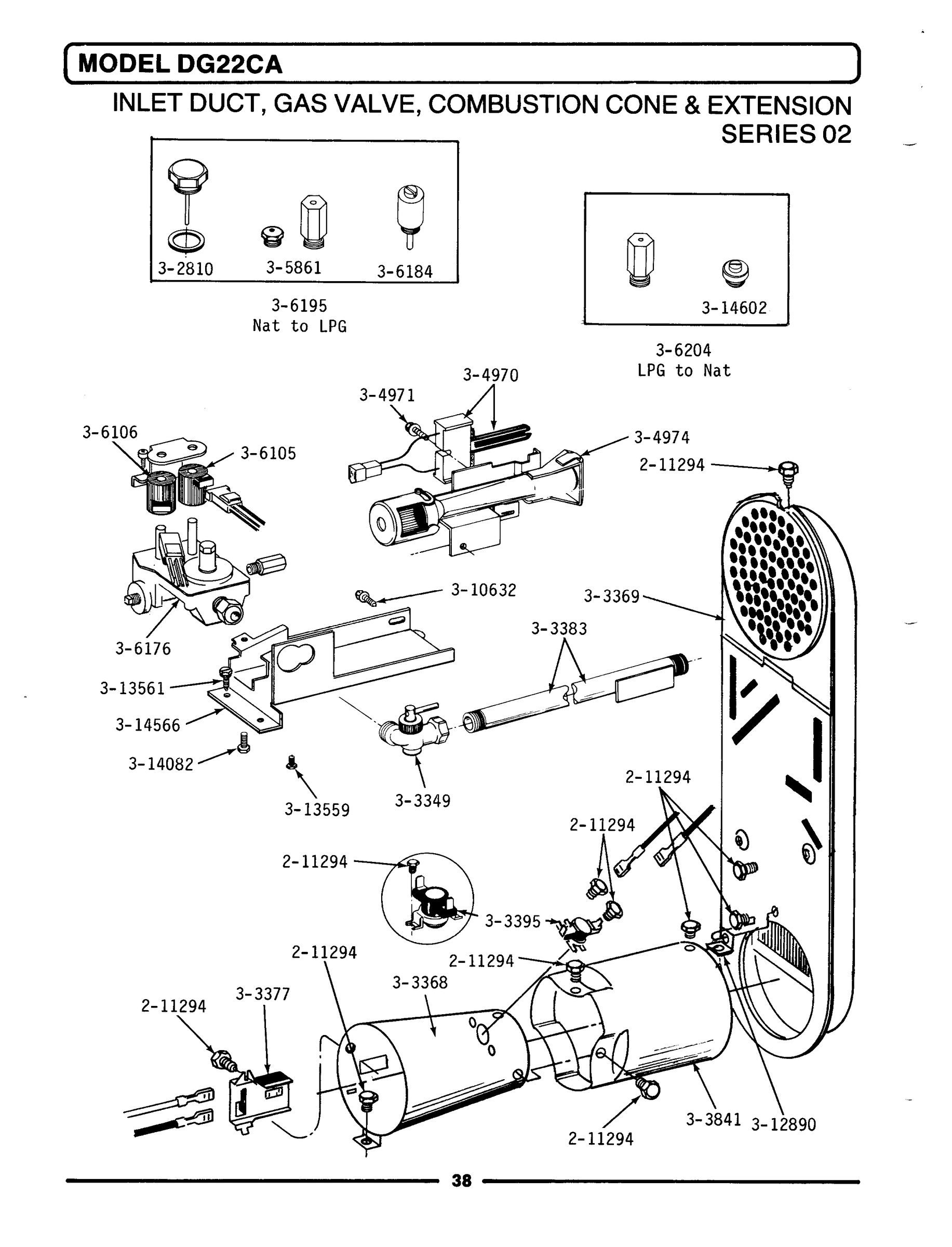

08 - INLET DUCT, GAS VALVE (SERIES 02)

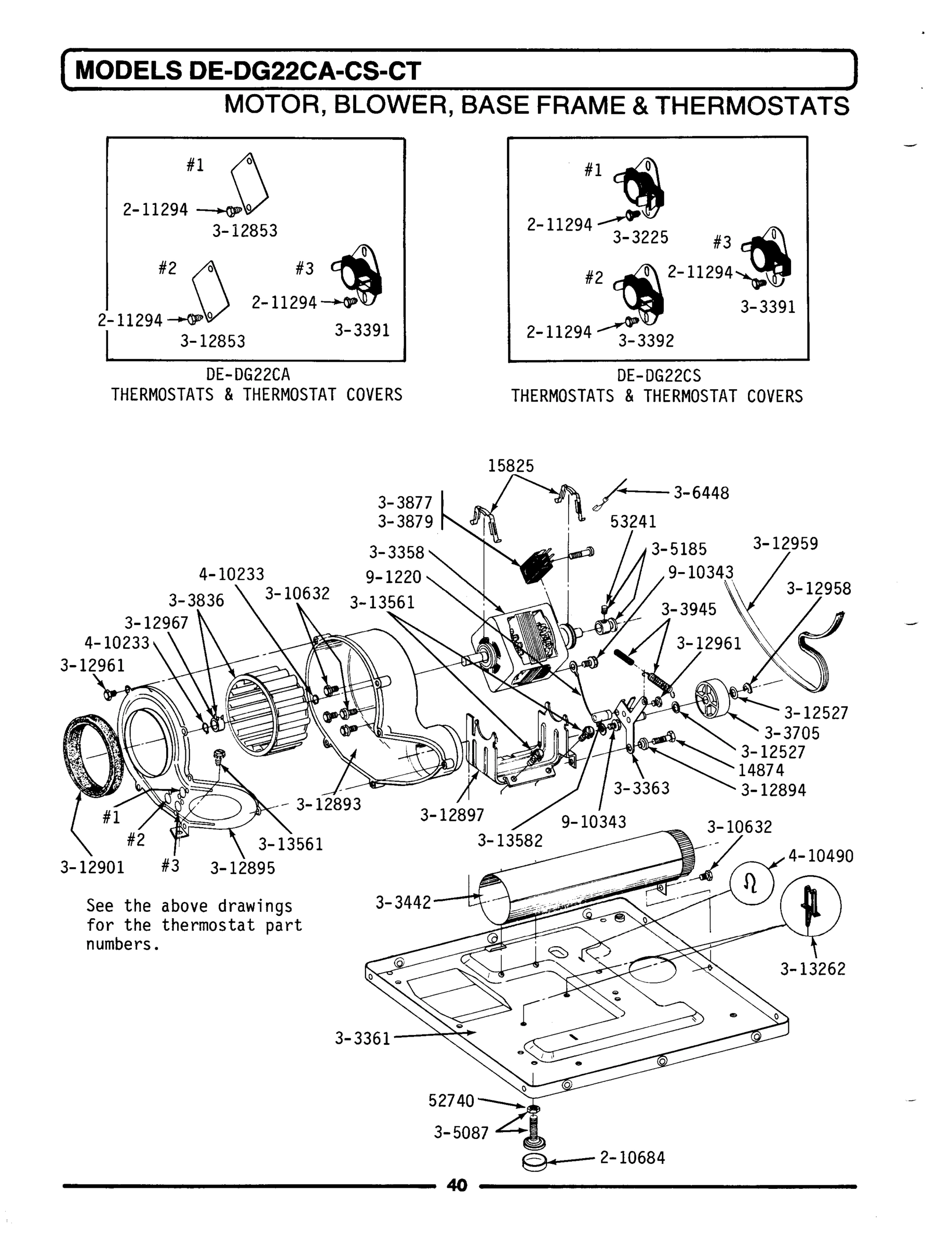

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

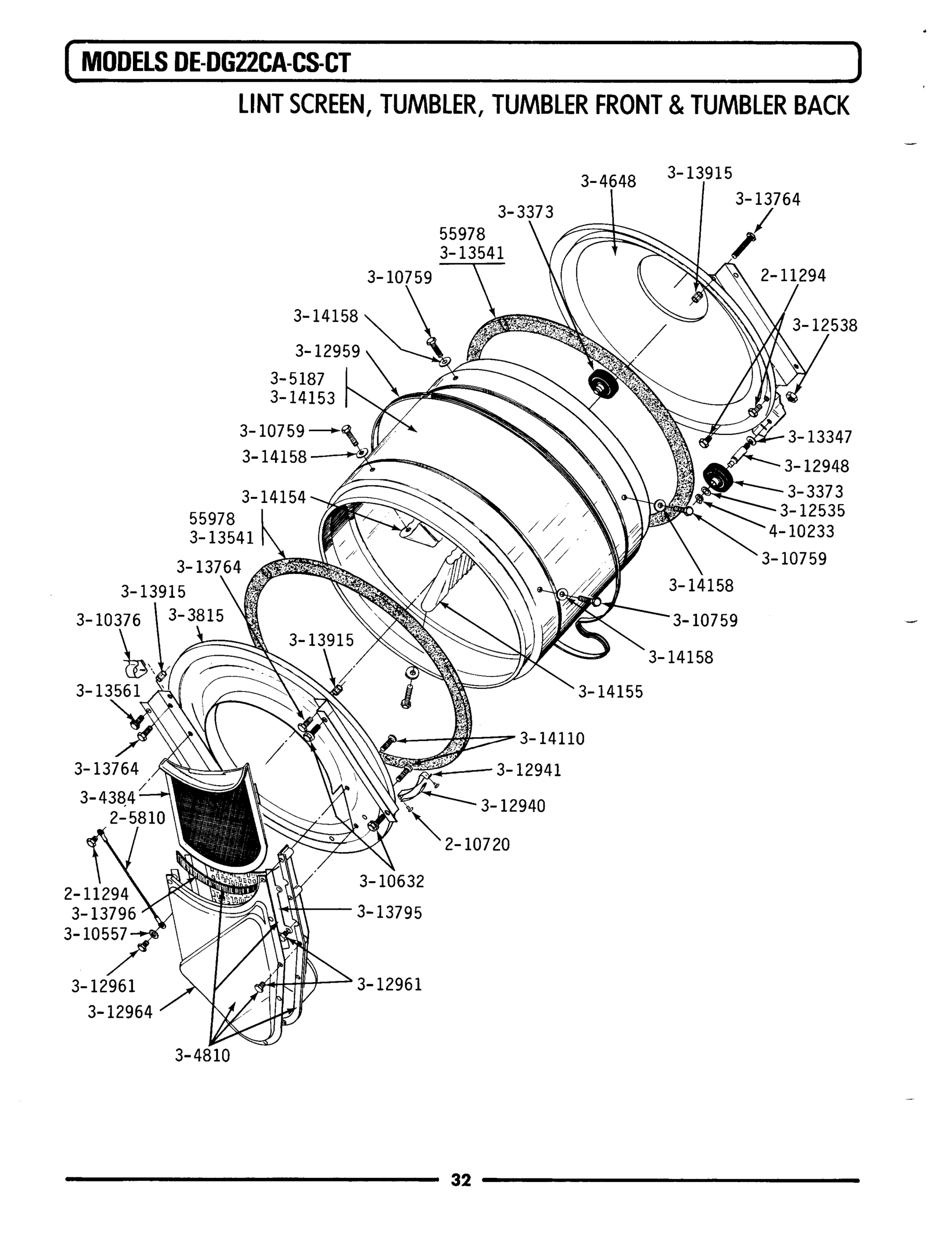

05 - LINT SCREEN, TUMBLER (FRONT & BACK)
Common parts from model Whirlpool DG22CA GAS DRYER
001
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
001
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
001
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
002
SCREW WPL 211251 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
002
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
002
WIRE, GROUND WPL 205810 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
003
TUMBLER BACK WPL Y306660 Contact Us For Availability
004
CAP FOR TIMER KNOB WPL 213077 Contact Us For Availability
004
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
004
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
005
STANDARD 4`` VENT KIT WPL Y059128 Contact Us For Availability
005
TIMER DIAL & KNOB WPL Y302829 Contact Us For Availability
005
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
006
INDICATOR LIGHT WPL 303963 Contact Us For Availability
006
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
006
DOOR WPL Y306668 Contact Us For Availability
006
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
007
PIPE, VENTING WPL Y059130 Contact Us For Availability
007
DOOR-WHITE WPL Y304579 Contact Us For Availability
007
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
008
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
008
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
008
BASE ASSY. WPL Y303361 Contact Us For Availability
008
TIMER MOTOR RPR WPL Y304585 Contact Us For Availability
008
TUMBLER BACK WITH SEAL WPL Y304648 Contact Us For Availability
009
POWER CORD WPL 302521 Contact Us For Availability
009
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
OUTLET DUCT ASSEMBLY---S WPL Y304810 Contact Us For Availability
010
GAS VALVE WPL W10116794 Contact Us For Availability
010
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
010
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
010
TUMBLER WPL 305187 Contact Us For Availability
011
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
011
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
011
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
011
SCREW WPL 304971 Contact Us For Availability
011
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
012
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
012
WASHER WPL 310557 Contact Us For Availability
013
SCREW WPL Y310632 Contact Us For Availability
013
TIMER 240-50 WPL Y305758 Contact Us For Availability
013
SIDE COIL WPL Y304626 Contact Us For Availability
014
SCREW WPL Y310759 Contact Us For Availability
014
TOP COVER-WHITE WPL Y305190 Contact Us For Availability
014
MAIN WIRE HARNESS WPL Y306194 Contact Us For Availability
014
CONVERSION KIT-LPG TO NAT. WPL Y304672 Contact Us For Availability
014
SWITCH, MOTOR START PROD. NO. 3-3358-2 WPL Y303877 Contact Us For Availability
015
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
015
SWITCH, MOTOR START PROD. NO. 3-3358 WPL Y303879 Contact Us For Availability
016
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
016
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
016
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
017
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
017
PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability
017
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
018
FASTENER WPL 310933 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
SELECTOR KNOB-CLEAR ACRYLIC WPL 312852 Contact Us For Availability
018
TWIN FASTENER WPL Y313907 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
019
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
019
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
019
SECONDARY COIL WPL 305603 Contact Us For Availability
020
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
020
HOLDING COIL WPL 305604 Contact Us For Availability
020
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
021
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
022
STRAP, GROUND WPL Y312184 Contact Us For Availability
022
MAIN BURNER ORIFICE KIT-NAT WPL 305860 Contact Us For Availability
022
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
022
COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability
022
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
023
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
023
LATCH FOR ACCESS DOOR WPL Y314025 Contact Us For Availability
024
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
024
SCREW WPL Y314062 Contact Us For Availability
025
COVER, TERMINAL WPL Y312905 Contact Us For Availability
025
SCREW----NA WPL Y313561 Contact Us For Availability
025
DOOR SEAL WPL 314077 Contact Us For Availability
025
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
025
COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability
026
COVER, ACCESS WPL Y312951 Contact Us For Availability
027
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
027
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
027
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
028
LINT SEAL WPL Y313796 Contact Us For Availability
029
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
031
TUMBLER No. WPL Y314153 Contact Us For Availability
032
TUMBLER BAFFLE - SHORT WPL NLA Contact Us For Availability
033
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
034
WASHER WPL 314158 Contact Us For Availability
037
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
038
WIRE, GROUND WPL 901220 Contact Us For Availability
× ![]()
