Model Maytag DE27CA ELECTRIC DRYER – Common Parts & Diagrams

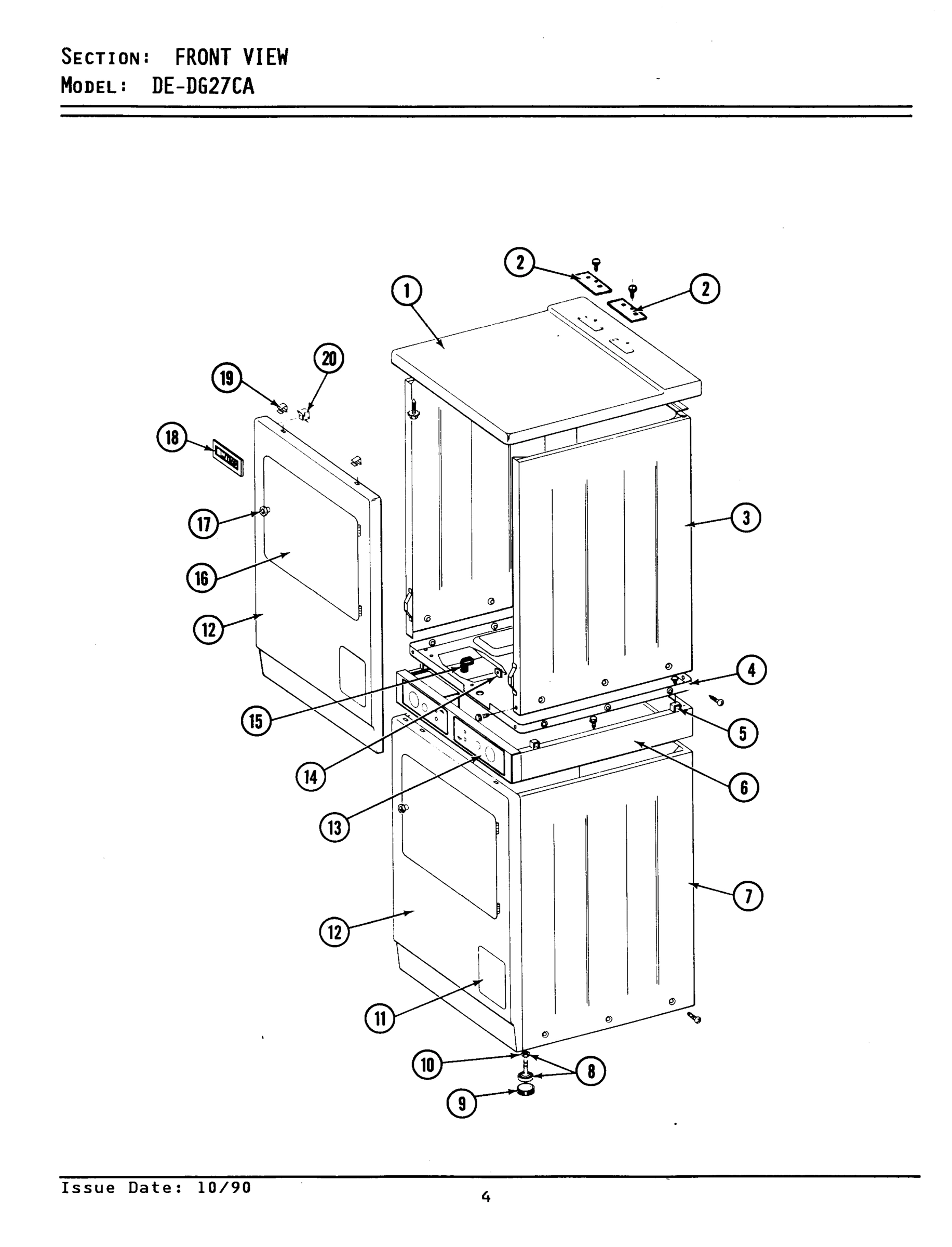

01 - FRONT VIEW

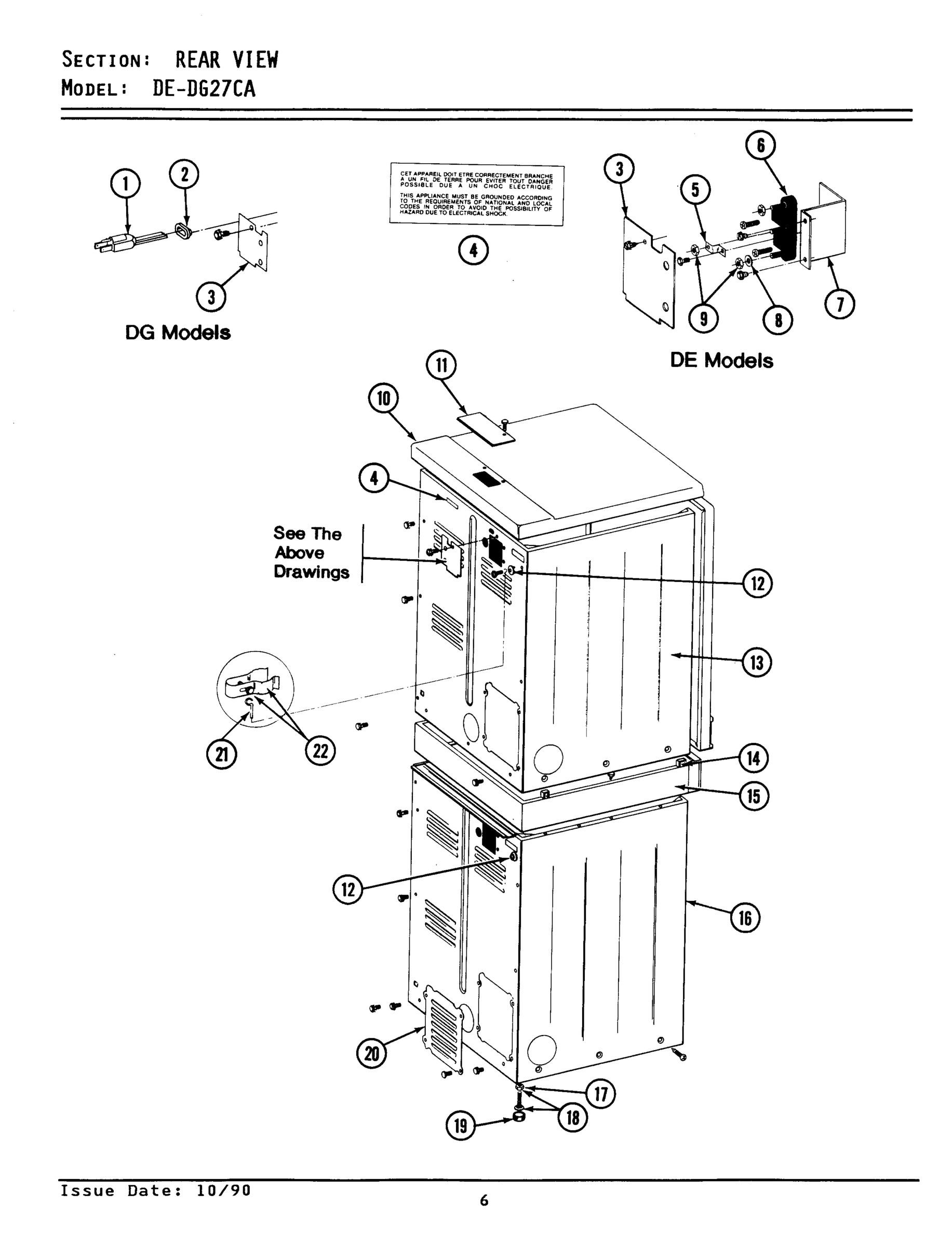

02 - REAR VIEW

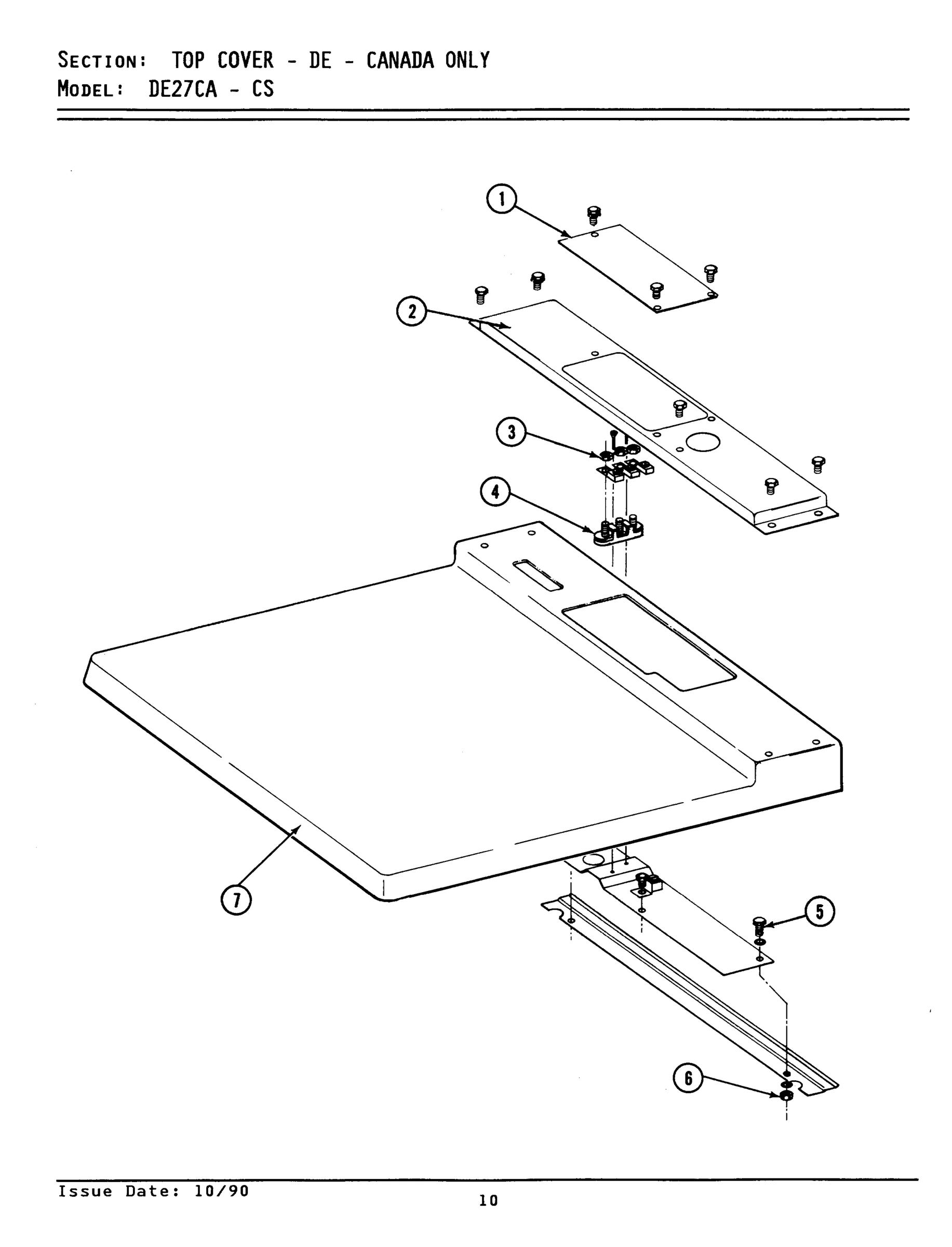

03 - TOP COVER-CANADA

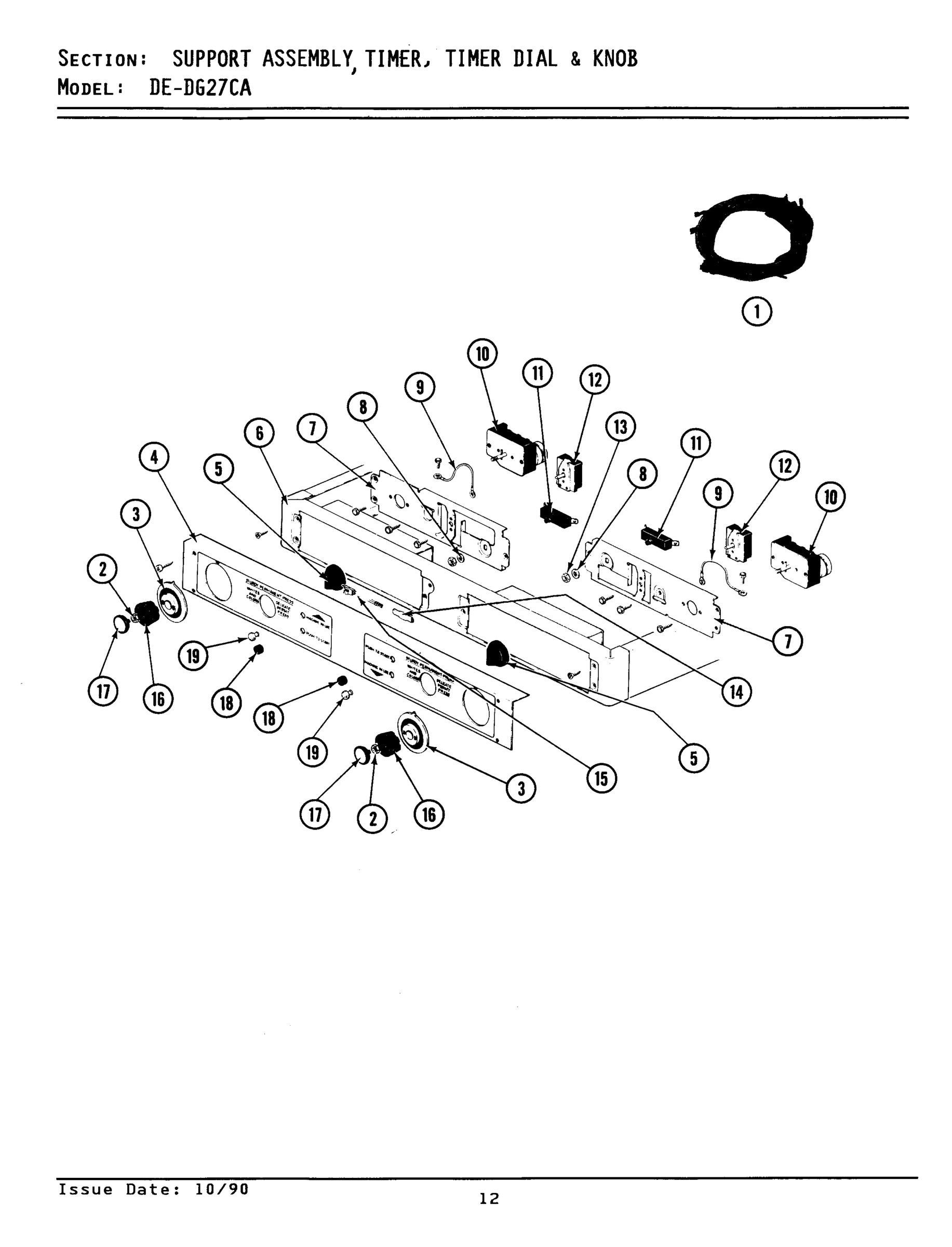

04 - SUPPORT ASSY., TIMER, TIMER DIAL & KNOB

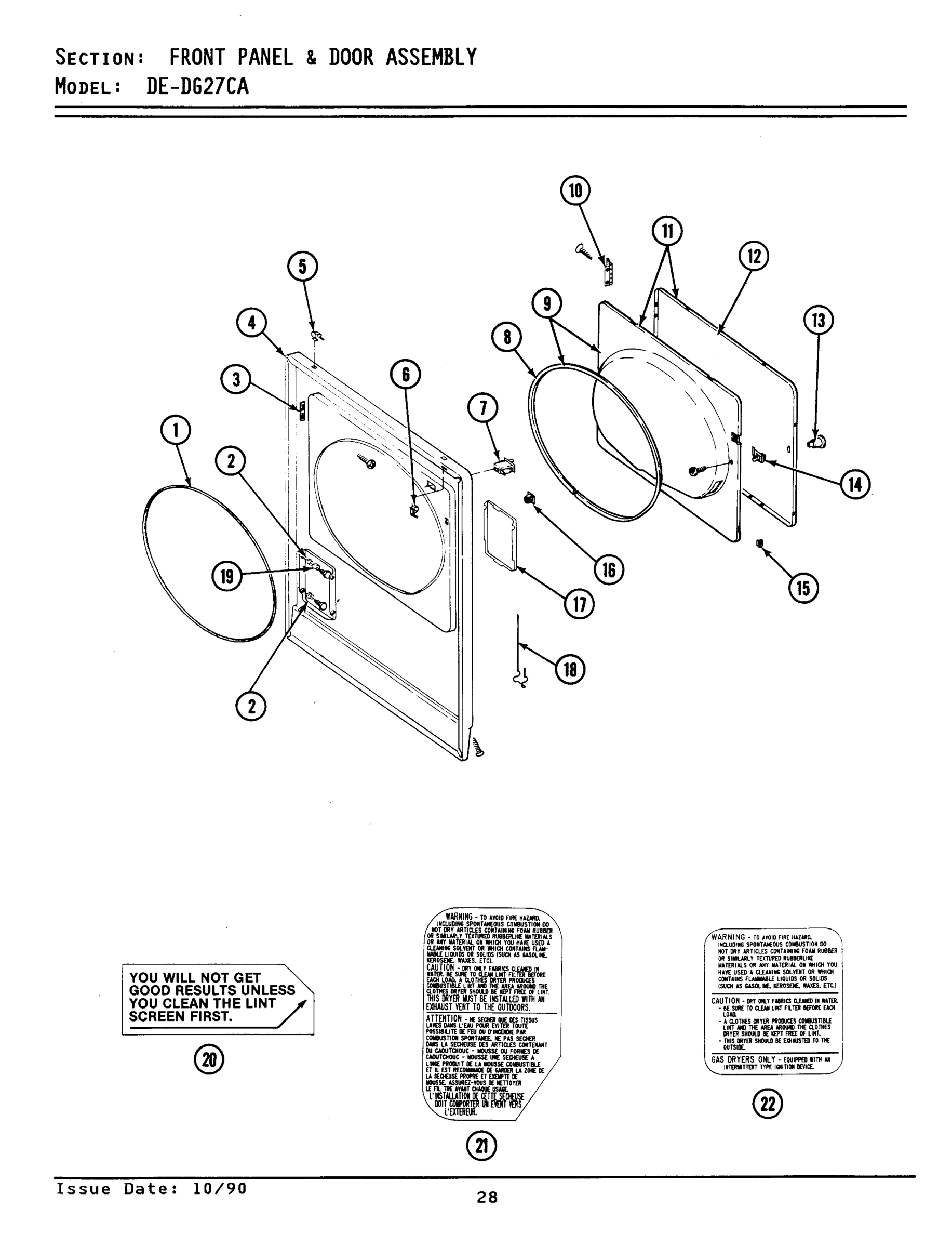

05 - FRONT PANEL & DOOR ASSEMBLY

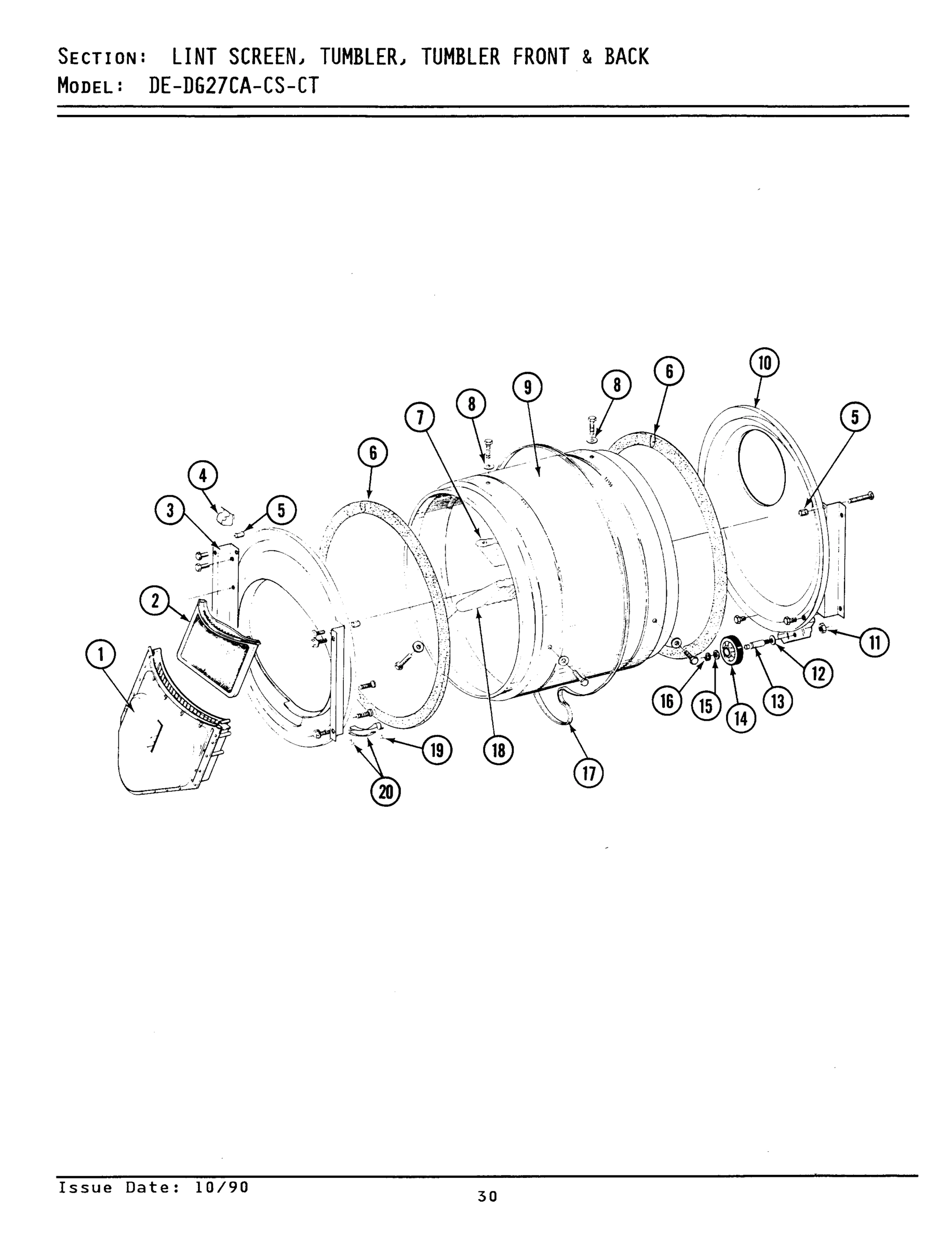

06 - LINT SCREEN, TUMBLER (FRONT & BACK)

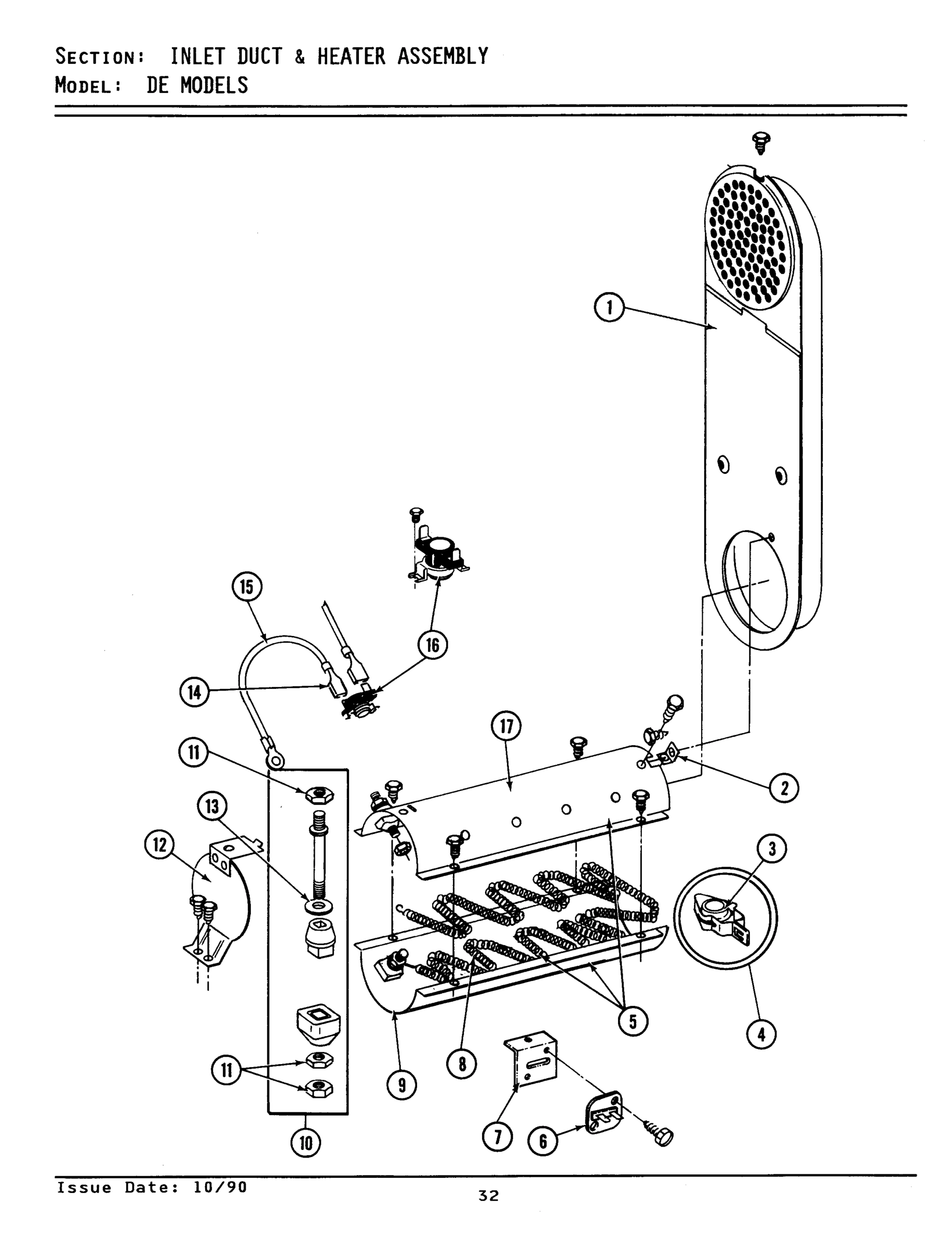

07 - INLET DUCT & HEATER ASSEMBLY

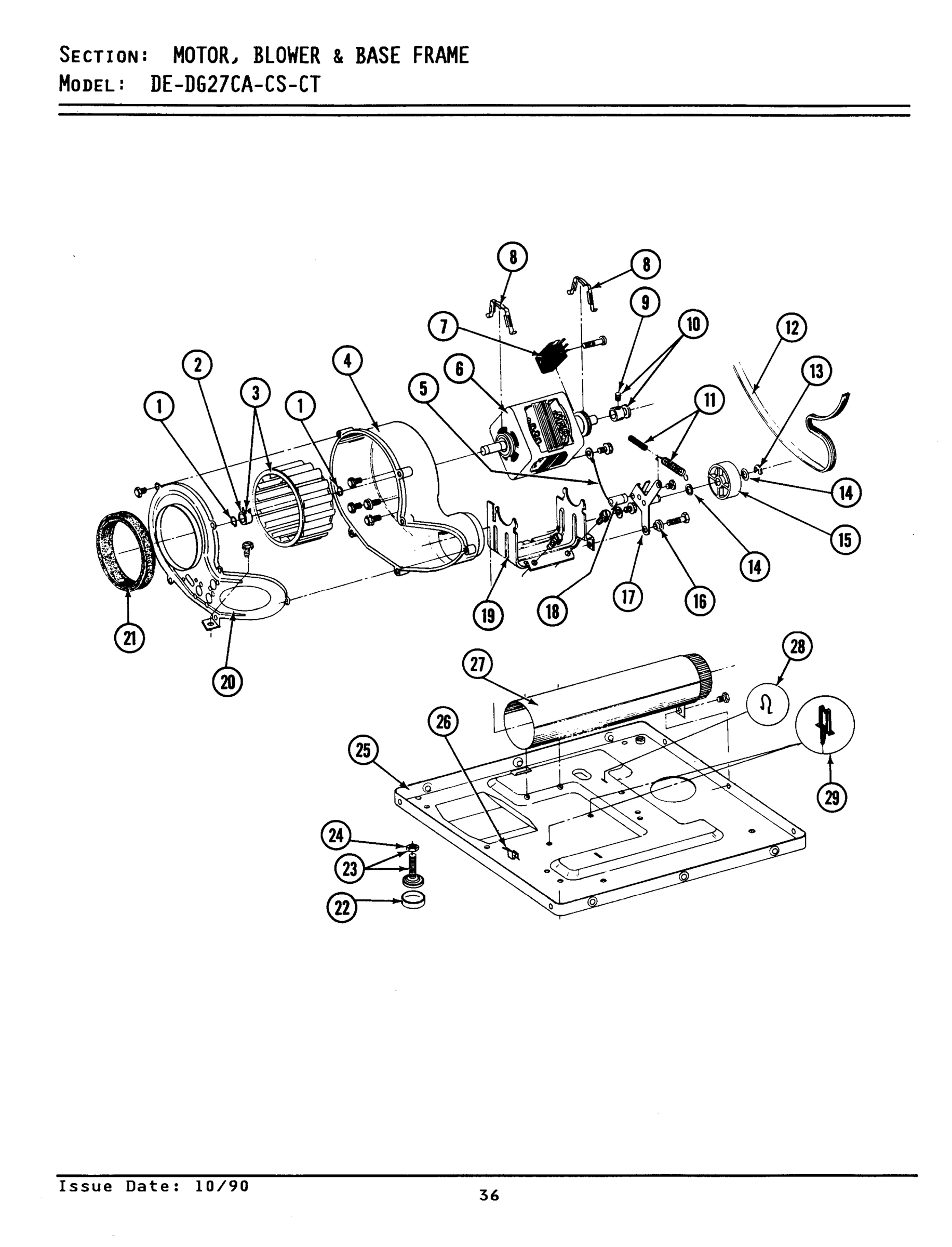

08 - MOTOR, BLOWER & BASE FRAME

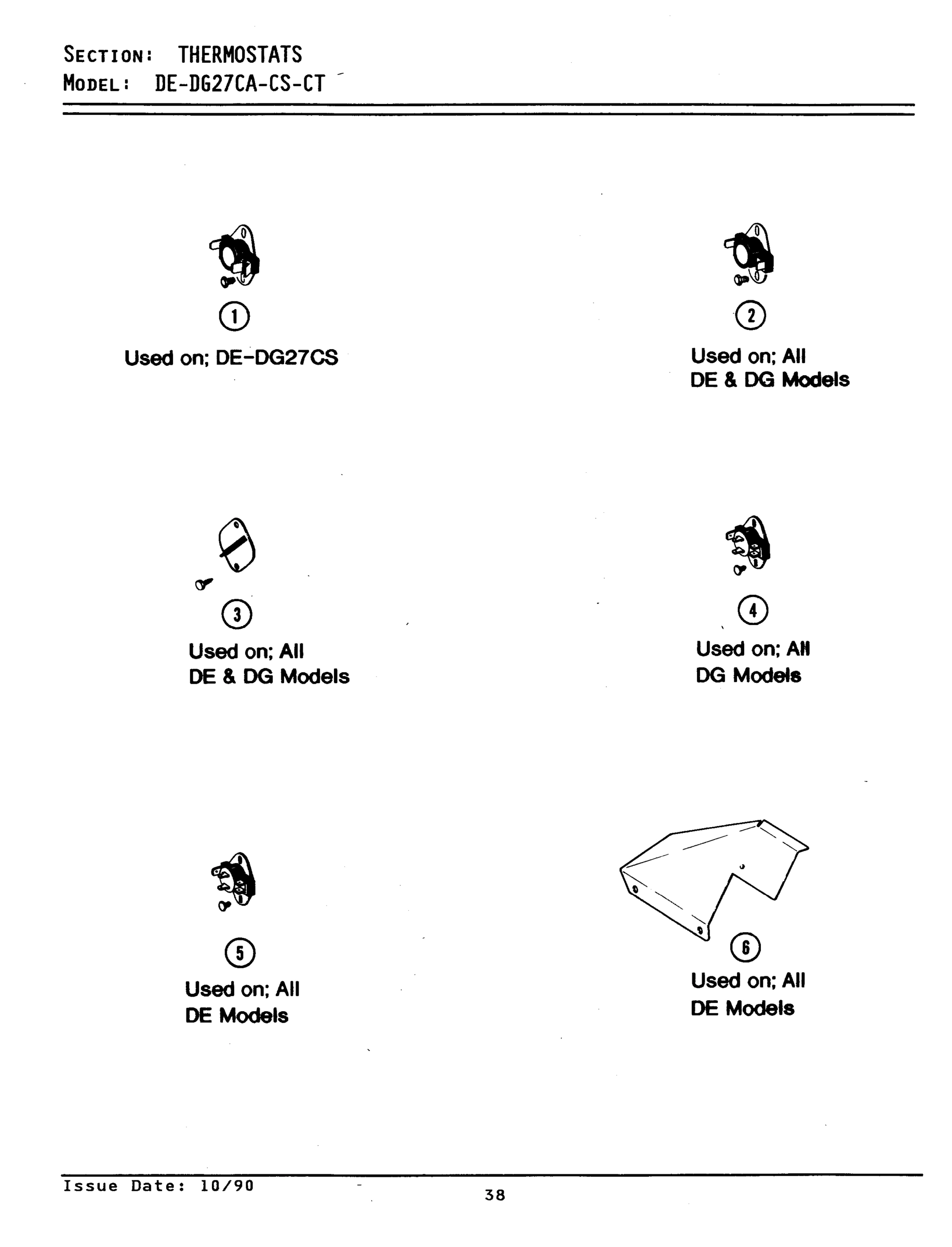

09 - THERMOSTATS

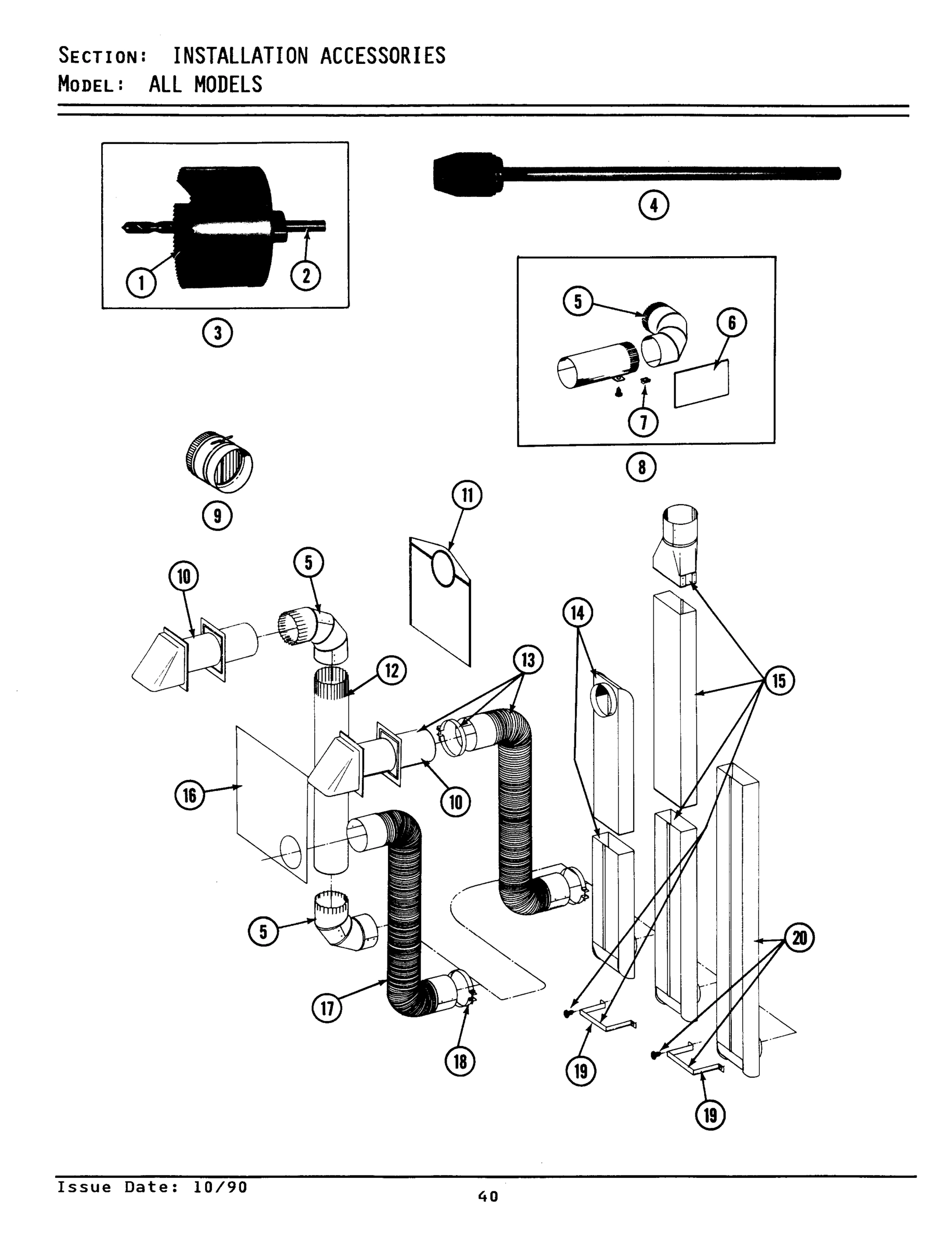

10 - INSTALLATION ACCESSORIES
Common parts from model Maytag DE27CA ELECTRIC DRYER
001
PART NOT USED MAY Y303225 Contact Us For Availability
001
MAY 314937 MAY 314937 Contact Us For Availability
001
MAY Y314174 MAY Y314174 Contact Us For Availability
001
MAY 307489 MAY 307489 Contact Us For Availability
001
MAY 307490 MAY 307490 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
002
MAY Y313559 MAY Y313559 Contact Us For Availability
002
SCREEN, LINT MAY 307108 Contact Us For Availability
002
MAY Y312890 MAY Y312890 Contact Us For Availability
003
MAY Y313270 MAY Y313270 Contact Us For Availability
003
MAY 314725 MAY 314725 Contact Us For Availability
003
MAY Y310632 MAY Y310632 Contact Us For Availability
003
MAY Y313907 MAY Y313907 Contact Us For Availability
003
MAY 307109 MAY 307109 Contact Us For Availability
004
MAY 204439 MAY 204439 Contact Us For Availability
004
PART NOT USED MAY 306966 Contact Us For Availability
004
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
004
MAY 314664 MAY 314664 Contact Us For Availability
004
MAY Y312893 MAY Y312893 Contact Us For Availability
005
MAY 306967 MAY 306967 Contact Us For Availability
005
MAY 205663 MAY 205663 Contact Us For Availability
005
MAY 212982 MAY 212982 Contact Us For Availability
005
MAY 307470 MAY 307470 Contact Us For Availability
005
MAY 307471 MAY 307471 Contact Us For Availability
005
MAY 901220 MAY 901220 Contact Us For Availability
005
MAY 910343 MAY 910343 Contact Us For Availability
005
MAY Y059131 MAY Y059131 Contact Us For Availability
006
MAY 400008 MAY 400008 Contact Us For Availability
006
MAY Y313561 MAY Y313561 Contact Us For Availability
006
MAY 315122 MAY 315122 Contact Us For Availability
006
MAY 312302 MAY 312302 Contact Us For Availability
007
MAY 910186 MAY 910186 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
MAY 315046 MAY 315046 Contact Us For Availability
007
PROD. No.3-3358-8 & No.3-3358-9 MAY 306207 Contact Us For Availability
007
SWITCH, MOTOR PROD.No.3-3358-2, No.3-3358-4 & MAY Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 MAY Y303879 Contact Us For Availability
007
MAY 213323 MAY 213323 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
MAY 314935 MAY 314935 Contact Us For Availability
008
MAY Y313537 MAY Y313537 Contact Us For Availability
008
MAY Y304652 MAY Y304652 Contact Us For Availability
009
MAY 205810 MAY 205810 Contact Us For Availability
009
MAY Y308070 MAY Y308070 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
MAY 314802 MAY 314802 Contact Us For Availability
009
MAY Y313576 MAY Y313576 Contact Us For Availability
009
MAY Y053241 MAY Y053241 Contact Us For Availability
010
MAY Y307296 MAY Y307296 Contact Us For Availability
010
MAY Y307114 MAY Y307114 Contact Us For Availability
010
MAY Y305185 MAY Y305185 Contact Us For Availability
011
MAY 308062 MAY 308062 Contact Us For Availability
011
MAY 312538 MAY 312538 Contact Us For Availability
011
MAY Y303945 MAY Y303945 Contact Us For Availability
011
MAY 311353 MAY 311353 Contact Us For Availability
012
MAY 307253 MAY 307253 Contact Us For Availability
012
MAY 304124 MAY 304124 Contact Us For Availability
012
MAY Y059130 MAY Y059130 Contact Us For Availability
013
MAY Y312706 MAY Y312706 Contact Us For Availability
013
MAY Y059143 MAY Y059143 Contact Us For Availability
014
MAY Y201110 MAY Y201110 Contact Us For Availability
014
MAY 314936 MAY 314936 Contact Us For Availability
014
MAY 314944 MAY 314944 Contact Us For Availability
014
MAY Y303373 MAY Y303373 Contact Us For Availability
014
MAY 210745 MAY 210745 Contact Us For Availability
014
MAY Y312527 MAY Y312527 Contact Us For Availability
014
MAY Y059135 MAY Y059135 Contact Us For Availability
015
LIGHT, INDICATOR MAY 204075 Contact Us For Availability
015
MAY Y313910 MAY Y313910 Contact Us For Availability
016
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
016
MAY Y059134 MAY Y059134 Contact Us For Availability
017
MAY Y313575 MAY Y313575 Contact Us For Availability
017
MAY Y304353 MAY Y304353 Contact Us For Availability
018
MAY Y312702 MAY Y312702 Contact Us For Availability
018
PART NOT USED MAY Y314025 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
018
MAY Y304630 MAY Y304630 Contact Us For Availability
019
PART NOT USED MAY 312369 Contact Us For Availability
020
EXHAUST DEFLECTOR KIT MAY NLA Contact Us For Availability
020
MAY Y313340 MAY Y313340 Contact Us For Availability
020
MAY 314778 MAY 314778 Contact Us For Availability
021
MAY 301548 MAY 301548 Contact Us For Availability
021
MAY 313122 MAY 313122 Contact Us For Availability
021
MAY 314941 MAY 314941 Contact Us For Availability
022
MAY 311155 MAY 311155 Contact Us For Availability
023
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
025
MAY Y307482 MAY Y307482 Contact Us For Availability
026
MAY Y310376 MAY Y310376 Contact Us For Availability
027
MAY Y303442 MAY Y303442 Contact Us For Availability
028
MAY 410490 MAY 410490 Contact Us For Availability
029
MAY Y313262 MAY Y313262 Contact Us For Availability
× ![]()
