Model Whirlpool DE26CT ELECTRIC DRYER – Common Parts & Diagrams
01 - FRONT VIEW - CT MODELS

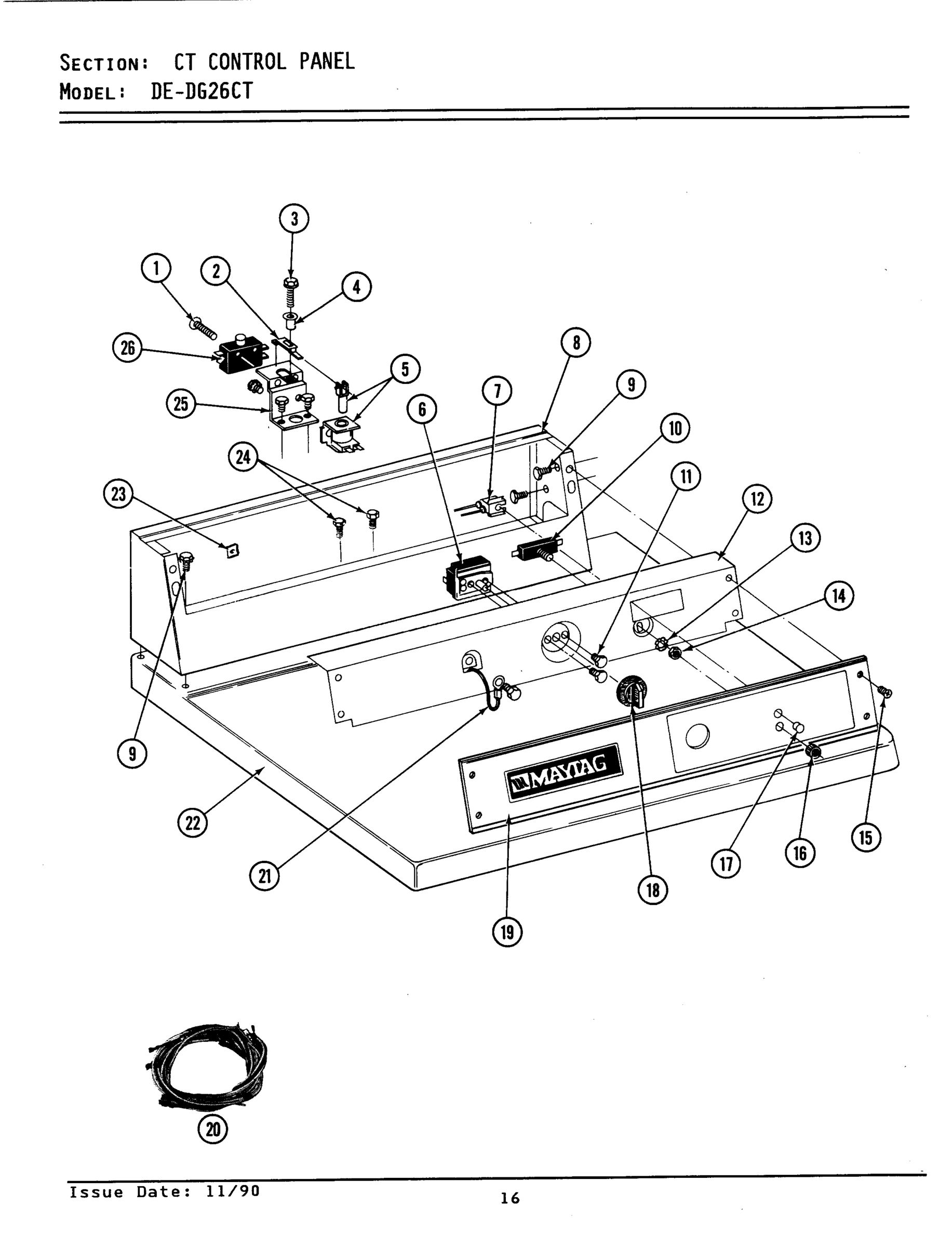

03 - CONTROL PANEL-CT MODELS

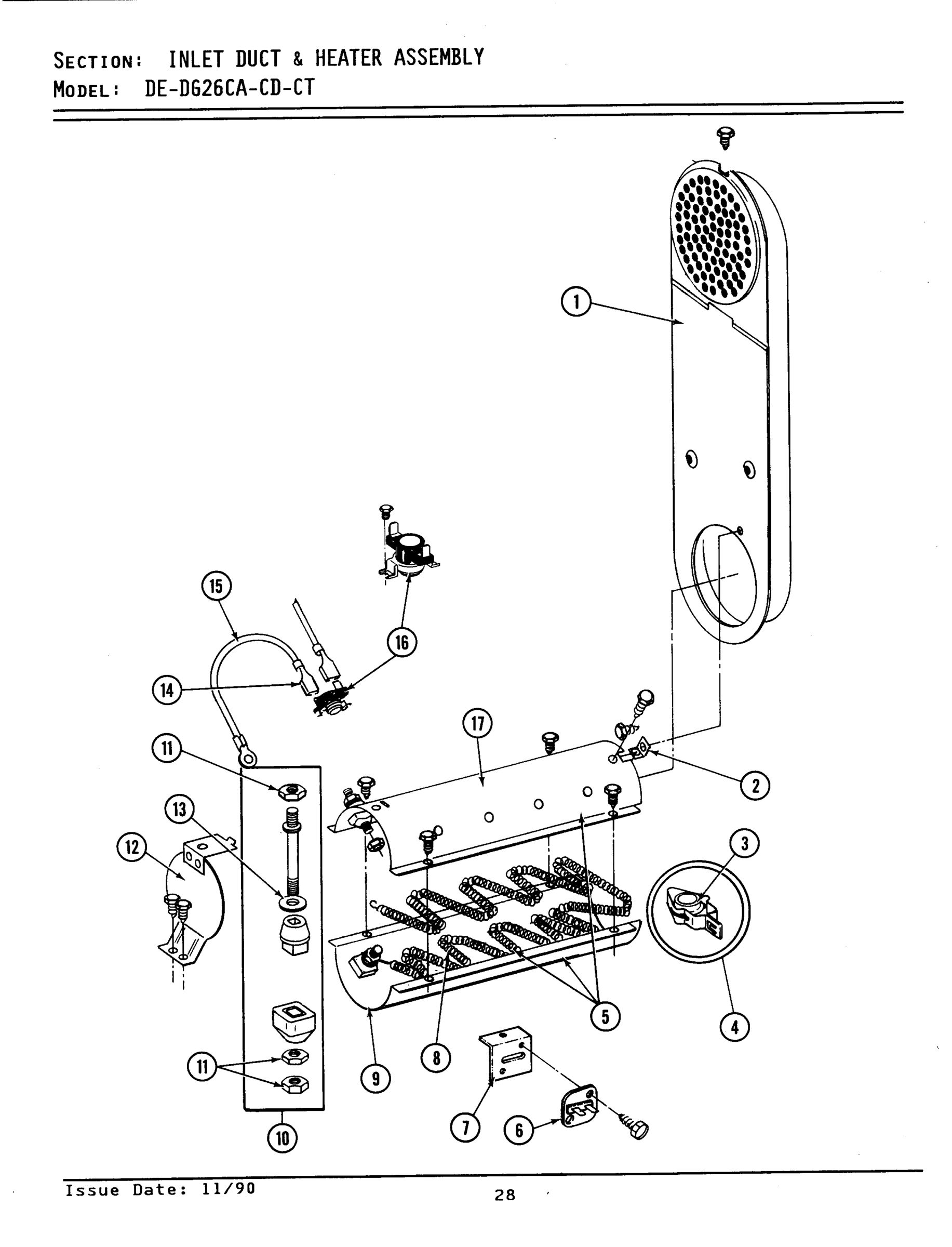

08 - INLET DUCT & HEATER ASSEMBLY

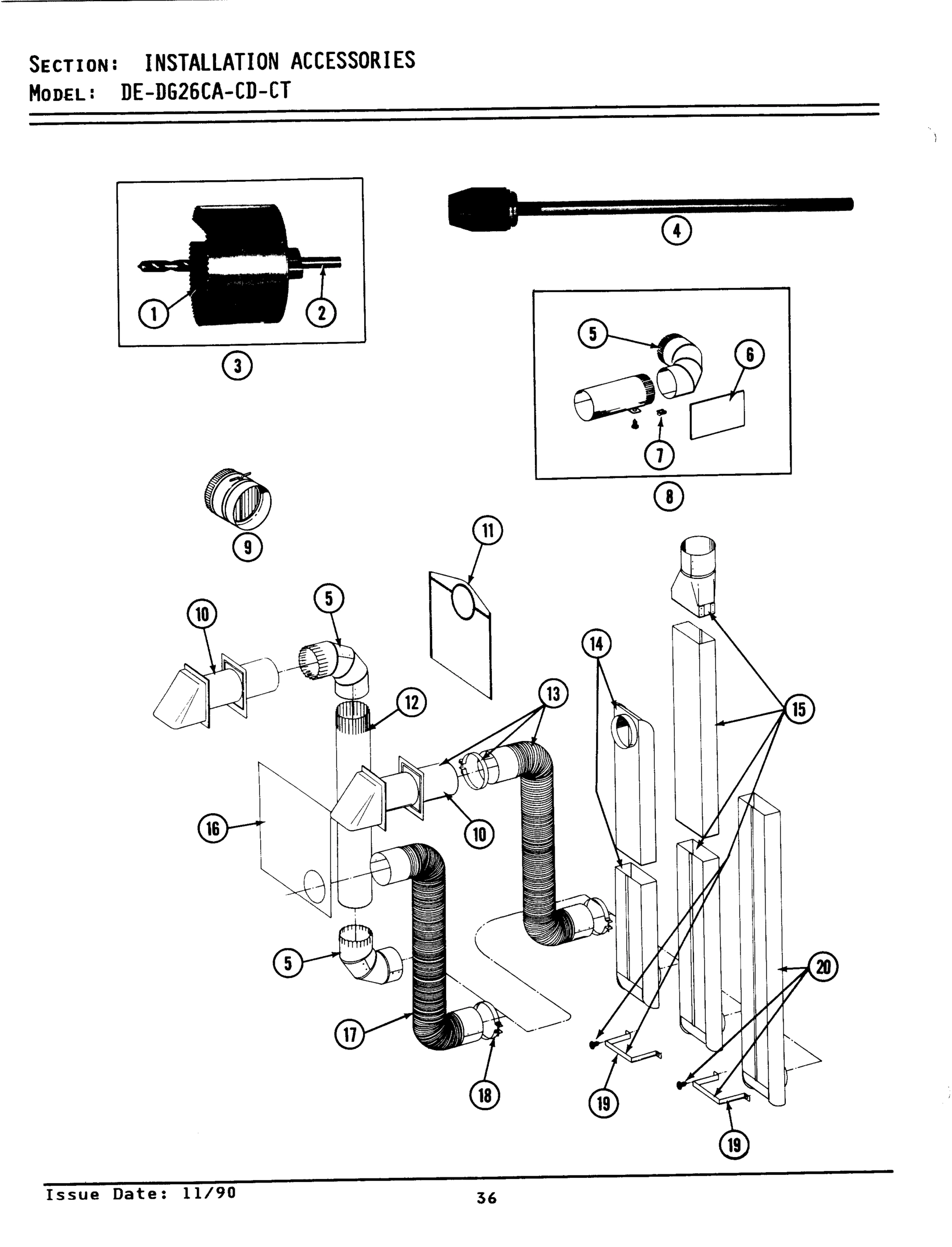

11 - INSTALLATION ACCESSORIES

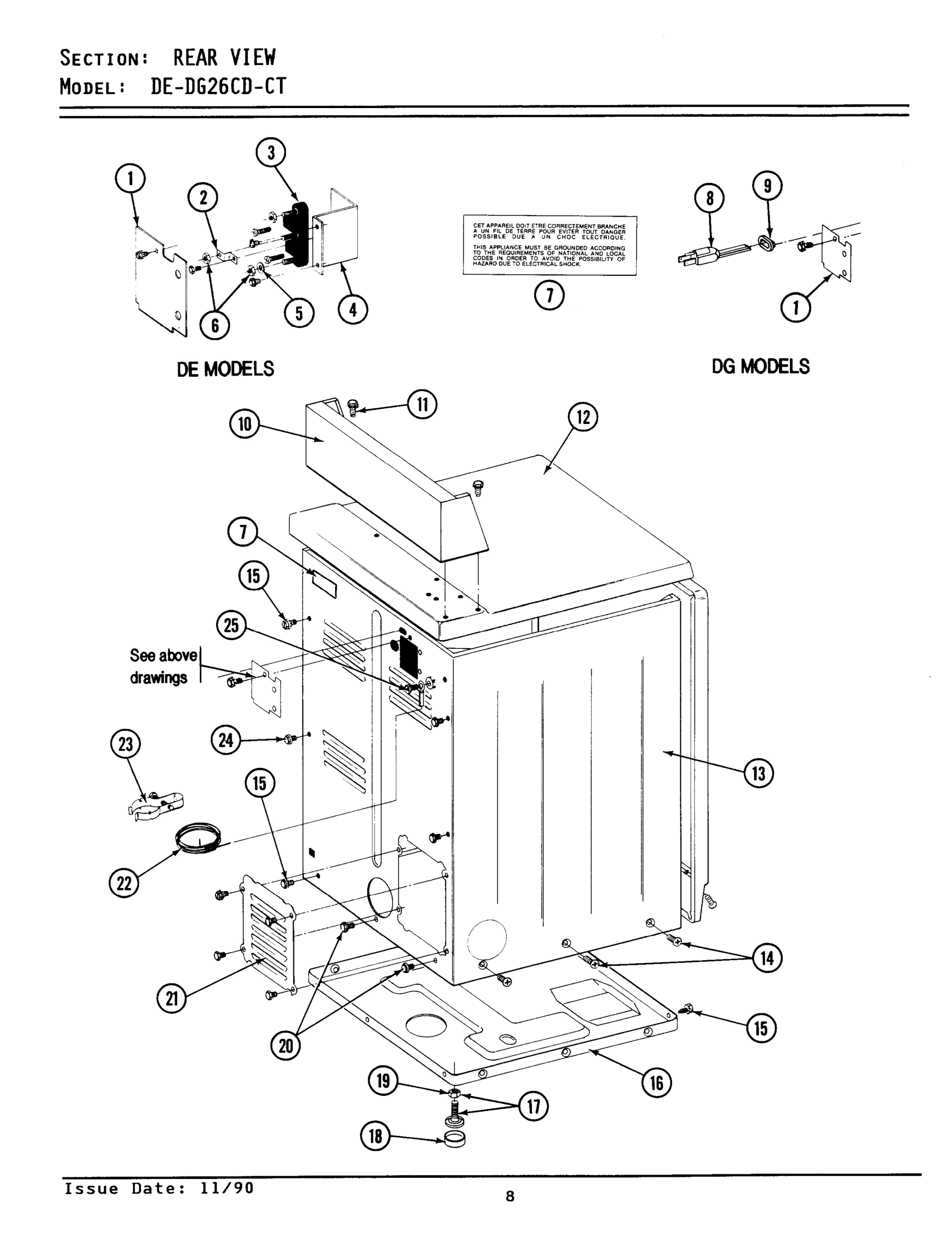

02 - REAR VIEW - CD/CT MODELS

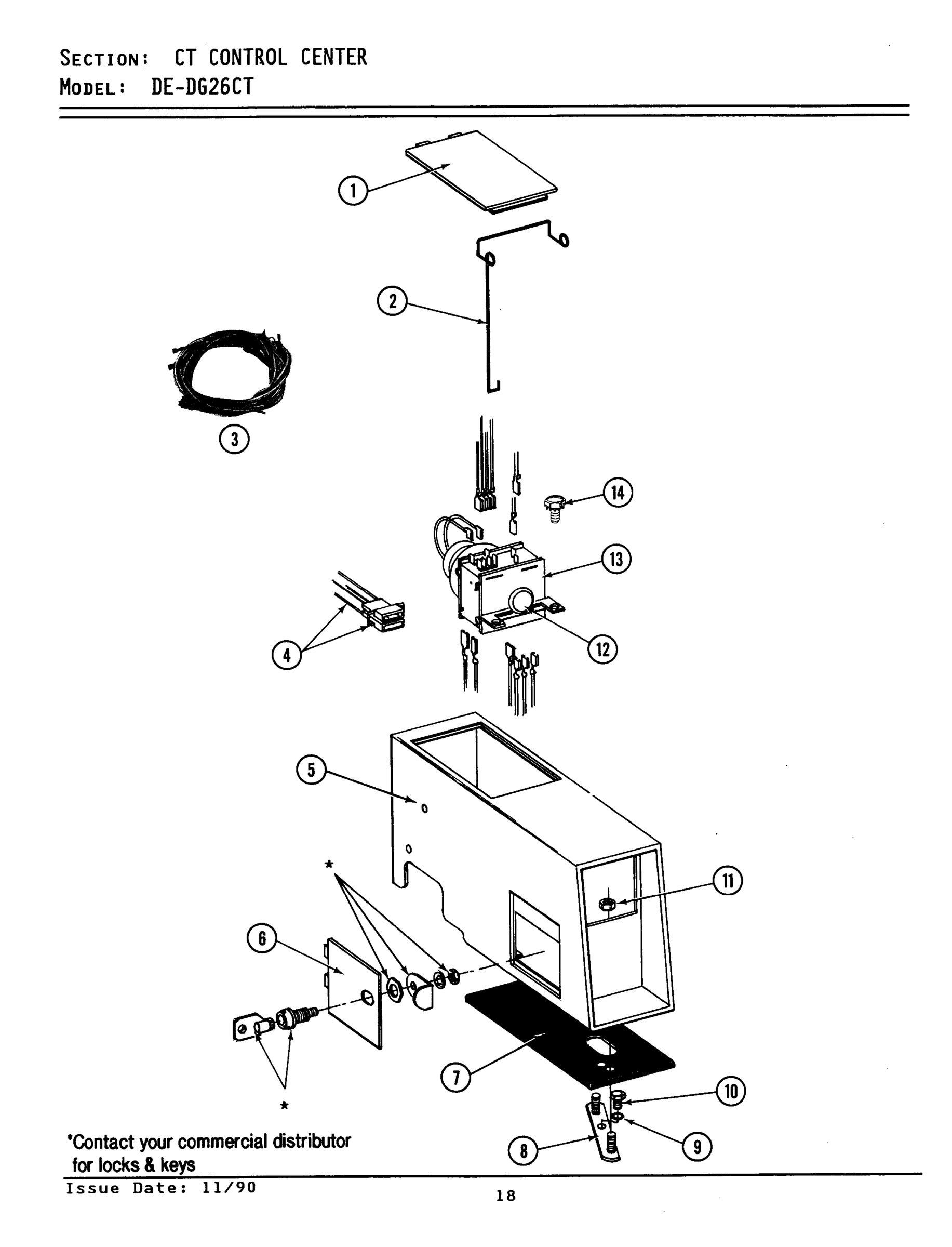

04 - CONTROL CENTER - CT MODELS

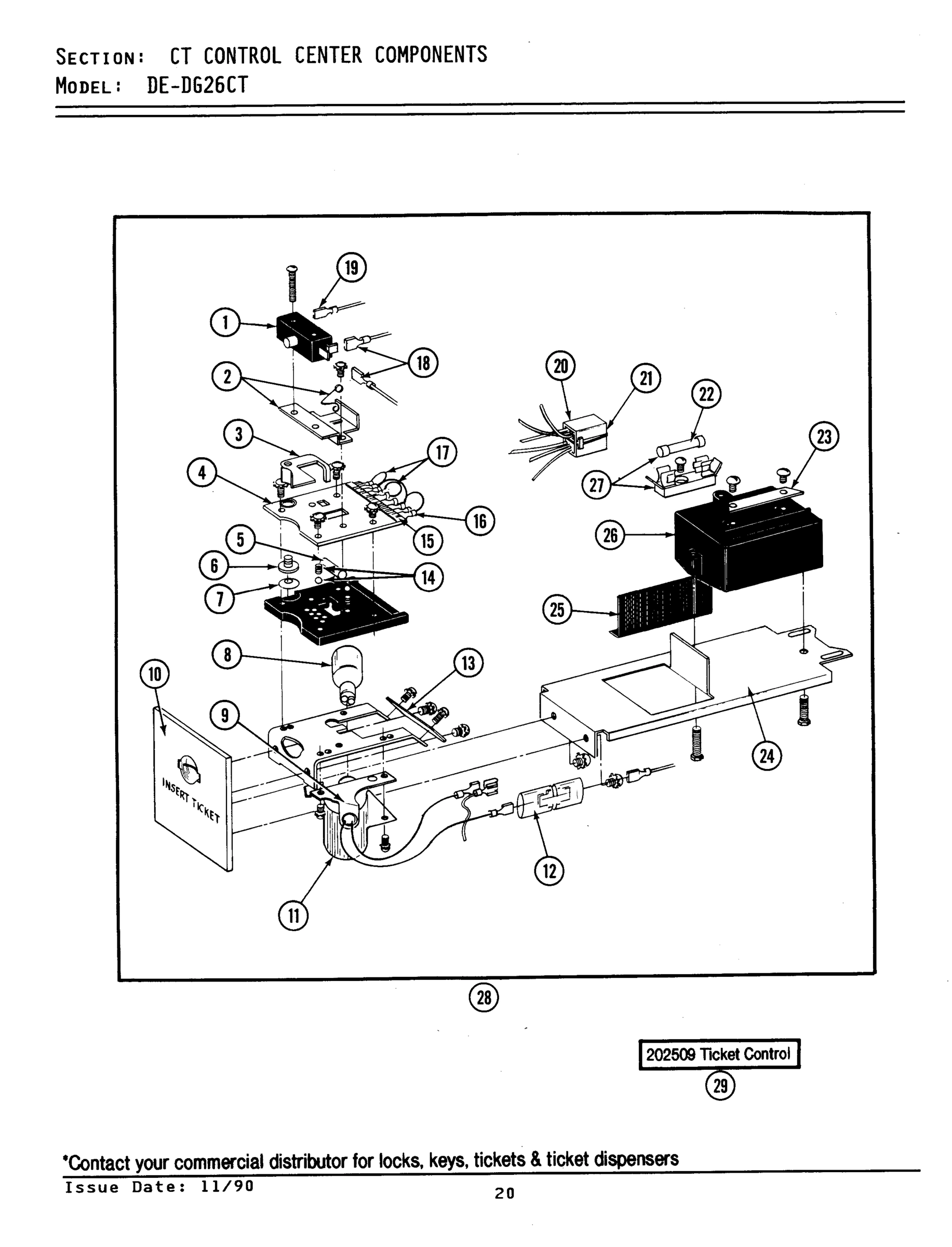

05 - CONTROL CENTER COMPONENTS - CT MODELS

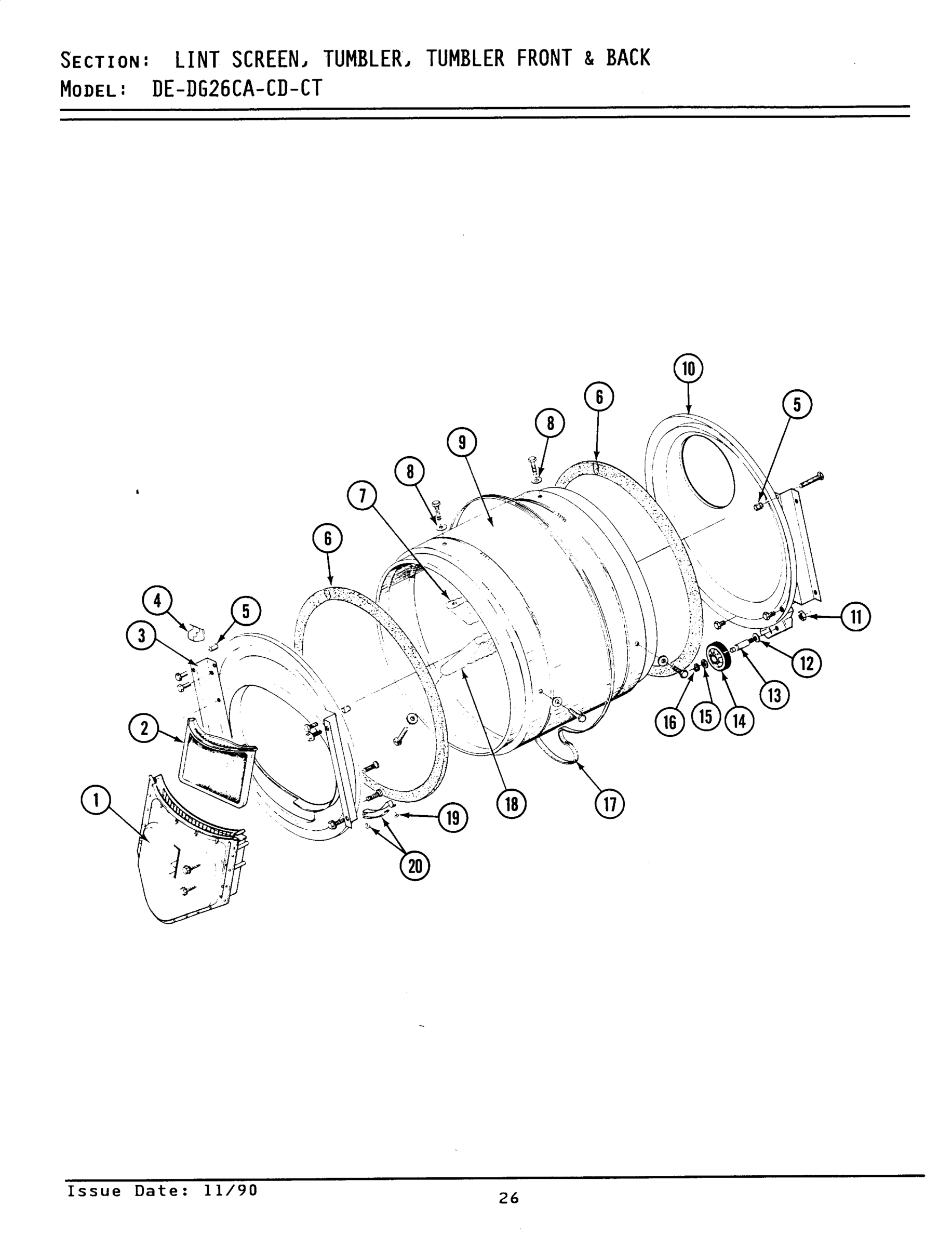

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

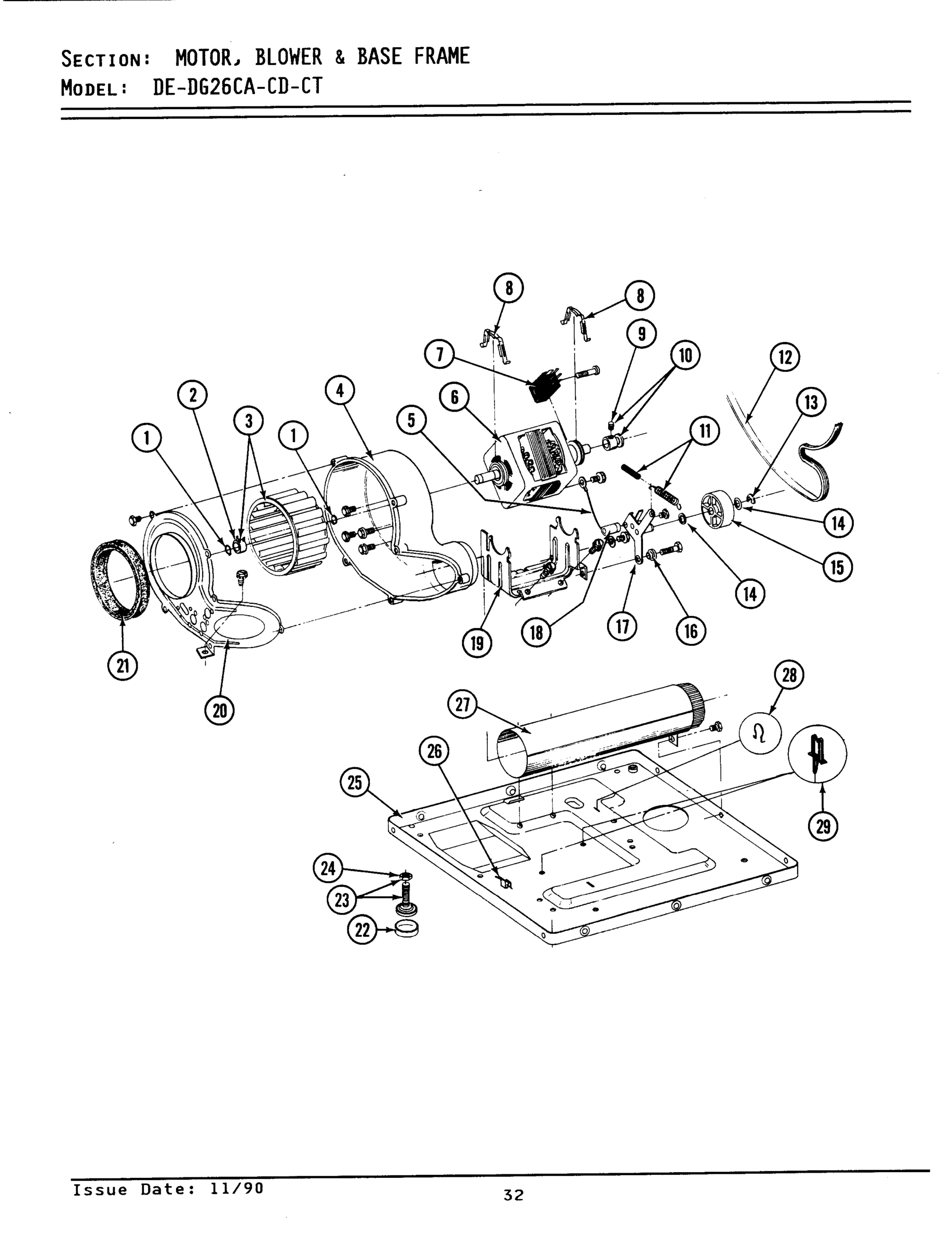

09 - MOTOR, BLOWER & BASE FRAME

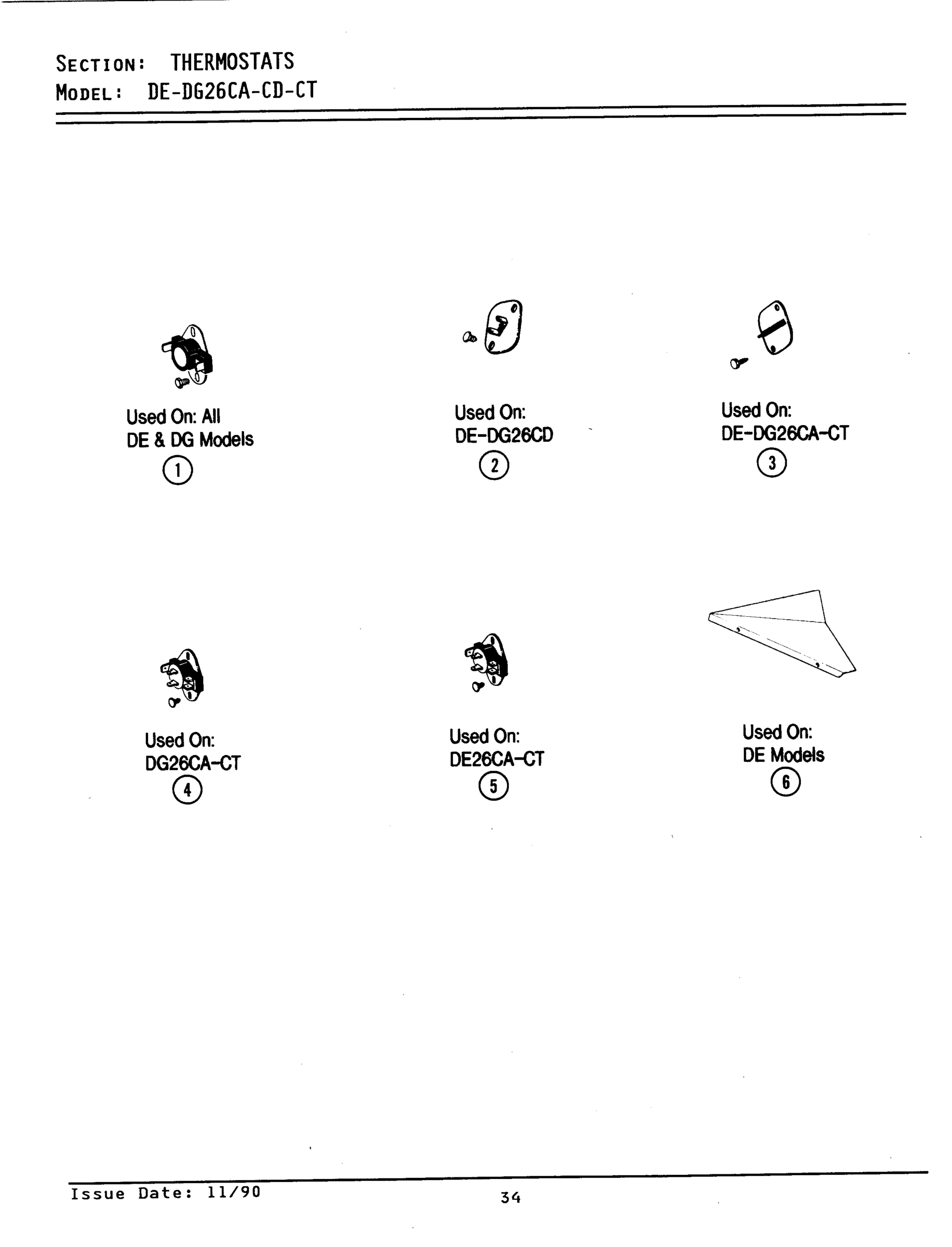

10 - THERMOSTATS

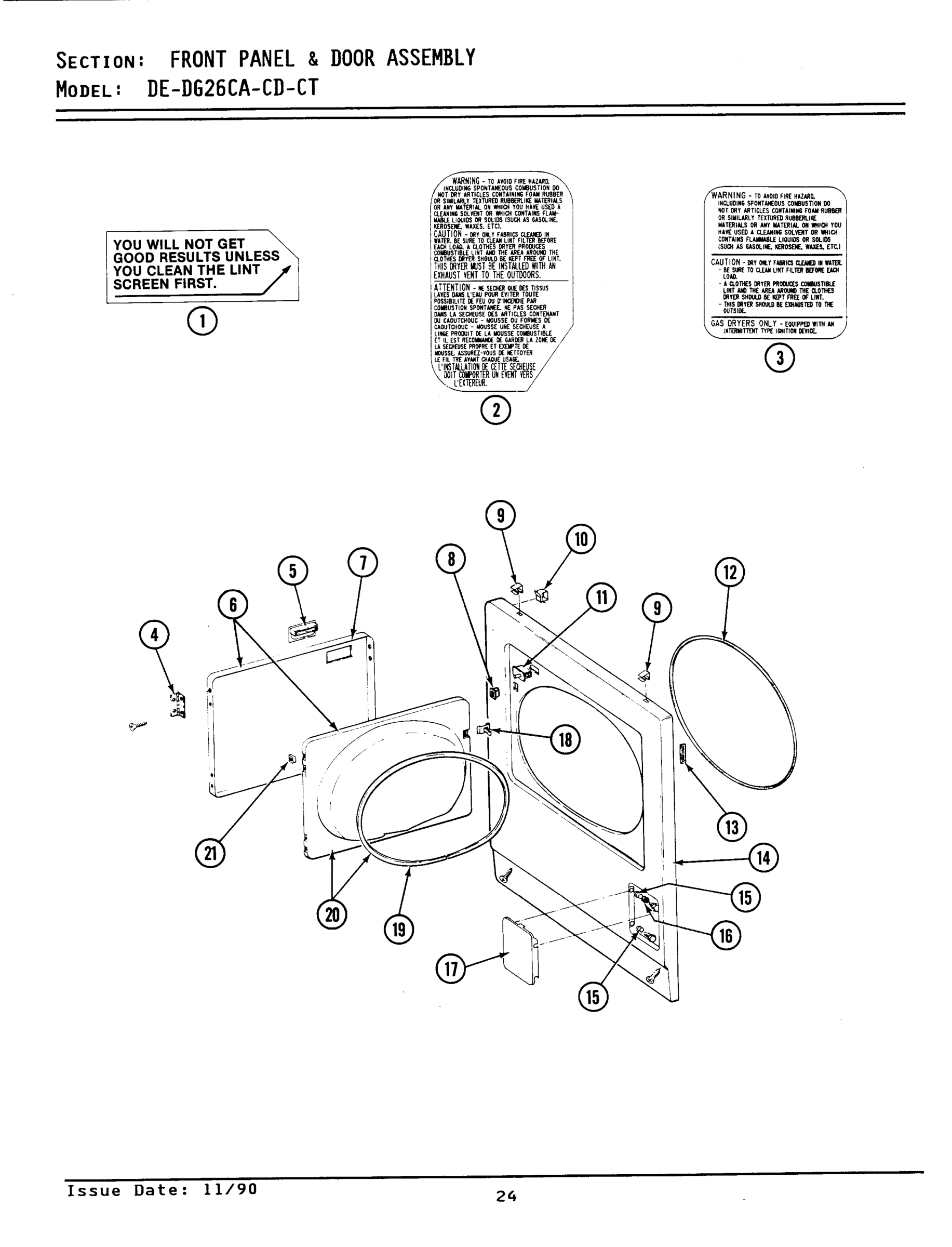

06 - FRONT PANEL & DOOR ASSEMBLY
Common parts from model Whirlpool DE26CT ELECTRIC DRYER
001
SCREW, RELAY SWITCH WPL 212950 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
SWITCH, TICKET CONTROL WPL 204882 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
002
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
LATCH, ACCESS DOOR WPL 214878 Contact Us For Availability
002
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
003
INSULATOR, HEATER ELEMENT WPL Y313270 Contact Us For Availability
003
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
003
SCREW WPL Y310632 Contact Us For Availability
003
SWITCH LEVER WPL 214218 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
004
CIRCUIT BOARD WPL 212452 Contact Us For Availability
004
PART NOT USED WPL 306966 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
005
HANDLE WHITE WPL 314946 Contact Us For Availability
005
(ALM) WPL 314972 Contact Us For Availability
005
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
005
SOLENOID, RELAY ASSEMBLY WPL 305393 Contact Us For Availability
005
HEATER ASSY 240V WPL 307470 Contact Us For Availability
005
HEATER ASSY 208V WPL 307471 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
ROLLER, CAM WPL 214275 Contact Us For Availability
005
WIRE, GROUND WPL 901220 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
SCREW----NA WPL Y313561 Contact Us For Availability
006
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
006
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
007
MOUNTING BRACKET WPL 315046 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
PART NOT USED WPL 214519 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
008
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
008
LAMP, TICKET CONTROL WPL 202479 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
009
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
009
PART NOT USED WPL 211881 Contact Us For Availability
009
WASHER WPL 910309 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
010
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
SHIELD, HEAT LAMP WPL 212533 Contact Us For Availability
011
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
012
BACK-UP PLATE (WHT) WPL 314912 Contact Us For Availability
012
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
012
HEATER SHIELD WPL 304124 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
KNOB, TIMER WPL 213089 Contact Us For Availability
012
GROOV-PIN WPL Y312300 Contact Us For Availability
012
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
TIMER W/KNOB & PIN WPL 307142 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
014
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
014
WIRE TERMINAL WPL 210745 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
CONTACT BALL KIT WPL 203140 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
015
PART NOT USED WPL 212949 Contact Us For Availability
016
KNURLED NUT WPL Y312702 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
016
PART NOT USED WPL 312369 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
017
PART NOT USED WPL NLA Contact Us For Availability
017
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
018
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
020
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
020
COVER, BLOWER WPL 314778 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
021
WIRE, GROUND WPL 205810 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
PIN RECEPTACLE, PLUG WPL 213074 Contact Us For Availability
021
CLIP, DOOR LINER WPL Y313910 Contact Us For Availability
023
FASTENER WPL 215003 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
023
COVER, CIRCUIT BOARD WPL 311612 Contact Us For Availability
023
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
025
BASE ASSY. WPL Y303361 Contact Us For Availability
026
SWITCH, RELAY WPL Y303787 Contact Us For Availability
026
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
027
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
028
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
029
TICKET CONTROL WPL 202509 Contact Us For Availability
029
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
× ![]()
