Model Whirlpool CHA1300W0 COMMERCIAL AUTOMATIC WASHER – Common Parts & Diagrams
05 - PUMP
03 - CABINET

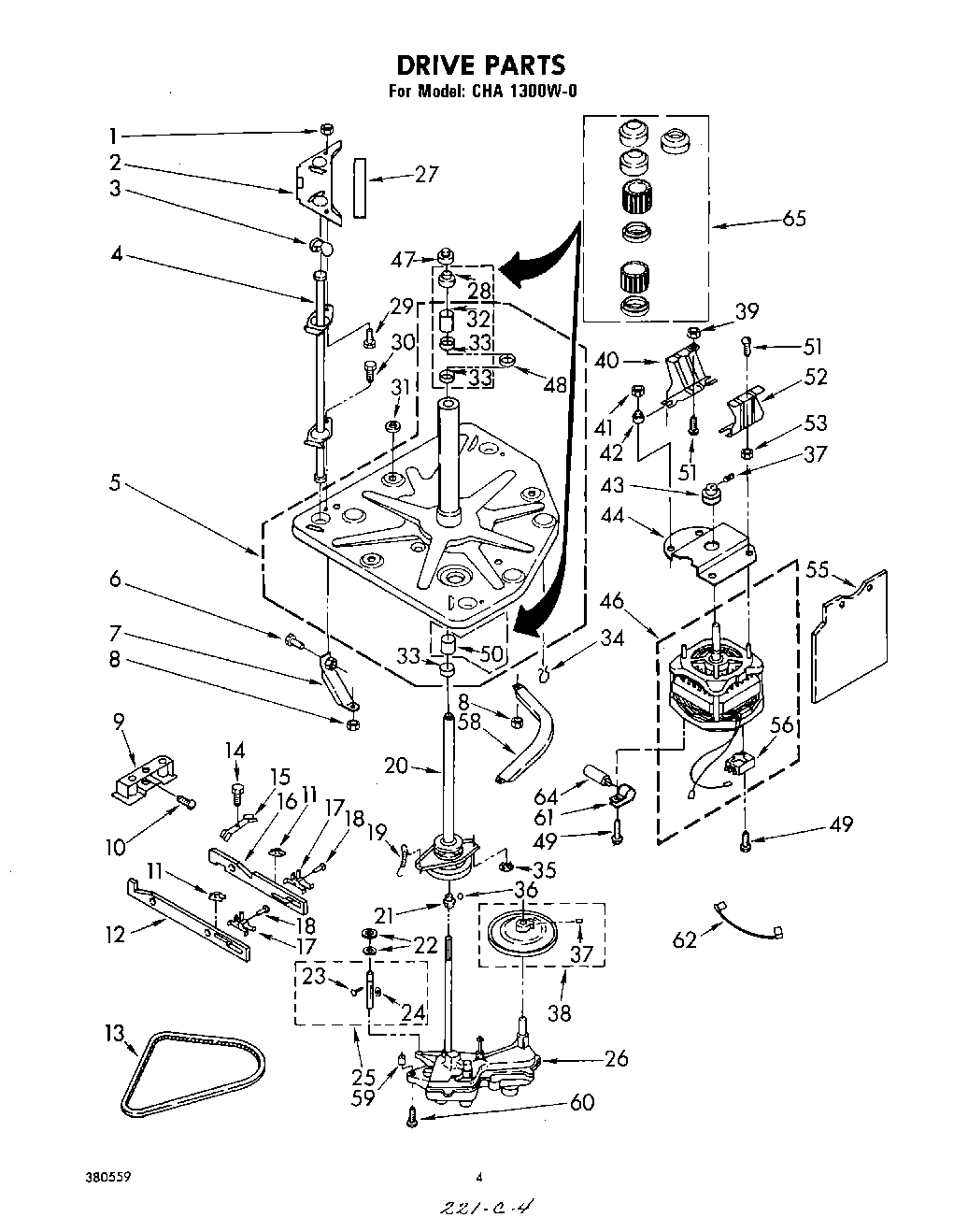

04 - DRIVE

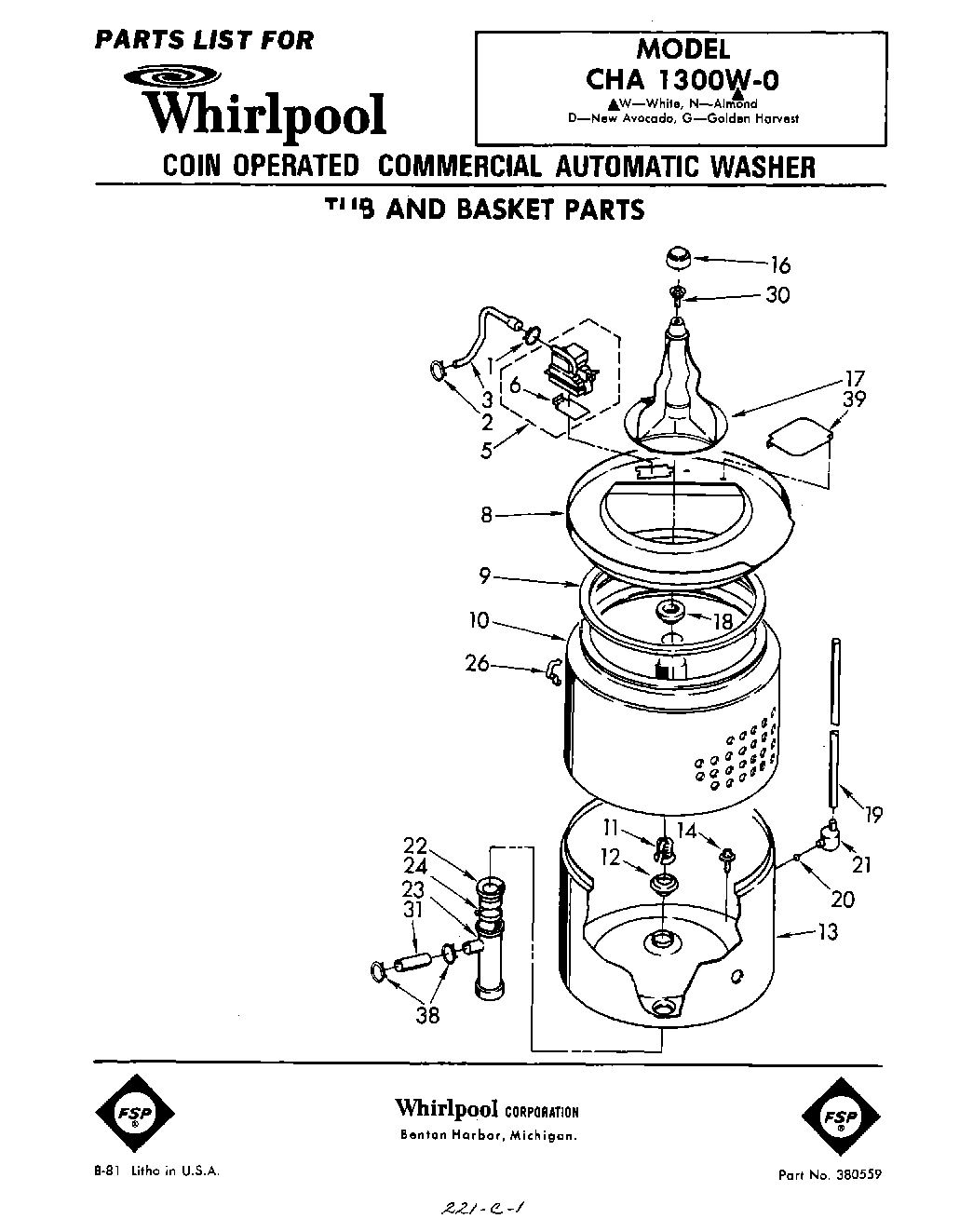

01 - TUB AND BASKET

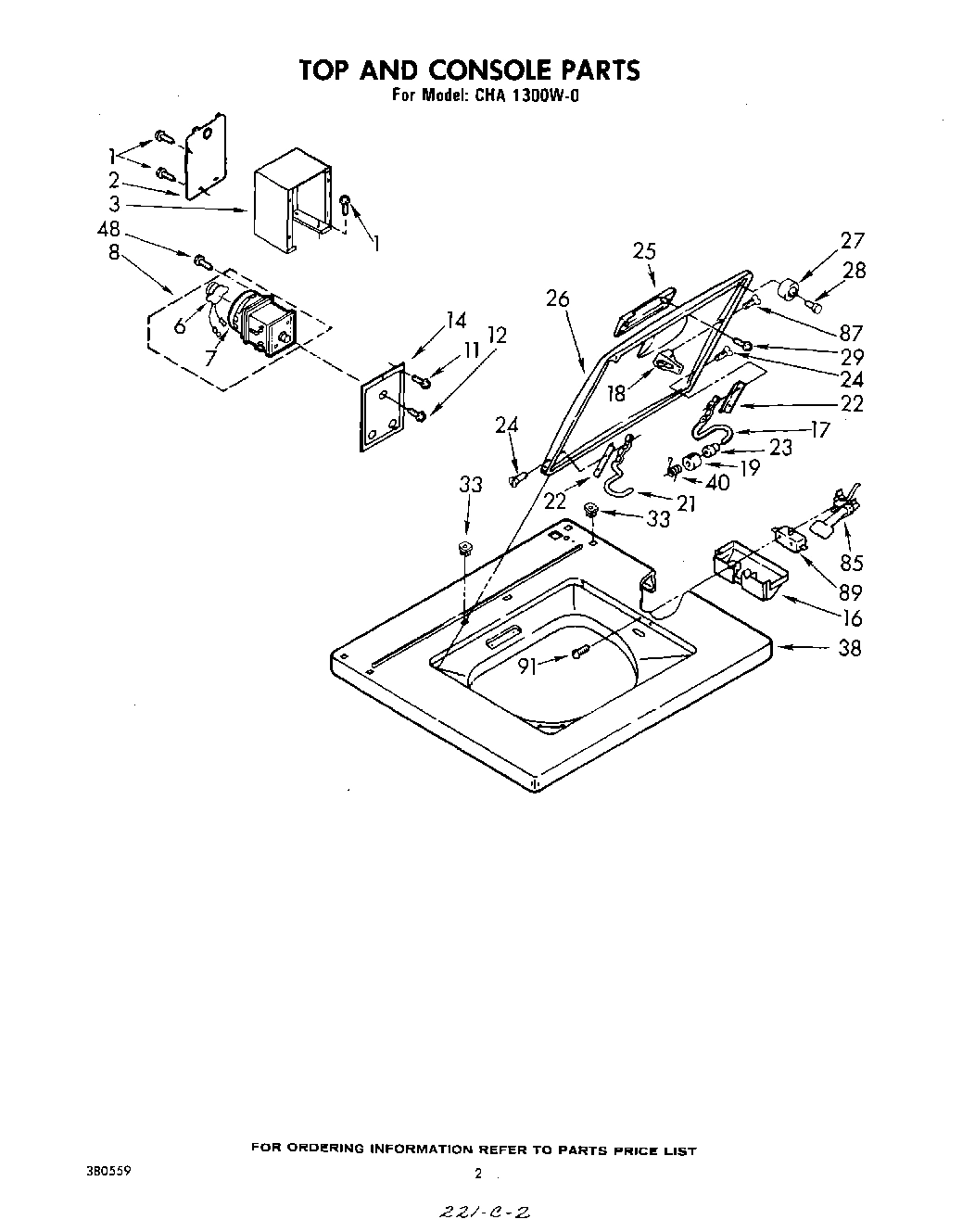

02 - TOP AND CONSOLE

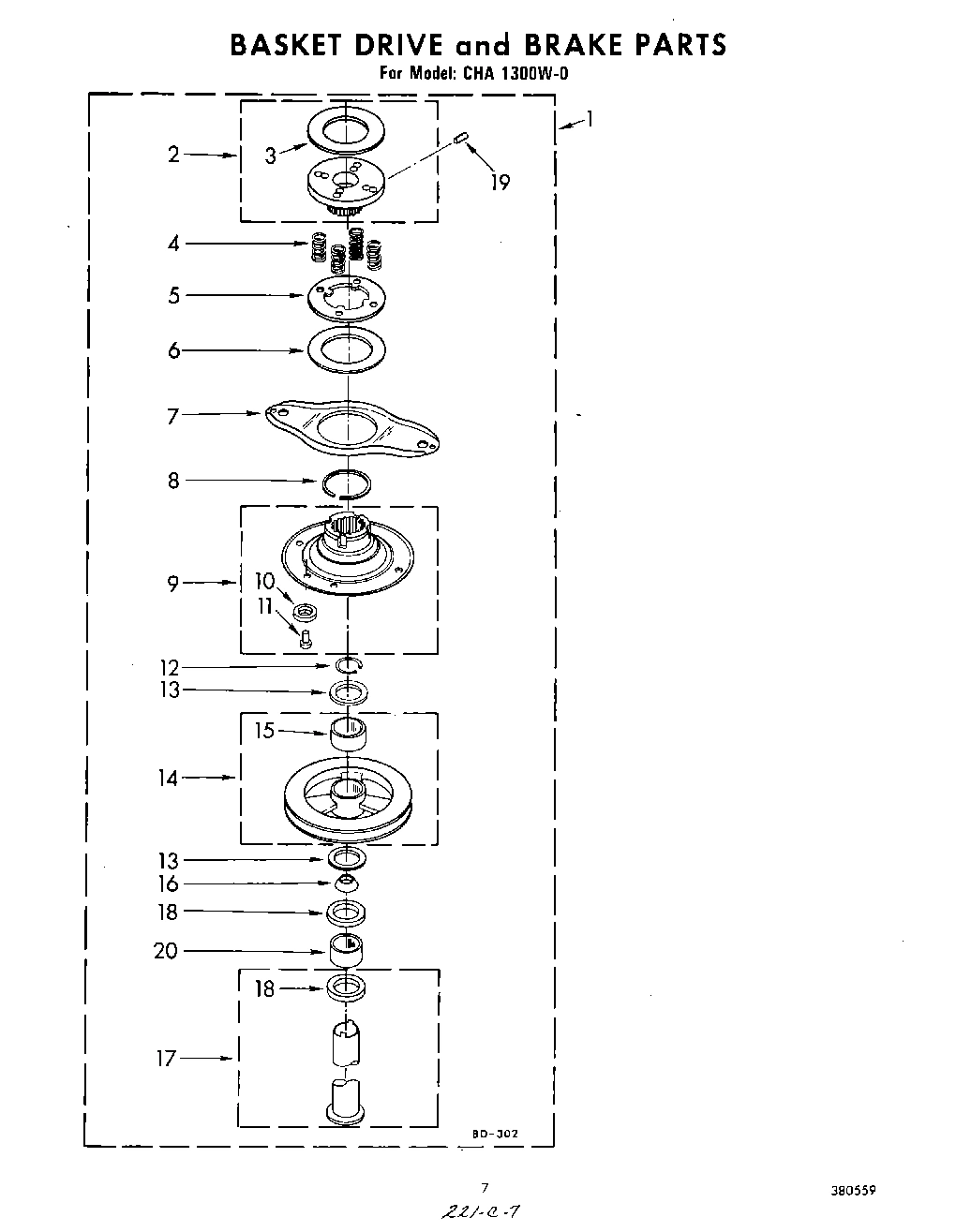

07 - BASKETDRIVE AND BRAKE

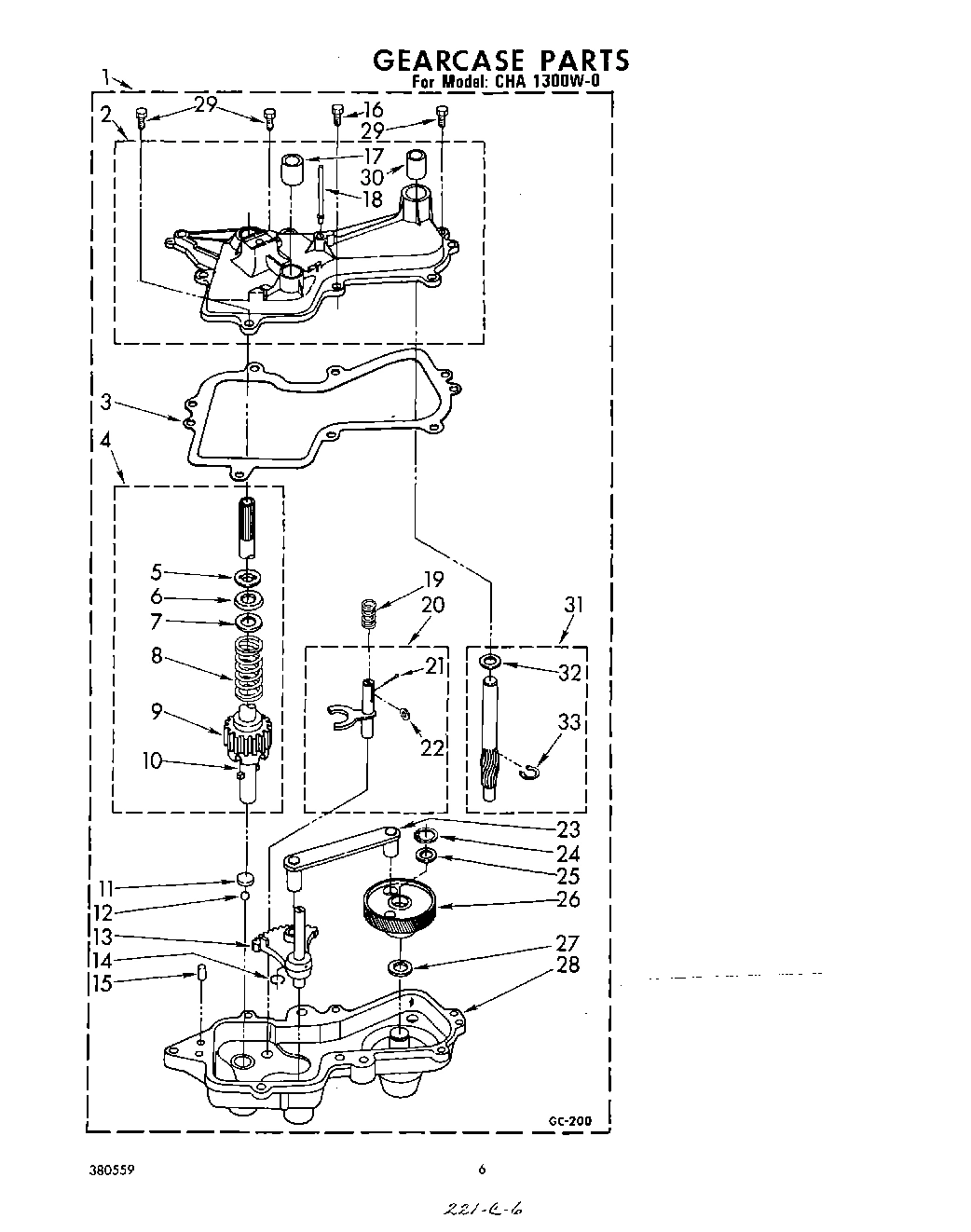

06 - GEARCASE

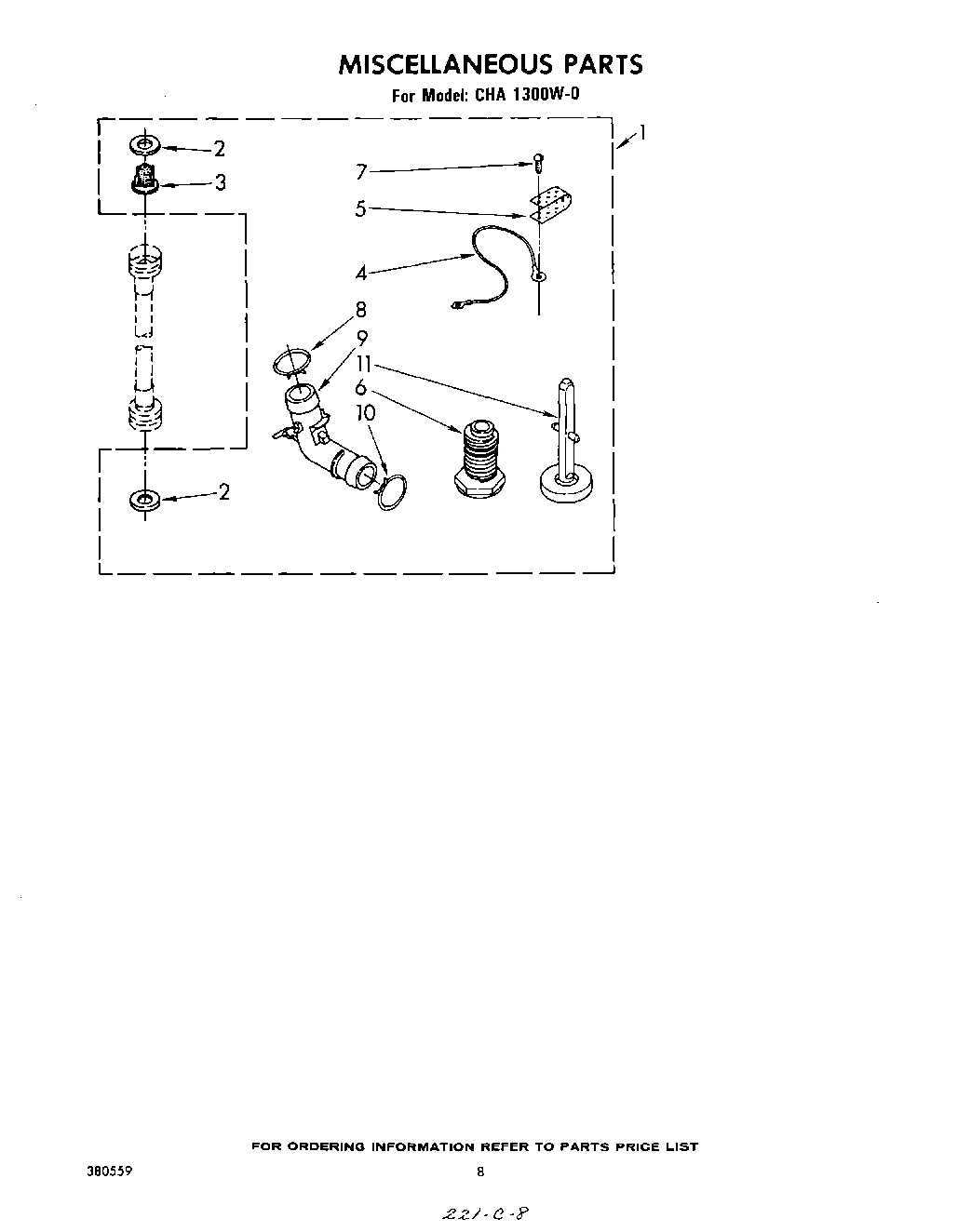

08 - MISCELLANEOUS , LITERATURE AND OPTIONAL
Common parts from model Whirlpool CHA1300W0 COMMERCIAL AUTOMATIC WASHER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
New Avocado WPL 261888 Contact Us For Availability
New Avocado (Uncut) WPL 261889 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Sheet, Installation Instructions WPL LIT372065 Contact Us For Availability
List, Repair Parts WPL LIT380559 Contact Us For Availability
1
Basket Drive & Brake WPL 358364 Contact Us For Availability
1
Gearcase (Complete) WPL 358483 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 375962 Contact Us For Availability
2
Panel, Rear WPL 94216 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
3
Box, Control WPL 356922 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
4
Rod, Suspension (3) WPL 82584 Contact Us For Availability
4
Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Wire, Ground WPL 364089 Contact Us For Availability
5
Baseplate & Centerpost WPL 359430 Contact Us For Availability
5
Inlet, Water WPL 366072 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
6
Flapper WPL 355584 Contact Us For Availability
6
Motor, Timer (60 Hz.) WPL 369253 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
7
Escapement WPL 369257 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
8
Ring, Tub (Includes Illus. 39) WPL 381971 Contact Us For Availability
8
Timer Assembly, 60 Hz. WPL 359750 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
9
Connector, Hose WPL 95440 Contact Us For Availability
9
Magnet WPL 365998 Contact Us For Availability
9
Seal, Tub Ring WPL 359757 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
10
Basket WPL 358389 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
11
Block, Drive WPL 96384 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
13
Tub Assembly WPL 359590 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
14
Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability
14
Cover, Front WPL 356831 Contact Us For Availability
14
Pulley, Basket Drive WPL 364032 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
16
Agitator Cap WPL 357787 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
17
Agitator WPL 363633 Contact Us For Availability
17
Hinge, R.H. WPL 95530 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
18
Strike, Lid Switch WPL 357633 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
19
Bumper, Lid Hinge WPL 91605 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
20
Seal WPL 351830 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
21
Air Dome Assembly WPL 360804 Contact Us For Availability
21
Hinge, L.H. WPL 95531 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
22
Hose, Tub Outlet WPL 93553 Contact Us For Availability
23
Manifold, Tub Outlet WPL 84091 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
24
Clip, Hose WPL 9421321 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
25
Handle, Lid WPL 356478 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
26
Clip, Tub Ring (4) WPL 359763 Contact Us For Availability
26
Lid (White) WPL 373115 Contact Us For Availability
26
Lid (New Avocado) WPL 373210 Contact Us For Availability
26
Lid (Golden Harvest) WPL 373211 Contact Us For Availability
26
Lid (Almond) WPL 378802 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
27
BUMPER WPL 356908 Contact Us For Availability
27
Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
30
Screw & Seal Assembly WPL 359192 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
31
Hose WPL 92231 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
33
Valve, Mixing (Serviced Only As Complete Valv WPL 358277 Contact Us For Availability
33
Nut, Push-In (2) WPL 98219 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
38
Top (Almond) WPL 359510 Contact Us For Availability
38
Top (White) WPL 373677 Contact Us For Availability
38
Top (New Avocado) WPL 377893 Contact Us For Availability
38
Top (Golden Harvest) WPL 377894 Contact Us For Availability
39
Plate, Snubber WPL 355852 Contact Us For Availability
39
Harness, Cabinet WPL 358133 Contact Us For Availability
39
Harness, Timer WPL 359751 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
40
Spring, L.H. WPL 92398 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
43
Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
46
Motor (Emerson) 60 Hz. WPL 357822 Contact Us For Availability
47
Seal, Agitator Shaft Spline WPL 359190 Contact Us For Availability
48
Spacer, Centerpost Seal WPL 358804 Contact Us For Availability
48
Screw, 8-32 x 5/16 WPL 155028 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
55
WPL 357571 WPL 357571 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
62
WPL 370950 WPL 370950 Contact Us For Availability
65
WPL 285134 WPL 285134 Contact Us For Availability
85
Switch Actuator Assembly WPL 370959 Contact Us For Availability
87
Screw & Washer WPL 354975 Contact Us For Availability
91
Screw & Washer WPL 354764 Contact Us For Availability
× ![]()
