Model Whirlpool CA2180XMW0 WASHER – Common Parts &amp; Diagrams

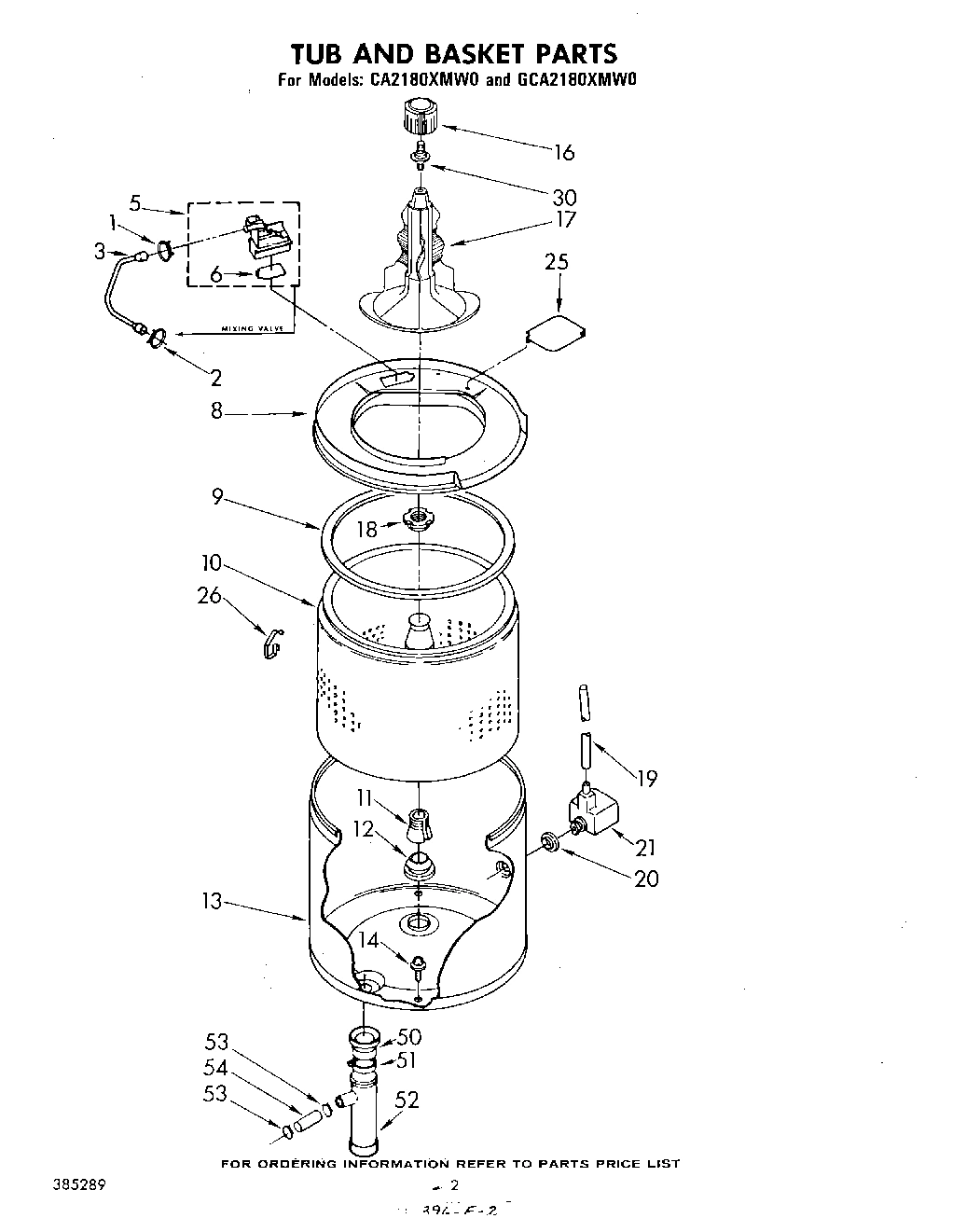

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

1

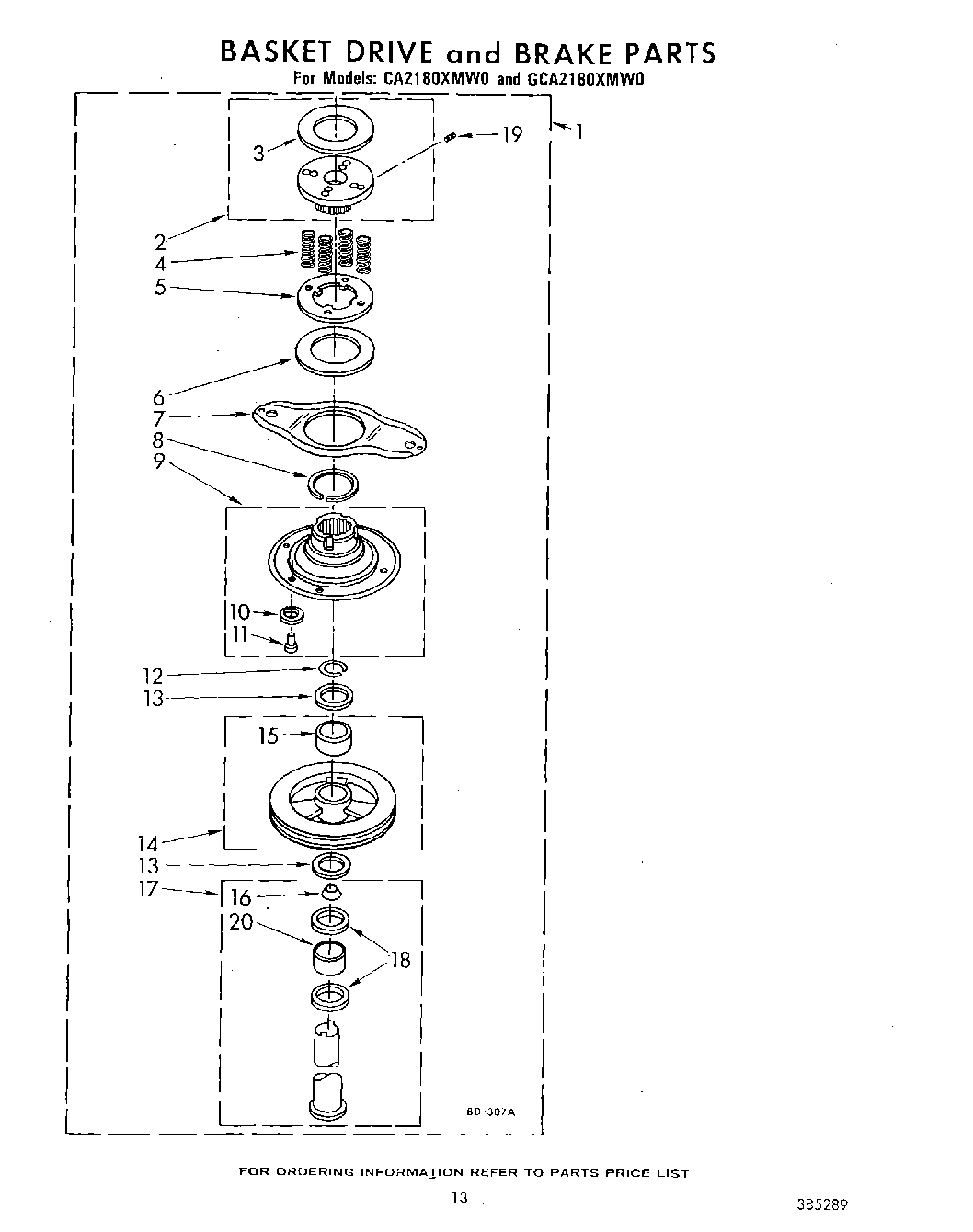

Basket Drive & Brake WPL 359699 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 375976 Contact Us For Availability

1

Harness, Console WPL 385811 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Timer, 60 Hz. WPL 385827 Contact Us For Availability

2

Cover, Gusset (3) WPL 352143 Contact Us For Availability

2

Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Motor, Timer (60 Hz.) WPL 386008 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Plate, Timer Mounting WPL 386272 Contact Us For Availability

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

4

Harness, Base WPL 385812 Contact Us For Availability

4

Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability

5

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Baseplate & Centerpost WPL 359721 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Inlet, Water WPL 366072 Contact Us For Availability

5

Plug, Terminal (12 Way) (Uses Terminal 94614) WPL 94696 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Harness, Timer WPL 386612 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

7

WP96743 Whirlpool Hose Backorder WPL WP96743 $59.71

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Cap, Terminal 12 Way (Uses Terminal 94613 WPL 94697 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Ring & Filter, Tub (Includes Illus. 25) WPL 381971 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

9

Connector, Hose WPL 95440 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Plug, Terminal (9 Way) WPL 355410 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Seal, Tub Ring WPL 383553 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $30.26

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

Shaft, Agitator WPL 362098 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

Basket WPL 384024 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Pushbutton WPL 386276 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

List, Service Parts WPL 385289 Contact Us For Availability

Sheet, Installation Instructions WPL 387193 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Cover, Control Box WPL 386273 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

WP95405 Whirlpool Belt In Stock WPL WP95405 $30.67

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Gear, Sector WPL 75073 Contact Us For Availability

Tub WPL 384074 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

Ring, Retainer WPL 52083 Contact Us For Availability

Wire, Ground WPL 690853 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Pulley, Basket Drive WPL 359697 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Bushing, Snap WPL 352481 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Panel, Control Box Rear WPL 94216 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Agitator Cap Assembly WPL 359990 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Screw, Ground Wire to Top WPL 90057 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Agitator & Insert Assembly WPL 383951 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Screw, Lid Handle WPL 359243 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Handle, Lid (White) WPL 379884 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Seal WPL 351830 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Lid (White) WPL 382792 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

21

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

21

Support, Spin Tube WPL 358586 Contact Us For Availability

21

Air Dome Assembly WPL 360804 Contact Us For Availability

22

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $4.55

22

BUMPER WPL 356908 Contact Us For Availability

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $4.82

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Rod, Connecting WPL 76577 Contact Us For Availability

24

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Washer, Retainer WPL 95083 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Plate, Snubber WPL 355852 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

Gearcase (For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability

Gear, Main Drive WPL 353397 Contact Us For Availability

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

27

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

27

Washer, Thrust WPL 363362 Contact Us For Availability

27

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

28

Gearcase WPL 362906 Contact Us For Availability

28

Hinge, Lid (L.H.) WPL 91099 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

Nut, Push-In WPL 353878 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Nut, Push-In (8) WPL 98219 Contact Us For Availability

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Stud & Seal, Agitator Shaft WPL 358440 Contact Us For Availability

31

Pinion, Drive WPL 84467 Contact Us For Availability

31

Spring, Lid (L.H.) WPL 92398 Contact Us For Availability

31

Gasket, Tub (7) WPL 17235 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

32

Washer, Drive Pinion WPL 16024 Contact Us For Availability

32

Top (White) WPL 386373 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

Ring, Retainer WPL 90094 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $12.46

34

Actuator, Lid Switch WPL 370959 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Screw and Washer (2) WPL 354764 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

36

Ball WPL 358585 Contact Us For Availability

37

Strike, Lid Switch WPL 357633 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

38

Screw And Washer WPL 354975 Contact Us For Availability

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

39

Box, Control (White) WPL 386366 Contact Us For Availability

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Pulley, Motor WPL 92216 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

46

Motor, 60 Hz. 358589 (Alt.) (Emerson) 362857 WPL 660303 Contact Us For Availability

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

50

Bearing, Lower WPL 354195 Contact Us For Availability

50

Hose, Tub Outlet WPL 93553 Contact Us For Availability

51

Bolt, 3/8-16 x 3/4 WPL 98537 Contact Us For Availability

51

Clamp, Hose WPL 9421321 Contact Us For Availability

52

Bracket, Motor Mou WPL 93549 Contact Us For Availability

52

Manifold WPL 84091 Contact Us For Availability

53

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Hose, Pump To Sump WPL 92231 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

62

WP385728 Whirlpool Bushing Backorder WPL WP385728 $4.82
