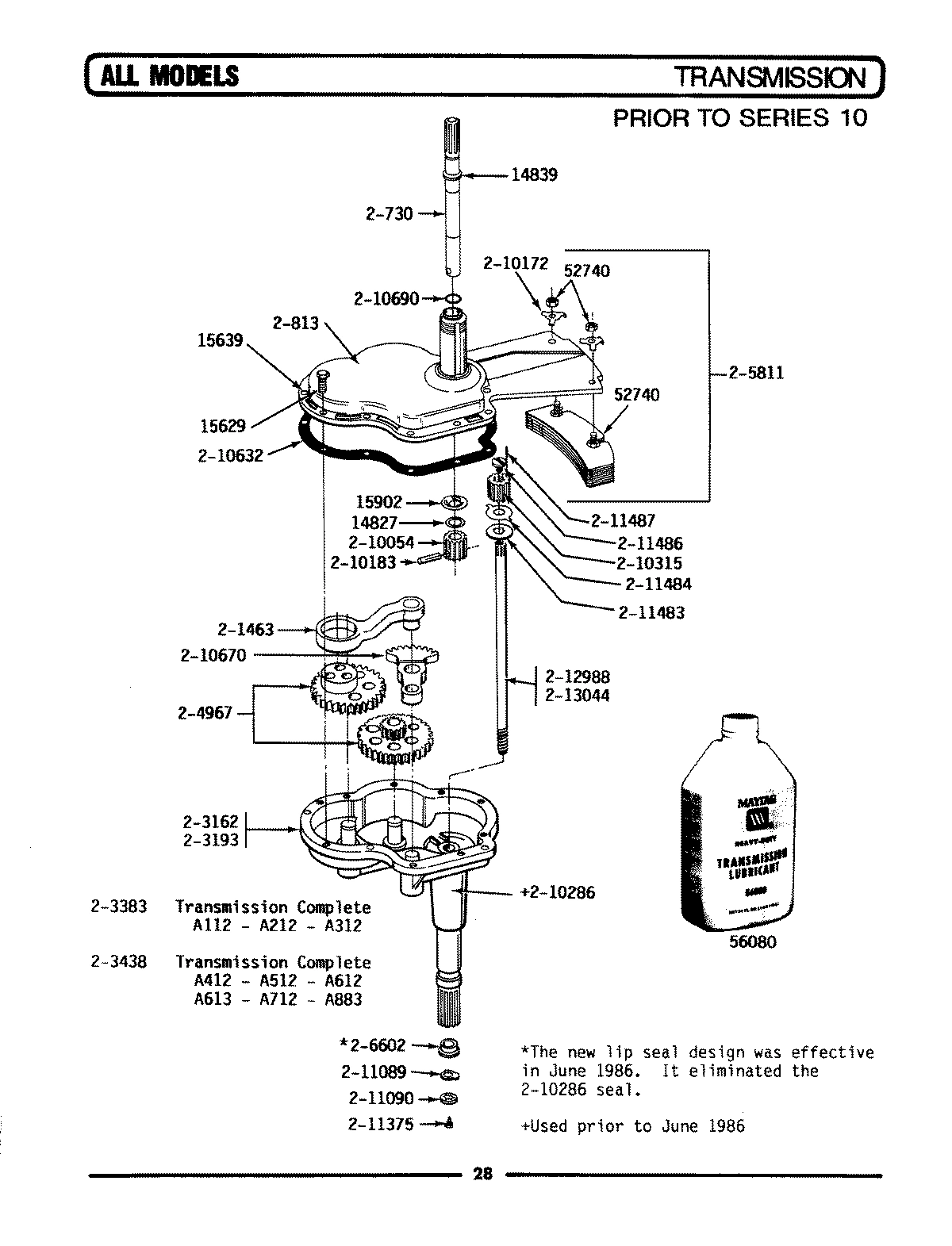

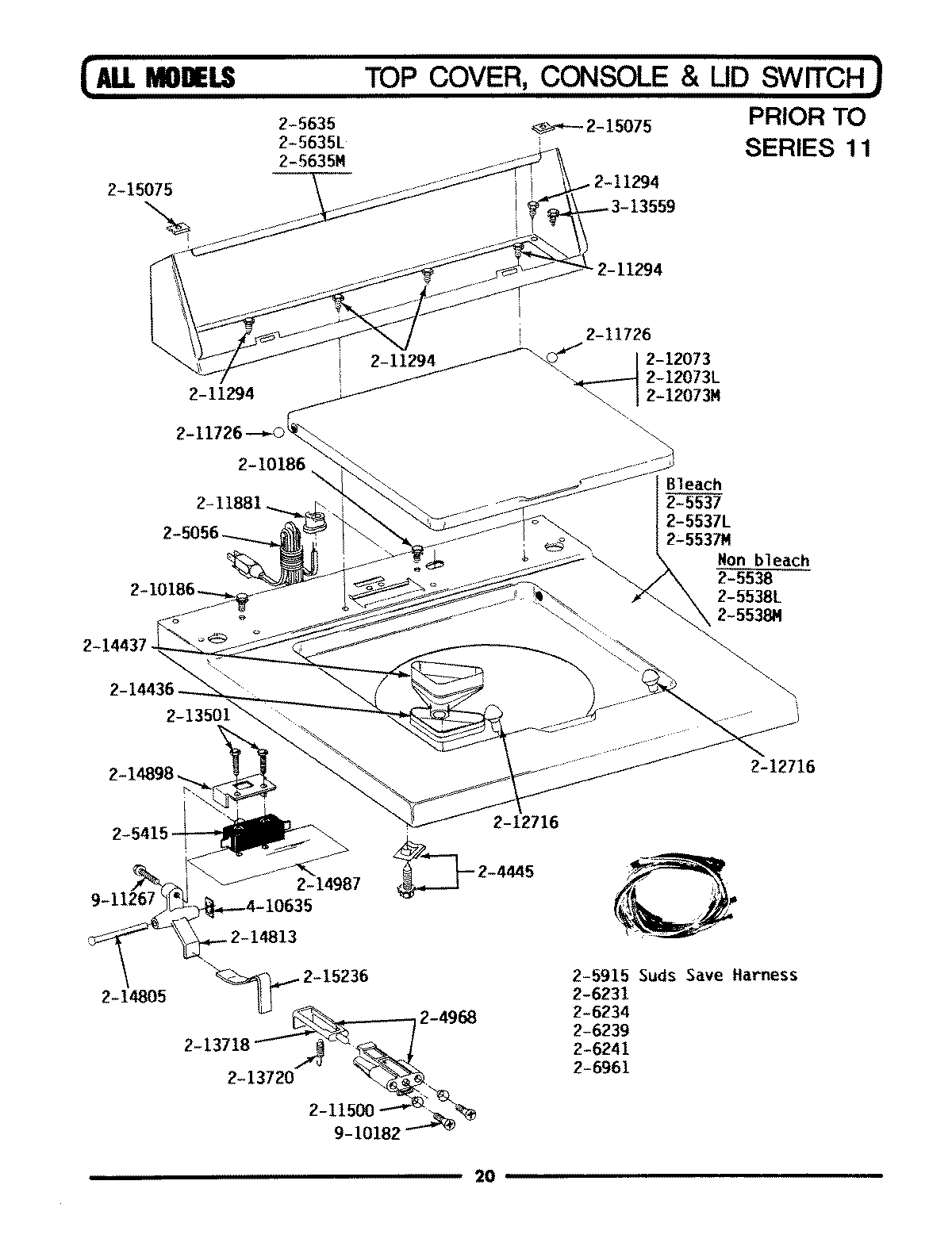

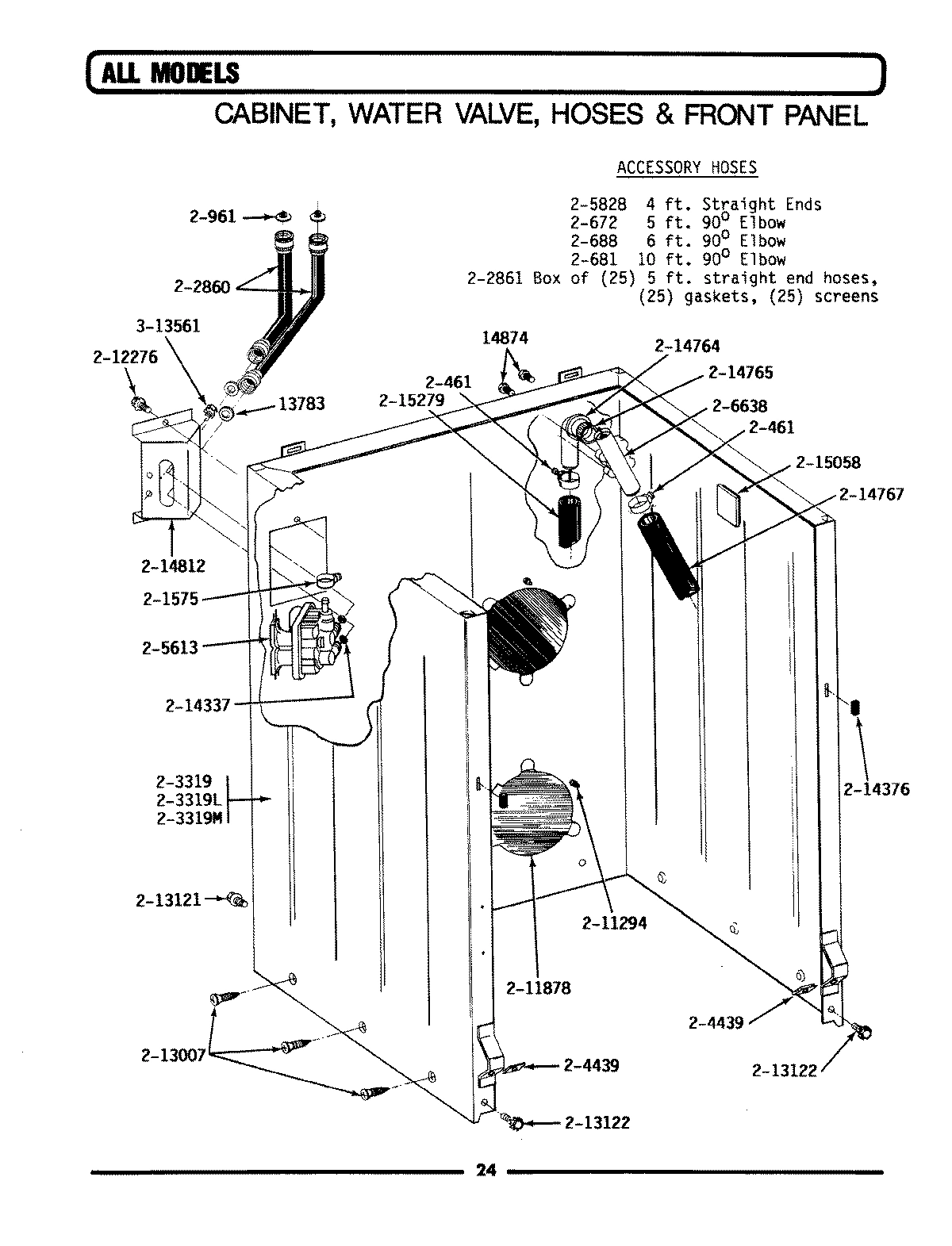

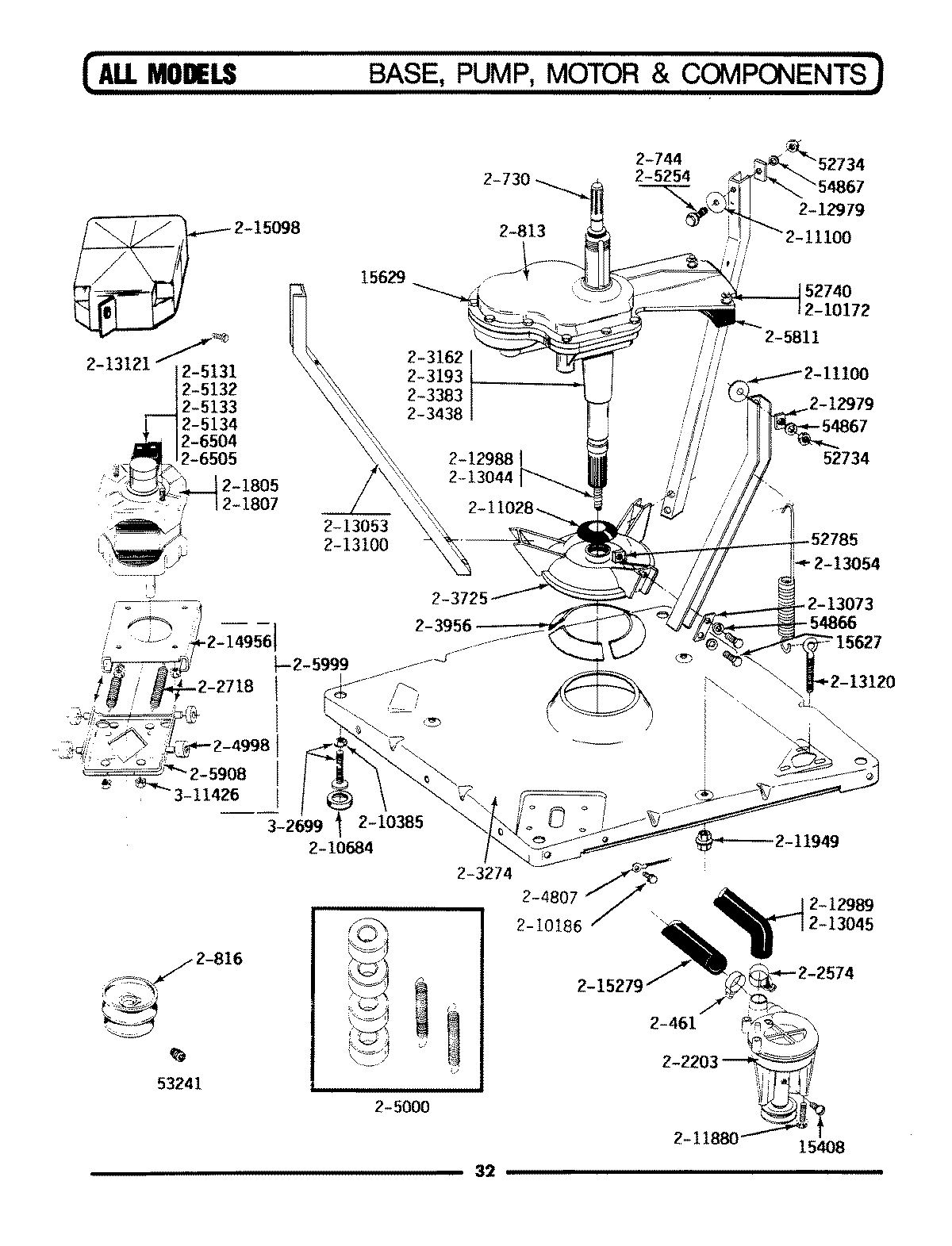

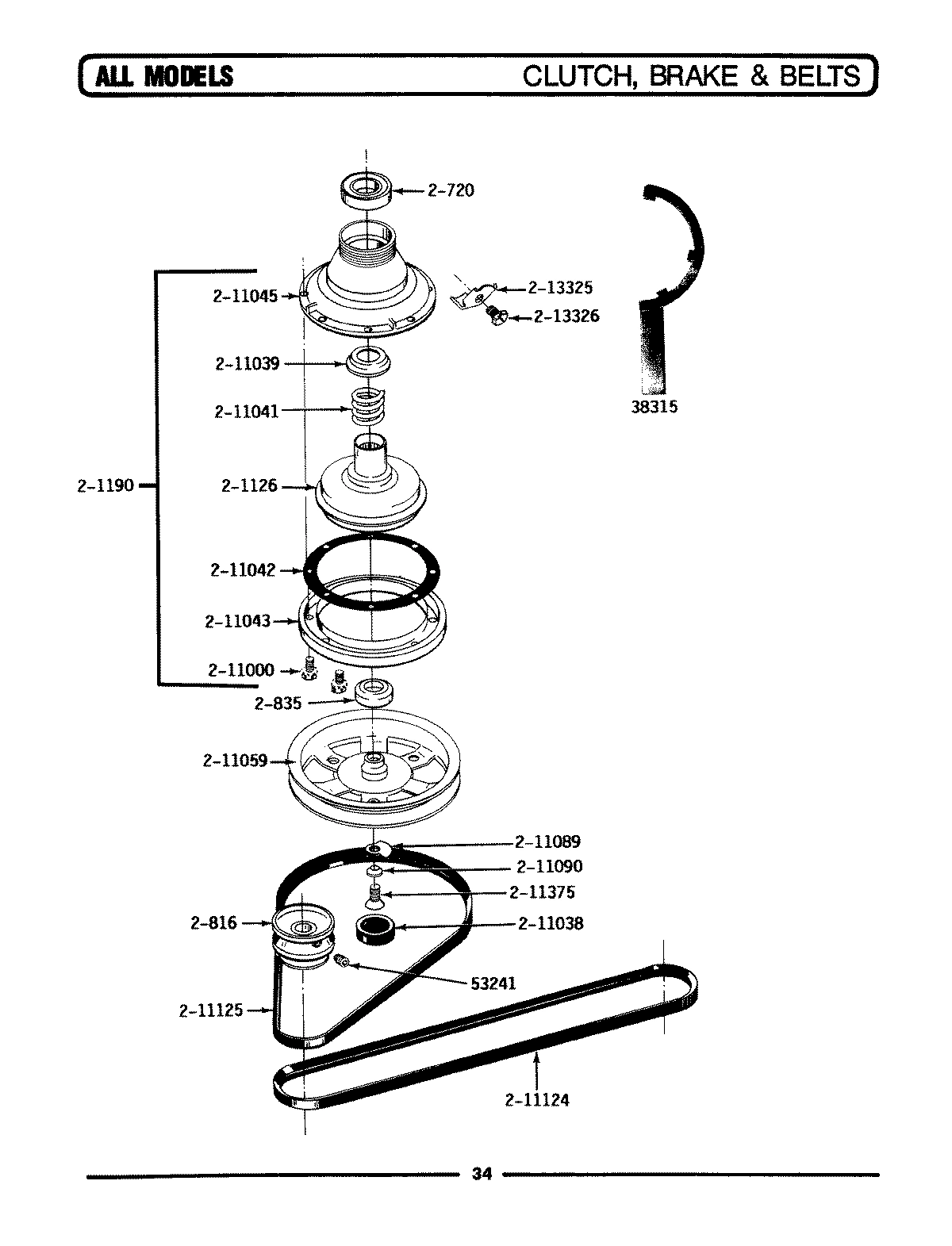

Model Whirlpool A712 WASHER – Common Parts &amp; Diagrams

1

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $17.51

1

SEAL, AGITATOR DRIVE SHAFT WPL A04298 Contact Us For Availability

1

WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability

1

TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability

1

TIMER MOTOR 120-60 WPL 205033 Contact Us For Availability

2

WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability

2

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

2

SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability

2

COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability

2

SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability

2

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

2

WATER TEMPERATURE SWITCH----NA WPL 206218 Contact Us For Availability

3

PLUNGER & BRACKET ASSEMBLY WPL 204968 Contact Us For Availability

3

RETAINING RING WPL Y015667 Contact Us For Availability

3

BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability

3

BALL BEARING, RADIAL WPL Y200720 Contact Us For Availability

3

SPEED CONTROL SWITCH WPL 206219 Contact Us For Availability

4

CORD, POWER WPL 205056 Contact Us For Availability

4

DOWEL PIN WPL 015639 Contact Us For Availability

4

NUT WPL Y052734 Contact Us For Availability

4

PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability

4

HOUSING, TRANSMISSION WPL 206624 Contact Us For Availability

4

INFINITE WATER LEVEL SWITCH WPL 206223 Contact Us For Availability

5

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $30.21

5

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

5

SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability

5

BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability

5

HOUSING, TRANSMISSION WPL 206625 Contact Us For Availability

5

TIMER WPL 206228 Contact Us For Availability

6

6-2040130 Whirlpool Washer Tub Bearing Kit In Stock WPL 6-2040130 $58.63

6

NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability

6

ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability

6

COVER, TRANSMISSION WPL 206628 Contact Us For Availability

6

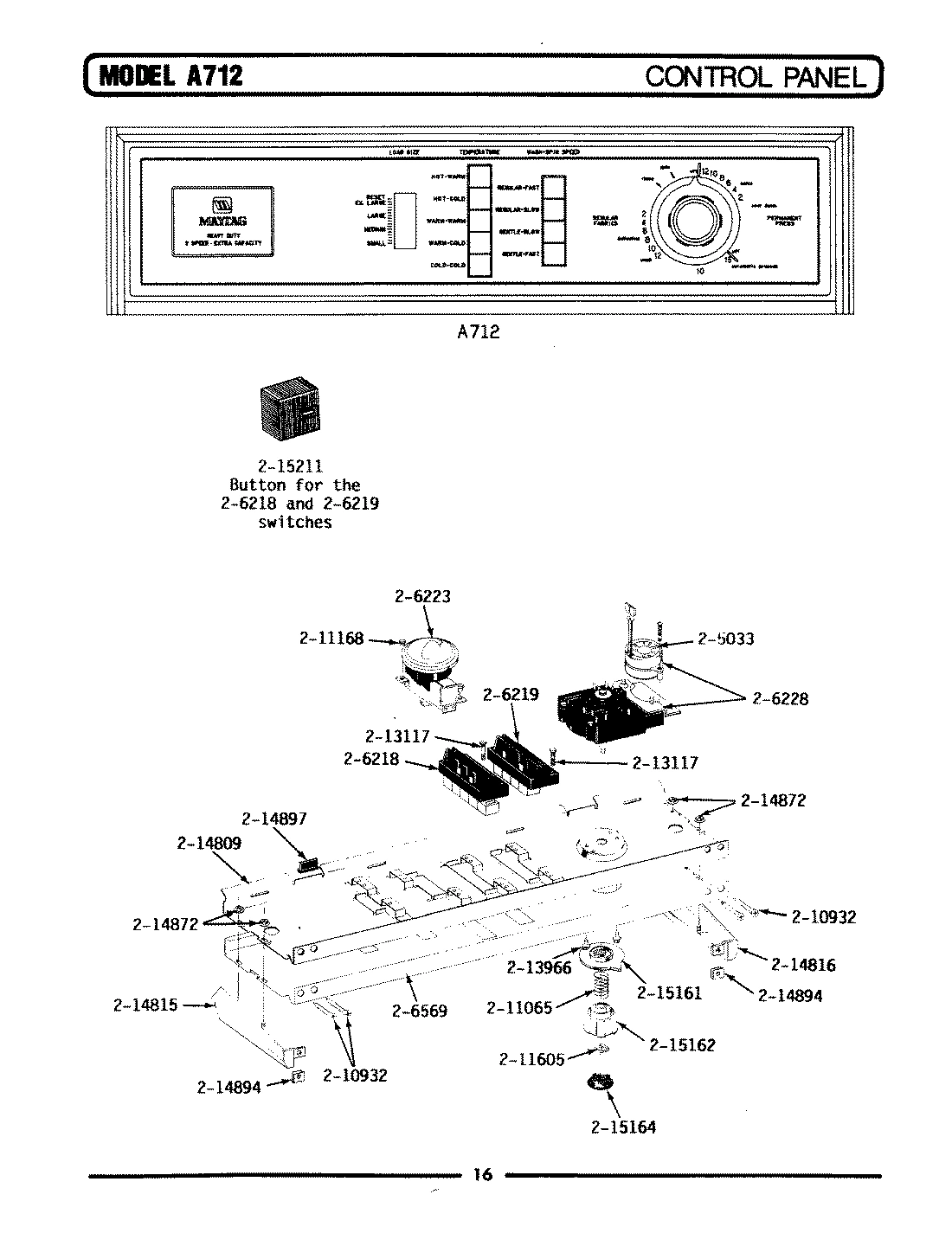

CONTROL PANEL WPL 206569 Contact Us For Availability

7

WPY206629 Whirlpool Pin Collar Backorder WPL WPY206629 $4.82

7

CLAMP - TUB COVER WPL 200846 Contact Us For Availability

7

TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability

7

BRAKE ASSEMBLY WPL 201190 Contact Us For Availability

7

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

8

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

8

SUDS SAVE HARNESS WPL 205915 Contact Us For Availability

8

LOCK WASHER WPL Y054866 Contact Us For Availability

8

BLOCK, TORQUE AND YOKE ASSEMBL WPL 206685 Contact Us For Availability

9

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

9

SEAL AND SPRING WPL 201537 Contact Us For Availability

9

WASHER, LOCK WPL Y054867 Contact Us For Availability

9

CAP, OIL RETAINER WPL 211038 Contact Us For Availability

9

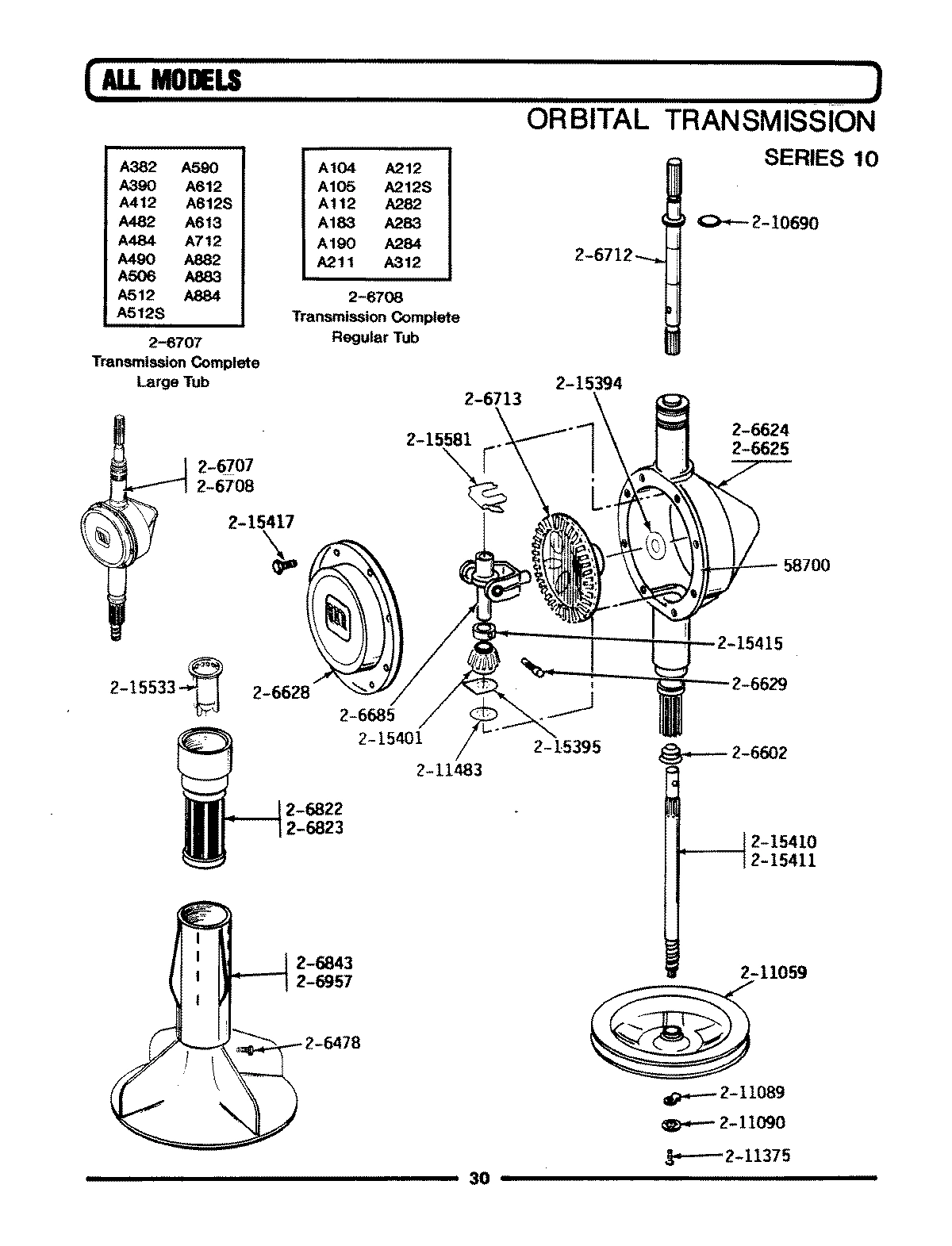

TRANSMISSION, ORBITAL WPL 206707 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.40

WIRE HARNESS WPL 206241 Contact Us For Availability

WIRE HARNESS WPL 206961 Contact Us For Availability

CONSOLE (WHT) WPL 205635 Contact Us For Availability

PITMAN WITH WRIST PIN WPL 201463 Contact Us For Availability

RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability

TRANSMISSION WPL 206708 Contact Us For Availability

RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

AGITATOR SHAFT WPL 200730 Contact Us For Availability

SPRING, BRAKE WPL 211041 Contact Us For Availability

ASSEMBLY, AGITATOR SHAFT WPL 206712 Contact Us For Availability

W10175939 Whirlpool Bolt Assembly In Stock WPL W10175939 $4.82

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

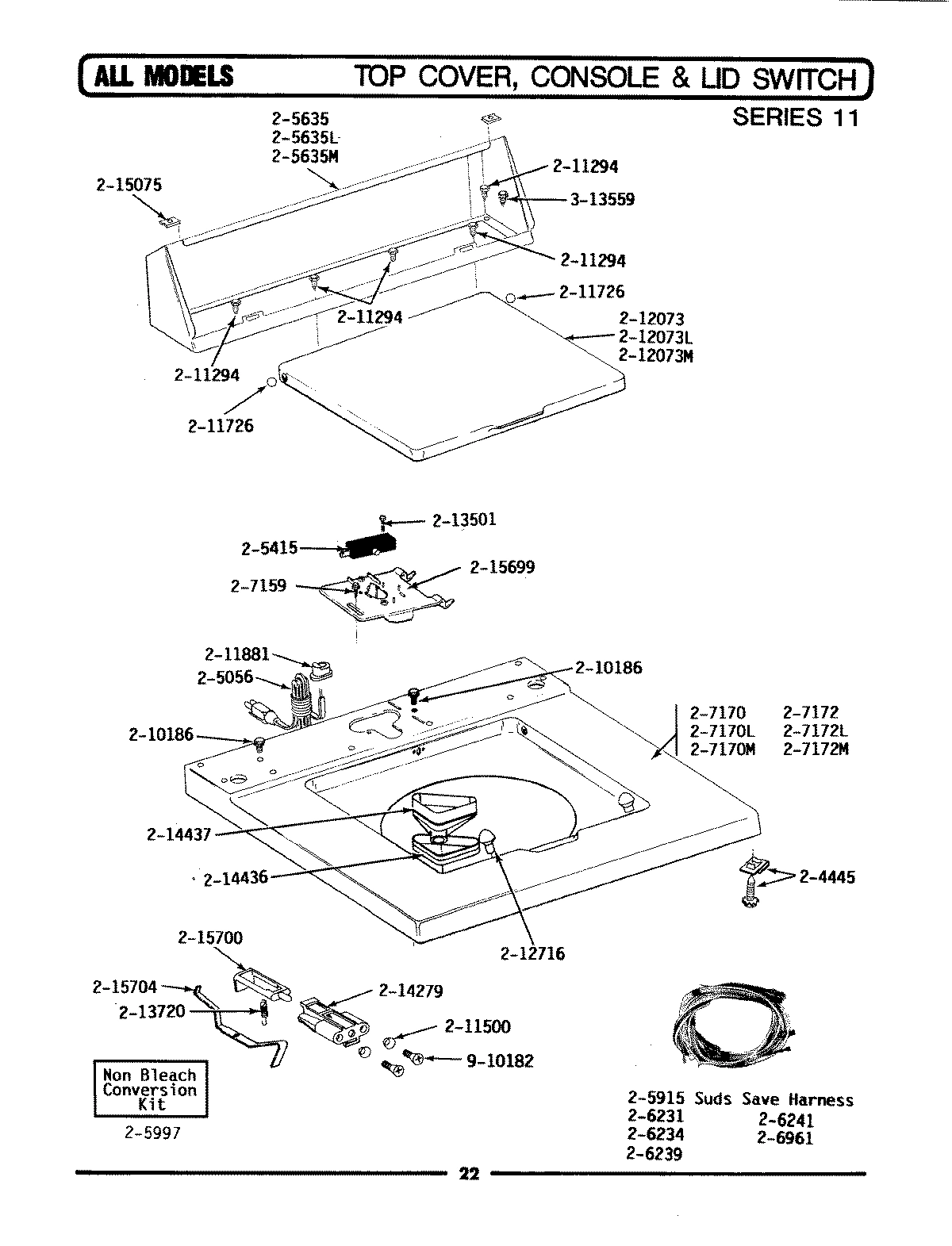

TOP COVER WPL 207170 Contact Us For Availability

MOUNTING STEM WPL 202521 Contact Us For Availability

GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability

GEAR, BEVEL WPL 206713 Contact Us For Availability

NON-BLEACH CONVERSION KIT WPL 205997 Contact Us For Availability

GEAR CASE COVER ASSEMBLY WPL 200813 Contact Us For Availability

GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability

DRUM, BRAKE WPL 211043 Contact Us For Availability

DISPENSER, LINT FILTER WPL 206822 Contact Us For Availability

BACK UP PLATE WPL 214809 Contact Us For Availability

14

TOP COVER WPL 207172 Contact Us For Availability

14

HOUSING, BRAKE WPL 211045 Contact Us For Availability

14

END CAP F/CONTROL PANEL-LH WPL 214815 Contact Us For Availability

15

MOTOR - TWO SPEED 120-60 WPL 201807 Contact Us For Availability

15

AGITATOR W/LOCK SCREW/O-RIN WPL 206843 Contact Us For Availability

15

END CAP F/CONTROL PANEL-RH WPL 214816 Contact Us For Availability

INNER TUB WPL 203156 Contact Us For Availability

PINION WPL 210054 Contact Us For Availability

PUMP AS PAK WPL 202203 Contact Us For Availability

AGITATOR W/LOCK SCREW/O`RIN WPL 206957 Contact Us For Availability

PALNUT, END CAP WPL 214872 Contact Us For Availability

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82

LINT FILTER-DISPENSER WPL 203265 Contact Us For Availability

SEAL, RUBBER WPL 210690 Contact Us For Availability

FASTENER, END CAP WPL 214894 Contact Us For Availability

12112425 Whirlpool Washer Pump and Drive Belt In Stock WPL 12112425 $19.50

202718 Whirlpool Tension Spring Backorder WPL 202718 $8.52

WP6-2301530 Whirlpool Pulley Backorder WPL WP6-2301530 $140.51

GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

206638 Whirlpool Break Siphon Connector Kit In Stock WPL 206638 $43.37

WP211089 Whirlpool Lug Stop Backorder WPL WP211089 $7.19

SEAL WPL 210286 Contact Us For Availability

TIMER DIAL INDICATOR WPL 215161 Contact Us For Availability

WP22003555 Whirlpool Washer ST Backorder WPL WP22003555 $12.87

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

PINION WPL 210315 Contact Us For Availability

BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability

TIMER KNOB WPL 215162 Contact Us For Availability

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability

GASKET WPL 210632 Contact Us For Availability

CAP FOR KNOB WPL 215164 Contact Us For Availability

WP211726 Whirlpool Ball Assembly In Stock WPL WP211726 $5.30

WP6-2114830 Whirlpool Washer Spare Part Backorder WPL WP6-2114830 $4.82

SEGMENT WPL 210670 Contact Us For Availability

DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability

SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability

23

203956 Whirlpool Damper Pads 3 Pack with Poly In Stock WPL 203956 $25.53

23

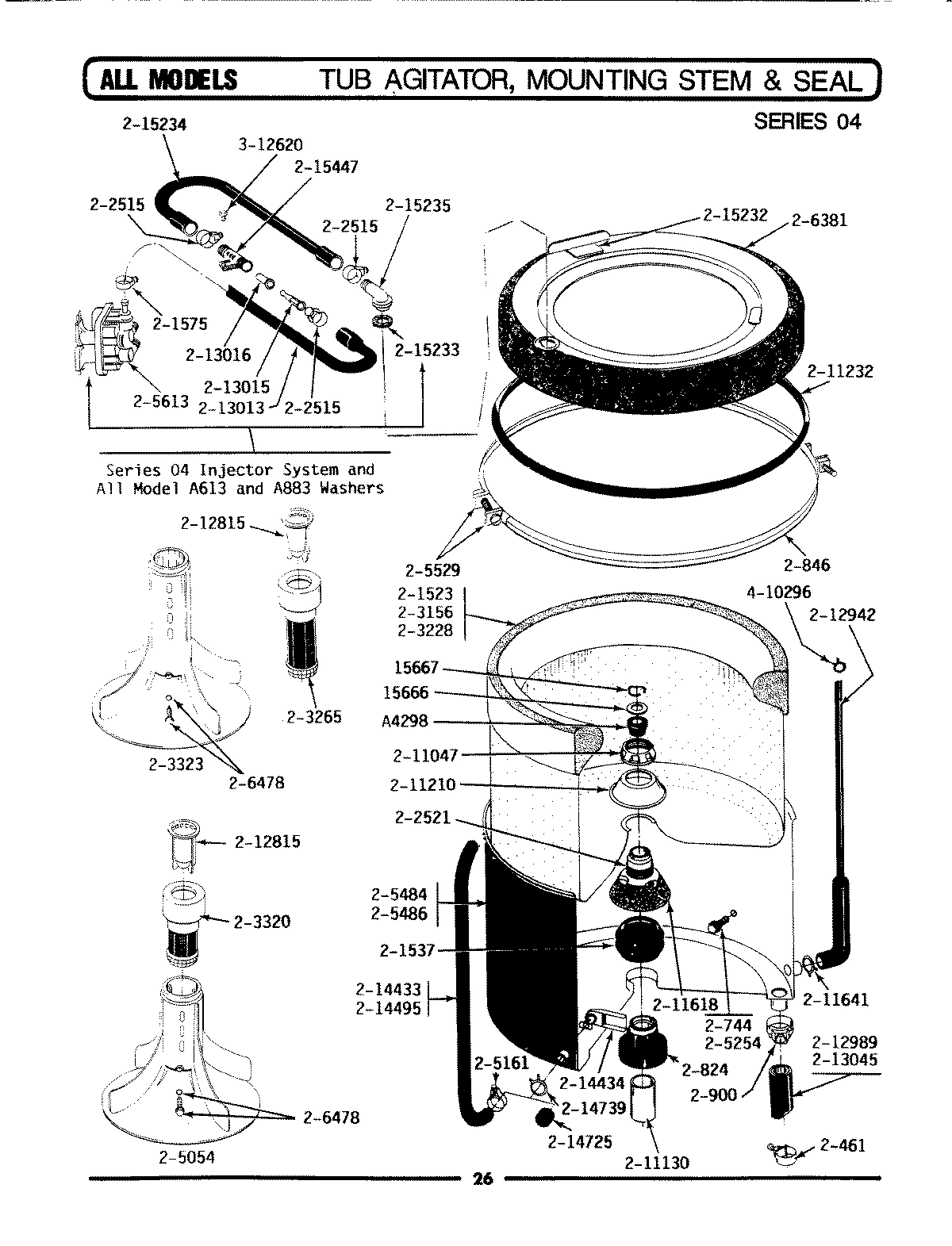

OUTER TUB WPL 205484 Contact Us For Availability

23

WASHER, BEVEL GEAR WPL 215394 Contact Us For Availability

24

WP215395 Whirlpool Clutch Plate Backorder WPL WP215395 $4.82

24

GROMMET, CORD WPL 211881 Contact Us For Availability

24

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

205000 Whirlpool Motor Spring and Guide Kit Backorder WPL 205000 $45.73

WPW10221114 Whirlpool Pinion In Stock WPL WPW10221114 $49.02

NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability

LID-WHITE WPL 212073 Contact Us For Availability

26

205613 Whirlpool Washer Water Inlet Valve In Stock WPL 205613 $78.89

26

CENTER SHAFT - LARGER WPL 215410 Contact Us For Availability

WP212716 Whirlpool Lid Bumper In Stock WPL WP212716 $5.30

TUB COVER WPL 206381 Contact Us For Availability

SWITCH, MOTOR START WPL 205131 Contact Us For Availability

SHAFT, CENTER WPL 215411 Contact Us For Availability

28

SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability

28

SWITCH, MOTOR START WPL 205132 Contact Us For Availability

28

COLLAR, LOWER WPL 215415 Contact Us For Availability

WP206680 Whirlpool Inlet Hose In Stock WPL WP206680 $70.16

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

LID SWITCH PLUNGER WPL 213718 Contact Us For Availability

SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability

MOTOR EXTERNAL START SWITCH WPL 205133 Contact Us For Availability

SCREW, TRANSMISSION COVER WPL 215417 Contact Us For Availability

WP213720 Whirlpool Spring Assembly In Stock WPL WP213720 $6.02

GROOV-PIN WPL 211487 Contact Us For Availability

MOTOR EXTERNAL START SWITCH WPL 205134 Contact Us For Availability

DISPENSER CUP WPL 215533 Contact Us For Availability

W10175938 Whirlpool Bolt In Stock WPL W10175938 $6.02

WP215581 Whirlpool Spring Assembly In Stock WPL WP215581 $6.02

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.86

BRACKET F/LID SWITCH PLUNGE WPL 214279 Contact Us For Availability

GASKET WPL 214436 Contact Us For Availability

32

SPACER, FRONT PANEL WPL 214376 Contact Us For Availability

32

PIN FOR UNBALANCE LEVER WPL 214805 Contact Us For Availability

32

COUNTERWEIGHT WPL 205811 Contact Us For Availability

208847 Whirlpool Washer Siphon Break Kit In Stock WPL 208847 $18.92

LEVER FOR LID SWITCH WPL 214813 Contact Us For Availability

WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability

LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability

WP211232 Whirlpool Seal In Stock WPL WP211232 $44.89

WP214765 Whirlpool Gasket Backorder WPL WP214765 $59.25

COVER FOR LID SWITCH WPL 214898 Contact Us For Availability

MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability

22001423 Whirlpool Screw Set Assembly Backorder WPL 22001423 $36.70

WP22001448 Whirlpool Drain Pump Hose In Stock WPL WP22001448 $52.38

MOISTURE BARRIER FOR SWITCH WPL 214987 Contact Us For Availability

MOTOR EXTERNAL START SWITCH WPL 206504 Contact Us For Availability

36

BRACKET,WATER VALVE WPL 214812 Contact Us For Availability

36

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

36

SWITCH, MOTOR START WPL 206505 Contact Us For Availability

PAD, CABINET BUMPER WPL 215058 Contact Us For Availability

UNBALANCE LEVER WPL 215236 Contact Us For Availability

DISPENSER CUP WPL 212815 Contact Us For Availability

LOCK WASHER WPL 210172 Contact Us For Availability

38

WP22001619 Whirlpool Washer Water Level Press In Stock WPL WP22001619 $64.18

38

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

39

WP210385 Whirlpool Lock Nut Backorder WPL WP210385 $4.82

39

WP213013 Whirlpool Injector Hose Backorder WPL WP213013 $31.58

39

SCREW----NA WPL Y313561 Contact Us For Availability

40

WP210684 Whirlpool Dishwasher Leveling Leg Pa In Stock WPL WP210684 $11.40

40

WP213015 Whirlpool Nozzle Injector Tube In Stock WPL WP213015 $4.82

41

WP216201 Whirlpool Rubber Injector Valve In Stock WPL WP216201 $13.69

41

DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability

42

WASHER, CUSHION WPL 211100 Contact Us For Availability

43

22001678 Whirlpool Switch and Fuse Bracket Backorder WPL 22001678 $20.66

43

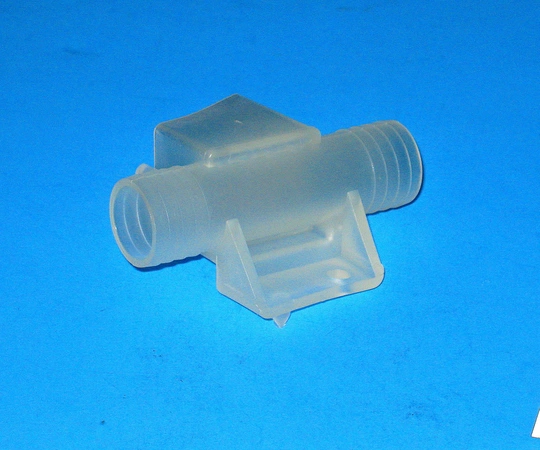

WP22213057 Whirlpool Injector Sleeve In Stock WPL WP22213057 $6.02

43

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

44

WP211949 Whirlpool Nut Backorder WPL WP211949 $4.82

44

WP214433 Whirlpool Inlet Tube In Stock WPL WP214433 $21.02

44

LID SWITCH PLUNGER WPL 215700 Contact Us For Availability

45

UNBALANCE LEVER WPL 215704 Contact Us For Availability

45

WASHER, TUB BRACE WPL 212979 Contact Us For Availability

46

FASTENER WPL 410635 Contact Us For Availability

46

CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability

47

W10756178 Whirlpool Screw Backorder WPL W10756178 $4.55

47

WP213045 Whirlpool Dishwasher Tub to Pump Hos In Stock WPL WP213045 $45.34

48

SCREW, PUMP COVER WPL 911267 Contact Us For Availability

49

UNBALANCE BUMPER WPL 215232 Contact Us For Availability

49

CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability

50

WASHER, DOUBLE WPL 213073 Contact Us For Availability

51

W11129403 Whirlpool Bolt Backorder WPL W11129403 $8.89

51

WPY215234 Whirlpool Hose Backorder WPL WPY215234 $66.30

52

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $4.26

52

INJECTOR TUBE WPL 215235 Contact Us For Availability

53

WP215447 Whirlpool Sleeve Backorder WPL WP215447 $4.82

53

MOUNT, MOTOR/UPPER WPL 214956 Contact Us For Availability

54

SHIELD, MOTOR WPL 215098 Contact Us For Availability

55

WP22003410 Whirlpool Drain Hose In Stock WPL WP22003410 $43.54

55

SEMS SCREW, No.10-16 X 1/2`` WPL 312620 Contact Us For Availability

56

22003428 Whirlpool Adjustable Leg (with Nut) In Stock WPL 22003428 $8.94

57

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

WP248562 Whirlpool Terminal Backorder WPL WP248562 $4.82

No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability

CAPACITOR KIT WPL 206103 Contact Us For Availability

CLIP, CAPACITOR WPL 211149 Contact Us For Availability

FRONT PANEL-WHITE WPL 212998 Contact Us For Availability

GUARD, BELT WPL 213846 Contact Us For Availability

CAPACITOR WPL Y200832 Contact Us For Availability

CONVERTER WPL Y201808 Contact Us For Availability

WIRE CONNECTOR WPL Y312140 Contact Us For Availability

BLEACH INLET WHITE WPL 215577 Contact Us For Availability

CUP, BLEACH (WHITE) WPL 215579 Contact Us For Availability

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability

LINER, TUB BEARING WPL 211130 Contact Us For Availability

SCREW WPL Y310632 Contact Us For Availability

TOP COVER-WHITE WPL 205537 Contact Us For Availability

LUG WASHER WPL 211484 Contact Us For Availability
