Model Whirlpool A506 WASHER – Common Parts & Diagrams
03 - CLUTCH, BRAKE & BELTS

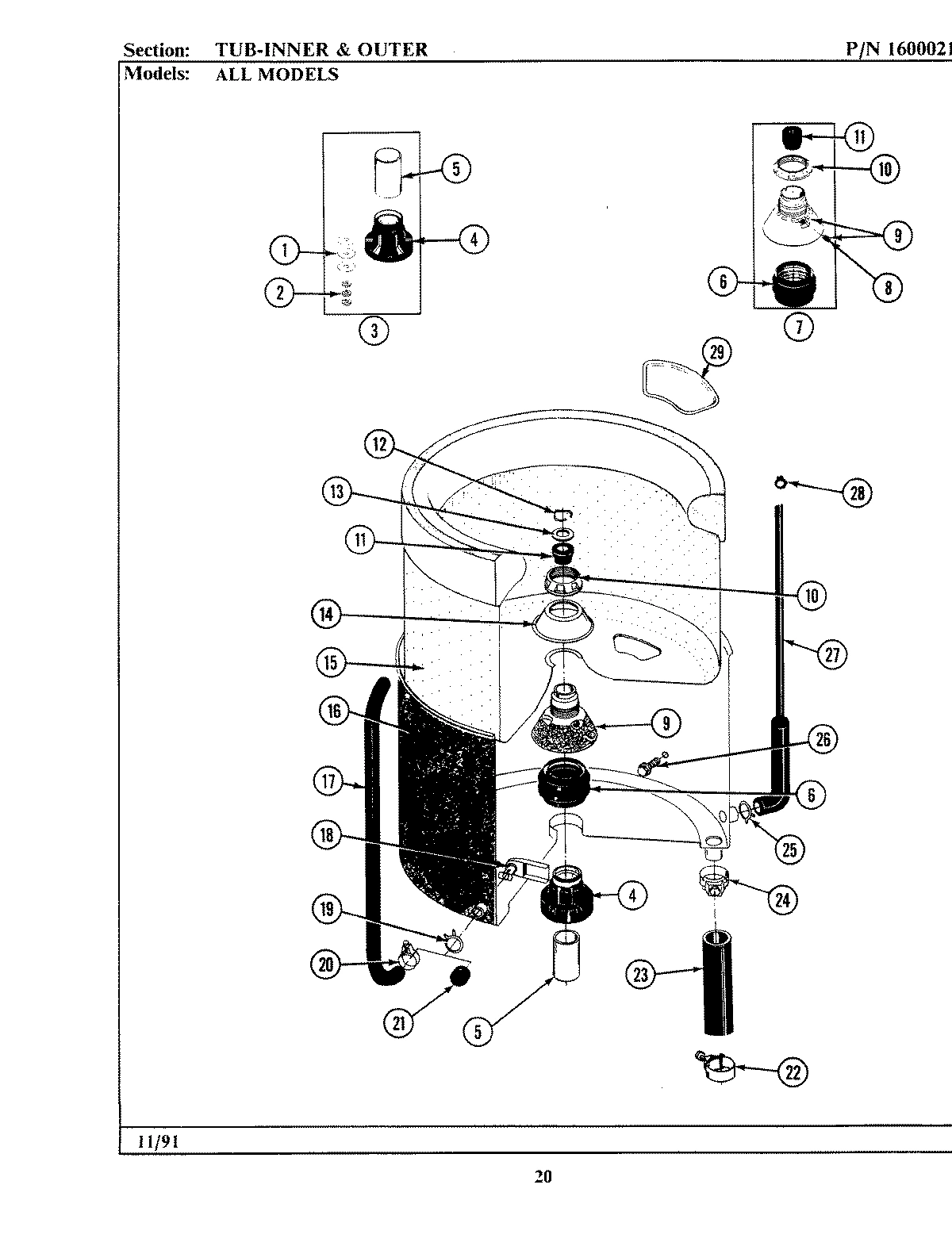

09 - TUB-INNER & OUTER

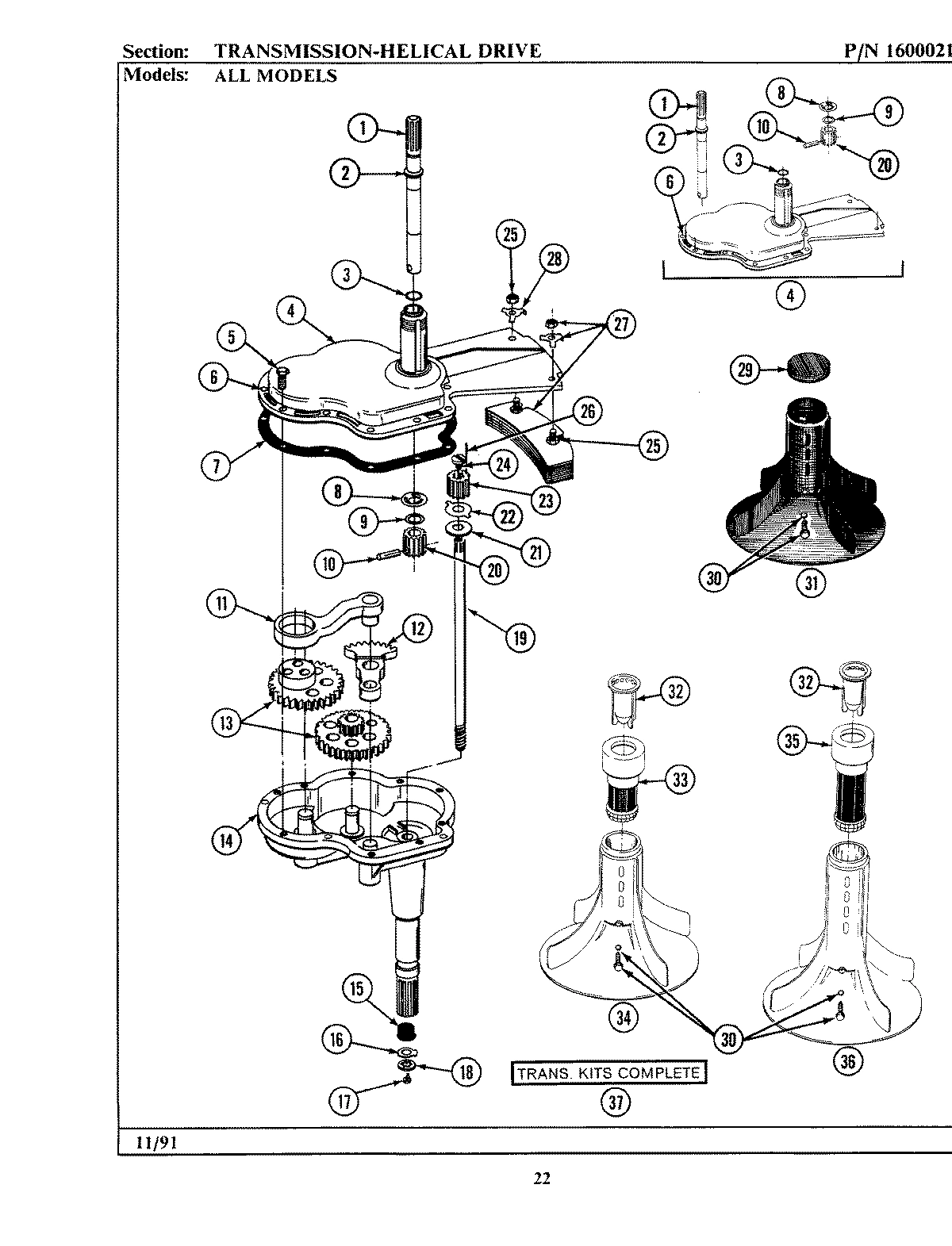

07 - TRANSMISSION-HELICAL DRIVE

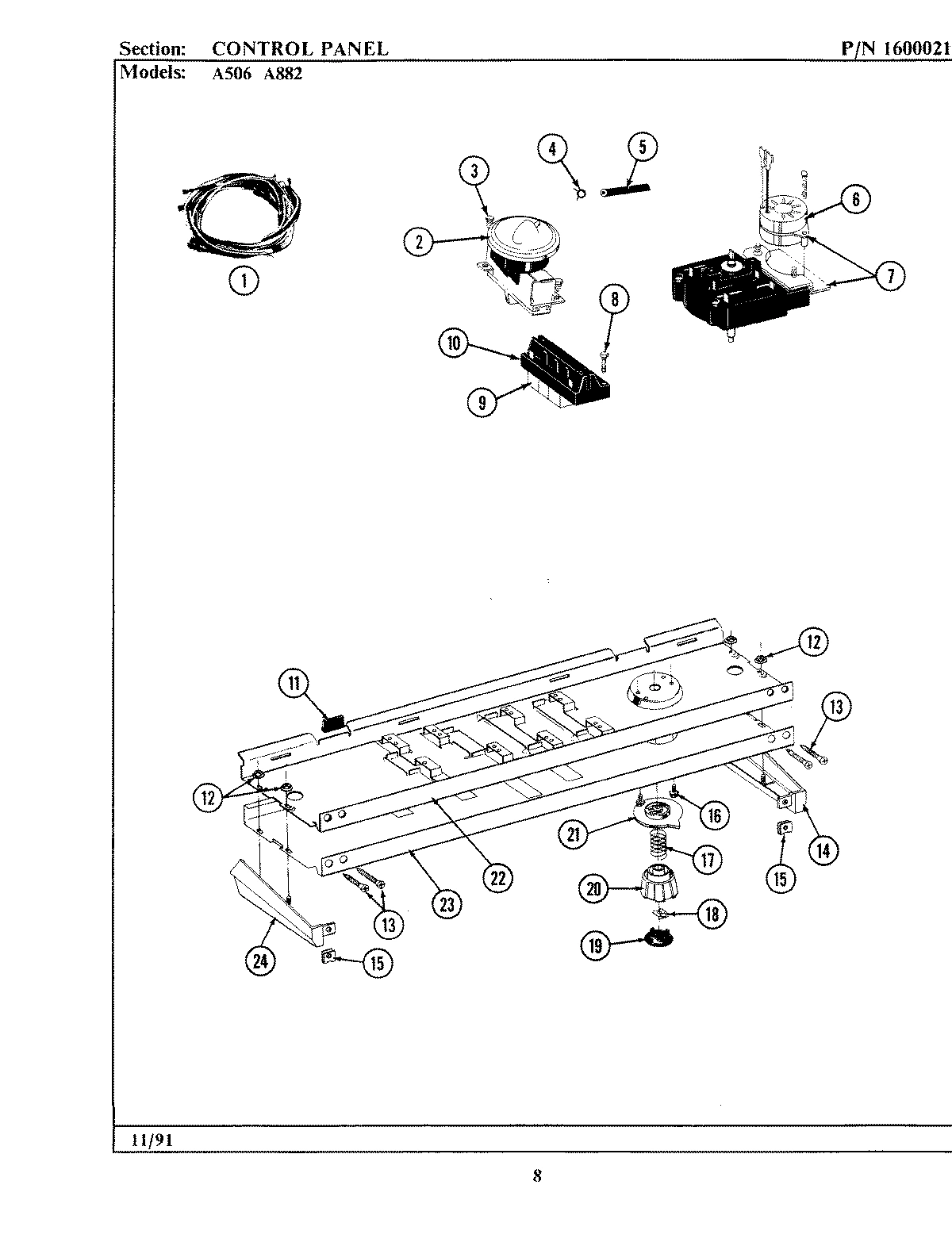

04 - CONTROL PANEL

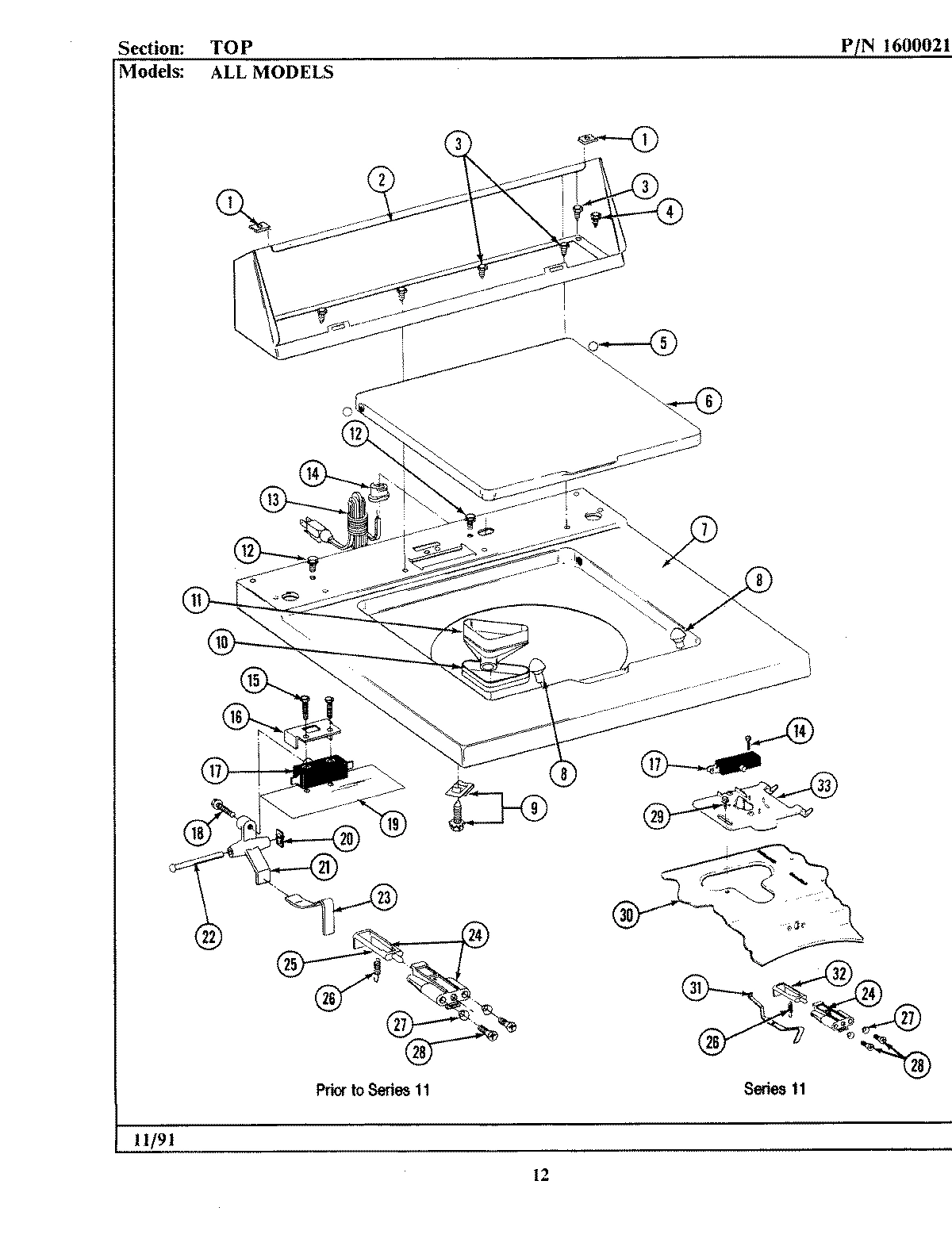

06 - TOP

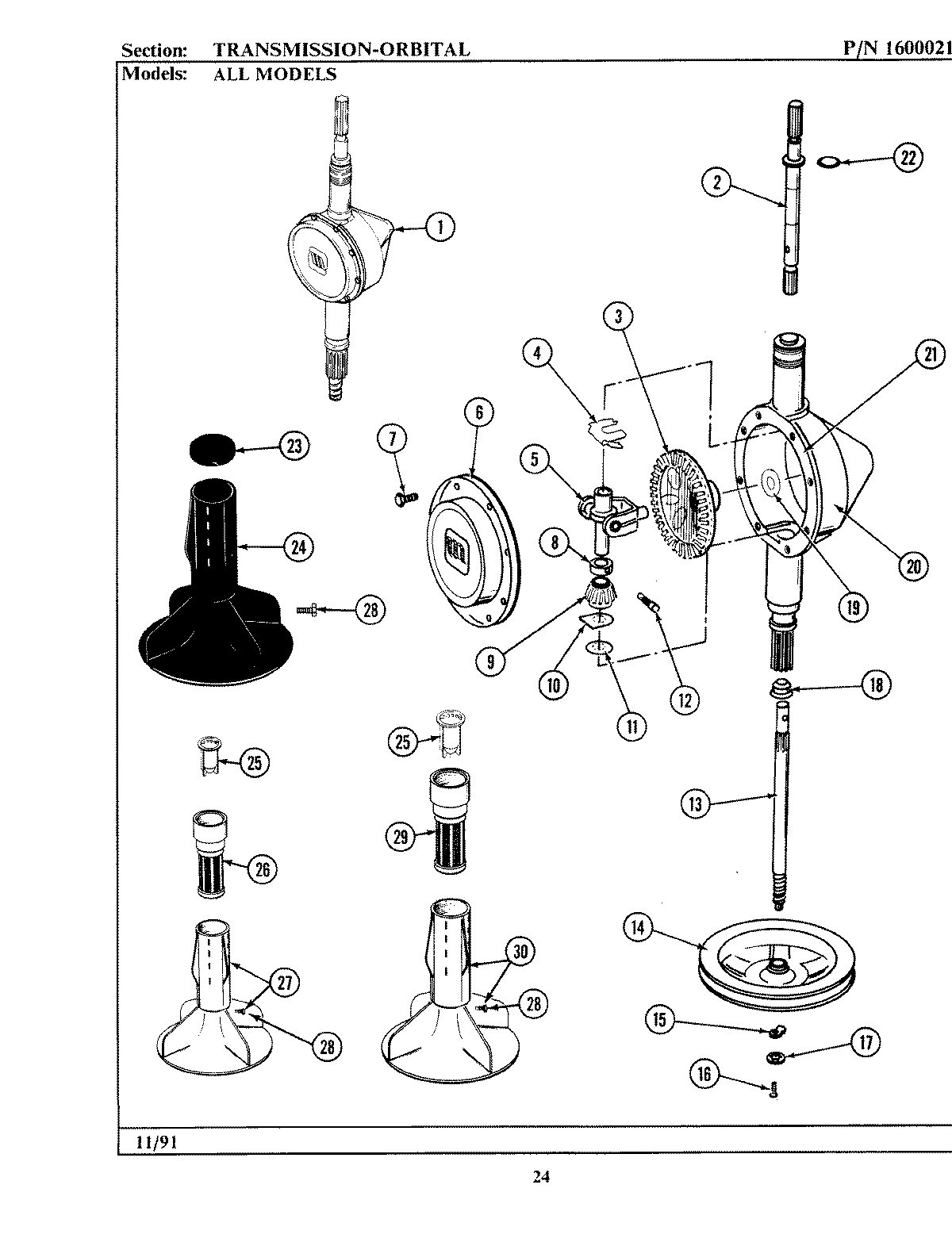

08 - TRANSMISSION-ORBITAL

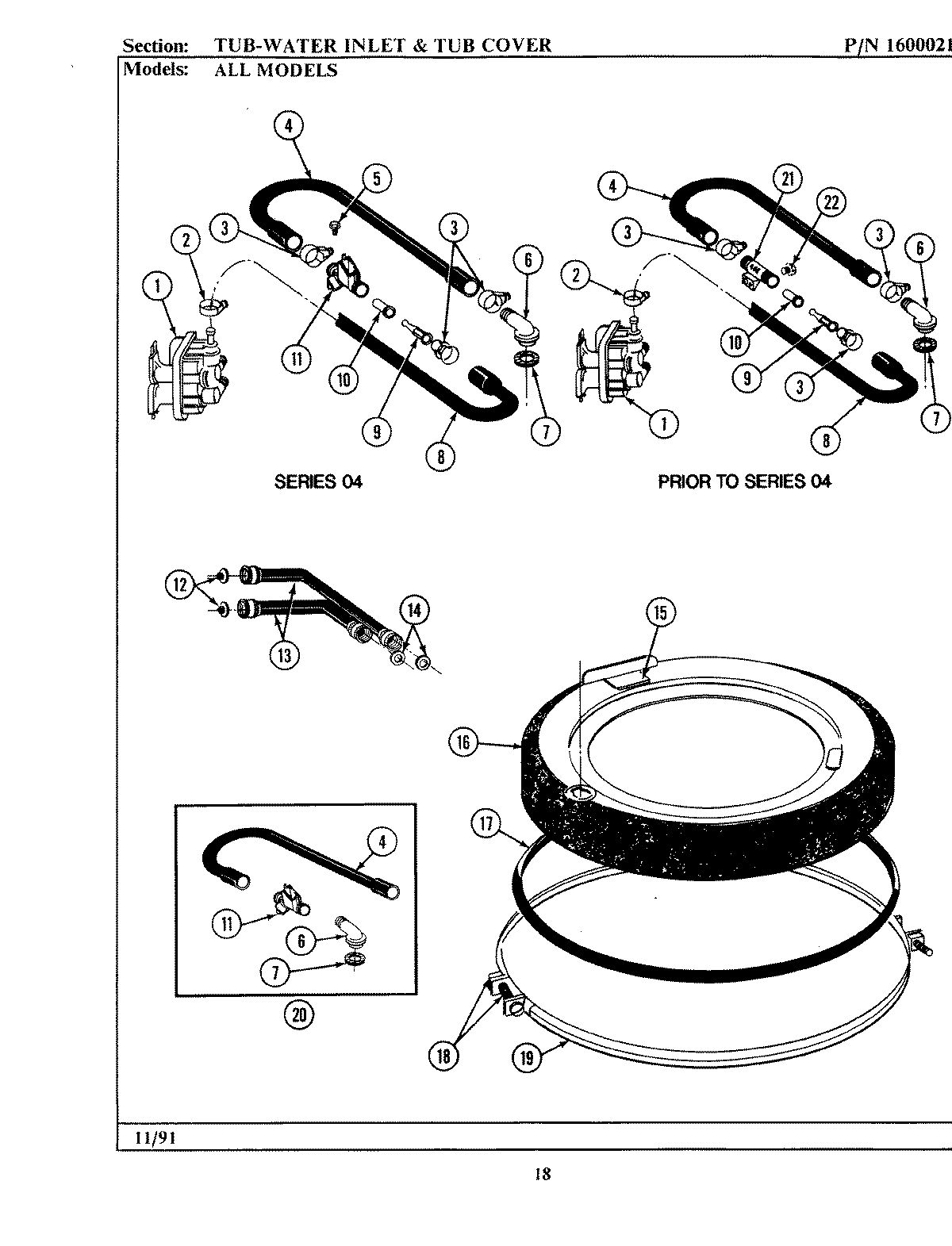

10 - TUB-WATER INLET & TUB COVER

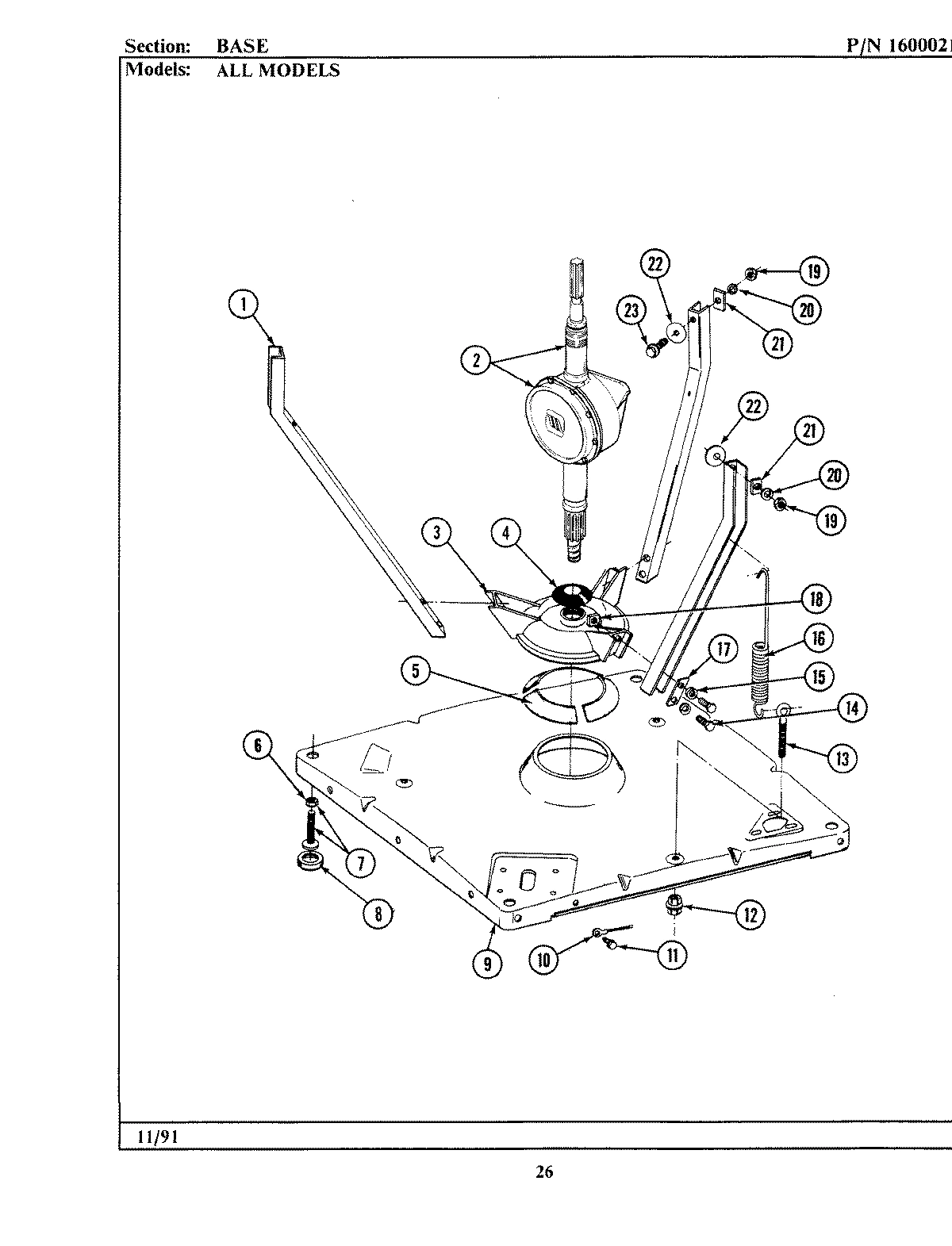

01 - BASE

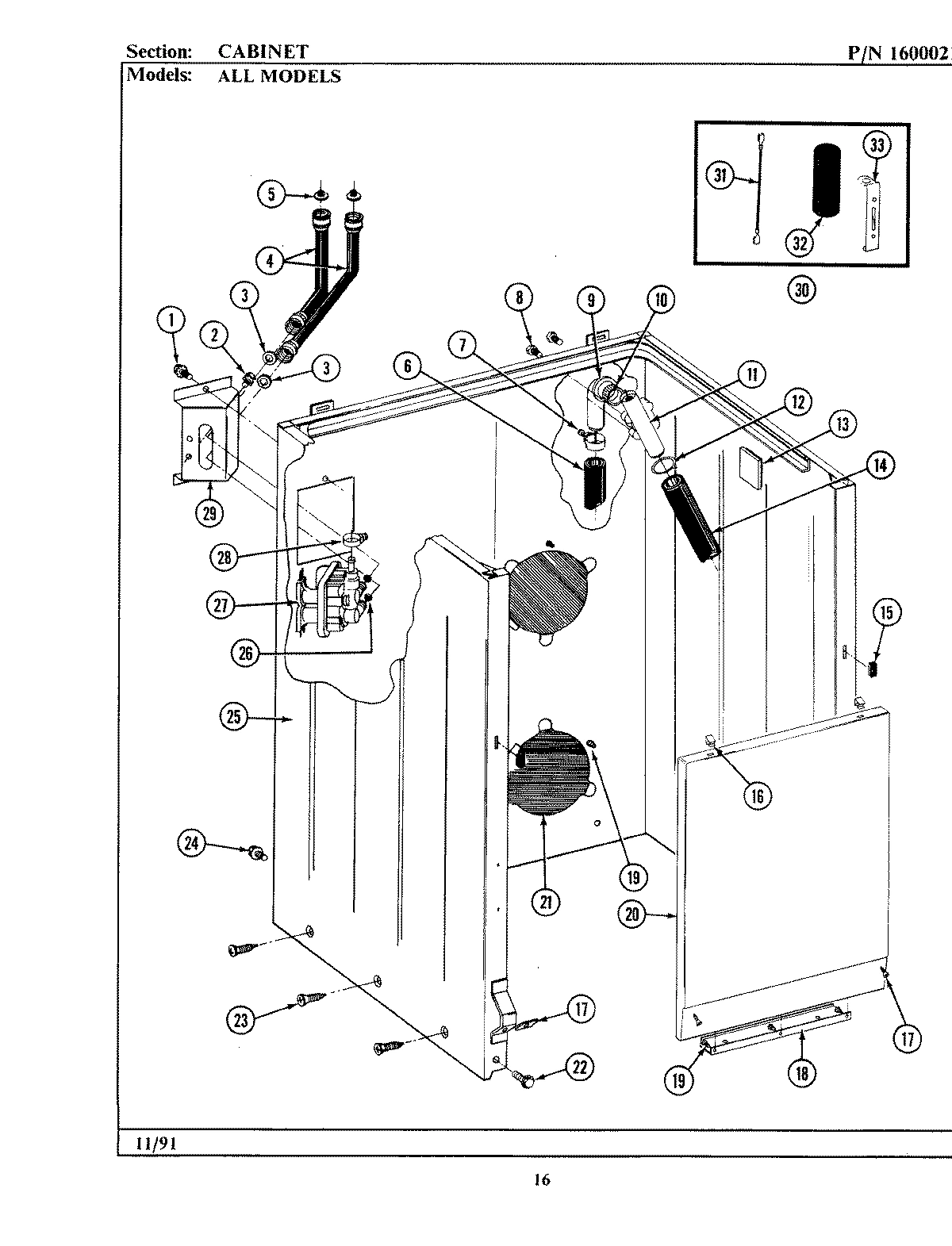

02 - CABINET

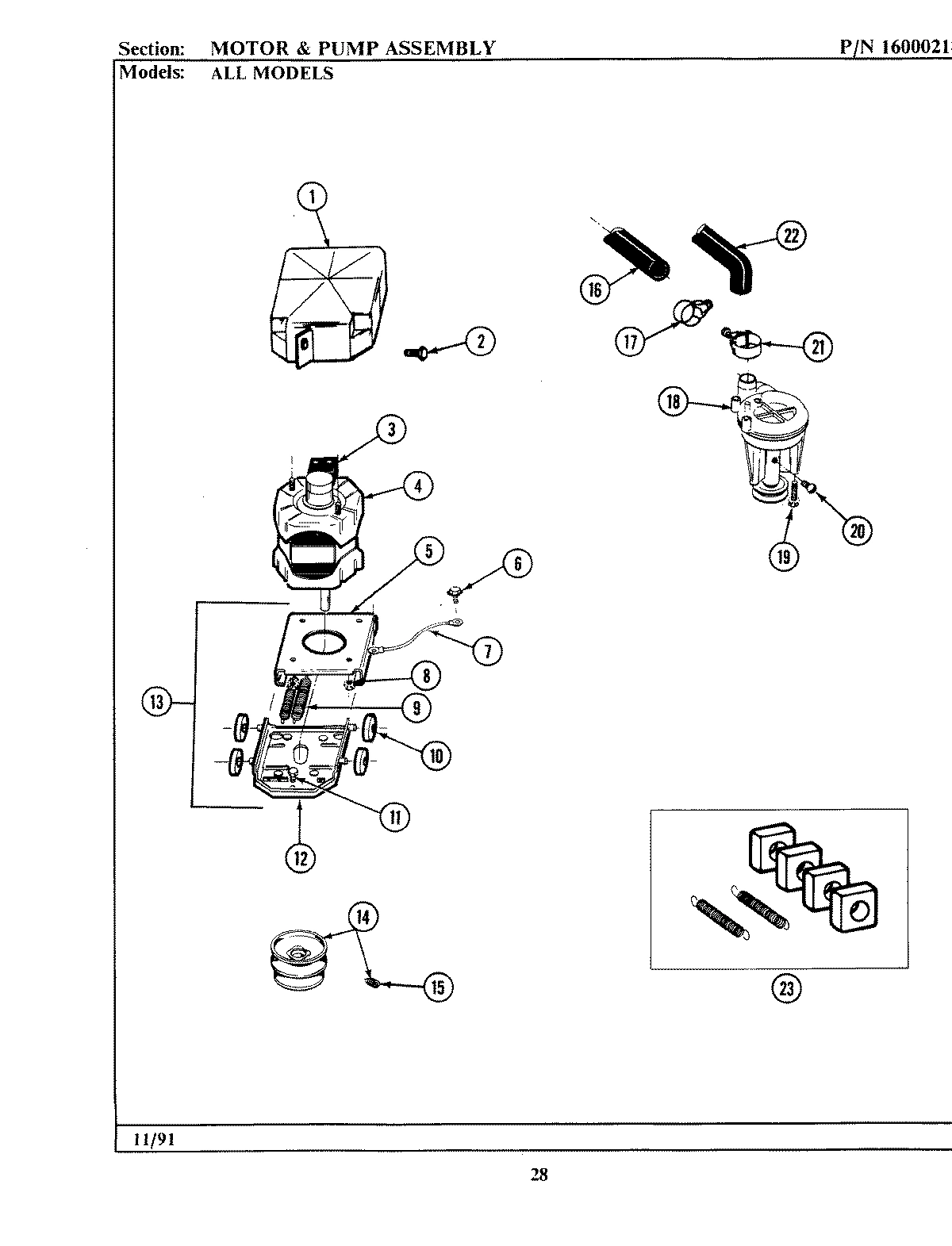

05 - MOTOR & PUMP ASSEMBLY
Common parts from model Whirlpool A506 WASHER
1
AGITATOR SHAFT WPL 200730 Contact Us For Availability
1
WIRE HARNESS WPL 206231 Contact Us For Availability
1
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
1
BRACE, TUB WPL 213053 Contact Us For Availability
1
SHIELD, MOTOR WPL 215098 Contact Us For Availability
2
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
2
INFINITE WATER LEVEL SWITCH WPL 206223 Contact Us For Availability
2
CONSOLE (WHT) WPL 205635 Contact Us For Availability
2
TRANSMISSION, ORBITAL WPL 206707 Contact Us For Availability
2
SHAFT, AGITATOR (W/SPRING) WPL 207153 Contact Us For Availability
3
GEAR, BEVEL WPL 206713 Contact Us For Availability
3
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
3
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
3
SWITCH, MOTOR START WPL 205131 Contact Us For Availability
3
SWITCH, MOTOR START WPL 205132 Contact Us For Availability
3
MOTOR EXTERNAL START SWITCH WPL 205133 Contact Us For Availability
3
MOTOR EXTERNAL START SWITCH WPL 205134 Contact Us For Availability
3
MOTOR EXTERNAL START SWITCH WPL 206504 Contact Us For Availability
3
SWITCH, MOTOR START WPL 206505 Contact Us For Availability
4
GEAR CASE COVER ASSEMBLY WPL 200813 Contact Us For Availability
4
SCREW, CONSOLE GROUND WPL 313551 Contact Us For Availability
4
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
5
LINER, TUB BEARING WPL 211130 Contact Us For Availability
5
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
5
BLOCK, TORQUE AND YOKE ASSEMBL WPL 206685 Contact Us For Availability
5
SEMS SCREW, No.10-16 X 1/2`` WPL 312620 Contact Us For Availability
5
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
5
MOUNT, MOTOR/UPPER WPL 214956 Contact Us For Availability
6
SEAL AND SPRING WPL 201537 Contact Us For Availability
6
DOWEL PIN WPL 015639 Contact Us For Availability
6
TIMER MOTOR 120-60 WPL 205033 Contact Us For Availability
6
LID-WHITE WPL 212073 Contact Us For Availability
6
COVER, TRANSMISSION WPL 206628 Contact Us For Availability
6
INJECTOR TUBE WPL 215235 Contact Us For Availability
7
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
7
GASKET WPL 210632 Contact Us For Availability
7
TIMER WPL 206230 Contact Us For Availability
7
TOP COVER-WHITE WPL 205537 Contact Us For Availability
7
SCREW, TRANSMISSION COVER WPL 215417 Contact Us For Availability
7
WIRE, GROUND WPL 901220 Contact Us For Availability
8
SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability
8
COLLAR, LOWER WPL 215415 Contact Us For Availability
9
MOUNTING STEM WPL 202521 Contact Us For Availability
9
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
9
BUTTON FOR SWITCH WPL 215211 Contact Us For Availability
9
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
9
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
10
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
10
WATER TEMPERATURE SWITCH WPL 206216 Contact Us For Availability
10
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
11
PITMAN WITH WRIST PIN WPL 201463 Contact Us For Availability
11
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
11
SCREW----NA WPL Y313561 Contact Us For Availability
12
RETAINING RING WPL Y015667 Contact Us For Availability
12
SEGMENT WPL 210670 Contact Us For Availability
12
PALNUT, END CAP WPL 214872 Contact Us For Availability
12
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
13
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
13
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
13
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
13
POWER CORD WPL 204590 Contact Us For Availability
13
CENTER SHAFT - LARGER WPL 215410 Contact Us For Availability
13
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
13
MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability
14
WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability
14
GEAR HOUSING W/STUDS & TUBE WPL 203193 Contact Us For Availability
14
END CAP F/CONTROL PANEL-RH WPL 214816 Contact Us For Availability
14
GROMMET, CORD WPL 211881 Contact Us For Availability
14
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
14
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
15
CAP, OIL RETAINER WPL 211038 Contact Us For Availability
15
INNER TUB WPL 203228 Contact Us For Availability
15
INNER TUB W/PLUG WPL 207831 Contact Us For Availability
15
FASTENER, END CAP WPL 214894 Contact Us For Availability
15
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
15
UNBALANCE BUMPER WPL 215232 Contact Us For Availability
15
WASHER, LOCK (BRACE) WPL 911852 Contact Us For Availability
15
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
15
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
16
OUTER TUB WPL 205484 Contact Us For Availability
16
COVER FOR LID SWITCH WPL 214898 Contact Us For Availability
16
TUB COVER WPL 206380 Contact Us For Availability
16
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
17
WASHER, DOUBLE WPL 213073 Contact Us For Availability
17
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
18
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
18
SPOUT, DEFLECTOR WPL 214434 Contact Us For Availability
18
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
18
SCREW, PUMP COVER WPL 911267 Contact Us For Availability
18
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
18
GUARD, BELT WPL 213846 Contact Us For Availability
18
PUMP AS PAK WPL 202203 Contact Us For Availability
19
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
19
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
19
CENTER SHAFT WPL 213044 Contact Us For Availability
19
CAP FOR KNOB WPL 215164 Contact Us For Availability
19
MOISTURE BARRIER FOR SWITCH WPL 214987 Contact Us For Availability
19
WASHER, BEVEL GEAR WPL 215394 Contact Us For Availability
19
NUT WPL Y052734 Contact Us For Availability
20
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
20
WASHER, LOCK WPL Y054867 Contact Us For Availability
20
PINION WPL 210054 Contact Us For Availability
20
TIMER KNOB WPL 215162 Contact Us For Availability
20
FASTENER WPL 410635 Contact Us For Availability
20
HOUSING, TRANSMISSION WPL 206624 Contact Us For Availability
20
FRONT PANEL-WHITE WPL 212998 Contact Us For Availability
21
CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability
21
TIMER DIAL INDICATOR WPL 215161 Contact Us For Availability
21
LEVER FOR LID SWITCH WPL 214813 Contact Us For Availability
21
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
21
PLATE, ACCESS WPL 211878 Contact Us For Availability
22
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
22
WASHER, CUSHION WPL 211100 Contact Us For Availability
22
SEAL, RUBBER WPL 210690 Contact Us For Availability
22
LUG WASHER WPL 211484 Contact Us For Availability
22
BACK UP PLATE WPL 214809 Contact Us For Availability
22
PIN FOR UNBALANCE LEVER WPL 214805 Contact Us For Availability
22
SCREW WPL Y310632 Contact Us For Availability
23
PINION WPL 210315 Contact Us For Availability
23
CONTROL PANEL WPL 206565 Contact Us For Availability
23
UNBALANCE LEVER WPL 215236 Contact Us For Availability
24
PLUNGER & BRACKET ASSEMBLY WPL 204968 Contact Us For Availability
24
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
24
END CAP F/CONTROL PANEL-LH WPL 214815 Contact Us For Availability
25
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
25
DISPENSING CUP WPL 215733 Contact Us For Availability
25
CABINET-WHITE WPL 203319 Contact Us For Availability
26
GROOV-PIN WPL 211487 Contact Us For Availability
27
COUNTERWEIGHT WPL 205811 Contact Us For Availability
27
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
28
LOCK WASHER WPL 210172 Contact Us For Availability
28
SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability
29
PLUG, FILTER HOLE WPL 215980 Contact Us For Availability
29
LINT FILTER DEEP WPL 207426 Contact Us For Availability
29
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
30
TOP COVER WPL 207170 Contact Us For Availability
30
AGITATOR W/LOCK SCREW WPL 207228 Contact Us For Availability
30
CAPACITOR KIT WPL 206103 Contact Us For Availability
31
UNBALANCE LEVER WPL 215704 Contact Us For Availability
31
No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability
32
DISPENSER CUP WPL 212815 Contact Us For Availability
32
LID SWITCH PLUNGER WPL 215700 Contact Us For Availability
32
CAPACITOR WPL Y200832 Contact Us For Availability
33
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
35
LINT FILTER-DISPENSER WPL 203265 Contact Us For Availability
36
AGITATOR - TURQUOISE WPL 203323 Contact Us For Availability
37
TRANS & CENTER ASSM. LG TUB WPL 203438 Contact Us For Availability
× ![]()
