Model Whirlpool A16CM WASHER – Common Parts & Diagrams

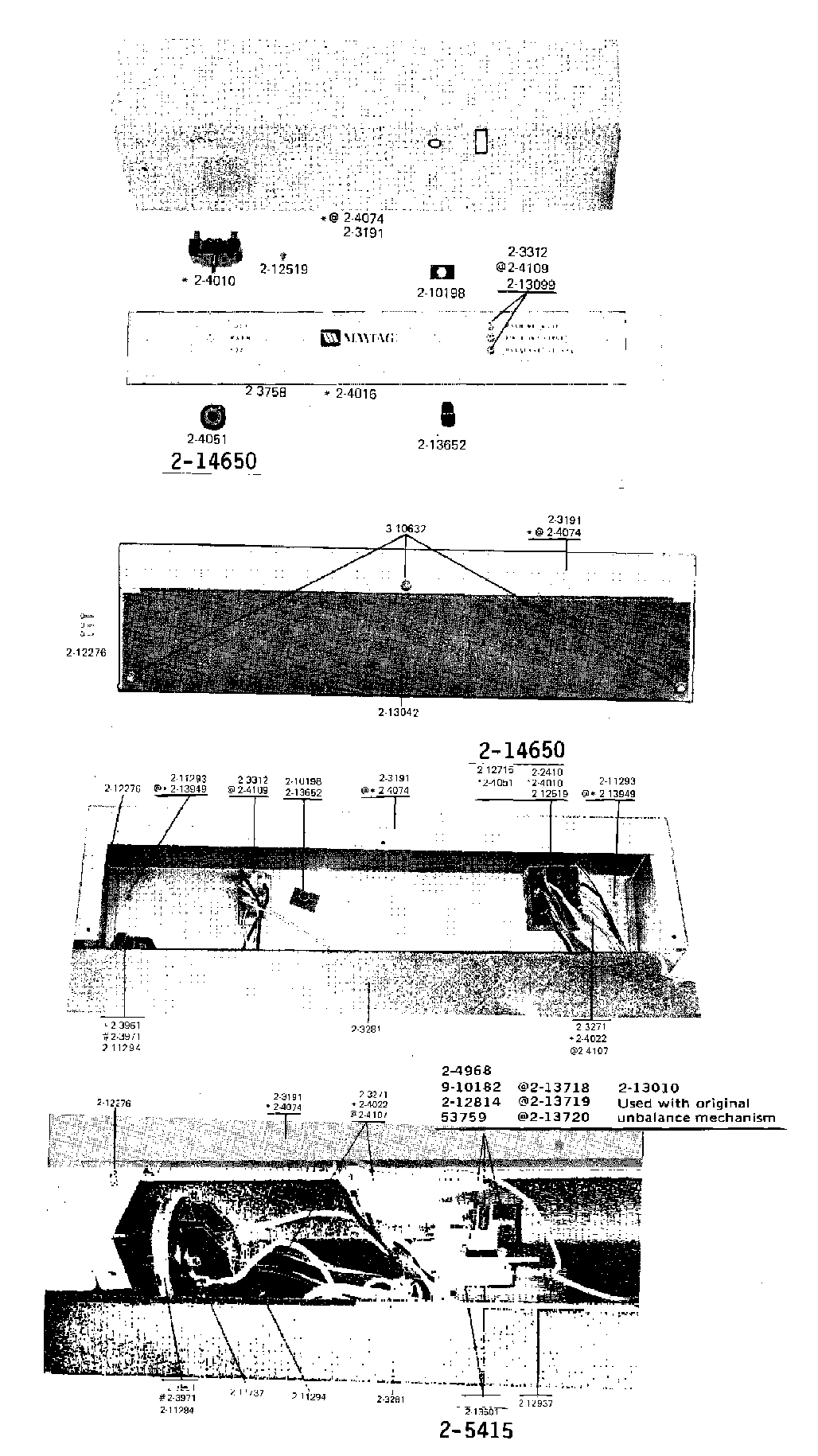

03 - CONTROL PANELS

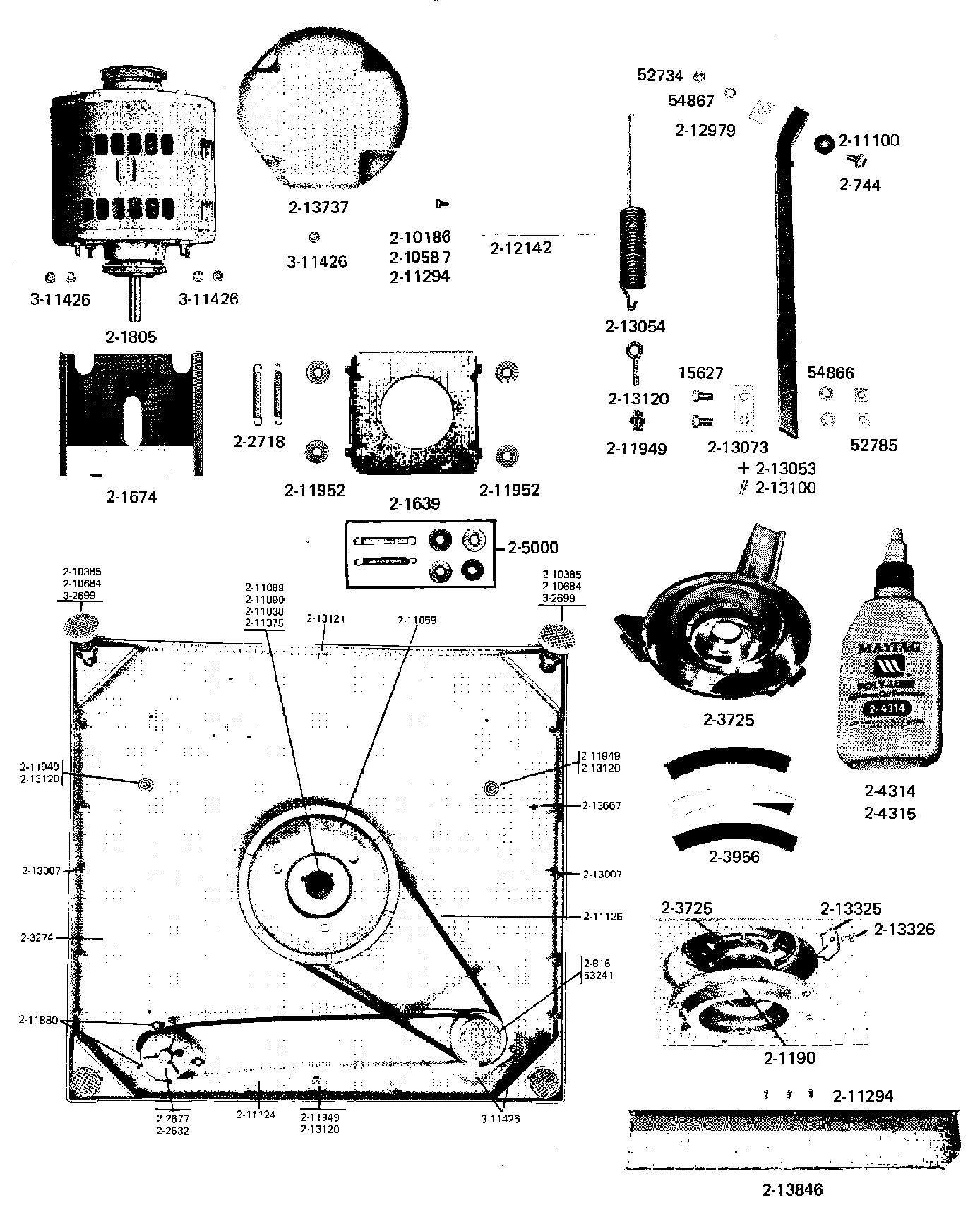

06 - MOTOR MOUNT, BASE FRAME & CENTERING SPRS

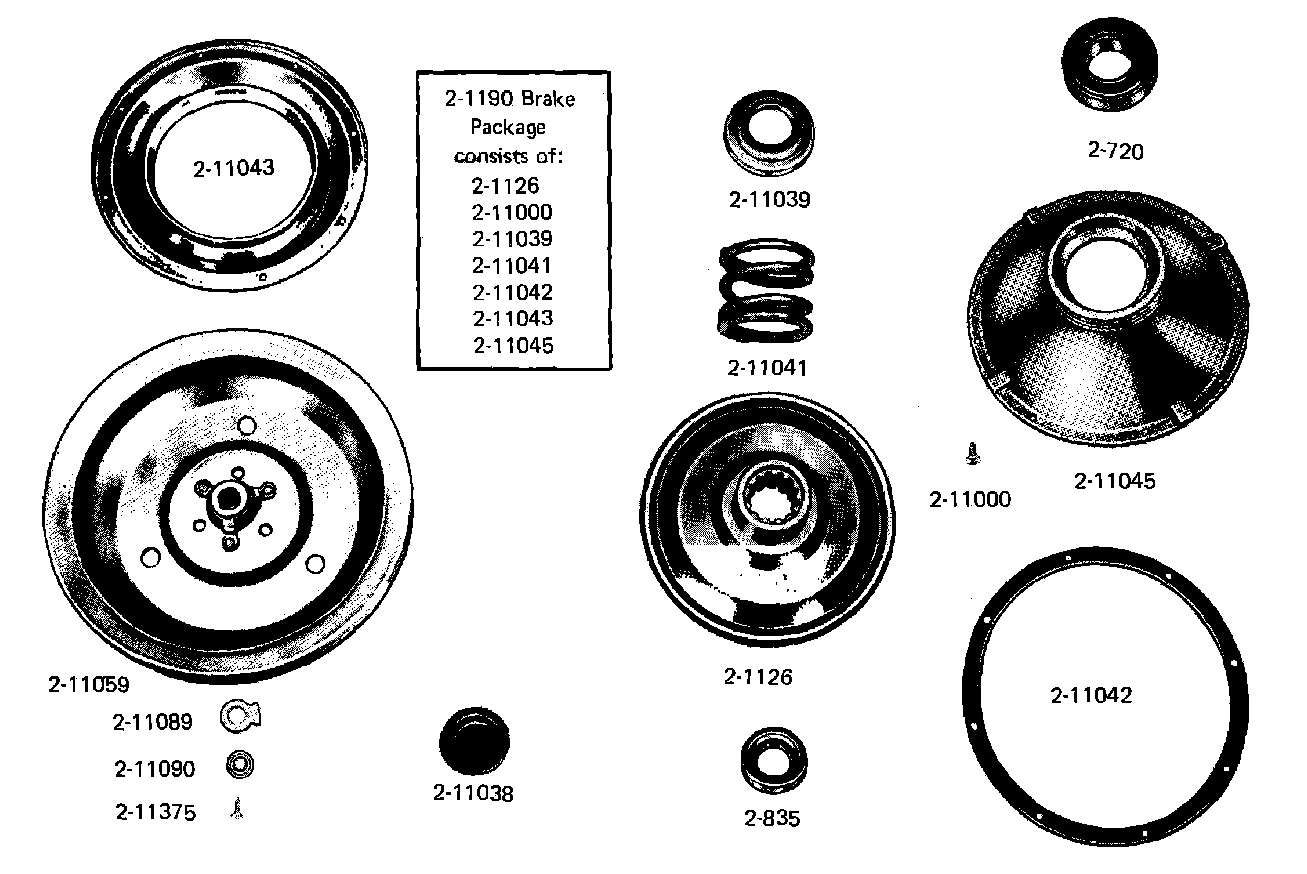

08 - BRAKE & CLUTCH ASSEMBLY

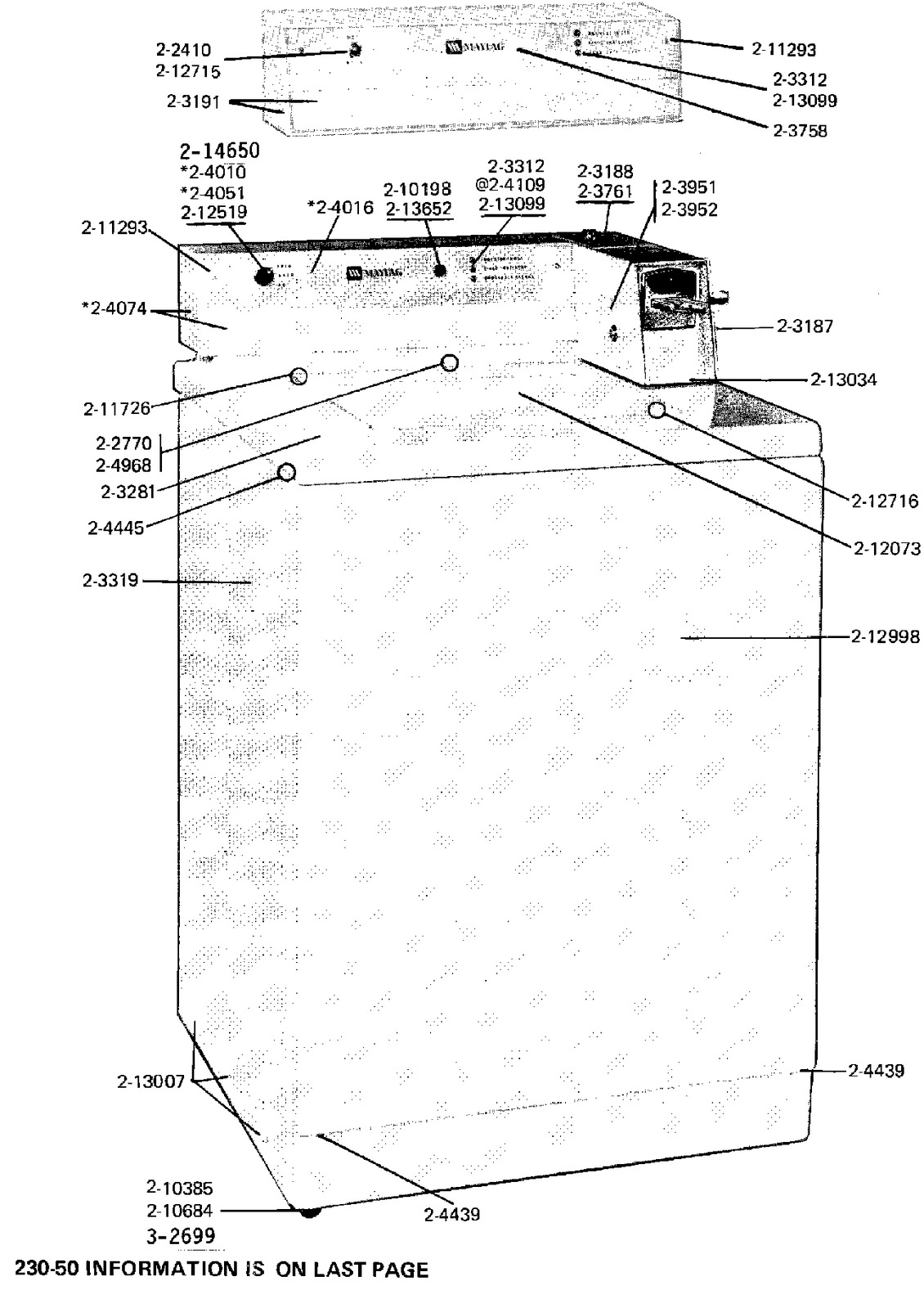

01 - FRONT VIEW

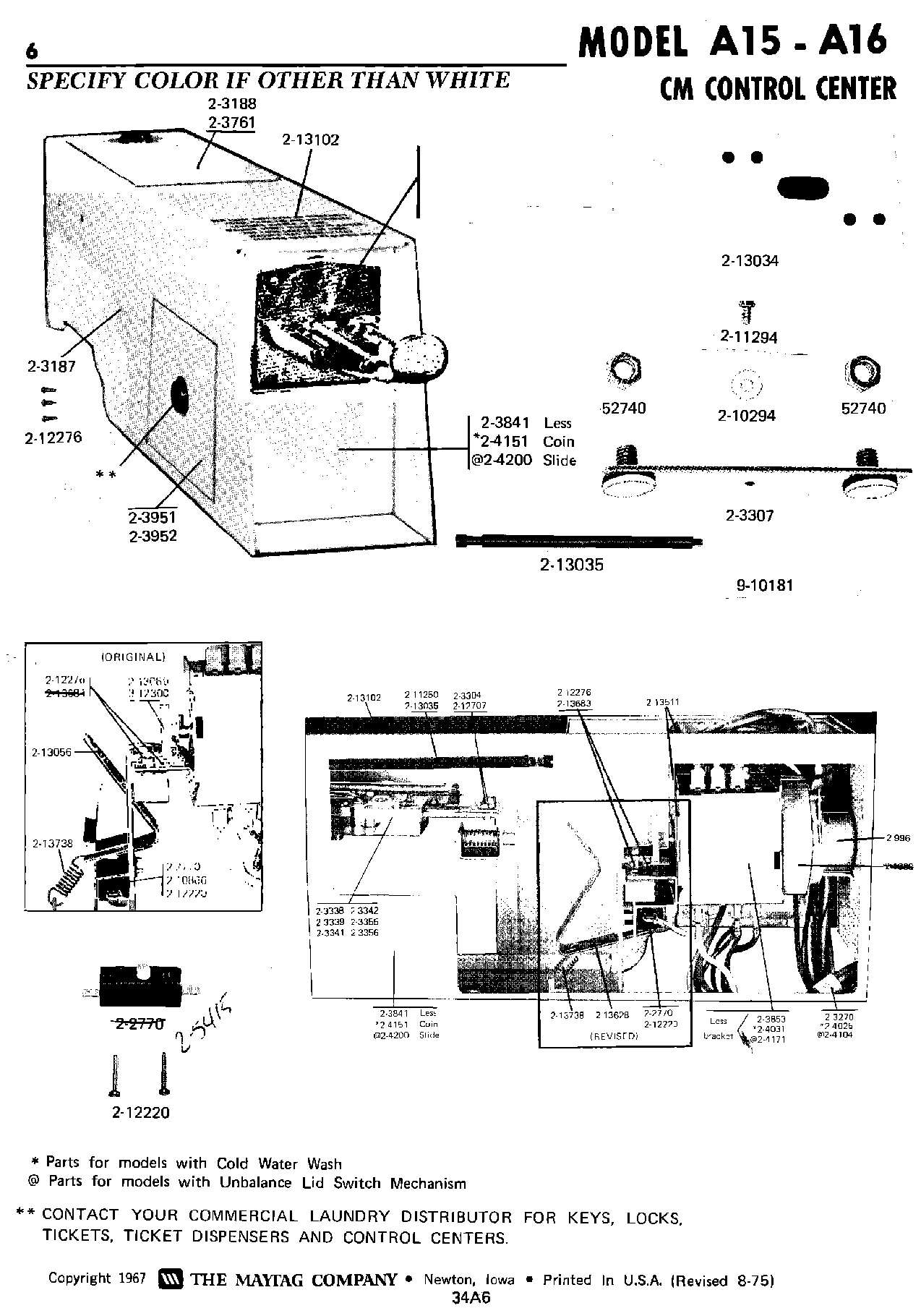

02 - CM CONTROL CENTER

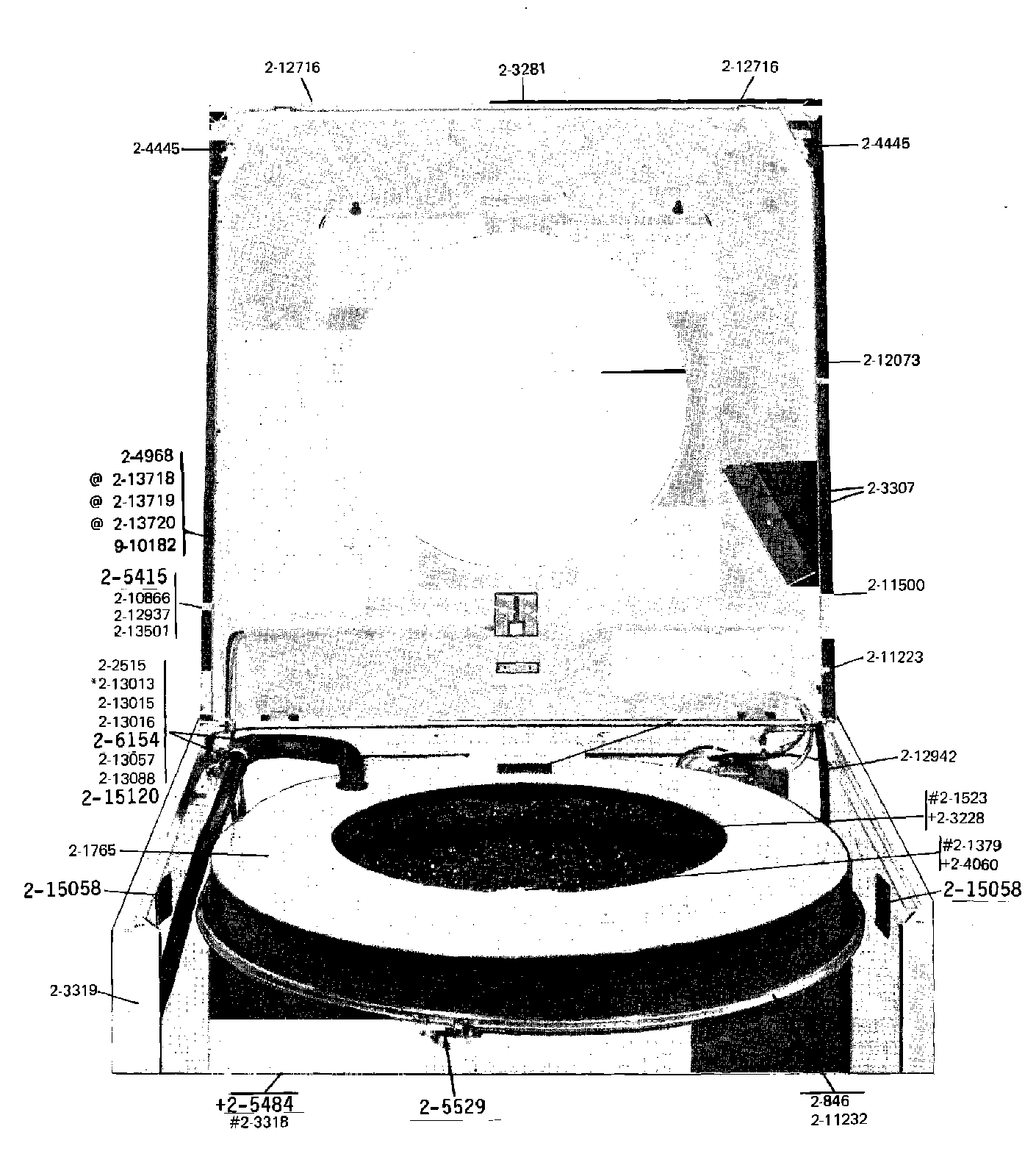

05 - TOP COVER
09 - AGITATOR

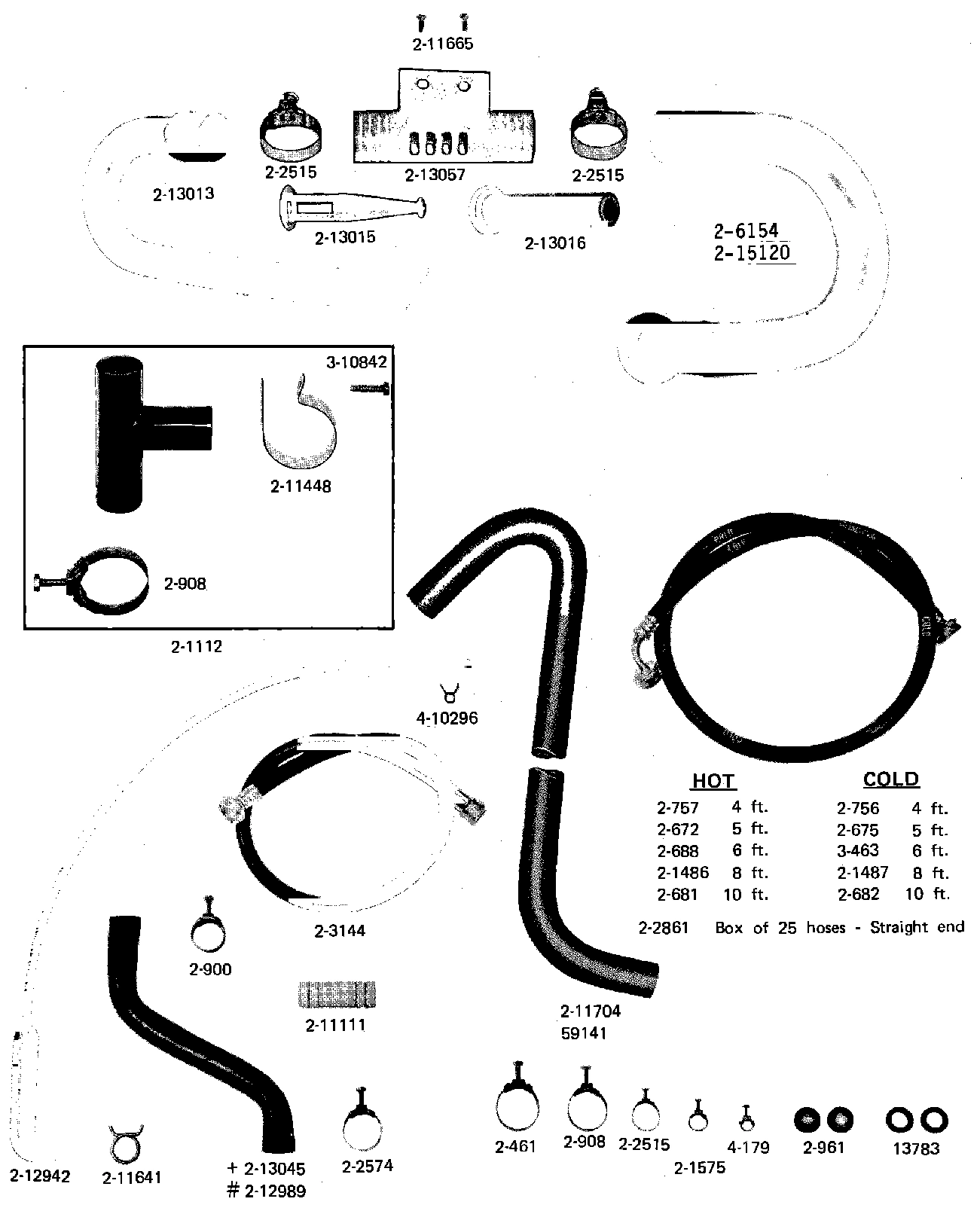

11 - WATER INJECTION SYSTEM, HOSES & CLAMPS

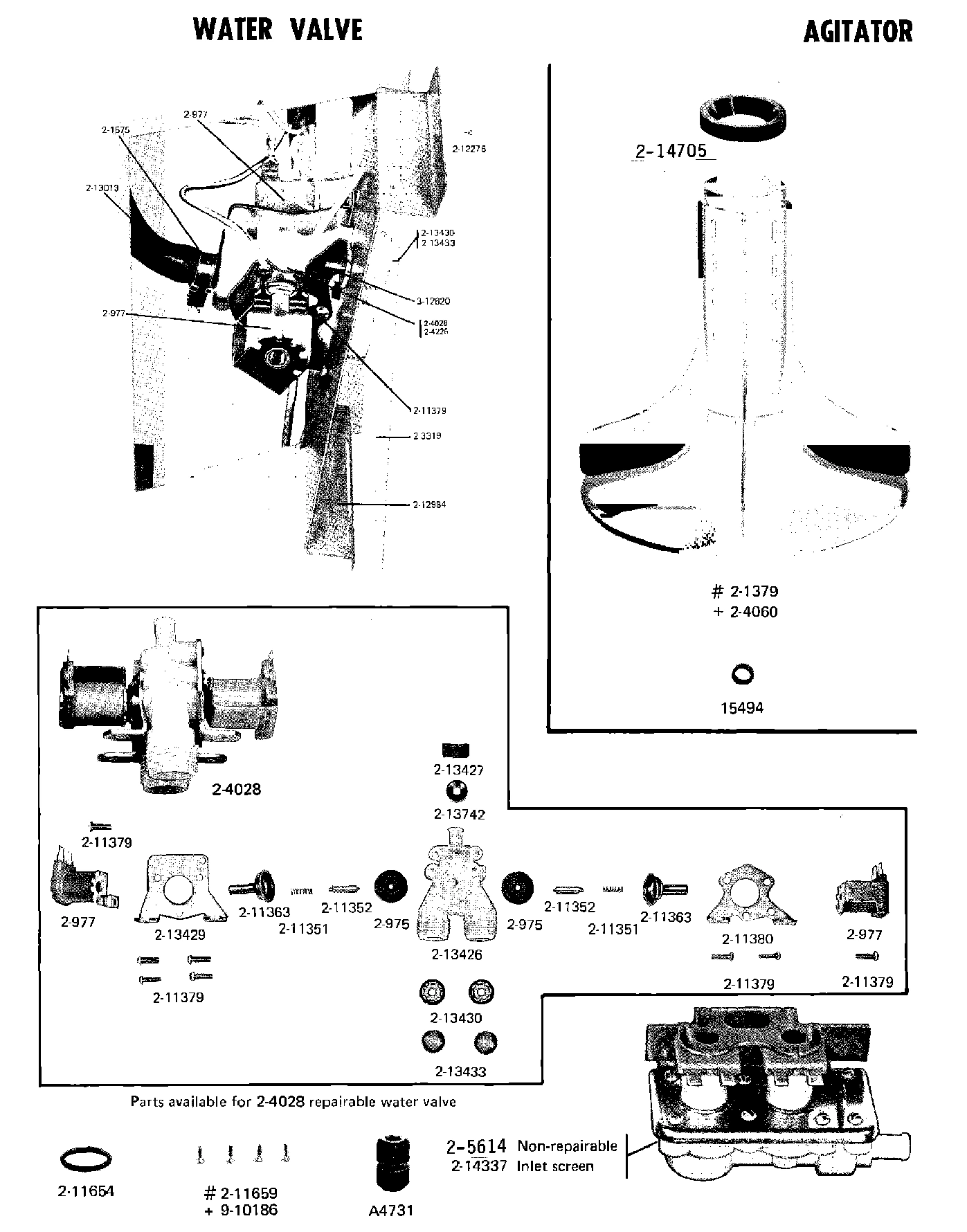

10 - WATER VALVE

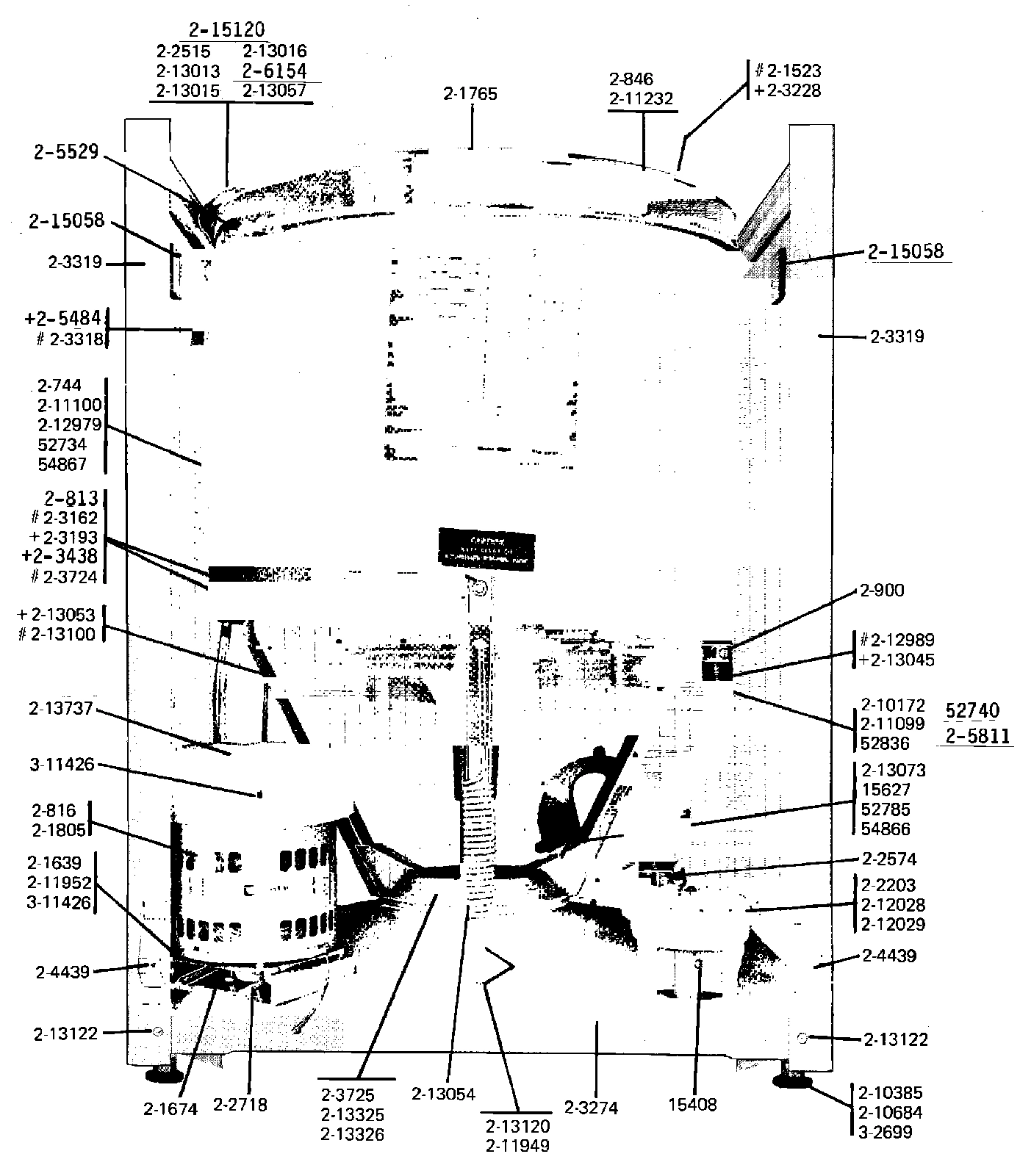

12 - FRONT PANEL REMOVED

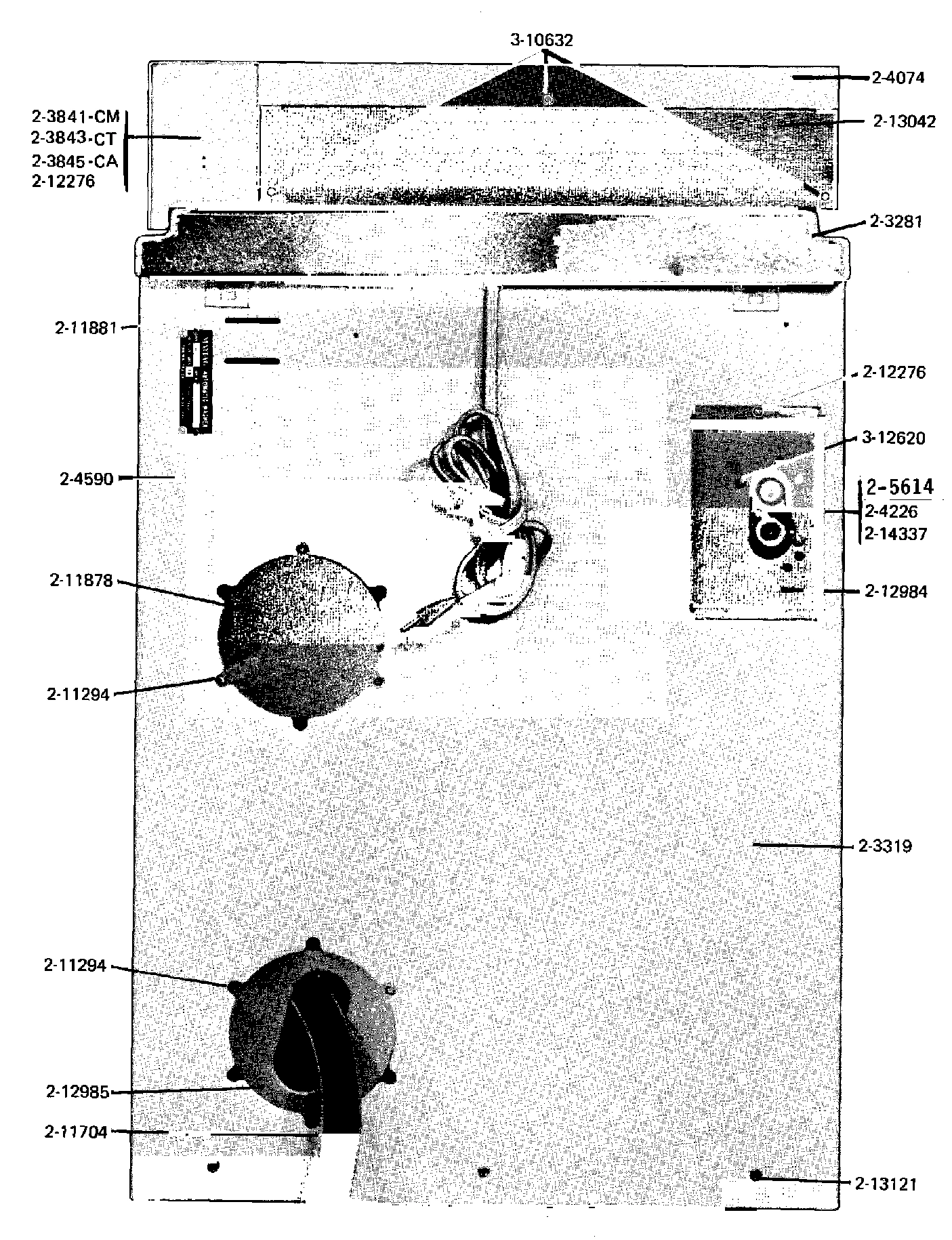

04 - REAR VIEW

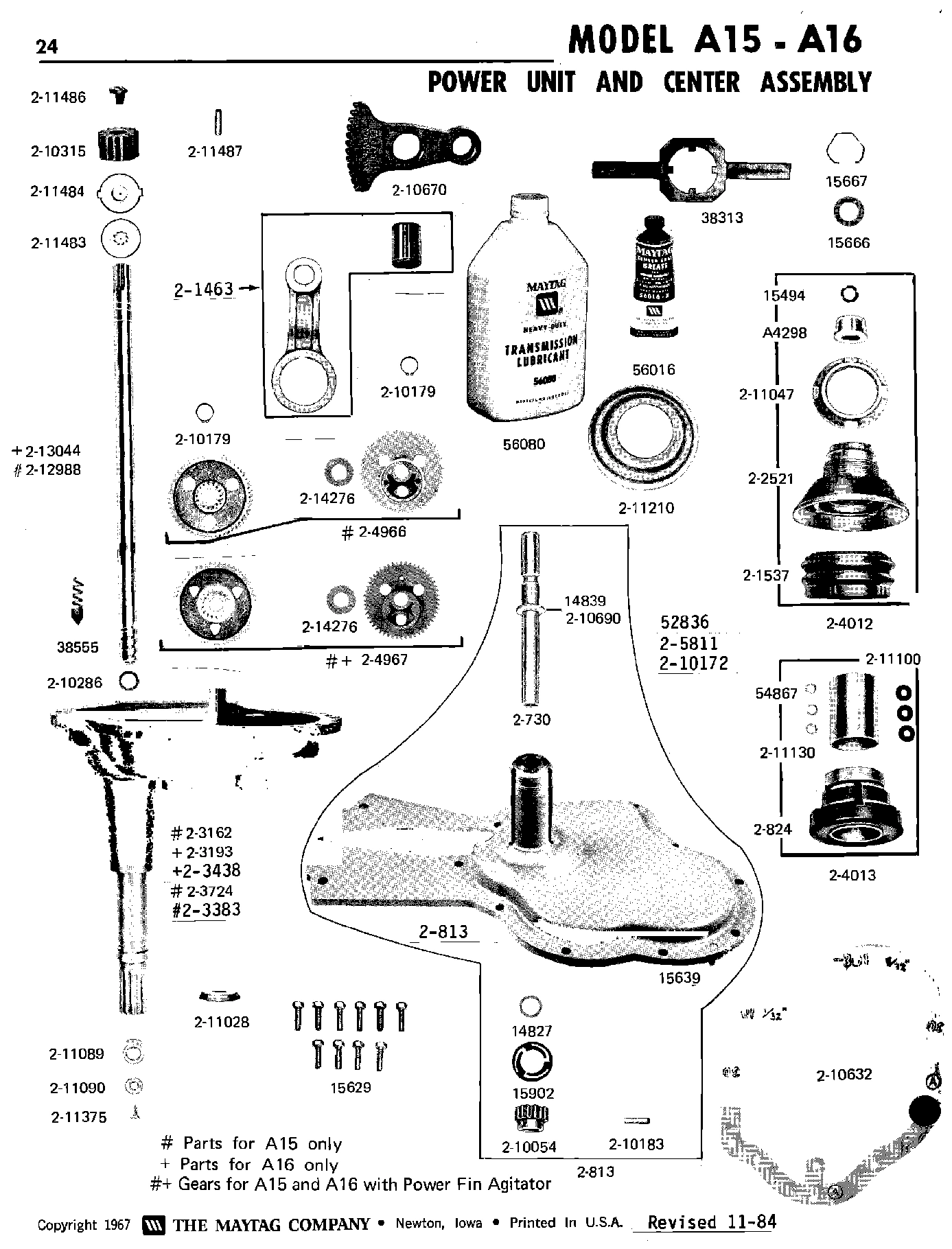

07 - POWER UNIT & CENTER ASSEMBLY
Common parts from model Whirlpool A16CM WASHER
001
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
001
WASHER, INLET HOSE WPL Y013783 Contact Us For Availability
001
DIAPHRAGM WPL 200975 Contact Us For Availability
001
SOLENOID, WATER VALVE WPL 200977 Contact Us For Availability
002
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
002
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
002
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
003
NUT, BRACE (TUB) WPL Y052734 Contact Us For Availability
003
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
003
AGITATOR-BLACK WPL 204060 Contact Us For Availability
003
CTN. 50 FT. 31/32 DRAIN HOS WPL Y059141 Contact Us For Availability
003
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
004
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
004
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
004
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
005
NUT, BRACE (DAMPER) WPL Y052785 Contact Us For Availability
005
AGITATOR CAP WPL 214705 Contact Us For Availability
005
BRASS WASHER-AGITATOR SEAL WPL Y015149 Contact Us For Availability
006
STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability
006
SCREW WPL 910186 Contact Us For Availability
007
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
007
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
007
SPRING, PLUNGER WPL 211351 Contact Us For Availability
007
BOLT, GRINDING CHAMBER (DRAIN) WPL Y015629 Contact Us For Availability
008
SPRING, BRAKE WPL 211041 Contact Us For Availability
008
ACCESS DOOR (WHT) WPL 203761 Contact Us For Availability
009
WASHER, RETAINING (CNTR SEAL) WPL Y015666 Contact Us For Availability
009
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
009
SOLENOID GUIDE WPL 211363 Contact Us For Availability
010
DRUM, BRAKE WPL 211043 Contact Us For Availability
010
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
010
INLET HOSE, COLD 4 FT. WPL 200756 Contact Us For Availability
010
RETAINING RING WPL Y015667 Contact Us For Availability
011
POWER CORD WPL 204590 Contact Us For Availability
011
HOUSING, BRAKE WPL 211045 Contact Us For Availability
011
INLET HOSE, HOT 4 FT. WPL 200757 Contact Us For Availability
011
SPRING, AGITATOR WPL Y015902 Contact Us For Availability
012
WRENCH, SPANNER WPL 038313 Contact Us For Availability
013
DRAIN HOSE WPL 211704 Contact Us For Availability
013
TOOL-INSTALL CENTER SHAFT WPL Y038555 Contact Us For Availability
014
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
015
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
015
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
015
TEMPERATURE SWITCH WPL 204010 Contact Us For Availability
015
GROMMET, CORD WPL 211881 Contact Us For Availability
016
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
016
LOCK WASHER WPL Y054866 Contact Us For Availability
016
TWIN SPEED NUT WPL 210866 Contact Us For Availability
016
INLET HOSE, HOT 8 FT. WPL 201486 Contact Us For Availability
017
WASHER, LOCK WPL Y054867 Contact Us For Availability
017
KNOB WPL 204051 Contact Us For Availability
017
UNBALANCE BUMPER WPL 211223 Contact Us For Availability
018
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
018
TURBINE OIL, 4 OZ. WPL Y055977 Contact Us For Availability
019
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
019
UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability
019
3 BULB SIGNAL LIGHT WPL 204109 Contact Us For Availability
019
WASHER WPL 210294 Contact Us For Availability
019
WASHER, BRACKET WPL 211500 Contact Us For Availability
019
BACK PANEL WPL 213042 Contact Us For Availability
020
LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability
021
LID-WHITE WPL 212073 Contact Us For Availability
021
TUB COVER WPL 201765 Contact Us For Availability
021
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
022
INJECTOR TUBE W/SEAL WPL 206154 Contact Us For Availability
022
SCREW WPL Y310632 Contact Us For Availability
022
POLY LUBE - 4 OZ WPL 204314 Contact Us For Availability
022
SCREW-HEX HD TYPE B No.6 X 15/16 WPL 212220 Contact Us For Availability
022
AGITATOR SHAFT WPL 200730 Contact Us For Availability
023
PUMP AS PAK WPL 202203 Contact Us For Availability
023
MOISTURE BARRIER WPL 212937 Contact Us For Availability
023
SEMS SCREW, No.10-16 X 1/2`` WPL 312620 Contact Us For Availability
024
CLAMP WPL 211448 Contact Us For Availability
025
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
026
BOLT, LOCKING WPL 213035 Contact Us For Availability
026
SEAL & SPRING WPL 201537 Contact Us For Availability
027
FASTENER CLIP WPL 214135 Contact Us For Availability
027
FASTENER WPL 210198 Contact Us For Availability
027
MOUNTING STEM WPL 202521 Contact Us For Availability
028
BUMPER WPL Y202734 Contact Us For Availability
029
DISPENSER CAP-BLACK WPL 213081 Contact Us For Availability
029
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
030
INNER TUB WPL 203228 Contact Us For Availability
031
BASE W/DAMPER PADS WPL 203274 Contact Us For Availability
031
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
031
PINION WPL 210054 Contact Us For Availability
032
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
033
UNBALANCE LEVER WPL 213719 Contact Us For Availability
033
INJECTOR TUBE WPL 213055 Contact Us For Availability
033
TRANS & CENTER ASSY. (LG) WPL 203438 Contact Us For Availability
034
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
034
LOCK WASHER WPL 910181 Contact Us For Availability
034
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
035
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
035
SEAL WPL 210286 Contact Us For Availability
036
OUTER TUB WPL 205484 Contact Us For Availability
036
PINION WPL 210315 Contact Us For Availability
037
NUT & BOLT KIT, TUB CLAM WPL 205529 Contact Us For Availability
037
FRONT PANEL (WHT) WPL 212998 Contact Us For Availability
038
SCREW WPL Y310842 Contact Us For Availability
038
GASKET WPL 210632 Contact Us For Availability
040
LENS, CONTROL PANEL WPL 213099 Contact Us For Availability
041
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
043
SCREW, 2-4051 KNOB WPL 214650 Contact Us For Availability
045
WASHER, CUSHION WPL 211100 Contact Us For Availability
046
BEARING LINER, TUB BEARING WPL 211130 Contact Us For Availability
047
WASHER, CLAMPING NUT (STNLS) WPL 211210 Contact Us For Availability
050
ROLLER WPL Y211952 Contact Us For Availability
050
LUG WASHER WPL 211484 Contact Us For Availability
051
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
052
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
055
WASHER, GEARS WPL NLA Contact Us For Availability
057
BRACE, TUB WPL 213053 Contact Us For Availability
057
GUARD, BELT WPL 213846 Contact Us For Availability
058
CENTERI WPL 213054 Contact Us For Availability
060
WPL 213073 WPL 213073 Contact Us For Availability
061
WPL 213088 WPL 213088 Contact Us For Availability
065
WPL 213326 WPL 213326 Contact Us For Availability
067
WPL 213737 WPL 213737 Contact Us For Availability
× ![]()
