Model Whirlpool 8ED27DQXFN01 REFRIGERATOR – Common Parts & Diagrams

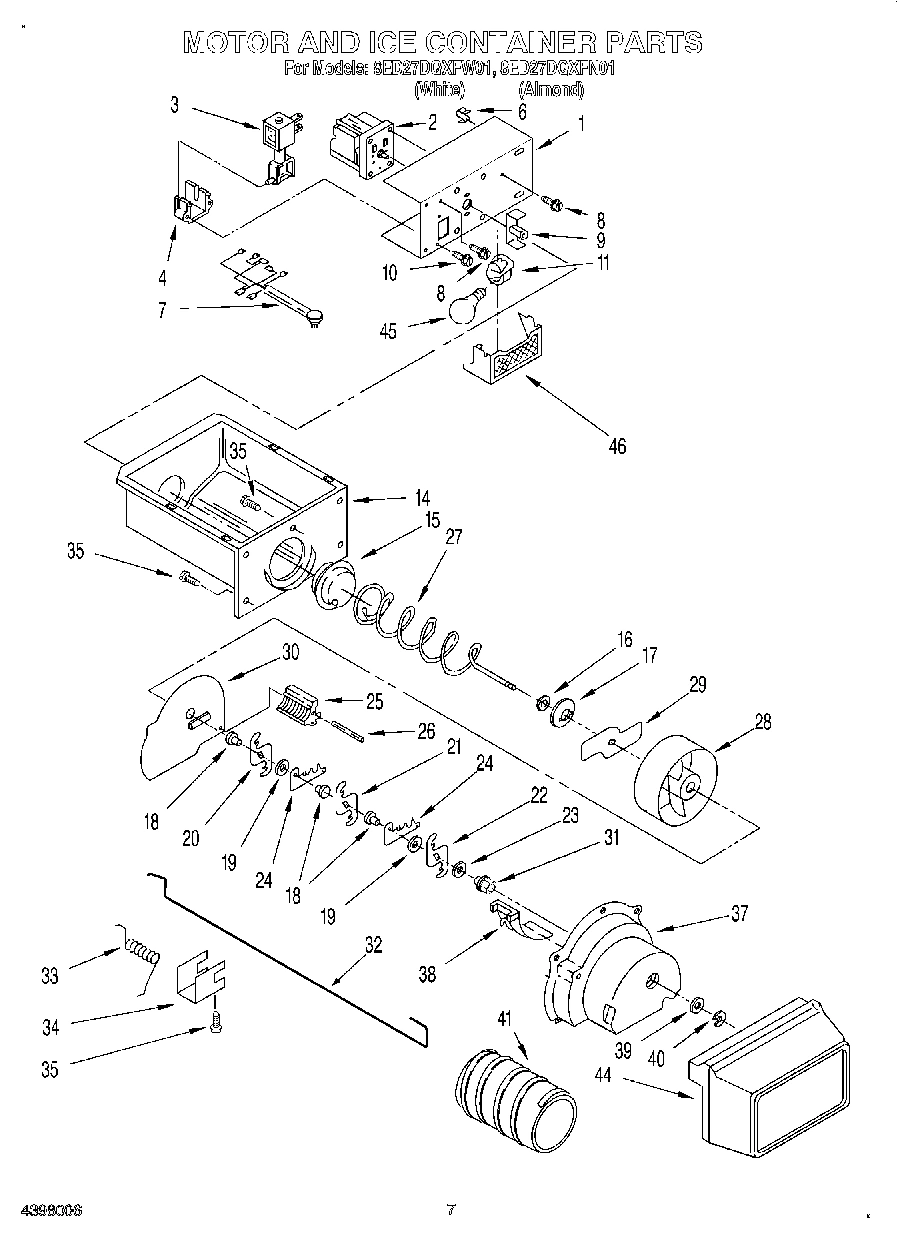

05 - MOTOR AND ICE CONTAINER

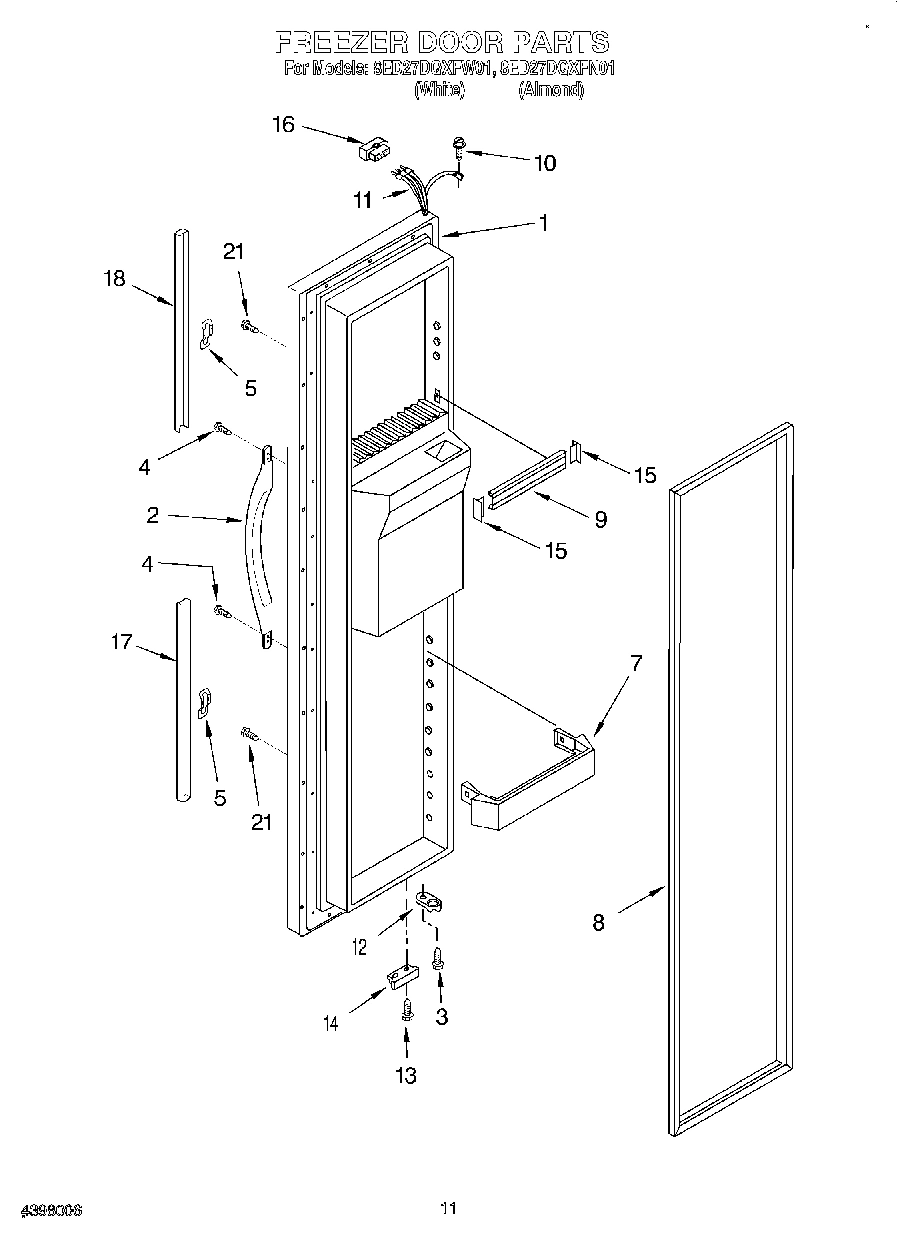

07 - FREEZER DOOR
10 - AIR FLOW

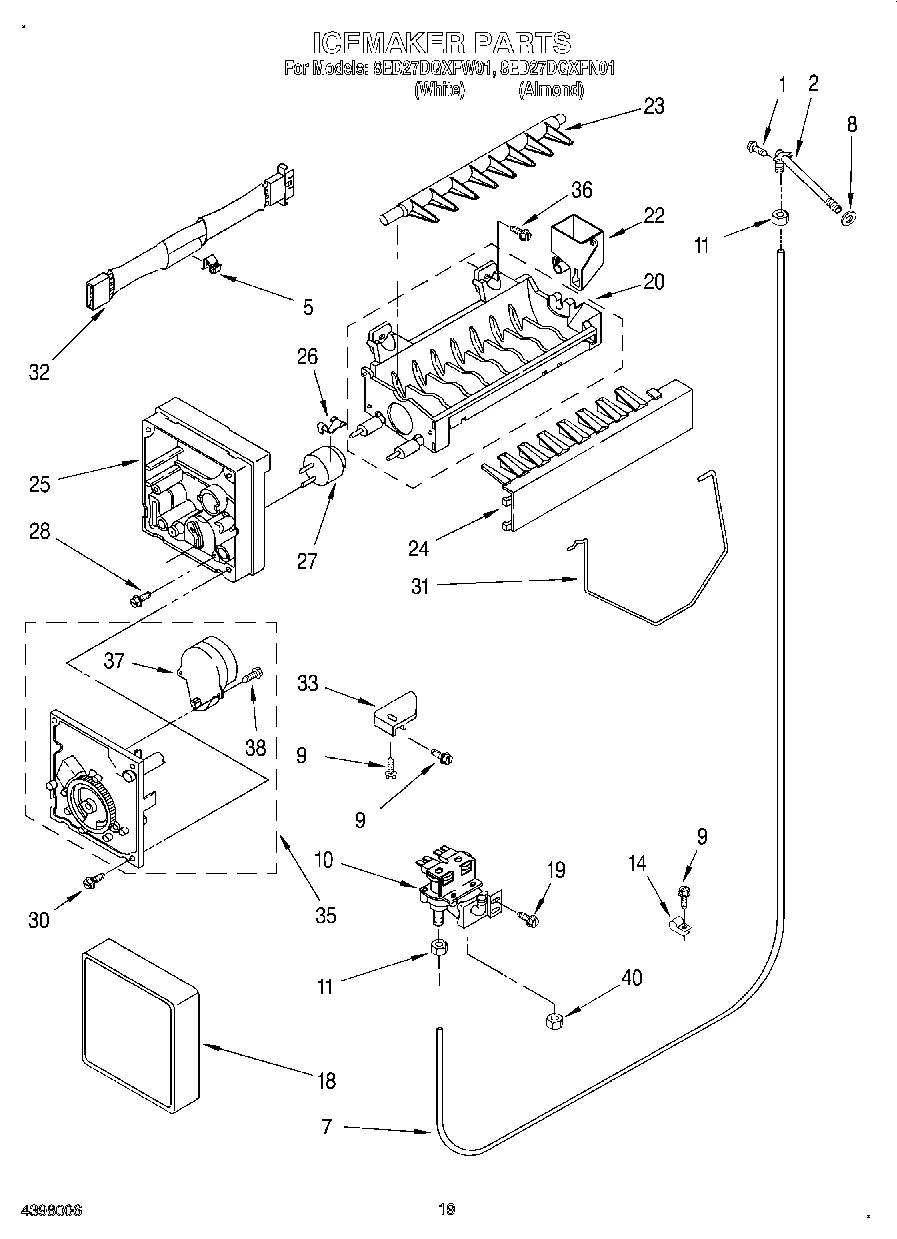

12 - ICEMAKER, LIT/OPTIONAL

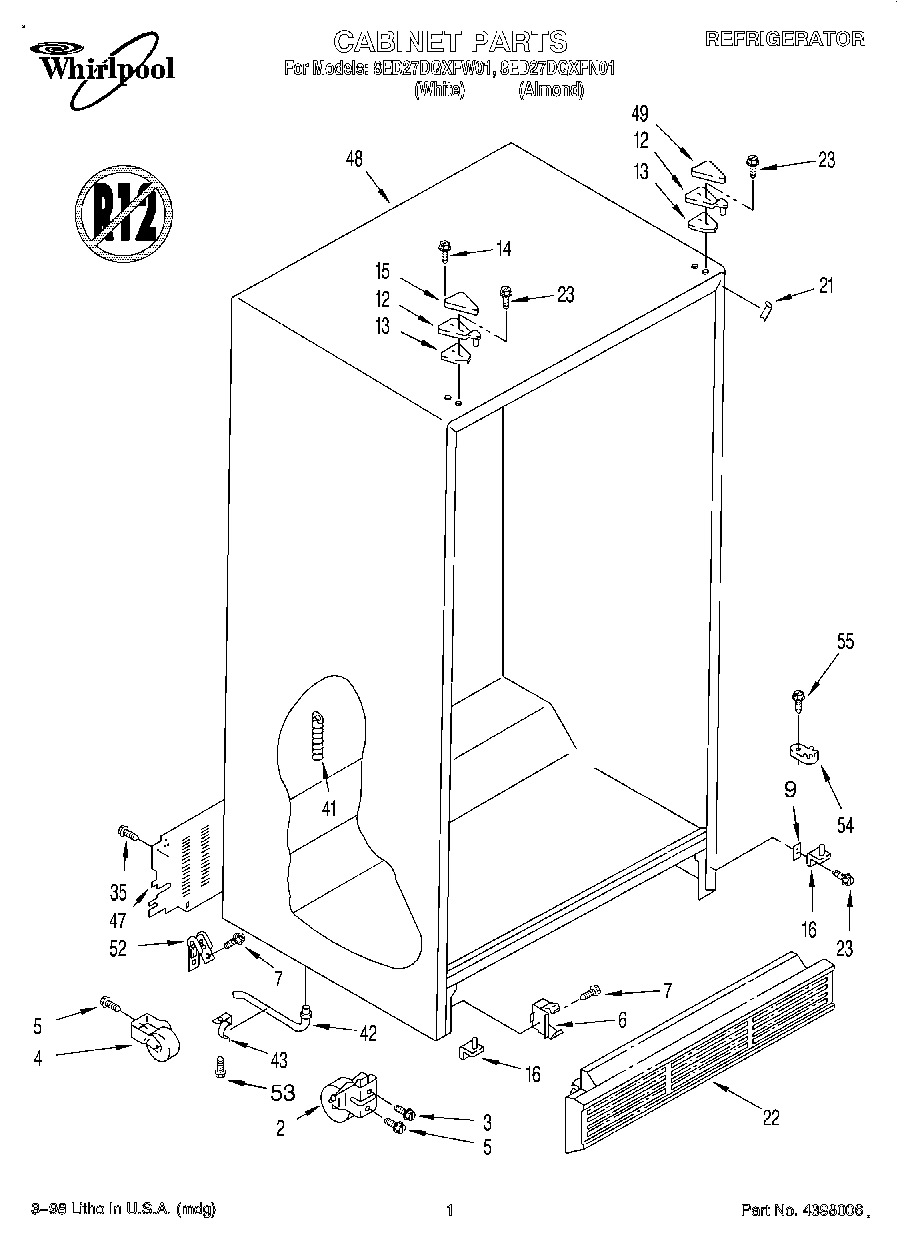

01 - CABINET

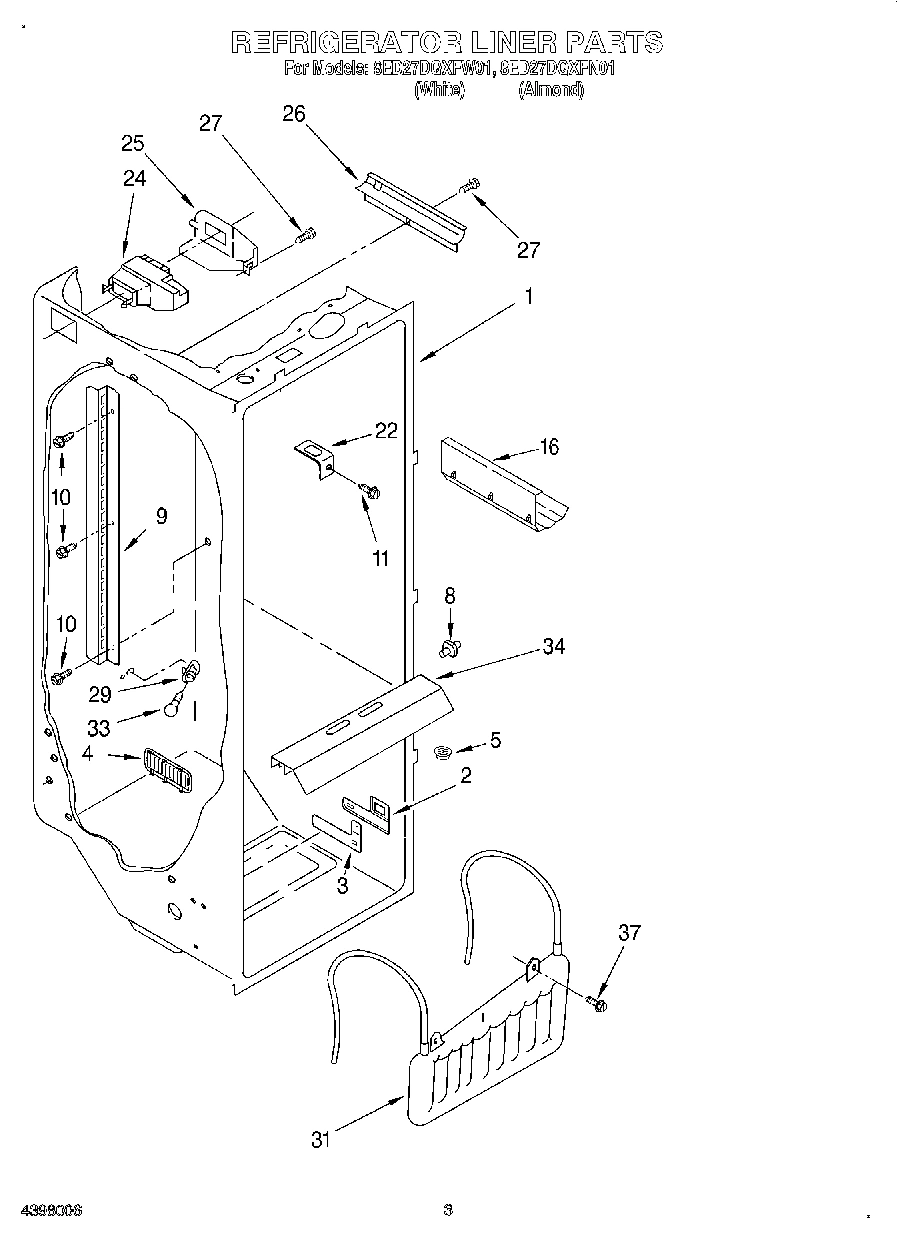

02 - REFRIGERATOR LINER

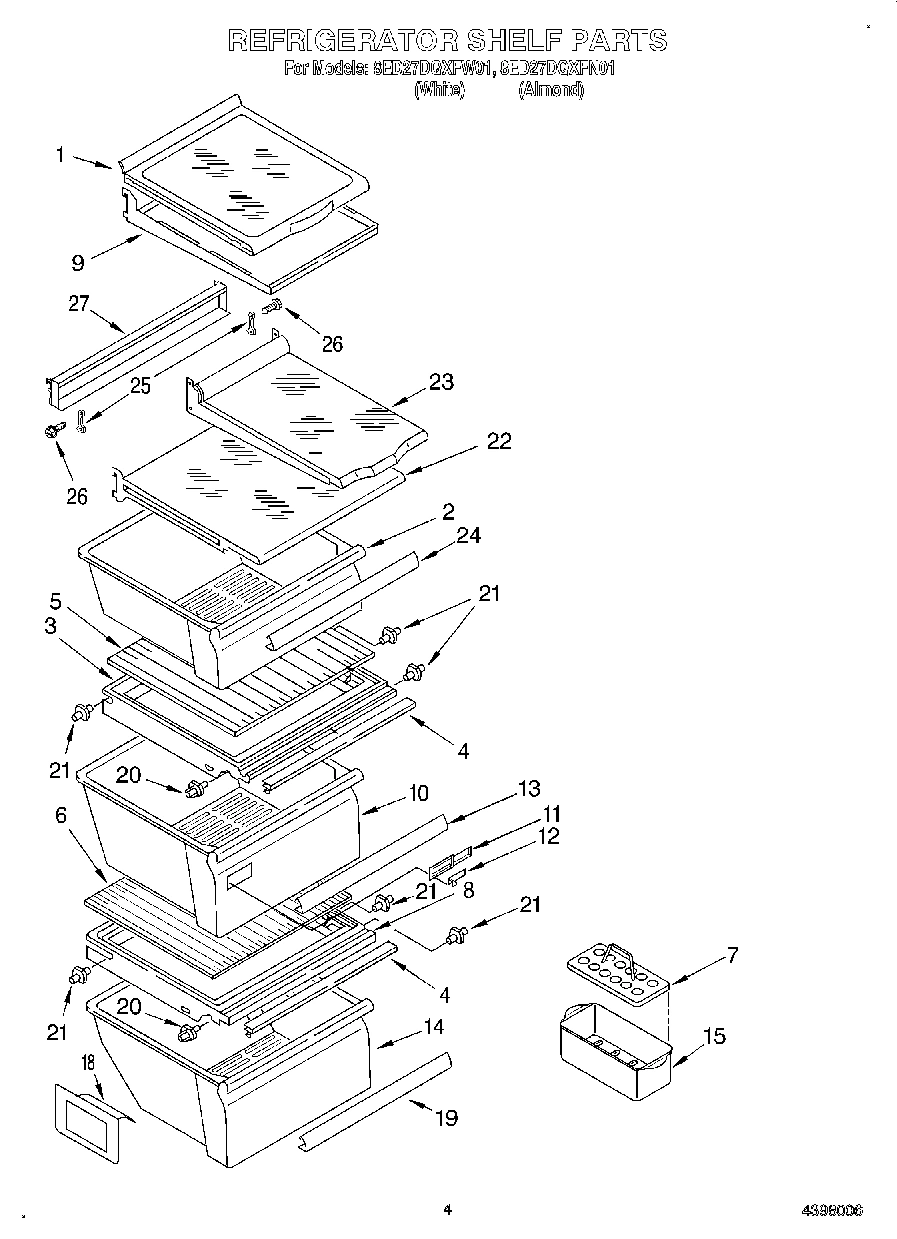

03 - REFRIGERATOR SHELF

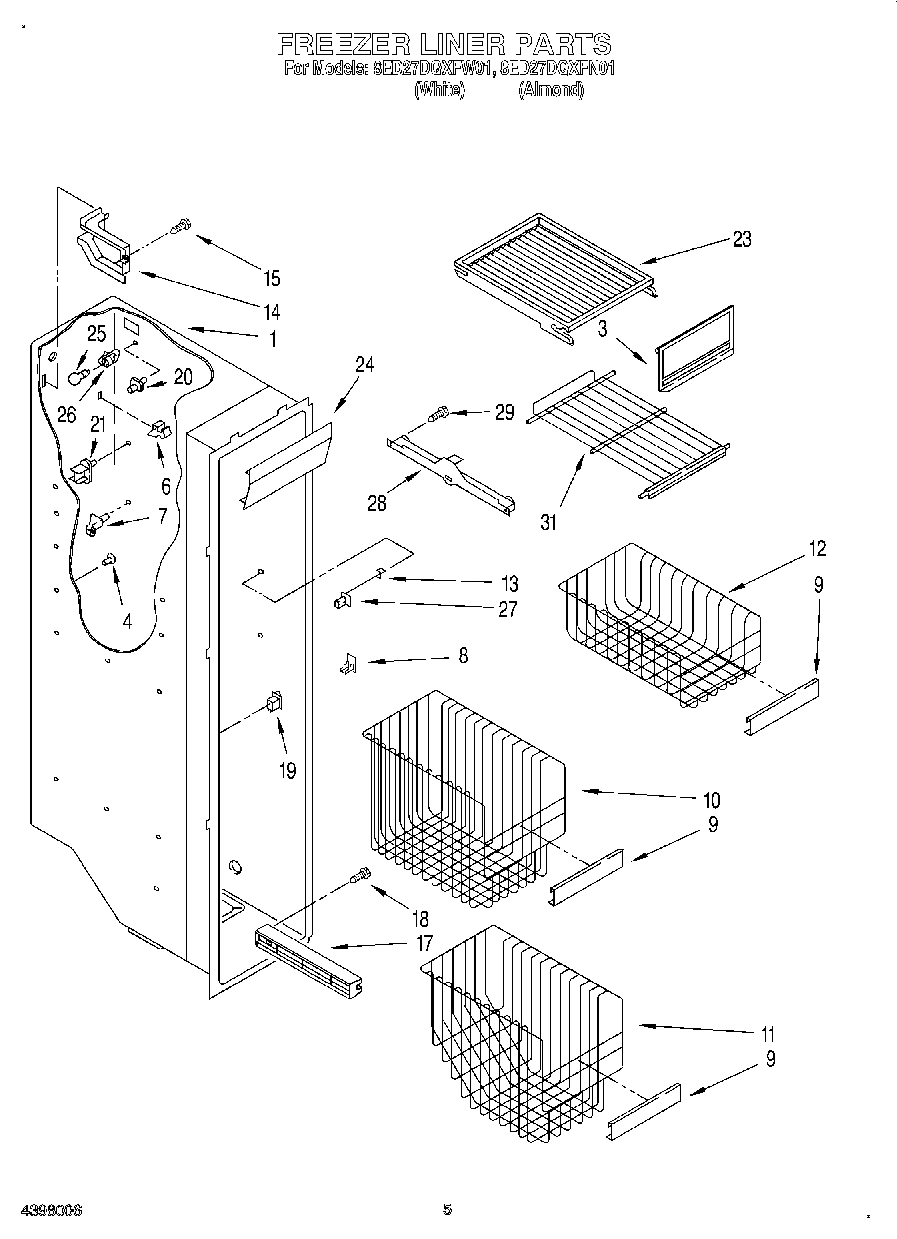

04 - FREEZER LINER

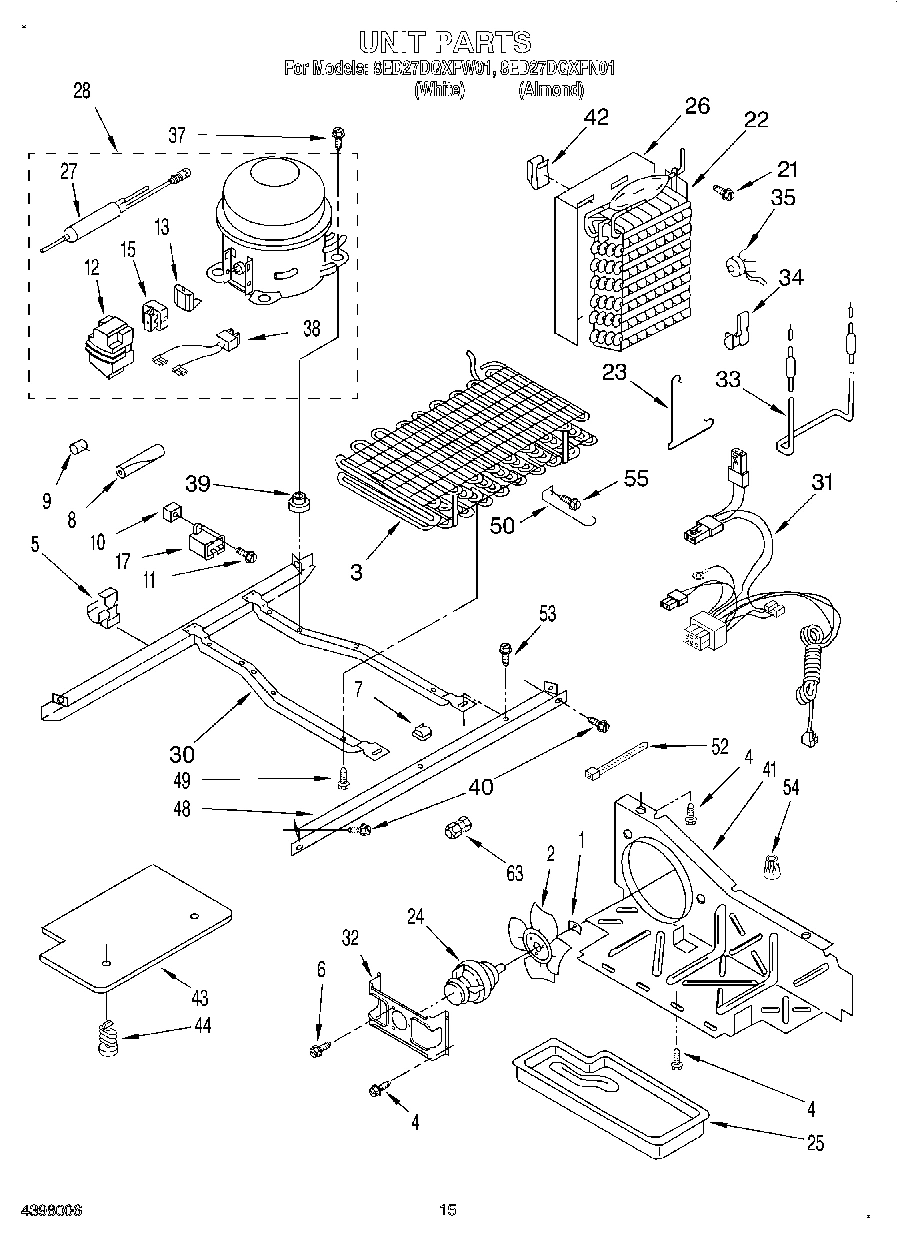

09 - UNIT

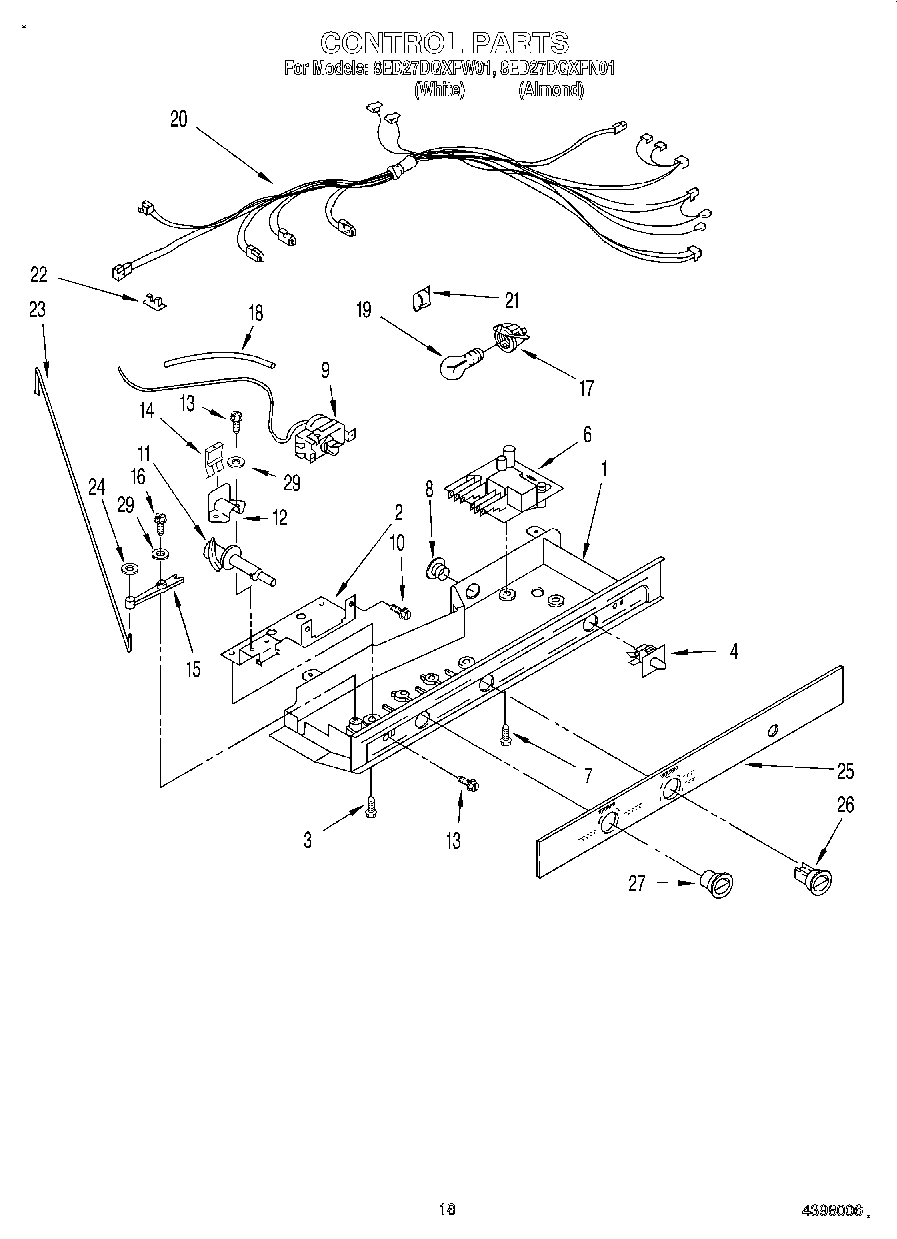

11 - CONTROL

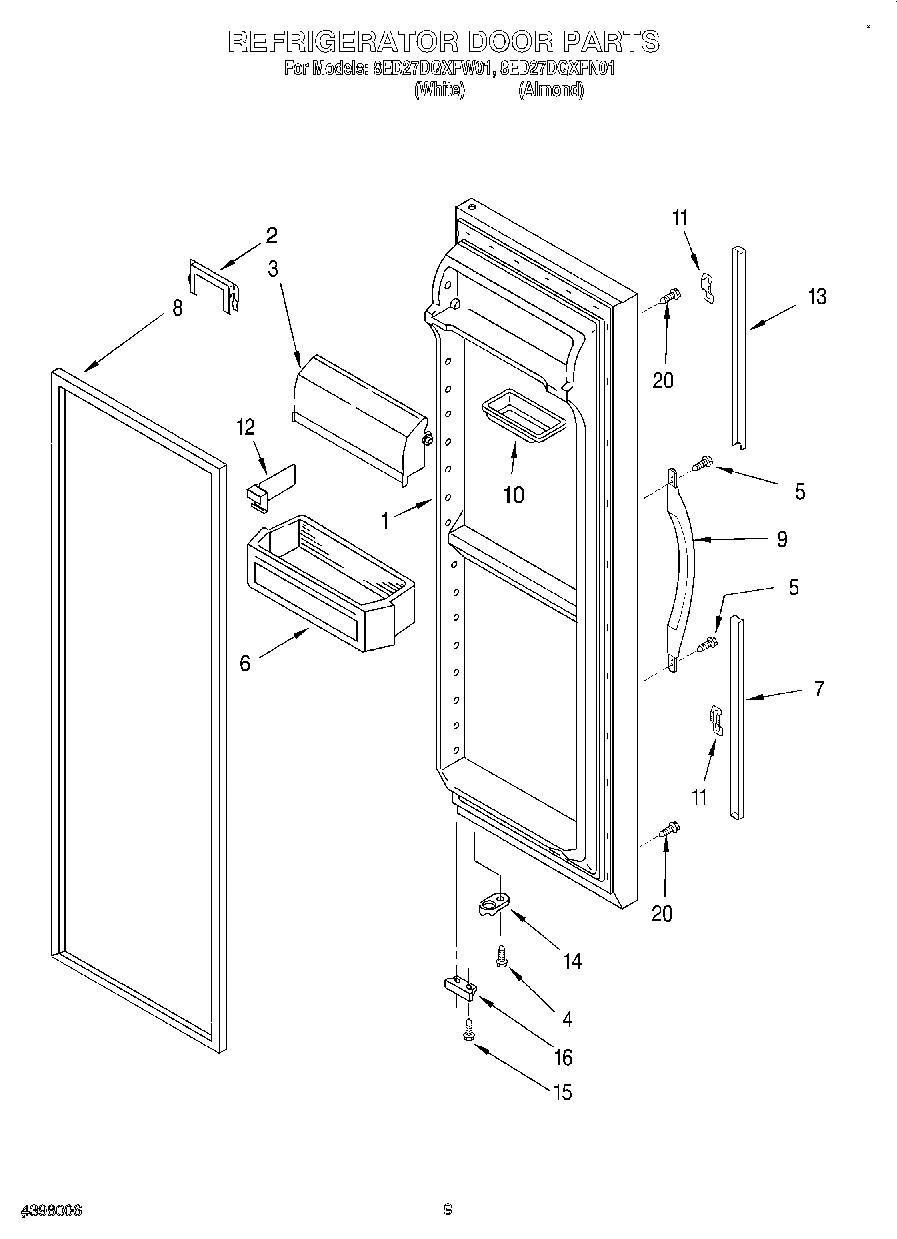

06 - REFRIGERATOR DOOR

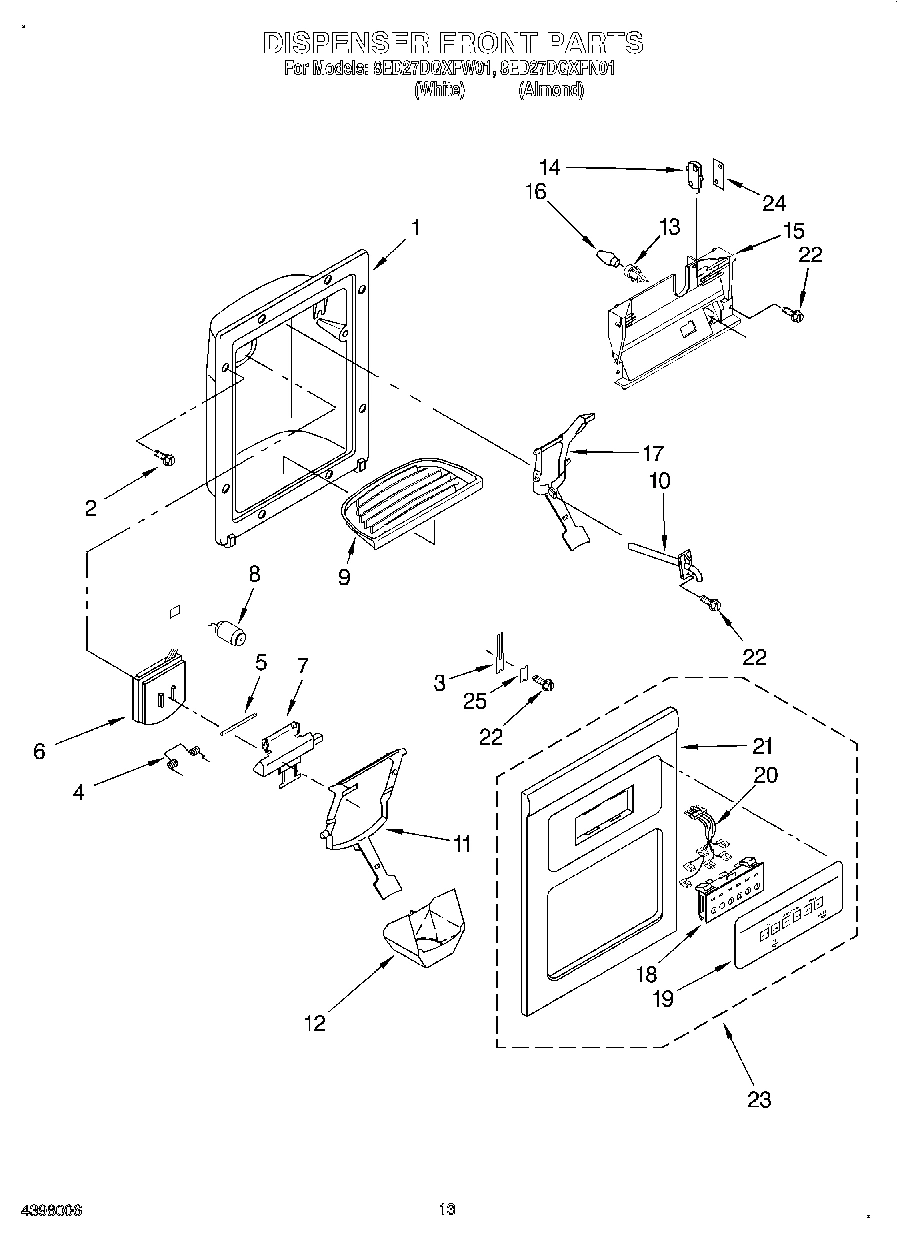

08 - DISPENSER FRONT
Common parts from model Whirlpool 8ED27DQXFN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI18455A2 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176648 Contact Us For Availability
6
Shelf Bin (4) WPL 2179608 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
10
Screw Grommet WPL 509812 Contact Us For Availability
10
Tray, Butter WPL 2165792 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180257 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
17
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
17
Slide, Basket (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180266 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2197636N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2197636W Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI18456A5 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2197645N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2197645W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
31
Unit, Harness WPL 2195103 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
