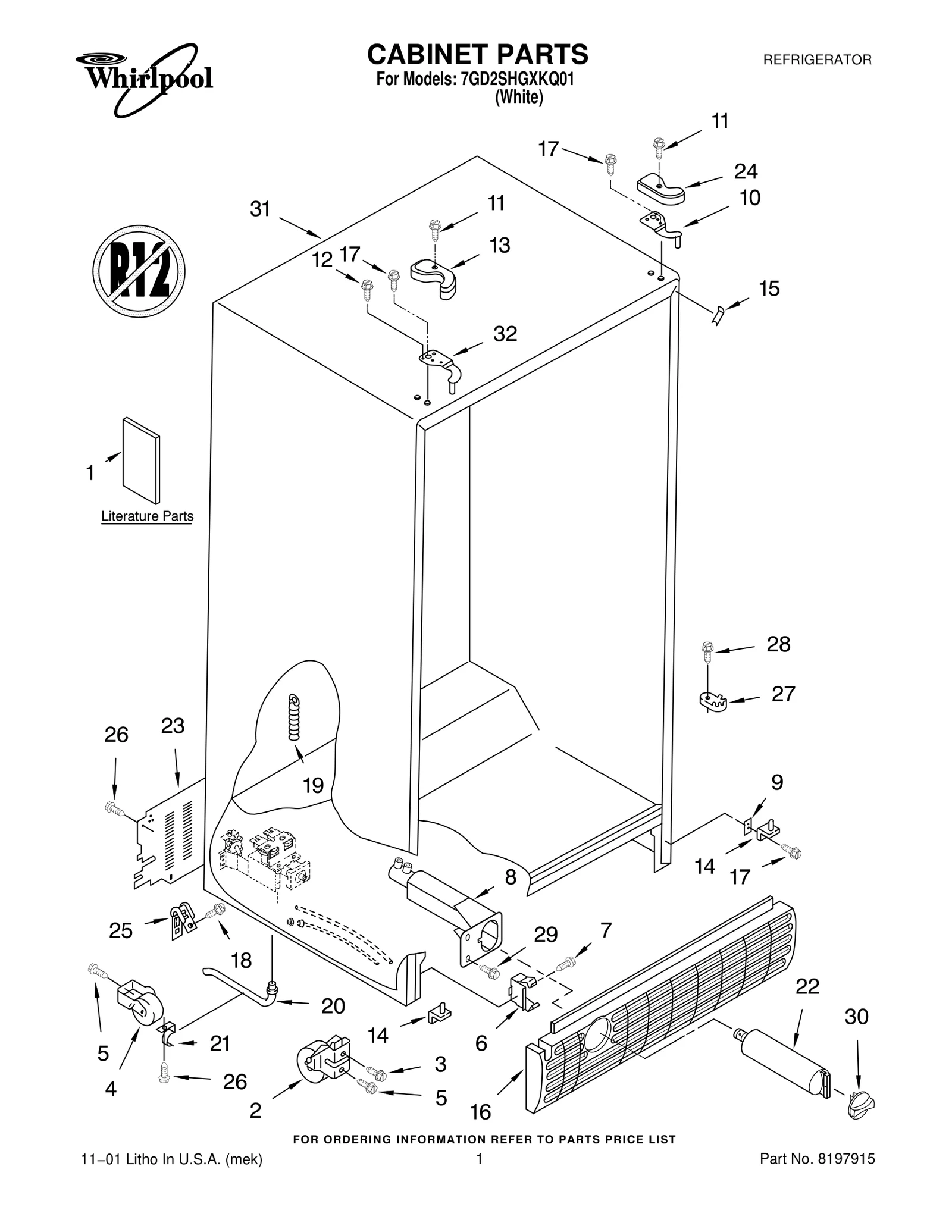

Model Whirlpool 7GD2SHGXKQ01 Refrigerator – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Control Box WPL 2200136 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.22

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Retainer, Fan Motor WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle — White WPL 2186649W Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $50.88

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $102.11

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $5.30

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $55.36

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $162.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $57.30

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $53.12

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.36

9

Shim WPL 2209697 Contact Us For Availability

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $76.67

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $69.10

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $45.77

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $72.32

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Grommet (4) WPL 2176134 Contact Us For Availability

Cover, Light Lens WPL 2200096 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $6.89

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $90.95

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

15

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

15

Filler, Wrapper — White WPL 2196094 Contact Us For Availability

15

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $130.74

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

Trim, Door−Bottom — White WPL 2194969W Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Trim, Door−Top — White WPL 2194971W Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2206515 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

Stud, Rear WPL 2196207 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

22

Clip, Wiring WPL 1115375 Contact Us For Availability

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

23

Connecting Rod WPL 1123960 Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push−On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

Escutcheon, Control Box WPL 2212073 Contact Us For Availability

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

Thermostat Knob WPL 2182111 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

27

Knob, Air Control WPL 2197871 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $87.65

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $97.31

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $38.88

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

Retainer, Light Lens WPL 2200097 Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.89

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

P.C. Board, Filter Indicator WPL 2203384 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $95.20

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

40

Nut, Compression WPL 1129179 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $69.80

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Valve, Access WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $108.21

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-4

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

OPT-5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-9

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-10

Enamel, Black WPL 799340 Contact Us For Availability

OPT-11

Enamel, White WPL 799344 Contact Us For Availability

OPT-12

Enamel, Almond WPL 978883 Contact Us For Availability

OPT-13

Enamel, Biscuit WPL 4392900 Contact Us For Availability

OPT-14

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-15

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-17

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

OPT-19

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-20

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-21

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

OPT-23

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-24

Cement, WPL 542639 Contact Us For Availability

OPT-25

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

OPT-26

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-27

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-29

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $228.43

OPT-30

Torx Key WPL 1117510 Contact Us For Availability
