Model Whirlpool 6ED25RQXWW00 REFRIGERATOR – Common Parts & Diagrams

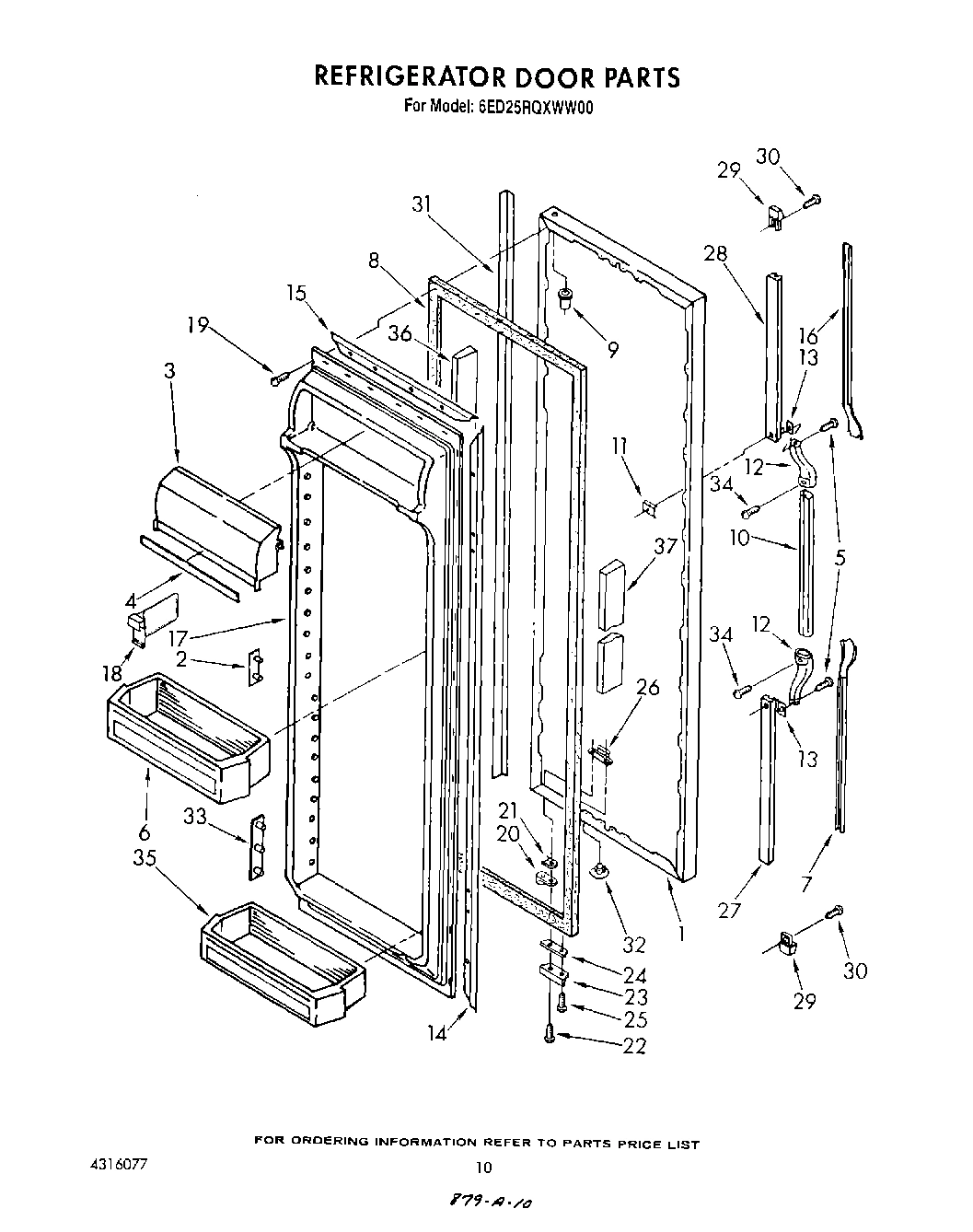

07 - REFRIGERATOR DOOR

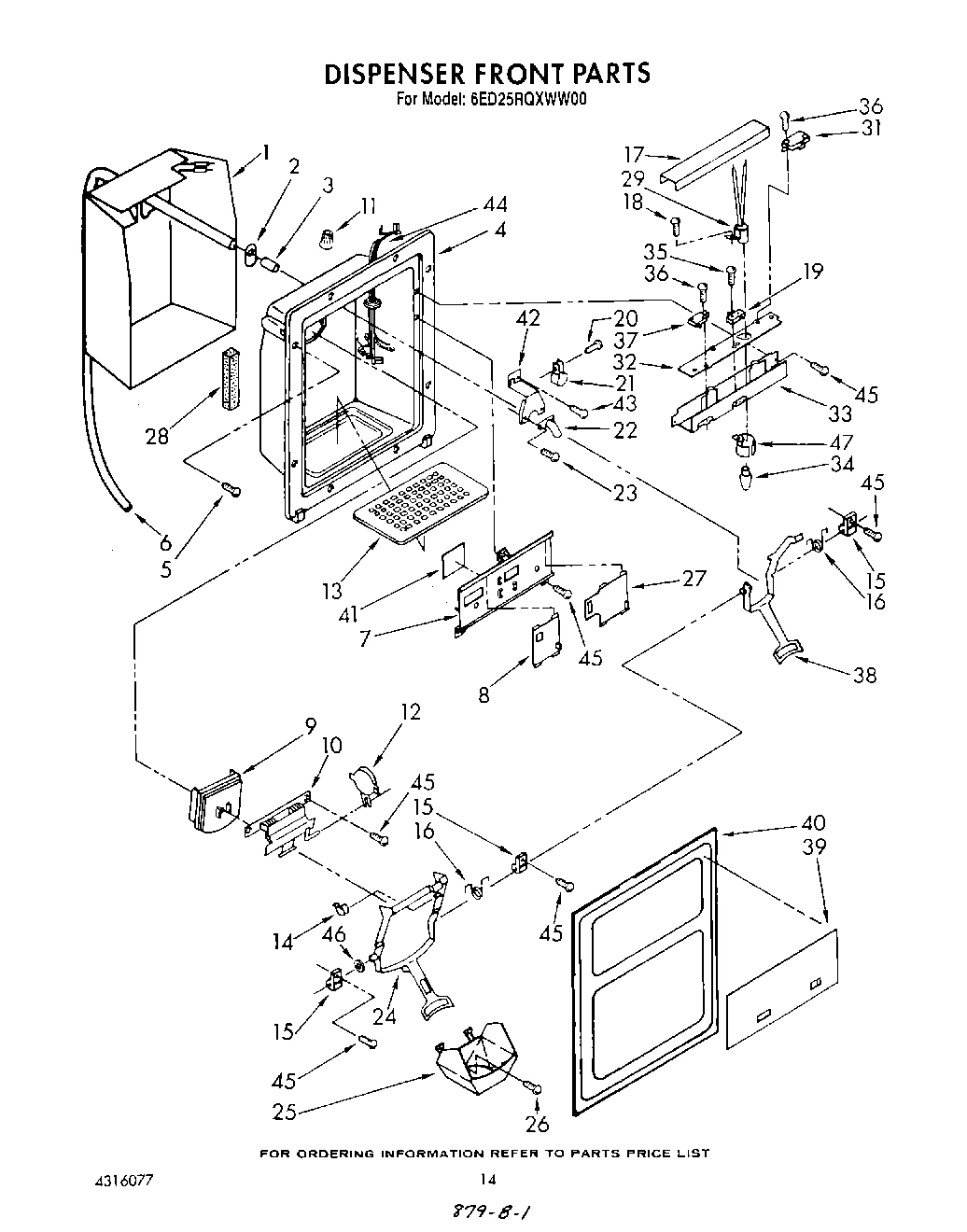

09 - DISPENSER FRONT

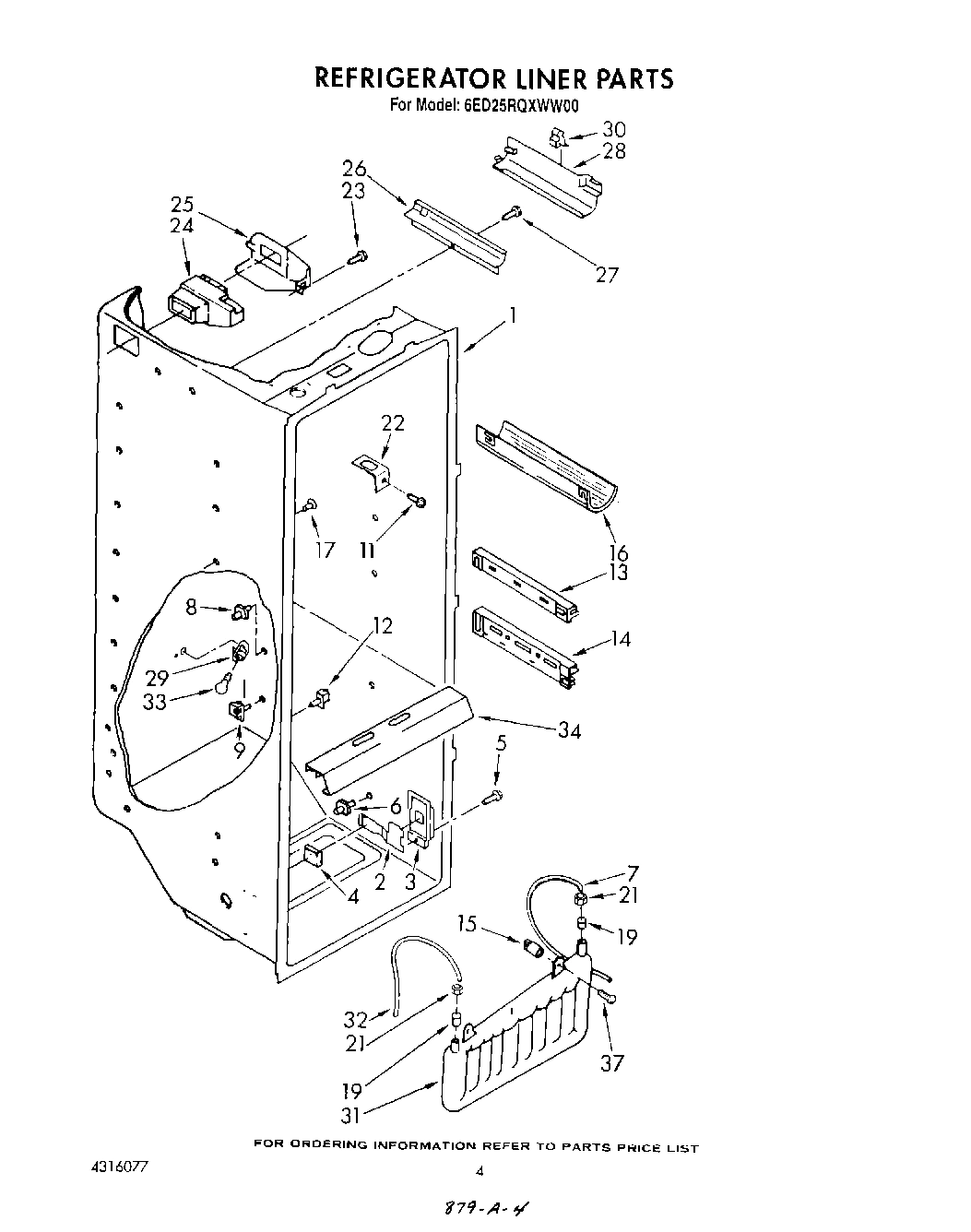

03 - REFRIGERATOR LINER

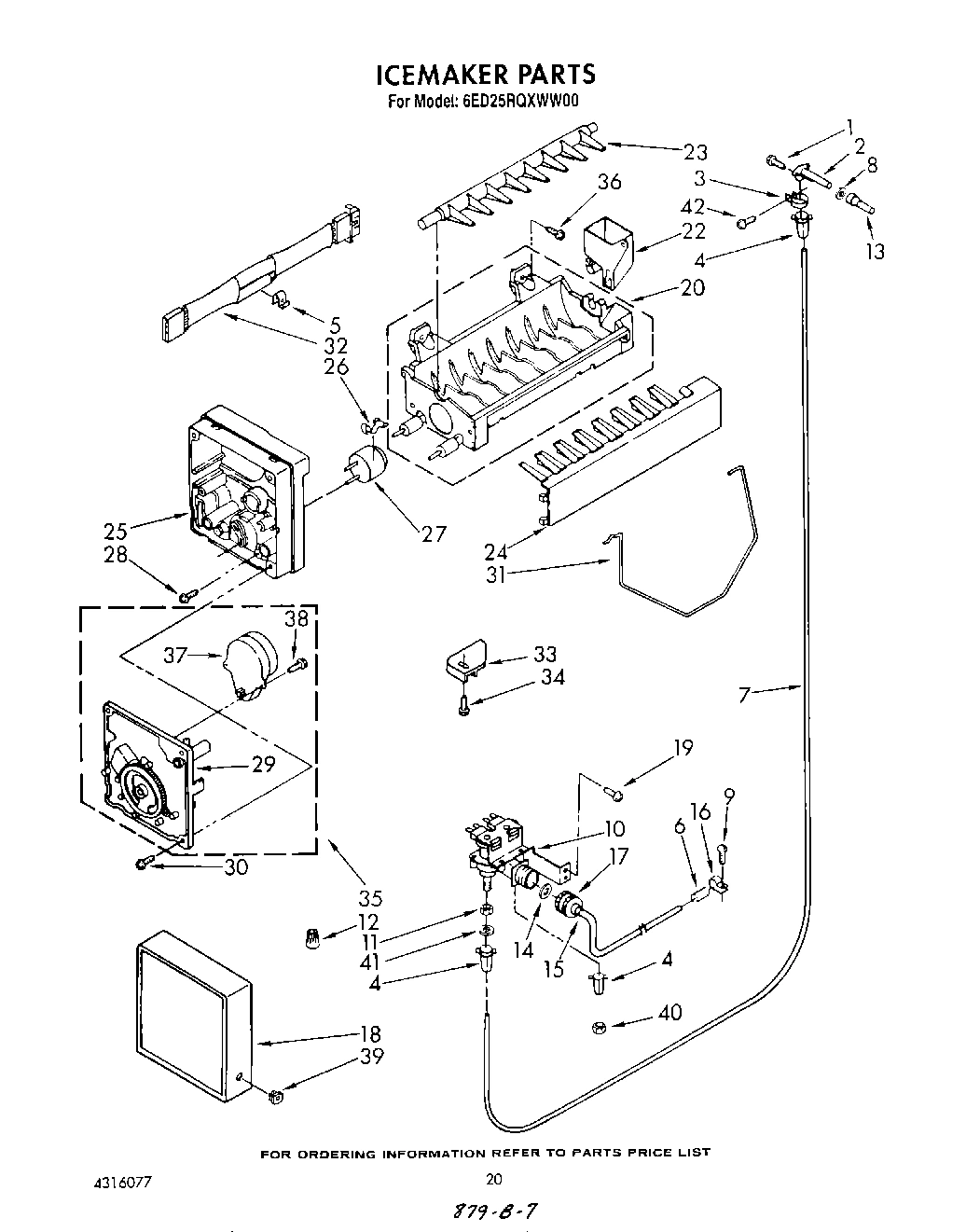

14 - ICE MAKER , LIT/OPTIONAL

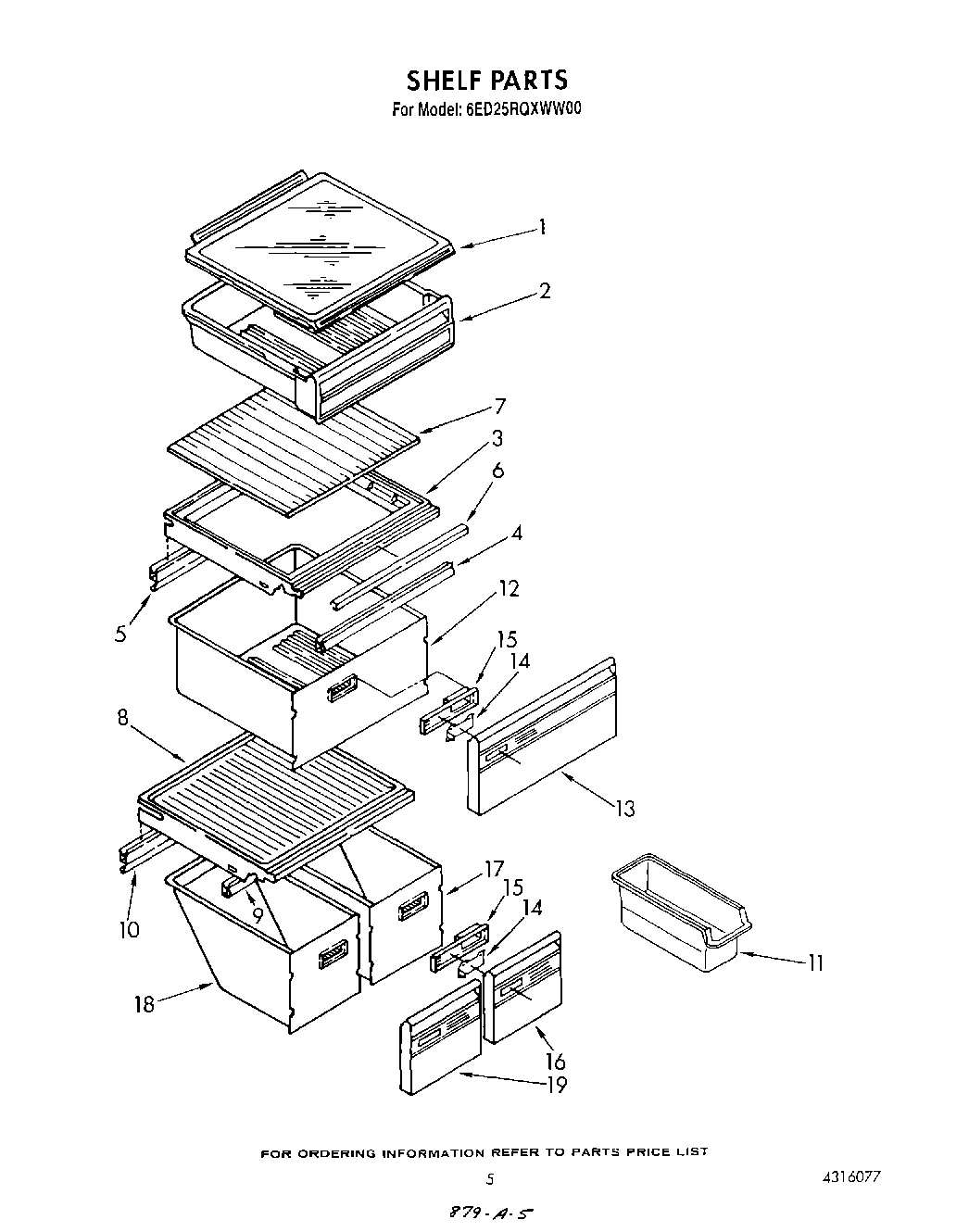

04 - SHELF

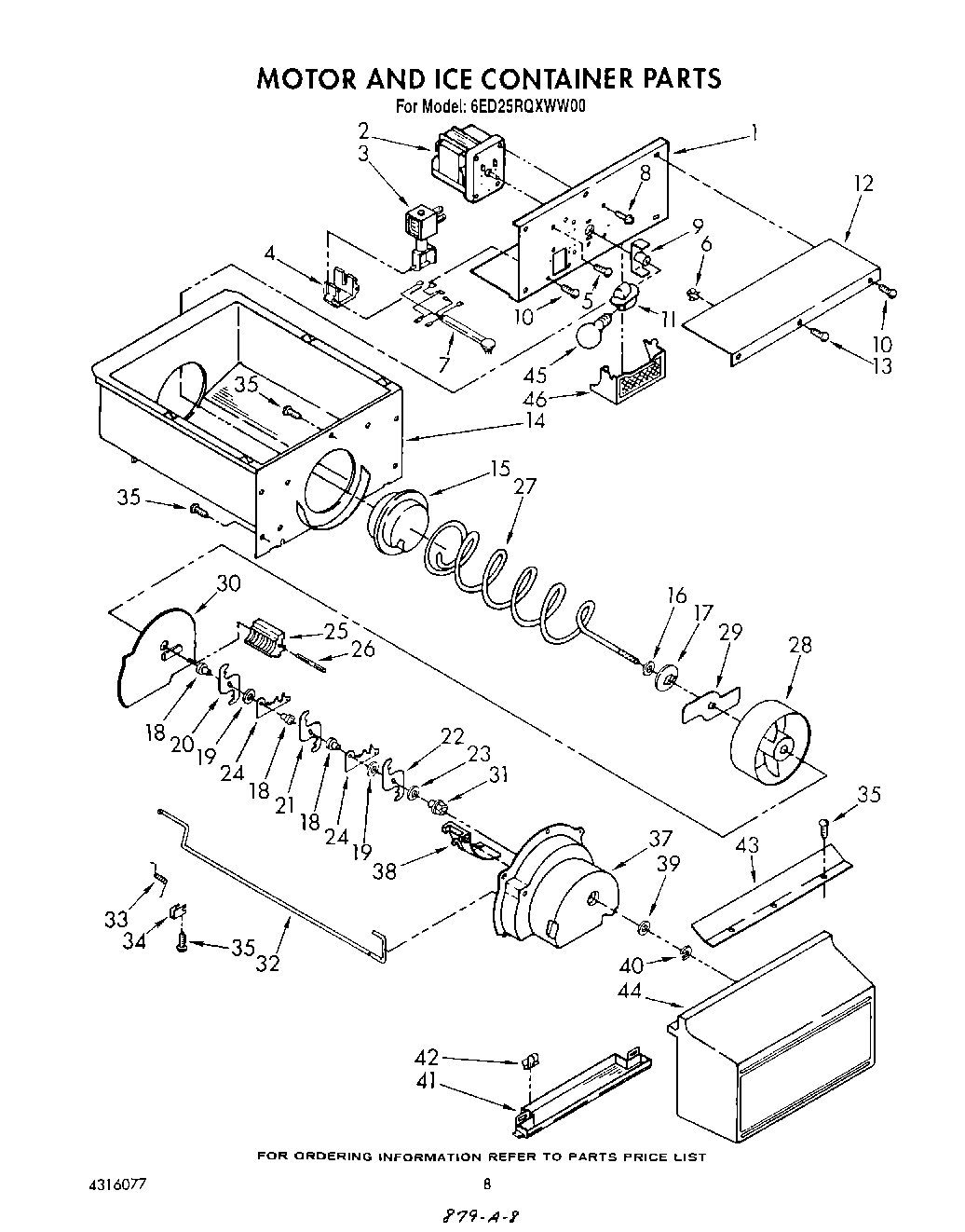

06 - MOTOR AND ICE CONTAINER

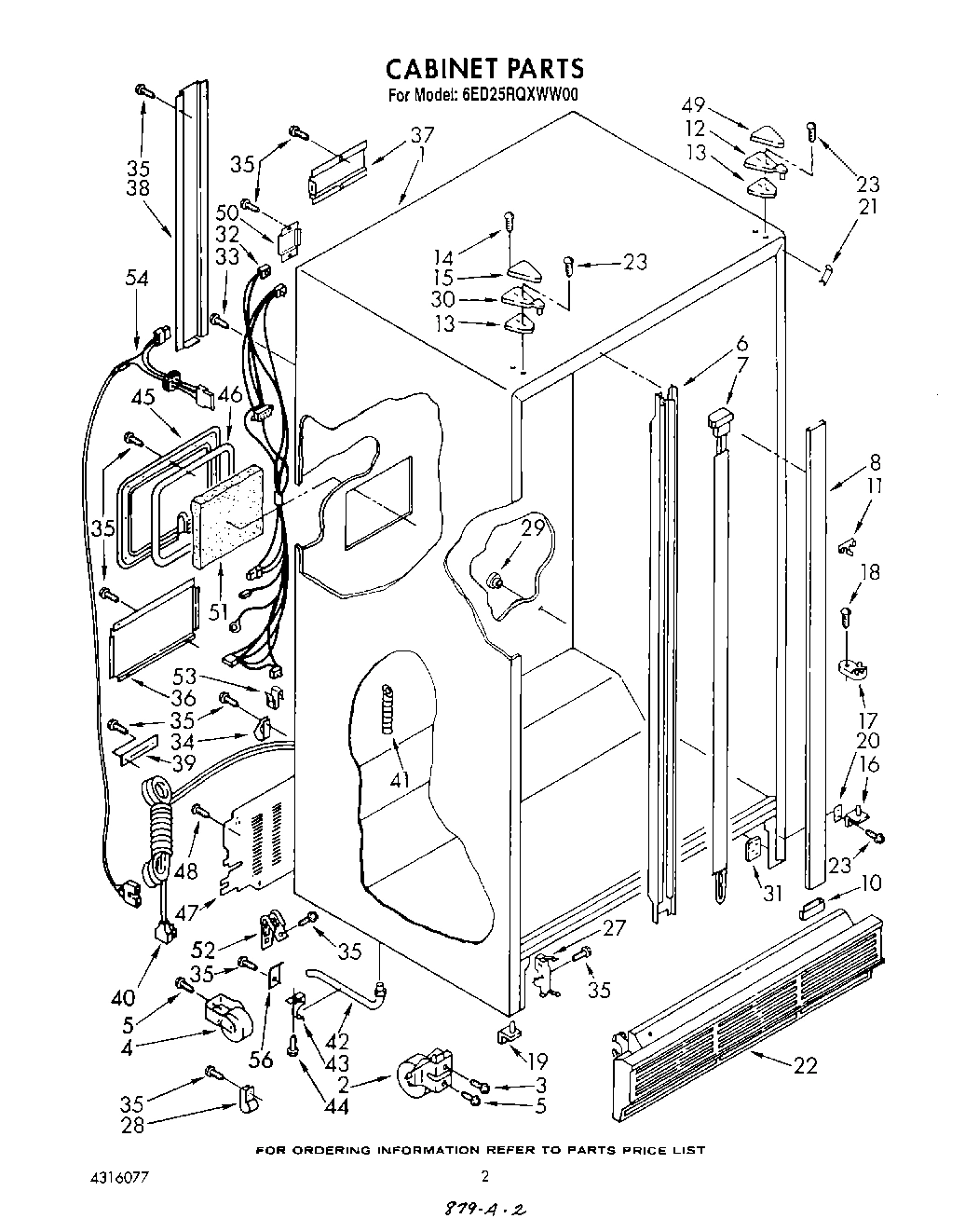

02 - CABINET

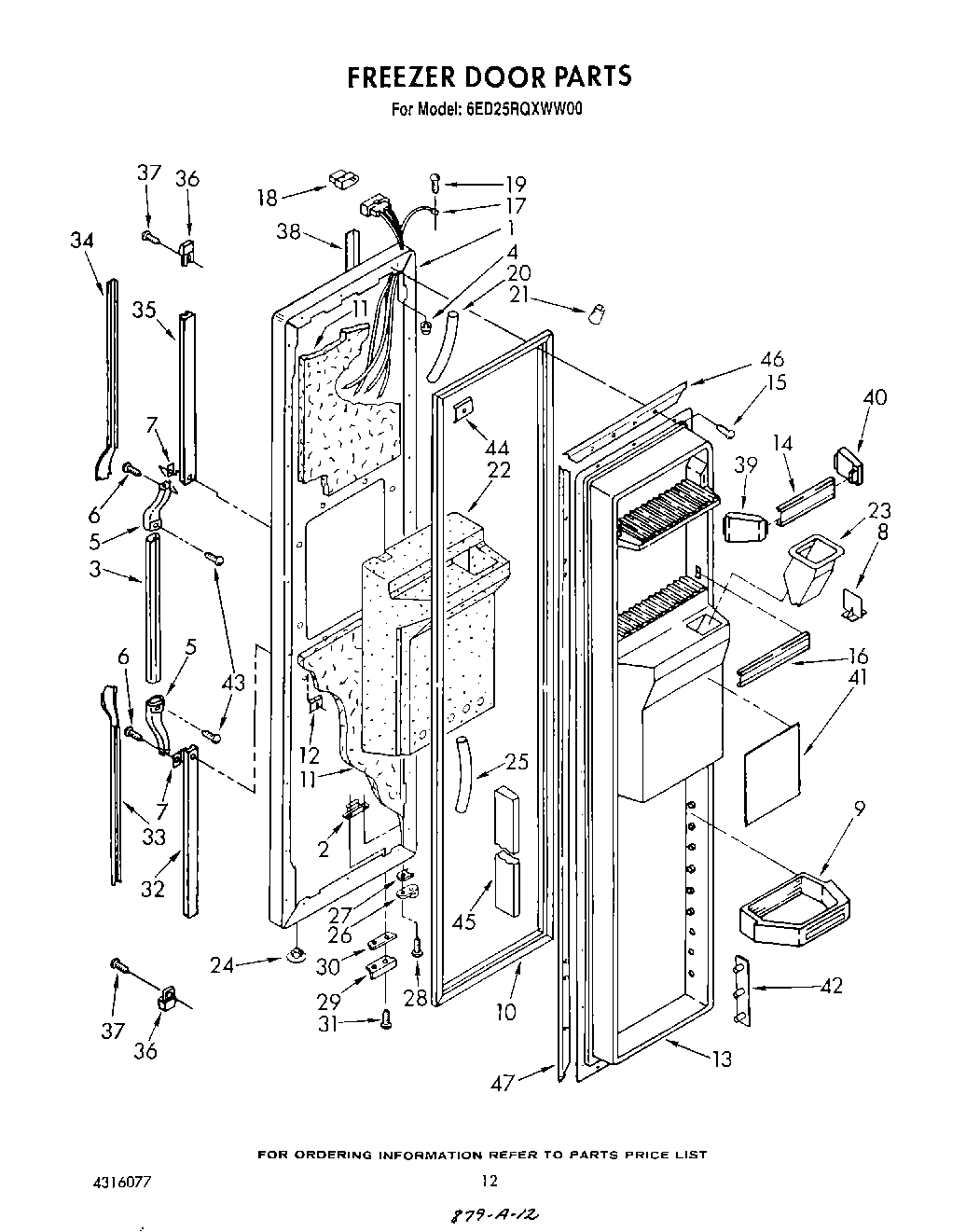

08 - FREEZER DOOR

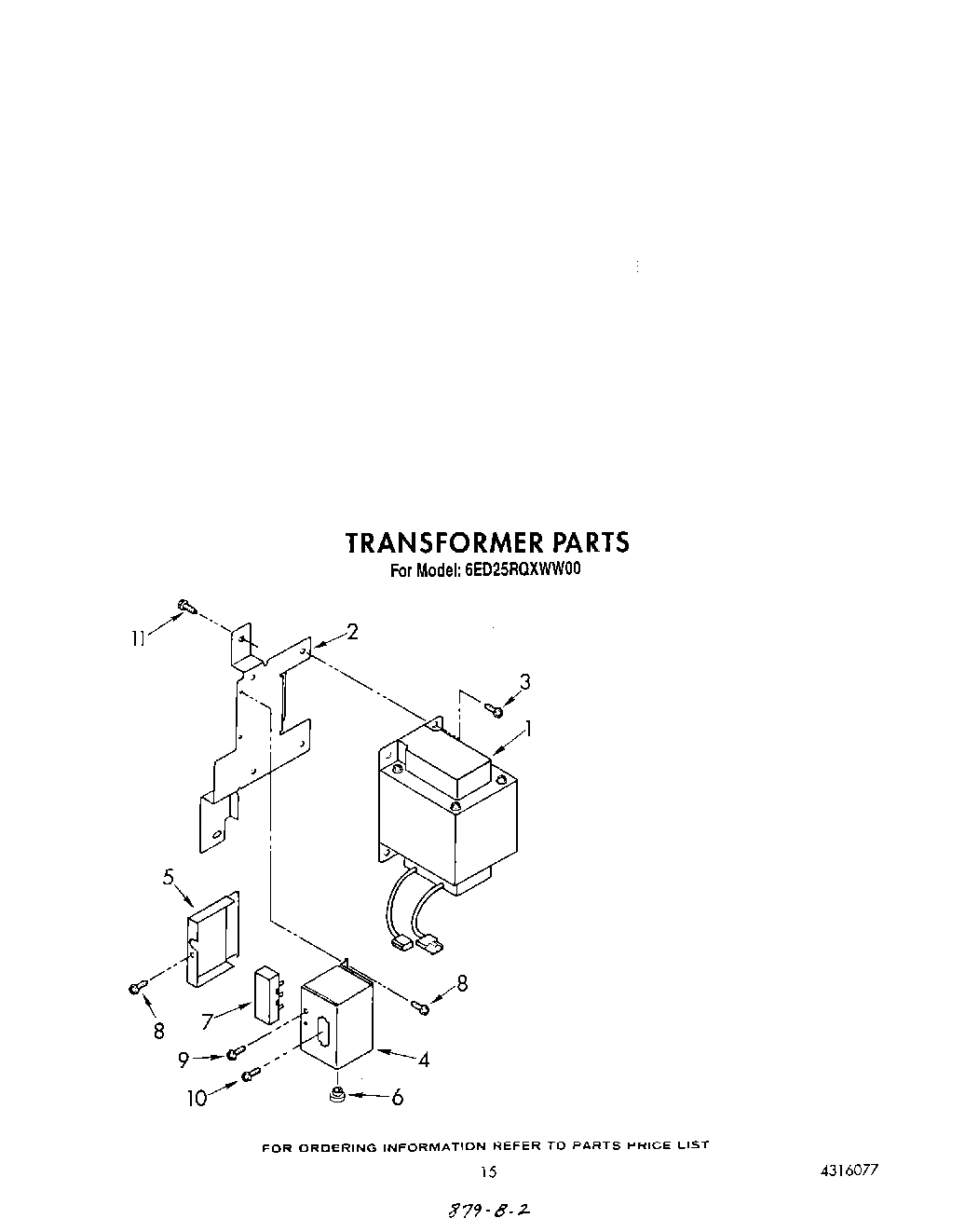

10 - TRANSFORMER

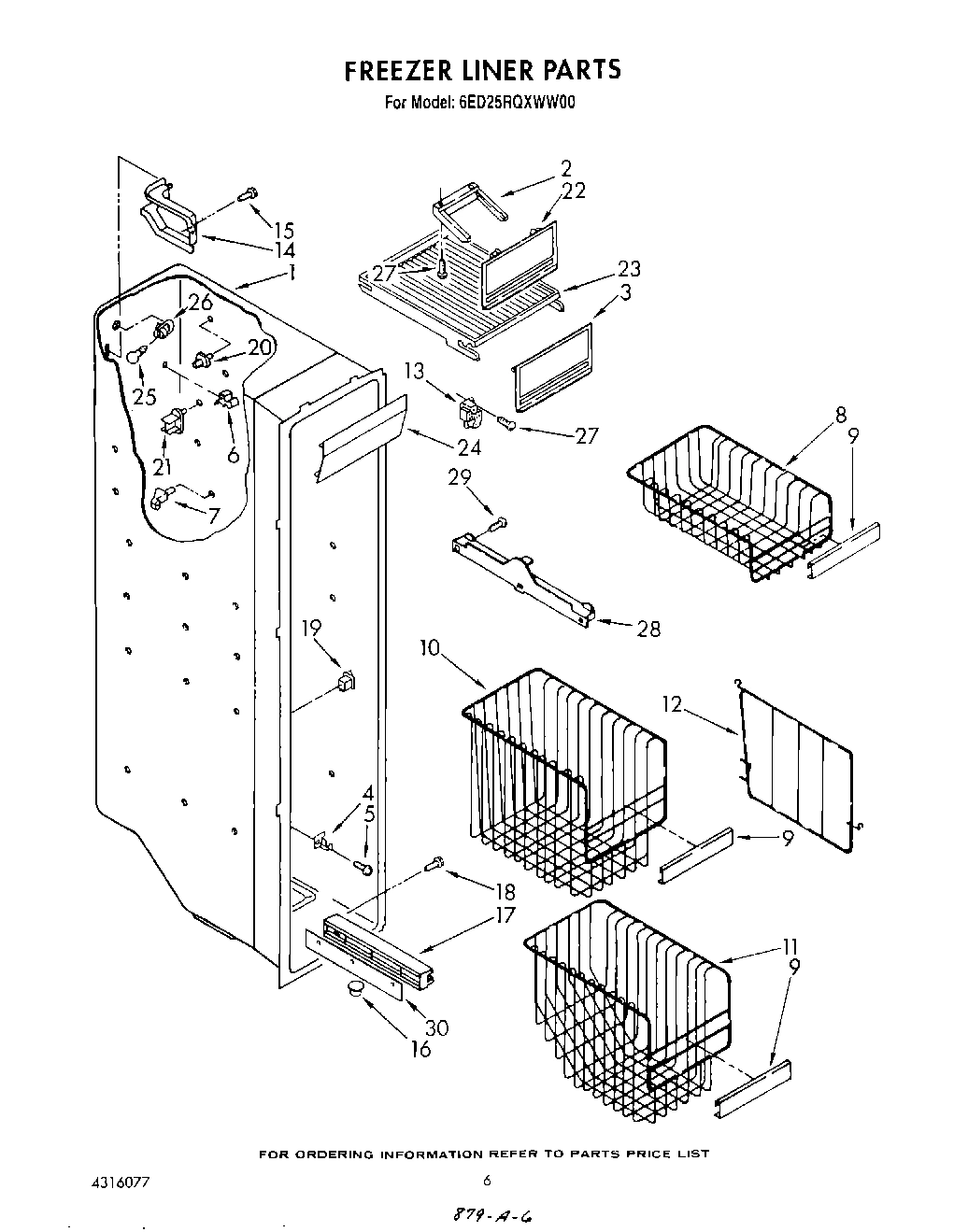

05 - FREEZER LINER

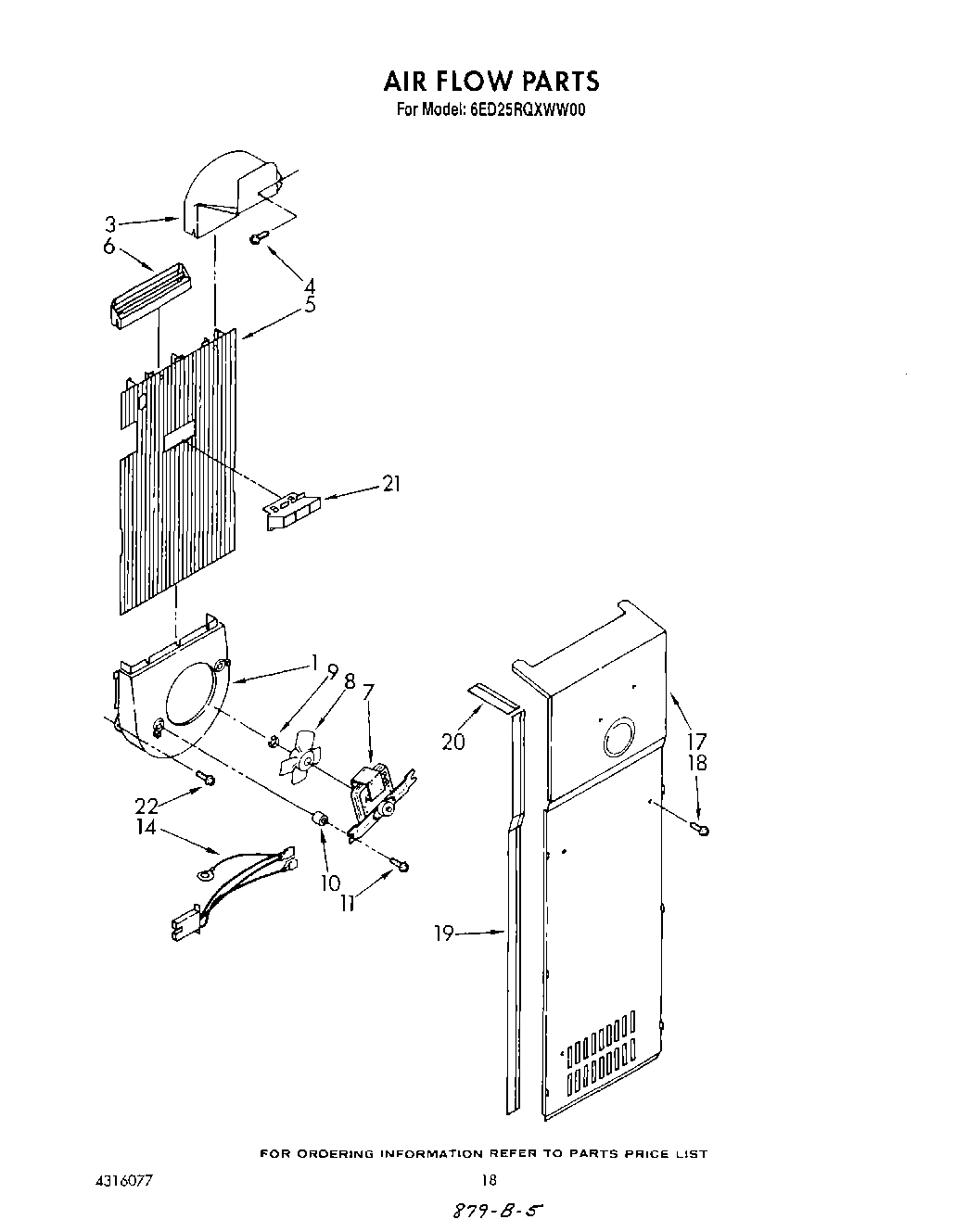

12 - AIR FLOW

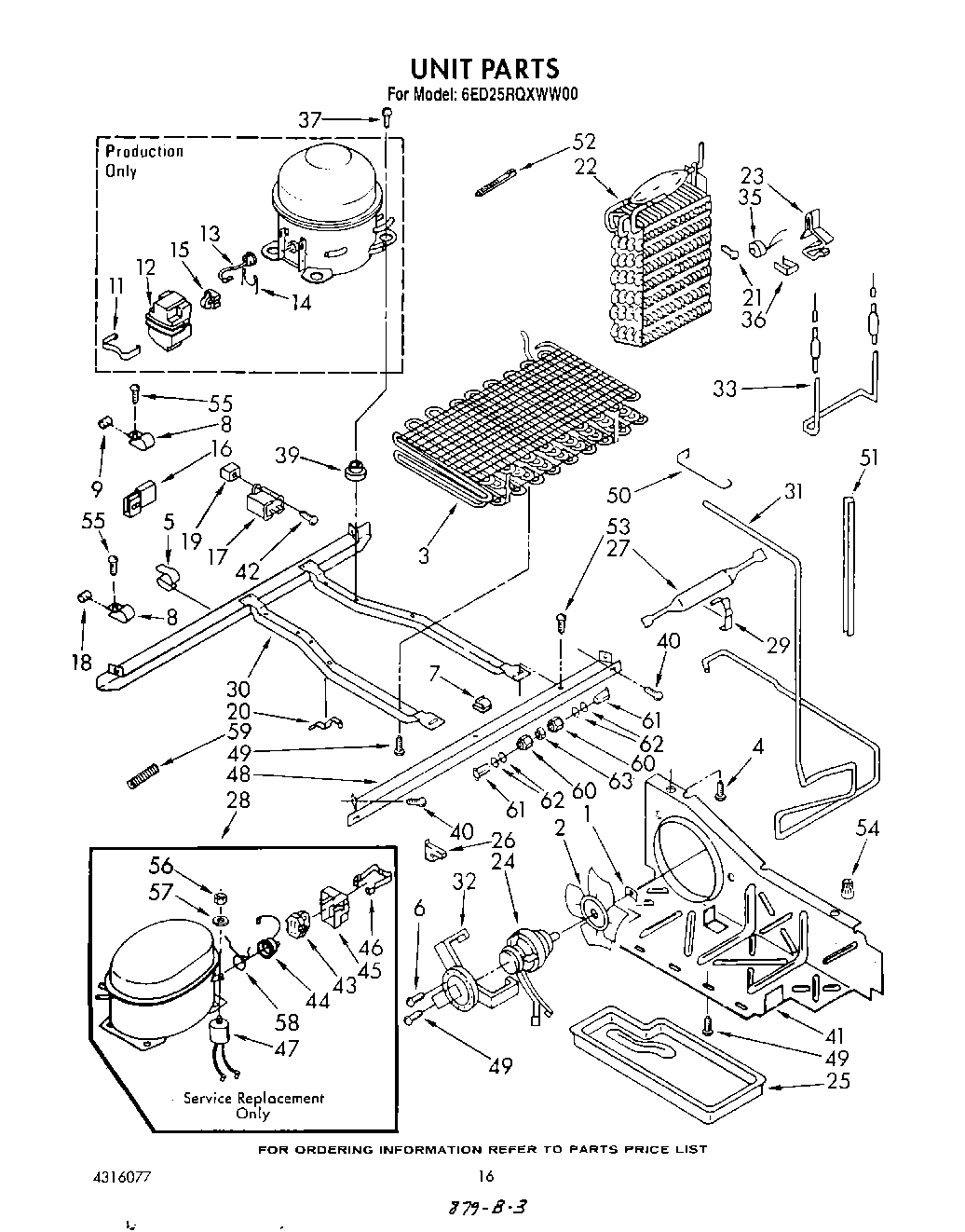

11 - UNIT

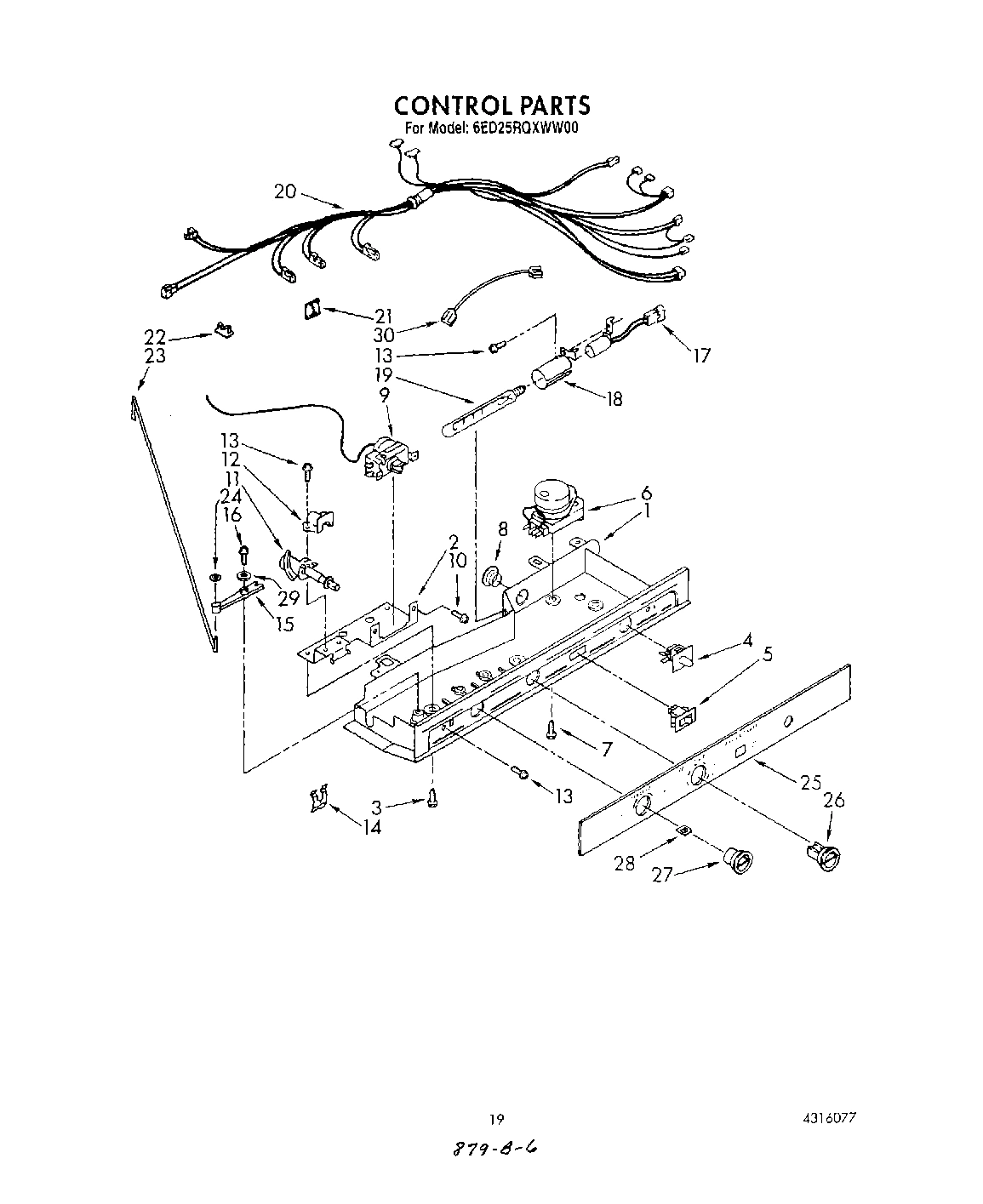

13 - CONTROL
Common parts from model Whirlpool 6ED25RQXWW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1129386 WPL LIT1129386 Contact Us For Availability
WPL LIT1129552 WPL LIT1129552 Contact Us For Availability
WPL LIT1129555 WPL LIT1129555 Contact Us For Availability
WPL LIT4316077 WPL LIT4316077 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15928A7 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 1124826 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI15927A3 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1110652 Contact Us For Availability
1
Transformer WPL 1129327 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15929A2 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Control Box WPL 1129413 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Front Roller (2) WPL 981128 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Bracket, Transformer WPL 1129328 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Screw WPL 488681 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
3
Screw WPL 488539 Contact Us For Availability
3
Door, Ice Compartment WPL 1124834 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Enclosure, Terminal Block WPL 1129418 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Cover, Encloser WPL 1129419 Contact Us For Availability
5
Air Duct Freezer WPL 1110621 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Mullion Rail WPL 1118355 Contact Us For Availability
6
Bushing WPL 1129449 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2154653 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 1119217 Contact Us For Availability
7
Heater Mullion WPL 1129434 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Terminal Block WPL 1129346 Contact Us For Availability
7
Fan Motor WPL 1127165 Contact Us For Availability
7
Clip, Water Line (3) WPL 934011 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Cover, Meat Pan WPL 1124812 Contact Us For Availability
8
Front Mullion Rail WPL 1123972 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
8
Screw, 8-32 x 3/8 (3) WPL 488854 Contact Us For Availability
8
Basket (2) WPL 2150324 Contact Us For Availability
9
Stud (2) WPL 1115290 No Longer Available
9
Gasket (Front) WPL 1115292 Contact Us For Availability
9
Shelf Bin (3) WPL 1124854 Contact Us For Availability
9
Screw WPL 489346 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
10
Filler Bottom Mullion WPL 1118361 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Basket, Tall WPL 1114674 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Screw WPL 488167 Contact Us For Availability
11
Basket, Slope WPL 1114676 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Rack, Pizza WPL 1115253 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Front, Crisper Pan WPL 1124825 Contact Us For Availability
13
Panel, Interior Door WPL 2150326 Contact Us For Availability
13
Terminal Block WPL 942842 Contact Us For Availability
13
Overload WPL 1123749 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Slide, Humidity Control WPL 1124819 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Trim, Door Shelf WPL 1124851 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Fan Motor, Harness WPL 1114721 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Housing, Humidity Control WPL 1124820 Contact Us For Availability
15
Relay WPL 1101014 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Front, Meat Pan WPL 1124817 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 986763 Contact Us For Availability
16
Trim, Door Shelf WPL 1124852 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Meat Pan WPL 1114690 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1119212 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1114679 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1114680 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
18
Meat Pan WPL 1114691 Contact Us For Availability
18
Screw (2) WPL 489296 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Shroud, Bracket WPL 1129334 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
19
Front, Meat Pan WPL 1124814 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 986764 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 1127817 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille WPL 1125715 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Door, Top Compartment WPL 1124833 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Screw (Repair) WPL 489297 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148238 Contact Us For Availability
26
Cover, Conduit WPL 1123926 Contact Us For Availability
26
Receptacle, Housing WPL 1103840 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Cover, Wiring WPL 1123921 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Shim, Track (2) WPL 1129195 Contact Us For Availability
30
Wire, Ground WPL 1129368 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
32
Tube WPL 1129176 Contact Us For Availability
32
Control Arm WPL 2147138 Contact Us For Availability
32
Cabinet Harness WPL 1129190 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
33
Heater, Defrost WPL 1110669 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Insert, Handle WPL 1119373 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
36
Cover, Wiring WPL 1108442 Contact Us For Availability
36
End Cap (2) WPL 941259 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
38
Wiring Shield, Long WPL 1119063 Contact Us For Availability
38
Trim, Door WPL 1119062 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
40
Nut, Compression WPL 1108005 Contact Us For Availability
40
Service Cord WPL 1129331 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
41
Tray, Ice Chips WPL 1121387 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
41
Overlay WPL 1124853 Contact Us For Availability
42
Clip, Tray (2) WPL 1121386 Contact Us For Availability
42
Pin Plate (6) WPL 1116986 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
44
Screw WPL 488978 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
45
Cover, Plug WPL 1110626 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
Sealing Gasket WPL 1115322 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Cover, Unit WPL 1129352 Contact Us For Availability
47
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Shield, Wiring WPL 1129348 Contact Us For Availability
51
Insulation WPL 1118237 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
62
``O`` Ring Seal (4) WPL 488794 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
× ![]()
