Model Whirlpool 6ED22DQXDW00 REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER

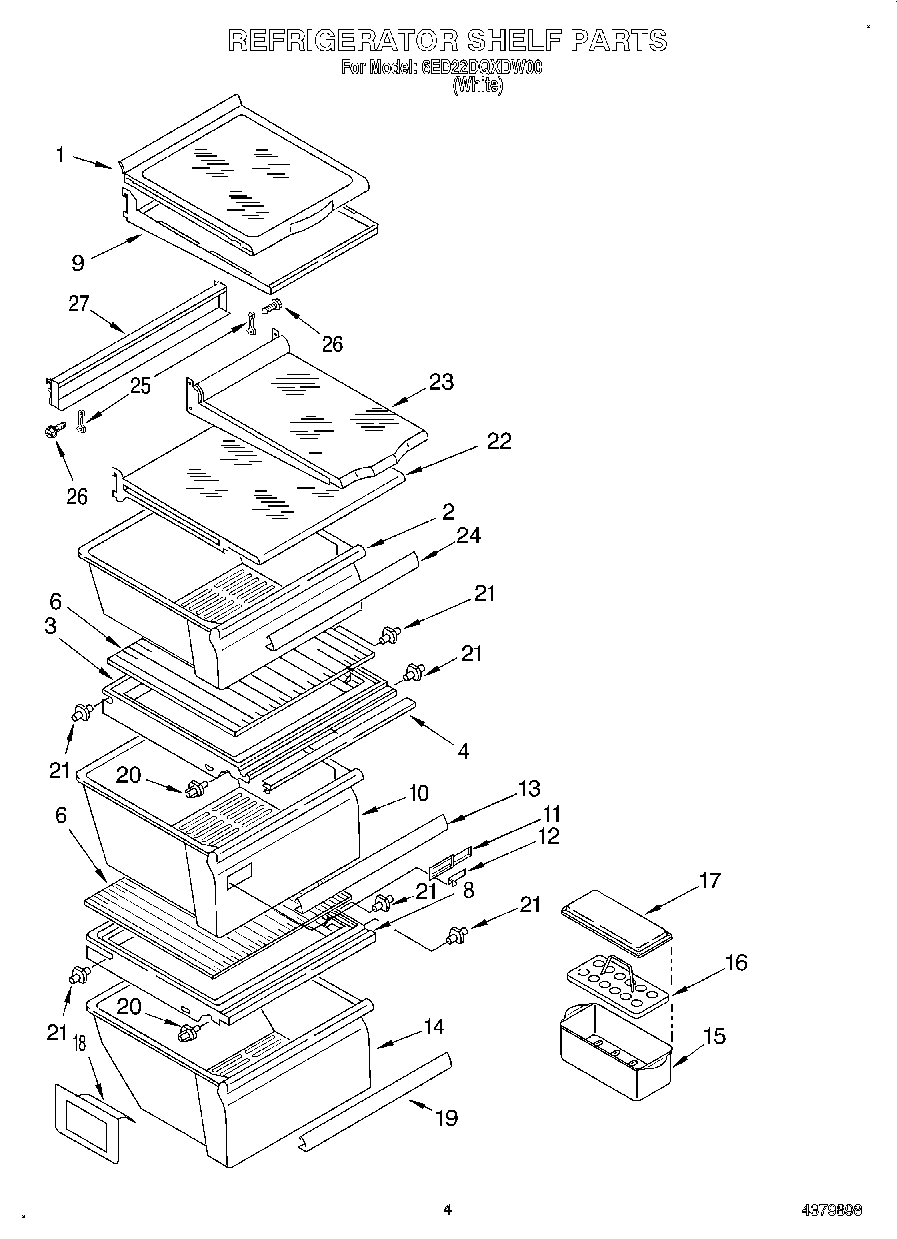

03 - REFRIGERATOR SHELF
05 - AIR FLOW

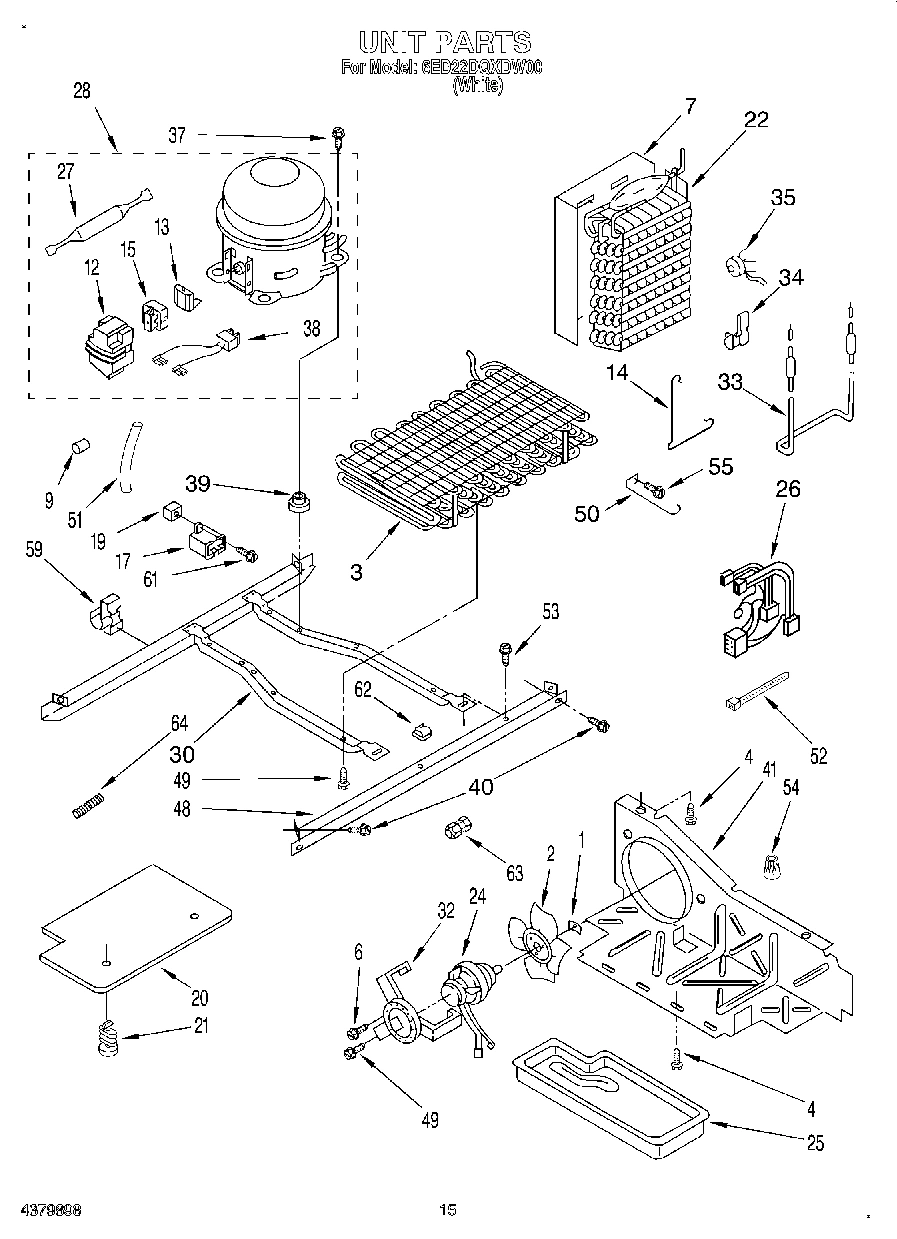

10 - UNIT

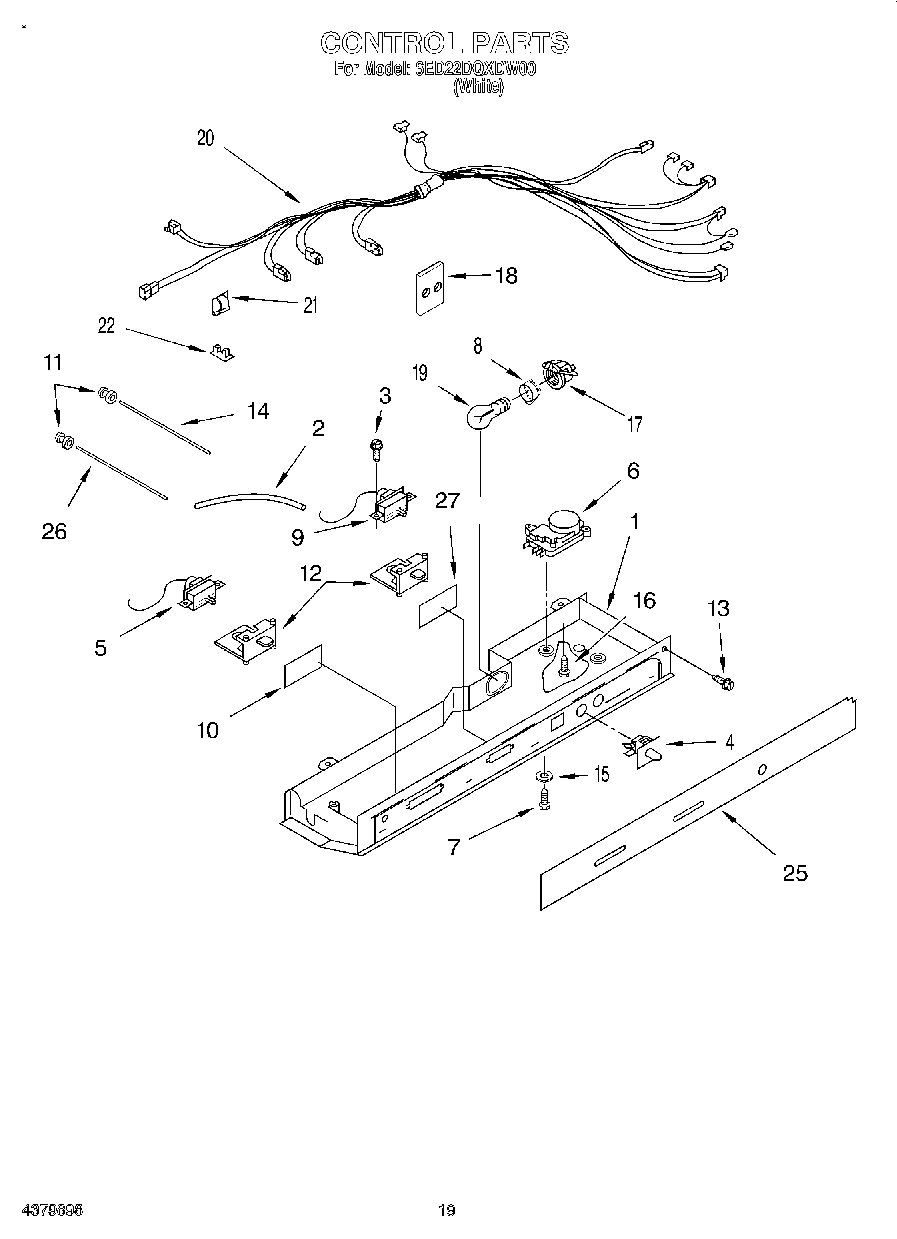

12 - CONTROL, LIT/OPTIONAL

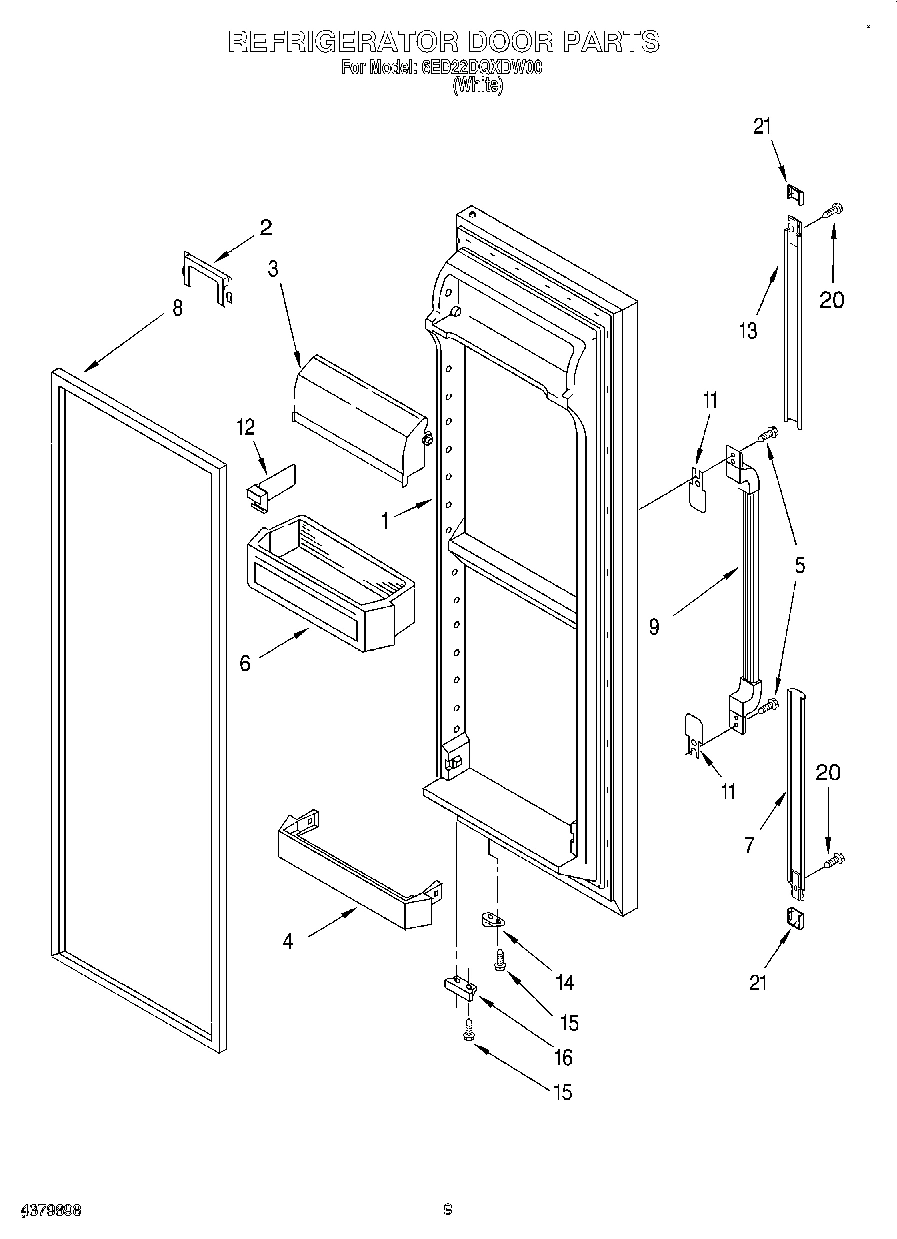

07 - REFRIGERATOR DOOR

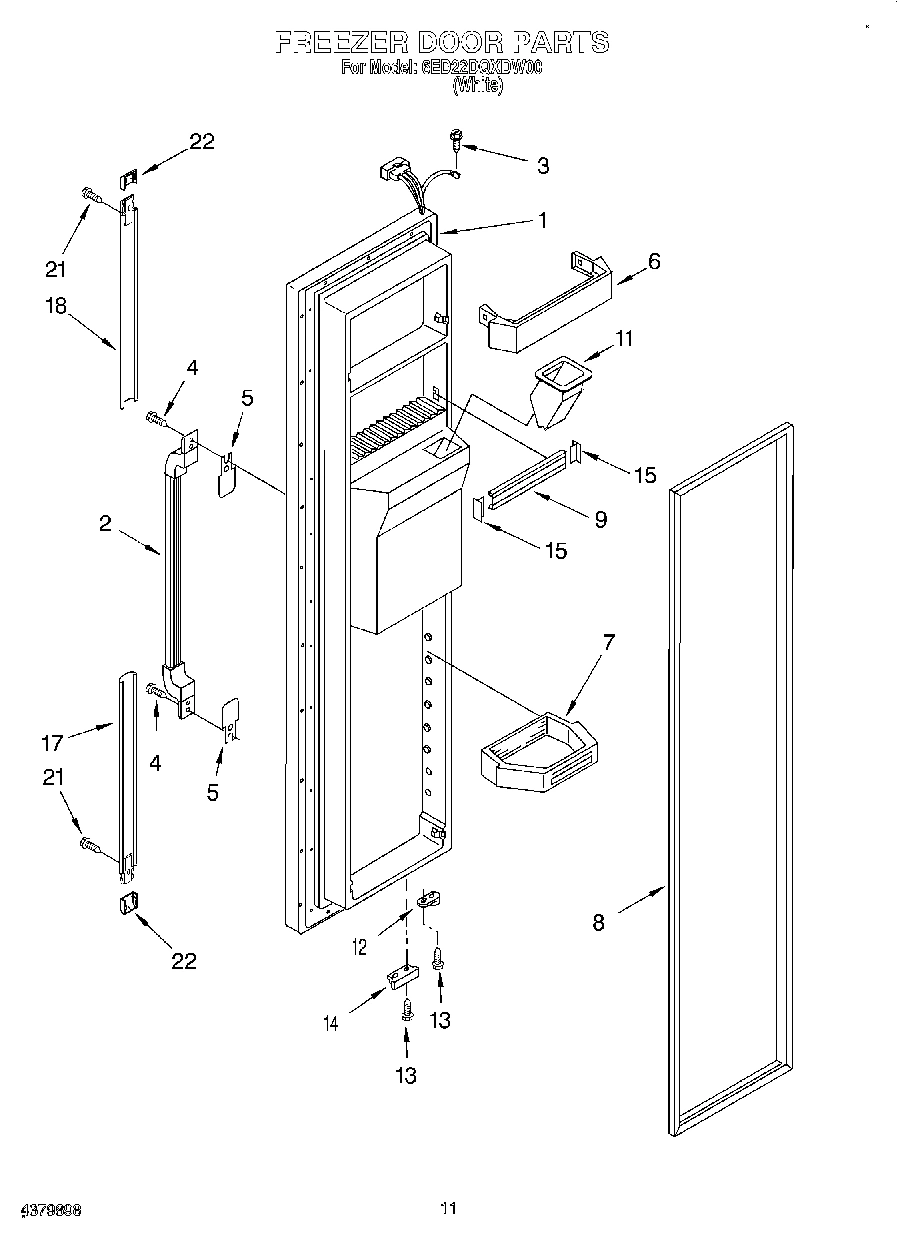

08 - FREEZER DOOR

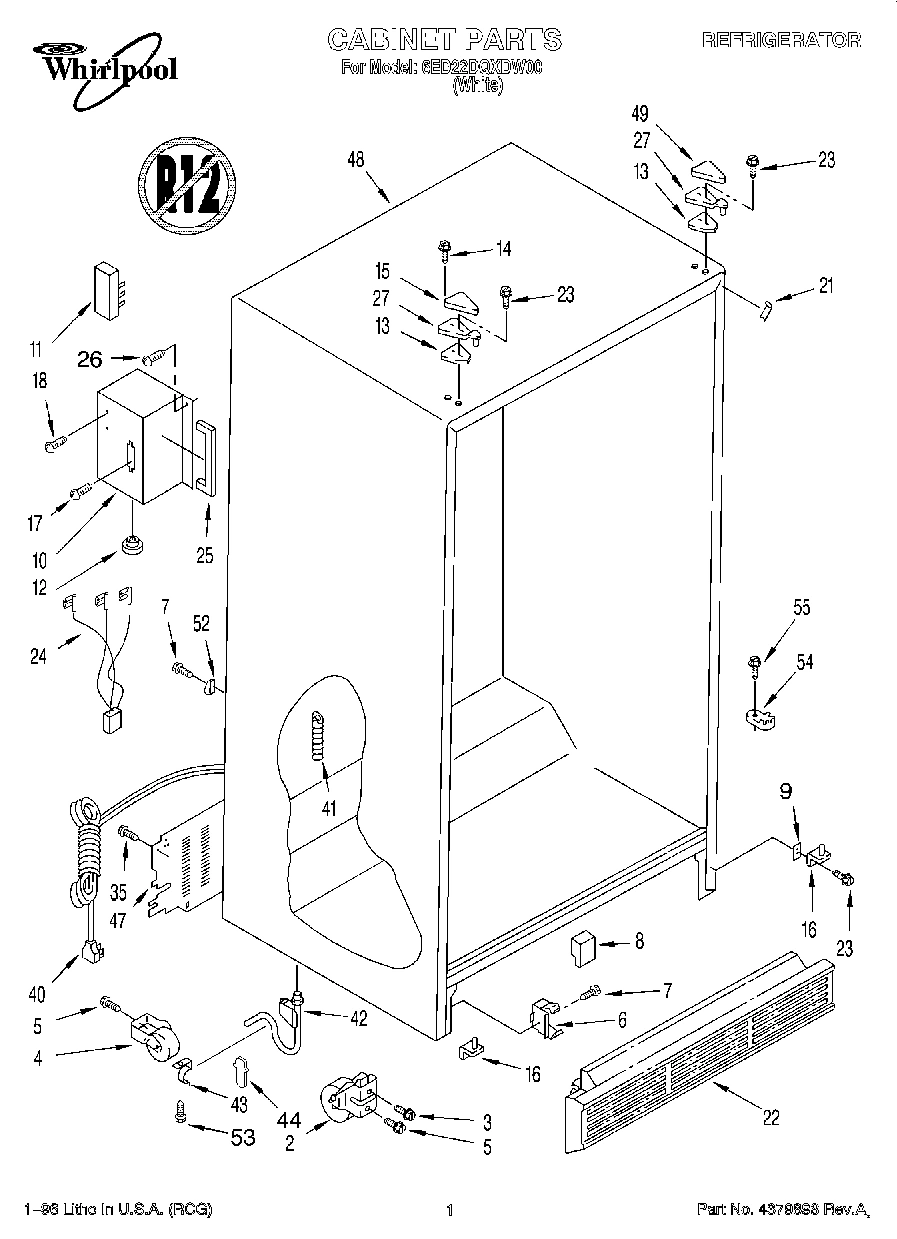

01 - CABINET

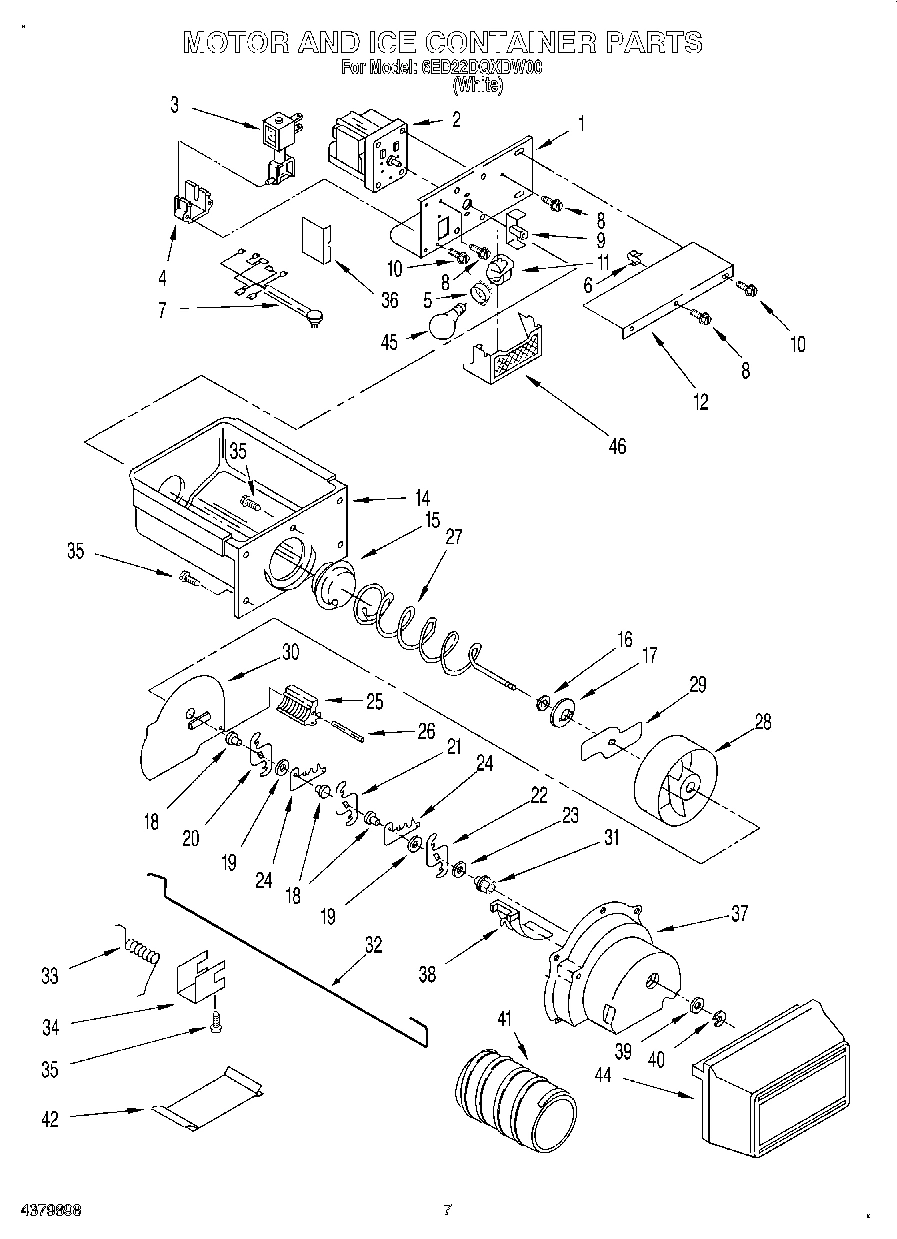

06 - MOTOR AND ICE CONTAINER

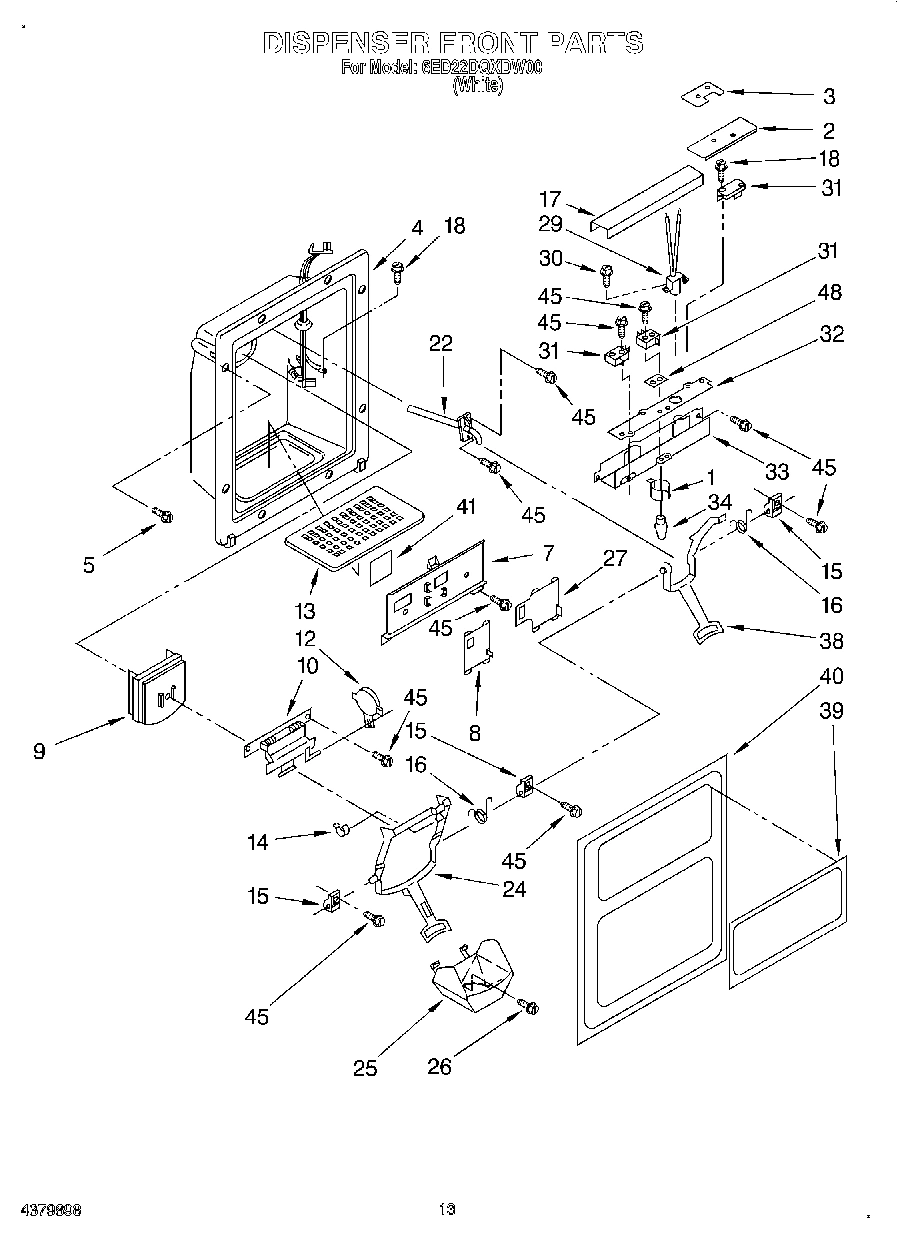

09 - DISPENSER FRONT

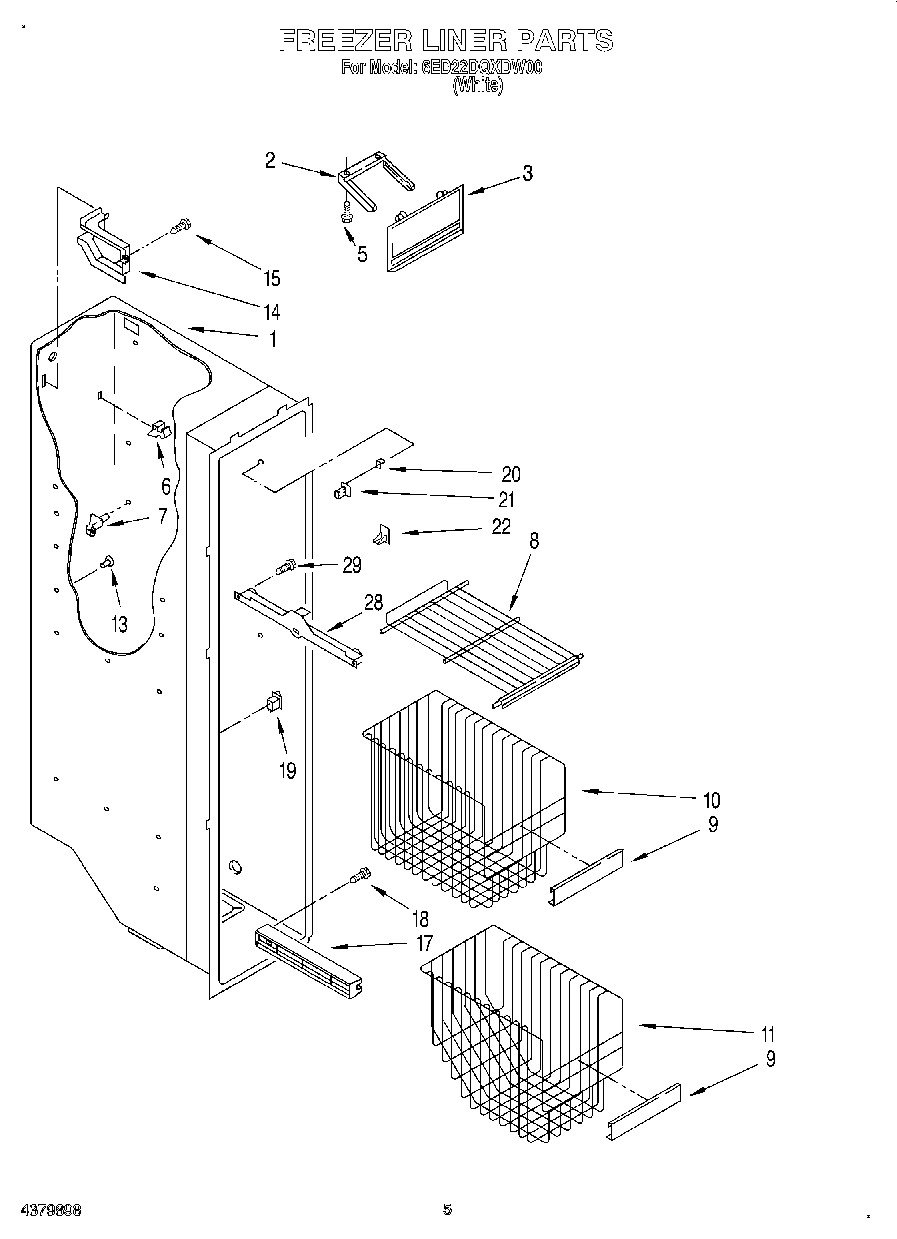

04 - FREEZER LINER

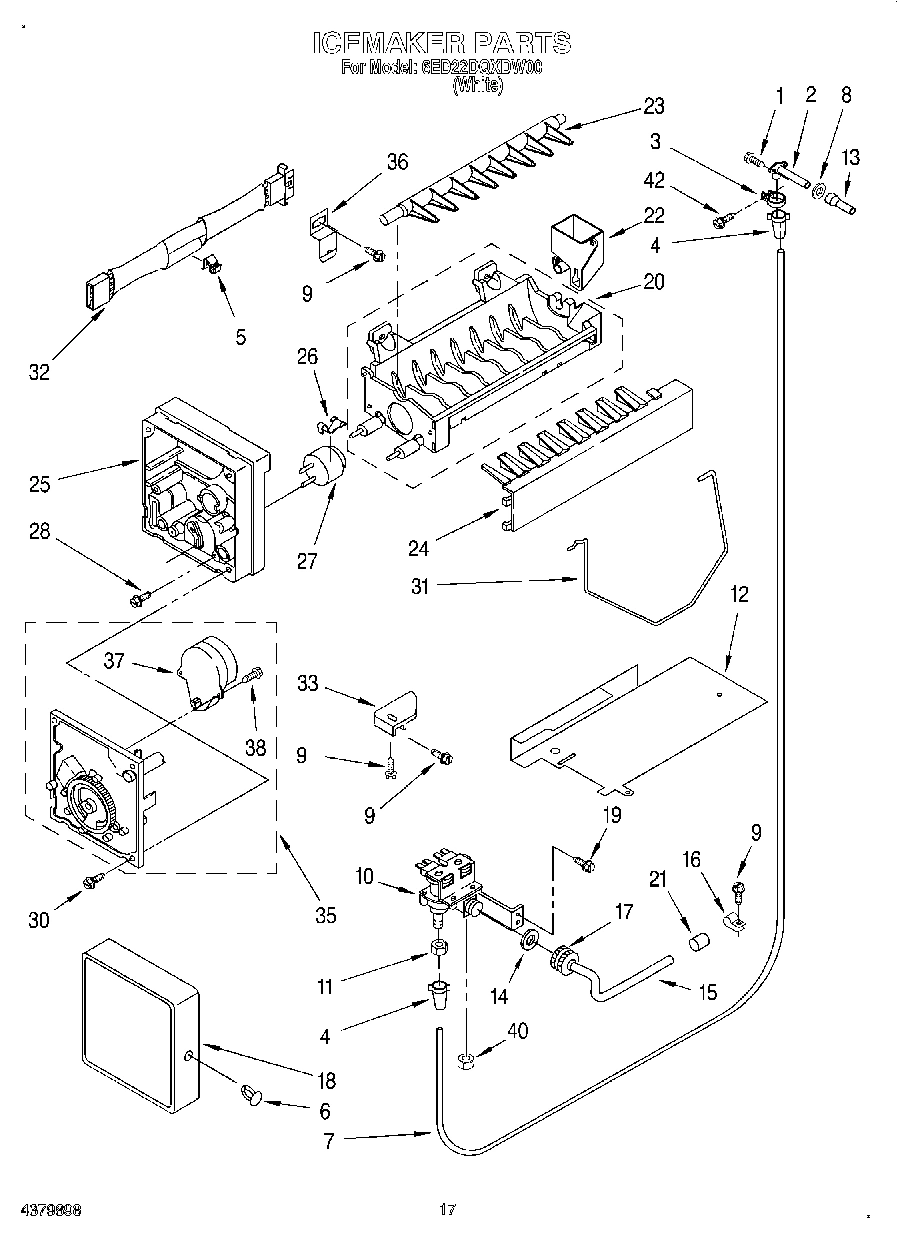

11 - ICEMAKER
Common parts from model Whirlpool 6ED22DQXDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) WPL 2171082 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2177285 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15779A7 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Handle, Center WPL 2189789 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Motor, Dispenser WPL 2165212 Contact Us For Availability
2
Guard, Switch WPL 2175226 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Guard, Switch WPL 2175227 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI15780A9 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
7
Shelf Bin (2) WPL 2179578 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
9
Trim, Basket WPL 2171771 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Basket, Tall WPL 2181761 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Basket, Slope WPL 2181762 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Extension, Bottom WPL 2174282 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
18
Extension, Top WPL 2174276 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Cover, End Cap WPL 2174006 Contact Us For Availability
22
Grille WPL 2155477 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2177144 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
38
Lever, Water Dispenser WPL 2177149 Contact Us For Availability
39
Plaque, Front Cover WPL 2174331 Contact Us For Availability
40
Service Cord WPL 1129331 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2174309 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2189567 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15777A7 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
