Model Whirlpool 664RF3020XYN2 30" Electronic Freestanding Conventional Oven (Kenmore 664RF3020XYN2) – Common Parts & Diagrams
CONTROL PANEL
All Parts

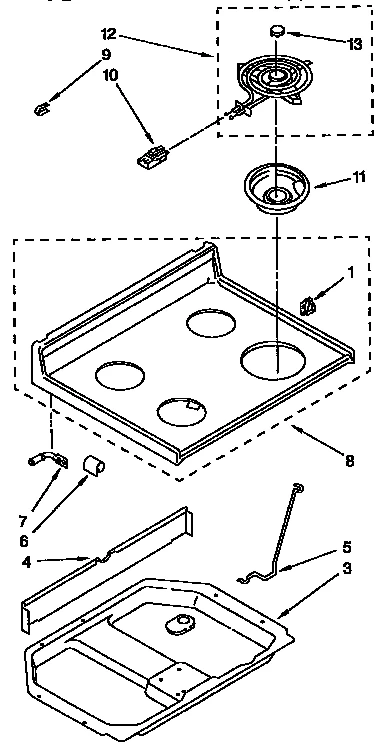

COOKTOP

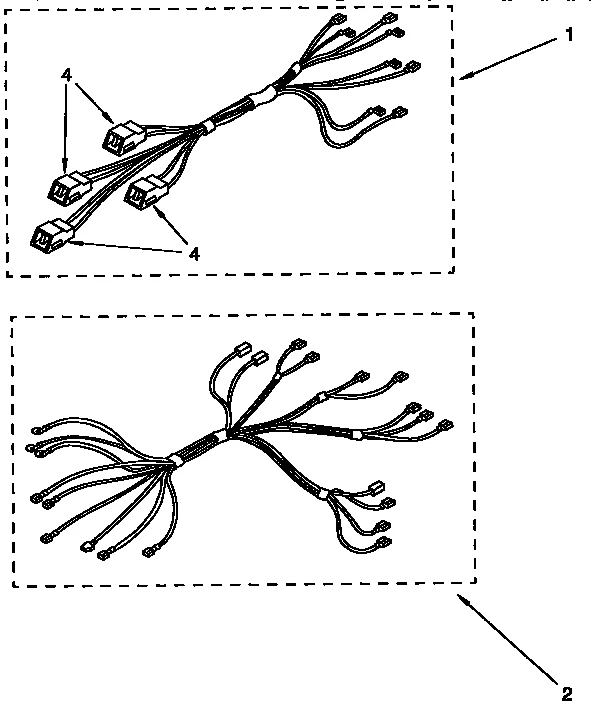

WIRING HARNESS

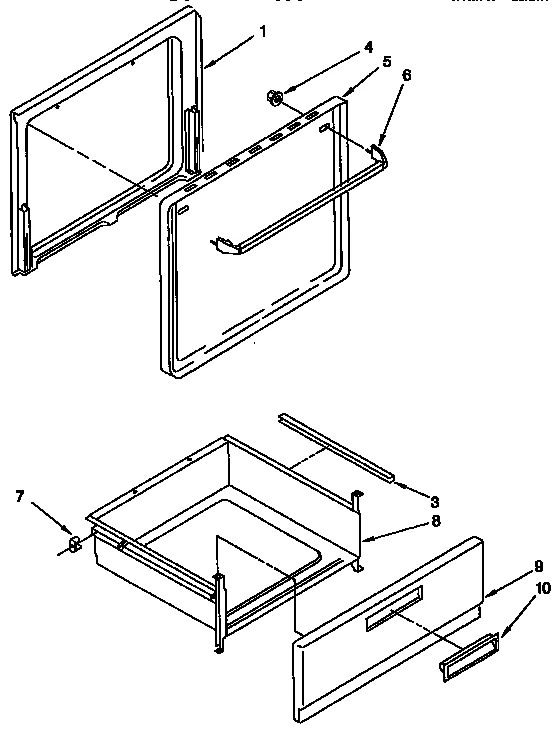

DOOR AND DRAWER

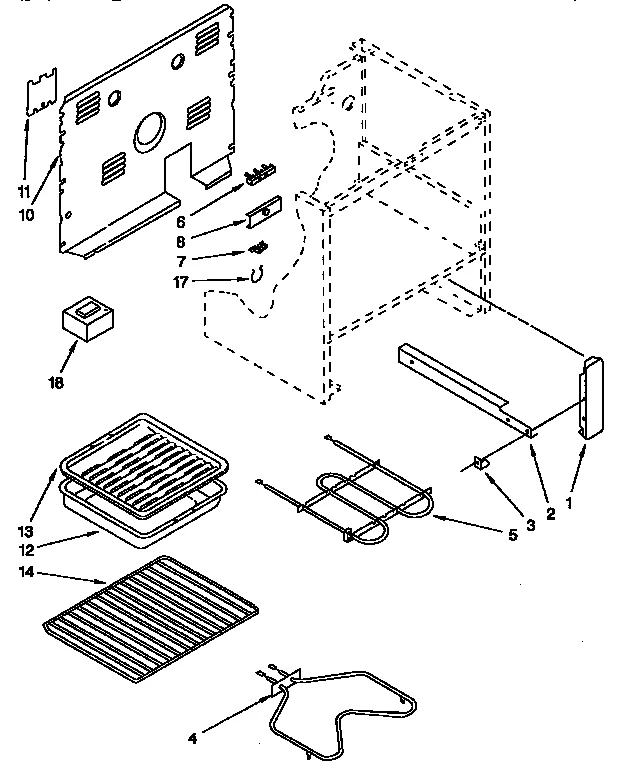

EXTERNAL OVEN

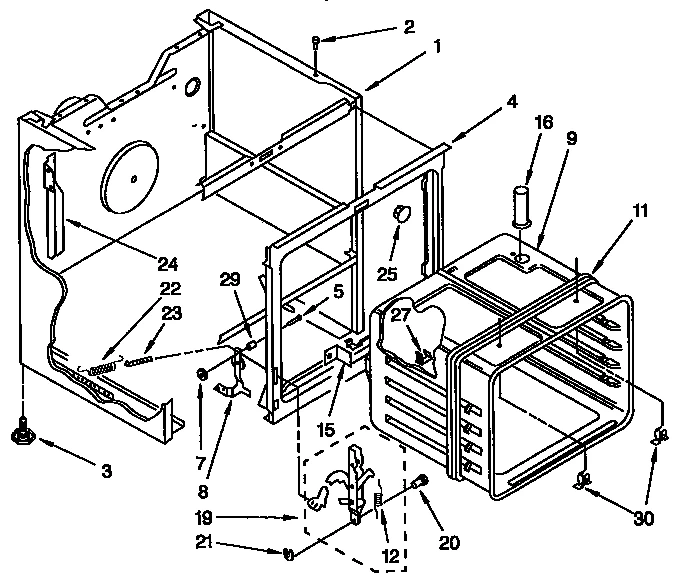

INTERNAL OVEN
Common parts from model Whirlpool 664RF3020XYN2 30" Electronic Freestanding Conventional Oven (Kenmore 664RF3020XYN2)
1
Wire Harness WPL 3149881 Contact Us For Availability
1
Door Liner WPL 3172221 Contact Us For Availability
1
Drawer Bracket WPL 307981 Contact Us For Availability
1A
Chassis W WPL 330086 Contact Us For Availability
1B
Nut WPL 814102 Contact Us For Availability
1B
Chassis Al WPL 330090 Contact Us For Availability
2
Wire Harness WPL 3169147 Contact Us For Availability
2A
Drawer Track WPL 3149255 Contact Us For Availability
2B
Drawer Track WPL 3149256 Contact Us For Availability
3
Protector WPL 309329 Contact Us For Availability
3A
Burner Box WPL 3169186 Contact Us For Availability
3A
Drawer Glide WPL 3149257 Contact Us For Availability
4A
Shield WPL 307973 Contact Us For Availability
4A
Frame WPL 3176714 Contact Us For Availability
4B
Screw WPL 3150532 Contact Us For Availability
4B
Screw WPL 3150537 Contact Us For Availability
5
Cooktop Rod WPL 3148659 Contact Us For Availability
5
Hinge Pin WPL 307985 Contact Us For Availability
5A
Oven Switch WPL 3150430 Contact Us For Availability
5A
Panel W WPL 307889 Contact Us For Availability
5B
Panel Al WPL 307897 Contact Us For Availability
5C
Screw WPL 3149333 Contact Us For Availability
6
Door Handle (Black) WPL 311563 Contact Us For Availability
6A
Hinge Bracket WPL 307965 Contact Us For Availability
6B
Screw WPL 98884 Contact Us For Availability
7
Nut WPL 308306 Contact Us For Availability
7A
Range Oven Indicator Light WPL 314031 Contact Us For Availability
7A
Cooktop Pin WPL 307966 Contact Us For Availability
7A
Glide WPL 307980 Contact Us For Availability
7A
Ground Strap WPL 308498 Contact Us For Availability
7B
Magic Chef Range Wire Harness Retainer WPL 313660 Contact Us For Availability
8
Range Burner Control Knob WPL 3183118 Contact Us For Availability
8
Utility Drawer WPL 327887 Contact Us For Availability
8A
Cktop-w P WPL 3170989 Contact Us For Availability
8A
Service Bracket WPL 3150190 Contact Us For Availability
8A
Door Hinge WPL 3176710 Contact Us For Availability
8B
Cktop Al P WPL 3170990 Contact Us For Availability
8B
Door Hinge WPL 3176711 Contact Us For Availability
9
Oven Main WPL 3176612 Contact Us For Availability
9A
Panel Wh WPL 3150676 Contact Us For Availability
9A
Screw WPL 311056 Contact Us For Availability
9B
Panel Al WPL 3150677 Contact Us For Availability
10A
Door Handle (White) WPL 3150612 Contact Us For Availability
10A
Rear Cover WPL 3148975 Contact Us For Availability
10B
Door Handle (Almond) WPL 3150613 Contact Us For Availability
11
Heat Gasket WPL 3169283 Contact Us For Availability
11A
Cover WPL 307972 Contact Us For Availability
12
Door Spring WPL 308207 Contact Us For Availability
13
Medallion WPL 309195 Contact Us For Availability
14
Oven Knob WPL 3183109 Contact Us For Availability
14
Oven Rack WPL 308173 Contact Us For Availability
15A
Oven Bracket WPL 311220 Contact Us For Availability
16B
Screw WPL 307748 Contact Us For Availability
18A
Block-bal WPL 3169279 Contact Us For Availability
19
Door Hinge WPL 3176708 Contact Us For Availability
21
Ring WPL 307594 Contact Us For Availability
22
Range Oven Door Spring WPL 308127 Contact Us For Availability
24A
Support WPL 313196 Contact Us For Availability
24B
Support WPL 313197 Contact Us For Availability
25
Button Plug WPL 308535 Contact Us For Availability
29
Snubber WPL 309111 Contact Us For Availability
30
Button Plug WPL 3169107 Contact Us For Availability
NI
Aluminum Foil WPL 241430 Contact Us For Availability
NI
Paint 1qt WPL 799344 Contact Us For Availability
NI
Wire (Red) WPL 242825 Contact Us For Availability
NI
Wire (White) WPL 242826 Contact Us For Availability
NI
Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability
NI
Wire (Black) WPL 242828 Contact Us For Availability
NI
Wire WPL 242829 Contact Us For Availability
NI
Wire (Brown) WPL 242830 Contact Us For Availability
NI
Cooking Appliance 14-gauge Splicing Wire, 200 WPL 242831 Contact Us For Availability
NI
Wire (Yellow) WPL 242832 Contact Us For Availability
NI
Grease WPL 261582 Contact Us For Availability
NI
Spray Cf WPL 261886 Contact Us For Availability
NI
Spray WPL 261888 Contact Us For Availability
NI
Spray WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray-to WPL 285365 Contact Us For Availability
NI
Spray Pl WPL 285366 Contact Us For Availability
NI
Paint-to WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Insulation WPL 309961 Contact Us For Availability
NI
Touchup Cf WPL 72108 Contact Us For Availability
NI
Touchup To WPL 72112 Contact Us For Availability
NI
Epoxy WPL 799832 Contact Us For Availability
NI
Paint-al WPL 978883 Contact Us For Availability
NI
Installation Instructions WPL LIT3150400 Contact Us For Availability
NI
Wiring Diagram WPL LIT3150655 Contact Us For Availability
NI
Installation Instructions WPL LIT3187321 Contact Us For Availability
NI
Owner's Manual WPL LIT3187467 Contact Us For Availability
NI
Owner's Manual WPL LIT677973 Contact Us For Availability
× ![]()
