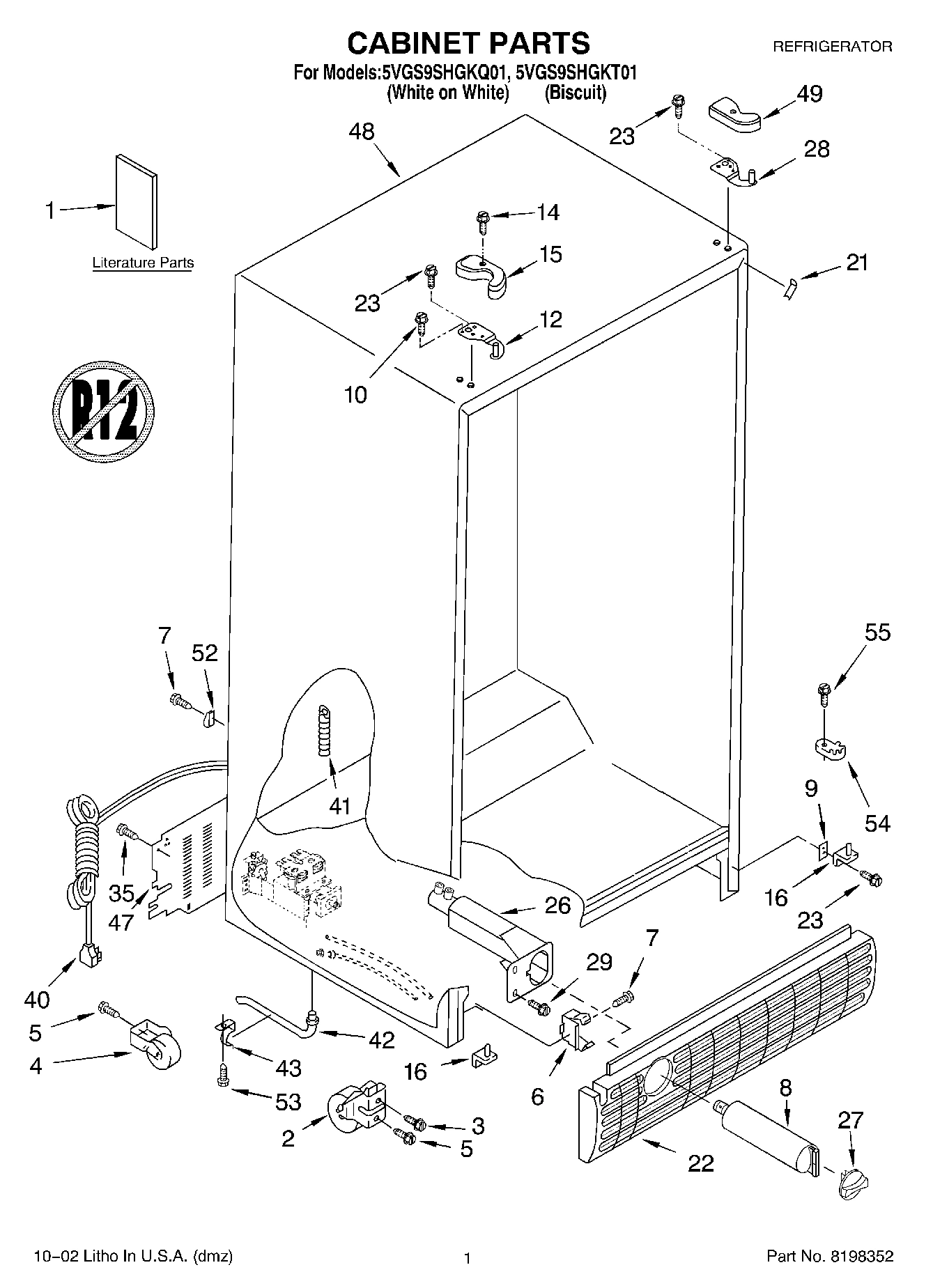

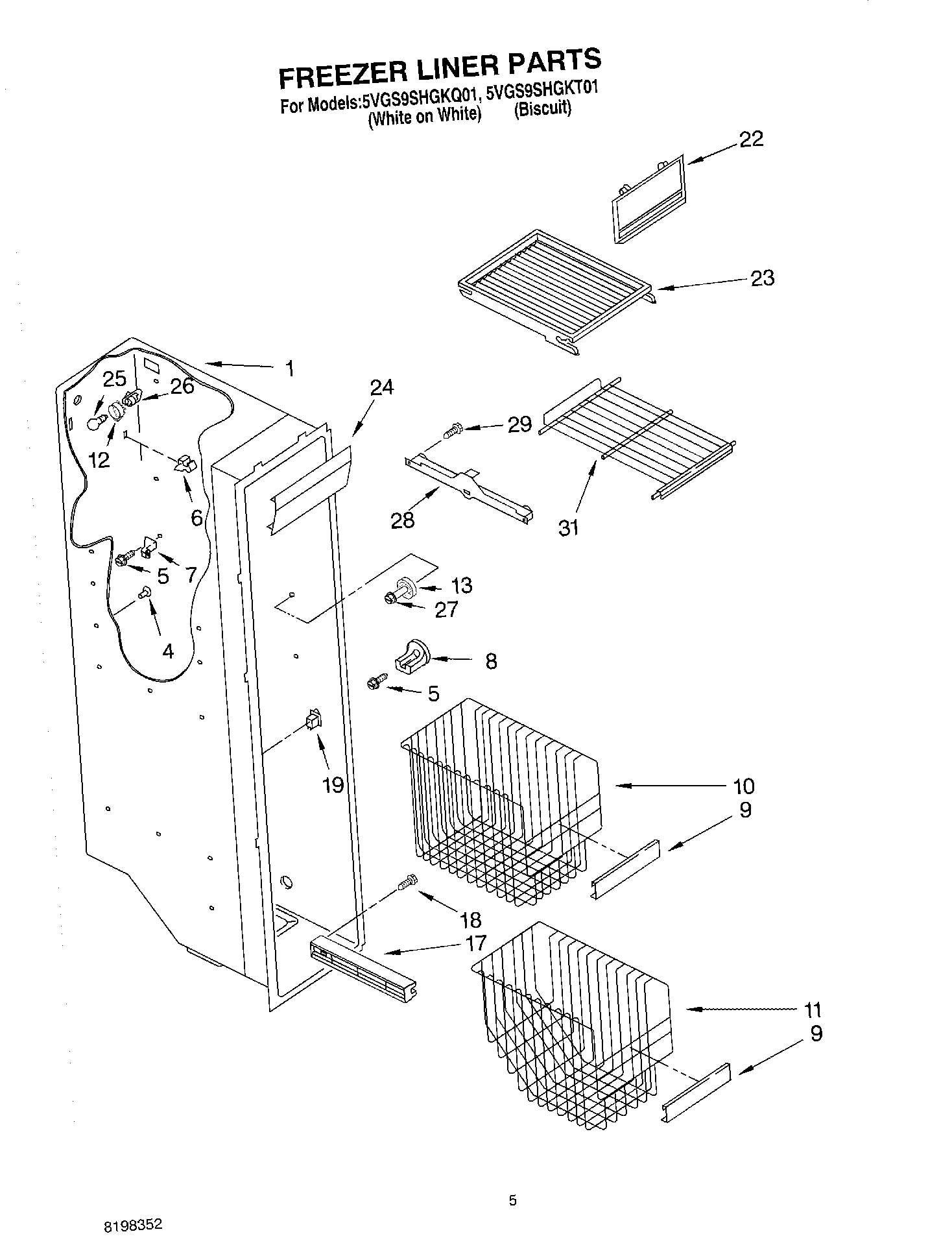

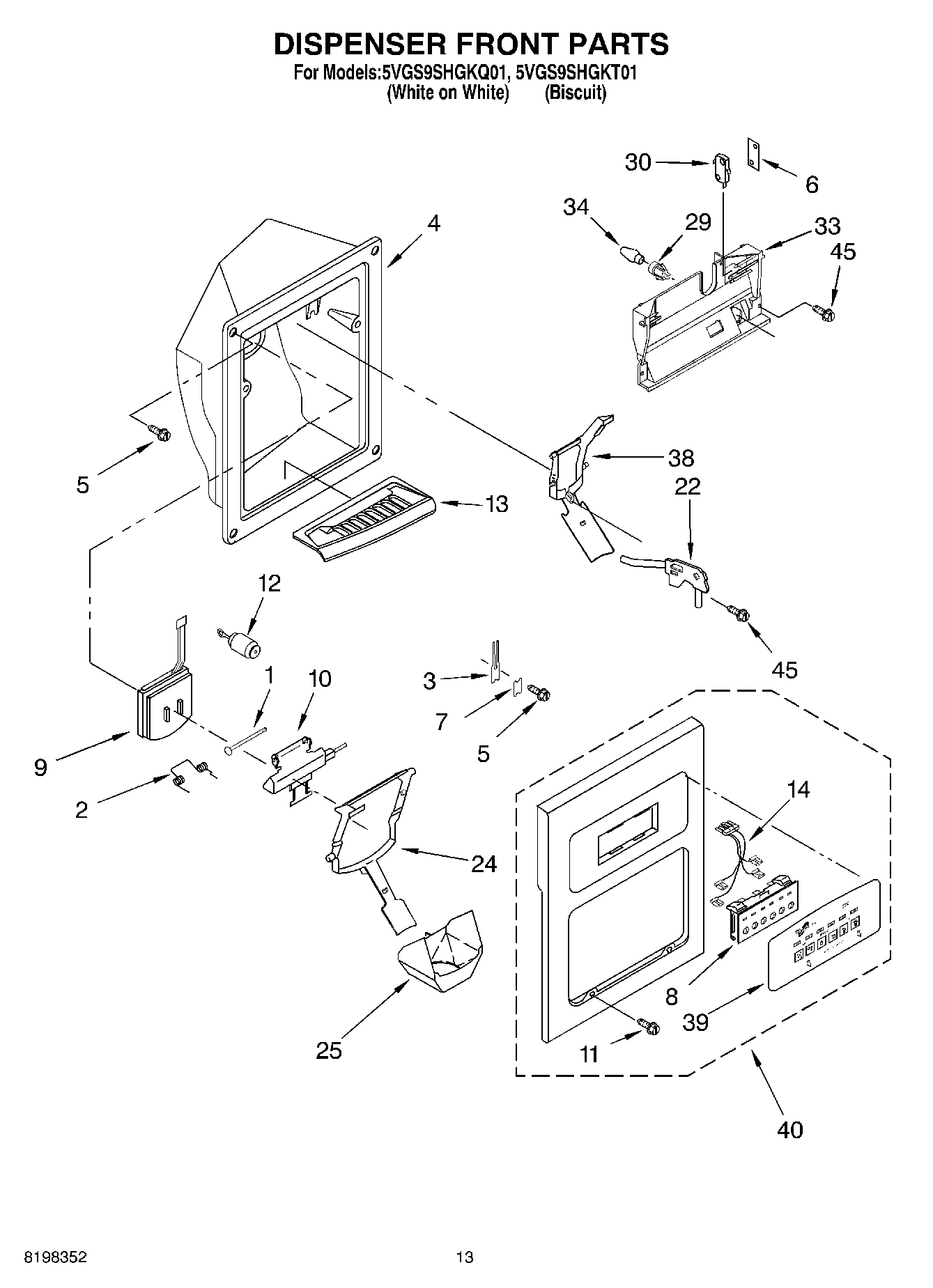

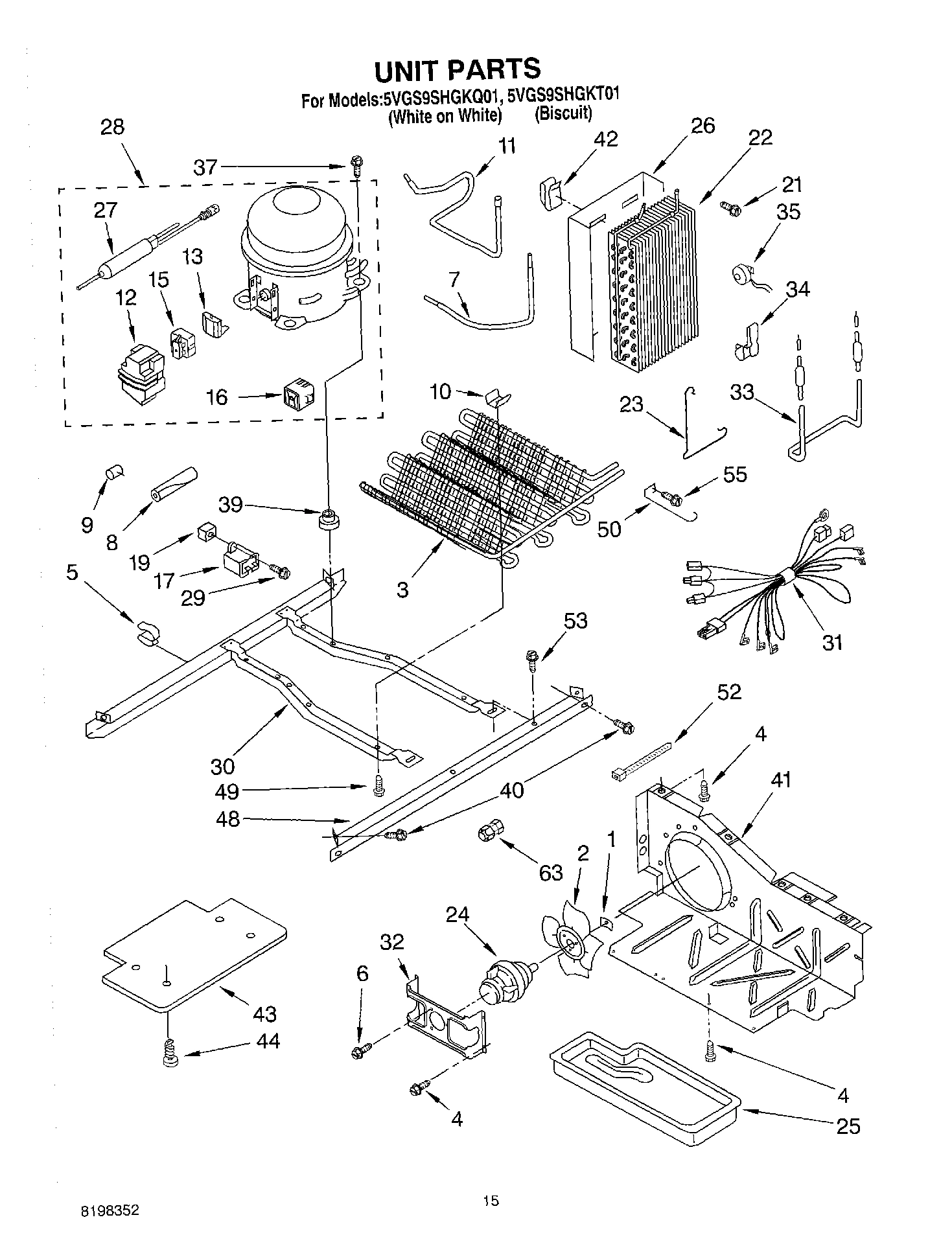

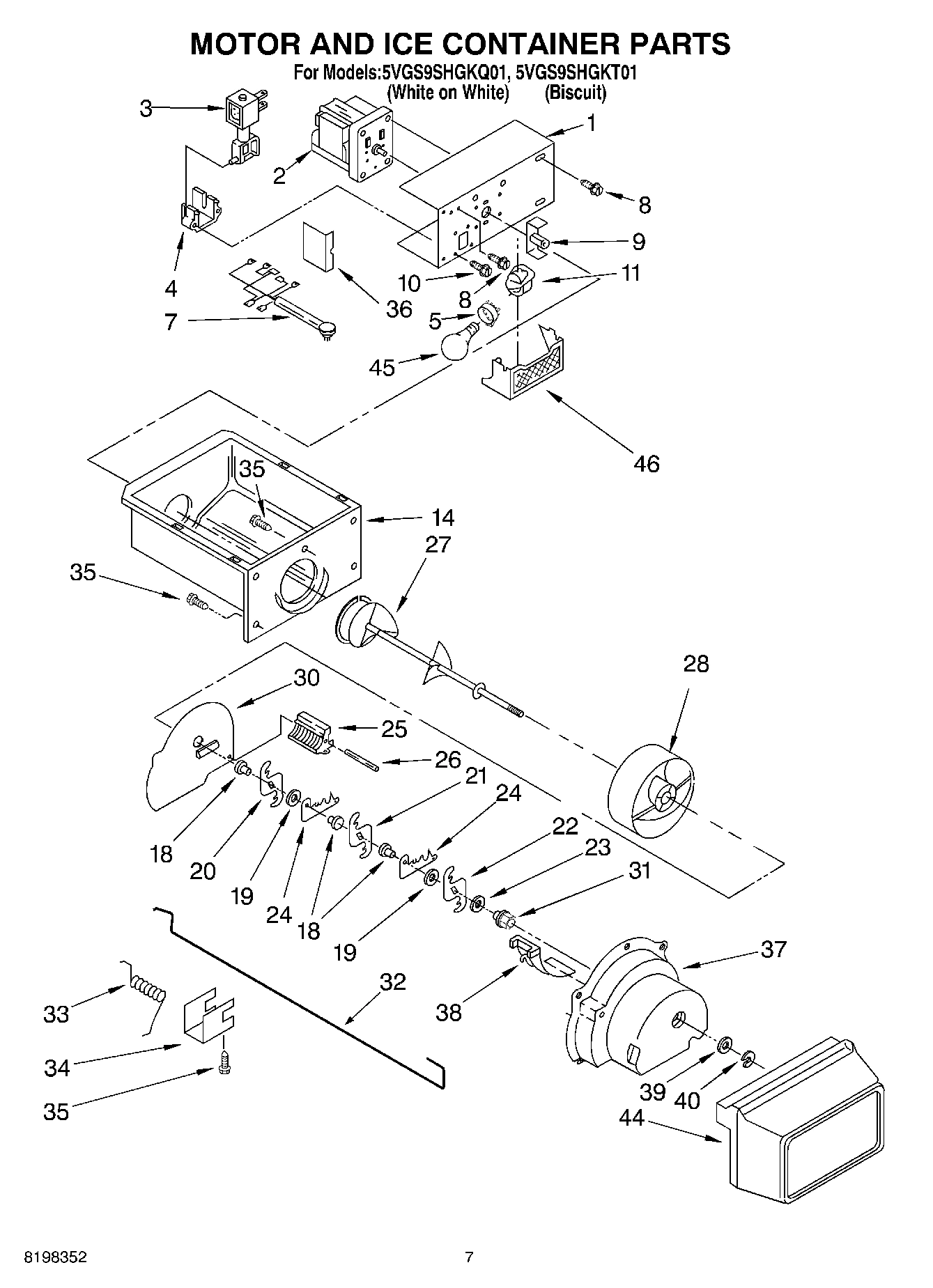

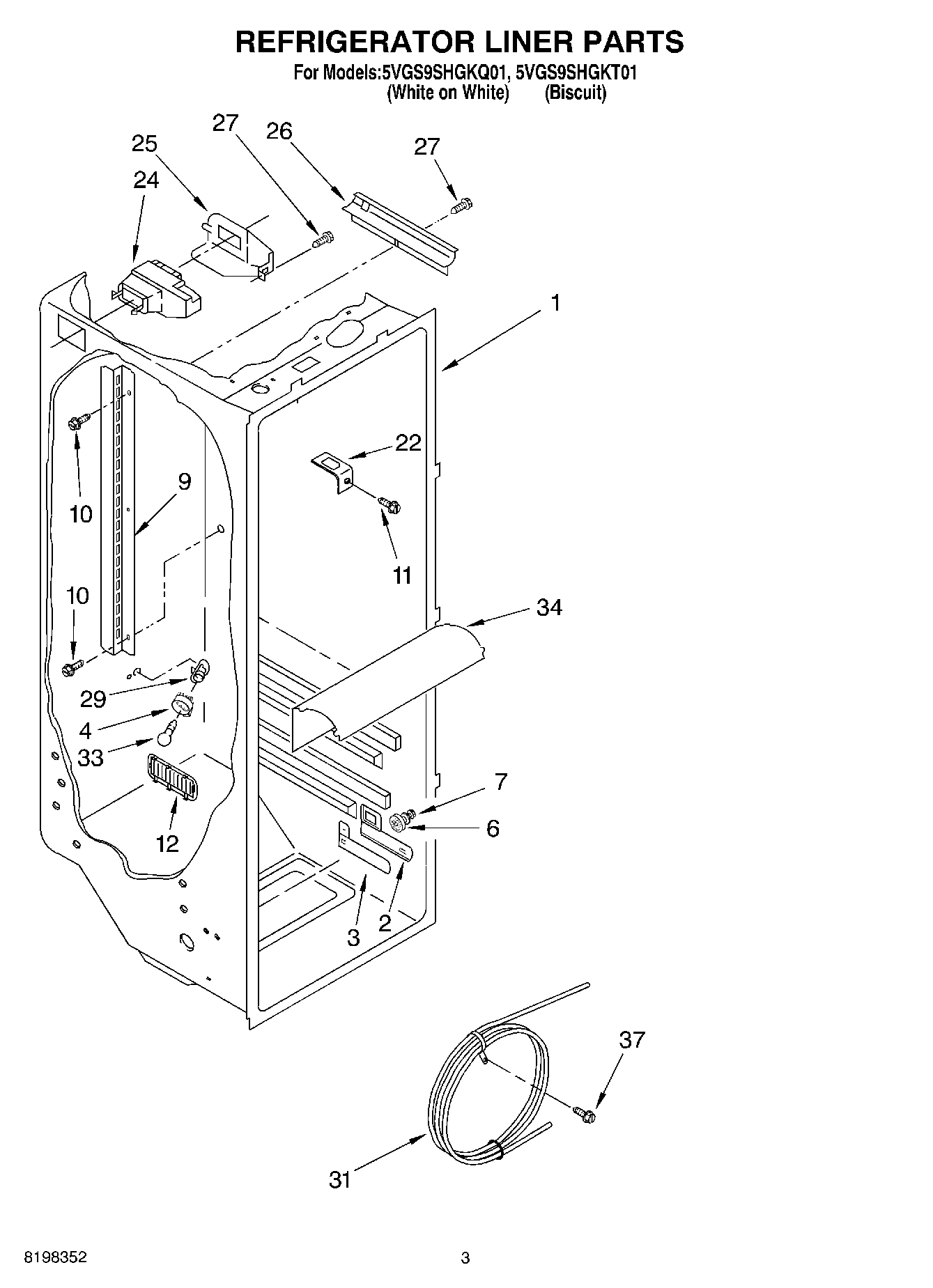

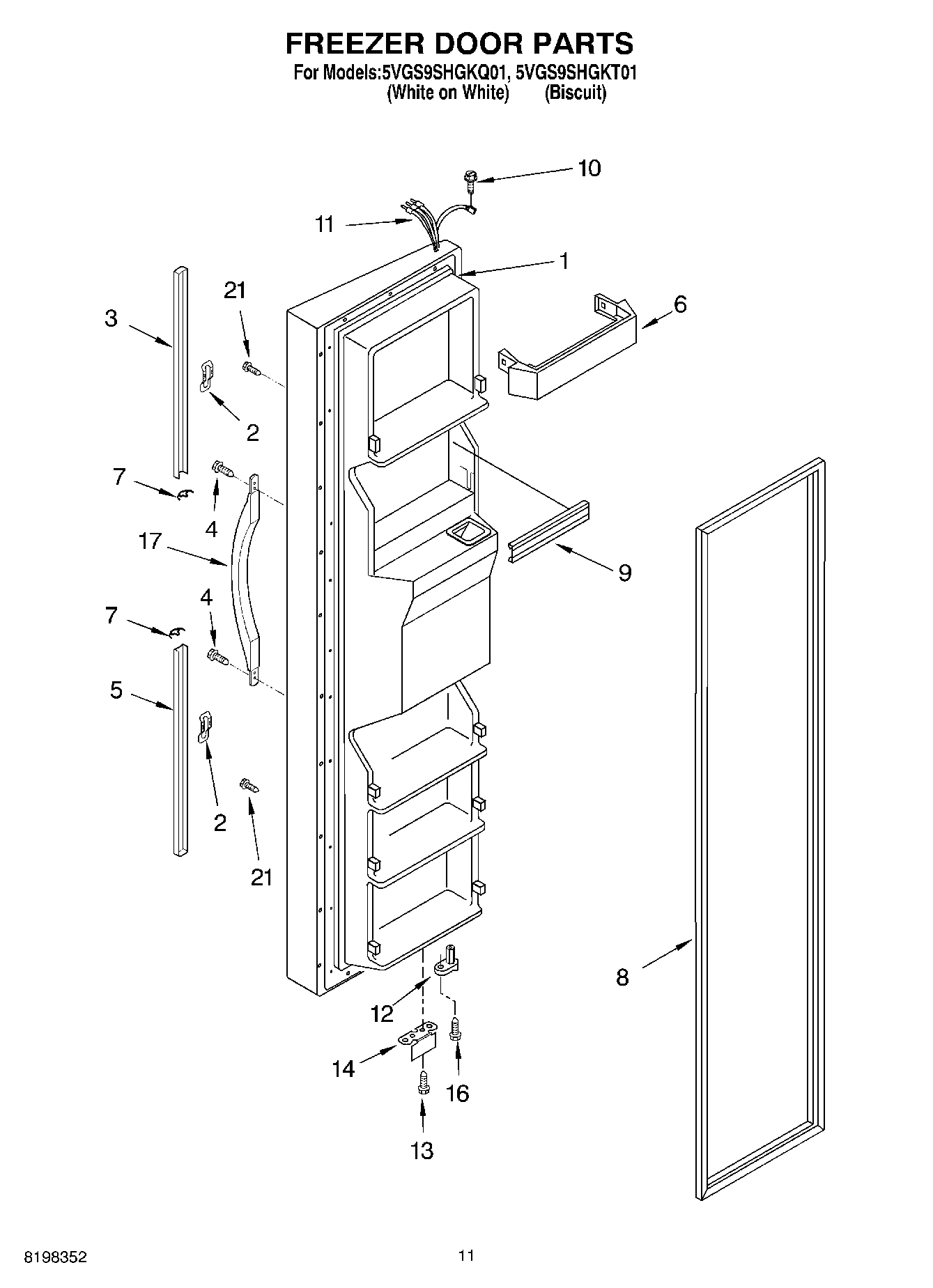

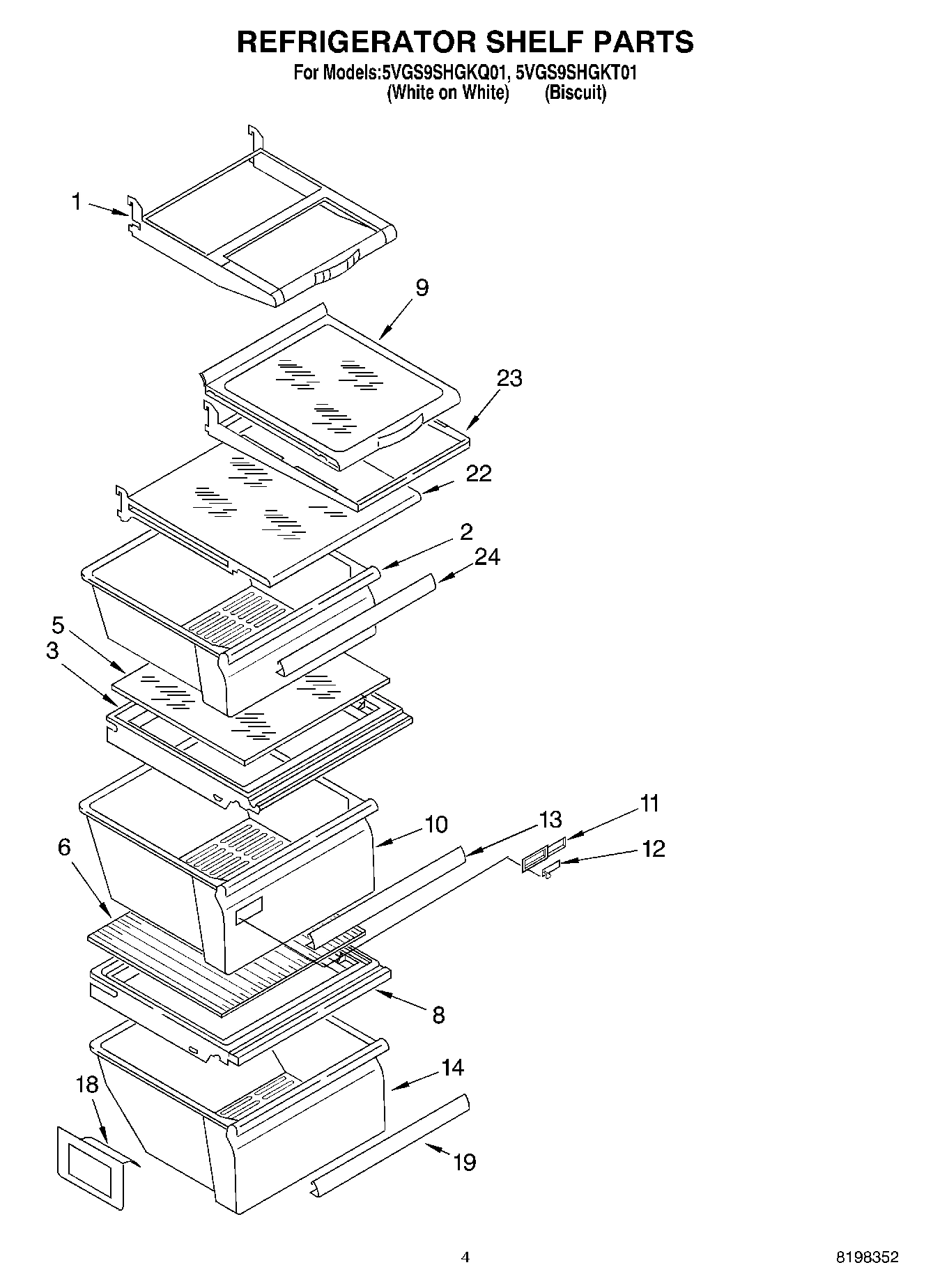

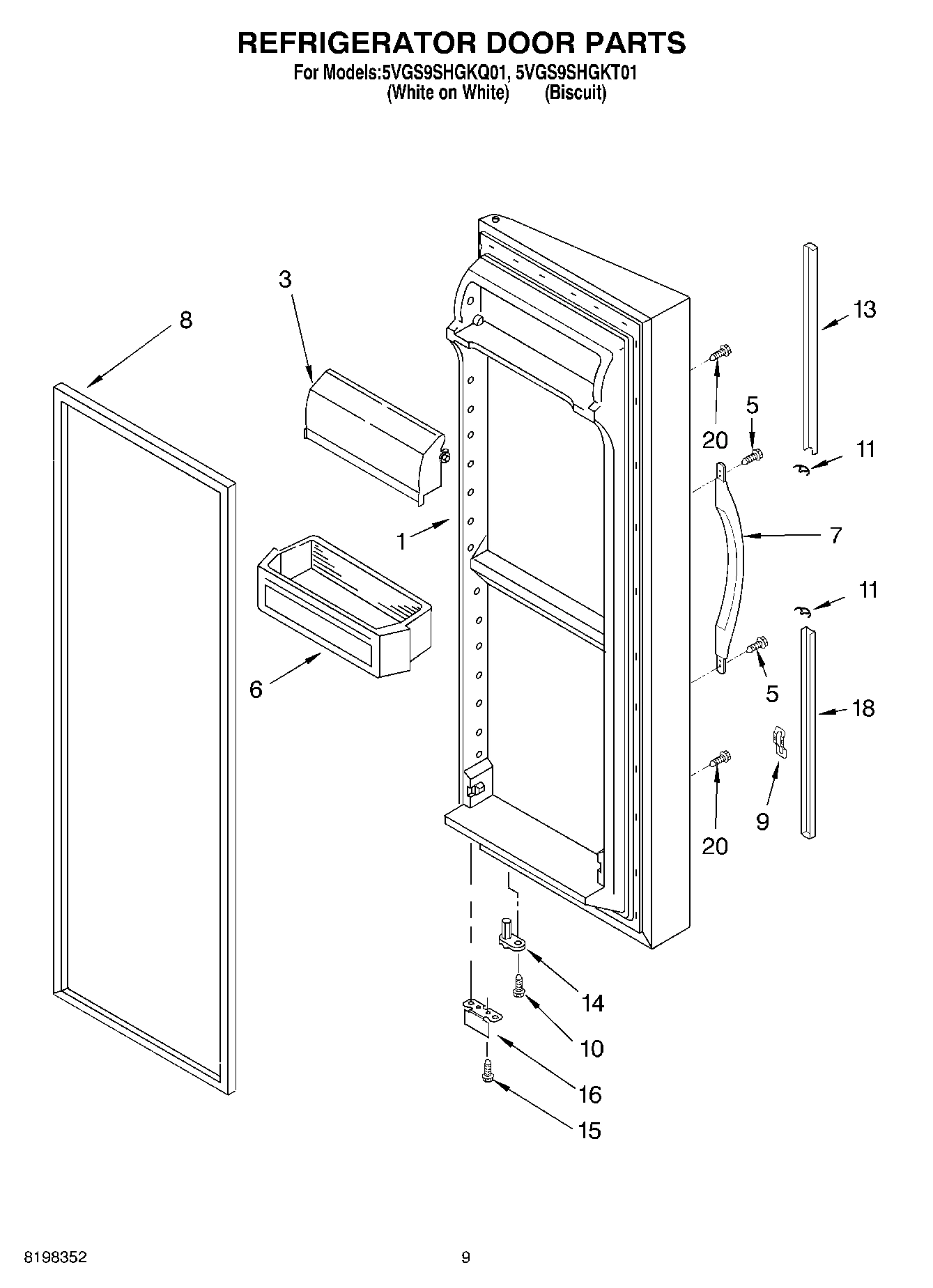

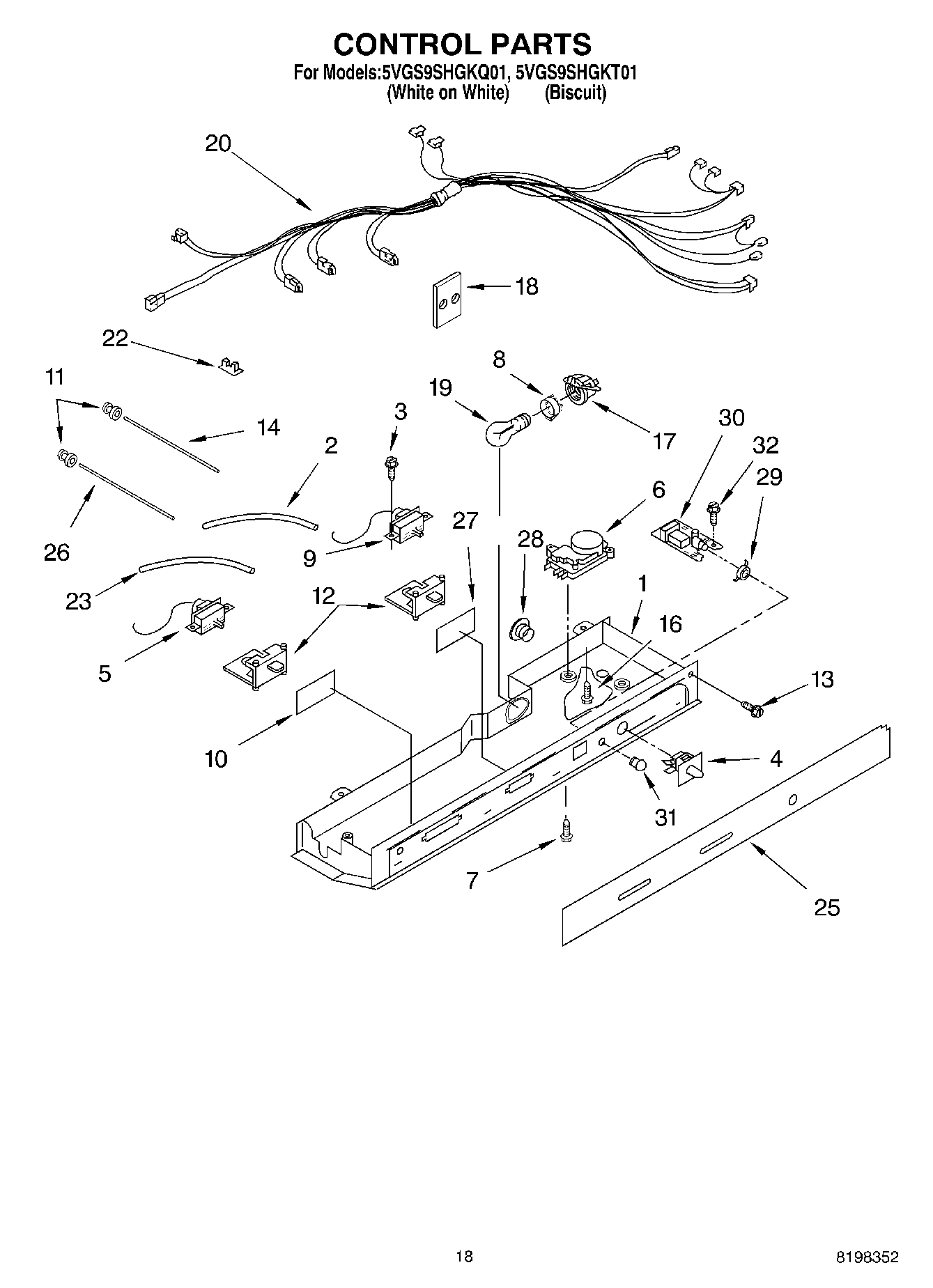

Model Whirlpool 5VGS9SHGKQ01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220725T Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220725W Contact Us For Availability

1

Refrigerator Door (Biscuit (Includes Item No. WPL 2207024T Contact Us For Availability

1

Refrigerator Door (White) WPL 2207024W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Motor, Dispenser WPL 2188386 Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

3

WPW10129867 Whirlpool Refrigerator Solenoid Backorder WPL WPW10129867 $130.35

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $6.94

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Grommet WPL 2176134 Contact Us For Availability

4

Housing Dispenser (Not A Servicable Item) WPL ARI15680A6 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

5

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $43.33

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

6

Spacer, Switch (2) WPL 625834 Contact Us For Availability

6

Shelf Bin WPL 2179608 Contact Us For Availability

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $149.22

7

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

7

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

7

Handle (Biscuit) WPL 2217185T Contact Us For Availability

7

Handle (White) WPL 2217185W Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Switch Assembly (Not Available Order No.40) WPL ARI15681A3 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

9

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Shim (1) WPL 2209697 Contact Us For Availability

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

10

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

10

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $152.63

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

TUBE, SUCTION WPL 2205765 Contact Us For Availability

Jewelry, Handle WPL 2207010G Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

Mechanism Delay WPL 2205686 Contact Us For Availability

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

Trim, Door-Top (Biscuit) WPL 2217187T Contact Us For Availability

Trim, Door-Top (White) WPL 2217187W Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $60.71

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $129.99

Light Bar (RC) WPL 2179920 Contact Us For Availability

15

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

15

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

15

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

16

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

16

Bracket, Door Stop WPL 2206910 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

Trim, Door-Bottom (Biscuit) WPL 2217186T Contact Us For Availability

Trim, Door-Bottom (White) WPL 2217186W Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

20

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Grille (Biscuit) WPL 2198468T Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2203562W Whirlpool Refrigerator Dispenser A Backorder WPL WP2203562W $68.15

Lever Assembly, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

25

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

26

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $125.84

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $60.55

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

29

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2209769 Contact Us For Availability

34

Bulb, Light WPL 989331 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

36

1129563 Whirlpool Shield Backorder WPL 1129563 $55.40

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $88.88

37

Screw (2) WPL 488280 Contact Us For Availability

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $65.67

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

Lever Assembly, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

Overlay, Front Cover (Not Available Order No. WPL ARI15682A4 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Front Cover, Housing (Includes Item) 8, 14 & WPL 2207084T Contact Us For Availability

Front Cover, Housing (Includes Item) 8, 14 & WPL 2207084W Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

45

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.68

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
