Model Whirlpool 4YED27DQFN02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2187141 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2204237 Contact Us For Availability

1

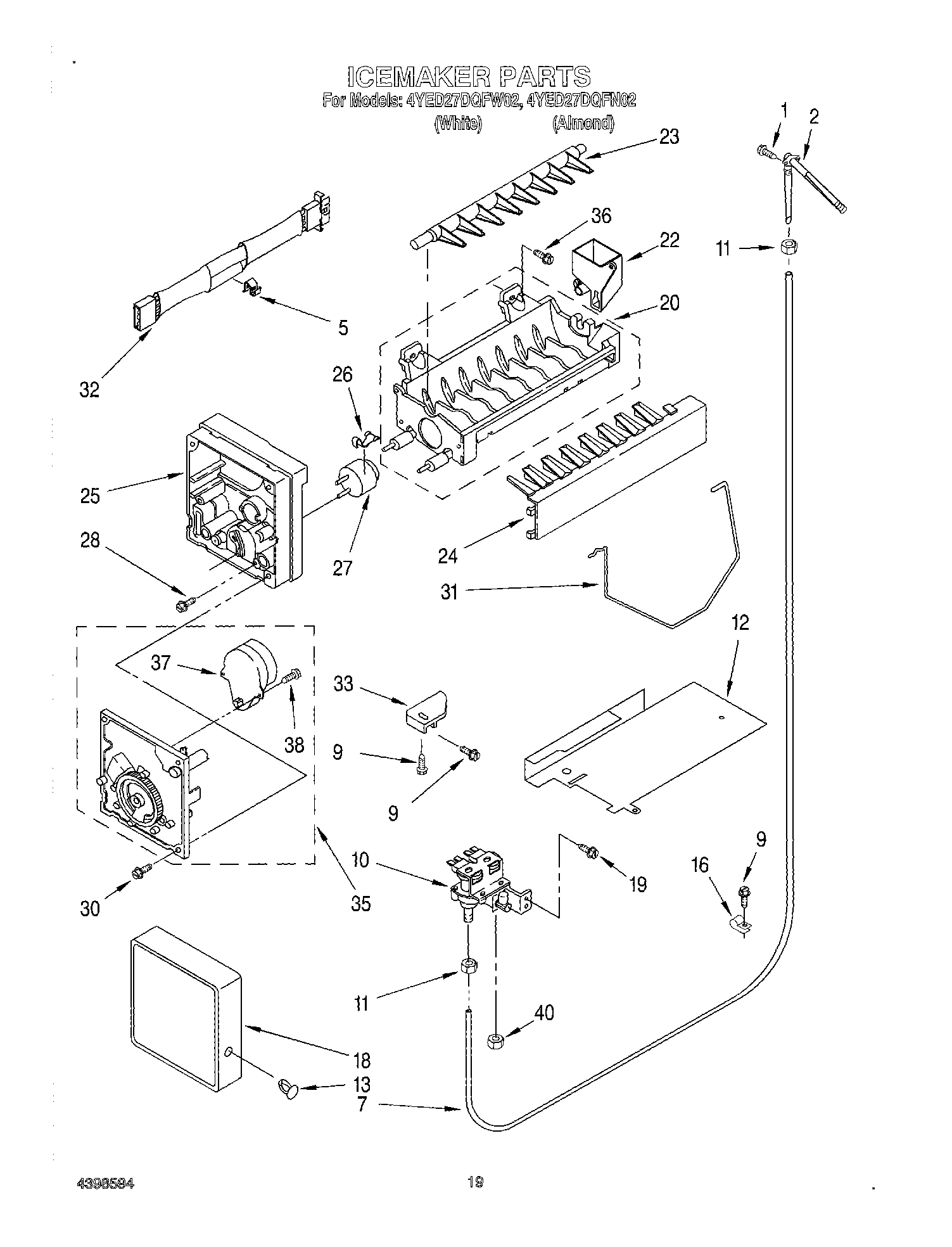

Modular Icemaker Service Sheet WPL LIT628371 Contact Us For Availability

1

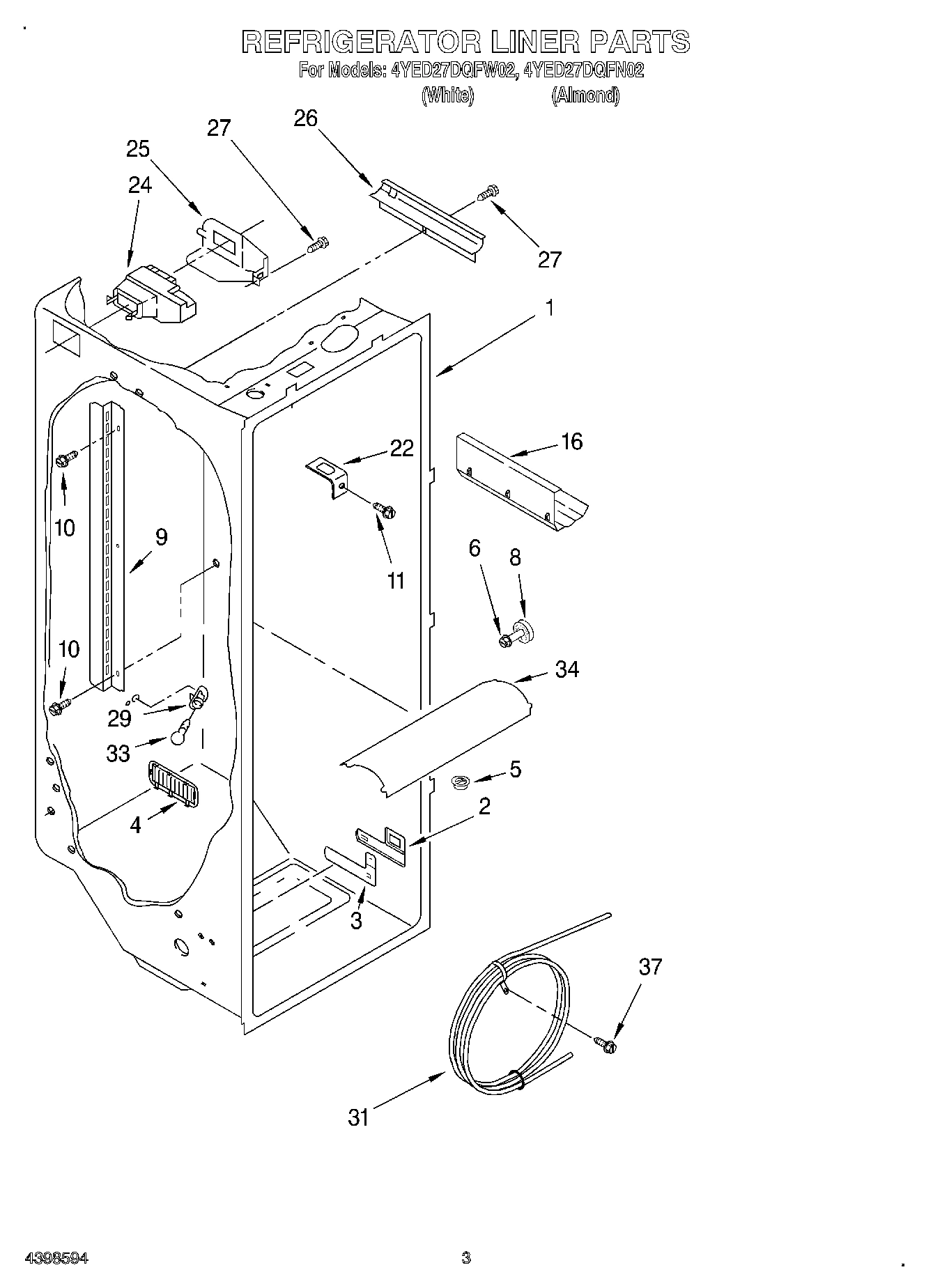

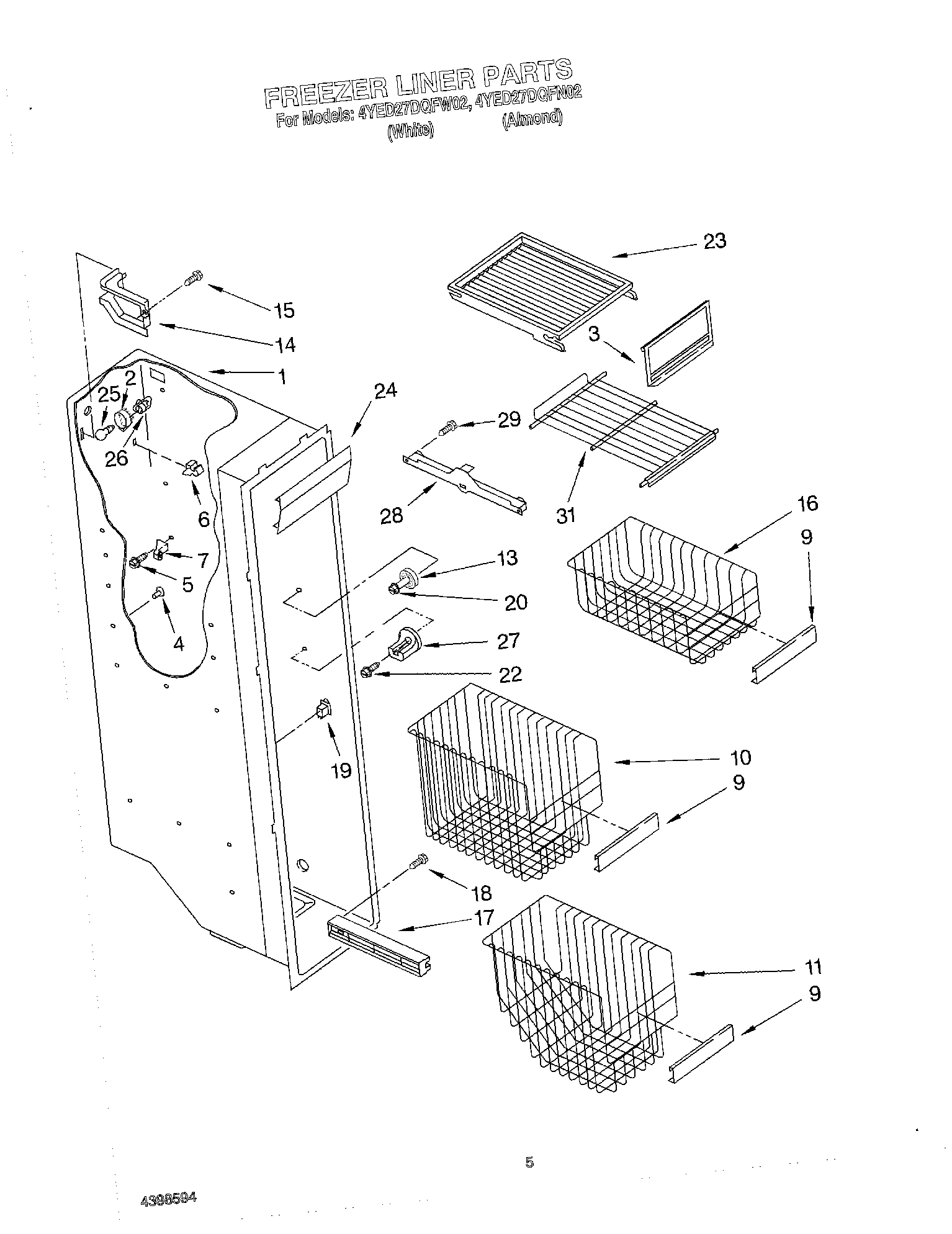

Liner (Not A Serviceable Part) WPL ARI14887A8 Contact Us For Availability

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

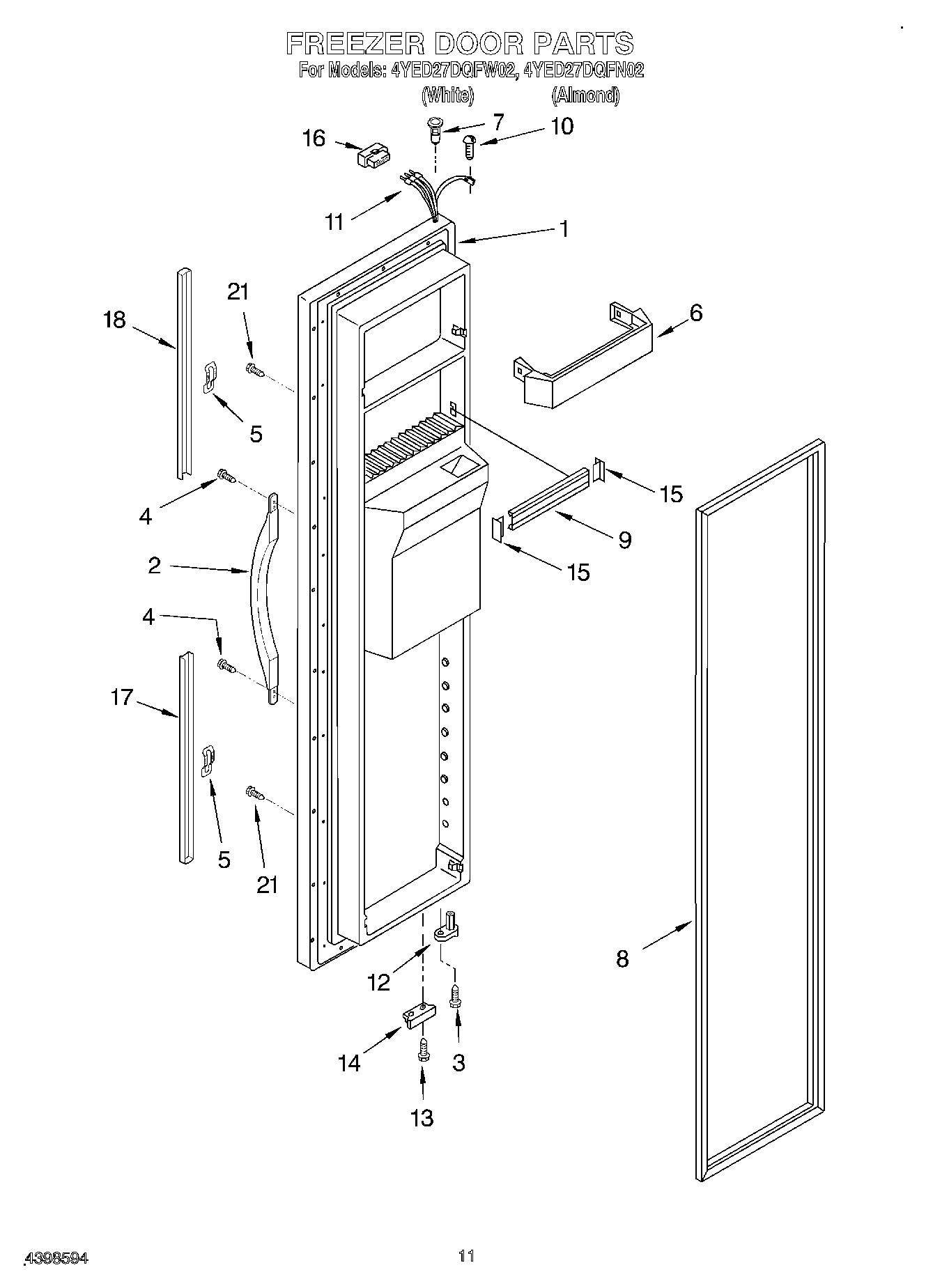

Freezer Door (Includes Item No.8 And Dispense WPL 2187026N Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2187026W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

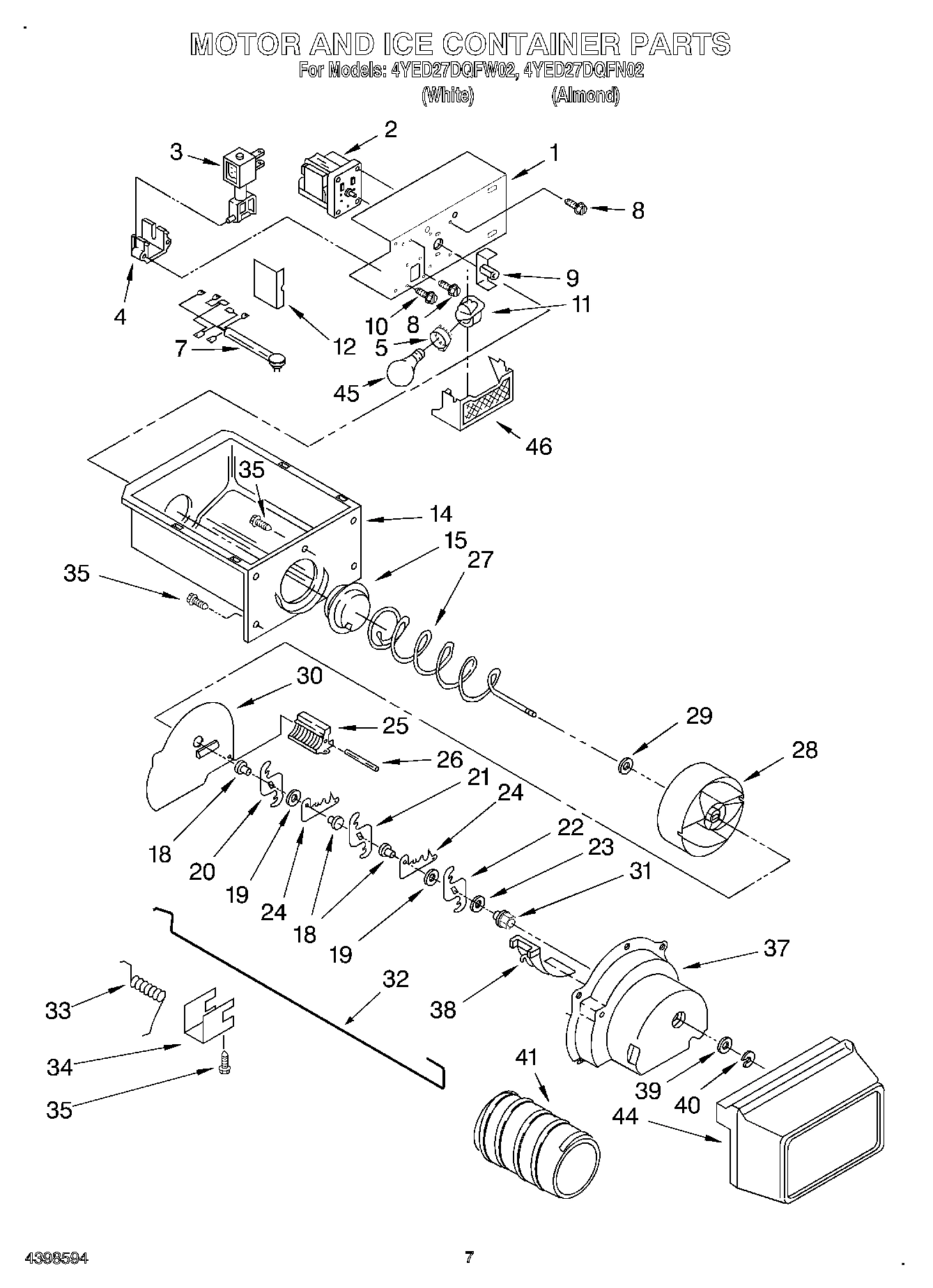

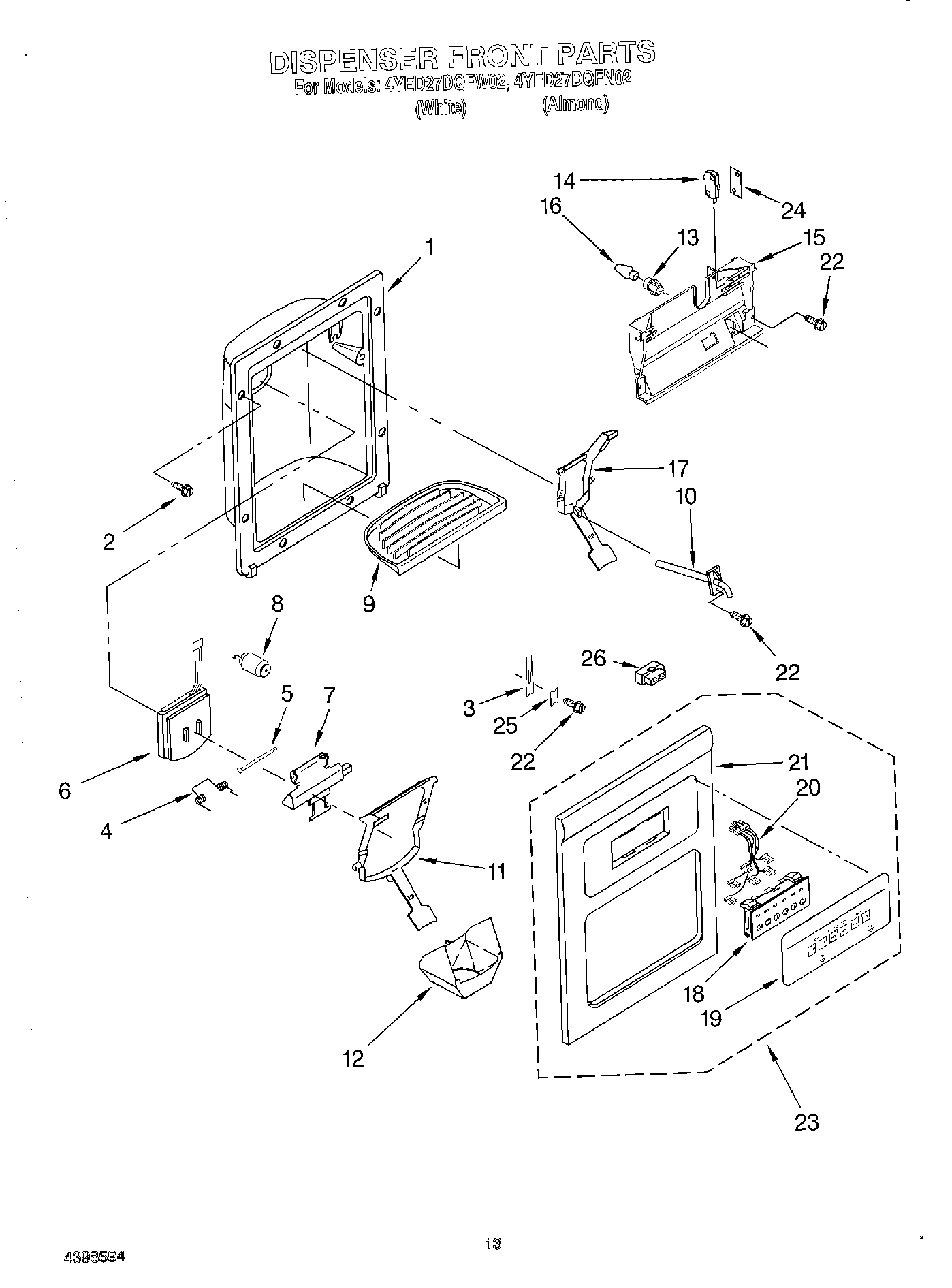

Motor, Dispenser WPL 2165401 Contact Us For Availability

2

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WPW10129867 Whirlpool Refrigerator Solenoid Backorder WPL WPW10129867 $130.35

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $6.94

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Grommet WPL 2176134 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

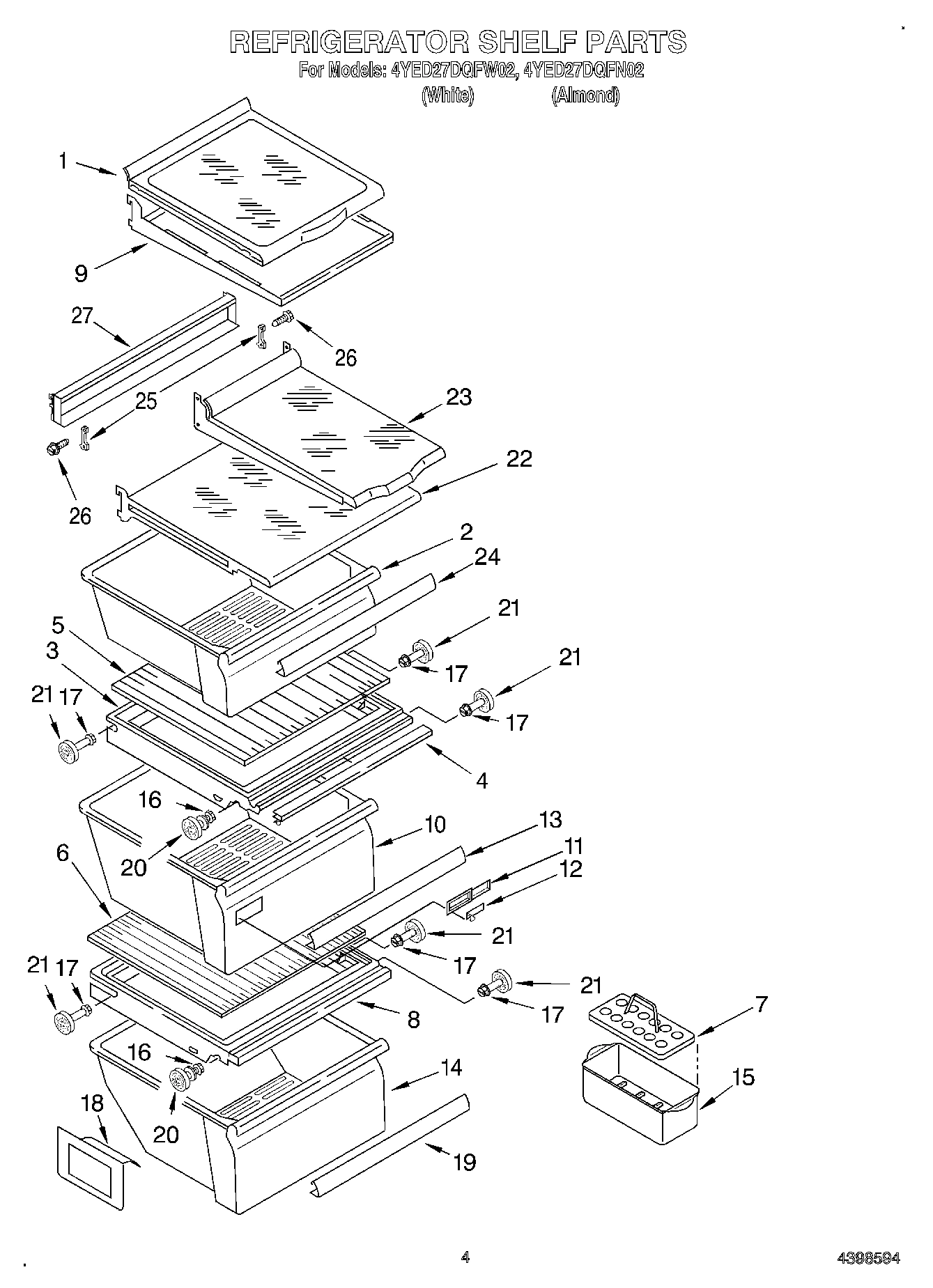

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $43.33

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

7

Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

8

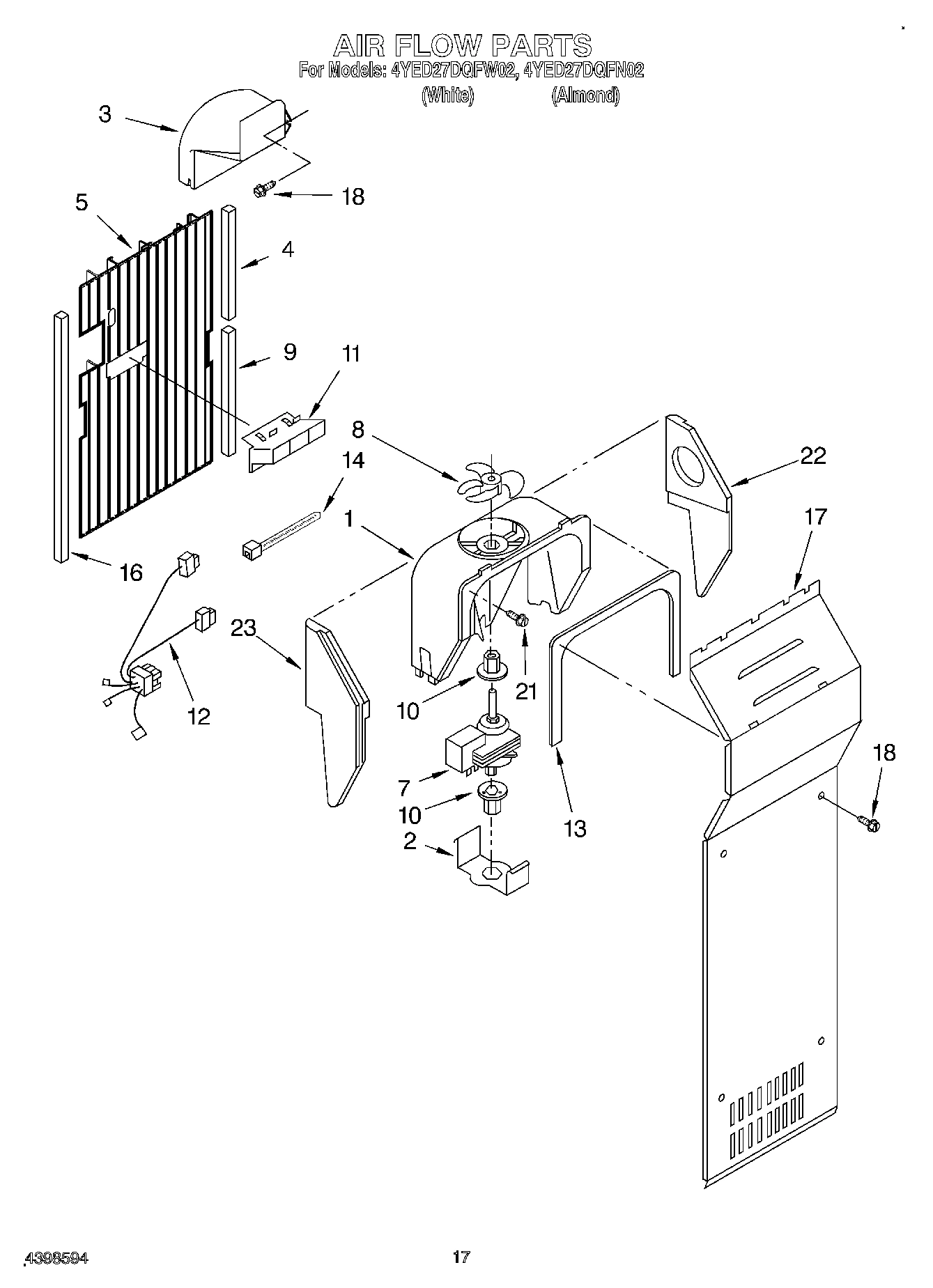

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Trim, Basket WPL 2195905 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Enclosure, Terminal Block WPL 2188194 Contact Us For Availability

Basket, Tall WPL 2181765 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

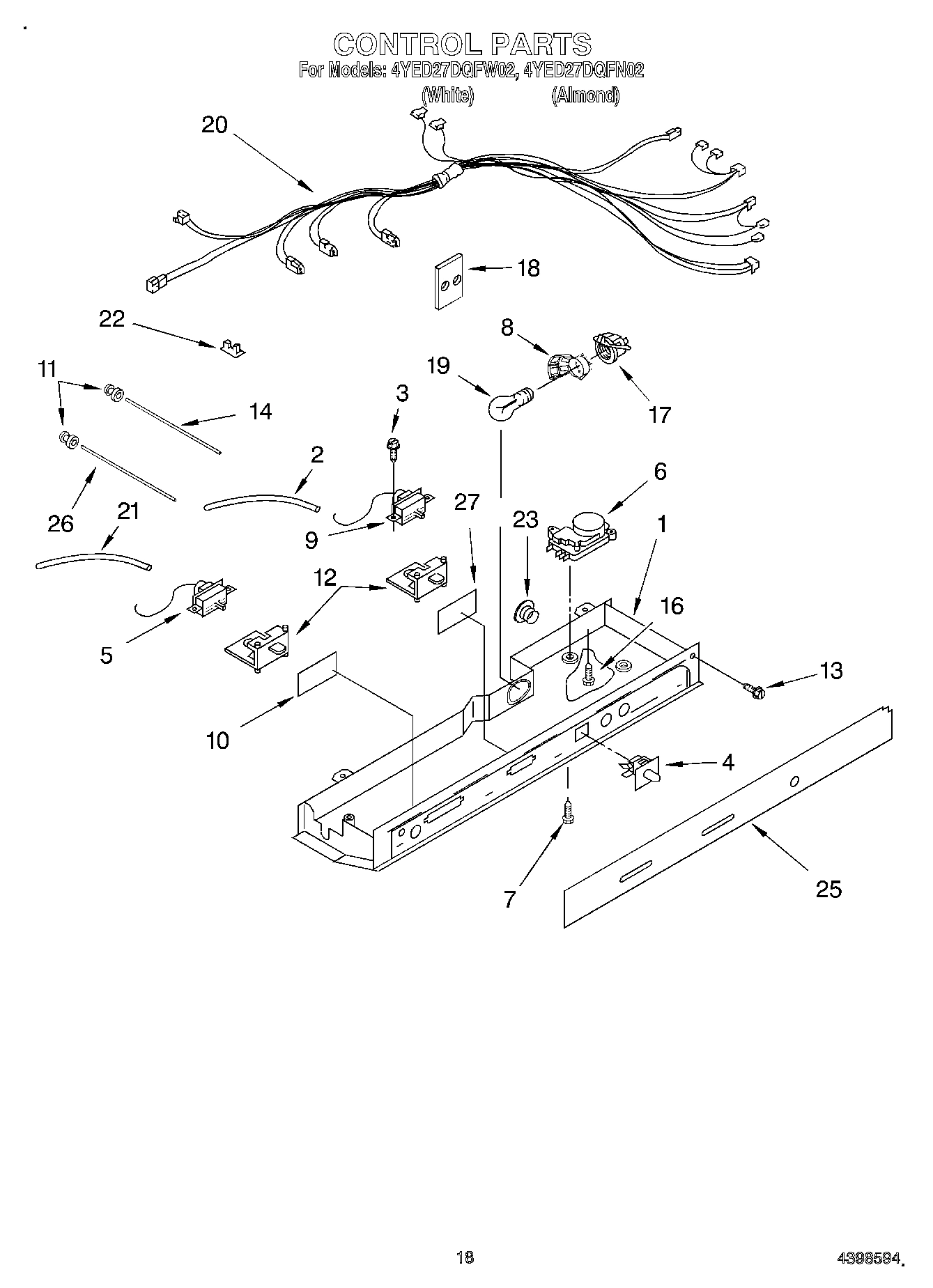

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Terminal Block WPL 1129346 Contact Us For Availability

Basket, Slope WPL 2181764 Contact Us For Availability

Wiring Harness WPL 2183713 Contact Us For Availability

1129563 Whirlpool Shield Backorder WPL 1129563 $55.40

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $119.63

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Shim, Hinge Top WPL 2196048 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $129.99

Light, Bar WPL 2179920 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

Basket, Shallow WPL 2181763 Contact Us For Availability

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Bushing WPL 1129449 Contact Us For Availability

Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability

Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $189.29

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.34

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Extension, Top (Almond) WPL 2194973N Contact Us For Availability

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

19

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Wiring Assembly, Terminal Block WPL 2209657 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $84.13

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $96.17

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2194297 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Gasket WPL 2167227 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $125.84

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Stud, Rear WPL 2196207 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $60.55

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.82

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $88.88

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $271.70

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Service Cord WPL 1129332 Contact Us For Availability

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $84.14

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

45

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.68

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

47

Cover, Unit WPL 2204421 Contact Us For Availability

48

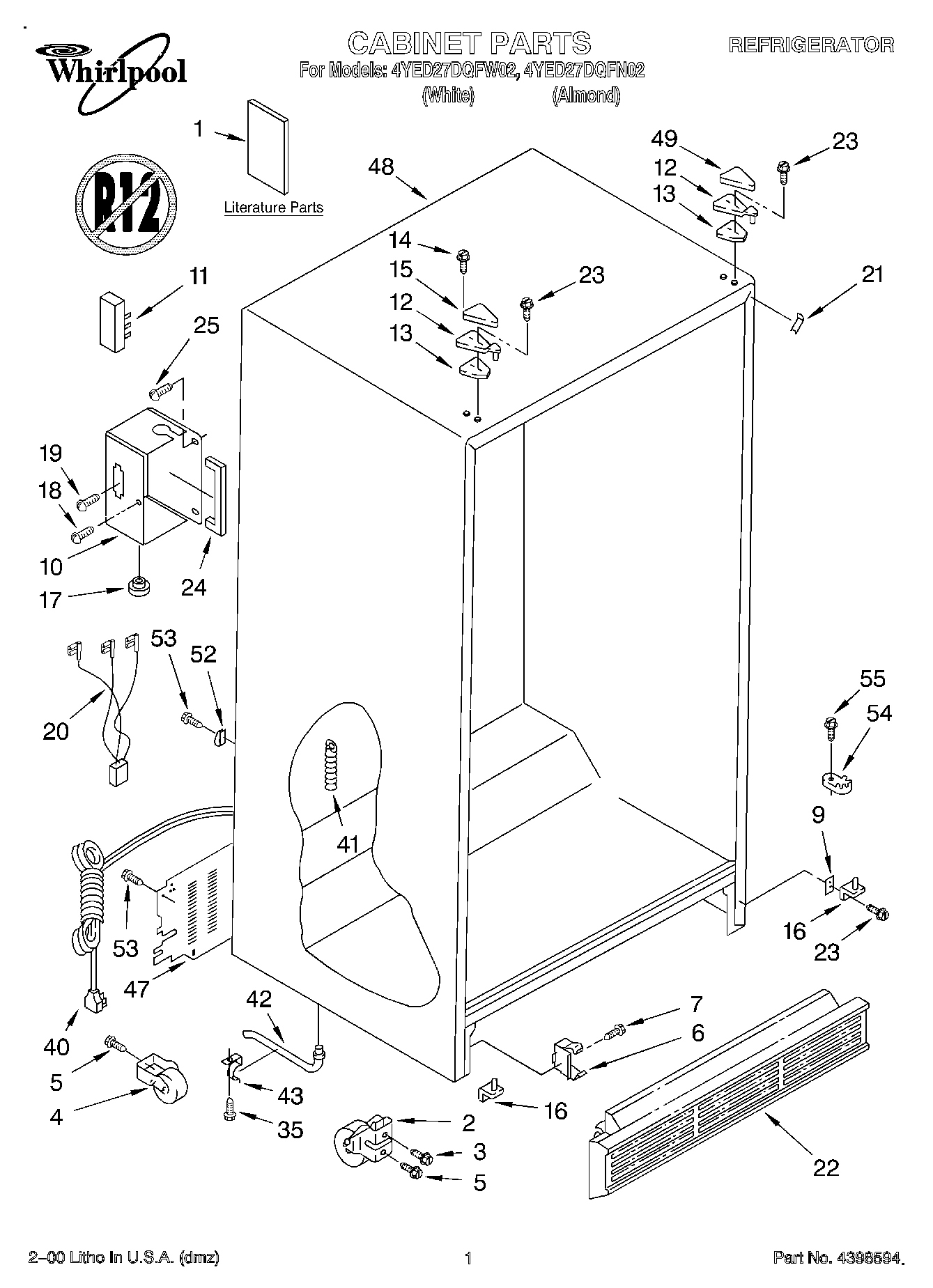

Cabinet (Not A Serviceable Part) WPL ARI14885A3 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

53

NLA:SCREW Backorder WPL WPW10141645 $4.82

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
