Model Whirlpool 4YED25DQDN02 REFRIGERATOR – Common Parts & Diagrams
09 - UNIT

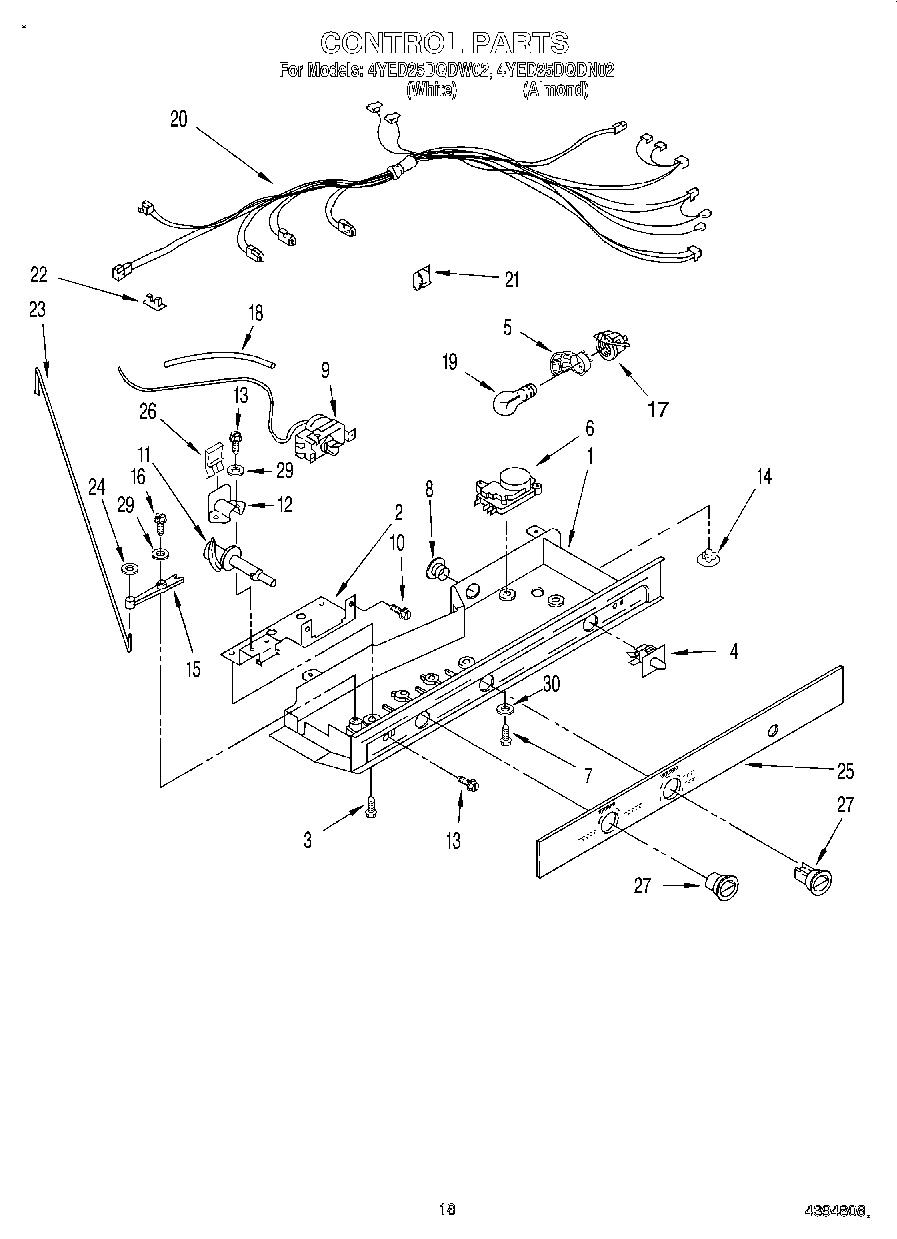

11 - CONTROL

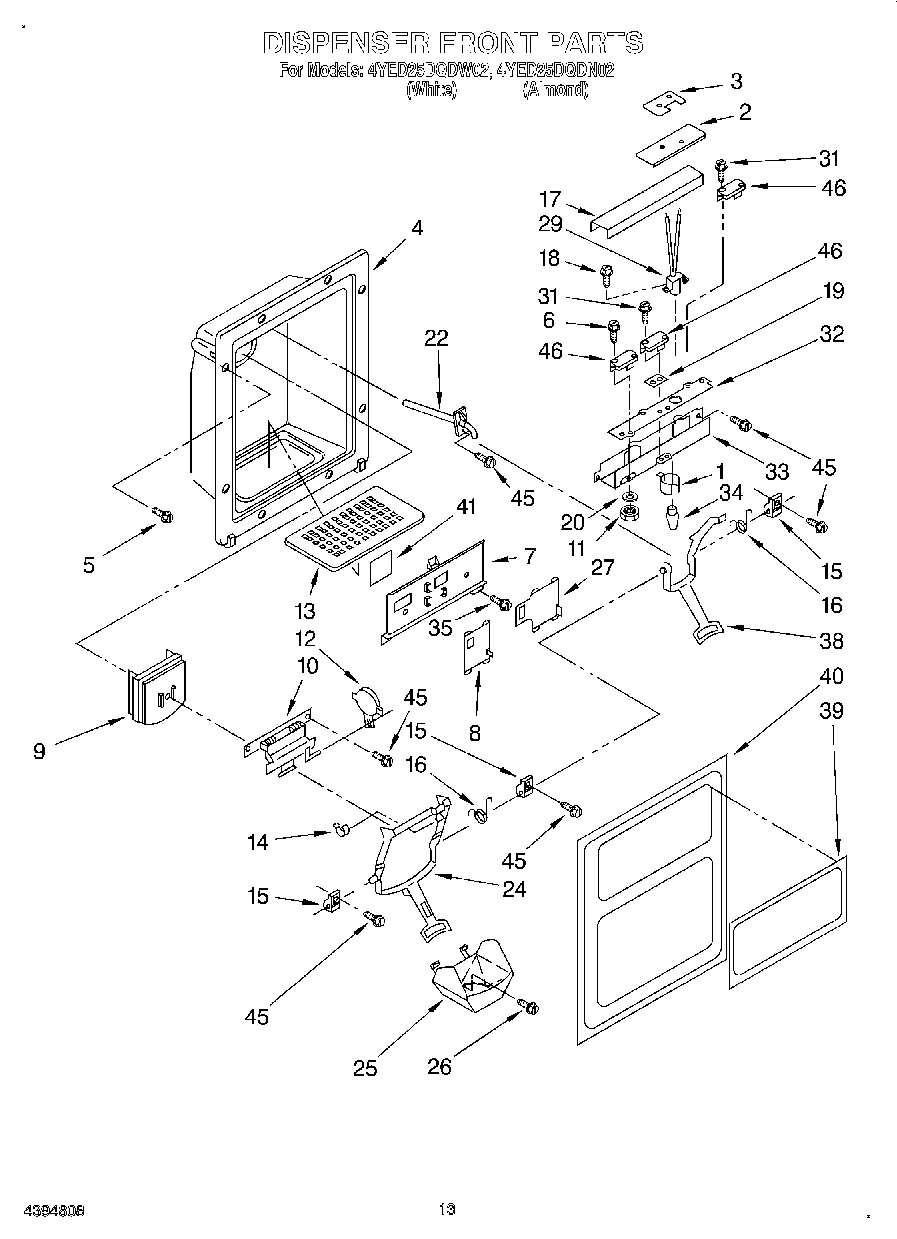

08 - DISPENSER FRONT

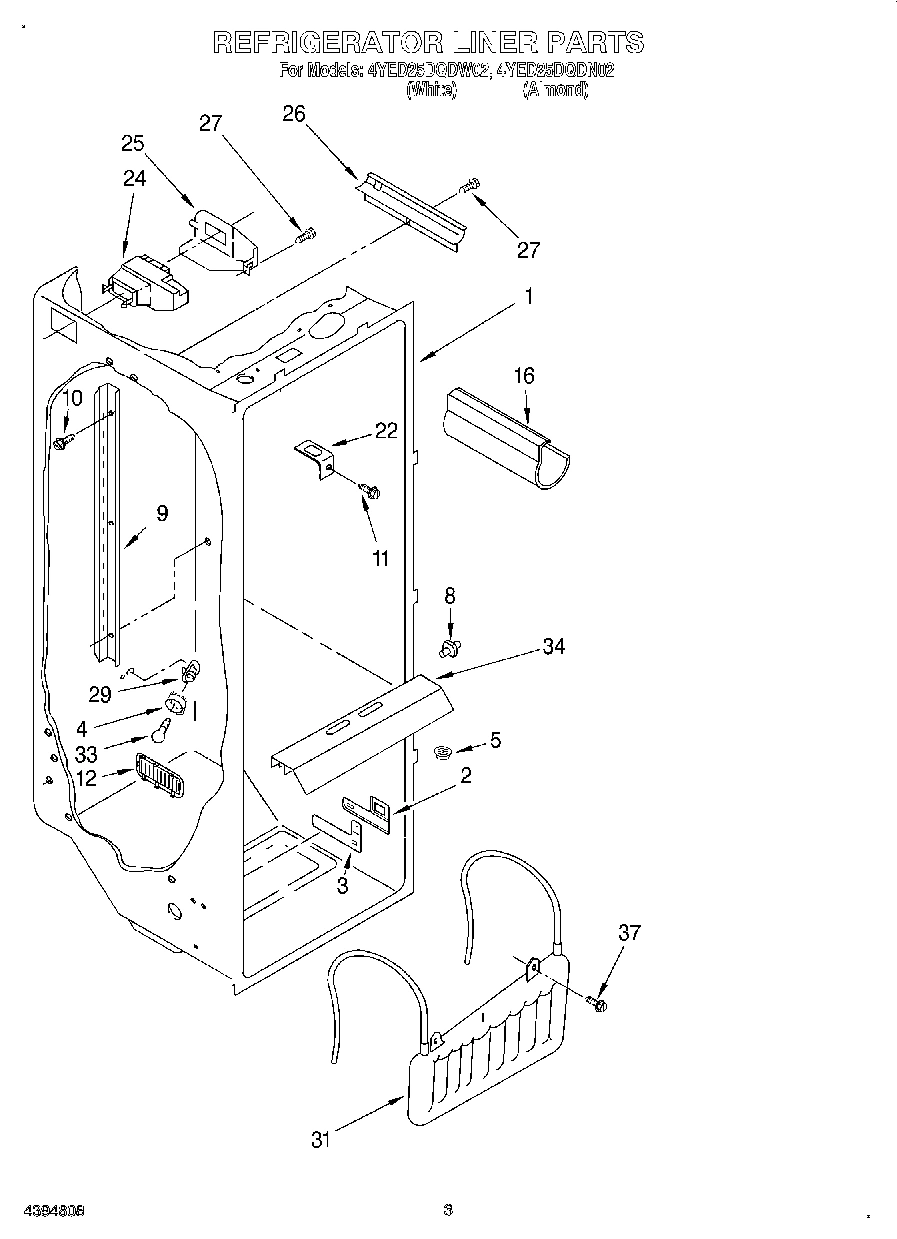

02 - REFRIGERATOR LINER

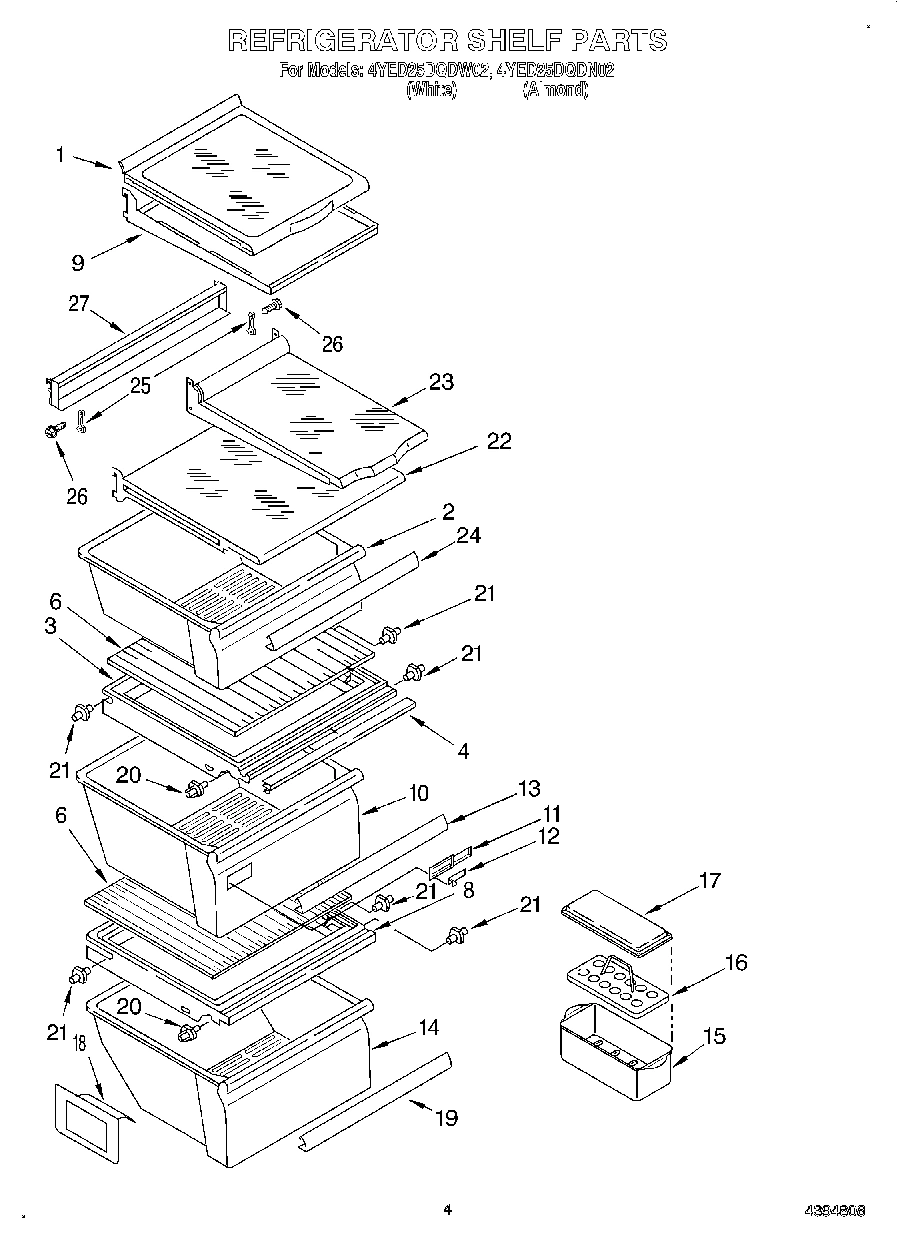

03 - REFRIGERATOR SHELF
10 - AIR FLOW

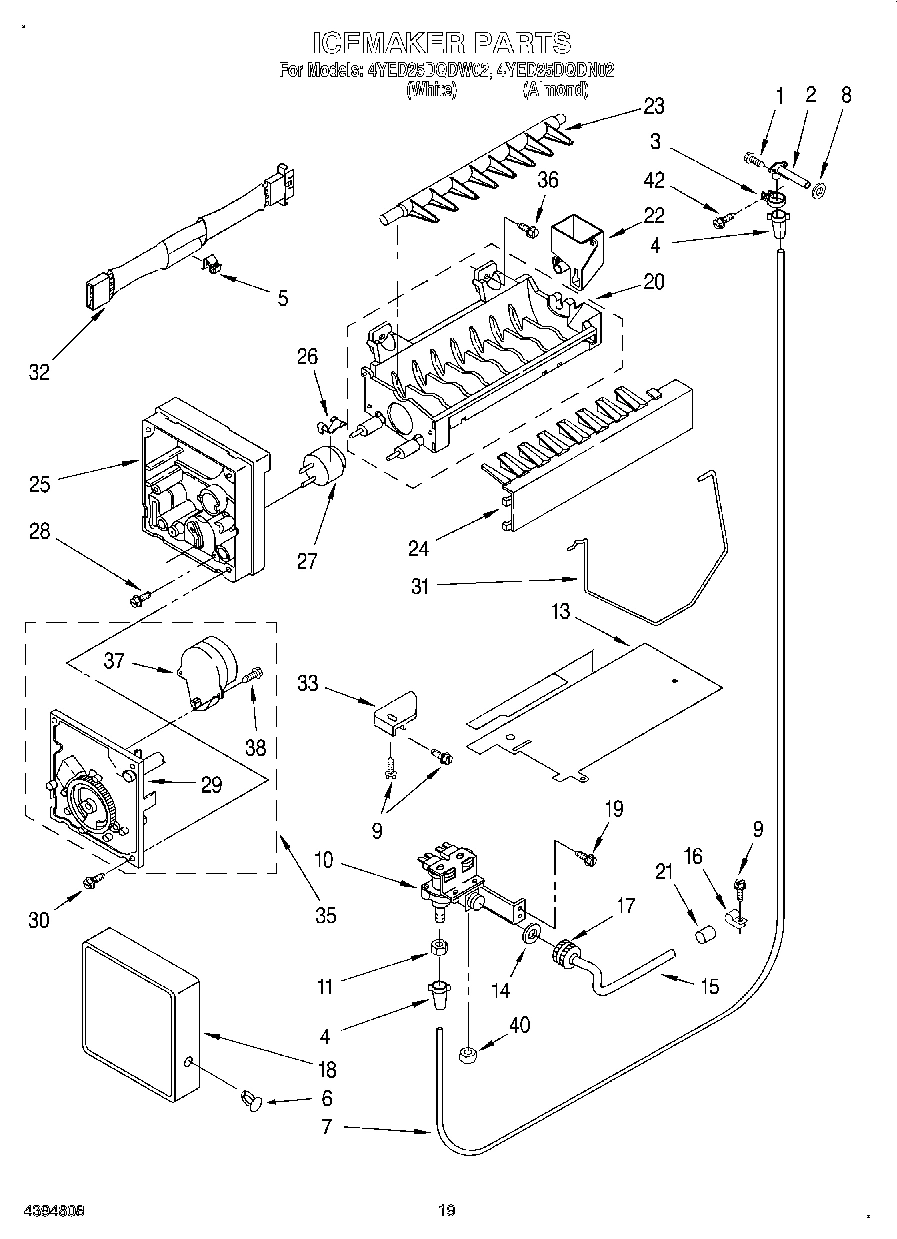

12 - ICEMAKER, LIT/OPTIONAL

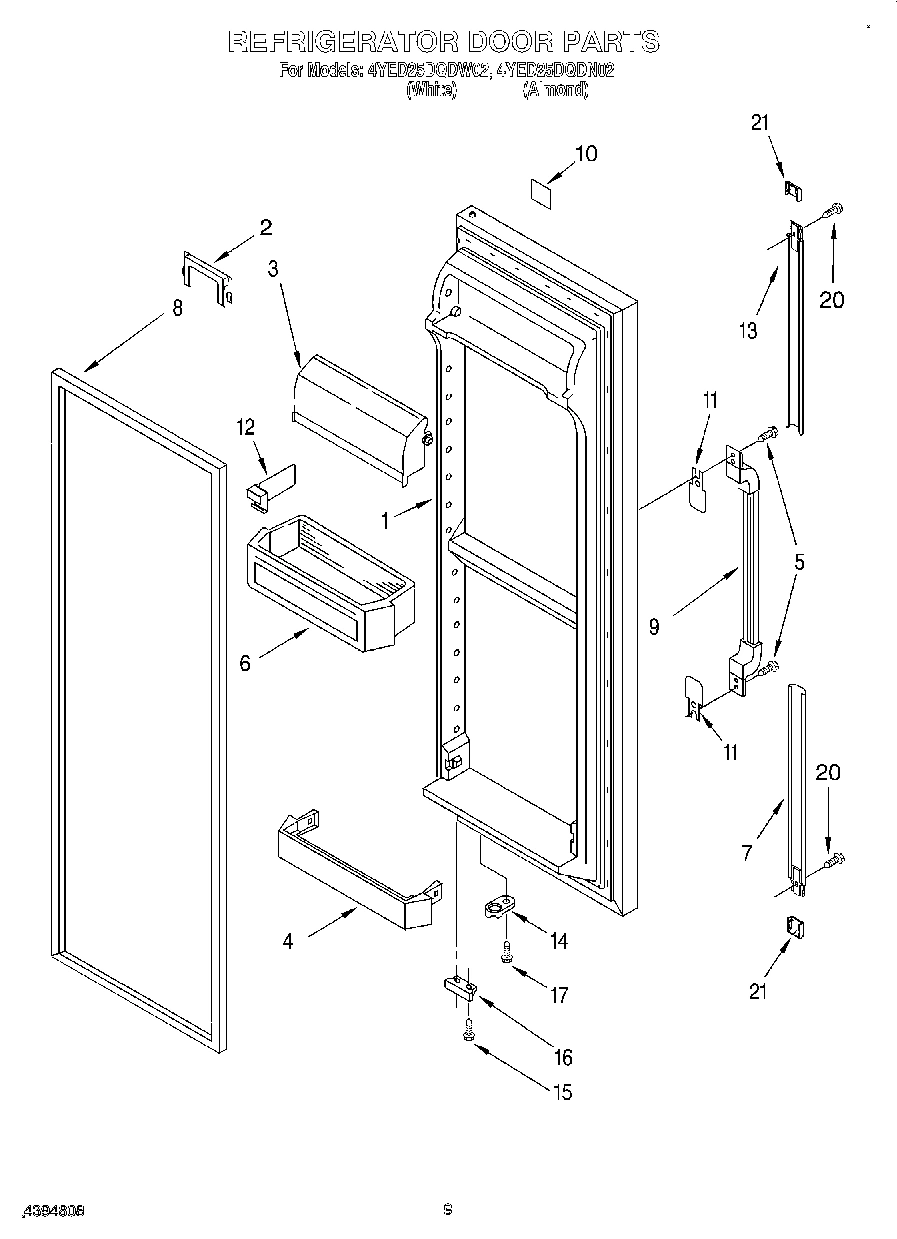

06 - REFRIGERATOR DOOR

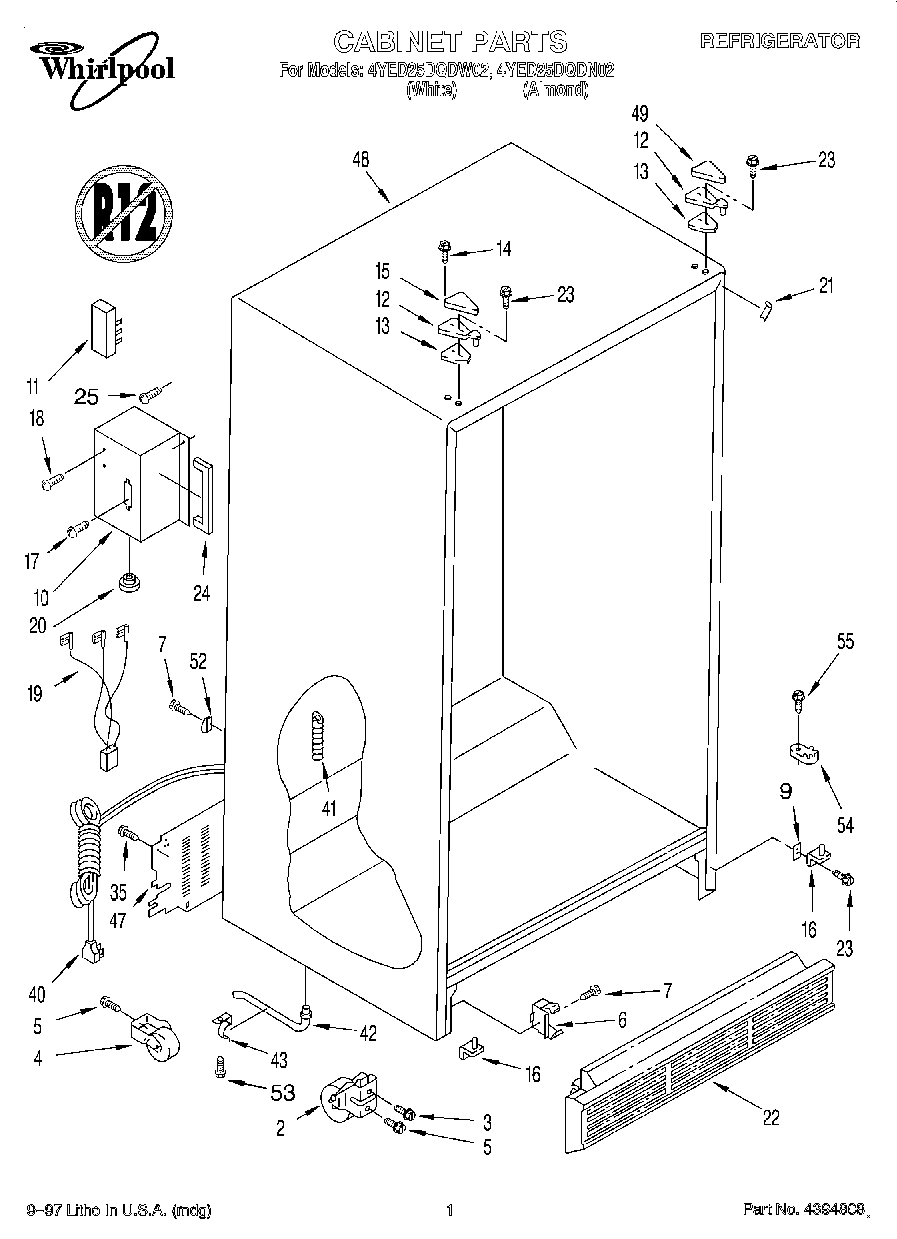

01 - CABINET

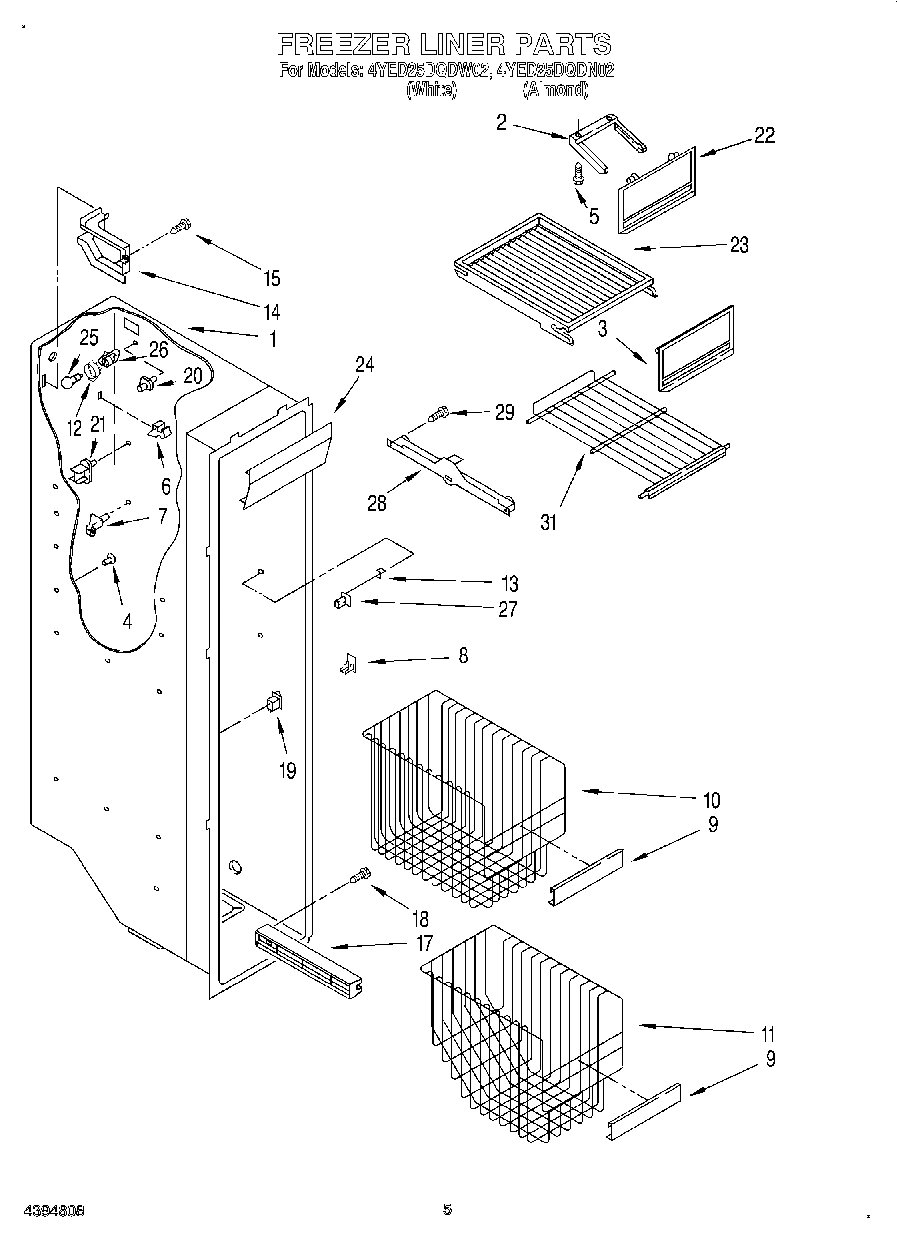

04 - FREEZER LINER

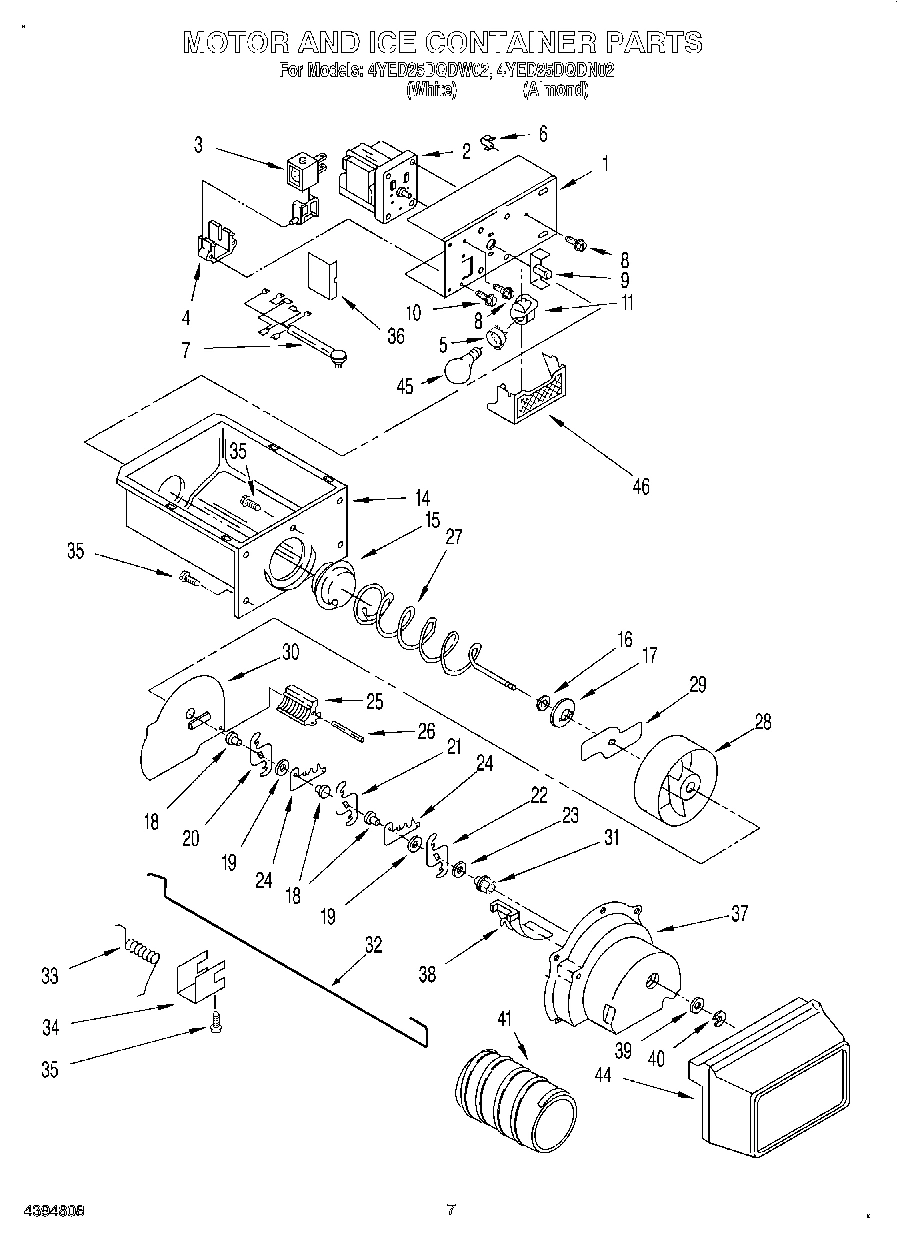

05 - MOTOR AND ICE CONTAINER

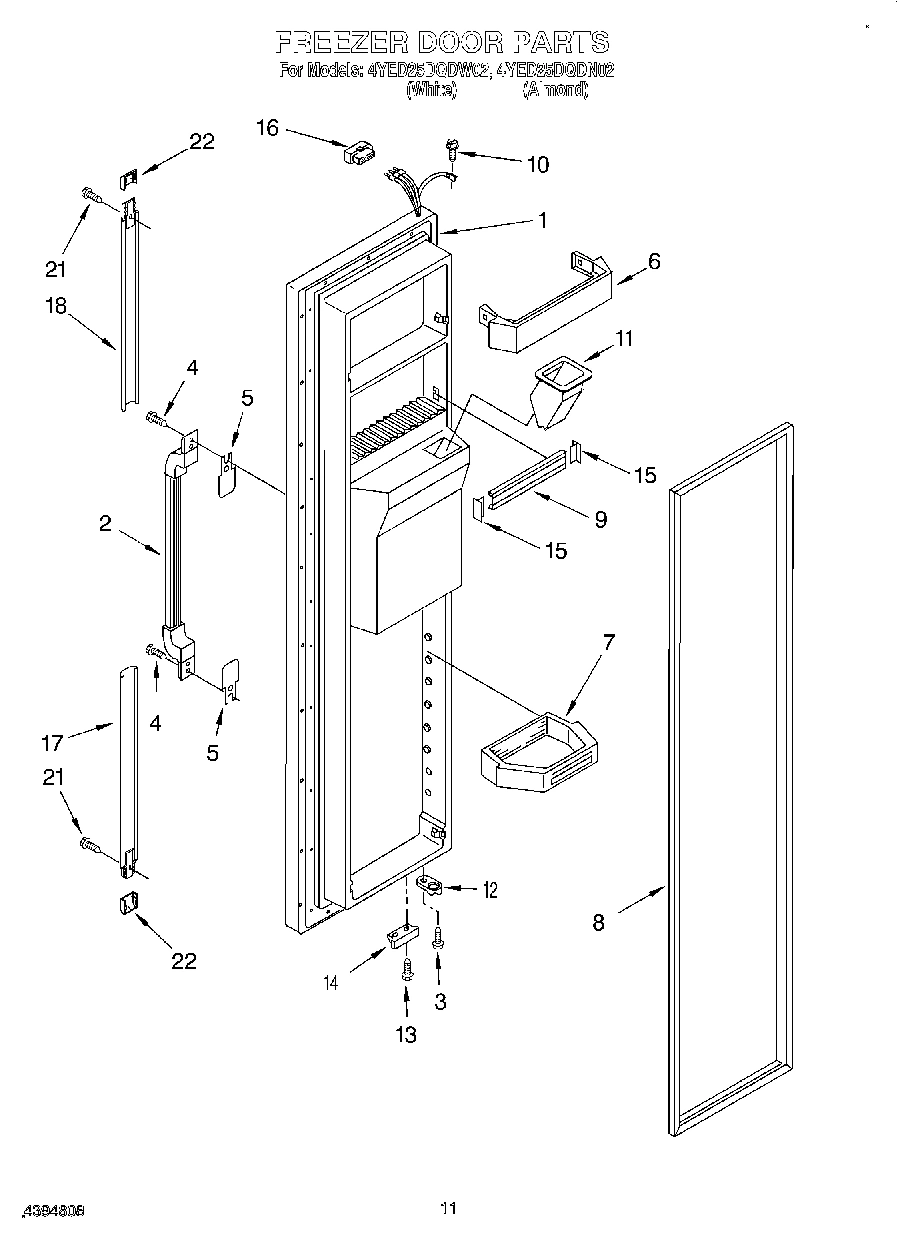

07 - FREEZER DOOR
Common parts from model Whirlpool 4YED25DQDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175117 WPL LIT2175117 Contact Us For Availability
WPL LIT2198380 WPL LIT2198380 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194509W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14730A5 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197762N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197762W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (2) WPL 2179576 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Nameplate (White) WPL 2175380 Contact Us For Availability
10
Nameplate (Almond) WPL 2175381 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Extension, Top (Almond) WPL 2194765N Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Extension, Top (White) WPL 2194765W Contact Us For Availability
18
Extension, Top (Almond) WPL 2194765 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Bushing WPL 1129449 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Door, Top Compartment WPL 2194091 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
27
Knob, Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI14728A9 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
