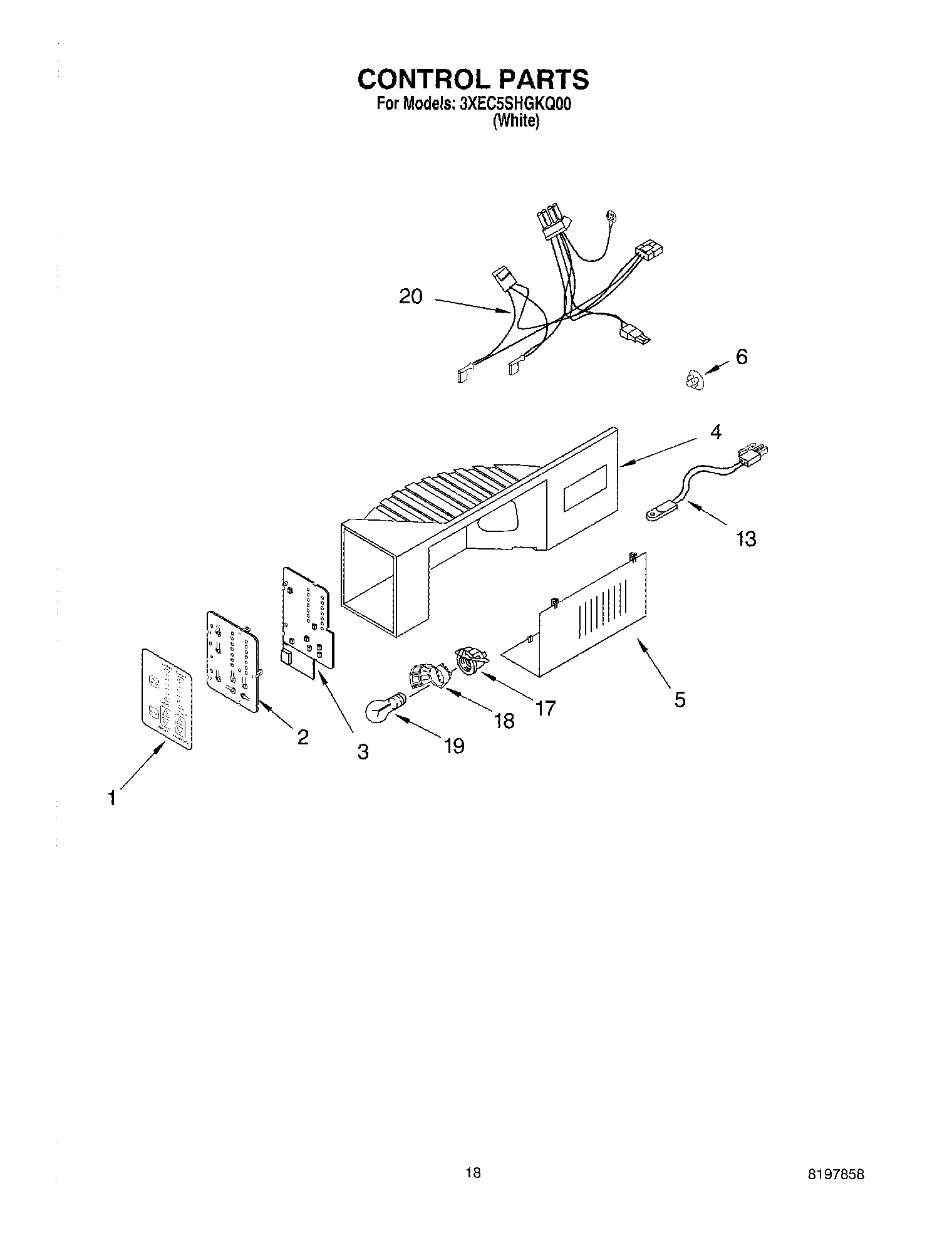

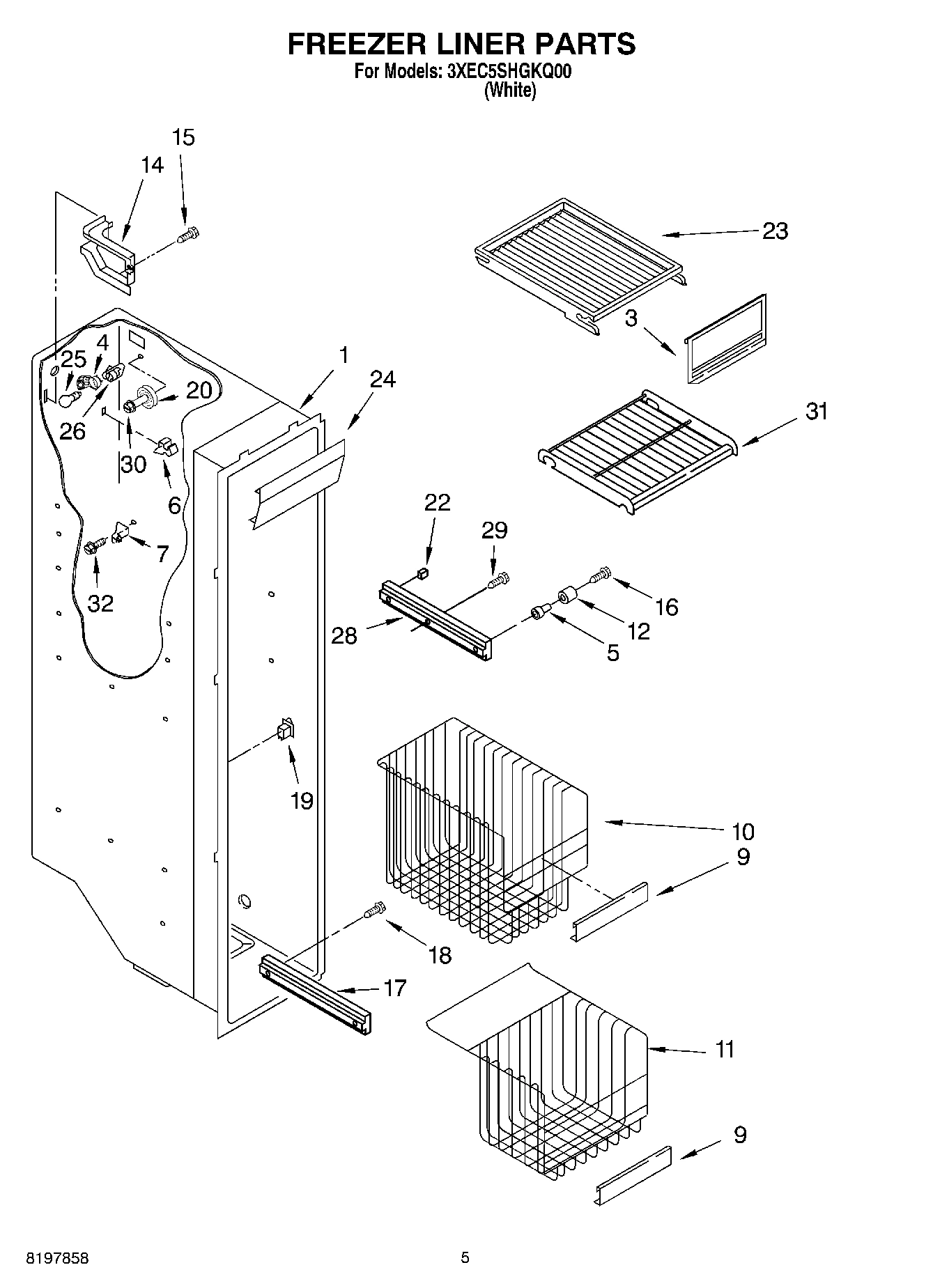

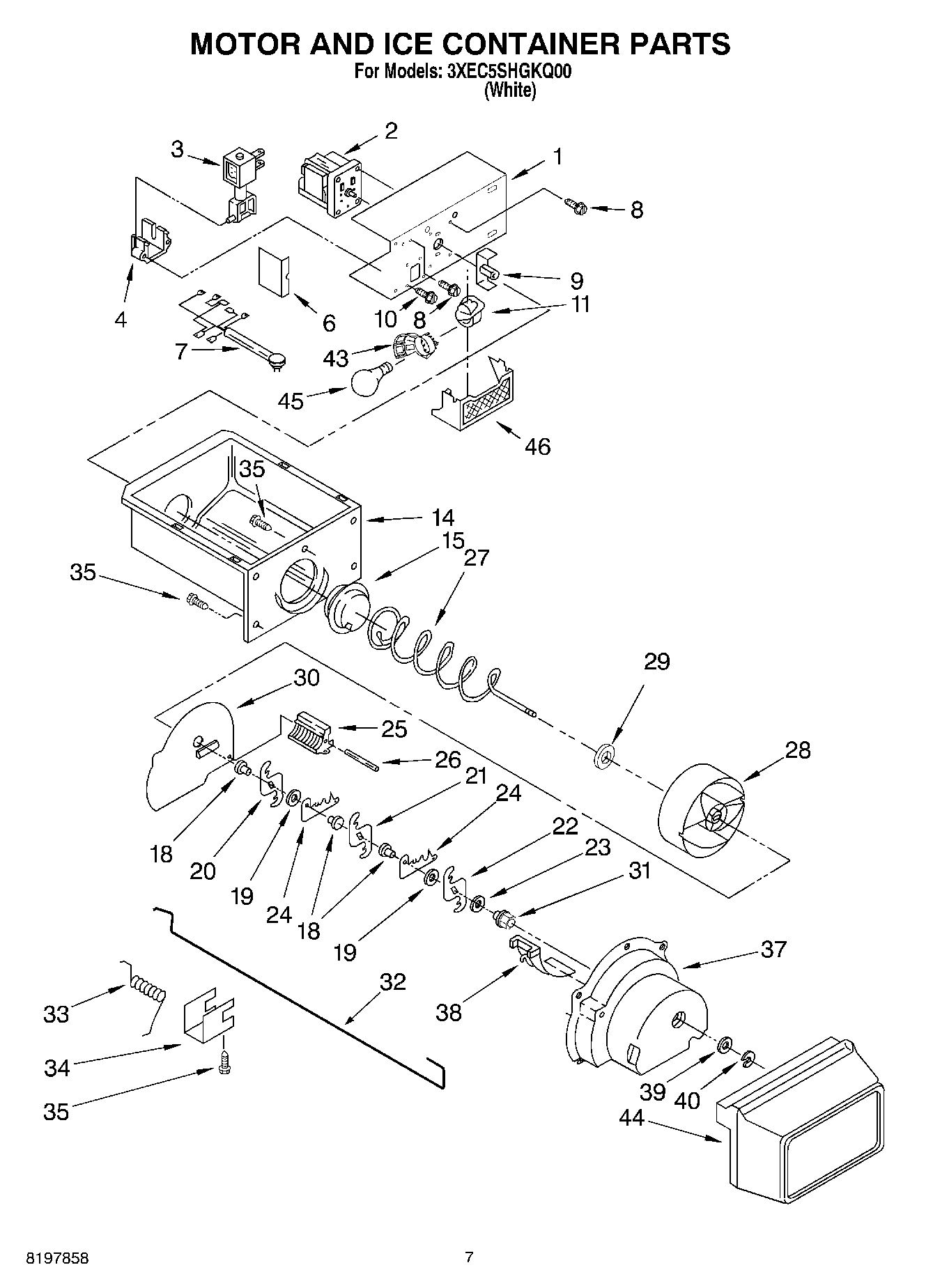

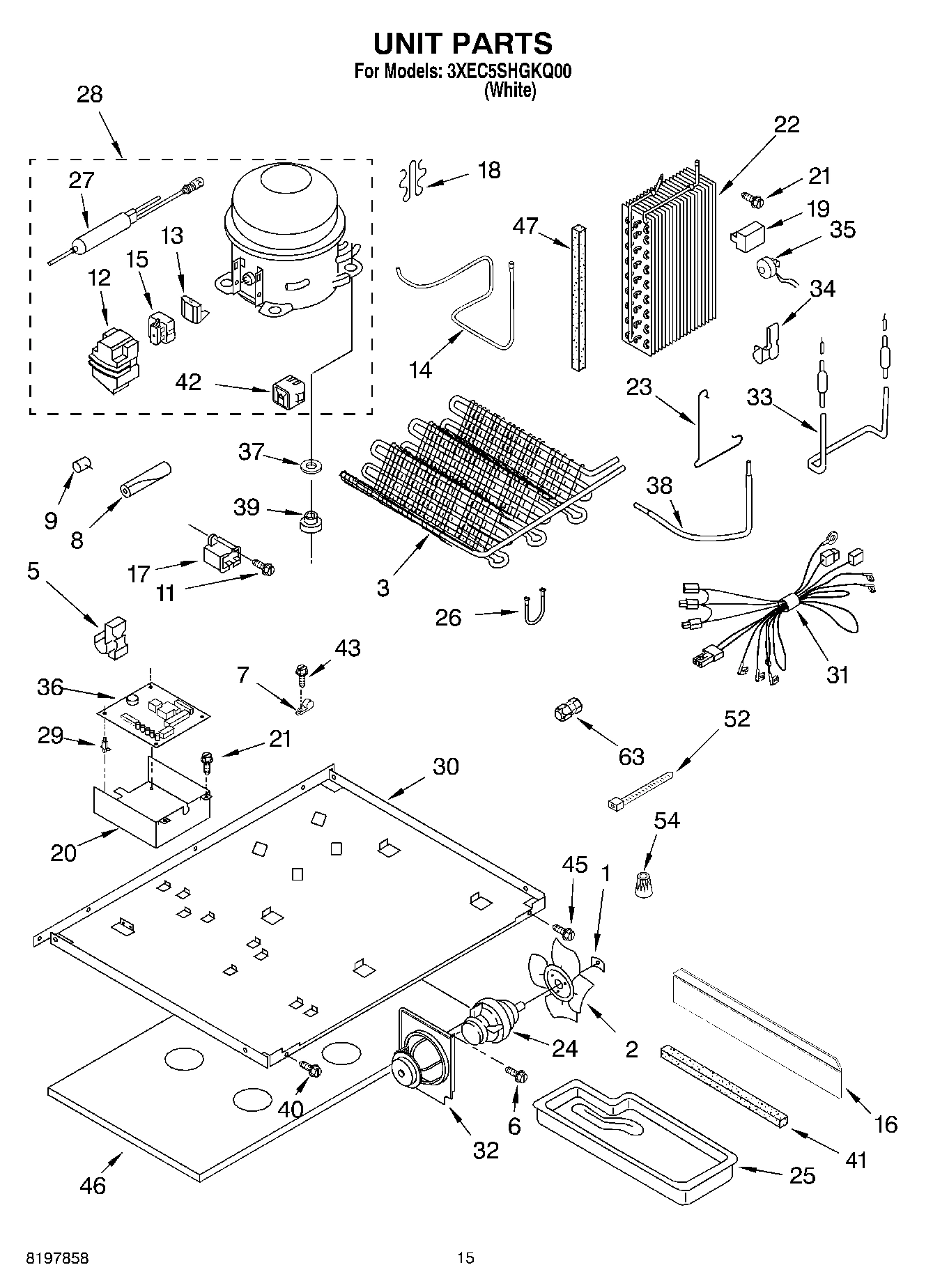

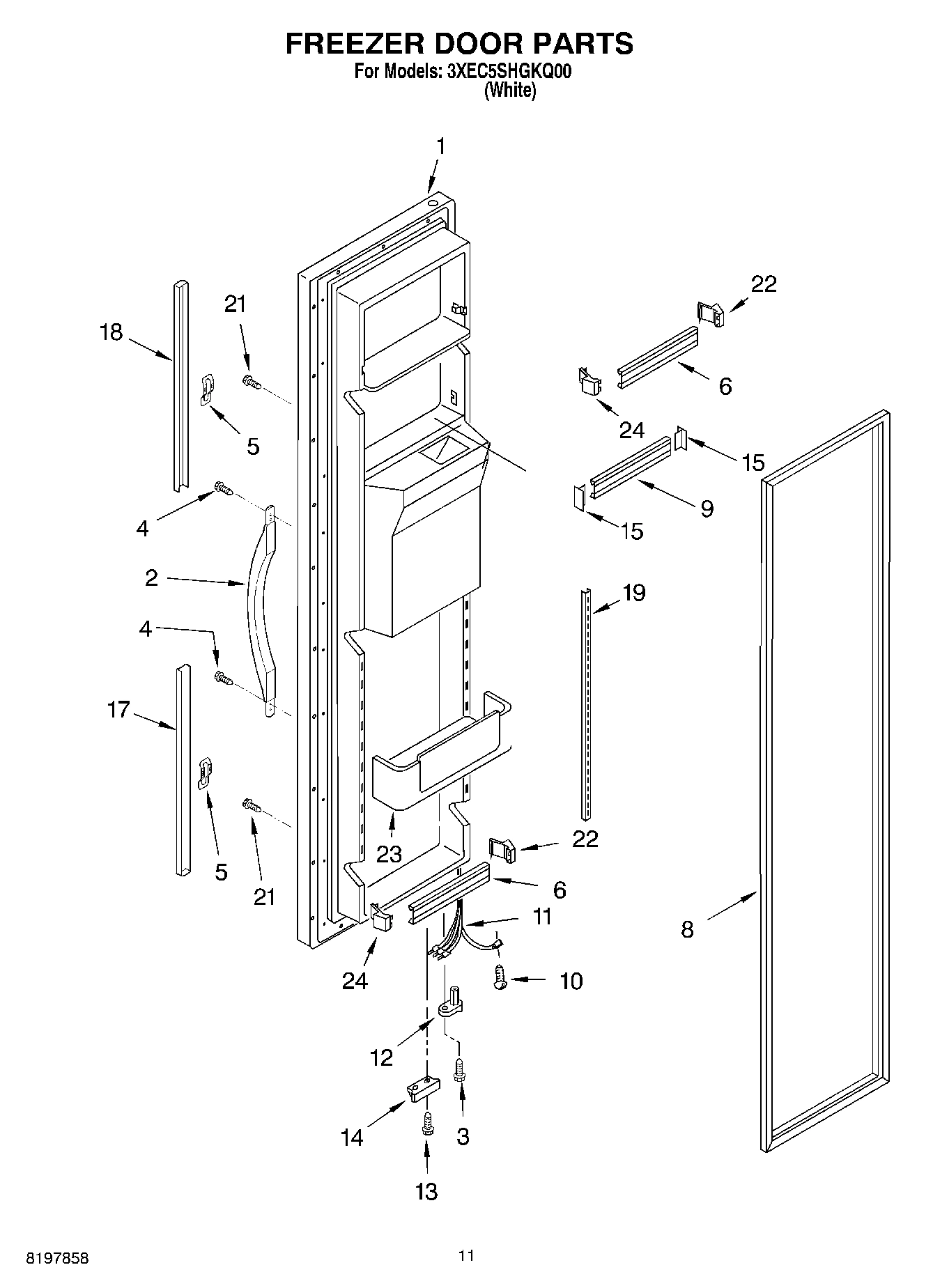

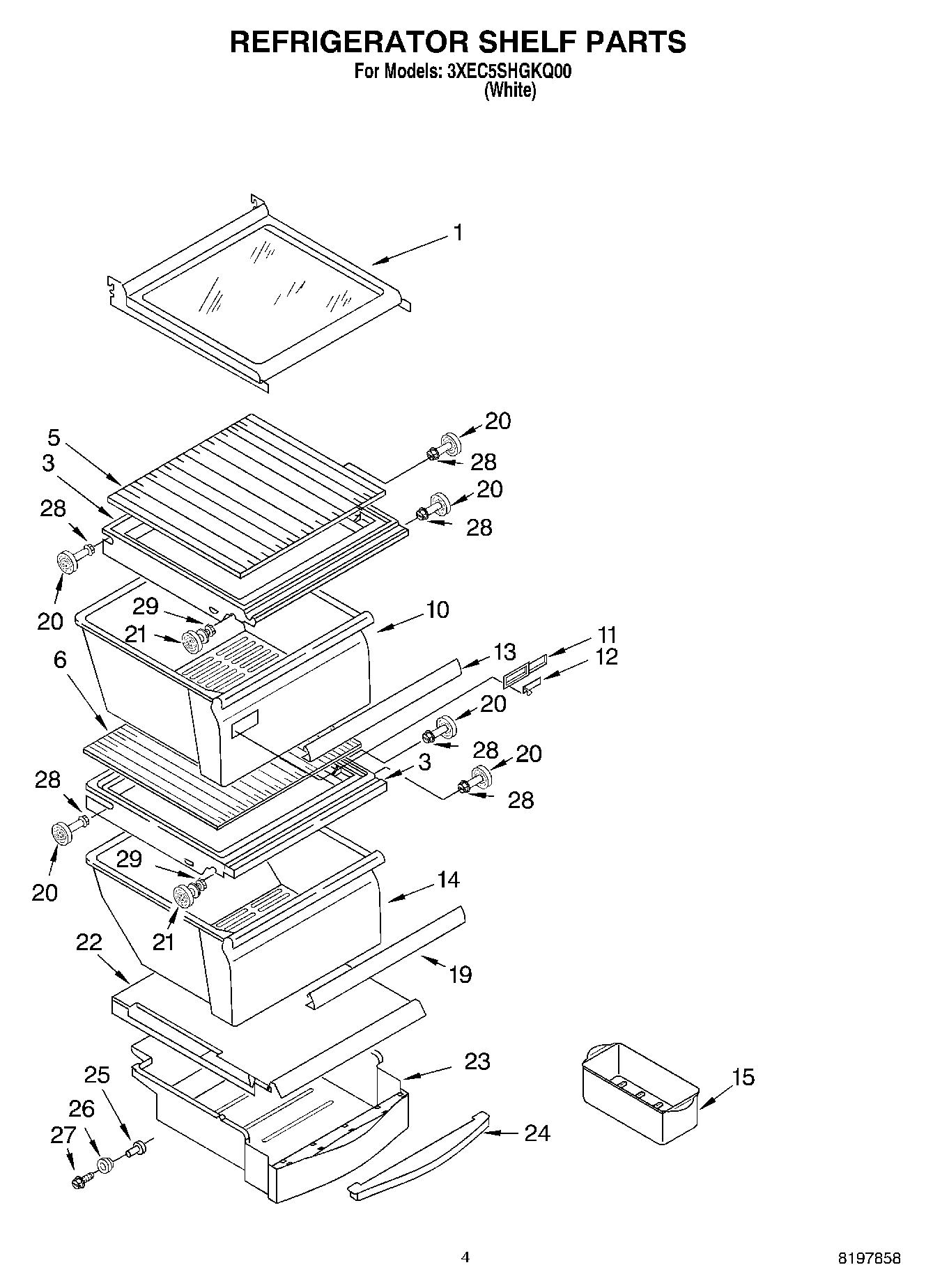

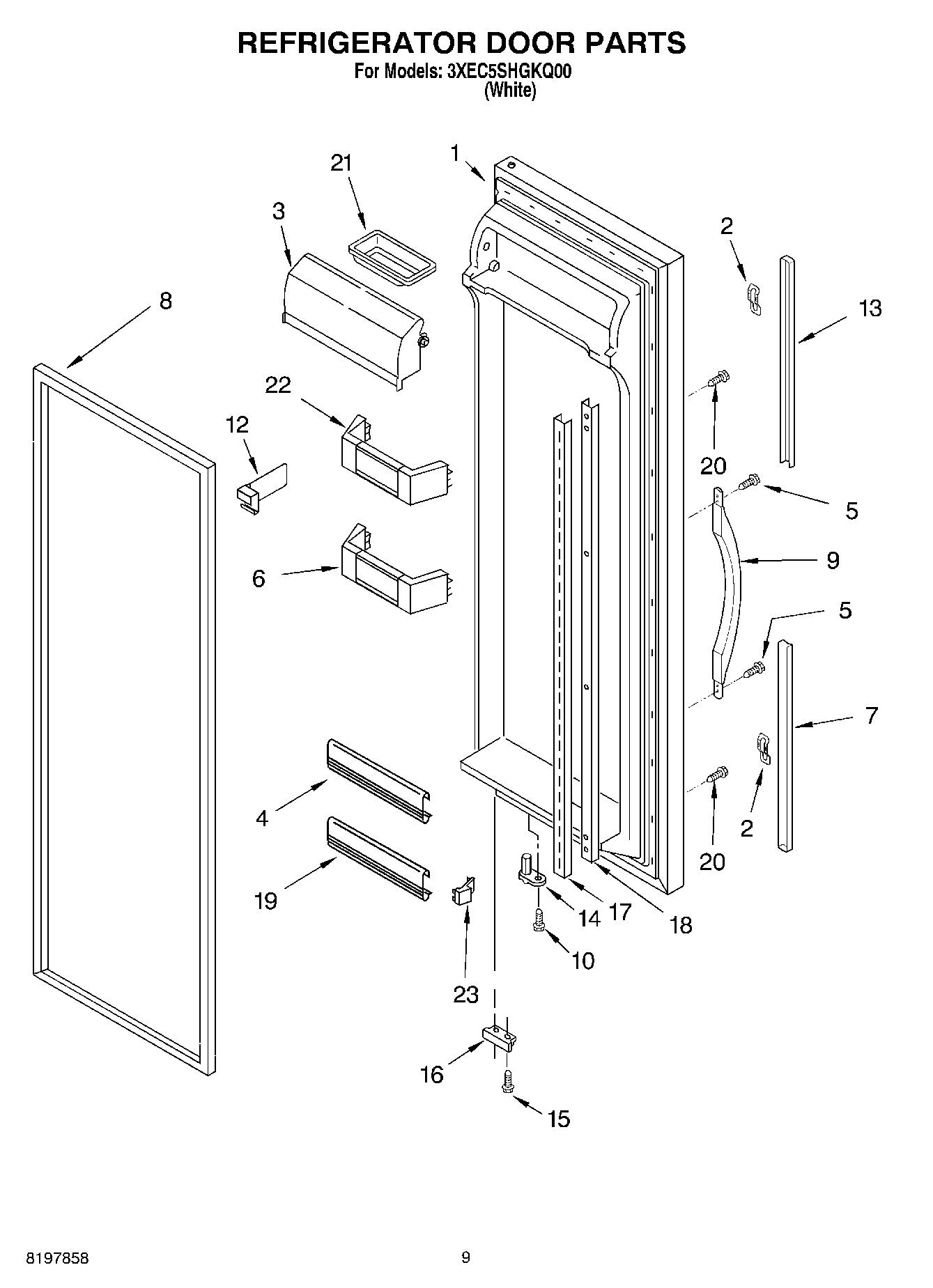

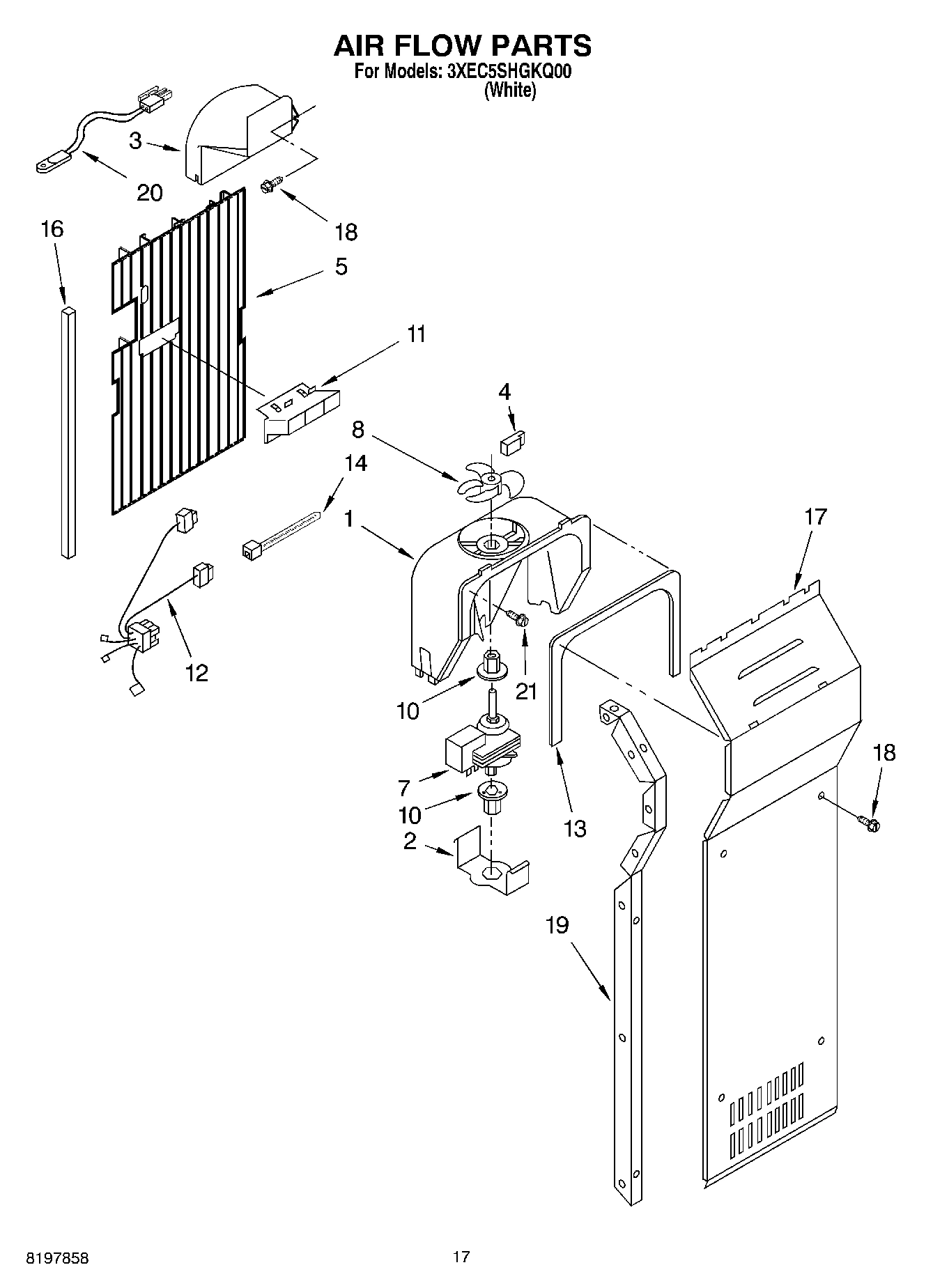

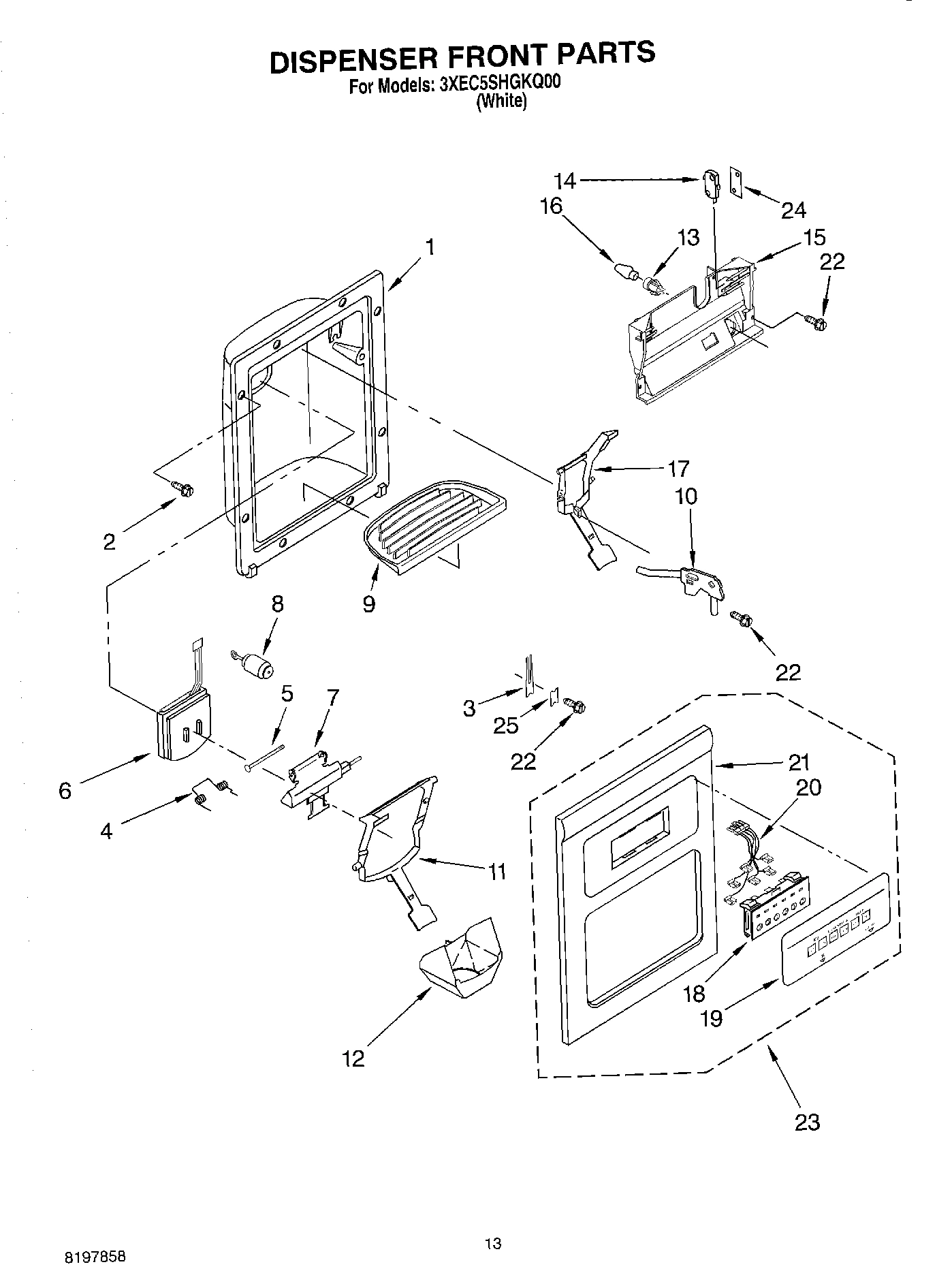

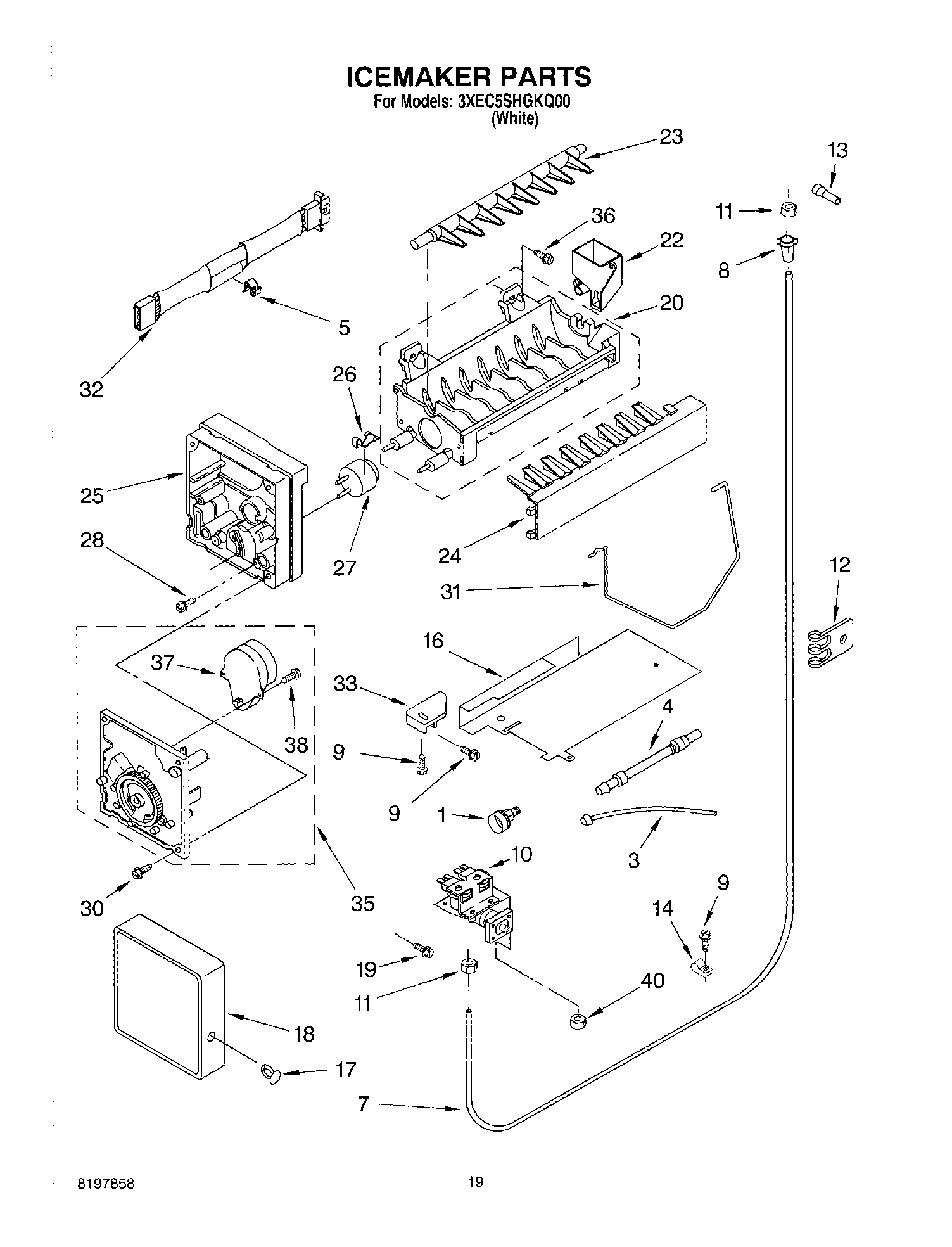

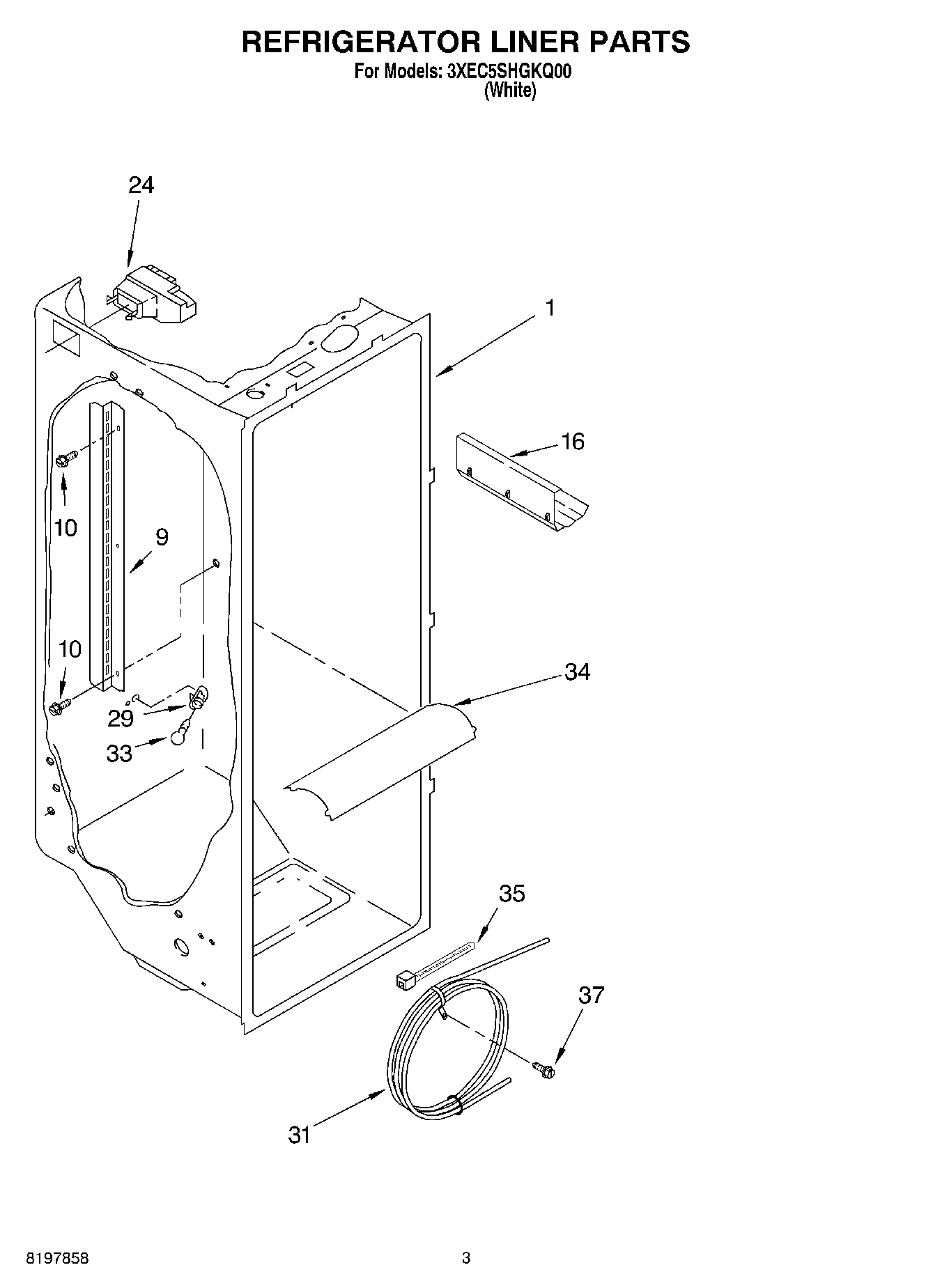

Model Whirlpool 3XEC5SHGKQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Housing, Dispenser (Not Serviced) WPL ARI12981A9 Contact Us For Availability

1

Overlay WPL 2203081 Contact Us For Availability

1

Shelf Assembly WPL 2203053 Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2214746W Contact Us For Availability

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (White) WPL 2186649W Contact Us For Availability

2

Retainer, Circuit Board WPL 2208141 Contact Us For Availability

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

Condenser Assembly WPL 2205983 Contact Us For Availability

3

Air Scoop WPL 2210746 Contact Us For Availability

3

Circuit Board, Interface WPL 2214735 Contact Us For Availability

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

Block, Fan Scroll WPL 2208184 Contact Us For Availability

4

Control Box WPL 2199717 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Eyelet, Roller WPL 2174478 Contact Us For Availability

5

Clip, Wire WPL 2155658 Contact Us For Availability

5

Air Duct Freezer WPL 2199931 Contact Us For Availability

5

Light Lens WPL 2203108 Contact Us For Availability

6

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

6

Clip, Grille WPL 2209558 Contact Us For Availability

6

Trim, Door Shelf WPL 2209595 Contact Us For Availability

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $16.99

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Fan Motor WPL 2187151 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Mechanism Delay WPL 2205686 Contact Us For Availability

8

Door Gasket, Magnetic (Mist Beige) WPL 2209560 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Trim, Door Shelf WPL 2209599 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Wiring Harness WPL 2203170 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2209574 Contact Us For Availability

2176790 Whirlpool Refrigerator Overload Backorder WPL 2176790 $82.60

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Thermistor WPL 2203172 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $148.73

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Tube Suction WPL 2214365 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP2262184 Whirlpool Refrigerator Start Relay Backorder WPL WP2262184 $83.98

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Bulb, Light WPL 989331 Contact Us For Availability

Extension, Air Baffle WPL 2203020 Contact Us For Availability

Gasket WPL 2210780 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $92.12

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Cover, Evaporator WPL 2203122 Contact Us For Availability

Extension, Handle (Bottom) (White) WPL 2203086W Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

Switch Assembly (Not Available, Order No.23) WPL ARI12982A8 Contact Us For Availability

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

Extension, Handle (Top) (White) WPL 2203085W Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.68

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Overlay, Front Cover (Not Available, Order No WPL ARI12983A5 Contact Us For Availability

Block, Evaporator WPL 2208183 Contact Us For Availability

Evaporator, Cover Rail (Right) WPL 2199922 Contact Us For Availability

Evaporator, Cover Rail (Left) WPL 2199923 Contact Us For Availability

Ladder, Shelf Assembly (2) WPL 2208147 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $60.71

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

Housing, Control Board WPL 2199929 Contact Us For Availability

Thermistor WPL 2199723 Contact Us For Availability

Control Box Harness WPL 2220780 Contact Us For Availability

21

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

21

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

21

Front Cover, Housing (Not Available, Order No WPL ARI12984A8 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WPW10270150 Whirlpool Crisper Drawer Cover In Stock WPL WPW10270150 $212.25

Stop, Roller WPL 1113169 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2214738W Contact Us For Availability

Beverage Pan WPL 2203028 Contact Us For Availability

Bin, Door (2) WPL 2209596 Contact Us For Availability

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $223.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $140.71

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Handle, Beverage WPL 2203031 Contact Us For Availability

Endcap WPL 2195917 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Roller WPL 2188212 Contact Us For Availability

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

26

Tube, Heat Loop WPL 2199806 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

28

W10309997 Whirlpool Refrigerator Compressor Backorder WPL W10309997 $462.69

28

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

29

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

29

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.82

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

Unit Mounting Plate WPL 2210728 Contact Us For Availability

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

Unit, Harness WPL 2209577 Contact Us For Availability

32

Fan, Motor Bracket WPL 2214631 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WPW10123653 Whirlpool Refrigerator Heater Backorder WPL WPW10123653 $111.90

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

36

Circuit Board, Dual Temp. WPL 2213468 Contact Us For Availability

37

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

37

Washer WPL 680975 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

38

Tube, Condenser to Heat Loop WPL 2214366 Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $4.82

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

40

Screw WPL 3400515 Contact Us For Availability

41

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

42

Start Device, Combination (Production Alterna WPL 2188509 Contact Us For Availability

43

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

45

Screw WPL 3400514 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

46

Insulation, Mounting Plate WPL 2214509 Contact Us For Availability

47

Side Support WPL 2203160 Contact Us For Availability

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

54

Wire Connector WPL 227991 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
