Model Whirlpool 1107743010A Gas Dryer (Kenmore 1107743010A) – Common Parts & Diagrams

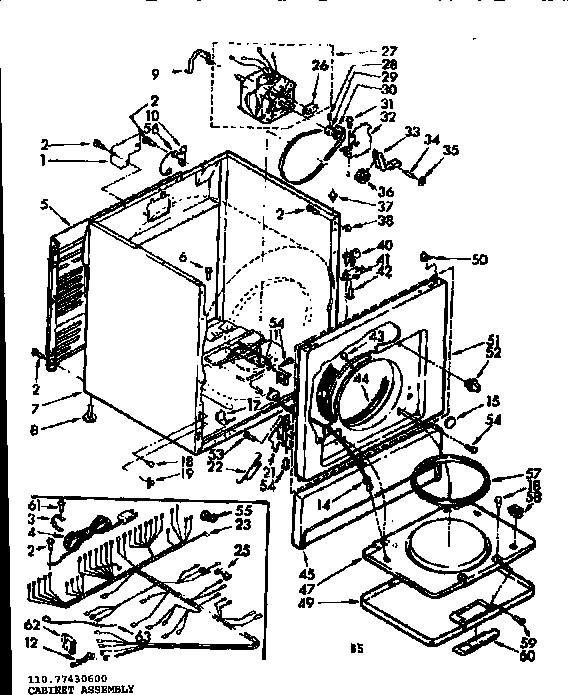

CABINET ASSEMBLY

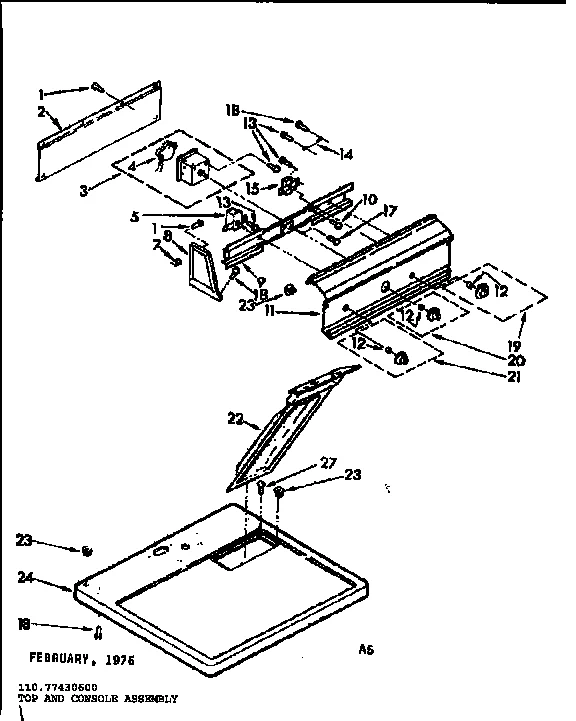

TOP AND CONSOLE ASSEMBLY

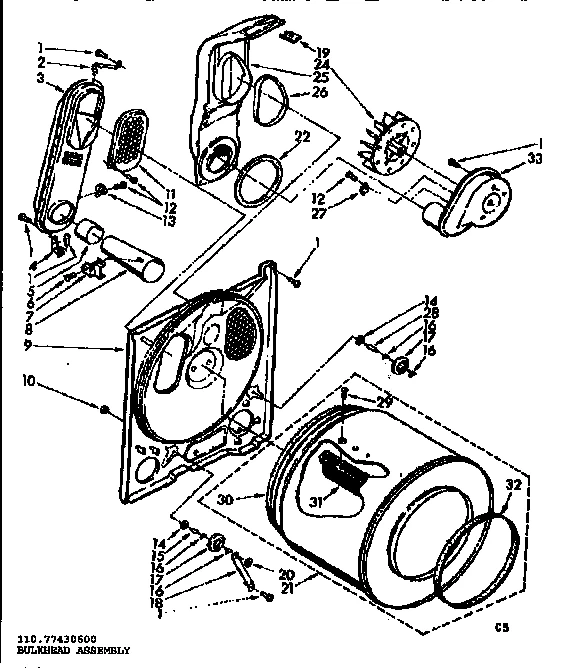

BULKHEAD ASSEMBLY
All Parts

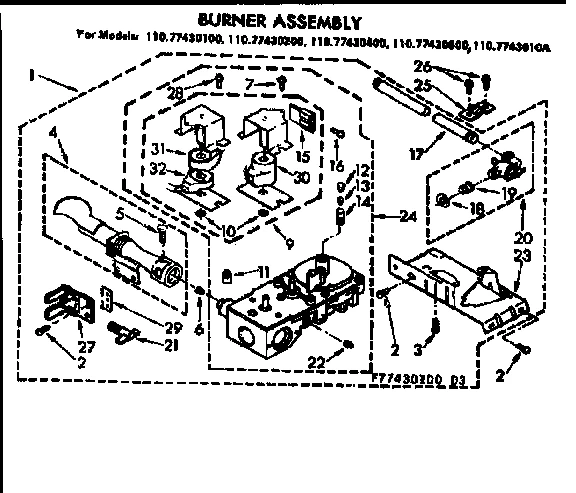

BURNER ASSEMBLY
Common parts from model Whirlpool 1107743010A Gas Dryer (Kenmore 1107743010A)
1
(338471) (ALT.) WPL N/P Contact Us For Availability
1A
Burner WPL 349621 Contact Us For Availability
1B
Burner WPL 349834 Contact Us For Availability
2
Panel WPL 356713 Contact Us For Availability
3
Heater Duct WPL 337362 Contact Us For Availability
3A
Timer-60 Cy WPL 341573 Contact Us For Availability
3B
Timer 50hz WPL 347167 Contact Us For Availability
4
Box Support WPL 337445 Contact Us For Availability
4
Brnr/shttr WPL 297536 Contact Us For Availability
4A
Motor WPL 343529 Contact Us For Availability
4B
Timer Motor WPL 299526 Contact Us For Availability
5
Switch WPL 348478 Contact Us For Availability
5
Screw WPL 98611 Contact Us For Availability
6
Screw WPL 98520 Contact Us For Availability
6B
Burner Orifice WPL 15775 Contact Us For Availability
6C
Burner Orifice WPL 15419 Contact Us For Availability
7
Clip WPL 98084 Contact Us For Availability
8A
Cap WPL 357436 Contact Us For Availability
8B
Cap WPL 357437 Contact Us For Availability
9
Bracket WPL 369054 Contact Us For Availability
9
Bulkhead WPL 348970 Contact Us For Availability
9A
Coil WPL 347357 Contact Us For Availability
9B
Coil WPL 342886 Contact Us For Availability
10
O-Ring WPL 296302 Contact Us For Availability
11
Panel WPL 686095 Contact Us For Availability
11
Connector WPL 340140 Contact Us For Availability
11A
Door Cable Guide WPL 337182 Contact Us For Availability
11B
Guide WPL 337183 Contact Us For Availability
12
Compression Ring WPL 90015 Contact Us For Availability
12
Leak Limiter WPL 338868 Contact Us For Availability
13
Thermostat WPL 338471 Contact Us For Availability
13
Screw WPL 99996 Contact Us For Availability
14
Ground Wire WPL 340025 Contact Us For Availability
14
Spring WPL 339226 Contact Us For Availability
15
Washer Terminal Connector WPL 353424 Contact Us For Availability
15
Thermostat WPL 346951 Contact Us For Availability
16
Tap Screw WPL 98824 Contact Us For Availability
17
Screw, Nibbed WPL 339607 Contact Us For Availability
17
Gas Pipe WPL 233273 Contact Us For Availability
18
Nut Union WPL 233076 Contact Us For Availability
18
Screw WPL 355326 Contact Us For Availability
18
Bracket WPL 348945 Contact Us For Availability
19
Knob WPL 369153 Contact Us For Availability
19
Clip WPL 338177 Contact Us For Availability
20
Knob and Clip Assembly WPL 349615 Contact Us For Availability
20
Valve WPL 345106 Contact Us For Availability
21
Knob WPL 346477 Contact Us For Availability
21A
Door Hinge WPL 238456 Contact Us For Availability
22B
Screen WPL 348857 Contact Us For Availability
22C
Screen (Almond) WPL 348856 Contact Us For Availability
23
Base WPL 338455 Contact Us For Availability
24A
Top (White) WPL 349494 Contact Us For Availability
24A
Gas Valve WPL 347257 Contact Us For Availability
24B
Top WPL 349495 Contact Us For Availability
24B
Valve WPL 349830 Contact Us For Availability
24C
Top WPL 349496 Contact Us For Availability
24D
Top WPL 349497 Contact Us For Availability
27
Screw WPL 128060 Contact Us For Availability
27
Thermostat WPL 295432 Contact Us For Availability
28
Screw WPL 340182 Contact Us For Availability
29
Insulator WPL 340609 Contact Us For Availability
30
Coil WPL 348376 Contact Us For Availability
31
Coil WPL 348375 Contact Us For Availability
32
Coil WPL 348374 Contact Us For Availability
33
Housing WPL 348495 Contact Us For Availability
37
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
45B
Panel WPL 686400 Contact Us For Availability
45C
Panel WPL 345266 Contact Us For Availability
45D
Panel (Gold) WPL 347247 Contact Us For Availability
47A
Door (White) WPL 346395 Contact Us For Availability
47B
Door WPL 346396 Contact Us For Availability
47C
Door WPL 346397 Contact Us For Availability
47D
Door (Gold) WPL 346398 Contact Us For Availability
49A
Door (White) WPL 348737 Contact Us For Availability
49B
Door WPL 348739 Contact Us For Availability
49C
Door WPL 348738 Contact Us For Availability
49D
Door (Gold) WPL 348740 Contact Us For Availability
51B
Panel WPL 686405 Contact Us For Availability
51C
Panel WPL 686406 Contact Us For Availability
51D
Panel WPL 686407 Contact Us For Availability
55
Clip WPL 344083 Contact Us For Availability
59
Screw WPL 9425761 Contact Us For Availability
60B
Handle WPL 348723 Contact Us For Availability
60D
Handle (Gold) WPL 348724 Contact Us For Availability
62
Receptacle WPL 353425 Contact Us For Availability
NI
Toe Panel (White) WPL 237035 Contact Us For Availability
NI
Panel (White) WPL 337470 Contact Us For Availability
NI
Screw WPL 132848 Contact Us For Availability
NI
Ground Wire WPL 364089 Contact Us For Availability
NI
Ground Strap WPL 22965 Contact Us For Availability
NI
Clip Panel WPL 297865 Contact Us For Availability
NI
Instructions WPL 337490 Contact Us For Availability
NI
Instructions WPL 346365 Contact Us For Availability
NI
Owner's Manual WPL 347149 Contact Us For Availability
NI
Instructions WPL 685648 Contact Us For Availability
NI
Label WPL 686134 Contact Us For Availability
NI
Adapter Plug WPL 92925 Contact Us For Availability
NI
Instructions WPL LIT339896 Contact Us For Availability
NI
Installation Instructions WPL LIT340704 Contact Us For Availability
NI
Label WPL LIT345485 Contact Us For Availability
NI
Parts List WPL LIT686062 Contact Us For Availability
× ![]()
