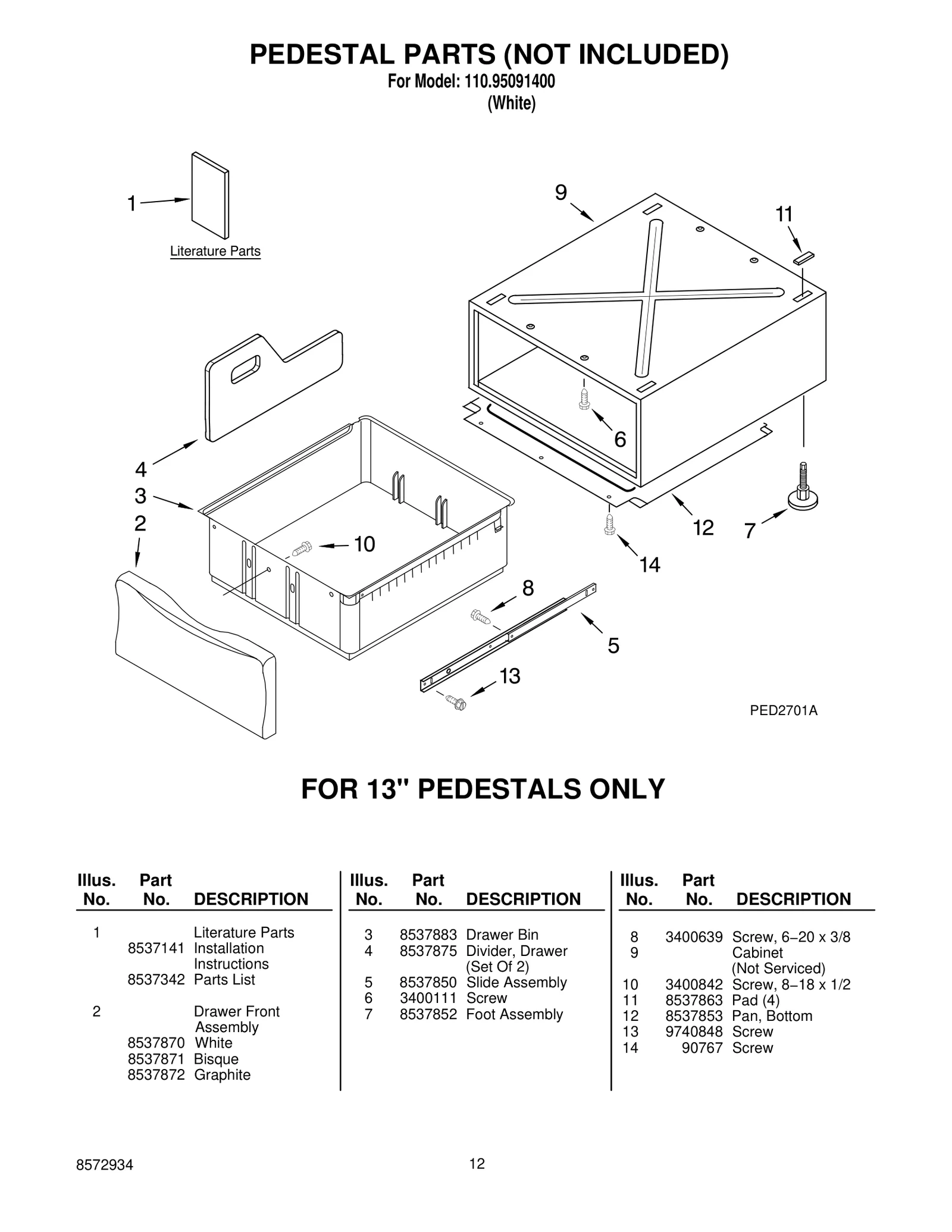

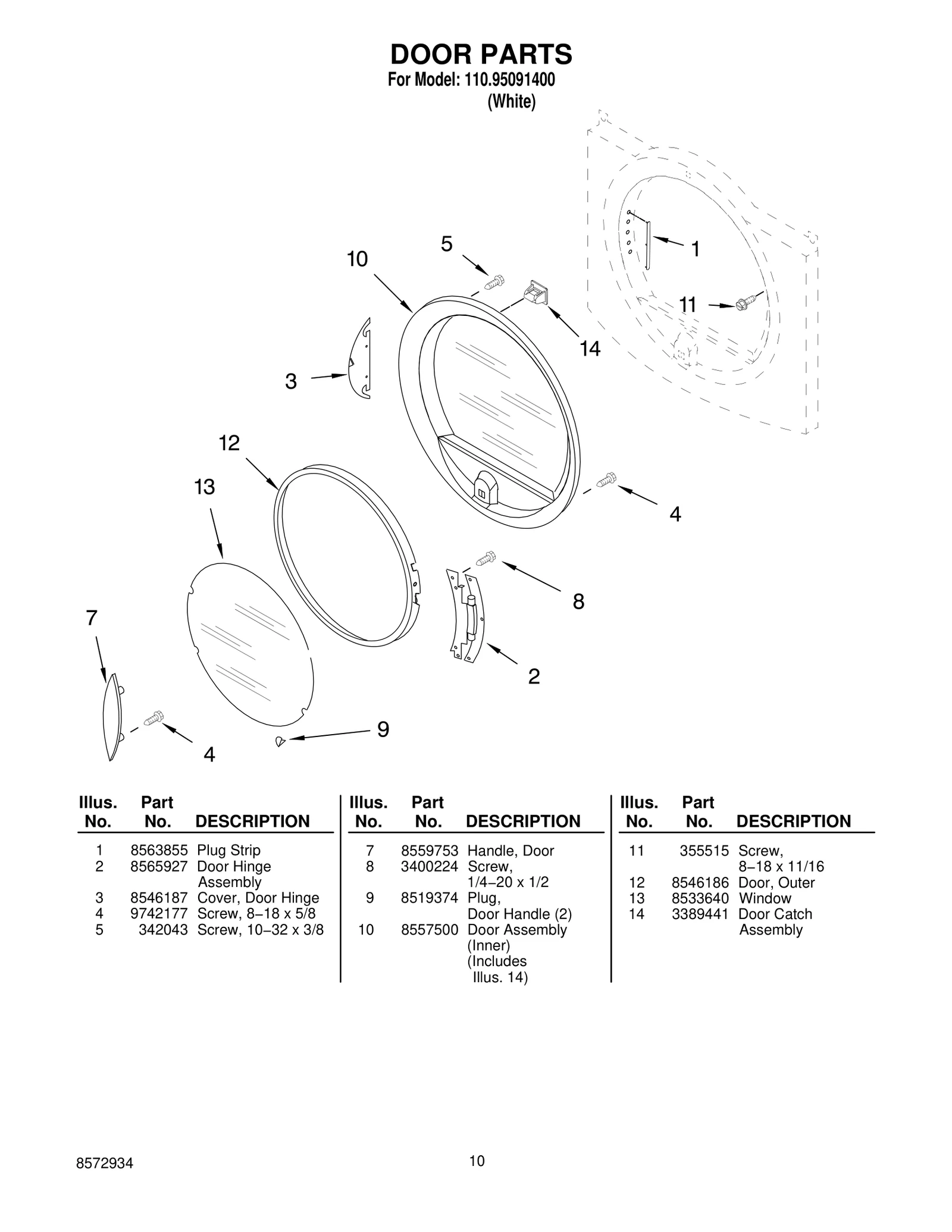

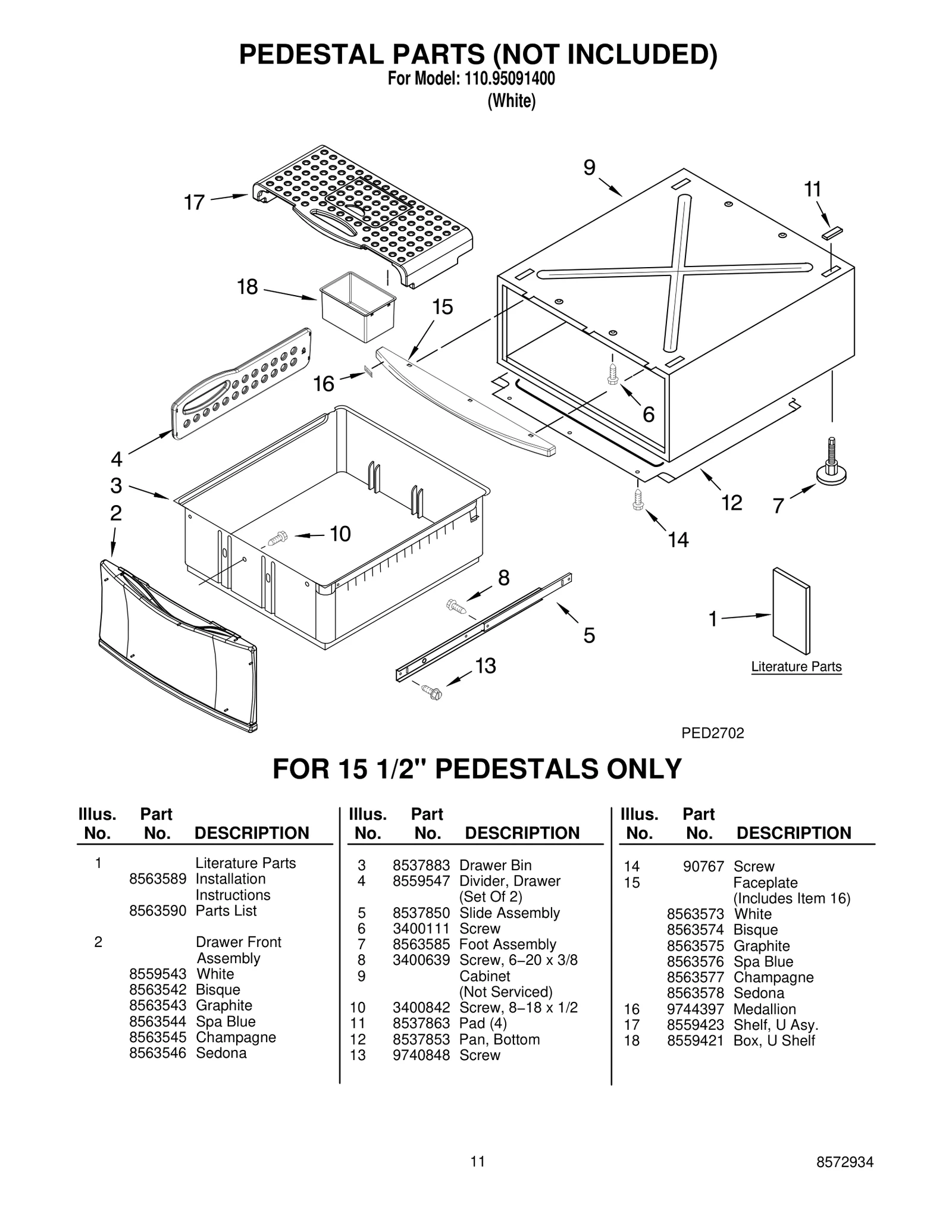

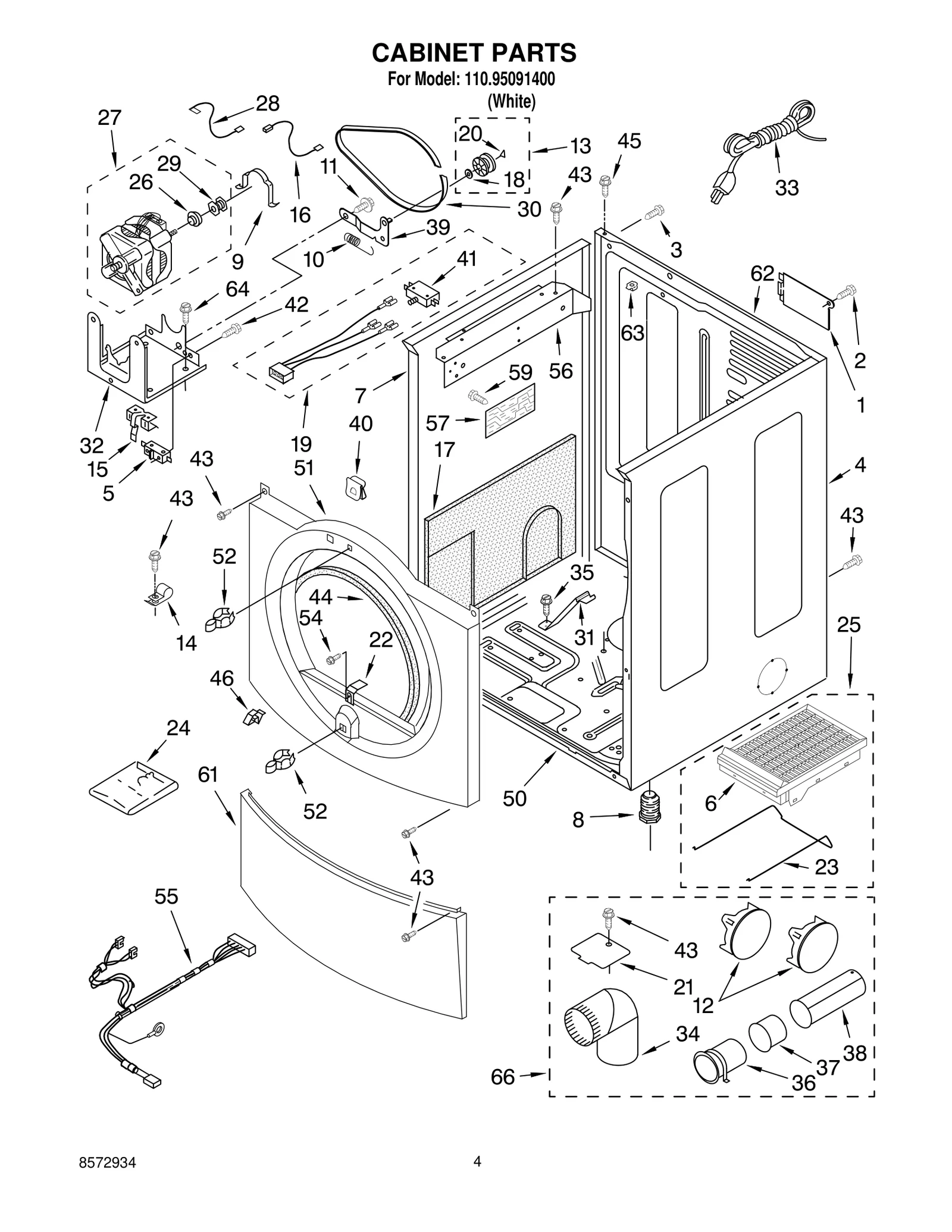

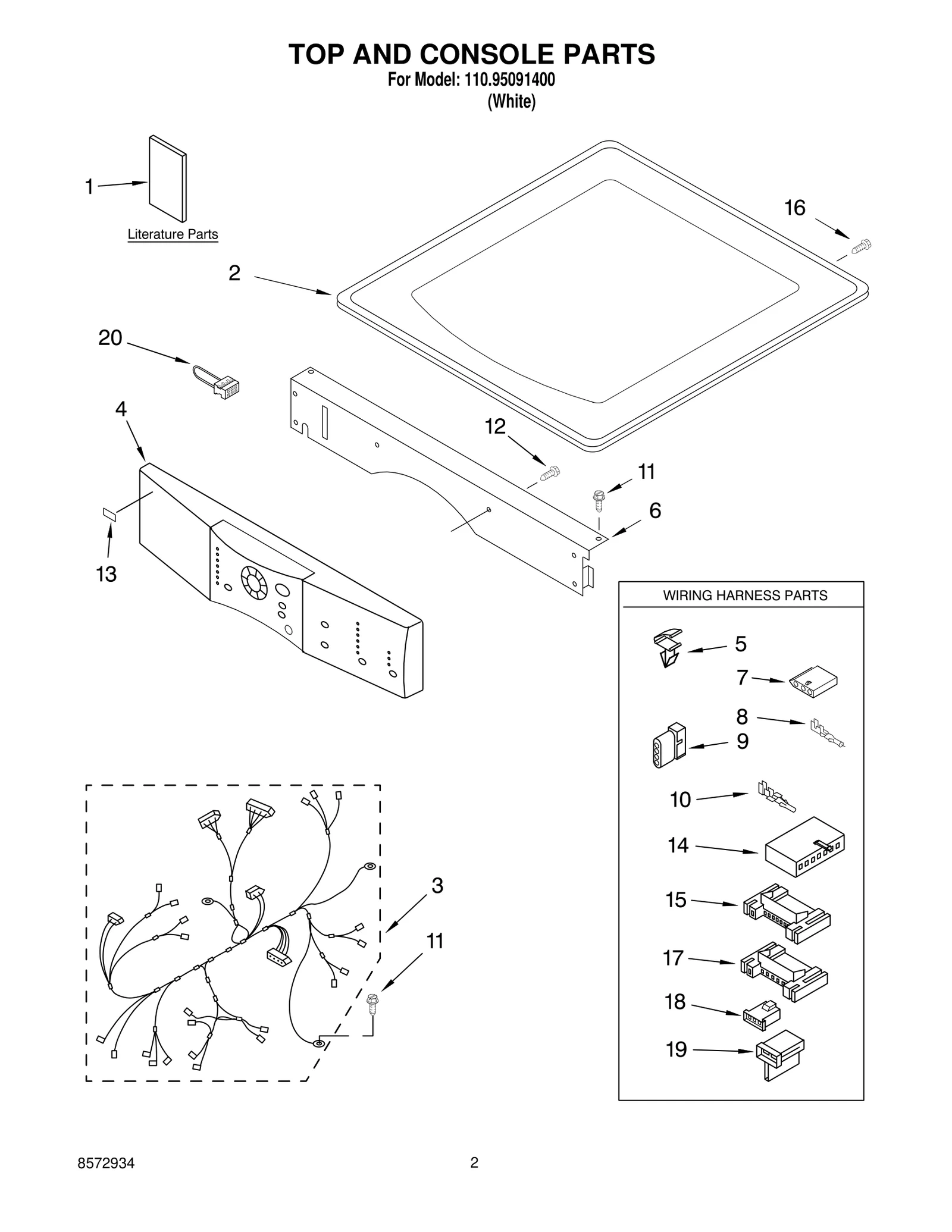

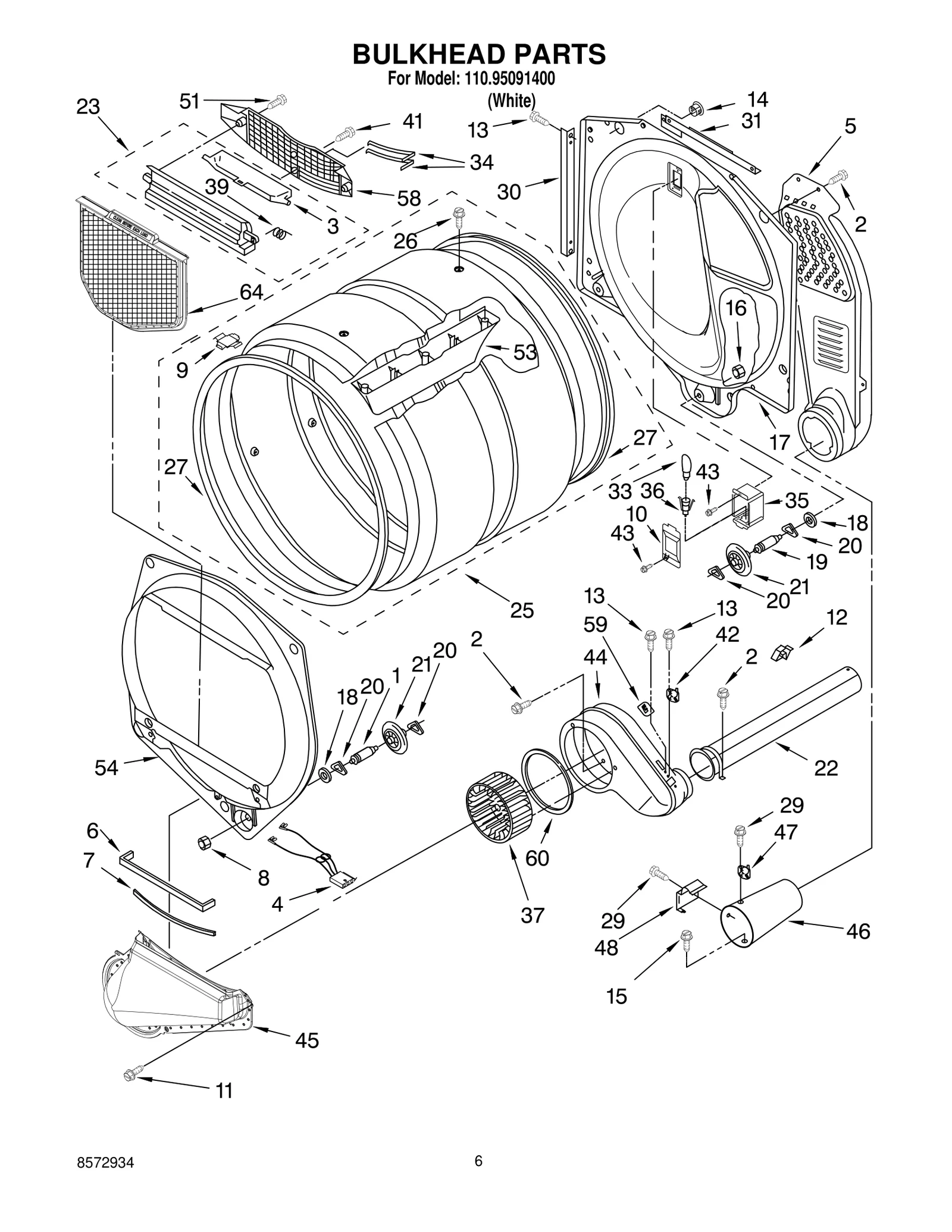

Model Whirlpool 110.95091400 Dryer – Common Parts &amp; Diagrams

1

Plug Strip WPL 8563855 Contact Us For Availability

1

Installation Instructions WPL 8563589 Contact Us For Availability

1

Parts List WPL 8563590 Contact Us For Availability

1

Installation Instructions WPL 8537141 Contact Us For Availability

1

Parts List WPL 8537342 Contact Us For Availability

2

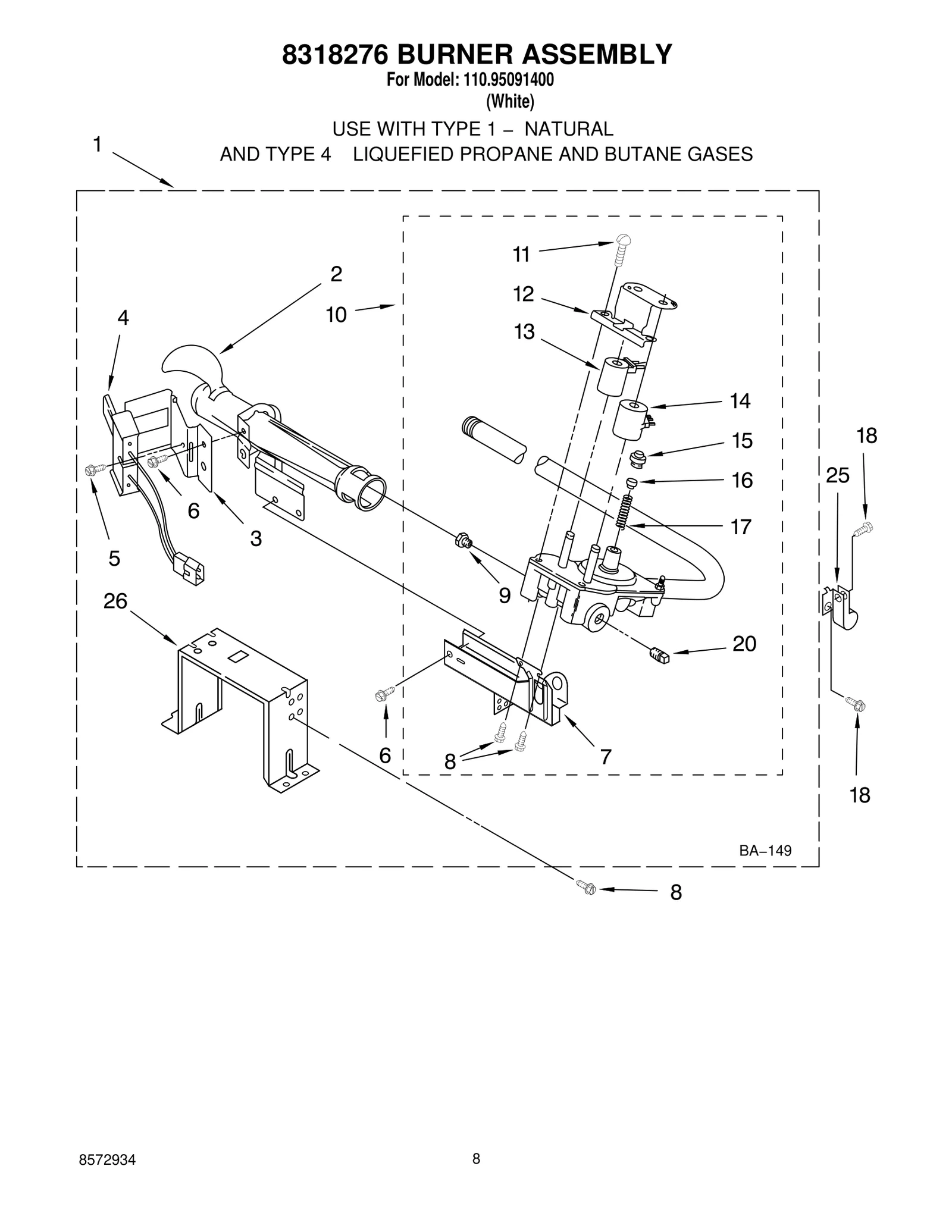

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

2

Door Hinge Assembly WPL 8565927 Contact Us For Availability

2

Drawer Front Assembly — White WPL 8559543 Contact Us For Availability

2

Drawer Front Assembly — Bisque WPL 8563542 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8563543 Contact Us For Availability

2

Drawer Front Assembly — Spa Blue WPL 8563544 Contact Us For Availability

2

Drawer Front Assembly — Champagne WPL 8563545 Contact Us For Availability

2

Drawer Front Assembly — Sedona WPL 8563546 Contact Us For Availability

2

Drawer Front Assembly — White WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly — Bisque WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8537872 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Harness, Main WPL 8299950 Contact Us For Availability

3

Cover, Door Hinge WPL 8546187 Contact Us For Availability

3

Drawer Bin WPL 8537883 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $74.58

4

Screw, 8−18 x 5/8 WPL 9742177 Contact Us For Availability

4

Divider, Drawer WPL 8559547 Contact Us For Availability

4

Divider, Drawer WPL 8537875 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $72.49

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Screw, 10−32 x 3/8 WPL 342043 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $3.92

7

W10819774 Whirlpool Dryer Door Handle Assembl Backorder WPL W10819774 $56.67

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $9.19

7

Connector, Sensor WPL 353424 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Screw, 1/4−20 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Plug, Door Handle (2) WPL 8519374 Contact Us For Availability

9

Cabinet WPL N/S Contact Us For Availability

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $263.47

10

Door Assembly (Includes WPL 8557500 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

Pad (4) WPL 8537863 Contact Us For Availability

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

Door, Outer WPL 8546186 Contact Us For Availability

Bracket, Coil WPL 694538 Contact Us For Availability

Pan, Bottom WPL 8537853 Contact Us For Availability

13

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

13

Window WPL 8533640 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

14

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Faceplate — White WPL 8563573 Contact Us For Availability

Faceplate — Bisque WPL 8563574 Contact Us For Availability

Faceplate — Graphite WPL 8563575 Contact Us For Availability

Faceplate — Spa Blue WPL 8563576 Contact Us For Availability

Faceplate — Champagne WPL 8563577 Contact Us For Availability

Faceplate — Sedona WPL 8563578 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Medallion WPL 9744397 Contact Us For Availability

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

17

Shelf, U Asy. WPL 8559423 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

Box, U Shelf PED2702 FOR 15 1/2" PEDESTALS ON WPL 8559421 Contact Us For Availability

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $77.75

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $48.67

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

26

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $26.29

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

26

Bracket, Support Following Parts Not Illustra WPL 3389889 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

Clip, S−Type (3) WPL 62825 Contact Us For Availability

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $51.17

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $133.28

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $103.46

47

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $9.66

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

Harness, Digital Interface WPL 8299929 Contact Us For Availability

57

Control Board WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $26.66

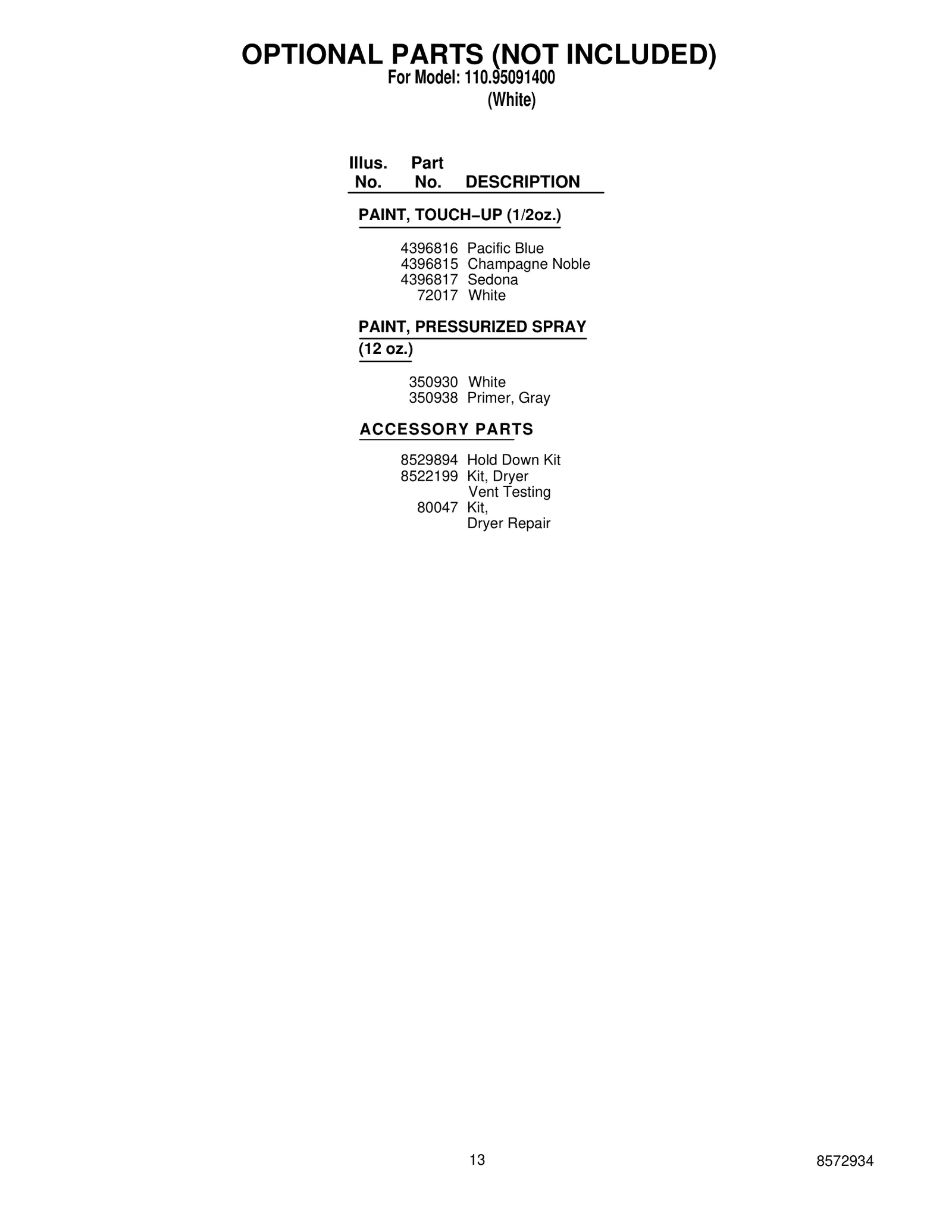

OPT-1

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $8.00

OPT-2

Champagne Noble WPL 4396815 Contact Us For Availability

OPT-3

Sedona WPL 4396817 Contact Us For Availability

OPT-4

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-6

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-7

Hold Down Kit WPL 8529894 Contact Us For Availability

OPT-8

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

OPT-9

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $37.72
