Model Whirlpool 110.88762792 Laundry Center (Kenmore 11088762792) – Common Parts &amp; Diagrams

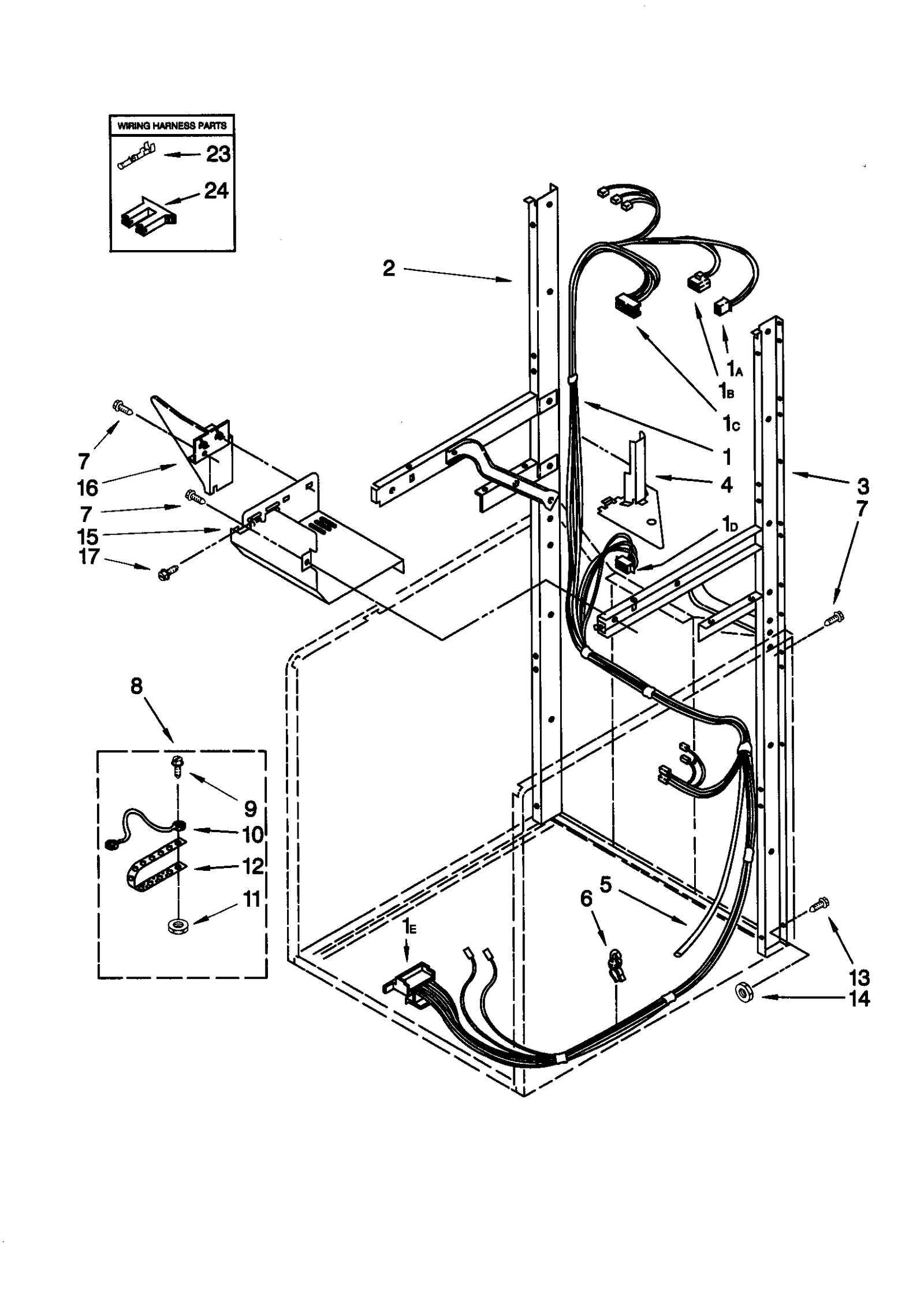

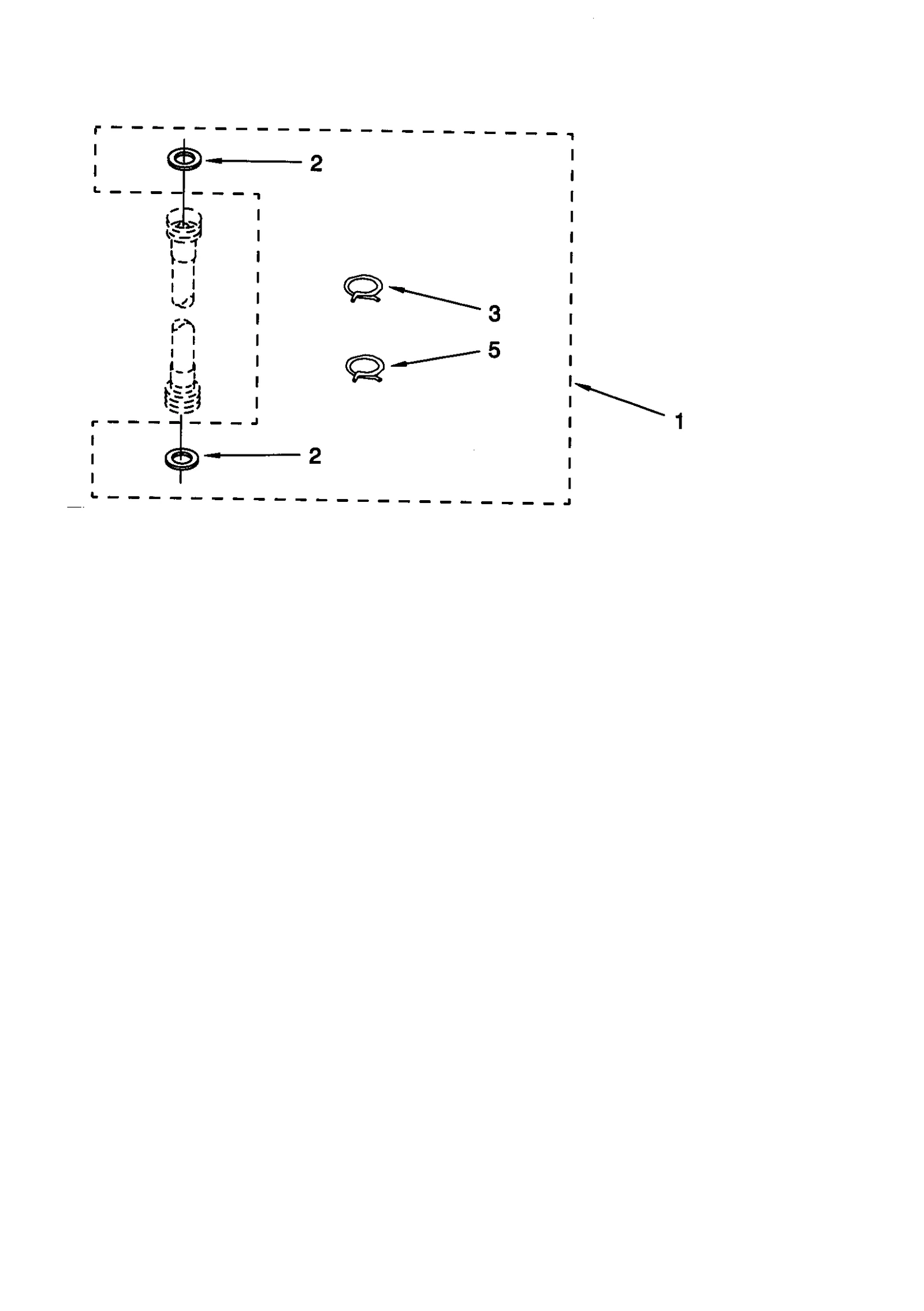

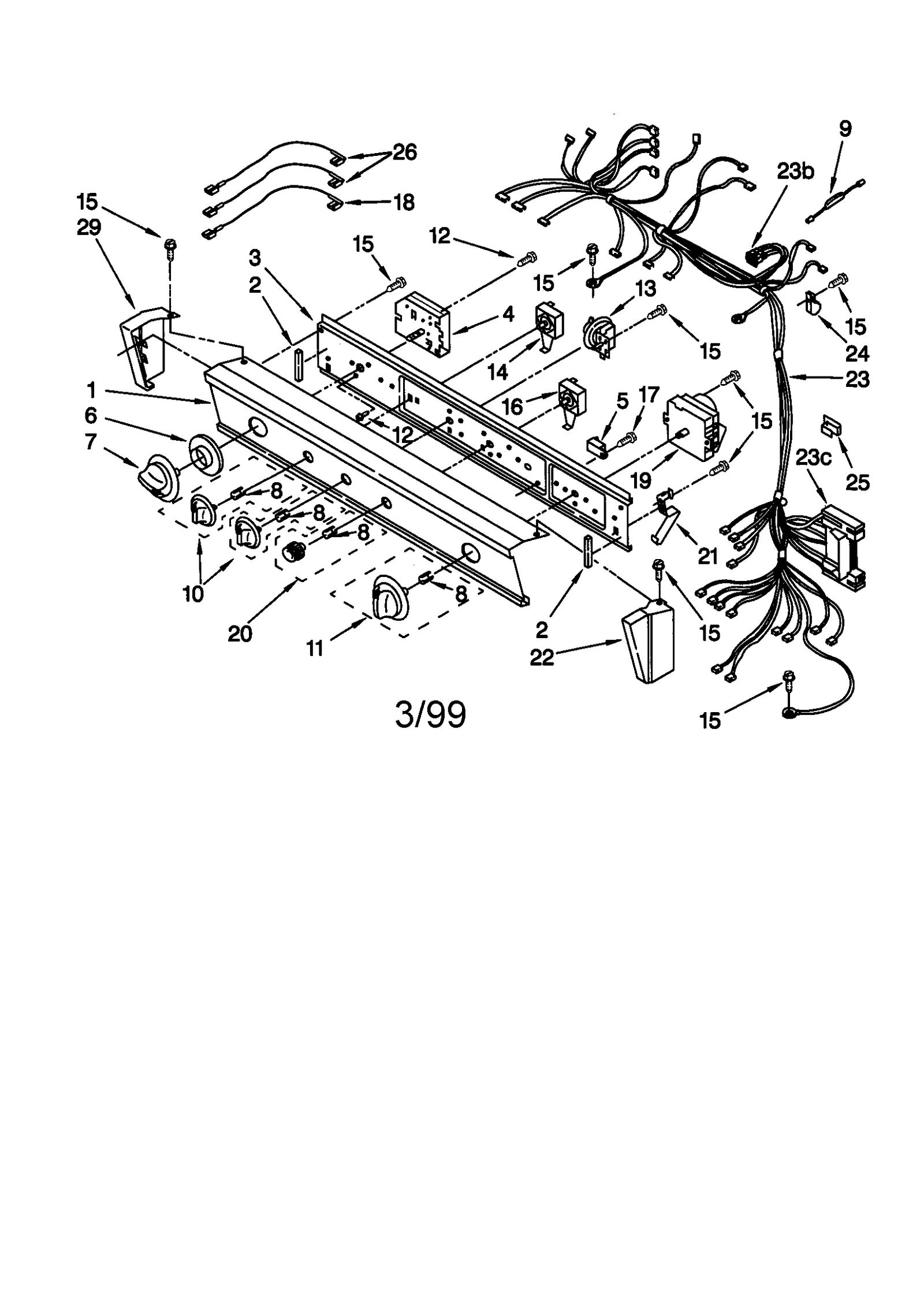

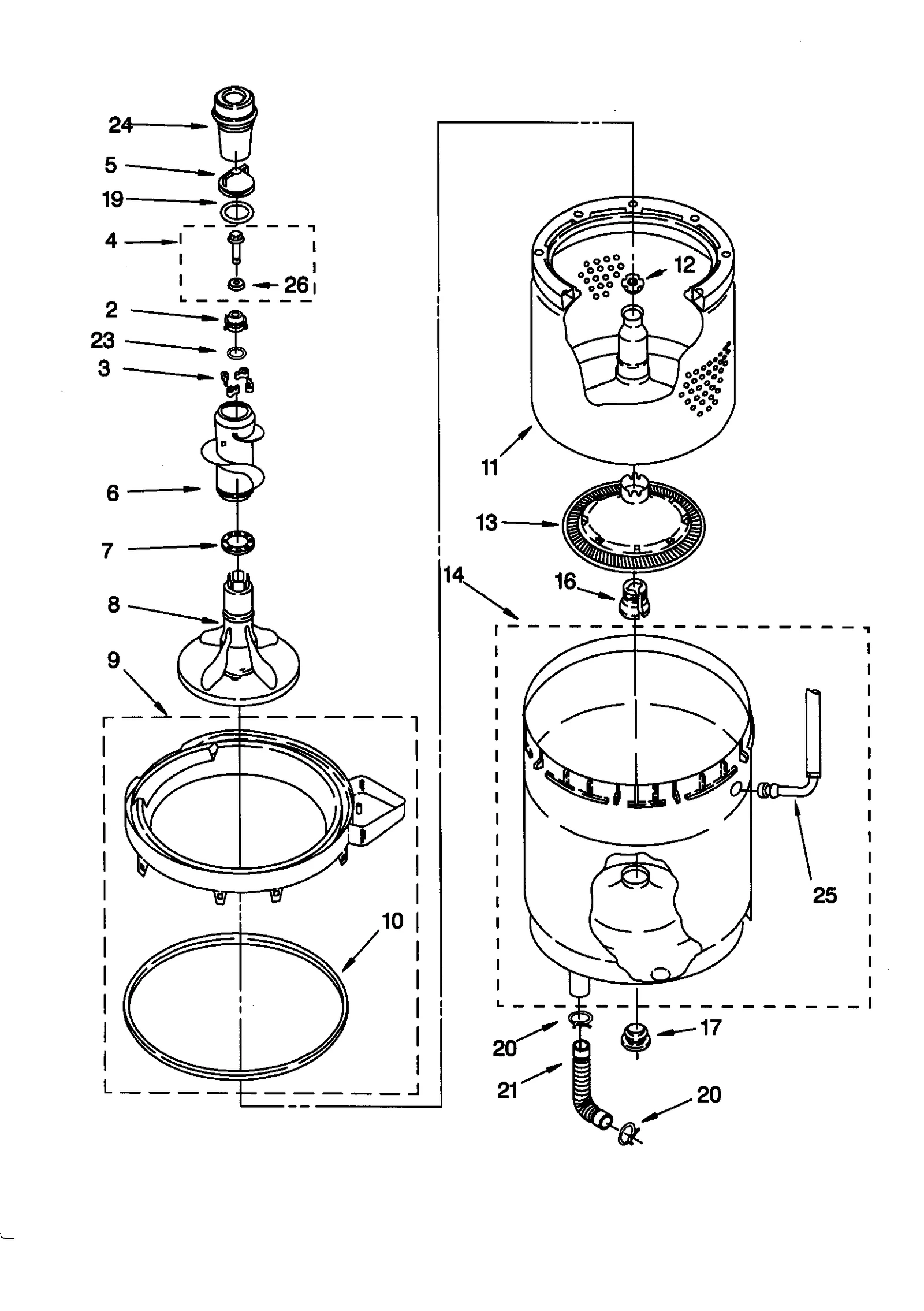

1

3349770 Whirlpool Clip Backorder WPL 3349770 $9.35

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

1A

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

1E

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

2

3349767 Whirlpool Bracket Assembly Backorder WPL 3349767 $12.83

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

3

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

4

279782 Whirlpool Lid Switch In Stock WPL 279782 $37.12

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

4

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $62.14

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

4

Laundry Center Control Timer WPL 3951973 Contact Us For Availability

5

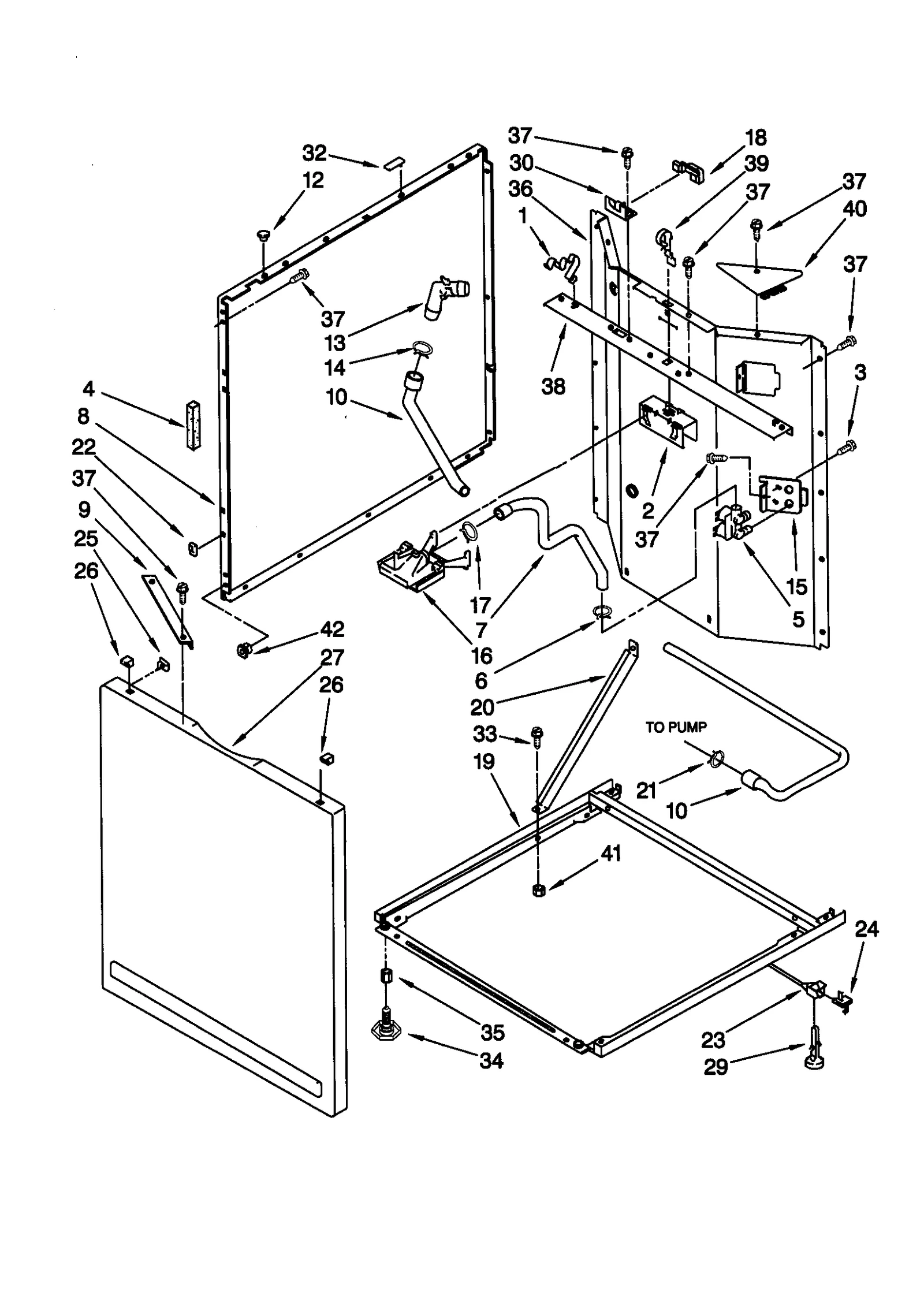

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

5

W11107903 Whirlpool Bracket In Stock WPL W11107903 $37.72

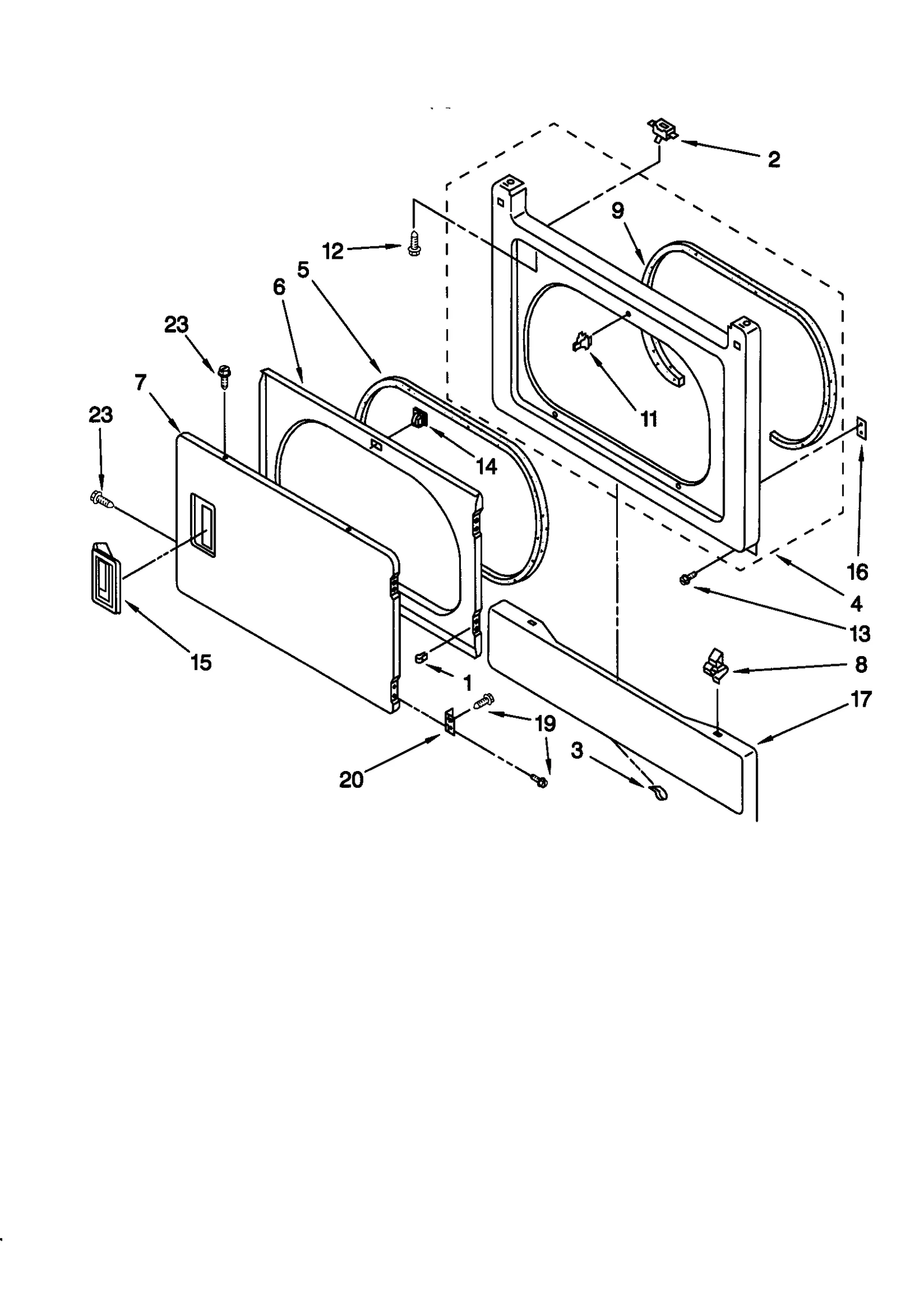

5

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $91.47

5

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

5

Bracket WPL 64065 Contact Us For Availability

5A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

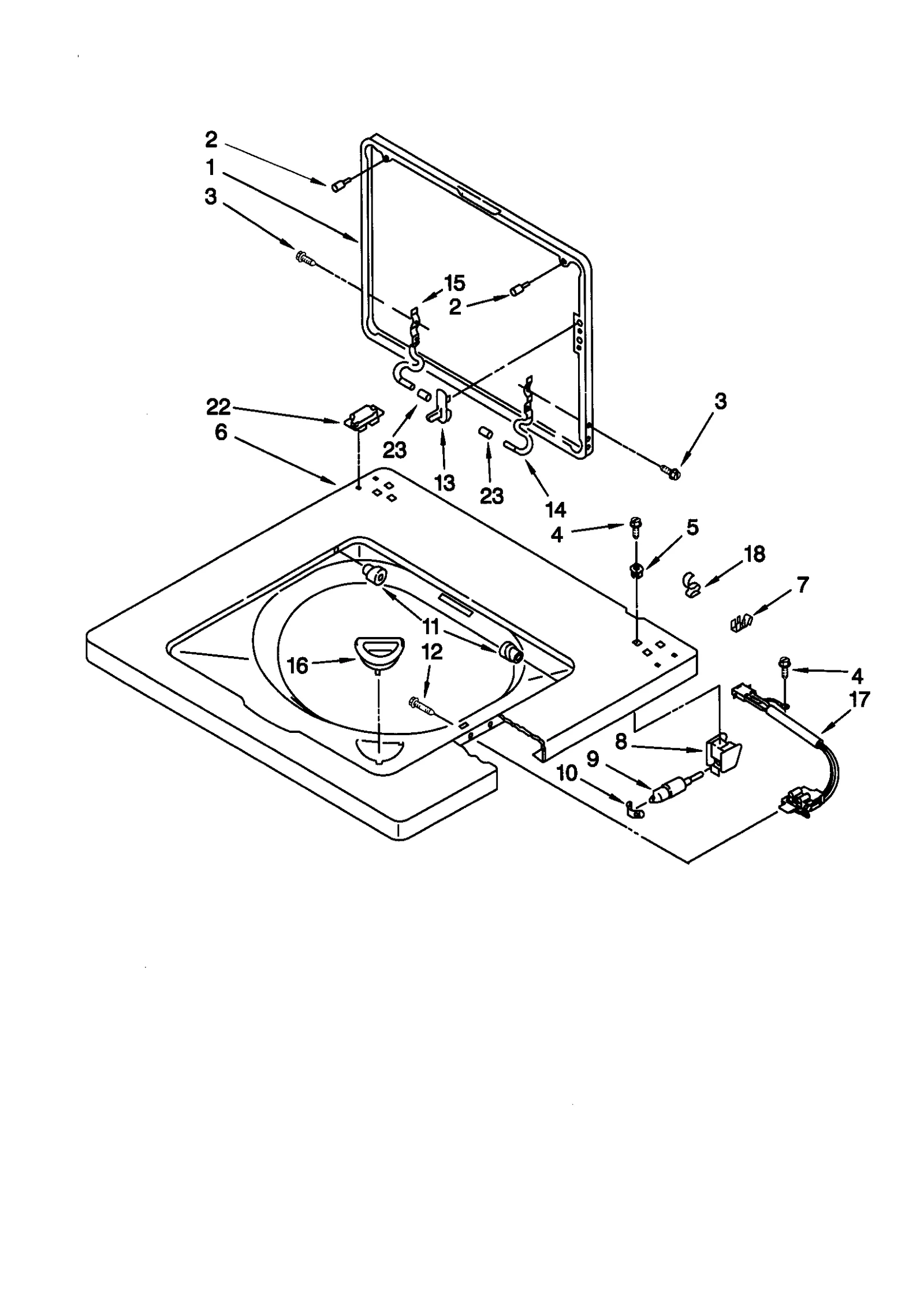

6

3349817 Whirlpool Top Assembly Backorder WPL 3349817 $237.45

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $43.97

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

Washer Timer Dial WPL 3949428 Contact Us For Availability

6

Rear Panel WPL 3389847 Contact Us For Availability

7

3352236 Whirlpool Hose Assembly Backorder WPL 3352236 $18.51

8

279814 Whirlpool Cover Backorder WPL 279814 $71.00

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $5.44

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $225.13

8

WP3349578 Whirlpool Agitator Backorder WPL WP3349578 $127.66

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

8

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

8A

Panel Al WPL 3349456 Contact Us For Availability

9

3350744 Whirlpool Brace Assembly Backorder WPL 3350744 $19.52

9

WP3350152 Whirlpool Retainer Backorder WPL WP3350152 $223.52

9

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

9

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

3389264 Whirlpool Panel Assembly Backorder WPL 3389264 $229.65

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $19.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

Washer Control Knob WPL 3402572 Contact Us For Availability

Washer Retainer Clip WPL 3350828 Contact Us For Availability

Pump Hose WPL 3353841 Contact Us For Availability

10A

Washer Control Knob WPL 3402574 Contact Us For Availability

10A

Panel Al WPL 3389265 Contact Us For Availability

10B

3389256 Whirlpool Panel Backorder WPL 3389256 $227.09

10C

Panel Al WPL 3389257 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

Amana Laundry Center Washer Spin Basket WPL 3352234 Contact Us For Availability

Dryer Control Knob WPL 3402594 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $63.41

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

13

W11213338 Whirlpool Connector Backorder WPL W11213338 $51.27

13

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

3350101 Whirlpool Hinge Backorder WPL 3350101 $21.90

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $161.10

WP3387749 Whirlpool Heating Element In Stock WPL WP3387749 $231.09

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

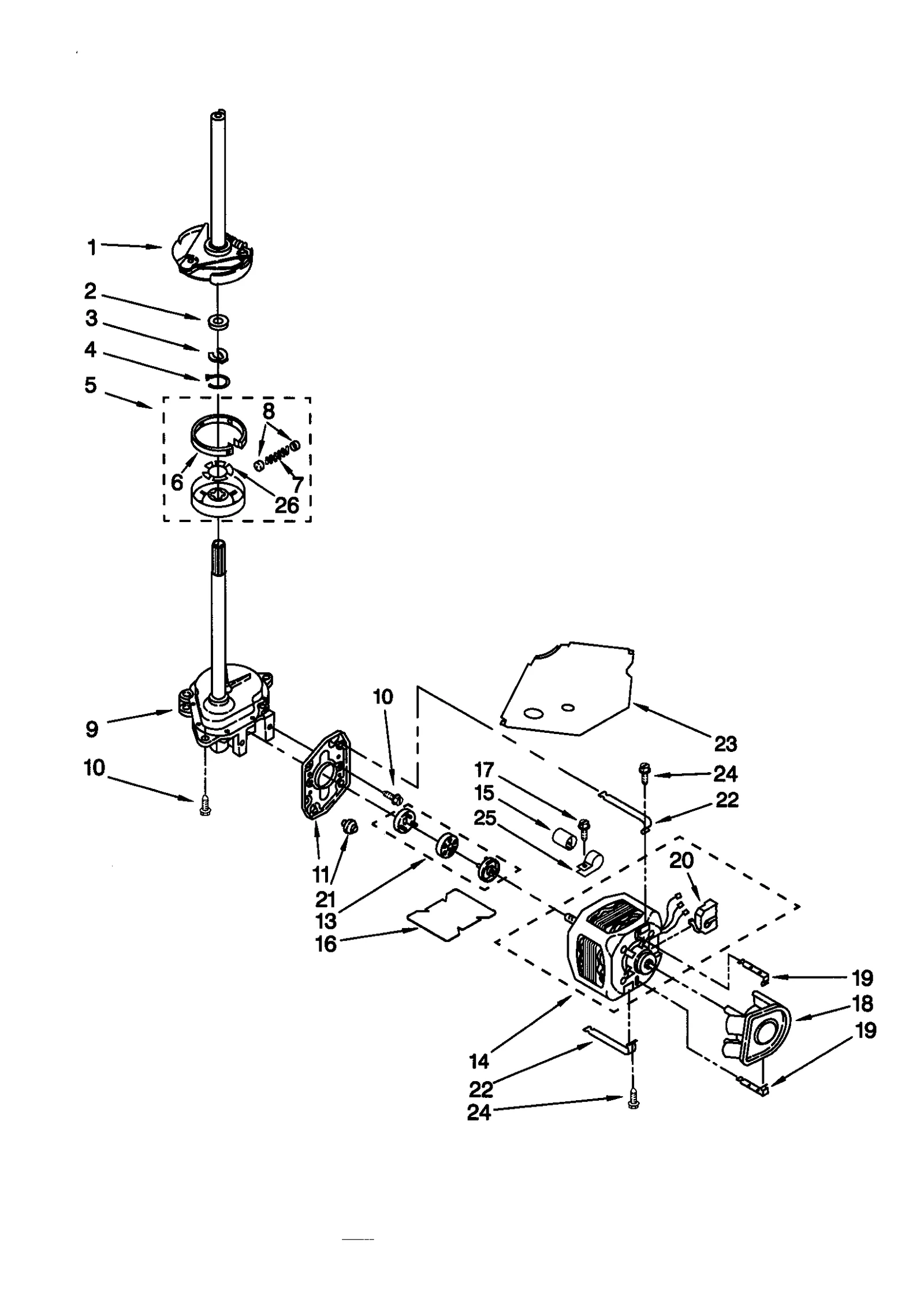

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $9.45

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $22.45

3389231 Whirlpool Clip Front Panel Backorder WPL 3389231 $8.37

3389522 Whirlpool Handle Backorder WPL 3389522 $57.04

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $5.19

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

Laundry Center Dryer Push-to-Start Switch WPL 3405274 Contact Us For Availability

3388958 Whirlpool Panel Backorder WPL 3388958 $91.57

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

W11100260 Whirlpool Bracket Backorder WPL W11100260 $12.40

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $38.35

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.57

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $39.50

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

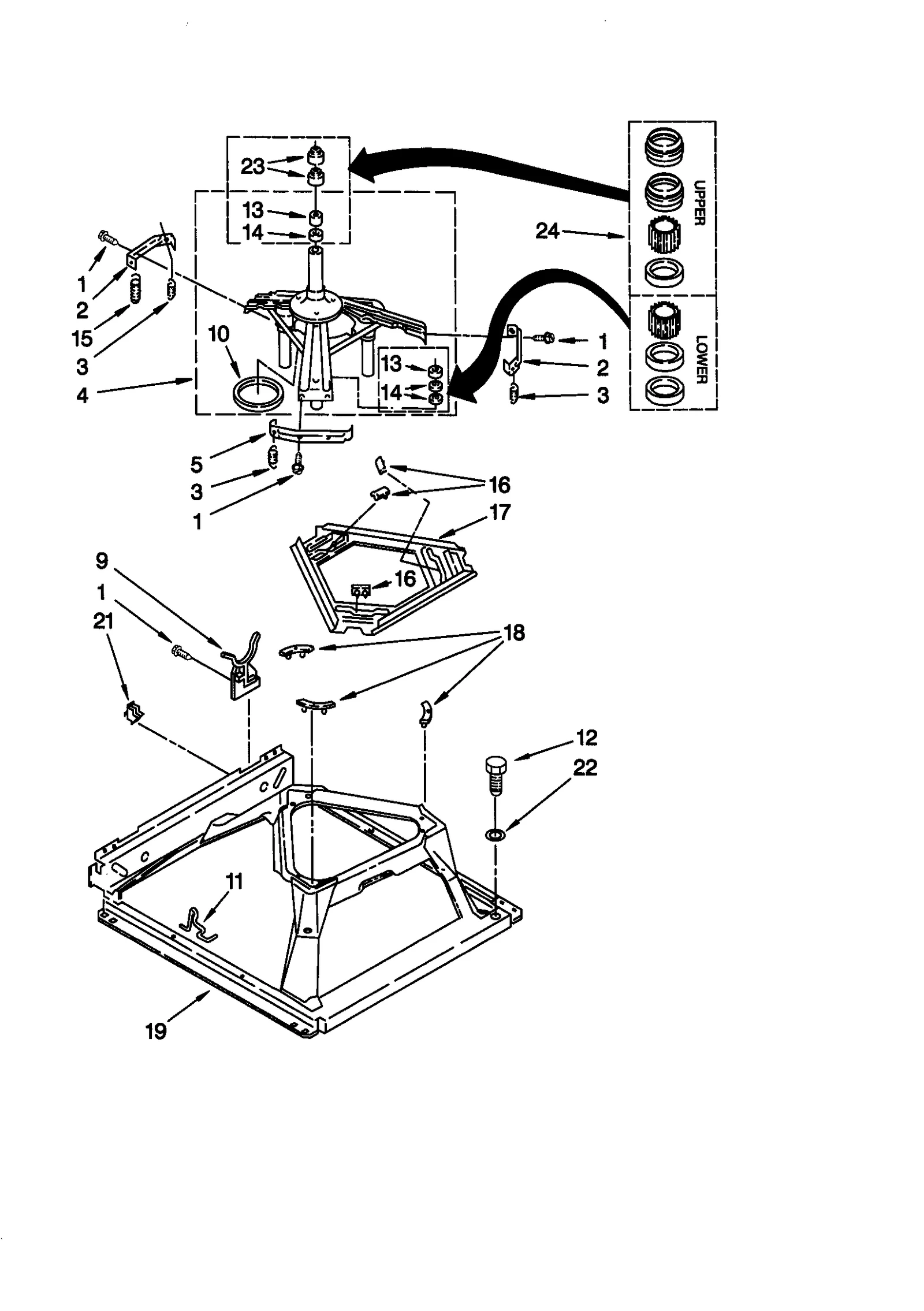

WP3402724 Whirlpool Washer Base Backorder WPL WP3402724 $152.62

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

Amana Washer Base WPL 3349343 Contact Us For Availability

3388857 Whirlpool Bracket Backorder WPL 3388857 $57.39

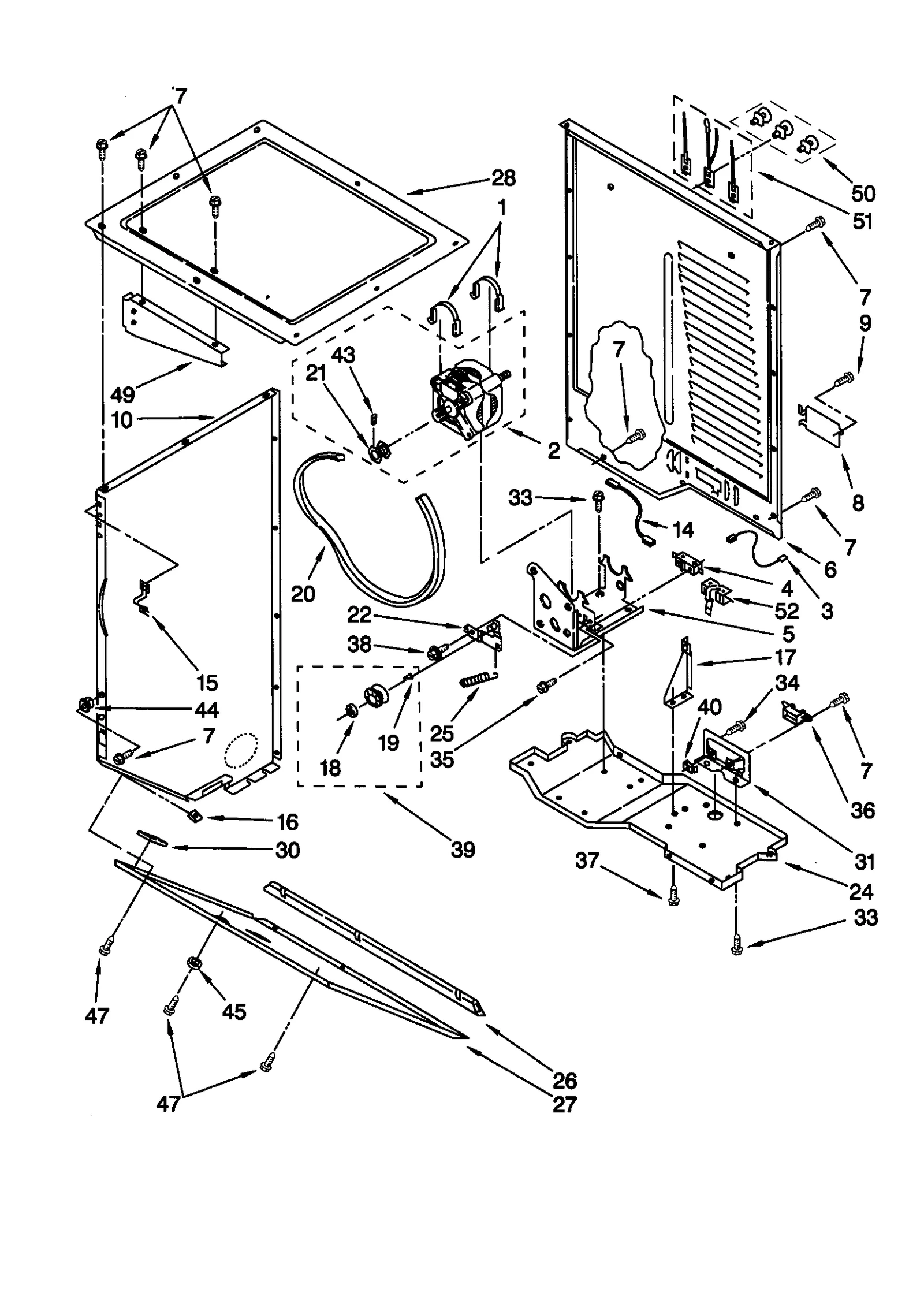

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $22.27

W11175815 Whirlpool Hinge Backorder WPL W11175815 $60.12

Switch WPL 62850 Contact Us For Availability

279811 Whirlpool Dryer Drive Motor In Stock WPL 279811 $203.45

3349749 Whirlpool Restrainer Backorder WPL 3349749 $8.23

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $63.26

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

W11116924 Whirlpool Locator Backorder WPL W11116924 $14.02

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

WPW10547294 Whirlpool Idler Pulley In Stock WPL WPW10547294 $18.27

Washer WPL 3349340 Contact Us For Availability

23

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

23

WP3349311 Whirlpool Link In Stock WPL WP3349311 $65.85

23

O-Ring WPL 64002 Contact Us For Availability

23A

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

23C

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $52.33

WP359364 Whirlpool Clip In Stock WPL WP359364 $5.30

Dryer Base WPL 3390026 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

Washer Bleach Dispenser Hose WPL 3948705 Contact Us For Availability

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $90.43

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

Clip WPL 3355454 Contact Us For Availability

27

3389272 Whirlpool Panel Backorder WPL 3389272 $180.02

27

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $231.61

27A

Panel Al WPL 3389273 Contact Us For Availability

27A

Panel Al WPL 3349500 Contact Us For Availability

28

Top-dryer WPL 3389537 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $9.46

29

Endcap W WPL 3389464 Contact Us For Availability

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $39.48

30

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.85

31

3393721 Whirlpool Bracket Backorder WPL 3393721 $13.15

32

Nut WPL 352292 Contact Us For Availability

33

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

33

Screw, 5/16-18 X 1 WPL 3400300 Contact Us For Availability

34

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

34

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

35

3390935 Whirlpool Clip Backorder WPL 3390935 $7.77

35

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

35

Nut WPL 124829 Contact Us For Availability

36

8564987 Whirlpool Panel Backorder WPL 8564987 $232.25

36

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $13.57

37

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

38

3349697 Whirlpool Back Rail Backorder WPL 3349697 $54.42

38

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

39

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.68

40

3390608 Whirlpool Shield Assembly Backorder WPL 3390608 $8.30

40

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

Nut WPL 3393720 Contact Us For Availability

41

Nut WPL 3393930 Contact Us For Availability

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

43

Screw WPL 3392285 Contact Us For Availability

44

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

45

WP3389431 Whirlpool Bumper Assembly Backorder WPL WP3389431 $7.32

47

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

48

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $51.28

49

3390722 Whirlpool Shield Assembly Backorder WPL 3390722 $57.92

50

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

50

WP3403607 Whirlpool Thermoprotector In Stock WPL WP3403607 $28.46

51

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

51

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $63.78

52

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

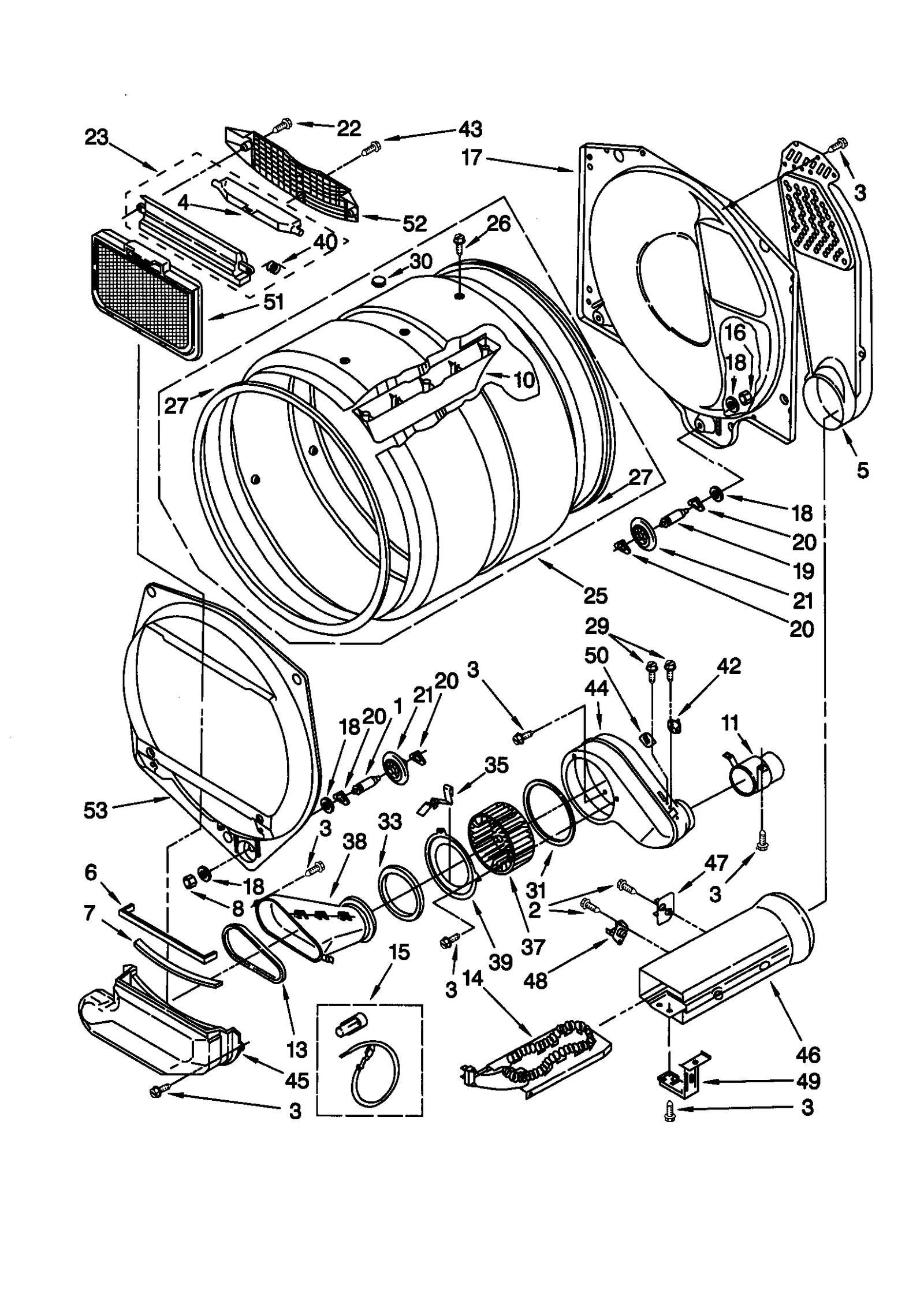

53

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $138.45

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $90.30

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Installation Instructions WPL LIT3401829 Contact Us For Availability

Technical Sheet WPL LIT3402134 Contact Us For Availability

Wiring Diagram WPL LIT3404409 Contact Us For Availability

Energy Guide WPL LIT3977369 Contact Us For Availability

Owner's Manual WPL LIT3977679 Contact Us For Availability

Parts List WPL LIT3977681 Contact Us For Availability
