Model Whirlpool 110.86379610 Electric Dryer (Kenmore 11086379610) – Common Parts & Diagrams
BULKHEAD DRUM & HEATER BOX PARTS

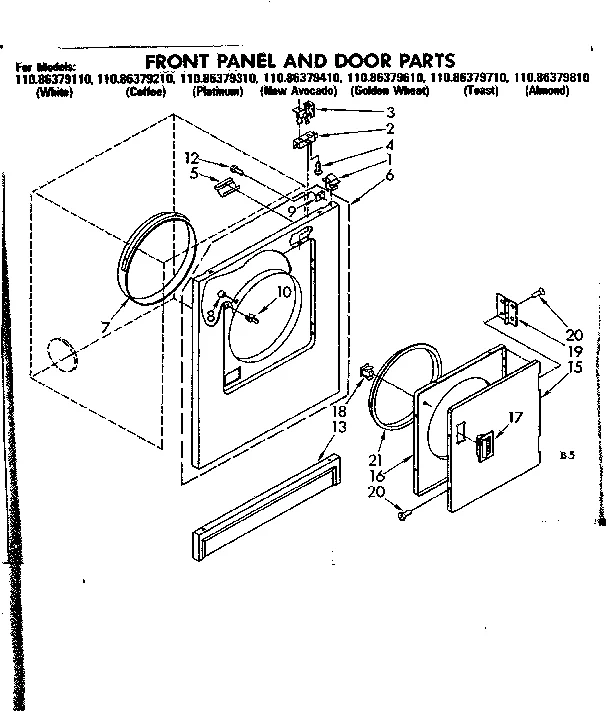

FRONT PANEL AND DOOR PARTS

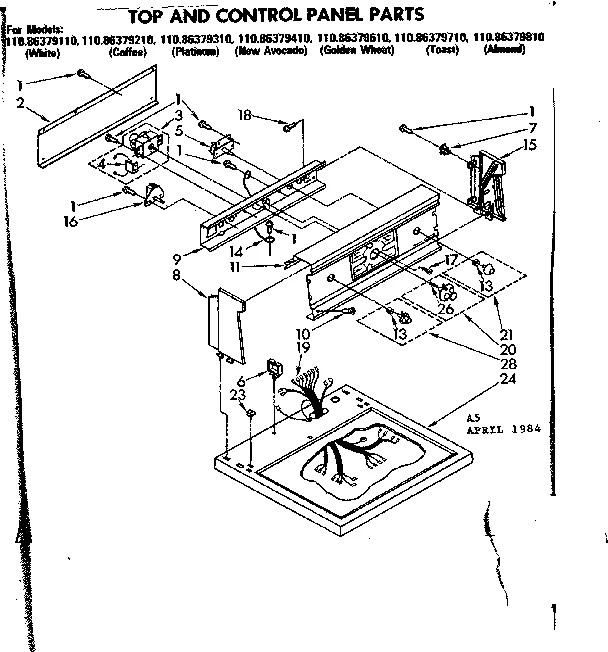

TOP AND CONTROL PANEL PARTS

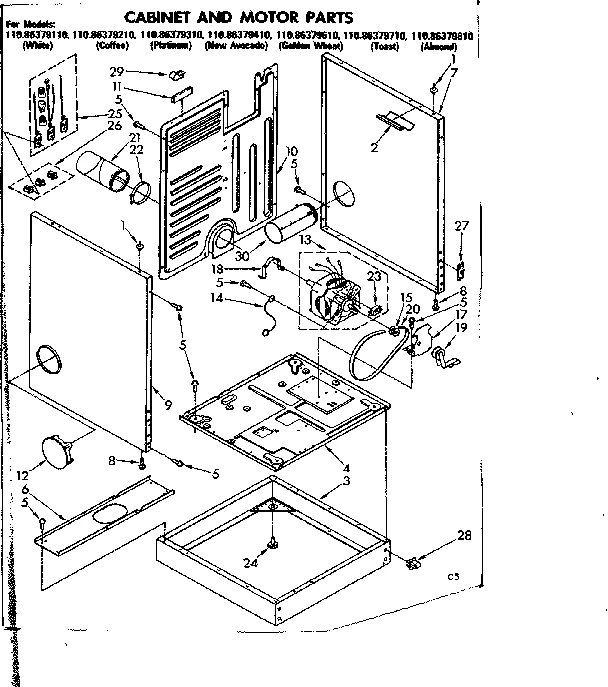

CABINET AND MOTOR PARTS
All Parts
Common parts from model Whirlpool 110.86379610 Electric Dryer (Kenmore 11086379610)
1
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
2
Panel WPL 357942 Contact Us For Availability
3
Timer 60hz WPL 692230 Contact Us For Availability
3
Pedestal WPL 692671 Contact Us For Availability
5
Support WPL 686768 Contact Us For Availability
5
Switch WPL 660388 Contact Us For Availability
6
Clip WPL 692238 Contact Us For Availability
6
Coverplate WPL 692702 Contact Us For Availability
6A
Panel (White) WPL 693044 Contact Us For Availability
6B
Panel (Almond) WPL 693045 Contact Us For Availability
6C
Coffee WPL 693046 Contact Us For Availability
6D
New Avocado WPL 693047 Contact Us For Availability
6E
Panel WPL 693048 Contact Us For Availability
6F
Toast WPL 695766 Contact Us For Availability
6G
Platinum (Platinum) WPL 695767 Contact Us For Availability
7
Nut WPL 694055 Contact Us For Availability
7A
Panel (White) WPL 692681 Contact Us For Availability
7B
Panel (Almond) WPL 692682 Contact Us For Availability
7C
Coffee WPL 692683 Contact Us For Availability
7D
New Avocado WPL 692684 Contact Us For Availability
7E
Panel WPL 692685 Contact Us For Availability
7F
Toast WPL 695772 Contact Us For Availability
7G
Platinum (Platinum) WPL 695773 Contact Us For Availability
8
Cap (Chestnut) WPL 372127 Contact Us For Availability
9
Bracket WPL 692660 Contact Us For Availability
9A
Panel (White) WPL 692687 Contact Us For Availability
9B
Panel (Almond) WPL 692688 Contact Us For Availability
9C
Coffee WPL 692689 Contact Us For Availability
9D
New Avocado WPL 692690 Contact Us For Availability
9E
Panel WPL 692691 Contact Us For Availability
9F
Toast WPL 695774 Contact Us For Availability
9G
Platinum (Platinum) WPL 695775 Contact Us For Availability
10
Screw WPL 358225 Contact Us For Availability
11
Panel WPL 693055 Contact Us For Availability
11
Protector WPL 693067 Contact Us For Availability
12B
Plug (Almond) WPL 692791 Contact Us For Availability
12E
Plug WPL 692794 Contact Us For Availability
12F
Toast WPL 692792 Contact Us For Availability
12G
Platinum (Platinum) WPL 692793 Contact Us For Availability
13
Compression Ring WPL 90015 Contact Us For Availability
13A
Panel (White) WPL 692662 Contact Us For Availability
13B
Panel (Almond) WPL 692663 Contact Us For Availability
13C
Coffee WPL 692664 Contact Us For Availability
13D
New Avocado WPL 692665 Contact Us For Availability
13E
Panel WPL 692666 Contact Us For Availability
13F
Toast WPL 695776 Contact Us For Availability
13G
Platinum (Platinum) WPL 695777 Contact Us For Availability
14
Ground Wire WPL 340025 Contact Us For Availability
14
Wire WPL 687261 Contact Us For Availability
15
Cap (Chestnut) WPL 372134 Contact Us For Availability
15B
Dryer Door (Almond) WPL 689314 Contact Us For Availability
15C
Door WPL 689315 Contact Us For Availability
15D
Door WPL 689318 Contact Us For Availability
15E
Door WPL 689319 Contact Us For Availability
15F
Door WPL 695214 Contact Us For Availability
15G
Door (Platinum) WPL 695215 Contact Us For Availability
16
Buzzer WPL 347137 Contact Us For Availability
17
Screw, Nibbed WPL 339607 Contact Us For Availability
17B
Handle (Almond) WPL 689497 Contact Us For Availability
17C
Handle WPL 689498 Contact Us For Availability
17D
Handle WPL 689500 Contact Us For Availability
17E
Handle WPL 689499 Contact Us For Availability
17F
Handle WPL 695222 Contact Us For Availability
17G
Handle (Platinum) WPL 695223 Contact Us For Availability
18
Screw WPL 355326 Contact Us For Availability
19
Harness WPL 695364 Contact Us For Availability
20
Dryer Timer Knob WPL 688865 Contact Us For Availability
21
Dryer Control Knob WPL 349796 Contact Us For Availability
21
Pipe WPL 692873 Contact Us For Availability
22
Clamp WPL 692874 Contact Us For Availability
24A
Top (White) WPL 692651 Contact Us For Availability
24B
Top (Almond) WPL 692652 Contact Us For Availability
24C
Coffee WPL 692653 Contact Us For Availability
24D
New Avocado WPL 692654 Contact Us For Availability
24E
Top WPL 692655 Contact Us For Availability
24F
Toast WPL 695770 Contact Us For Availability
24G
Platinum (Platinum) WPL 695771 Contact Us For Availability
28
Knob WPL 382823 Contact Us For Availability
28
Clip WPL 690625 Contact Us For Availability
30
Extension WPL 693738 Contact Us For Availability
31
Sears Canada Dryer Drum Baffle WPL 685207 Contact Us For Availability
38
Socket WPL 691034 Contact Us For Availability
45
Lens WPL 341165 Contact Us For Availability
46
Duct Seal WPL 345685 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
(338471) (ALT.) WPL N/P Contact Us For Availability
NI
Spray Cf WPL 261886 Contact Us For Availability
NI
Paint Cf WPL 261887 Contact Us For Availability
NI
Spray (Avocado) WPL 261888 Contact Us For Availability
NI
Paint Na WPL 261889 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray (Toast) WPL 285365 Contact Us For Availability
NI
Spray (Platinum) WPL 285366 Contact Us For Availability
NI
Paint To WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Spray Th WPL 350941 Contact Us For Availability
NI
Touch-Up WPL 72108 Contact Us For Availability
NI
Touch-Up WPL 72112 Contact Us For Availability
NI
Thinnr 1 Gal WPL 799351 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Operating Instructions WPL LIT692149 Contact Us For Availability
NI
Checklist WPL LIT692171 Contact Us For Availability
NI
Label WPL LIT692834 Contact Us For Availability
NI
Owner's Manual WPL LIT693160 Contact Us For Availability
NI
Installation Instructions WPL LIT693161 Contact Us For Availability
NI
Parts List WPL LIT695110 Contact Us For Availability
NI
Service Manual WPL LIT828693 Contact Us For Availability
× ![]()
