Model Whirlpool 110.86294850 Dryer (Kenmore 11086294850) – Common Parts & Diagrams

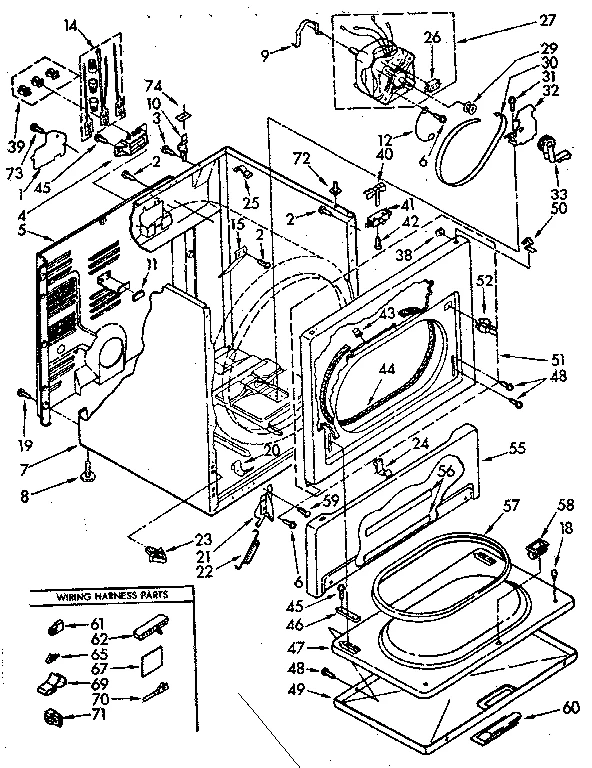

LIMITED EDITION CABINET PARTS

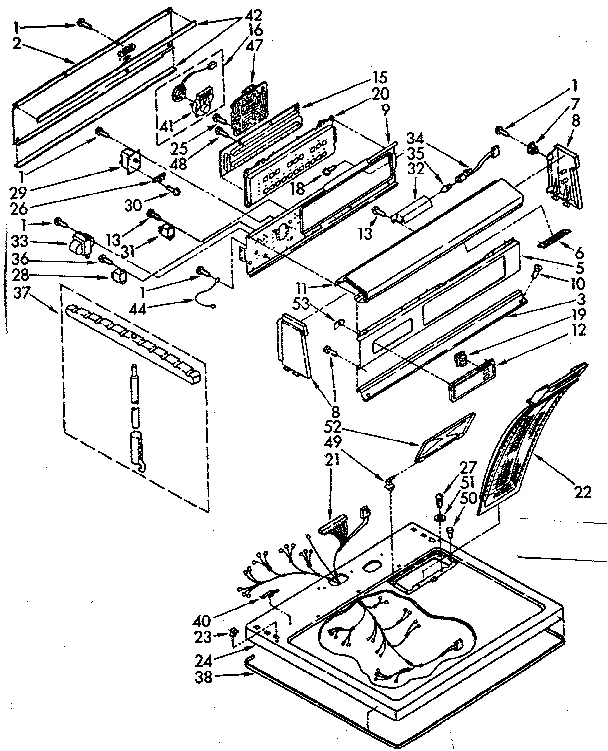

LIMITED EDITION TOP AND CONSOLE PARTS

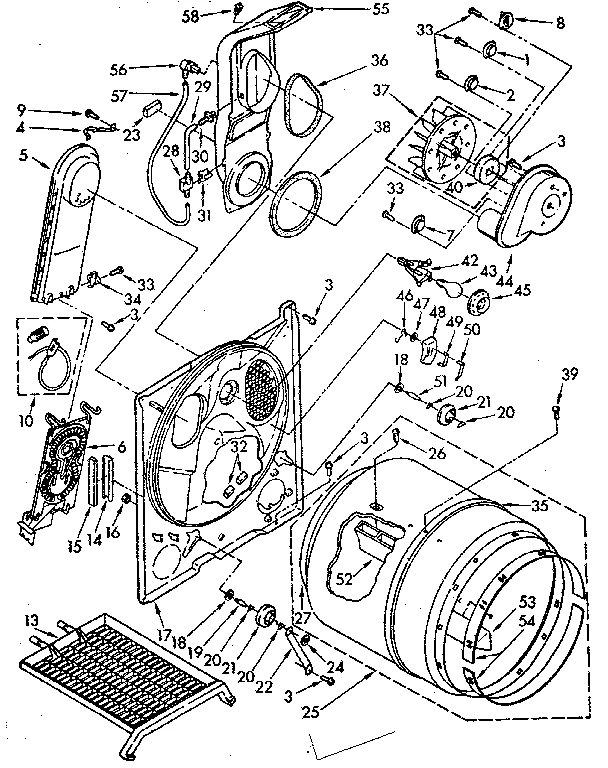

LIMITED EDITION BULKHEAD PARTS
All Parts
Common parts from model Whirlpool 110.86294850 Dryer (Kenmore 11086294850)
2
Panel WPL 693910 Contact Us For Availability
3
Panel WPL 359130 Contact Us For Availability
5
Panel WPL 385262 Contact Us For Availability
5
Box WPL 685457 Contact Us For Availability
6
Lens WPL 693761 Contact Us For Availability
7
End Cap Clip WPL 689559 Contact Us For Availability
7
Thermostat WPL 690031 Contact Us For Availability
8A
End Cap WPL 372138 Contact Us For Availability
8B
End Cap WPL 372131 Contact Us For Availability
9
Bracket WPL 385268 Contact Us For Availability
10
Screw WPL 358225 Contact Us For Availability
11
Panel WPL 693901 Contact Us For Availability
12
Medallion WPL 385261 Contact Us For Availability
13
Dryer Rack WPL 692990 Contact Us For Availability
15
Display WPL 61296 Contact Us For Availability
15
Pad WPL 693918 Contact Us For Availability
16
Dryer Speaker WPL 692279 Contact Us For Availability
17
Bulkhead WPL 685821 Contact Us For Availability
18
Screw WPL 355326 Contact Us For Availability
19
Knob Cap WPL 385266 Contact Us For Availability
20
Touch Module WPL 694031 Contact Us For Availability
21
Harness WPL 696374 Contact Us For Availability
23
Pad WPL 693917 Contact Us For Availability
24A
Top WPL 694859 Contact Us For Availability
24B
Top WPL 693763 Contact Us For Availability
24C
Top WPL 695687 Contact Us For Availability
24D
Top WPL 695688 Contact Us For Availability
24E
Top WPL 695689 Contact Us For Availability
25
Drum WPL 697054 Contact Us For Availability
26
Pivot WPL 358563 Contact Us For Availability
26
Screw WPL 690372 Contact Us For Availability
28
Relay WPL 693891 Contact Us For Availability
28
Sensor WPL 696371 Contact Us For Availability
29
Relay WPL 691359 Contact Us For Availability
29
Tubing WPL 339892 Contact Us For Availability
30
Tap WPL 339624 Contact Us For Availability
31
Relay WPL 691360 Contact Us For Availability
31
Clip WPL 339745 Contact Us For Availability
32
Shield WPL 693880 Contact Us For Availability
32
Pad WPL 693916 Contact Us For Availability
33
Transformer WPL 60996 Contact Us For Availability
34
Socket WPL 358830 Contact Us For Availability
35
Bulb WPL 354341 Contact Us For Availability
35
Shield WPL 693926 Contact Us For Availability
36
Screw WPL 339583 Contact Us For Availability
37
Hanger WPL 690109 Contact Us For Availability
38
Trim WPL 693762 Contact Us For Availability
40
Clip WPL 357144 Contact Us For Availability
40
Seal WPL 694630 Contact Us For Availability
41
Switch WPL 691361 Contact Us For Availability
41
Housing WPL 359188 Contact Us For Availability
42
Socket WPL 691034 Contact Us For Availability
44
Ground Wire WPL 340025 Contact Us For Availability
44
Housing WPL 348493 Contact Us For Availability
45
Lens WPL 341165 Contact Us For Availability
47
Microcomputer WPL 61202 Contact Us For Availability
48
Screw WPL 690756 Contact Us For Availability
48B
Screw WPL 693922 Contact Us For Availability
49B
Door WPL 693886 Contact Us For Availability
49C
Door (Almond) WPL 692319 Contact Us For Availability
49D
Door WPL 695130 Contact Us For Availability
49E
Door (Platinum) WPL 695131 Contact Us For Availability
50
Bumper WPL 297535 Contact Us For Availability
51
Washer WPL 237446 Contact Us For Availability
51B
Panel WPL 692451 Contact Us For Availability
51C
Panel (Almond) WPL 695631 Contact Us For Availability
51D
Panel WPL 695633 Contact Us For Availability
51E
Panel (Platinum) WPL 695634 Contact Us For Availability
52A
Cover WPL 696380 Contact Us For Availability
52B
Cover WPL 696379 Contact Us For Availability
52C
Cover WPL 696381 Contact Us For Availability
52D
Cover WPL 696382 Contact Us For Availability
52E
Cover WPL 696383 Contact Us For Availability
53
Clip WPL 445159 Contact Us For Availability
55
Lint Chute WPL 349242 Contact Us For Availability
55A
Panel (White) WPL 692427 Contact Us For Availability
55B
Toe Panel WPL 693885 Contact Us For Availability
55C
Panel (Almond) WPL 692428 Contact Us For Availability
55D
Panel WPL 695142 Contact Us For Availability
55E
Panel (Platinum) WPL 695143 Contact Us For Availability
56
Shield WPL 693925 Contact Us For Availability
56
Tap WPL 339625 Contact Us For Availability
57
Tubing WPL 339893 Contact Us For Availability
60A
Handle WPL 693848 Contact Us For Availability
60C
Handle (Almond) WPL 695712 Contact Us For Availability
60D
Handle WPL 695713 Contact Us For Availability
60E
Handle (Platinum) WPL 695714 Contact Us For Availability
61
Receptacle WPL 717252 Contact Us For Availability
62
Connector WPL 60278 Contact Us For Availability
65
Terminal WPL 60279 Contact Us For Availability
67
Shield WPL 359232 Contact Us For Availability
69
Clip WPL 689180 Contact Us For Availability
72
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
(338471) (ALT.) WPL N/P Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray (Toast) WPL 285365 Contact Us For Availability
NI
Spray (Platinum) WPL 285366 Contact Us For Availability
NI
Paint To WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Spray WPL 786020 Contact Us For Availability
NI
Paint (Ebony) WPL 786032 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Installation Instructions WPL LIT691174 Contact Us For Availability
NI
Label WPL LIT691356 Contact Us For Availability
NI
Operating Instructions WPL LIT693480 Contact Us For Availability
NI
Operating Instructions WPL LIT694022 Contact Us For Availability
NI
Owner's Manual WPL LIT694025 Contact Us For Availability
NI
Technical Sheet WPL LIT694127 Contact Us For Availability
NI
Parts List WPL LIT696270 Contact Us For Availability
NI
Washer Service Manual WPL LIT787206 Contact Us For Availability
NI
Serv Manul WPL LIT787207 Contact Us For Availability
× ![]()
