Model Whirlpool 110.82392200 Electric Washer (Kenmore 11082392200) – Common Parts & Diagrams

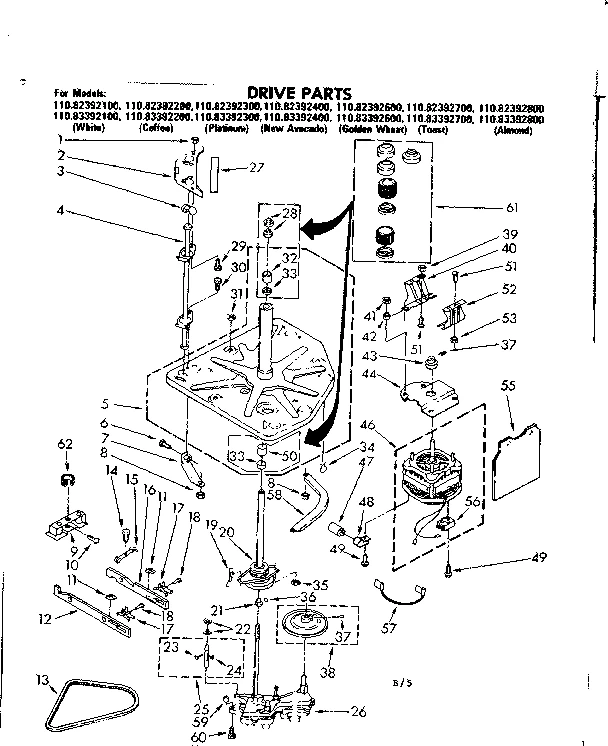

DRIVE PARTS

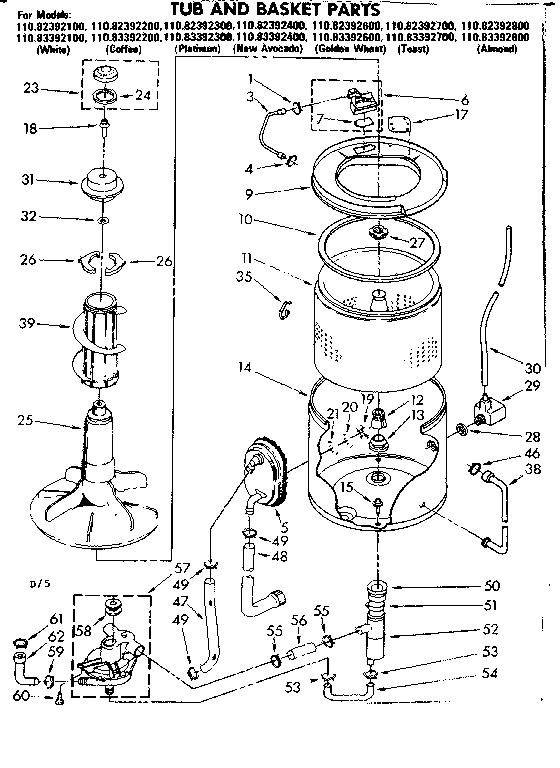

TUB AND BASKET PARTS
All Parts

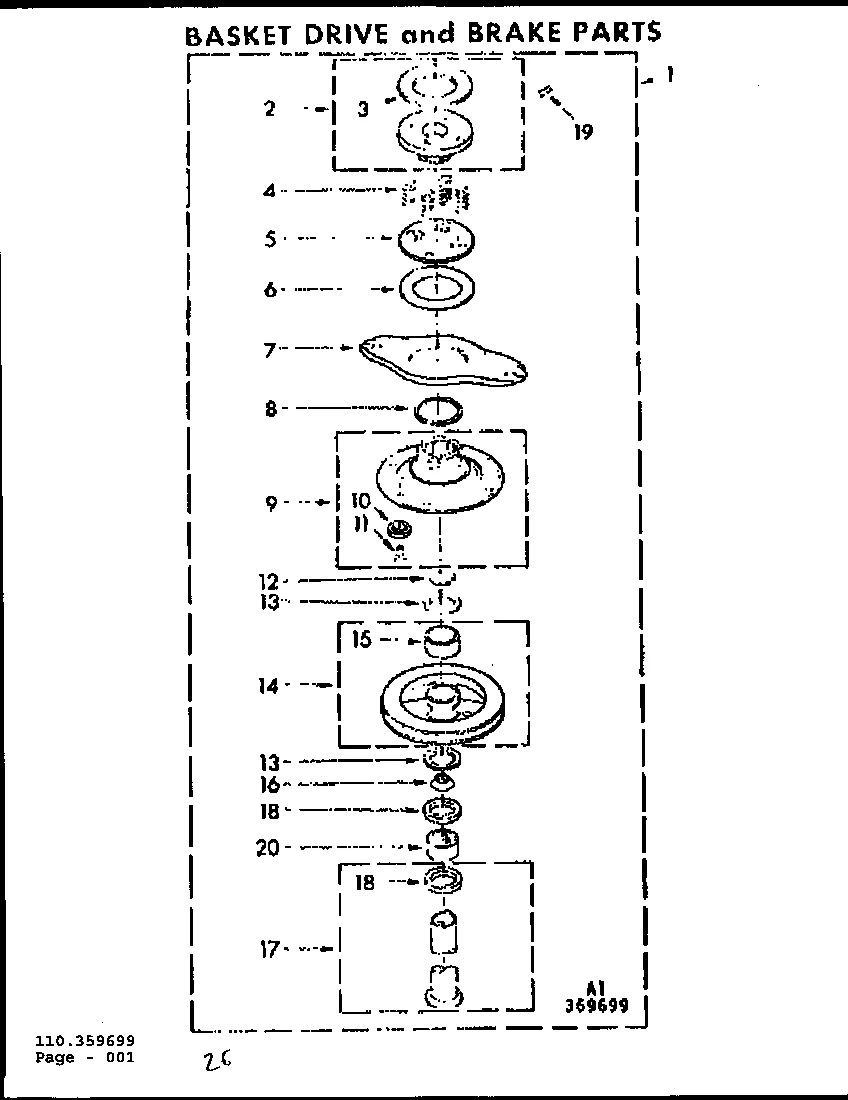

BRAKE AND CLUTCH

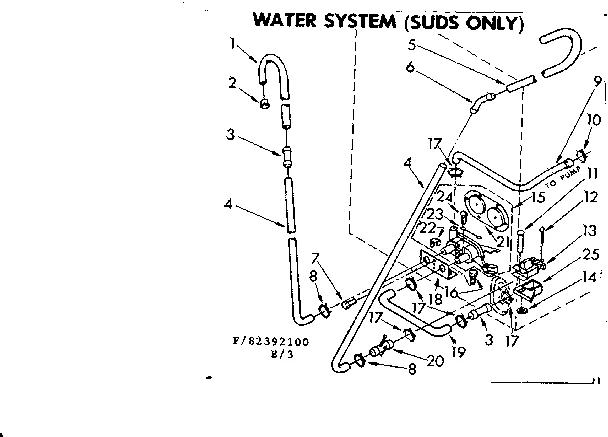

WATER SYSTEM SUDS ONLY

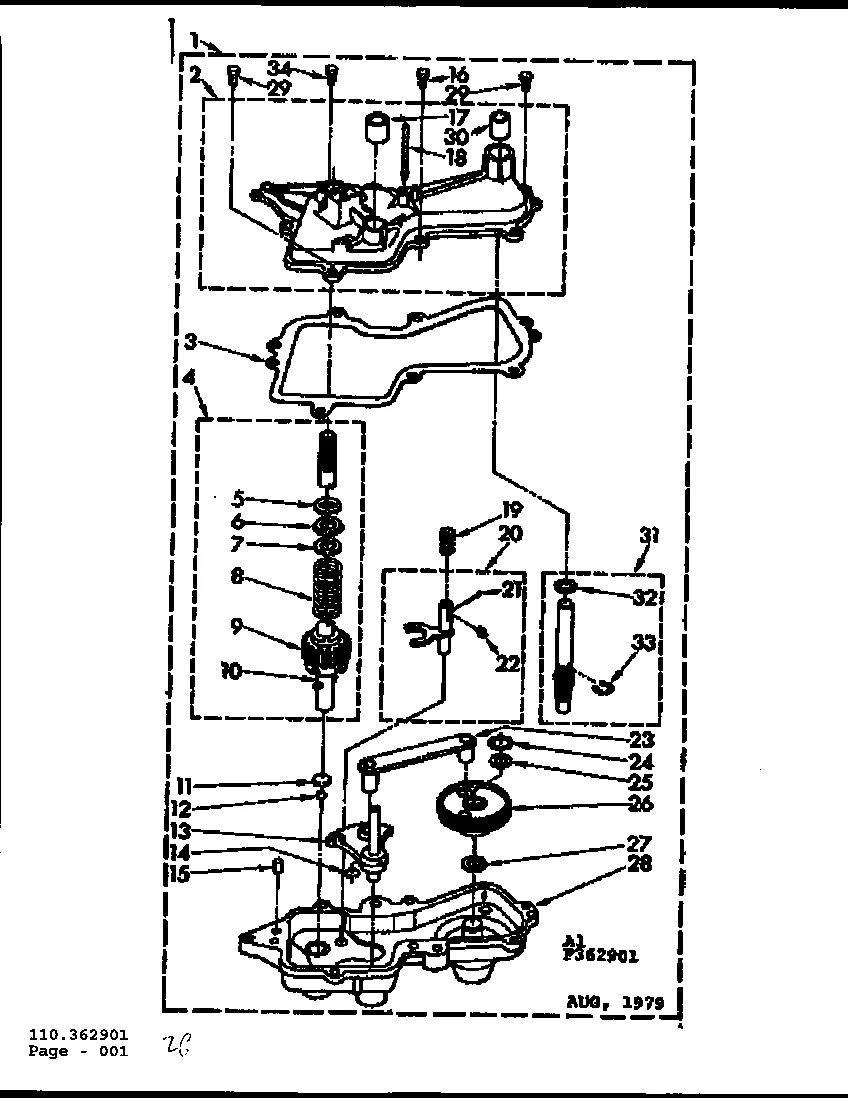

GEARCASE/TRANSMISSION

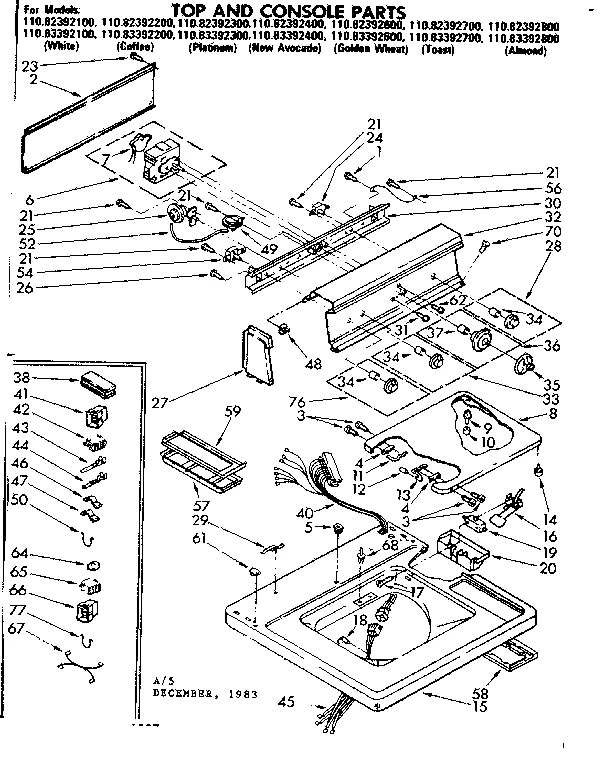

TOP AND CONSOLE PARTS

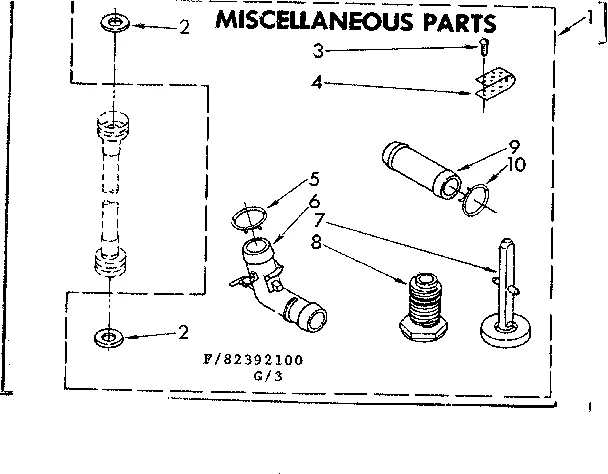

MISCELLANEOUS PARTS
All Parts

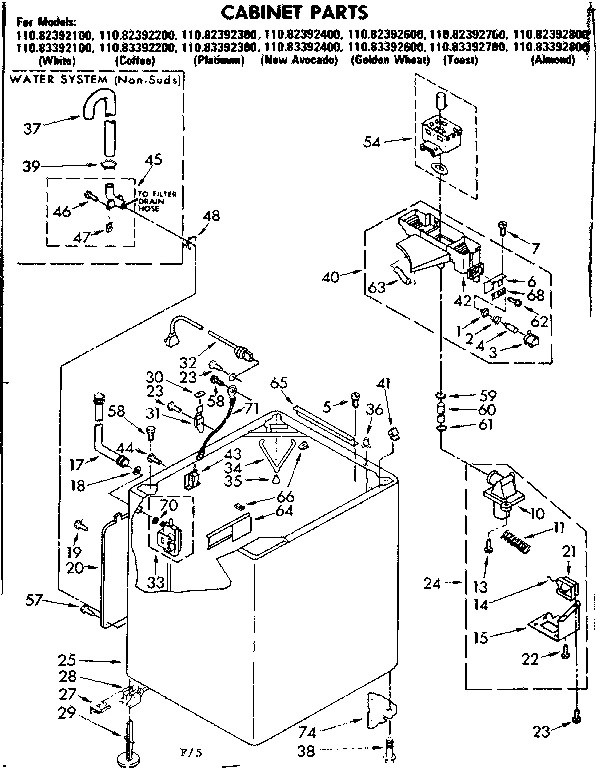

CABINET PARTS
WATER PUMP PARTS
Common parts from model Whirlpool 110.82392200 Electric Washer (Kenmore 11082392200)
1
Pump (Black) WPL 362175 Contact Us For Availability
1
Drive Basket WPL 359699 Contact Us For Availability
1
Discharge Hose WPL 91273 Contact Us For Availability
1
Gear Case WPL 362901 Contact Us For Availability
1
Replacement Part WPL 375974 Contact Us For Availability
1
Diaphragm WPL 288183 Contact Us For Availability
1A
Replacement Part WPL 375975 Contact Us For Availability
2
Washer Gear Case Brake Line and Guide WPL 350522 Contact Us For Availability
2
Strainer WPL 352833 Contact Us For Availability
2
Cover WPL 367552 Contact Us For Availability
2
Panel WPL 359374 Contact Us For Availability
2
Spring WPL 355103 Contact Us For Availability
3
Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability
3
Lining WPL 354550 Contact Us For Availability
3
Screw WPL 132848 Contact Us For Availability
3
Solenoid WPL 365324 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3A
Solenoid WPL 366105 Contact Us For Availability
4
Brake Spring WPL 354275 Contact Us For Availability
4
Shaft WPL 362642 Contact Us For Availability
4
Ground Strap WPL 22965 Contact Us For Availability
4
Armature WPL 355109 Contact Us For Availability
4
Spring WPL 96266 Contact Us For Availability
5
Pulley WPL 359630 Contact Us For Availability
5
Drum WPL 97664 Contact Us For Availability
5
Ring WPL 352430 Contact Us For Availability
6
Washer Drain Hose Connector WPL 95440 Contact Us For Availability
6
Lining WPL 354244 Contact Us For Availability
6
Shaft Seal WPL 92814 Contact Us For Availability
6
Washer Timer WPL 660693 Contact Us For Availability
6
(338471) (ALT.) WPL N/P Contact Us For Availability
6
Lever WPL 355538 Contact Us For Availability
6A
Bracket WPL 355026 Contact Us For Availability
6B
Bracket WPL 355027 Contact Us For Availability
7
Brake Yoke WPL 92903 Contact Us For Availability
7
Screw WPL 190575 Contact Us For Availability
7
Shield WPL 94276 Contact Us For Availability
7
Washer Motor WPL 362681 Contact Us For Availability
7
Rod WPL 96264 Contact Us For Availability
7A
Motor WPL 365941 Contact Us For Availability
8
Ring WPL 16049 Contact Us For Availability
8
Spring WPL 92815 Contact Us For Availability
8
Block WPL 383750 Contact Us For Availability
8A
Lid (White) WPL 371378 Contact Us For Availability
8B
Lid (Almond) WPL 371385 Contact Us For Availability
8C
Lid WPL 371386 Contact Us For Availability
8D
Lid WPL 371387 Contact Us For Availability
8E
Lid WPL 371388 Contact Us For Availability
8F
Lid WPL 371402 Contact Us For Availability
8G
Lid (Platinum) WPL 371403 Contact Us For Availability
9
Plate WPL 357155 Contact Us For Availability
9
Hose WPL 357189 Contact Us For Availability
9
Gear WPL 355469 Contact Us For Availability
9
Strike WPL 357141 Contact Us For Availability
9
Wick Oil WPL 96265 Contact Us For Availability
10
Lining WPL 354243 Contact Us For Availability
10
Shaft WPL 362098 Contact Us For Availability
10
Valve Body WPL 366671 Contact Us For Availability
11
Eyelet WPL 98281 Contact Us For Availability
11
Rivet WPL 359089 Contact Us For Availability
11
Washer Lid Hinge WPL 91367 Contact Us For Availability
11
Spring WPL 353586 Contact Us For Availability
12
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
12
Pin WPL 90228 Contact Us For Availability
13
Washer WPL 353320 Contact Us For Availability
13
Solenoid WPL 86798 Contact Us For Availability
13
Gr Sec/shaft WPL 75073 Contact Us For Availability
14
Tub WPL 359806 Contact Us For Availability
14
Pulley WPL 359697 Contact Us For Availability
14
Ring WPL 52083 Contact Us For Availability
14
Link WPL 353584 Contact Us For Availability
15
Washer Brake Pad Retainer WPL 94726 Contact Us For Availability
15
Screw WPL 370571 Contact Us For Availability
15
Bearing WPL 16033 Contact Us For Availability
15
Valve WPL 359634 Contact Us For Availability
15
Pin WPL 5018 Contact Us For Availability
15
Bracket WPL 353587 Contact Us For Availability
15A
Top (White) WPL 385108 Contact Us For Availability
15B
Top (Almond) WPL 385109 Contact Us For Availability
15C
Top WPL 385110 Contact Us For Availability
15D
Top WPL 385111 Contact Us For Availability
15E
Top WPL 385112 Contact Us For Availability
15F
Top WPL 386550 Contact Us For Availability
15G
Top (Platinum) WPL 386551 Contact Us For Availability
16
Actuator WPL 370959 Contact Us For Availability
16
Bolt WPL 356599 Contact Us For Availability
17
Washer Snubber Plate WPL 355852 Contact Us For Availability
17
Tube WPL 357965 Contact Us For Availability
17
Bearing WPL 96853 Contact Us For Availability
17
Washer Lid Switch Screw WPL 354764 Contact Us For Availability
18
Bracket WPL 357191 Contact Us For Availability
18
Support WPL 356445 Contact Us For Availability
19
Nut WPL 92229 Contact Us For Availability
19
Screw WPL 356057 Contact Us For Availability
19
Hose WPL 97784 Contact Us For Availability
19
Spring WPL 16015 Contact Us For Availability
20
Washer WPL 92232 Contact Us For Availability
20
Spacer WPL 356937 Contact Us For Availability
20
Connector WPL 357334 Contact Us For Availability
20
Fork Gear WPL 80398 Contact Us For Availability
20
Panel WPL 85279 Contact Us For Availability
20A
Panel WPL 357335 Contact Us For Availability
21
Washer WPL 92235 Contact Us For Availability
21
Diagram WPL 358317 Contact Us For Availability
21
Pin WPL 90532 Contact Us For Availability
21
Washer Drain Pump Solenoid WPL 362832 Contact Us For Availability
22
Retainer Clip WPL 96262 Contact Us For Availability
22
Roller WPL 92119 Contact Us For Availability
22
Screw WPL 96141 Contact Us For Availability
23
Washer Agitator Cap WPL 358348 Contact Us For Availability
23
Strap WPL 358343 Contact Us For Availability
23
Cnnctng Rod WPL 76577 Contact Us For Availability
24
Ring WPL 95082 Contact Us For Availability
24
Switch WPL 358029 Contact Us For Availability
24
Dispenser Valve WPL 366672 Contact Us For Availability
25
Agitator WPL 383950 Contact Us For Availability
25
Shield WPL 359096 Contact Us For Availability
25
Washer WPL 95083 Contact Us For Availability
25
Switch WPL 660940 Contact Us For Availability
25A
Cabinet (White) WPL 384793 Contact Us For Availability
25B
Cabinet (Almond) WPL 384794 Contact Us For Availability
25C
Cabinet WPL 384795 Contact Us For Availability
25D
Cabinet WPL 384796 Contact Us For Availability
25E
Cabinet WPL 384797 Contact Us For Availability
25F
Cabinet WPL 386477 Contact Us For Availability
25G
Cabinet (Platinum) WPL 386478 Contact Us For Availability
26
Washer Agitator Dog WPL 358692 Contact Us For Availability
26
Drive Gear WPL 353397 Contact Us For Availability
26
Screw WPL 355326 Contact Us For Availability
27
Washer WPL 363362 Contact Us For Availability
27
End Cap WPL 372130 Contact Us For Availability
27A
End Cap (Black) WPL 372137 Contact Us For Availability
28
Washer Seal WPL 351830 Contact Us For Availability
28
Gear Case WPL 362906 Contact Us For Availability
28
Knob WPL 382823 Contact Us For Availability
28
Link WPL 359059 Contact Us For Availability
29
Air Dome WPL 360804 Contact Us For Availability
29
Screw WPL 356512 Contact Us For Availability
29
Clip WPL 357144 Contact Us For Availability
30
Bearing WPL 354513 Contact Us For Availability
30
Bracket WPL 381473 Contact Us For Availability
31
Cam WPL 358691 Contact Us For Availability
31
Drive Pinion WPL 84467 Contact Us For Availability
31
Screw, Nibbed WPL 339607 Contact Us For Availability
31
Hinge WPL 92657 Contact Us For Availability
31A
Hinge WPL 18775 Contact Us For Availability
32
Appliance O-Ring WPL 357574 Contact Us For Availability
32
Washer WPL 16024 Contact Us For Availability
32
Panel WPL 386332 Contact Us For Availability
32
Power Cord WPL 92667 Contact Us For Availability
32A
Panel WPL 386348 Contact Us For Availability
33
Ring WPL 90094 Contact Us For Availability
33
Washer Control Knob WPL 382825 Contact Us For Availability
33
Valve WPL 660749 Contact Us For Availability
34
Screw WPL 355613 Contact Us For Availability
34
Compression Ring WPL 90015 Contact Us For Availability
34
Spring WPL 357977 Contact Us For Availability
35
Washer Snubber Pad WPL 358336 Contact Us For Availability
35
Washer Tub Ring Clip WPL 359763 Contact Us For Availability
35
Washer Timer Knob WPL 359507 Contact Us For Availability
36
Pointer WPL 359505 Contact Us For Availability
36
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
37
Clip WPL 384710 Contact Us For Availability
38
Hose WPL 357006 Contact Us For Availability
38A
Block (White) WPL 352090 Contact Us For Availability
39
Agitator Auger WPL 358690 Contact Us For Availability
40
Harness WPL 385776 Contact Us For Availability
40
Reservoir WPL 365323 Contact Us For Availability
40A
Harness WPL 385777 Contact Us For Availability
41
Connector WPL 94612 Contact Us For Availability
42
Grommet, Motor Bracket WPL 19138 Contact Us For Availability
42
Plug WPL 94611 Contact Us For Availability
42
Reservoir WPL 364425 Contact Us For Availability
43
Relay WPL 365956 Contact Us For Availability
44
Screw WPL 98853 Contact Us For Availability
45
Harness WPL 385778 Contact Us For Availability
45
Connector WPL 358805 Contact Us For Availability
46
Tap Screw WPL 90876 Contact Us For Availability
47
Hose WPL 359798 Contact Us For Availability
47
Clip WPL 351395 Contact Us For Availability
48
End Cap Clip WPL 689559 Contact Us For Availability
48
Hose WPL 356645 Contact Us For Availability
48A
Hose WPL 357052 Contact Us For Availability
49
Clamp WPL 353096 Contact Us For Availability
49
Switch WPL 359712 Contact Us For Availability
50
Washer Outer Tub Grommet WPL 93553 Contact Us For Availability
50
Clip WPL 357469 Contact Us For Availability
51
Clamp WPL 9421321 Contact Us For Availability
52
Manifold WPL 366305 Contact Us For Availability
54
Hose WPL 355699 Contact Us For Availability
54
Switch WPL 359060 Contact Us For Availability
54
Cup WPL 359269 Contact Us For Availability
56
Hose WPL 92231 Contact Us For Availability
57A
Bezel (White) WPL 355033 Contact Us For Availability
57B
Bezel (Almond) WPL 376970 Contact Us For Availability
57C
Bezel WPL 376971 Contact Us For Availability
57D
Bezel WPL 376972 Contact Us For Availability
57E
Bezel WPL 376973 Contact Us For Availability
57F
Bezel WPL 386495 Contact Us For Availability
57G
Bezel (Platinum) WPL 386496 Contact Us For Availability
58
Gasket WPL 355030 Contact Us For Availability
59A
Lid (White) WPL 355032 Contact Us For Availability
59B
Lid (Almond) WPL 376875 Contact Us For Availability
59C
Lid WPL 376876 Contact Us For Availability
59D
Lid WPL 376877 Contact Us For Availability
59E
Lid WPL 376878 Contact Us For Availability
59F
Lid WPL 386493 Contact Us For Availability
59G
Lid (Platinum) WPL 386494 Contact Us For Availability
60
Hose WPL 357007 Contact Us For Availability
61
Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability
62
Hose WPL 96731 Contact Us For Availability
62
Screw WPL 359504 Contact Us For Availability
62
Screw WPL 356357 Contact Us For Availability
63
Hose WPL 355029 Contact Us For Availability
64
Ring WPL 357695 Contact Us For Availability
64
Barrier WPL 355843 Contact Us For Availability
65
Plug WPL 94696 Contact Us For Availability
65
Barrier WPL 355856 Contact Us For Availability
66
Cap WPL 94697 Contact Us For Availability
66
Clip WPL 355928 Contact Us For Availability
67
Harness WPL 359587 Contact Us For Availability
68
Rivet WPL 354239 Contact Us For Availability
68
Mounting Plate WPL 356356 Contact Us For Availability
70
Screw WPL 358225 Contact Us For Availability
71
Ground Wire WPL 364089 Contact Us For Availability
74
Gusset WPL 356459 Contact Us For Availability
NI
Washer Agitator Grease WPL 350849 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
Spray Cf WPL 261886 Contact Us For Availability
NI
Paint Cf WPL 261887 Contact Us For Availability
NI
Spray (Avocado) WPL 261888 Contact Us For Availability
NI
Paint Na WPL 261889 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray (Toast) WPL 285365 Contact Us For Availability
NI
Spray (Platinum) WPL 285366 Contact Us For Availability
NI
Paint To WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Spray Th WPL 350941 Contact Us For Availability
NI
Touch-Up WPL 72108 Contact Us For Availability
NI
Touch-Up WPL 72112 Contact Us For Availability
NI
Thinnr 1 Gal WPL 799351 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Instructions WPL LIT359270 Contact Us For Availability
NI
Label WPL LIT379392 Contact Us For Availability
NI
Installation Instructions WPL LIT383541 Contact Us For Availability
NI
Installation Instructions WPL LIT383542 Contact Us For Availability
NI
Operating Instructions WPL LIT383544 Contact Us For Availability
NI
Operating Instructions WPL LIT385637 Contact Us For Availability
NI
Checklist WPL LIT385683 Contact Us For Availability
NI
Energy Guide WPL LIT386078 Contact Us For Availability
NI
Energy Guide WPL LIT386079 Contact Us For Availability
NI
Guide WPL LIT386315 Contact Us For Availability
NI
Parts List WPL LIT386457 Contact Us For Availability
NI
Service Manual WPL LIT821462 Contact Us For Availability
× ![]()
Login and Registration Form
