Model Whirlpool 110.82371820 Electric Washer (Kenmore 11082371820) – Common Parts & Diagrams

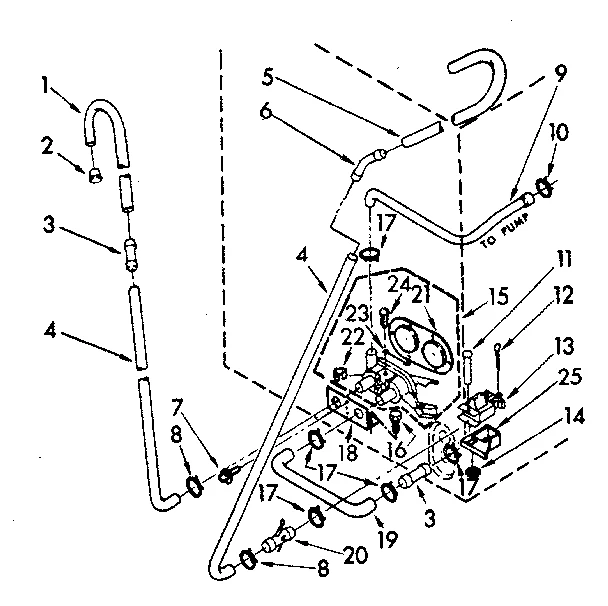

WATER SYSTEM (SUDS ONLY)
DRIVE PARTS
TUB AND BASKET PARTS (SUDS ONLY)
WATER PUMP PARTS (NON-SUDS AND SUDS)
TOP AND CONSOLE PARTS
All Parts
TUB AND BASKET PARTS (NON-SUDS ONLY)
MISCELLANEOUS PARTS
CABINET PARTS
Common parts from model Whirlpool 110.82371820 Electric Washer (Kenmore 11082371820)
1
Replacement Part WPL 375976 Contact Us For Availability
1A
Replacement Part WPL 375975 Contact Us For Availability
2
Panel WPL 359374 Contact Us For Availability
3
Hose WPL 356349 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
4
Spring WPL 96266 Contact Us For Availability
4
Washer Lid Hinge WPL 91367 Contact Us For Availability
4
Stopper WPL 21265 Contact Us For Availability
5
Inlet WPL 366072 Contact Us For Availability
5
Ground Strap WPL 22965 Contact Us For Availability
6
Flapper WPL 355584 Contact Us For Availability
6A
Timer WPL 376012 Contact Us For Availability
7
Washer Tub Ring Clip WPL 359763 Contact Us For Availability
7
Washer Motor WPL 362681 Contact Us For Availability
7
Screw WPL 132848 Contact Us For Availability
8
Ring WPL 381971 Contact Us For Availability
8A
Lid (White) WPL 385422 Contact Us For Availability
8B
Lid (Almond) WPL 385423 Contact Us For Availability
8C
Lid WPL 385426 Contact Us For Availability
8D
Lid WPL 385432 Contact Us For Availability
8E
Lid (Platinum) WPL 385433 Contact Us For Availability
9
Washer Tub Ring Seal WPL 383553 Contact Us For Availability
9
Strike WPL 357141 Contact Us For Availability
10
Basket WPL 384024 Contact Us For Availability
12
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
12
Lever WPL 355538 Contact Us For Availability
12
Panel WPL 85279 Contact Us For Availability
12A
Panel WPL 357335 Contact Us For Availability
13
Tub WPL 359667 Contact Us For Availability
13
Rod WPL 96264 Contact Us For Availability
13
Tub WPL 384074 Contact Us For Availability
14
Screw WPL 370571 Contact Us For Availability
14
Block WPL 383750 Contact Us For Availability
15
Washer Brake Pad Retainer WPL 94726 Contact Us For Availability
15
Wick Oil WPL 96265 Contact Us For Availability
15
Filter WPL 383719 Contact Us For Availability
15A
Top (White) WPL 387355 Contact Us For Availability
15B
Top (Almond) WPL 387356 Contact Us For Availability
15C
Top WPL 387357 Contact Us For Availability
15D
Top WPL 387358 Contact Us For Availability
15E
Top (Platinum) WPL 387359 Contact Us For Availability
16
Actuator WPL 370959 Contact Us For Availability
16
Washer Agitator Cap WPL 358348 Contact Us For Availability
17
Agitator WPL 383950 Contact Us For Availability
17
Washer Lid Switch Screw WPL 354764 Contact Us For Availability
18
Gusset WPL 356459 Contact Us For Availability
20
Washer Seal WPL 351830 Contact Us For Availability
21
Air Dome WPL 360804 Contact Us For Availability
22
Washer Outer Tub Grommet WPL 93553 Contact Us For Availability
22
Switch WPL 359712 Contact Us For Availability
23
Clamp WPL 9421321 Contact Us For Availability
24
Switch WPL 660746 Contact Us For Availability
24
Manifold WPL 84091 Contact Us For Availability
25
Nut WPL 92229 Contact Us For Availability
25
(338471) (ALT.) WPL N/P Contact Us For Availability
25
Switch WPL 660953 Contact Us For Availability
25A
Cabinet (White) WPL 384793 Contact Us For Availability
25B
Cabinet (Almond) WPL 384794 Contact Us For Availability
25C
Cabinet WPL 384797 Contact Us For Availability
25D
Cabinet WPL 386477 Contact Us For Availability
25E
Cabinet (Platinum) WPL 386478 Contact Us For Availability
26
Washer WPL 92232 Contact Us For Availability
26
Screw WPL 355326 Contact Us For Availability
27
Washer WPL 92235 Contact Us For Availability
27
Cap (Chestnut) WPL 372127 Contact Us For Availability
27A
Cap (Chestnut) WPL 372134 Contact Us For Availability
28
Washer Snubber Plate WPL 355852 Contact Us For Availability
28
Knob WPL 382823 Contact Us For Availability
28
Link WPL 359059 Contact Us For Availability
30
Bracket WPL 381473 Contact Us For Availability
30
Clip WPL 383718 Contact Us For Availability
31
Screw, Nibbed WPL 339607 Contact Us For Availability
31
Hinge WPL 92657 Contact Us For Availability
31A
Hinge WPL 18775 Contact Us For Availability
32
Panel WPL 383817 Contact Us For Availability
32
Power Cord WPL 92667 Contact Us For Availability
32A
Panel WPL 383818 Contact Us For Availability
33
Washer Control Knob WPL 382825 Contact Us For Availability
33
Valve WPL 660749 Contact Us For Availability
34
Compression Ring WPL 90015 Contact Us For Availability
34
Spring WPL 357977 Contact Us For Availability
35
Washer Snubber Pad WPL 358336 Contact Us For Availability
35
Washer Timer Knob WPL 359507 Contact Us For Availability
36
Hose WPL 92231 Contact Us For Availability
36
Pointer WPL 359505 Contact Us For Availability
36
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
37
Clip WPL 384710 Contact Us For Availability
38A
Block (White) WPL 352090 Contact Us For Availability
39
Harness WPL 386049 Contact Us For Availability
40
Washer Drain Hose Connector WPL 95440 Contact Us For Availability
40
Harness WPL 359937 Contact Us For Availability
40A
Harness WPL 359938 Contact Us For Availability
41
Connector WPL 94612 Contact Us For Availability
42
Grommet, Motor Bracket WPL 19138 Contact Us For Availability
42
Plug WPL 94611 Contact Us For Availability
43
Agitator Auger WPL 358690 Contact Us For Availability
43
Screw WPL 98853 Contact Us For Availability
44
Washer Agitator Dog WPL 358692 Contact Us For Availability
44
Relay WPL 365956 Contact Us For Availability
45
Cam WPL 358691 Contact Us For Availability
45
Harness WPL 358711 Contact Us For Availability
45
Hose WPL 358560 Contact Us For Availability
46
Appliance O-Ring WPL 357574 Contact Us For Availability
47
Ground Wire WPL 364089 Contact Us For Availability
48
End Cap Clip WPL 689559 Contact Us For Availability
49
Clamp WPL 353096 Contact Us For Availability
49
Rivet WPL 354239 Contact Us For Availability
50
Washer Lint Filter WPL 368772 Contact Us For Availability
50
Clip WPL 357469 Contact Us For Availability
51
Bolt WPL 98537 Contact Us For Availability
51
Hose WPL 359798 Contact Us For Availability
52
Bracket WPL 93549 Contact Us For Availability
52
Hose WPL 357052 Contact Us For Availability
53
Nut WPL 95721 Contact Us For Availability
53
Pump WPL 383957 Contact Us For Availability
54
Pulley WPL 359630 Contact Us For Availability
55
Shield WPL 359719 Contact Us For Availability
56
Motor Switch WPL 362738 Contact Us For Availability
56A
Switch WPL 359642 Contact Us For Availability
57
Wire WPL 370950 Contact Us For Availability
57
Washer Fabric Softener Dispenser WPL 359163 Contact Us For Availability
58
Brace WPL 351500 Contact Us For Availability
58A
Brace WPL 351499 Contact Us For Availability
59
Spacer WPL 16062 Contact Us For Availability
60
Hex Screw WPL 90877 Contact Us For Availability
61
Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability
62
Screw WPL 359504 Contact Us For Availability
64
Ring WPL 357695 Contact Us For Availability
65
Plug WPL 94696 Contact Us For Availability
66
Cap WPL 94697 Contact Us For Availability
70
Screw WPL 358225 Contact Us For Availability
NI
Washer Agitator Grease WPL 350849 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray (Toast) WPL 285365 Contact Us For Availability
NI
Spray (Platinum) WPL 285366 Contact Us For Availability
NI
Paint To WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Spray Th WPL 350941 Contact Us For Availability
NI
Touch-Up WPL 72112 Contact Us For Availability
NI
Thinnr 1 Gal WPL 799351 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Label WPL LIT375216 Contact Us For Availability
NI
Installation Instructions WPL LIT383541 Contact Us For Availability
NI
Installation Instructions WPL LIT383542 Contact Us For Availability
NI
Operating Instructions WPL LIT383544 Contact Us For Availability
NI
Checklist WPL LIT384380 Contact Us For Availability
NI
Operating Instructions WPL LIT385150 Contact Us For Availability
NI
Energy Guide WPL LIT386055 Contact Us For Availability
NI
Energy Guide WPL LIT386056 Contact Us For Availability
NI
Guide WPL LIT386315 Contact Us For Availability
NI
Parts List WPL LIT63876 Contact Us For Availability
NI
Washer Service Manual WPL LIT787206 Contact Us For Availability
× ![]()
