Model Whirlpool 110.77994400 Dryer (Kenmore 11077994400) – Common Parts & Diagrams
BULKHEAD PARTS

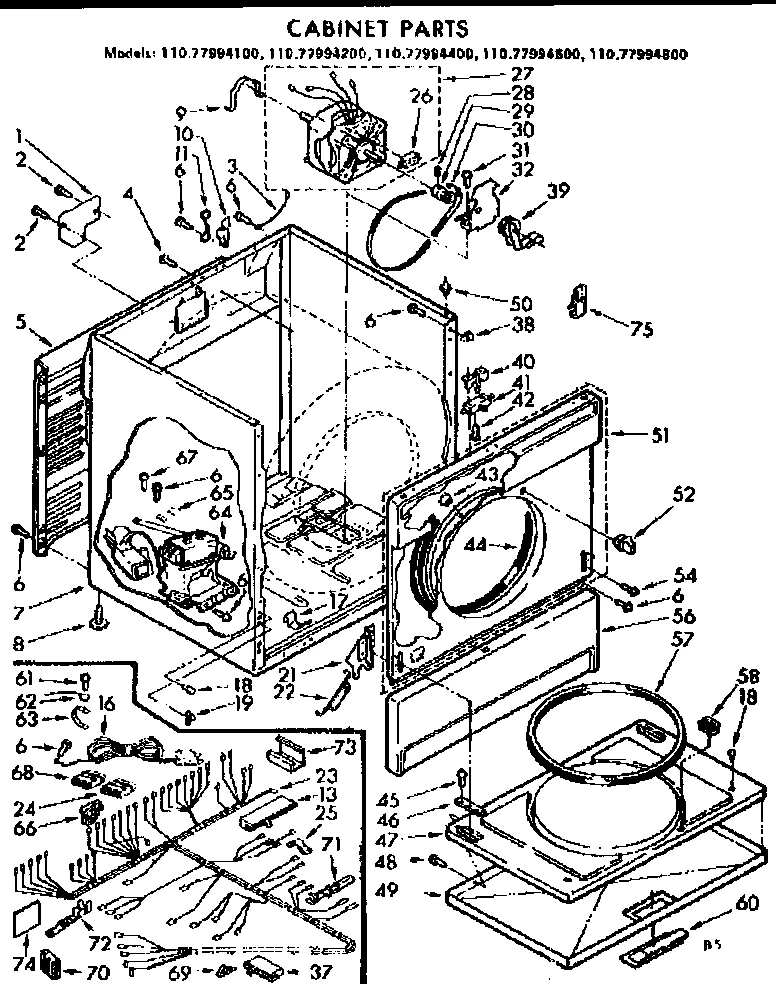

CABINET PARTS
All Parts

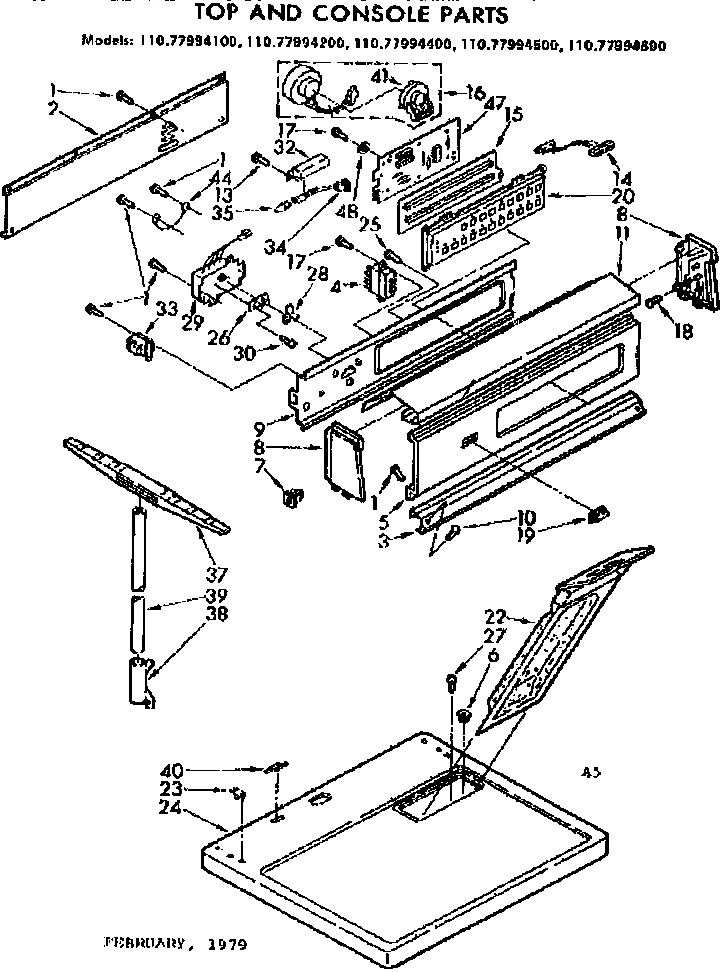

TOP AND CONSOLE PARTS
Common parts from model Whirlpool 110.77994400 Dryer (Kenmore 11077994400)
1
Cover WPL 343630 Contact Us For Availability
2
Panel WPL 359189 Contact Us For Availability
3
Wire WPL 690236 Contact Us For Availability
3
Panel WPL 359130 Contact Us For Availability
4
Indicator WPL 690121 Contact Us For Availability
5
Panel WPL 348364 Contact Us For Availability
5
Panel WPL 379768 Contact Us For Availability
7
End Cap Clip WPL 689559 Contact Us For Availability
7A
Cabinet (White) WPL 688265 Contact Us For Availability
7B
Cabinet WPL 689343 Contact Us For Availability
7C
Cabinet WPL 689346 Contact Us For Availability
7D
Cabinet WPL 689347 Contact Us For Availability
7E
Cabinet (Almond) WPL 689342 Contact Us For Availability
8
(338471) (ALT.) WPL N/P Contact Us For Availability
8A
Cap (Chestnut) WPL 372134 Contact Us For Availability
8B
Cap (Chestnut) WPL 372127 Contact Us For Availability
9
Bracket WPL 359128 Contact Us For Availability
10
Screw WPL 358225 Contact Us For Availability
11
Panel WPL 359129 Contact Us For Availability
13
Connector WPL 60447 Contact Us For Availability
14
Harness WPL 690092 Contact Us For Availability
15
Display WPL 60708 Contact Us For Availability
16
Housing WPL 359204 Contact Us For Availability
17
Screw WPL 359181 Contact Us For Availability
18
Screw WPL 355326 Contact Us For Availability
19
Clip WPL 342601 Contact Us For Availability
19
Knob WPL 358846 Contact Us For Availability
20
Touch Module WPL 690112 Contact Us For Availability
21A
Dryer Hinge WPL 687905 Contact Us For Availability
21B
Hinge WPL 687906 Contact Us For Availability
22
Door Spring WPL 237979 Contact Us For Availability
22B
Screen WPL 689466 Contact Us For Availability
22C
Screen WPL 689468 Contact Us For Availability
22D
Dryer Lint Filter WPL 689467 Contact Us For Availability
23
Harness WPL 690069 Contact Us For Availability
24
Plug WPL 342529 Contact Us For Availability
24A
Top (White) WPL 685958 Contact Us For Availability
24B
Top WPL 689474 Contact Us For Availability
24C
Top WPL 689476 Contact Us For Availability
24D
Top WPL 689475 Contact Us For Availability
24E
Top (Almond) WPL 689473 Contact Us For Availability
26
Pivot WPL 358563 Contact Us For Availability
26B
Motor Switch WPL 298699 Contact Us For Availability
28
Screw WPL 690046 Contact Us For Availability
28
Lever WPL 358834 Contact Us For Availability
29
Pulley WPL 348946 Contact Us For Availability
29
Relay WPL 690105 Contact Us For Availability
32
Shield WPL 358829 Contact Us For Availability
33
Transformer WPL 60411 Contact Us For Availability
34
Socket WPL 358830 Contact Us For Availability
35
Bulb WPL 354341 Contact Us For Availability
37
Connector WPL 60671 Contact Us For Availability
37
Arm WPL 687363 Contact Us For Availability
38
Holder WPL 687362 Contact Us For Availability
39
Tube WPL 690074 Contact Us For Availability
40
Clip WPL 357144 Contact Us For Availability
41
Housing WPL 359188 Contact Us For Availability
44
Ground Wire WPL 340025 Contact Us For Availability
47
Microcomputer WPL 60443 Contact Us For Availability
47A
Door (White) WPL 346370 Contact Us For Availability
47B
Door WPL 689259 Contact Us For Availability
47C
Door WPL 689260 Contact Us For Availability
47D
Door WPL 689261 Contact Us For Availability
47E
Door (Almond) WPL 689258 Contact Us For Availability
48
Screw WPL 689791 Contact Us For Availability
48
Washer WPL 358609 Contact Us For Availability
49A
Door (White) WPL 348728 Contact Us For Availability
49B
Door WPL 689331 Contact Us For Availability
49C
Door WPL 689332 Contact Us For Availability
49D
Door WPL 689333 Contact Us For Availability
49E
Door (Almond) WPL 689330 Contact Us For Availability
51A
Panel (White) WPL 338012 Contact Us For Availability
51B
Panel WPL 689534 Contact Us For Availability
51C
Panel WPL 689536 Contact Us For Availability
51D
Panel WPL 689535 Contact Us For Availability
51E
Panel (Almond) WPL 689533 Contact Us For Availability
53
Baffle WPL 348868 Contact Us For Availability
54
Screw WPL 342043 Contact Us For Availability
56A
Toe Panel (White) WPL 237035 Contact Us For Availability
56B
Panel WPL 689538 Contact Us For Availability
56C
Panel WPL 689540 Contact Us For Availability
56D
Panel WPL 689539 Contact Us For Availability
56E
Panel (Almond) WPL 689537 Contact Us For Availability
60B
Handle WPL 689458 Contact Us For Availability
60D
Handle WPL 689459 Contact Us For Availability
60E
Handle (Almond) WPL 689457 Contact Us For Availability
61
Screw WPL 132848 Contact Us For Availability
62
Ground Wire WPL 364089 Contact Us For Availability
63
Ground Strap WPL 22965 Contact Us For Availability
64A
Burner WPL 689792 Contact Us For Availability
64B
Burner WPL 689174 Contact Us For Availability
66
Clip WPL 688412 Contact Us For Availability
67
Screw WPL 343826 Contact Us For Availability
68
Receptacle WPL 717252 Contact Us For Availability
69
Terminal WPL 60279 Contact Us For Availability
70
Receptacle WPL 353425 Contact Us For Availability
70A
Washer Terminal Connector WPL 353424 Contact Us For Availability
73
Cap WPL 60719 Contact Us For Availability
74
Shield WPL 359232 Contact Us For Availability
75
Clip WPL 689180 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
Spray Cf WPL 261886 Contact Us For Availability
NI
Paint Cf WPL 261887 Contact Us For Availability
NI
Spray (Avocado) WPL 261888 Contact Us For Availability
NI
Paint Na WPL 261889 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Wire Adapter WPL 299663 Contact Us For Availability
NI
Wire Adapter WPL 299669 Contact Us For Availability
NI
Touch-Up WPL 72108 Contact Us For Availability
NI
Thinnr 1 Gal WPL 799351 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Wiring Diagram WPL LIT230082 Contact Us For Availability
NI
Installation Instructions WPL LIT340704 Contact Us For Availability
NI
Technical Sheet WPL LIT689597 Contact Us For Availability
NI
Checklist WPL LIT689638 Contact Us For Availability
NI
Operating Instructions WPL LIT689760 Contact Us For Availability
NI
Parts List WPL LIT689843 Contact Us For Availability
NI
Owner's Manual WPL LIT690065 Contact Us For Availability
NI
Label WPL LIT690067 Contact Us For Availability
NI
Service Manual WPL LIT828693 Contact Us For Availability
× ![]()
