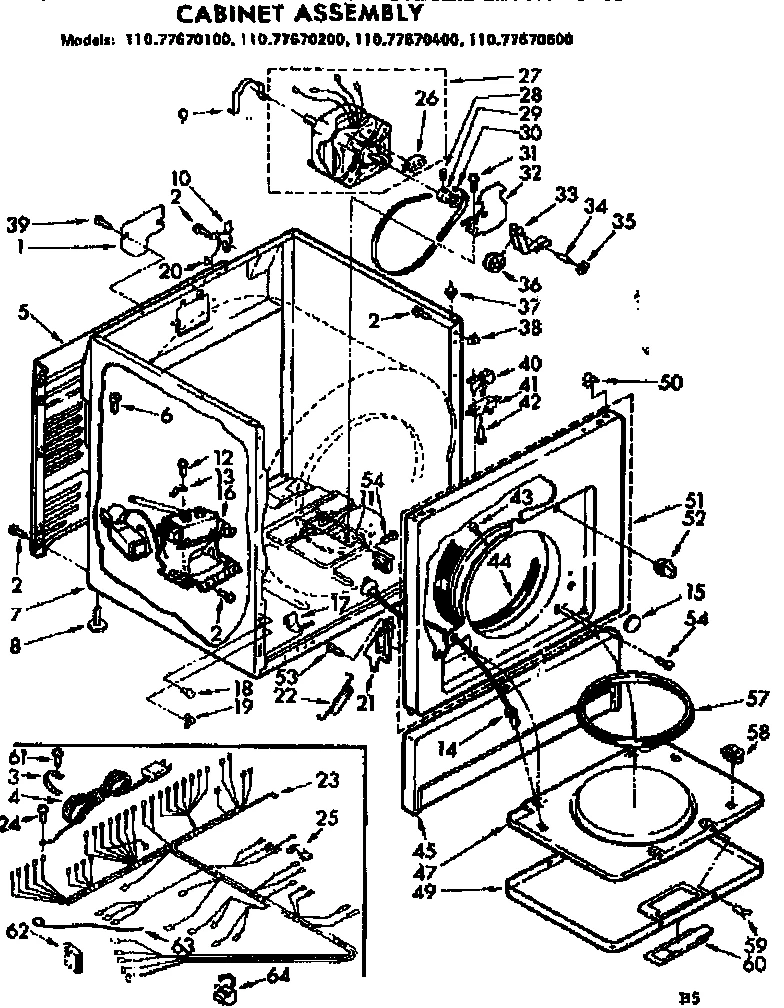

Whirlpool 110.77670100 Gas Dryer (Kenmore 11077670100) Parts List

2

Panel WPL 357421 Contact Us For Availability

View on Model

3

Timer WPL 349361 Contact Us For Availability

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $9.33

View on Model

4

Motor WPL 685913 Contact Us For Availability

View on Model

5

Buzzer WPL 685735 Contact Us For Availability

View on Model

6

98460 Whirlpool Nut Backorder WPL 98460 $8.89

View on Model

7

Clip WPL 98084 Contact Us For Availability

View on Model

8

279900 Whirlpool Box O/S1 Backorder WPL 279900 $228.97

View on Model

8

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

8A

Cap (Chestnut) WPL 372134 Contact Us For Availability

View on Model

8B

Cap (Chestnut) WPL 372127 Contact Us For Availability

View on Model

9

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

View on Model

9

Bracket WPL 687072 Contact Us For Availability

View on Model

10

Screw WPL 358225 Contact Us For Availability

View on Model

10

Screw WPL 98520 Contact Us For Availability

View on Model

11

Panel WPL 687112 Contact Us For Availability

View on Model

11A

Door Cable Guide WPL 337182 Contact Us For Availability

View on Model

11B

Guide WPL 337183 Contact Us For Availability

View on Model

12

Compression Ring WPL 90015 Contact Us For Availability

View on Model

12

Support, Heater Box WPL 348484 Contact Us For Availability

View on Model

14

Ground Wire WPL 340025 Contact Us For Availability

View on Model

15

Switch WPL 346357 Contact Us For Availability

View on Model

16

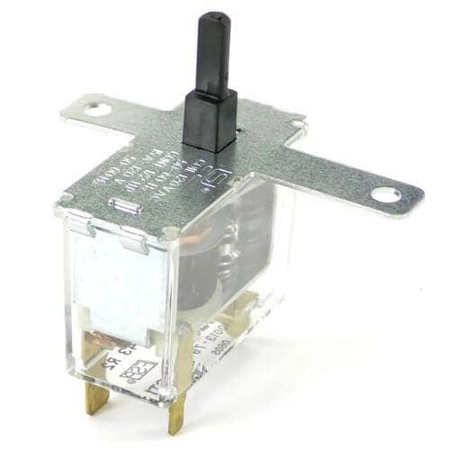

WP346343 Whirlpool Relay Push to Start Backorder WPL WP346343 $187.32

View on Model

17

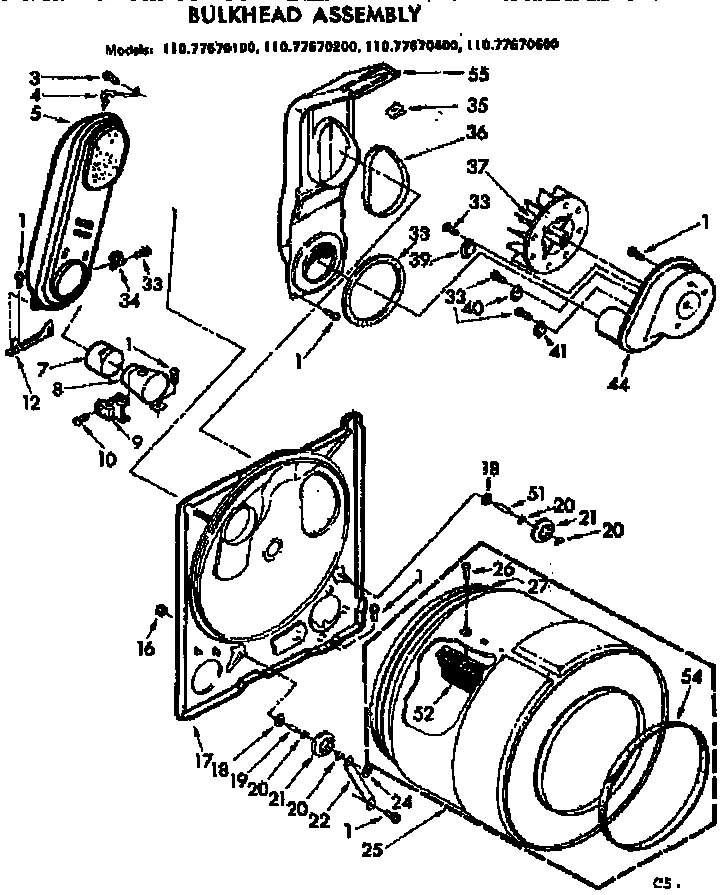

W11178667 Whirlpool Bulkhead Assembly In Stock WPL W11178667 $128.71

View on Model

17

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

View on Model

17

Screw, Nibbed WPL 339607 Contact Us For Availability

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

View on Model

18

Screw WPL 355326 Contact Us For Availability

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

View on Model

19

Clip WPL 342601 Contact Us For Availability

View on Model

19

Dryer Control Knob WPL 349796 Contact Us For Availability

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

20

Timer Knob WPL 687090 Contact Us For Availability

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

View on Model

21

Knob WPL 357814 Contact Us For Availability

View on Model

21A

Door Hinge WPL 238456 Contact Us For Availability

View on Model

21B

WP238460 Whirlpool Hinge In Stock WPL WP238460 $4.99

View on Model

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

View on Model

22

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $4.82

View on Model

22A

WPW10717210 Whirlpool Dryer Lint Screen Filte In Stock WPL WPW10717210 $39.87

View on Model

22B

Screen WPL 348853 Contact Us For Availability

View on Model

22C

Screen WPL 348852 Contact Us For Availability

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

View on Model

23

Harness WPL 687287 Contact Us For Availability

View on Model

24

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

View on Model

24A

Top (White) WPL 685958 Contact Us For Availability

View on Model

24B

Top WPL 685960 Contact Us For Availability

View on Model

24C

Top WPL 685961 Contact Us For Availability

View on Model

24D

Top WPL 685959 Contact Us For Availability

View on Model

25

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

25

Timer Switch WPL 345779 Contact Us For Availability

View on Model

25

Drum WPL 347873 Contact Us For Availability

View on Model

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

View on Model

26A

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

View on Model

26A

Motor WPL 348425 Contact Us For Availability

View on Model

26B

Motor Switch WPL 298699 Contact Us For Availability

View on Model

26B

Motor WPL 348426 Contact Us For Availability

View on Model

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $36.85

View on Model

27

Screw WPL 128060 Contact Us For Availability

View on Model

27B

Motor WPL 338742 Contact Us For Availability

View on Model

28A

Screw WPL 90193 Contact Us For Availability

View on Model

28B

Set Screw WPL 98166 Contact Us For Availability

View on Model

29

Pulley WPL 348946 Contact Us For Availability

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.28

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $80.94

View on Model

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

View on Model

34

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

View on Model

34

Dryer High-Limit Thermostat WPL 341227 Contact Us For Availability

View on Model

35

Washer WPL 345323 Contact Us For Availability

View on Model

35

Clip WPL 338177 Contact Us For Availability

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.81

View on Model

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $12.37

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

39

Thermostat WPL 341197 Contact Us For Availability

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

View on Model

40

Thermostat WPL 343251 Contact Us For Availability

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

View on Model

41

Thermostat WPL 341375 Contact Us For Availability

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $18.99

View on Model

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

View on Model

44

Housing WPL 348494 Contact Us For Availability

View on Model

45A

Toe Panel (White) WPL 237035 Contact Us For Availability

View on Model

45B

Panel WPL 687401 Contact Us For Availability

View on Model

45C

Panel (Gold) WPL 687402 Contact Us For Availability

View on Model

45D

Panel WPL 687400 Contact Us For Availability

View on Model

47A

Door (White) WPL 346395 Contact Us For Availability

View on Model

47B

Door WPL 687379 Contact Us For Availability

View on Model

47C

Door WPL 687380 Contact Us For Availability

View on Model

47D

Door WPL 687378 Contact Us For Availability

View on Model

49A

Door (White) WPL 348737 Contact Us For Availability

View on Model

49B

Door WPL 348738 Contact Us For Availability

View on Model

49C

Door (Gold) WPL 348740 Contact Us For Availability

View on Model

49D

Door WPL 687372 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

View on Model

51A

Panel (White) WPL 337470 Contact Us For Availability

View on Model

51B

Panel WPL 687419 Contact Us For Availability

View on Model

51C

Panel WPL 687420 Contact Us For Availability

View on Model

51D

Panel WPL 687418 Contact Us For Availability

View on Model

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

View on Model

52

Baffle WPL 347892 Contact Us For Availability

View on Model

52A

Baffle WPL 348868 Contact Us For Availability

View on Model

53

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $5.16

View on Model

54

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

View on Model

54

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

View on Model

55

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $111.01

View on Model

57

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

View on Model

59

Screw WPL 9425761 Contact Us For Availability

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.66

View on Model

60B

Handle WPL 348723 Contact Us For Availability

View on Model

60D

Handle (Gold) WPL 687371 Contact Us For Availability

View on Model

62

Receptacle WPL 353425 Contact Us For Availability

View on Model

64

Adapter Plug WPL 92925 Contact Us For Availability

View on Model

NI

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $31.31

View on Model

NI

Screw WPL 132848 Contact Us For Availability

View on Model

NI

Ground Wire WPL 364089 Contact Us For Availability

View on Model

NI

Ground Strap WPL 22965 Contact Us For Availability

View on Model

NI

Wire WPL 687261 Contact Us For Availability

View on Model

NI

Instructions WPL LIT337490 Contact Us For Availability

View on Model

NI

Ownr Suppl WPL LIT346365 Contact Us For Availability

View on Model

NI

Label WPL LIT349924 Contact Us For Availability

View on Model

NI

Operating Instructions WPL LIT686745 Contact Us For Availability

View on Model

NI

Parts List WPL LIT687212 Contact Us For Availability

View on Model

NI

Owner's Manual WPL LIT688144 Contact Us For Availability

View on Model
