Model Whirlpool 110.77490600 Gas Dryer (Kenmore 11077490600) – Common Parts & Diagrams
TOP AND CONSOLE ASSEMBLY

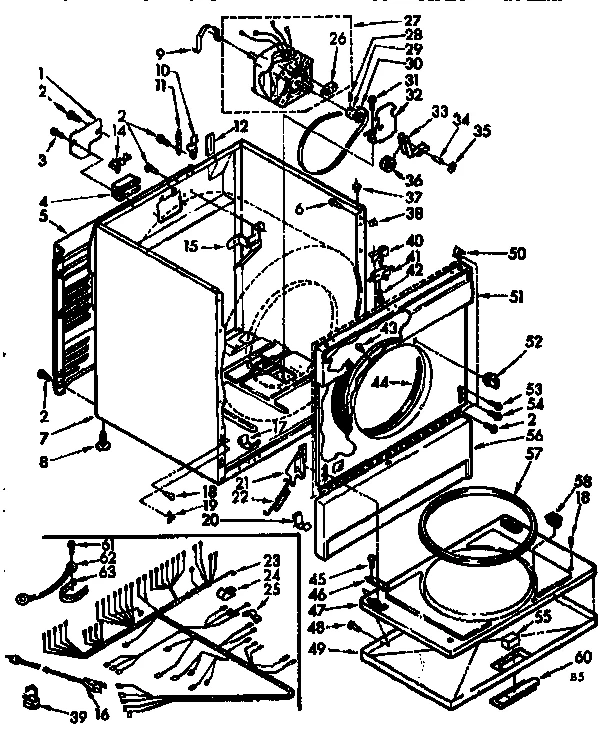

CABINET ASSEMBLY

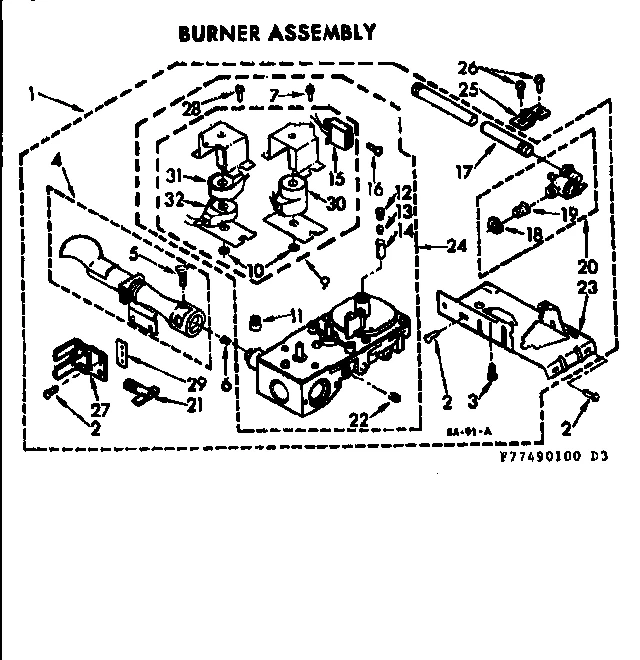

BURNER ASSEMBLY

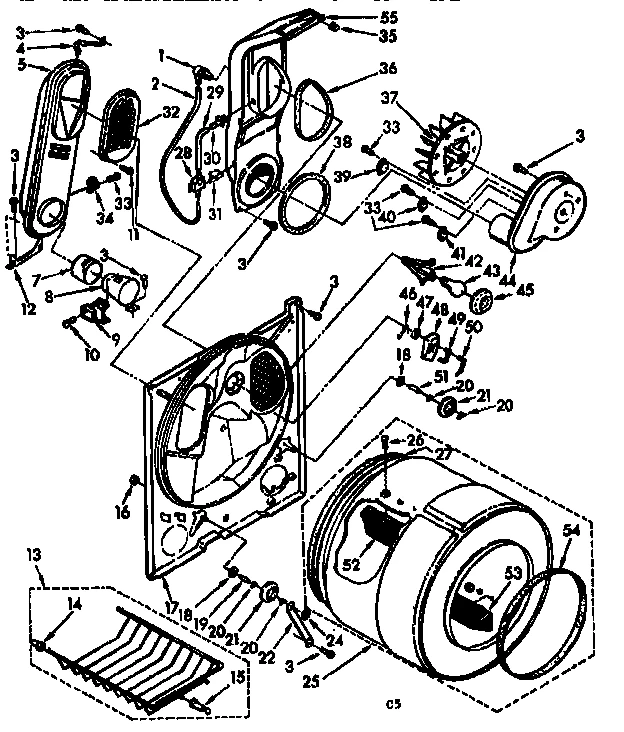

BULKHEAD ASSEMBLY
All Parts
Common parts from model Whirlpool 110.77490600 Gas Dryer (Kenmore 11077490600)
1
Cover WPL 343630 Contact Us For Availability
1
Burner WPL 347312 Contact Us For Availability
1
Tap WPL 339625 Contact Us For Availability
2
Tubing WPL 339893 Contact Us For Availability
4
Brnr/shttr WPL 297536 Contact Us For Availability
5
Panel WPL 348364 Contact Us For Availability
5
Screw WPL 98611 Contact Us For Availability
5
Heater Duct WPL 337362 Contact Us For Availability
6A
Orifice WPL 234778 Contact Us For Availability
6B
Plug WPL 229741 Contact Us For Availability
6C
Burner Orifice WPL 15419 Contact Us For Availability
7A
Cabinet (White) WPL 349192 Contact Us For Availability
7B
Cabinet WPL 349193 Contact Us For Availability
7C
Cabinet WPL 349194 Contact Us For Availability
7D
Cabinet WPL 349195 Contact Us For Availability
9
Coil WPL 347357 Contact Us For Availability
10
O-Ring WPL 296302 Contact Us For Availability
10
Screw WPL 98520 Contact Us For Availability
11
Strap WPL 345211 Contact Us For Availability
11
Connector WPL 340140 Contact Us For Availability
12
Leak Limiter WPL 338868 Contact Us For Availability
12
Box Support WPL 337445 Contact Us For Availability
13
Screw WPL 99996 Contact Us For Availability
13
Dryer Rack WPL 349461 Contact Us For Availability
14
Spring WPL 339226 Contact Us For Availability
14
End Cap WPL 339743 Contact Us For Availability
15
Connctr Plug WPL 296398 Contact Us For Availability
15
End Cap WPL 339723 Contact Us For Availability
16
Ground Wire WPL 340025 Contact Us For Availability
16
Tap Screw WPL 98824 Contact Us For Availability
17
Gas Pipe WPL 233273 Contact Us For Availability
17
Bulkhead WPL 349104 Contact Us For Availability
18
Nut Union WPL 233076 Contact Us For Availability
19
Clip WPL 342601 Contact Us For Availability
20
Socket WPL 80041 Contact Us For Availability
20
Clip WPL 341776 Contact Us For Availability
20
Valve WPL 345106 Contact Us For Availability
21
Switch WPL 342366 Contact Us For Availability
21A
Hinge-r.h. WPL 237759 Contact Us For Availability
21B
Hinge-l.h. WPL 237760 Contact Us For Availability
22
Switch WPL 347496 Contact Us For Availability
22
Door Spring WPL 237979 Contact Us For Availability
23
Buzzer WPL 349457 Contact Us For Availability
23
Harness WPL 349204 Contact Us For Availability
23
Base WPL 338455 Contact Us For Availability
24
Gas Valve WPL 347257 Contact Us For Availability
25
Drum WPL 347875 Contact Us For Availability
26B
Motor Switch WPL 298699 Contact Us For Availability
28
Nut WPL 273505 Contact Us For Availability
28
Screw WPL 90193 Contact Us For Availability
28
Screw WPL 340182 Contact Us For Availability
28
Switch WPL 339524 Contact Us For Availability
29
Barrier WPL 342930 Contact Us For Availability
29
Pulley WPL 348946 Contact Us For Availability
29
Insulator WPL 340609 Contact Us For Availability
29
Tubing WPL 339892 Contact Us For Availability
30
Coil WPL 348376 Contact Us For Availability
30
Tap WPL 339624 Contact Us For Availability
31
Clip WPL 353769 Contact Us For Availability
31
Coil WPL 348375 Contact Us For Availability
31
Clip WPL 339745 Contact Us For Availability
32
Coil WPL 348374 Contact Us For Availability
33
Barrier WPL 352721 Contact Us For Availability
34
Barrier WPL 352944 Contact Us For Availability
34
Thermostat WPL 338471 Contact Us For Availability
35
Clip WPL 338177 Contact Us For Availability
35
Control WPL 60188 Contact Us For Availability
35
Washer WPL 345323 Contact Us For Availability
36
Bracket WPL 349240 Contact Us For Availability
37
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
39
Relay WPL 349787 Contact Us For Availability
39
(338471) (ALT.) WPL N/P Contact Us For Availability
39
Adapter Plug WPL 92925 Contact Us For Availability
41
Thermostat WPL 341197 Contact Us For Availability
41A
Socket WPL 343519 Contact Us For Availability
41B
Socket WPL 361856 Contact Us For Availability
42
Light Socket WPL 341167 Contact Us For Availability
42A
Escutcheon (White) WPL 349293 Contact Us For Availability
42B
Escutcheon WPL 349294 Contact Us For Availability
42C
Escutcheon WPL 349295 Contact Us For Availability
42D
Escutcheon (Gold) WPL 349296 Contact Us For Availability
43
Insert WPL 349299 Contact Us For Availability
44
Light WPL 349628 Contact Us For Availability
44
Housing WPL 348494 Contact Us For Availability
45
Knob WPL 349281 Contact Us For Availability
45
Lens WPL 341165 Contact Us For Availability
46
Compression Ring WPL 90015 Contact Us For Availability
47
Door WPL 349329 Contact Us For Availability
47A
Door (White) WPL 346370 Contact Us For Availability
47B
Door WPL 346371 Contact Us For Availability
47C
Door WPL 346372 Contact Us For Availability
47D
Door (Gold) WPL 346373 Contact Us For Availability
48
Screw WPL 162289 Contact Us For Availability
49
Spring WPL 353177 Contact Us For Availability
49A
Door (White) WPL 348728 Contact Us For Availability
49B
Door WPL 348730 Contact Us For Availability
49C
Door WPL 348729 Contact Us For Availability
49D
Door (Gold) WPL 348731 Contact Us For Availability
51
Plug WPL 352747 Contact Us For Availability
51A
Panel (White) WPL 239133 Contact Us For Availability
51B
Panel WPL 239140 Contact Us For Availability
51C
Panel WPL 239185 Contact Us For Availability
51D
Panel (Gold) WPL 239306 Contact Us For Availability
52
Insert WPL 349298 Contact Us For Availability
52
Baffle WPL 347892 Contact Us For Availability
53
Insert WPL 349297 Contact Us For Availability
53
Screw WPL 98519 Contact Us For Availability
53
Baffle WPL 348868 Contact Us For Availability
54
Screw WPL 342043 Contact Us For Availability
54B
Screen WPL 348852 Contact Us For Availability
54C
Screen WPL 348853 Contact Us For Availability
55
Screw WPL 128060 Contact Us For Availability
55
Spacer WPL 348501 Contact Us For Availability
55
Lint Chute WPL 349242 Contact Us For Availability
56
Washer WPL 237446 Contact Us For Availability
56B
Toe Panel WPL 298931 Contact Us For Availability
56C
Toe Panel WPL 339794 Contact Us For Availability
56D
Panel (Gold) WPL 342854 Contact Us For Availability
57
Bumper WPL 297535 Contact Us For Availability
60B
Handle WPL 348723 Contact Us For Availability
60D
Handle (Gold) WPL 348724 Contact Us For Availability
NI
Toe Panel (White) WPL 237035 Contact Us For Availability
NI
Screw WPL 132848 Contact Us For Availability
NI
Ground Wire WPL 364089 Contact Us For Availability
NI
Ground Strap WPL 22965 Contact Us For Availability
NI
Clip Panel WPL 297865 Contact Us For Availability
NI
Panel (White) WPL 337470 Contact Us For Availability
NI
Instructions WPL 337490 Contact Us For Availability
NI
Instructions WPL 339896 Contact Us For Availability
NI
Installation Instructions WPL 340704 Contact Us For Availability
NI
Wiring Label WPL 345485 Contact Us For Availability
NI
Instructions WPL 346365 Contact Us For Availability
NI
Owner's Manual WPL 347149 Contact Us For Availability
NI
Instructions WPL 348081 Contact Us For Availability
NI
Parts List WPL 354449 Contact Us For Availability
NI
Parts List WPL LIT349136 Contact Us For Availability
× ![]()
