Model Whirlpool 110.77401610 Gas Dryer (Kenmore 11077401610) – Common Parts & Diagrams
All Parts

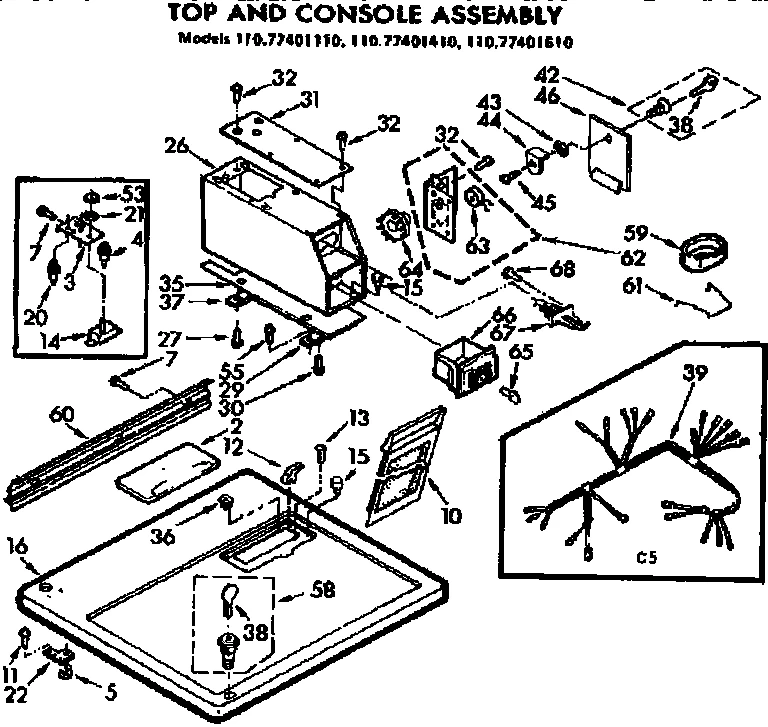

TOP AND CONSOLE ASSEMBLY

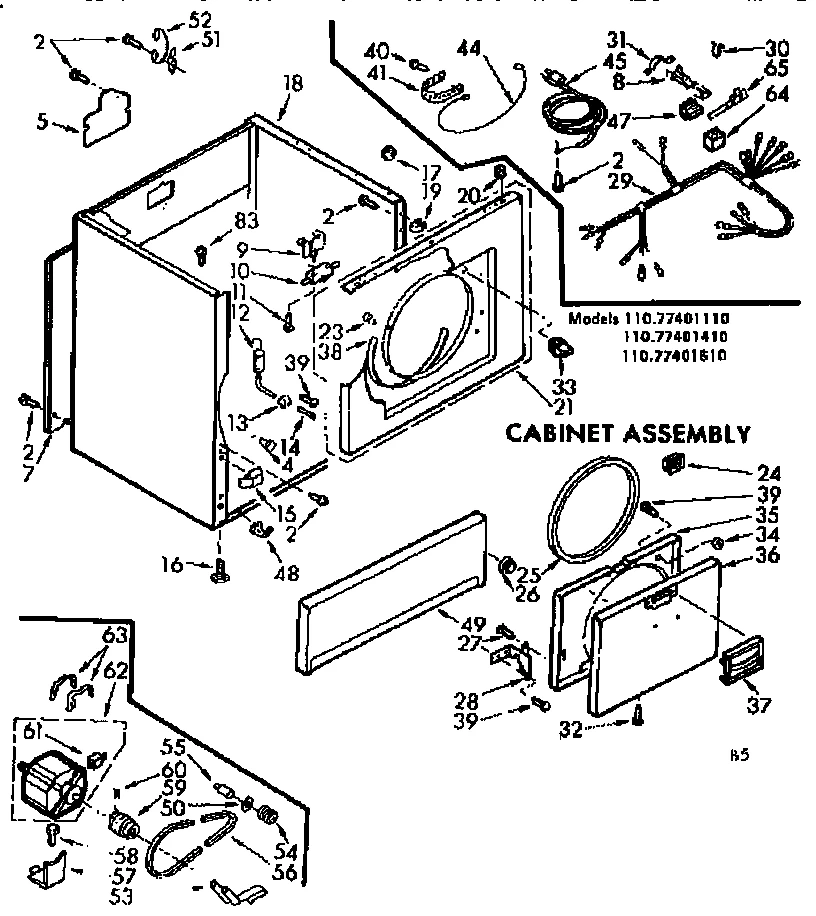

CABINET ASSEMBLY

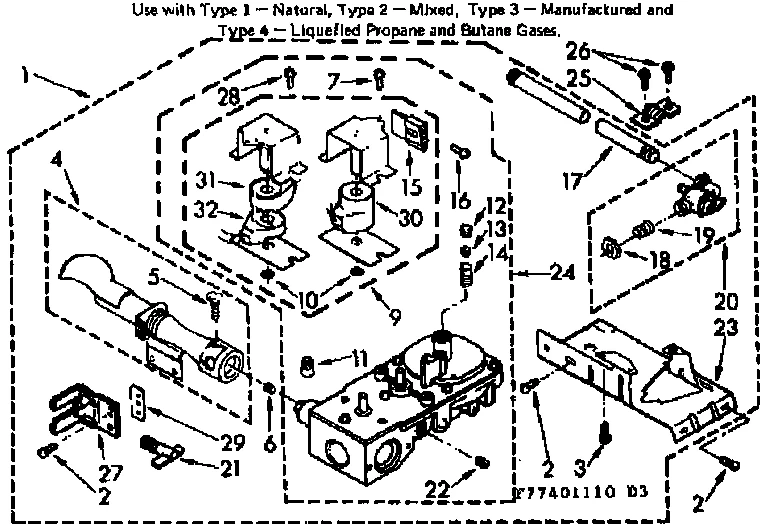

BURNER ASSEMBLY

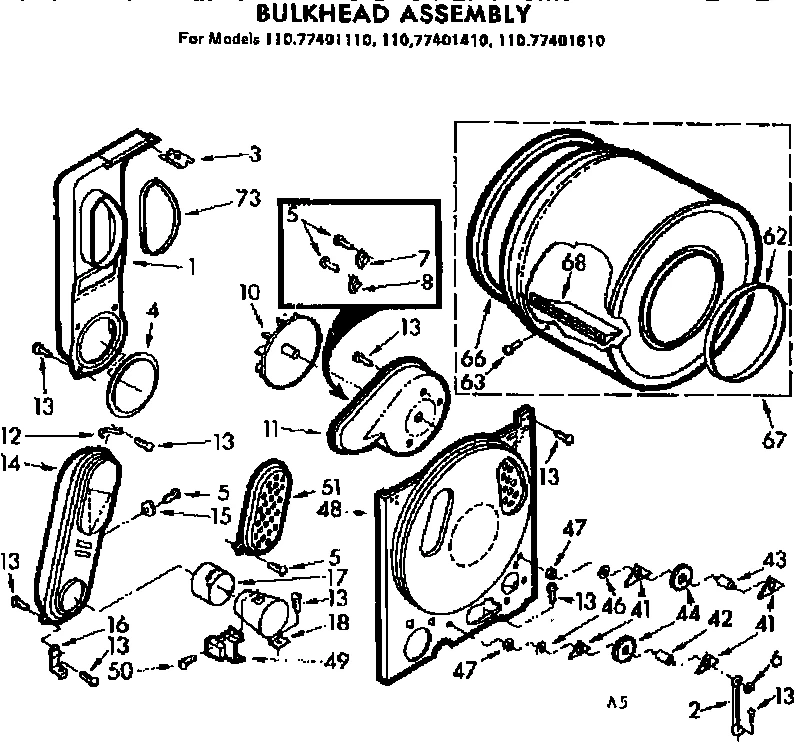

BULKHEAD ASSEMBLY
Common parts from model Whirlpool 110.77401610 Gas Dryer (Kenmore 11077401610)
1
Burner WPL 349621 Contact Us For Availability
2
Bracket WPL 348945 Contact Us For Availability
3
Clip WPL 338177 Contact Us For Availability
4
Brnr/shttr WPL 297536 Contact Us For Availability
5
Cover WPL 343630 Contact Us For Availability
5
Screw WPL 98611 Contact Us For Availability
6
(338471) (ALT.) WPL N/P Contact Us For Availability
6A
Orifice WPL 234870 Contact Us For Availability
6B
Orifice WPL 234824 Contact Us For Availability
6C
Orifice WPL 234809 Contact Us For Availability
7
Panel WPL 347736 Contact Us For Availability
7
Thermostat WPL 341197 Contact Us For Availability
8
Terminal WPL 98707 Contact Us For Availability
9A
Coil WPL 347357 Contact Us For Availability
9B
Coil WPL 342886 Contact Us For Availability
10
O-Ring WPL 296302 Contact Us For Availability
11
Connector WPL 340140 Contact Us For Availability
11
Housing WPL 348495 Contact Us For Availability
12
Leak Limiter WPL 338868 Contact Us For Availability
13
Screw WPL 99996 Contact Us For Availability
13A
Door Cable Guide WPL 337182 Contact Us For Availability
13B
Guide WPL 337183 Contact Us For Availability
14
Spring WPL 339226 Contact Us For Availability
14
Heater Duct WPL 337362 Contact Us For Availability
15
Washer Terminal Connector WPL 353424 Contact Us For Availability
15
Clip WPL 342601 Contact Us For Availability
15
Thermostat WPL 338471 Contact Us For Availability
16
Tap Screw WPL 98824 Contact Us For Availability
16
Box Support WPL 337445 Contact Us For Availability
17
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
17
Gas Pipe WPL 233273 Contact Us For Availability
18
Nut Union WPL 233076 Contact Us For Availability
18
Funnel WPL 338904 Contact Us For Availability
18A
Cabinet (White) WPL 343623 Contact Us For Availability
18B
Cabinet WPL 343632 Contact Us For Availability
18D
Cabinet (Gold) WPL 343634 Contact Us For Availability
20
Valve WPL 345106 Contact Us For Availability
21A
Panel (White) WPL 343509 Contact Us For Availability
21B
Panel WPL 345275 Contact Us For Availability
21C
Panel (Gold) WPL 347244 Contact Us For Availability
23
Base WPL 338455 Contact Us For Availability
24A
Gas Valve WPL 347257 Contact Us For Availability
24B
Valve WPL 349830 Contact Us For Availability
27
Bolt WPL 356599 Contact Us For Availability
28
Screw WPL 340182 Contact Us For Availability
28B
Door Hinge WPL 238456 Contact Us For Availability
29
Housng Strap WPL 83701 Contact Us For Availability
29
Harness WPL 349950 Contact Us For Availability
29
Insulator WPL 340609 Contact Us For Availability
30
Screw WPL 90057 Contact Us For Availability
30
Clip WPL 231979 Contact Us For Availability
30
Coil WPL 348376 Contact Us For Availability
31
Plate WPL 685176 Contact Us For Availability
31
Coil WPL 348375 Contact Us For Availability
32
Screw WPL 9425761 Contact Us For Availability
32
Coil WPL 348374 Contact Us For Availability
34
Panel Spacer WPL 299745 Contact Us For Availability
35
Cushion WPL 349735 Contact Us For Availability
35A
Door (White) WPL 346395 Contact Us For Availability
35B
Door WPL 346397 Contact Us For Availability
35C
Door (Gold) WPL 346398 Contact Us For Availability
36A
Door (White) WPL 348737 Contact Us For Availability
36B
Door WPL 348738 Contact Us For Availability
36C
Door (Gold) WPL 348740 Contact Us For Availability
37
Plate WPL 351562 Contact Us For Availability
37C
Handle (Gold) WPL 348724 Contact Us For Availability
38
Lock Key WPL 354770 Contact Us For Availability
39
Harness WPL 349952 Contact Us For Availability
40
Screw WPL 132848 Contact Us For Availability
41
Ground Strap WPL 22965 Contact Us For Availability
42
Lock WPL 354731 Contact Us For Availability
43
Nut WPL 354287 Contact Us For Availability
44
Lock Cam WPL 354286 Contact Us For Availability
44
Ground Wire WPL 364089 Contact Us For Availability
45
Screw WPL 354285 Contact Us For Availability
46A
Door (White) WPL 360054 Contact Us For Availability
46B
Door WPL 361207 Contact Us For Availability
46C
Door (Gold) WPL 365187 Contact Us For Availability
47
Receptacle WPL 353425 Contact Us For Availability
48
Bulkhead WPL 348970 Contact Us For Availability
49A
Toe Panel (White) WPL 237035 Contact Us For Availability
49B
Panel WPL 345266 Contact Us For Availability
49C
Panel (Gold) WPL 347247 Contact Us For Availability
50
Washer WPL 345323 Contact Us For Availability
50
Screw WPL 98520 Contact Us For Availability
52
Ground Wire WPL 340025 Contact Us For Availability
53
Knurled Nut WPL 98616 Contact Us For Availability
55
Screw WPL 98048 Contact Us For Availability
57
Motor Base WPL 337094 Contact Us For Availability
58
Lock WPL 364849 Contact Us For Availability
59
Funnel WPL 355446 Contact Us For Availability
60
Trim Rail WPL 349955 Contact Us For Availability
60
Screw WPL 90193 Contact Us For Availability
61
Guide WPL 357025 Contact Us For Availability
61
Motor Switch WPL 298699 Contact Us For Availability
63
Motor WPL 345418 Contact Us For Availability
64
Plug WPL 352458 Contact Us For Availability
83
Screw WPL 343826 Contact Us For Availability
× ![]()
