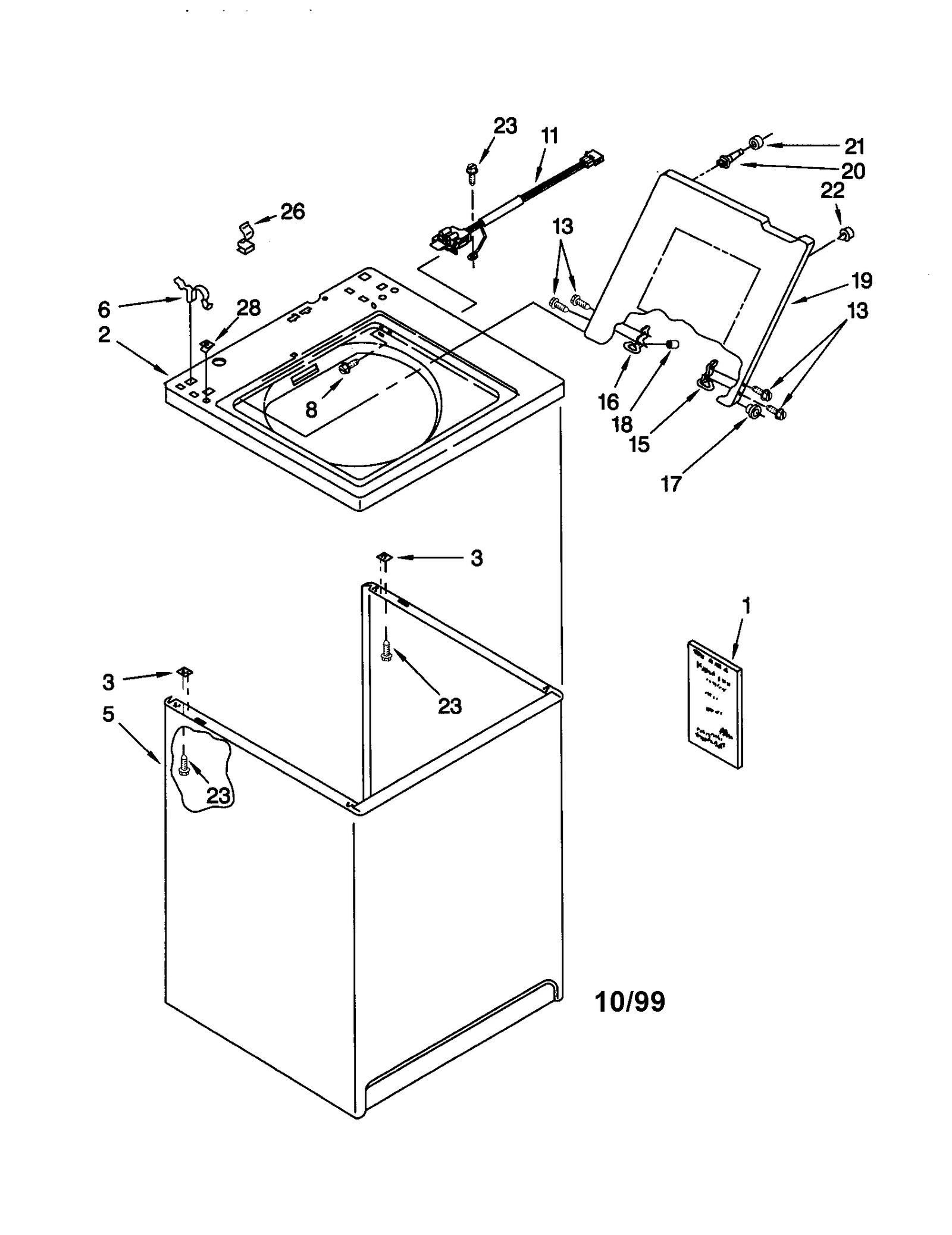

Model Whirlpool 110.20422990 Washer (Kenmore 11020422990) – Common Parts &amp; Diagrams

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $43.18

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Installation Instructions WPL LIT3952895 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1A

Owner's Manual WPL LIT3954109 Contact Us For Availability

1B

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

1B

Technical Sheet WPL LIT3954130 Contact Us For Availability

1C

Wiring Diagram WPL LIT3954132 Contact Us For Availability

1D

Energy Guide WPL LIT3953878 Contact Us For Availability

1E

Parts List WPL LIT3954117 Contact Us For Availability

1F

Repair Manual WPL LIT4314044 Contact Us For Availability

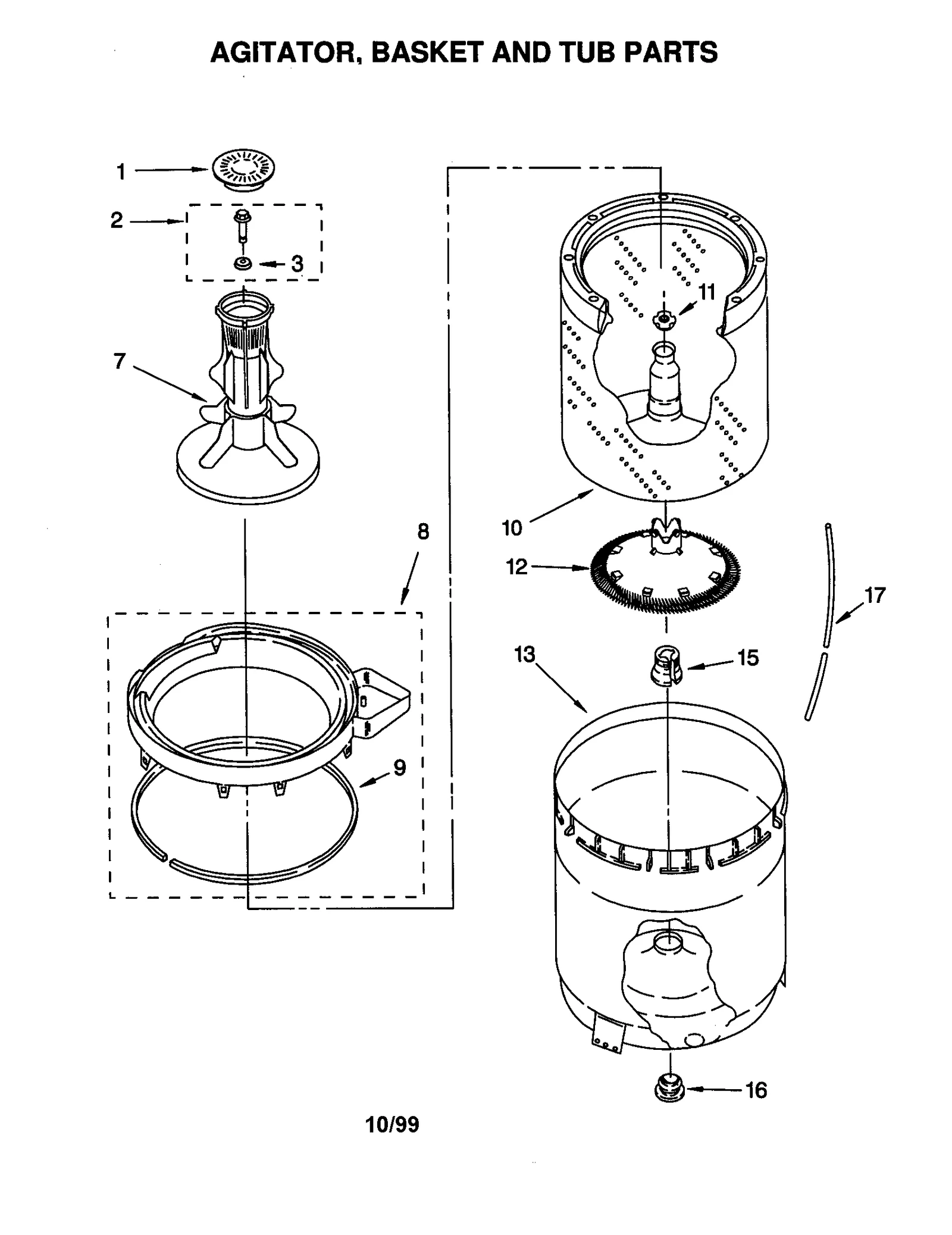

2

285321 Whirlpool Sleeve Backorder WPL 285321 $57.93

2

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $93.56

2

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Top W WPL 3949966 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $81.53

4

Shield-sud WPL 3950830 Contact Us For Availability

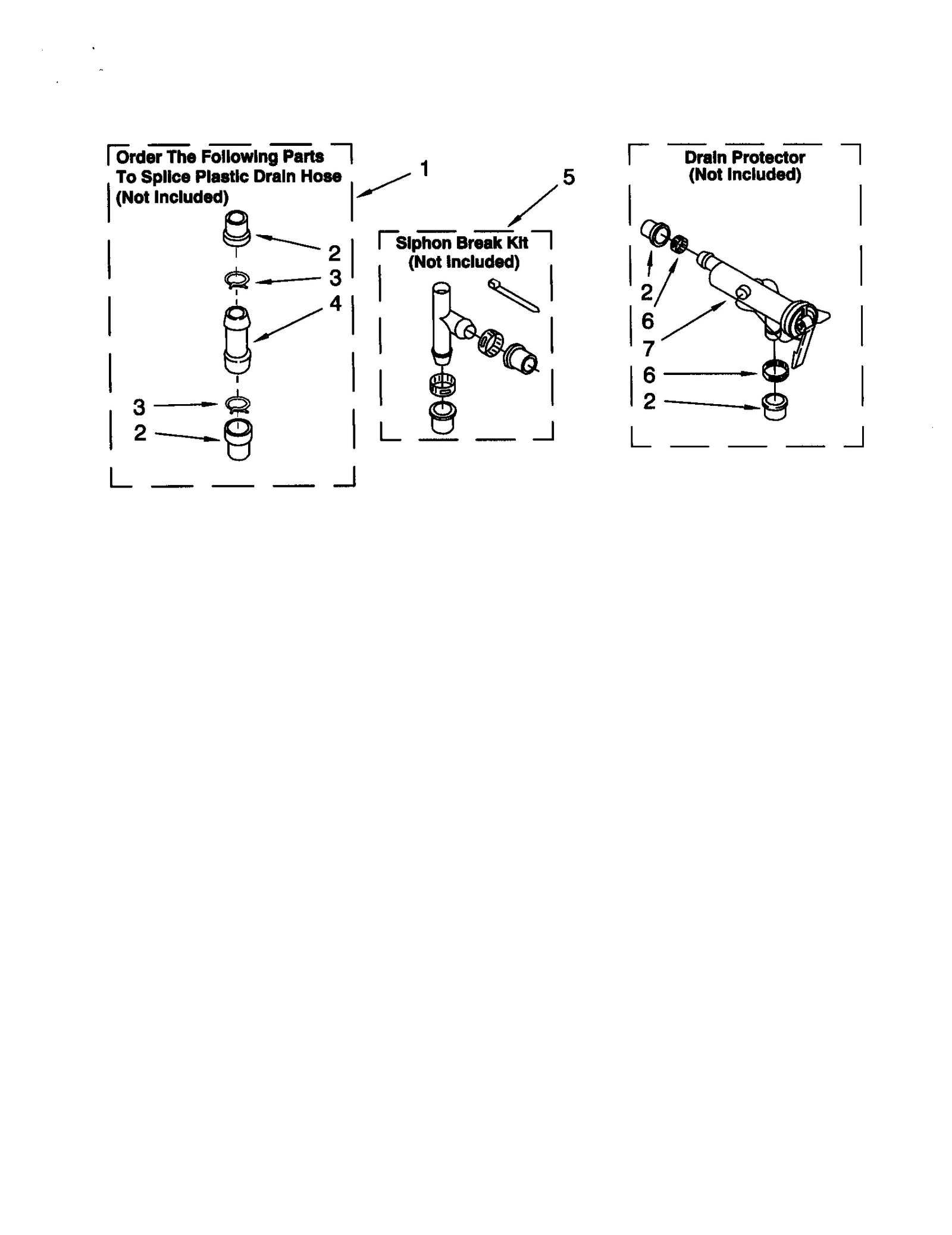

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

Bracket WPL 64065 Contact Us For Availability

5

Extension Shield WPL 3950829 Contact Us For Availability

6

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

7

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $69.08

7

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $81.03

7

Washer Drain Protector WPL 367031 Contact Us For Availability

8

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $138.46

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Relief Stirrer WPL 3952821 Contact Us For Availability

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $19.51

9

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

9

Washer Control Knob WPL 3402572 Contact Us For Availability

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $81.90

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $217.79

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Hinge Panel WPL 387402 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP3949238 Whirlpool Lid Switch Assembly In Stock WPL WP3949238 $35.46

Washer Terminal Connector WPL 353424 Contact Us For Availability

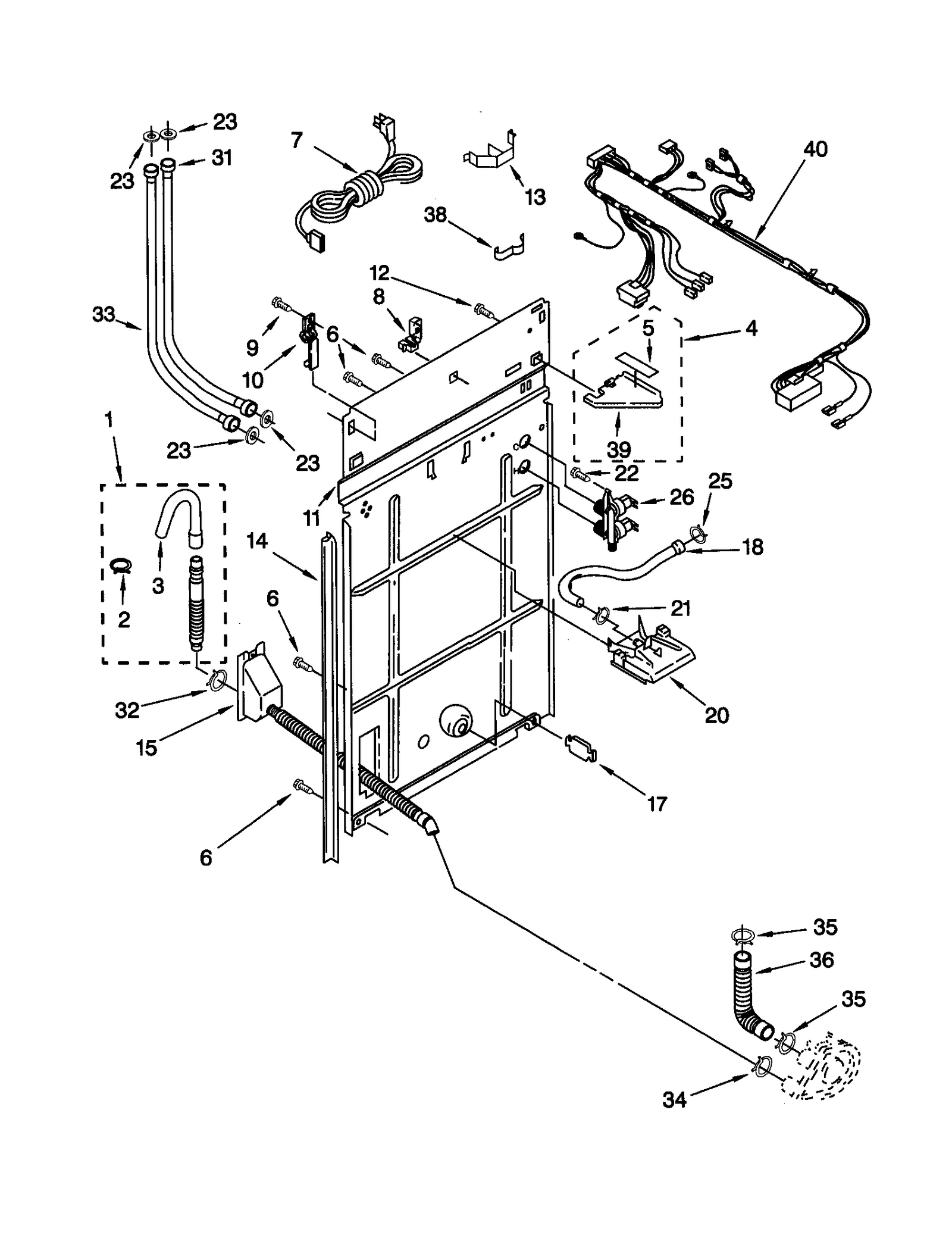

Rear Panel WPL 3356472 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $15.49

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Washer Timer Dial WPL 3949428 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

WP3950715 Whirlpool Knob In Stock WPL WP3950715 $39.19

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Retainer WPL 8055003 Contact Us For Availability

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

15

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

18

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

Washer Timer WPL 3951166 Contact Us For Availability

19

Lid WPL 3953776 Contact Us For Availability

20

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

20

Strike WPL 357141 Contact Us For Availability

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

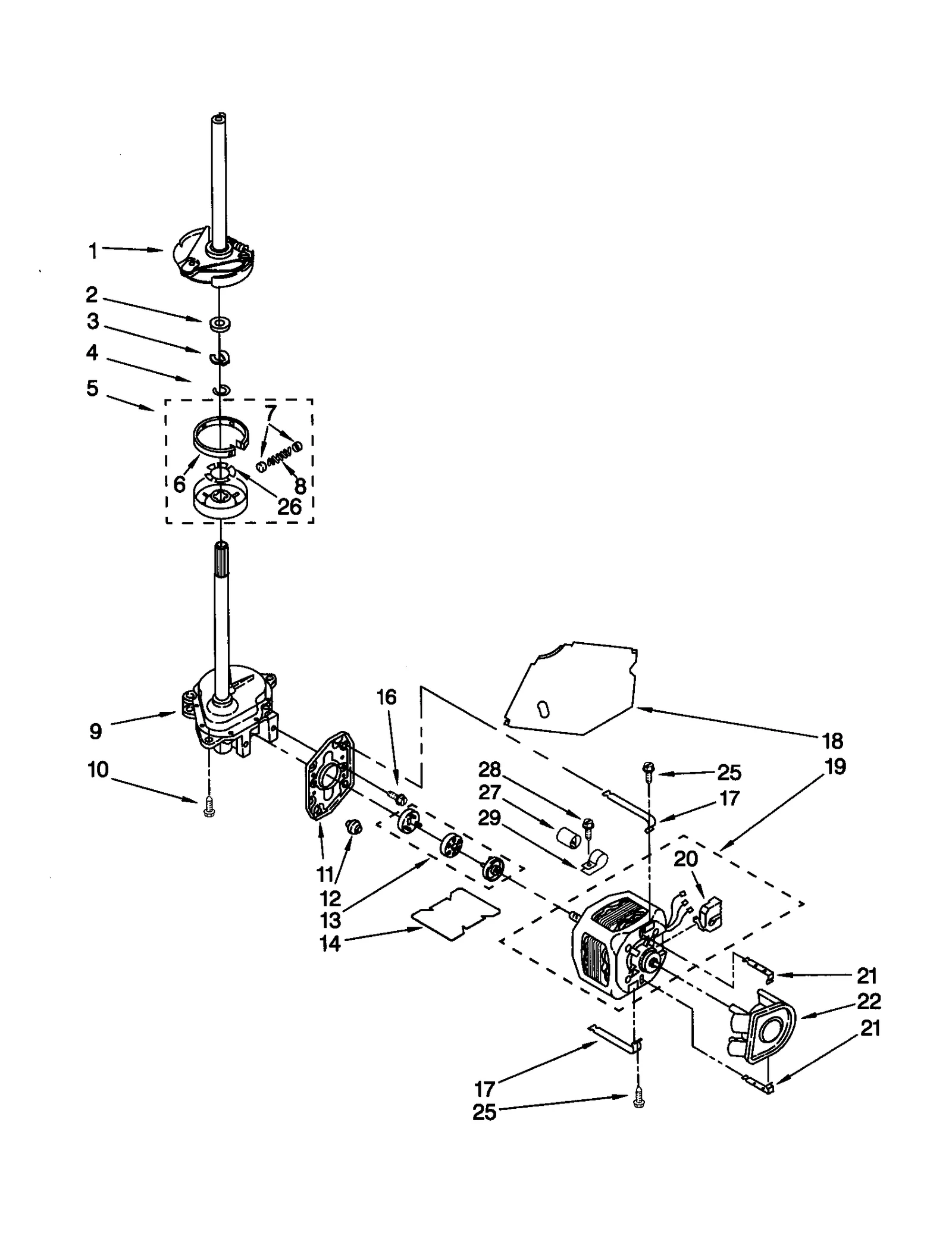

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

22

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

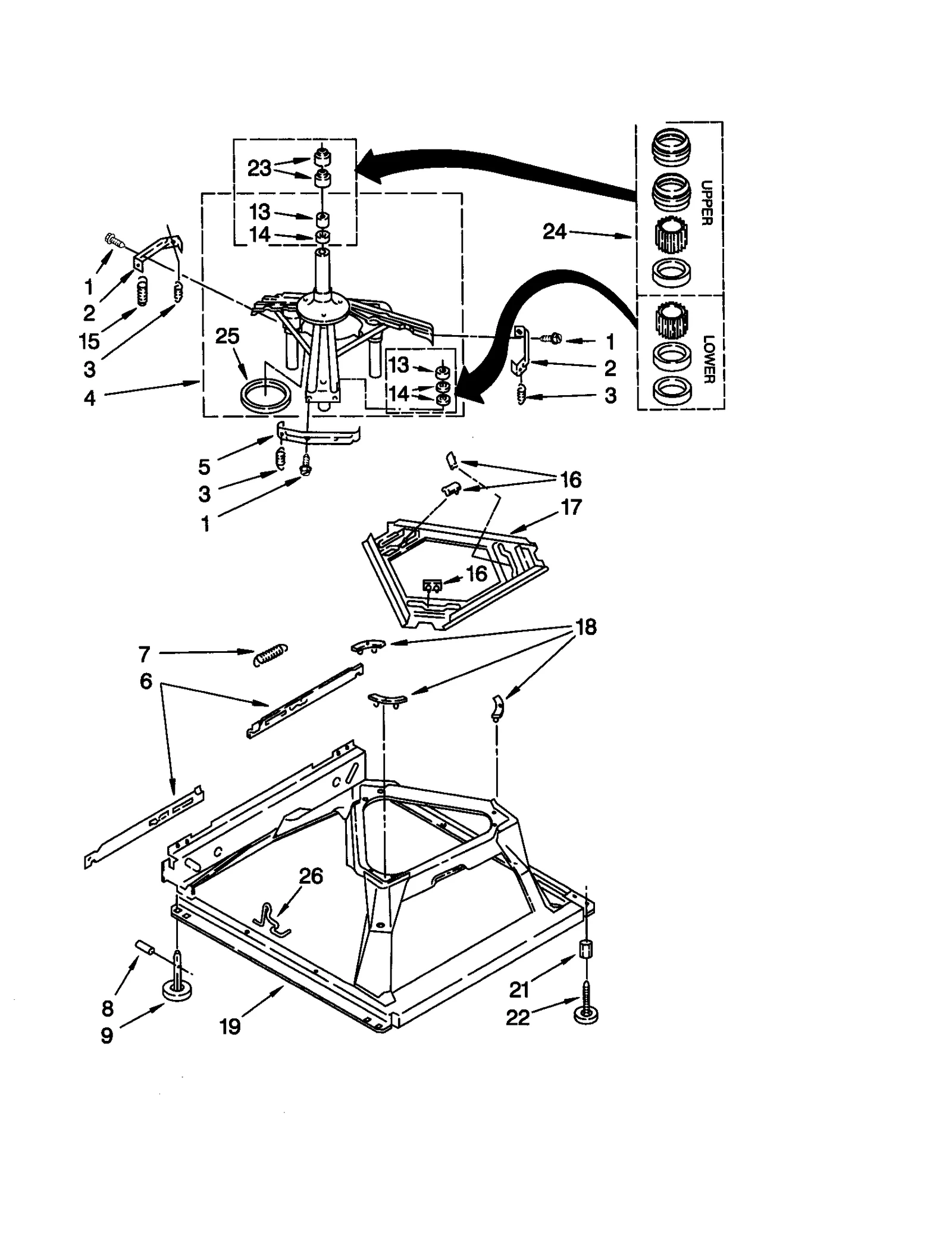

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

W10915367 Whirlpool Screw Assembly Backorder WPL W10915367 $4.82

25

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

26

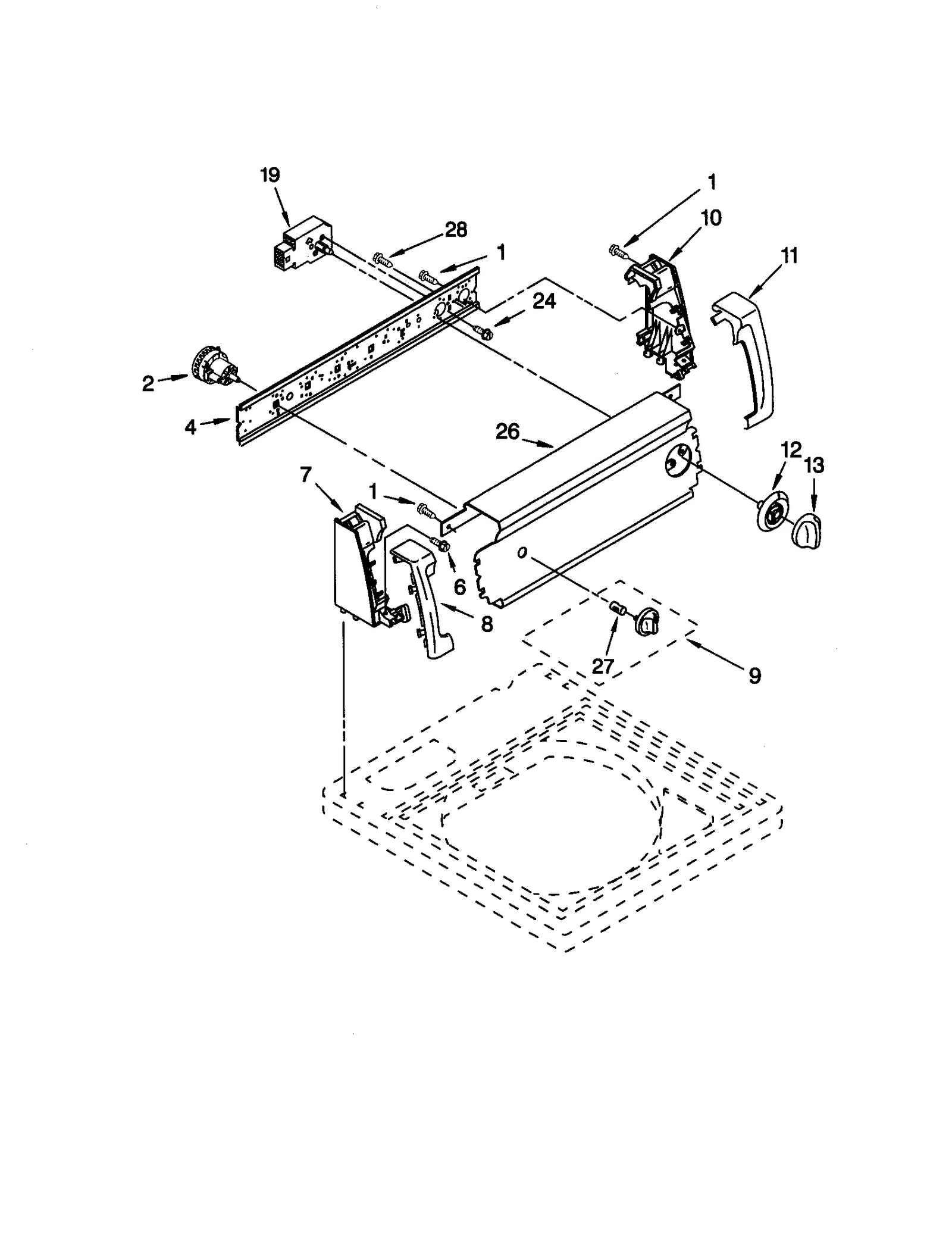

Control Panel WPL 3953329 Contact Us For Availability

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

27

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

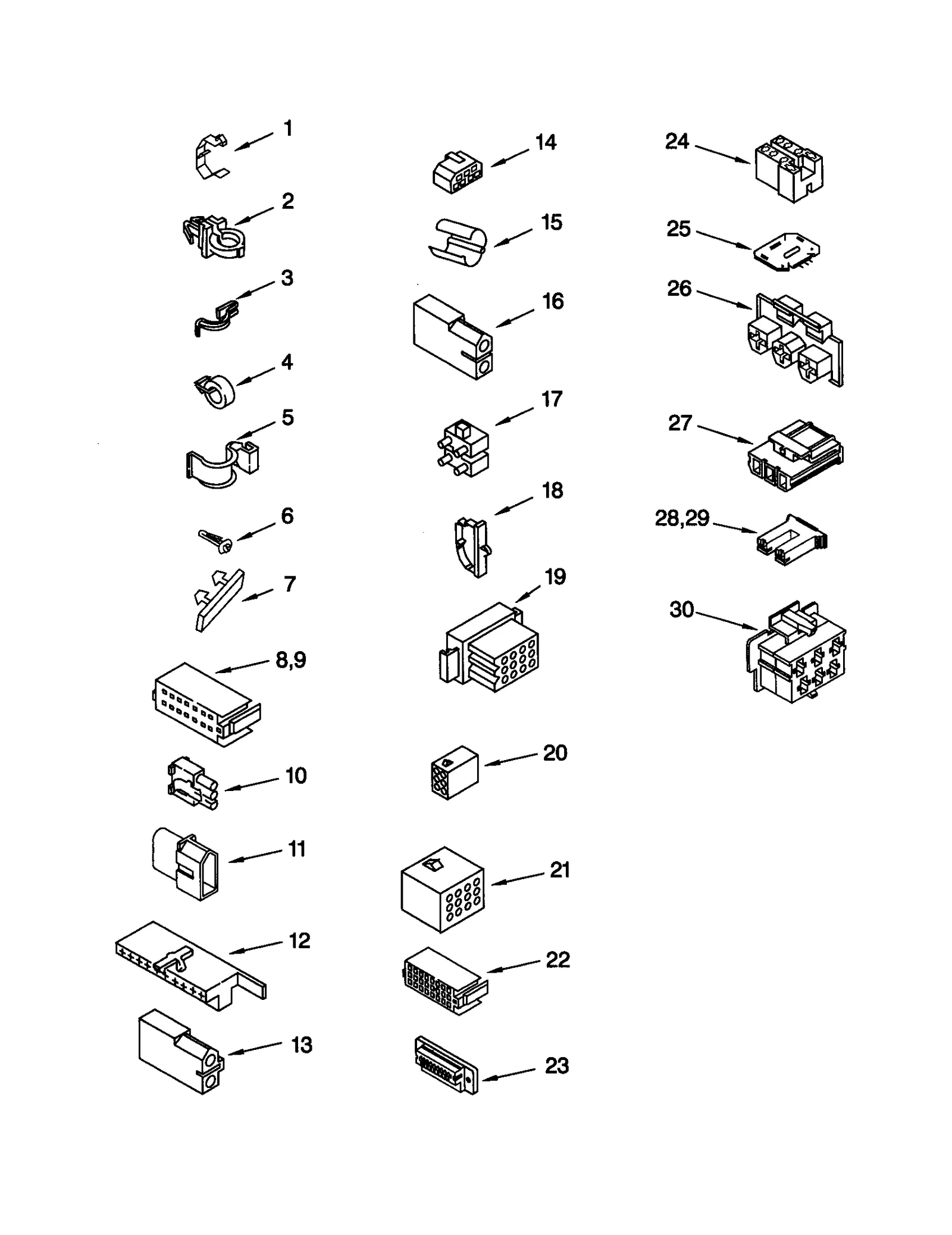

27

Connector WPL 3360056 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

29

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

34

Hose Clamp WPL 66062 Contact Us For Availability

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

38

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

39

Shield Valve WPL 3348424 Contact Us For Availability

40

Wire Harness WPL 3953610 Contact Us For Availability

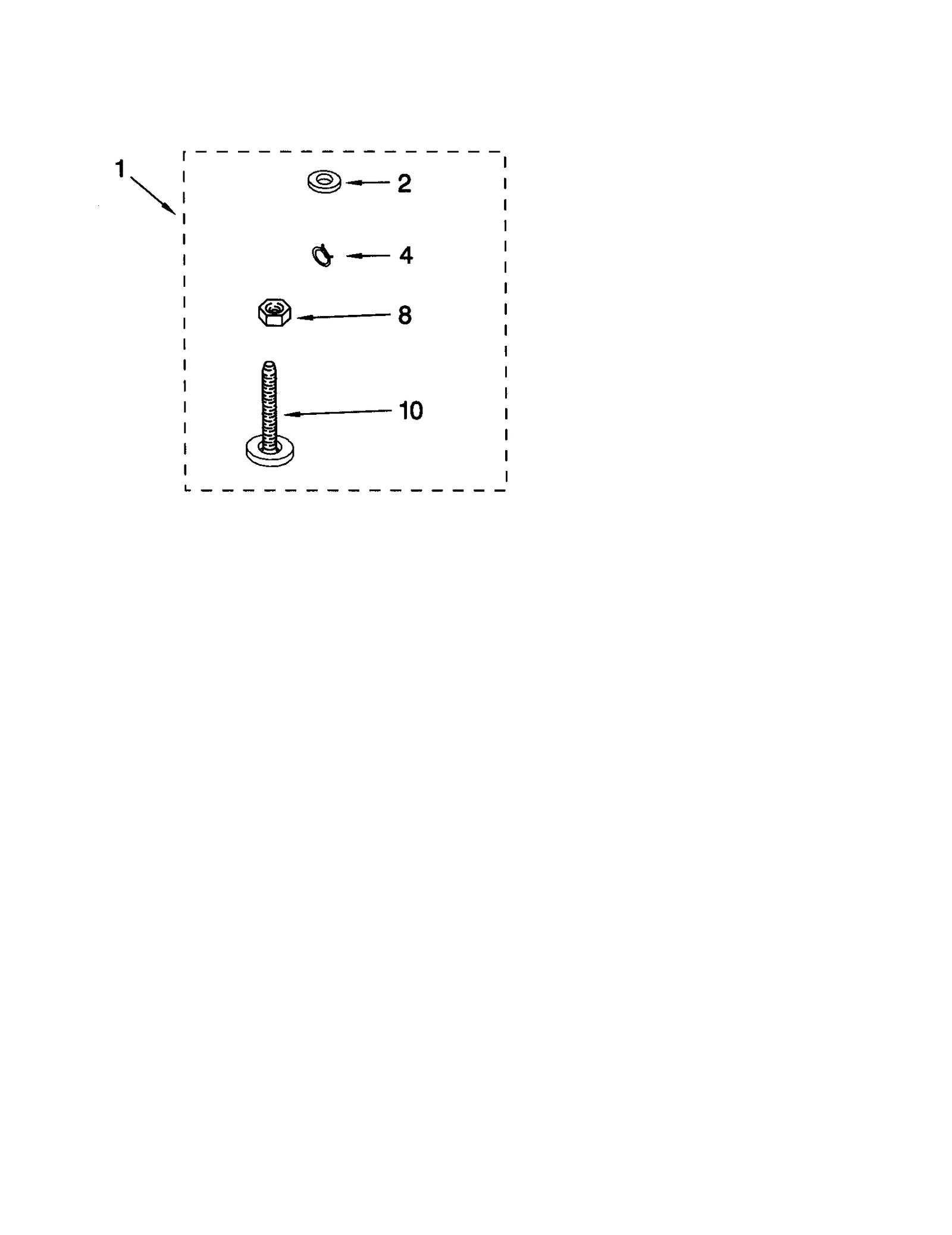

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability
