Model Whirlpool 106.41564802 Refrigerator (Kenmore 10641564802) – Common Parts &amp; Diagrams

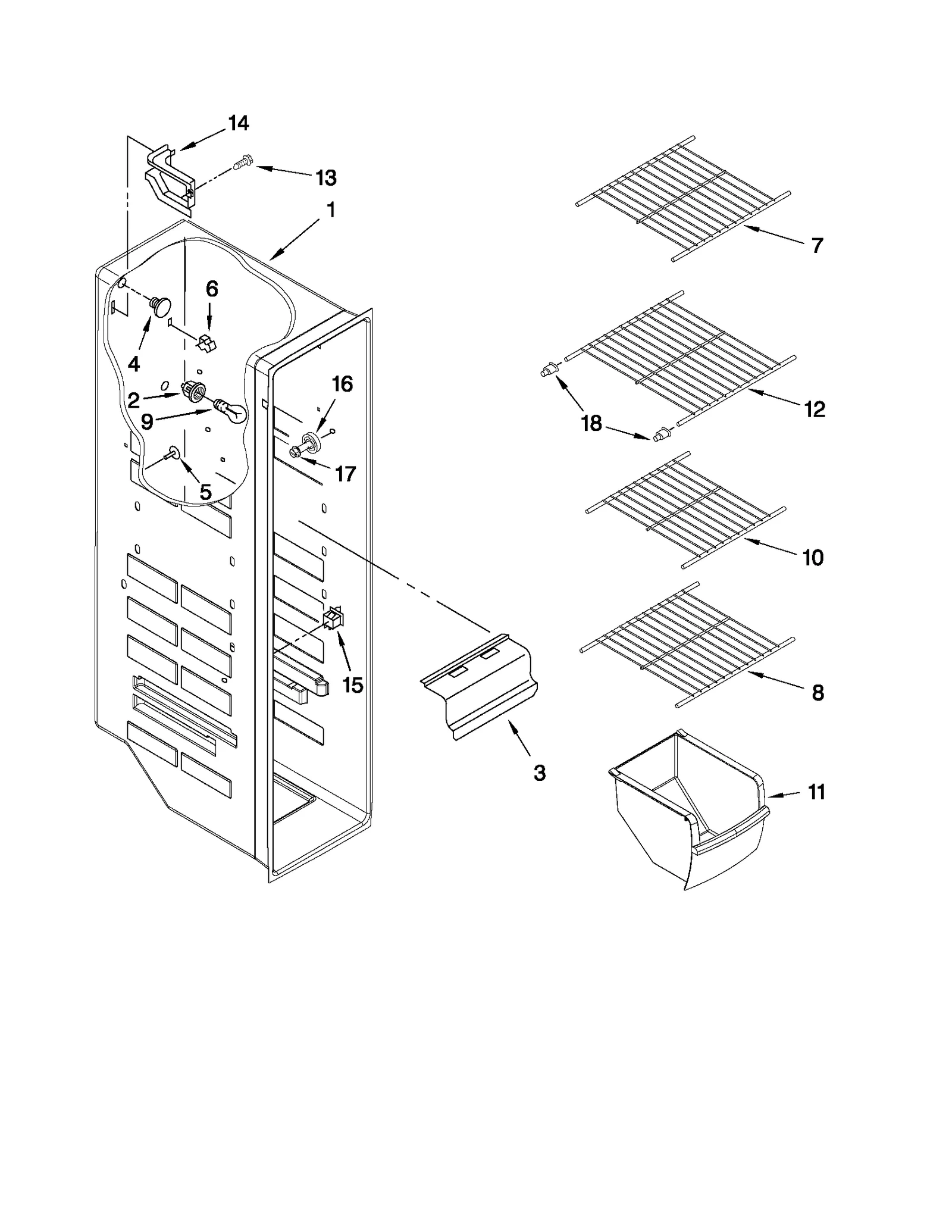

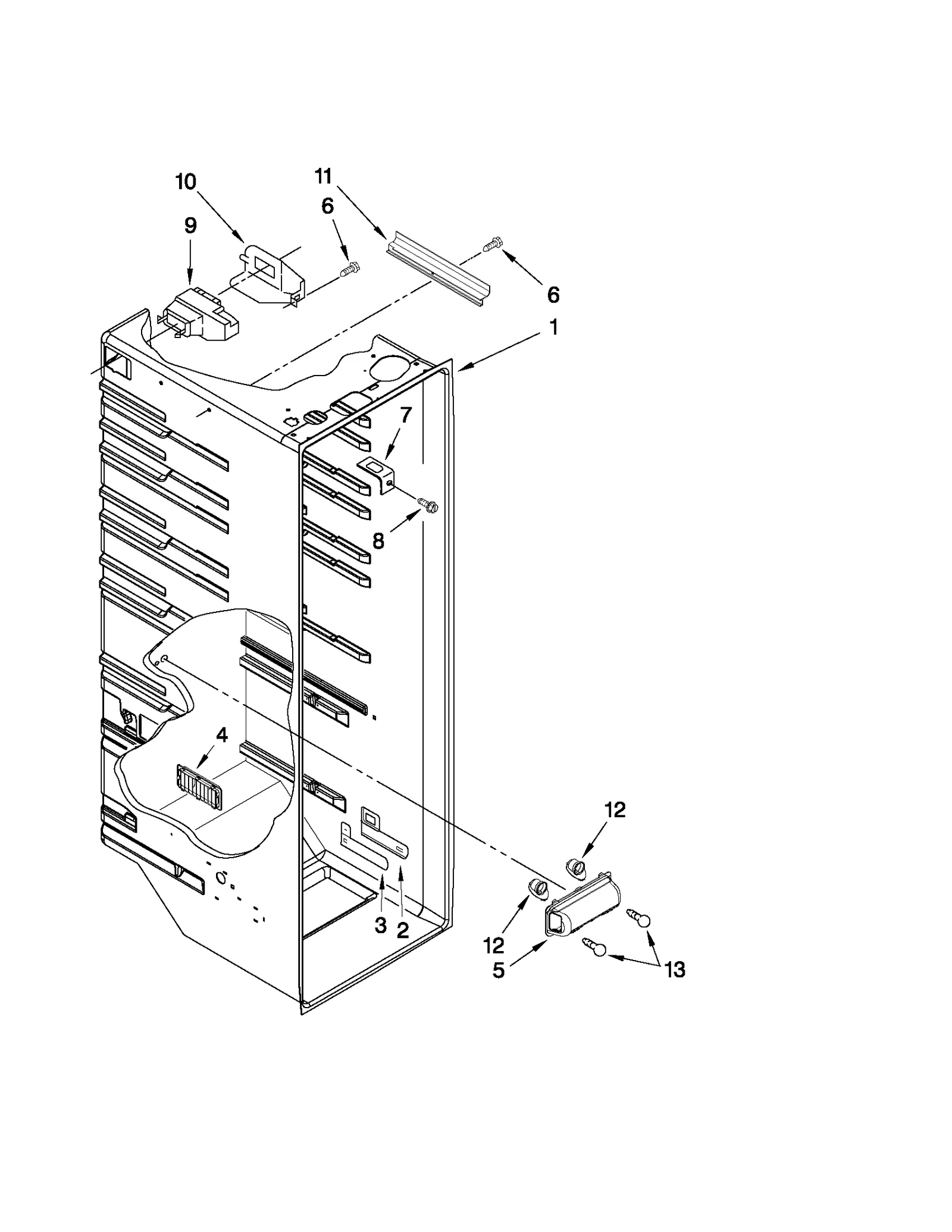

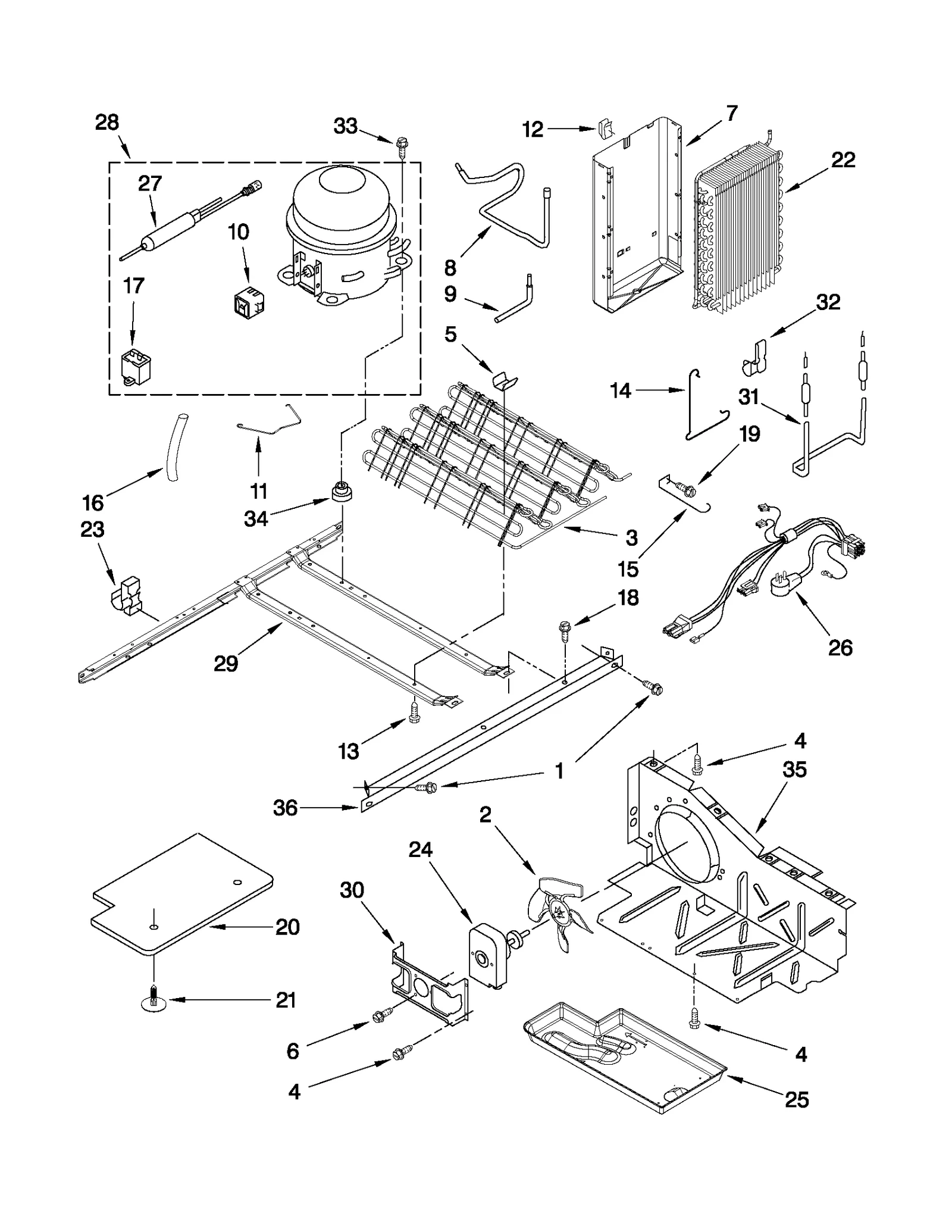

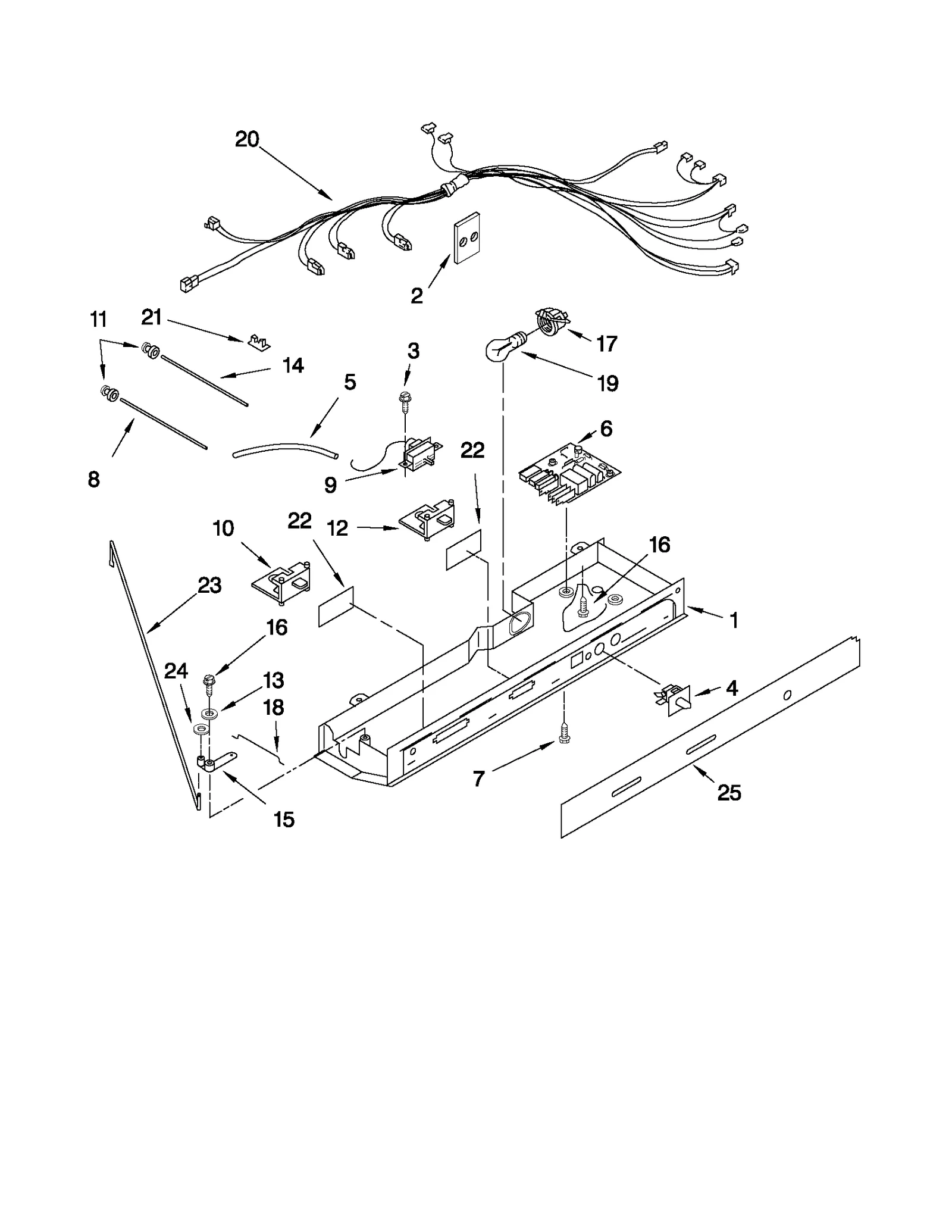

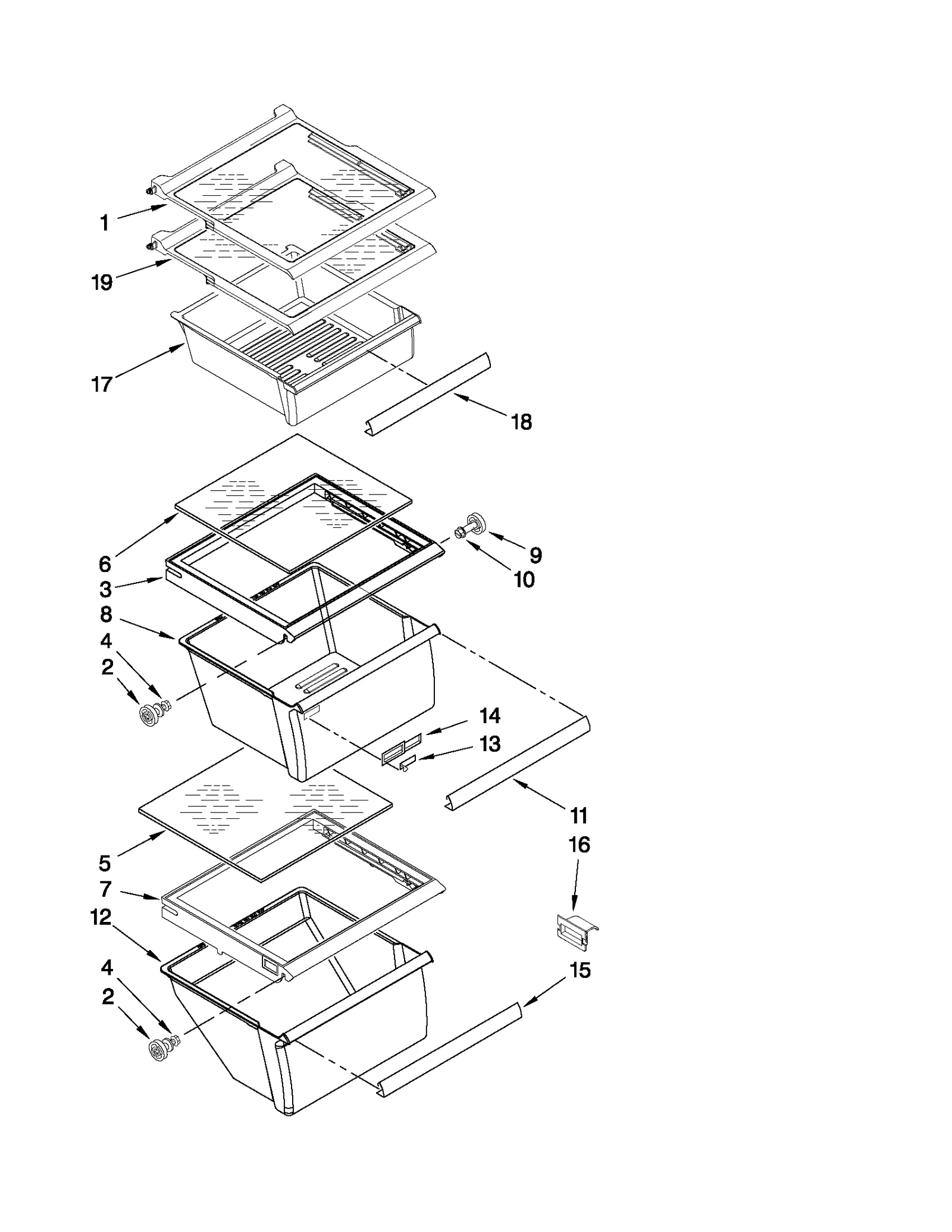

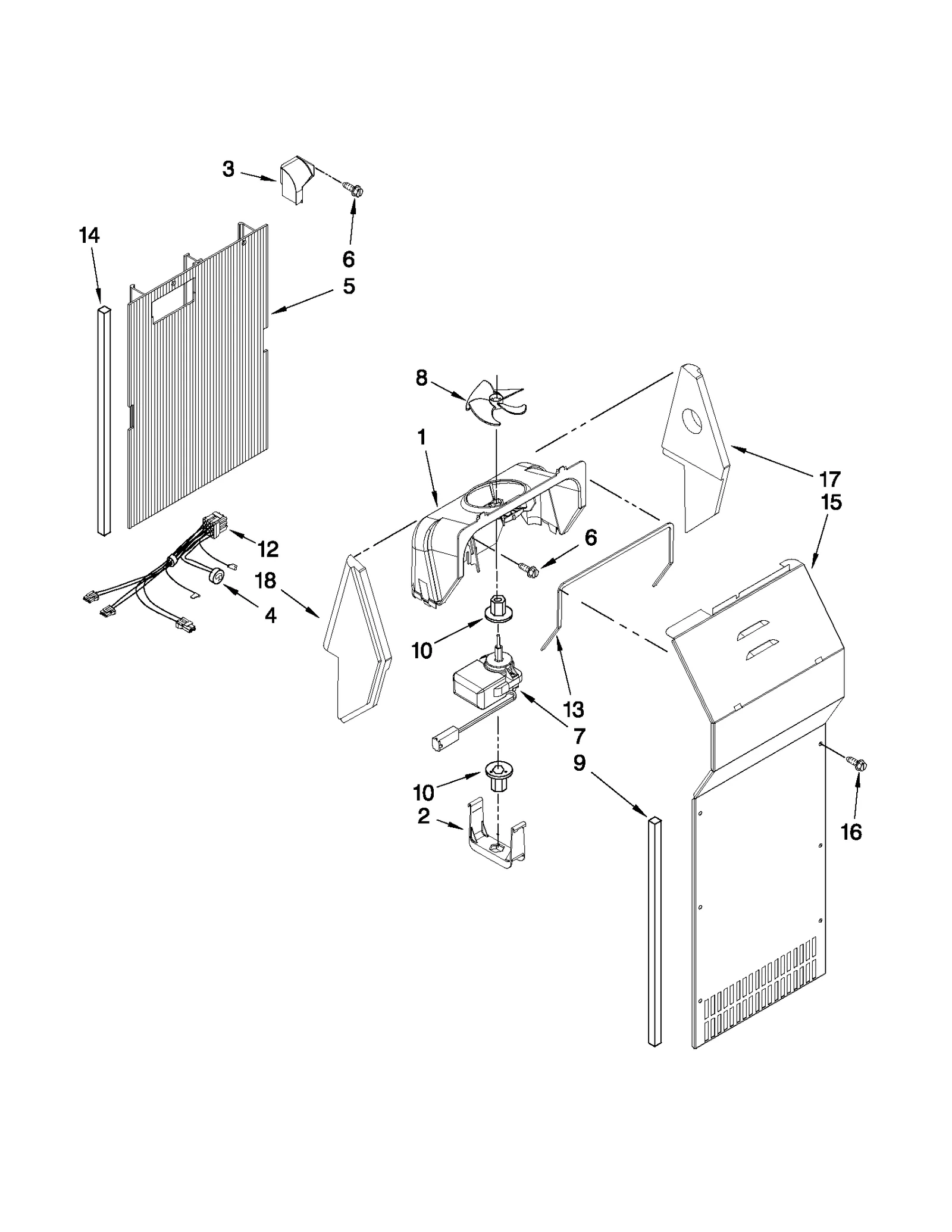

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1

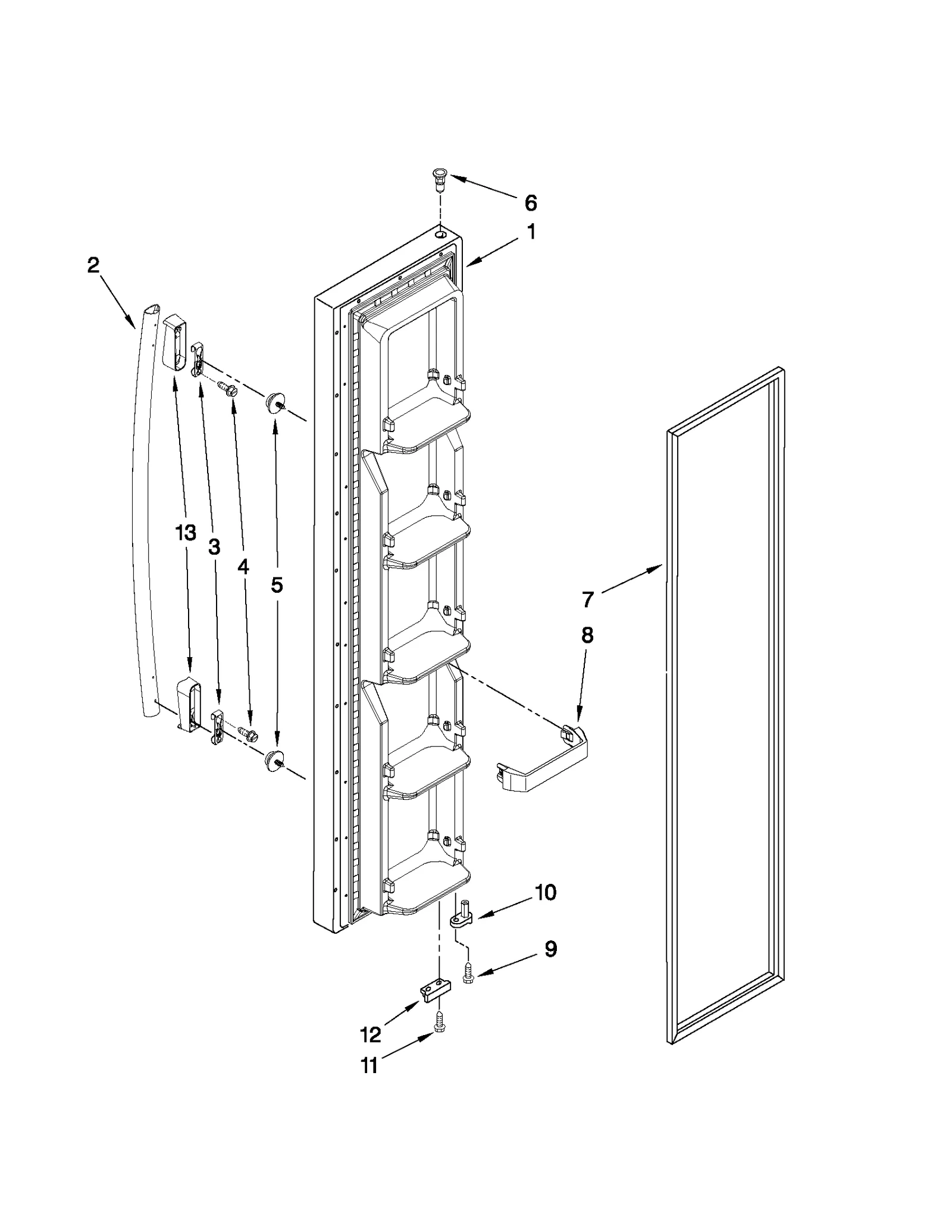

Freezer Door Assembly (White) WPL 2256788W Contact Us For Availability

1A

Freezer Door Assembly (Bisque) WPL 2256788T Contact Us For Availability

1B

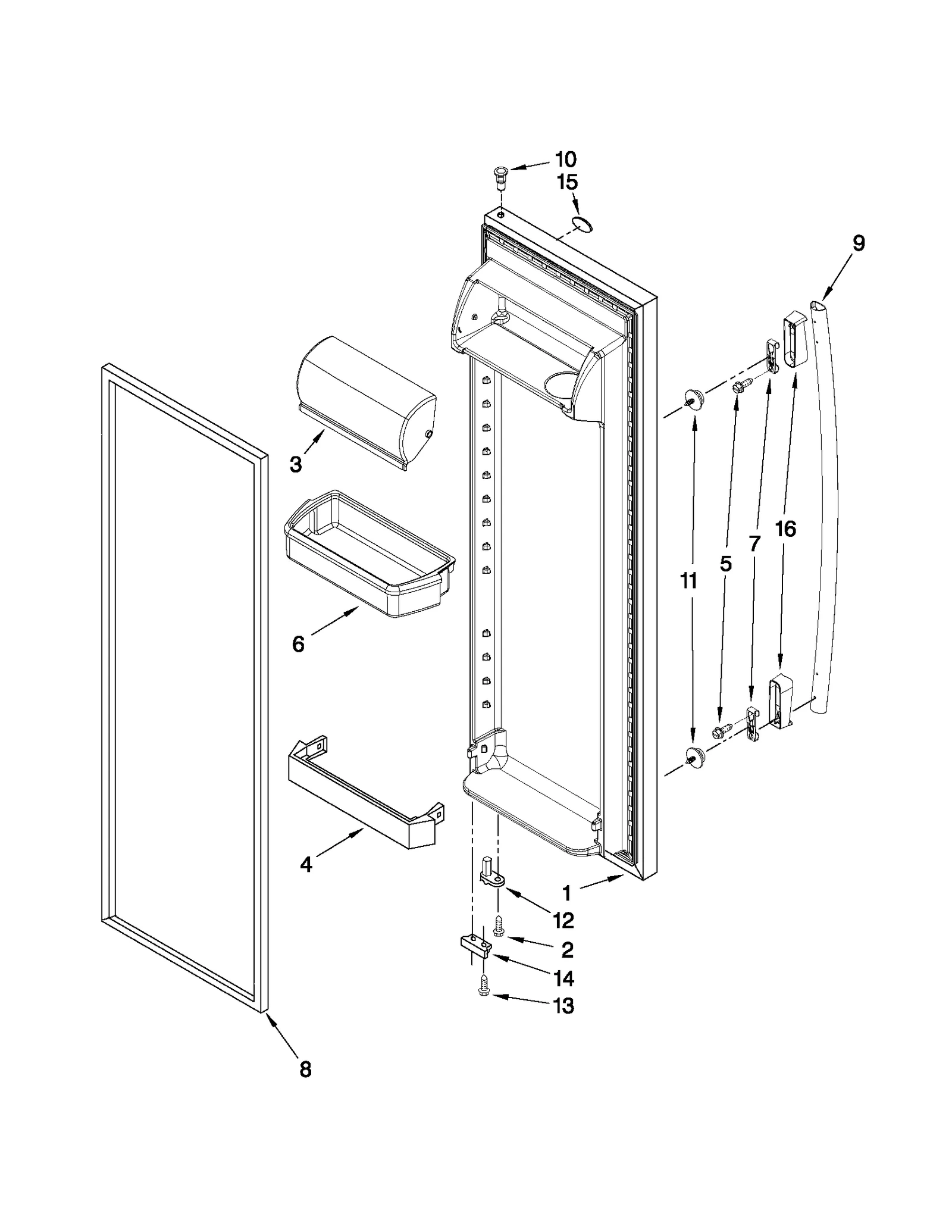

Refrigerator Door Assembly (Black) WPL 2256786B Contact Us For Availability

1B

Freezer Door Assembly (Black) WPL 2256788B Contact Us For Availability

1C

Refrigerator Door Panel WPL W10271935 Contact Us For Availability

1C

Freezer Door Assembly (Stainless) WPL W10309256 Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

2

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

2

WPW10304660 Whirlpool Wheel Assembly In Stock WPL WPW10304660 $52.72

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Handle WPL W10127823 Contact Us For Availability

2A

Refrigerator Handle Assembly WPL W10127825 Contact Us For Availability

2B

Refrigerator Handle WPL W10127824 Contact Us For Availability

2C

Refrigerator Handle WPL W10162691 Contact Us For Availability

3

2198479 Whirlpool Refrigerator Light Lens Backorder WPL 2198479 $59.13

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $62.69

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

4

2223173 Whirlpool Refrigerator Tube Plug Backorder WPL 2223173 $5.60

4

W10267047 Whirlpool Screw Backorder WPL W10267047 $8.89

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $56.40

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $33.84

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

5

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $5.82

5

Air Duct WPL 2203594 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $32.25

7

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $157.12

7

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $97.53

7

W10318945 Whirlpool Refrigerator Wire Shelf Backorder WPL W10318945 $72.58

7

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $21.99

7A

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $154.81

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $159.16

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $46.37

8

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $61.90

8

Refrigerator Suction Line WPL 2205765 Contact Us For Availability

8A

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $140.85

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.08

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $6.93

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $61.16

9

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

9

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $38.68

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

Refrigerator Freezer Wire Shelf WPL W10318946 Contact Us For Availability

10A

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $130.22

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $53.58

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WPW10144409 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10144409 $98.95

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

W10185566 Whirlpool Bracket Backorder WPL W10185566 $8.57

W11084324 Whirlpool Refrigerator Wire Harness Backorder WPL W11084324 $78.26

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $117.53

Refrigerator Door Hinge WPL W10287684 Contact Us For Availability

12A

Estate Refrigerator Bracket WPL W10185567 Contact Us For Availability

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

Refrigerator Door Hinge WPL W10287685 Contact Us For Availability

Refrigerator Door Handle End Cap (White) WPL W10127828 Contact Us For Availability

13A

Refrigerator End Cap Handle (Off-White) WPL W10127830 Contact Us For Availability

13B

Refrigerator End Cap Handle WPL W10127829 Contact Us For Availability

13C

Refrigerator End Cap Handle WPL W10162679 Contact Us For Availability

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Refrigerator Fresh-Food Control Light Pipe WPL 2179920 Contact Us For Availability

Refrigerator Bracket WPL W10185570 Contact Us For Availability

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

Refrigerator Wire Cover WPL 2160912 Contact Us For Availability

14A

Refrigerator Bracket WPL W10185571 Contact Us For Availability

15

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

15

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

15

Nameplate-ke WPL 13056602 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

16

W11527119 Whirlpool Refrigerator Shelf Stud Backorder WPL W11527119 $6.79

16

Refrigerator Door Hinge WPL W10251408 Contact Us For Availability

17

WPW10304659 Whirlpool Wheel Assembly In Stock WPL WPW10304659 $40.06

17

Refrigerator Screw WPL W10191952 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.70

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

18A

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $15.52

18B

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.84

19

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

19

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $147.27

20

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $233.07

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $242.95

23

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $23.69

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $81.87

30

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

35

Refrigerator Air Baffle WPL W10332806 Contact Us For Availability

36

W10196313 Whirlpool Refrigerator Rail Unit Backorder WPL W10196313 $105.27

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
