Samsung DV520AEW/XAA-02 Dryer

1

DC93-00187A Samsung Assembly Duct Outlet Backorder SMG DC93-00187A $115.16

View on Model

1

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $56.95

View on Model

1-1

DC64-02144A Samsung Washer and Dryer Safety D Backorder SMG DC64-02144A $142.76

View on Model

1-1

DC65-00028A Samsung Block Terminal Backorder SMG DC65-00028A $15.67

View on Model

1-2

Dryer door outer frame SMG DC63-01141A Contact Us For Availability

View on Model

1-3

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

1-4

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $29.71

View on Model

1-5

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $49.62

View on Model

1-6

Dryer heater box, upper SMG DC67-00132A Contact Us For Availability

View on Model

1-6

Dryer door window frame SMG DC61-02596A Contact Us For Availability

View on Model

1-8

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

1-9

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $2.16

View on Model

1-10

DC61-02597A Samsung Door Hinge Assembly Backorder SMG DC61-02597A $168.54

View on Model

1-11

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $41.79

View on Model

1-12

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $1.69

View on Model

1-13

DC62-00262A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00262A $67.23

View on Model

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $29.69

View on Model

2

DC92-00322J Samsung Dryer PCB Main Assembly Backorder SMG DC92-00322J $281.31

View on Model

2

DC93-00101N Samsung Dryer Blower Wheel Drive In Stock SMG DC93-00101N $417.82

View on Model

2-1

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $202.80

View on Model

2-2

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $6.18

View on Model

2-3

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $139.00

View on Model

2-3

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $18.35

View on Model

2-4

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $29.00

View on Model

2-5

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $14.65

View on Model

2-5

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $47.08

View on Model

2-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $4.49

View on Model

2-7

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $347.98

View on Model

2-9

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $120.06

View on Model

2-10

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.70

View on Model

2-11

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $22.68

View on Model

2-13

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.69

View on Model

2-14

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $49.76

View on Model

2-15

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.69

View on Model

3

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $43.28

View on Model

3

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $39.78

View on Model

3

Dryer encoder board SMG DC92-00320A Contact Us For Availability

View on Model

4

Dryer user interface SMG DC92-00319B Contact Us For Availability

View on Model

5

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.70

View on Model

5

DC61-02600A Samsung Frame Plate Assembly Up G Backorder SMG DC61-02600A $75.85

View on Model

6

Dryer drum light lens SMG DC63-00531A Contact Us For Availability

View on Model

7

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $1.69

View on Model

8

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $11.34

View on Model

8

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $53.52

View on Model

9

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $26.47

View on Model

9

DC97-12150A Samsung Dryer Leg Assembly In Stock SMG DC97-12150A $20.52

View on Model

10

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $13.73

View on Model

10

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $72.37

View on Model

11

DC93-00154A Samsung Dryer Duct Heater Assembl In Stock SMG DC93-00154A $272.71

View on Model

11

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $12.96

View on Model

12

DC61-02740A Samsung Dryer Lint Screen Filter In Stock SMG DC61-02740A $1.69

View on Model

13

DC63-01140A Samsung Dryer Lint Filter Screen In Stock SMG DC63-01140A $28.87

View on Model

14

Dryer lint screen cover SMG DC63-01139A Contact Us For Availability

View on Model

15

DC63-01143A Samsung Cover Filter Assembly Backorder SMG DC63-01143A $112.96

View on Model

15

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $105.34

View on Model

16

Dryer drum SMG DC97-14849A Contact Us For Availability

View on Model

18

DC61-02063A Samsung Nozzle Guide Assembly Backorder SMG DC61-02063A $4.98

View on Model

20

DC97-16919A Samsung Steam Kit Assembly Backorder SMG DC97-16919A $183.69

View on Model

23

DC61-05489A Samsung Case Filter Assembly In Stock SMG DC61-05489A $178.21

View on Model

26

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $2.16

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

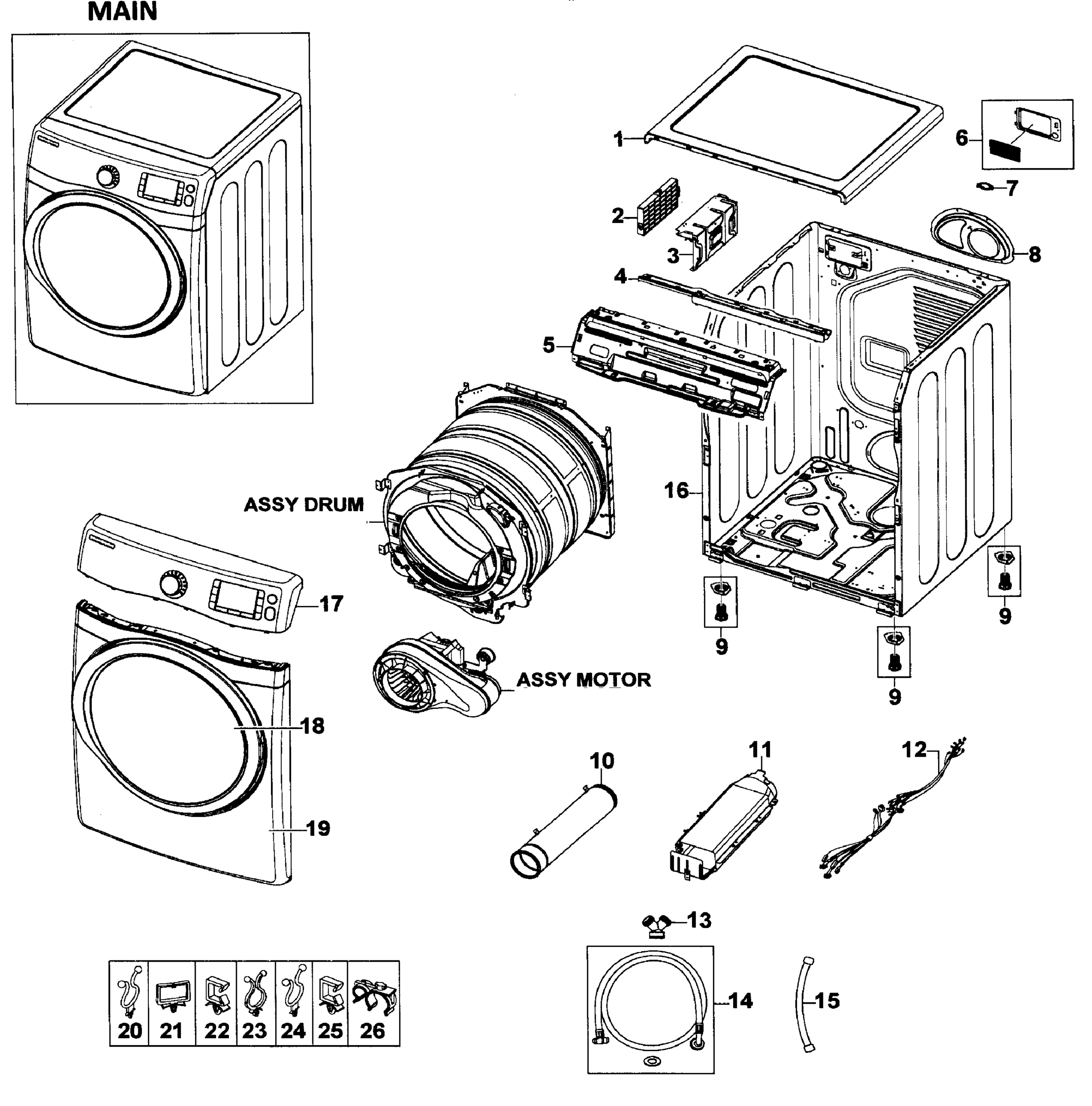

Model Samsung DV520AEW/XAA-02 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV520AEW/XAA-02 Dryer
