Samsung DV45K7600EW/A3-00 Dryer Parts List

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $52.37

View on Model

1-1

6009-001522 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001522 $3.90

View on Model

1-2

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

1-2

DC47-00027F Samsung Lamp Backorder SMG DC47-00027F $44.04

View on Model

1-3

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $35.92

View on Model

1-3

DC61-02281A Samsung Fixer Lamp Backorder SMG DC61-02281A $11.17

View on Model

1-3

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $12.90

View on Model

1-5

DC65-00028A Samsung Block Terminal Backorder SMG DC65-00028A $14.53

View on Model

1-6

Dryer heater box, upper SMG DC67-00132A Contact Us For Availability

View on Model

1-8

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $49.78

View on Model

1-23

DC62-00339A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00339A $85.43

View on Model

1-26

Dryer Door Glass SMG DC64-02789A Contact Us For Availability

View on Model

1-27

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $8.61

View on Model

1-41

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $2.23

View on Model

1-42

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $3.35

View on Model

1-44

DC97-16741D Samsung Assembly Cover Filter In Stock SMG DC97-16741D $203.52

View on Model

1-45

Dryer Lint Screen SMG DC97-16742A Contact Us For Availability

View on Model

1-46

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $49.43

View on Model

1-47

DC97-17081A Samsung Dryer Front Drum Assembly Backorder SMG DC97-17081A $202.80

View on Model

1-48

DC67-00652A Samsung Drum Front Cap Assembly Backorder SMG DC67-00652A $7.82

View on Model

1-81

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $35.04

View on Model

1-82

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.70

View on Model

2

DC93-00101U Samsung Washer DV7000H Assembly M In Stock SMG DC93-00101U $396.68

View on Model

2-1

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $21.24

View on Model

2-1

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $39.31

View on Model

2-3

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $3.68

View on Model

2-3

DC66-00664A Samsung Dryer Drum Lifter In Stock SMG DC66-00664A $31.87

View on Model

2-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $328.32

View on Model

2-4

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $126.54

View on Model

2-5

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $23.98

View on Model

2-6

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $17.72

View on Model

2-7

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $4.49

View on Model

2-8

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $3.35

View on Model

2-9

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $122.92

View on Model

2-10

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $209.90

View on Model

2-11

DC93-00282A Samsung Assembly Duct Connector Backorder SMG DC93-00282A $29.25

View on Model

2-36

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.04

View on Model

3-4

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $19.18

View on Model

3-7

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

3-81

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $2.23

View on Model

4

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $1.69

View on Model

4

DC97-16919A Samsung Steam Kit Assembly Backorder SMG DC97-16919A $183.69

View on Model

4-5

DC92-01862A Samsung Dryer Display Circuit Boa Backorder SMG DC92-01862A $285.17

View on Model

5

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $29.82

View on Model

5-1

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $103.82

View on Model

5-3

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $142.06

View on Model

6-2

DC67-00607A Samsung Cap Cover Top Assembly DV Backorder SMG DC67-00607A $20.75

View on Model

6-3

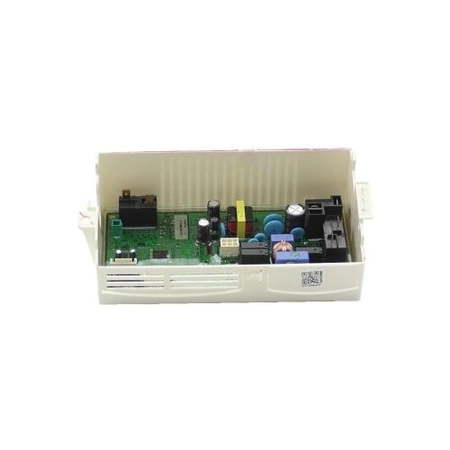

DC92-01729B Samsung Dryer Main PCB Assembly Backorder SMG DC92-01729B $243.54

View on Model

6-4

DC97-19247A Samsung Cover Assembly Top DV8700 Backorder SMG DC97-19247A $239.02

View on Model

6-41

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $1.69

View on Model

7

DC93-00554B Samsung Dryer Main Wire Harness A Backorder SMG DC93-00554B $281.81

View on Model

11

DC97-18962A Samsung Dryer Front Drum Assembly Backorder SMG DC97-18962A $327.83

View on Model

12

DC97-16812J Samsung Drum Assembly DW2 Backorder SMG DC97-16812J $261.81

View on Model

13

DC97-17076V Samsung Assembly Drum Back DV7400 Backorder SMG DC97-17076V $377.78

View on Model

16

DC93-00154A Samsung Dryer Duct Heater Assembl In Stock SMG DC93-00154A $252.12

View on Model

1243

Idler Shaft SMG DC66-00401A Contact Us For Availability

View on Model

1244

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

1292

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $1.69

View on Model

1441

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $7.38

View on Model

1442

Dryer Lint Screen Cover SMG DC63-01319A Contact Us For Availability

View on Model

1444

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $14.53

View on Model

1451

DC61-02610A Samsung Dryer Lint Screen Case Fi In Stock SMG DC61-02610A $21.51

View on Model

1452

DC61-03048A Samsung Dryer Lint Screen Filter Backorder SMG DC61-03048A $97.60

View on Model

2101

Dryer Blower Housing SMG DC61-02348B Contact Us For Availability

View on Model

2102

DC61-03364A Samsung Guide Fan Backorder SMG DC61-03364A $19.55

View on Model

2103

Duct Cover SMG DC63-01026A Contact Us For Availability

View on Model

2111

Connector SMG DC67-00586A Contact Us For Availability

View on Model

2112

DC62-00344A Samsung Dryer Air Seal In Stock SMG DC62-00344A $48.61

View on Model

2112

Sponge SMG DC72-00032E Contact Us For Availability

View on Model

2113

Dryer Motor Bracket SMG DC96-00790C Contact Us For Availability

View on Model

2122

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $120.09

View on Model

2123

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $6.65

View on Model

2124

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $60.18

View on Model

2313

Dryer Door Catch SMG DC97-16970A Contact Us For Availability

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

NI

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

NI

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $1.69

View on Model
