Model Whirlpool WMH1162XVS1 MICROWAVE OVEN 1.6 CU. FT. – Common Parts & Diagrams

Common parts from model Whirlpool WMH1162XVS1 MICROWAVE OVEN 1.6 CU. FT.

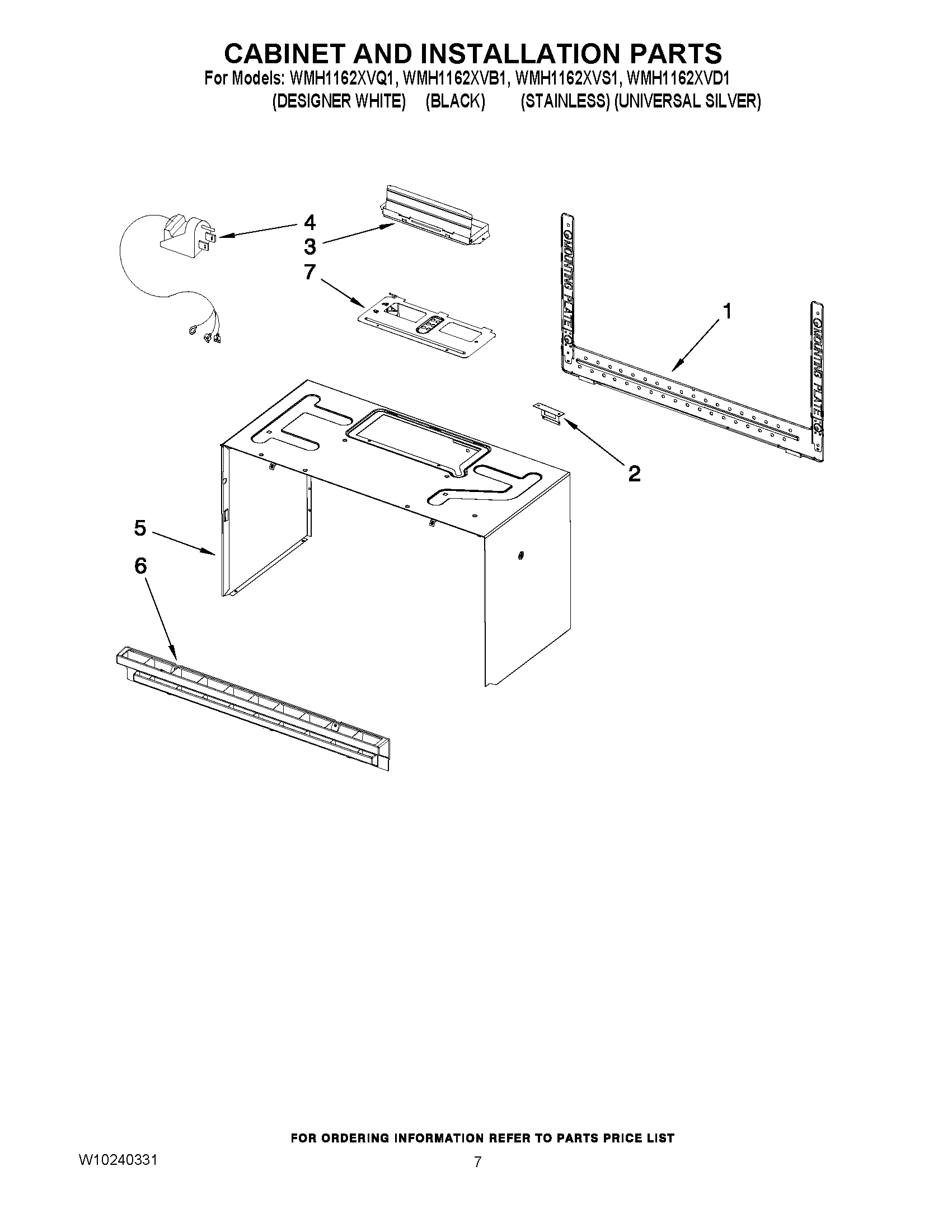

06 - CABINET AND INSTALLATION PARTS

Print

• This Diagram
• All Diagrams

1

W10211463 Whirlpool Microwave Door Assembly Backorder WPL W10211463 View Details $245.90

View on Model

1

W10211464 Whirlpool Microwave Door Backorder WPL W10211464 View Details $226.49

View on Model

1

COMPLETE DOOR (Stainless) WPL W10210886 Contact Us For Availability

View on Model

1

COMPLETE DOOR (Universal Silver) WPL W10211465 Contact Us For Availability

View on Model

1

Deflector, Air WPL 8206340 Contact Us For Availability

View on Model

1

Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability

View on Model

2

8206382 Whirlpool Microwave Light Cover Backorder WPL 8206382 View Details $6.87

View on Model

2

8206385 Whirlpool Microwave Wire Clip Backorder WPL 8206385 View Details $24.34

View on Model

2

W10210887 Whirlpool Microwave Door Handle In Stock WPL W10210887 View Details $179.17

View on Model

2

Panel Asy, Control Includes Lens and Membrane WPL W10211460 Contact Us For Availability

View on Model

2

Panel Asy, Control Includes Lens and Membrane WPL W10211459 Contact Us For Availability

View on Model

3

W10210871 Whirlpool Microwave Lamp Housing In Stock WPL W10210871 View Details $4.53

View on Model

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 View Details $50.07

View on Model

3

W11319886 Whirlpool Microwave Stir Rivet Backorder WPL W11319886 View Details $13.77

View on Model

4

Turntable WPL 4393799 No Longer Available

View on Model

4

8206388 Whirlpool Microwave Power Cord Backorder WPL 8206388 View Details $61.38

View on Model

4

W10181505 Whirlpool Grease Filter In Stock WPL W10181505 View Details $9.17

View on Model

4

Microcomputer WPL W10211457 Contact Us For Availability

View on Model

6

W10435116 Whirlpool Microwave Turntable Rolle Backorder WPL W10435116 View Details $16.57

View on Model

7

WPW10466420 Whirlpool Turntable Motor In Stock WPL WPW10466420 View Details $30.23

View on Model

7

Plate, Damper WPL W10210832 Contact Us For Availability

View on Model

7

Holder, Glass WPL W10210873 Contact Us For Availability

View on Model

8

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 View Details $4.51

View on Model

8

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 View Details $32.32

View on Model

9

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 View Details $19.42

View on Model

10

W10156812 Whirlpool Spring In Stock WPL W10156812 View Details $6.26

View on Model

10

Filter WPL 8206624 Contact Us For Availability

View on Model

11

WPW10210878 Whirlpool Microwave LMP Housing In Stock WPL WPW10210878 View Details $14.76

View on Model

12

WP8206419 Whirlpool Microwave Top Interlock S In Stock WPL WP8206419 View Details $10.35

View on Model

12

WPW10156813 Whirlpool Microwave Bottom Interl In Stock WPL WPW10156813 View Details $4.85

View on Model

13

W10197758 Whirlpool Microwave Piston Backorder WPL W10197758 View Details $37.24

View on Model

14

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 View Details $14.93

View on Model

15

W10754299 Whirlpool Microwave Oven Magnetron In Stock WPL W10754299 View Details $181.58

View on Model

15

W11405832 Whirlpool Microwave Capacitor Backorder WPL W11405832 View Details $13.10

View on Model

16

W10163422 Whirlpool Microwave Thermistor Backorder WPL W10163422 View Details $56.09

View on Model

17

W10164716 Whirlpool Microwave Plate Backorder WPL W10164716 View Details $15.79

View on Model

19

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 View Details $28.87

View on Model

20

Holder, Fuse WPL W10117908 Contact Us For Availability

View on Model

21

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 View Details $23.48

View on Model

23

Transformer, H.V. WPL 8206343 Contact Us For Availability

View on Model

25

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 View Details $143.73

View on Model

NI

W10138802 Whirlpool Microwave Screw Backorder WPL W10138802 View Details $7.23

View on Model

NI

W10539842 Whirlpool Microwave Harness Wire Backorder WPL W10539842 View Details $13.48

View on Model

NI

W10821385 Whirlpool Hardware Kit In Stock WPL W10821385 View Details $63.70

View on Model

NI

Template, Upper WPL 8205871 Contact Us For Availability

View on Model

×
