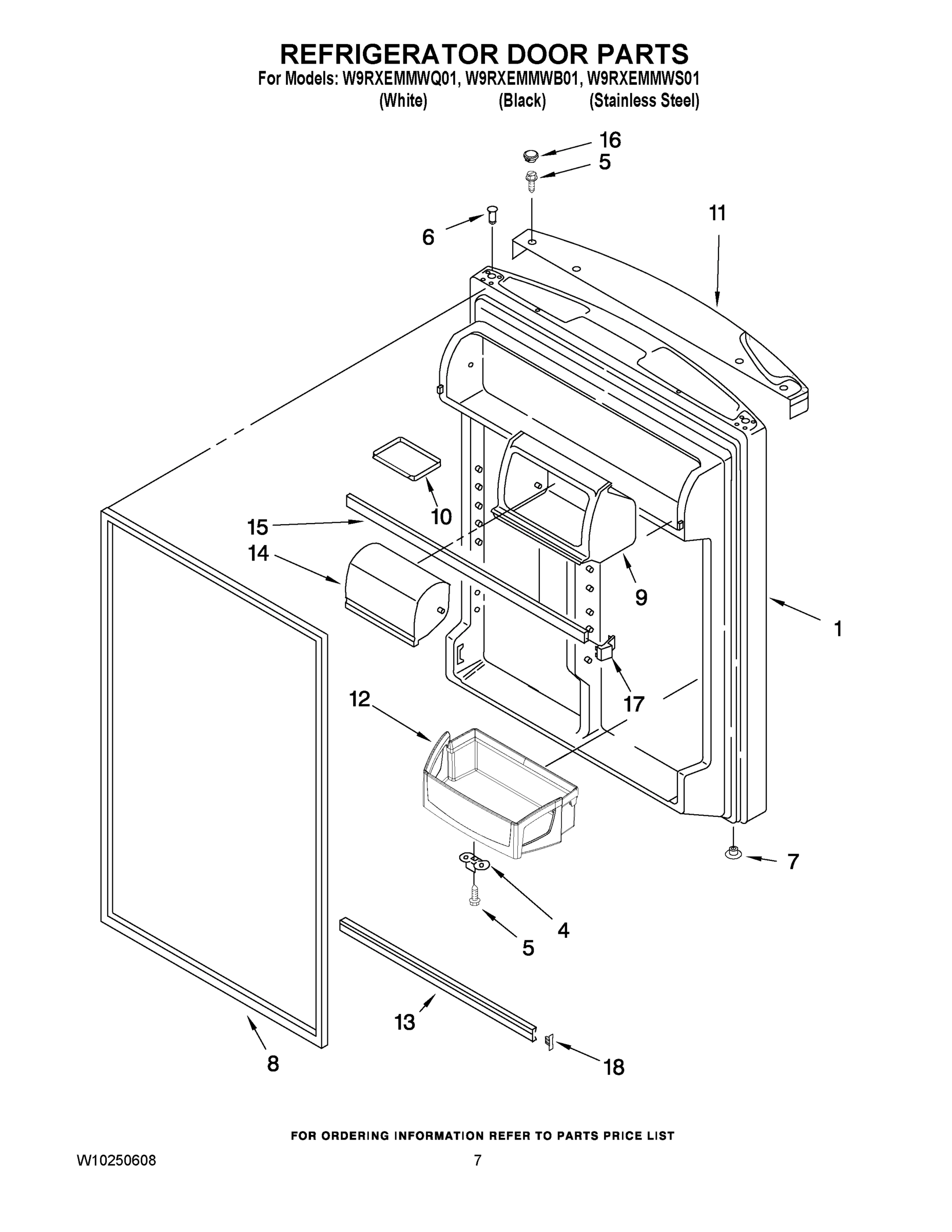

Model Whirlpool W9RXEMMWB01 REFRIGERATOR – Common Parts &amp; Diagrams

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

2

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

4

WP2304099-includeCORE Whirlpool WP2304099 Ref Backorder WPL WP2304099-includeCORE $260.62

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $105.74

4

CLIP, GRILLE WPL 2189356 Contact Us For Availability

4

Shelf, Glass WPL 2169917 Contact Us For Availability

5

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $51.99

6

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.97

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

6

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

7

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $59.69

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

7

Shelf, Cantilever Meat Pan (Complete) WPL 2201105 Contact Us For Availability

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8

Trim, Shelf Front WPL 2188684 Contact Us For Availability

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

9

WP2314548 Whirlpool Refrigerator Cover Backorder WPL WP2314548 $177.47

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $49.76

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Tray, Door WPL 2159302 Contact Us For Availability

Shelf Assy. WPL 2201103E Contact Us For Availability

11

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

11

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $196.71

12

WP2188689 Whirlpool Refrigerator Shelf Trim Backorder WPL WP2188689 $77.73

12

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

12

Bin, Door (3) WPL 2204811 Contact Us For Availability

13

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

13

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

13

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $61.99

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $49.58

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

Shelf, Freezer WPL 2189453 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $134.62

WP2183852 Whirlpool Refrigerator Shim Backorder WPL WP2183852 $6.71

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $90.99

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability

16

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $120.99

16

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

16

Support Block WPL 2201184 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $11.45

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

Slide, Humidity Control WPL 2176222 Contact Us For Availability

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

18

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

18

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $128.99

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

20

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

20

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $65.24

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Grille (Includes Illus. 4 & 24) (Black) WPL 2254388 Contact Us For Availability

Trim, Shelf (Front) WPL 2188690 Contact Us For Availability

22

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $17.67

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

23

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

23

Glass-Shelf WPL 2177824 Contact Us For Availability

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $58.09

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

Shelf Assembly, Spillguard (2) WPL 2201101E Contact Us For Availability

25

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

25

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.53

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

26

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

26

Rail, Center (Not Serviced) WPL ARI134627A Contact Us For Availability

27

Cover, Unit WPL 2254578 Contact Us For Availability

28

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $63.99

28

Cabinet, (Not A Serviceable Part) WPL ARI134628A Contact Us For Availability

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

33

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $52.87

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

34

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

35

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $209.77

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $51.32

41

WP2254574 Whirlpool Refrigerator Evaporator T Backorder WPL WP2254574 $103.72

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
