Model Whirlpool RJE3020W1 – Common Parts & Diagrams

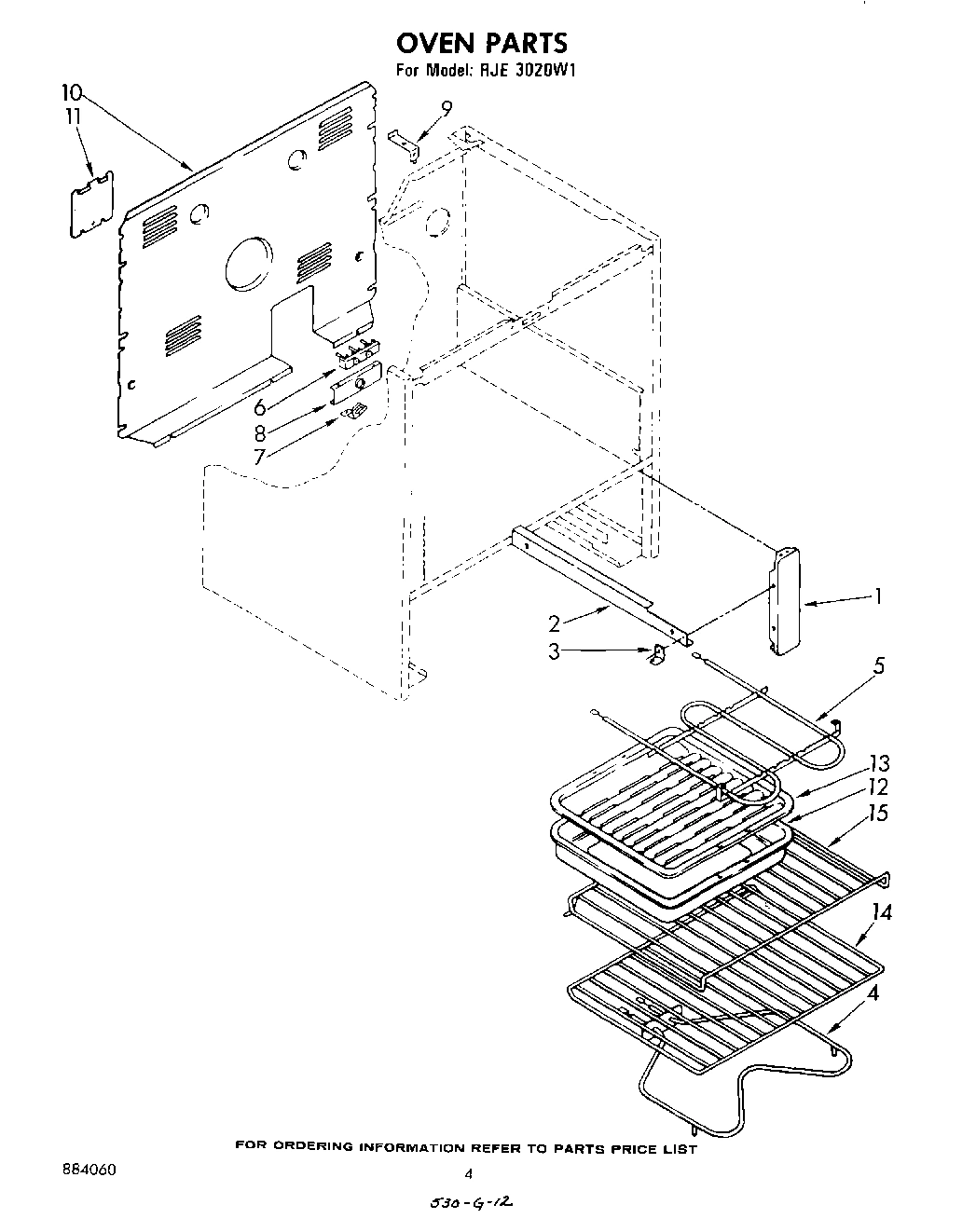

04 - OVEN , LITERATURE AND OPTIONAL

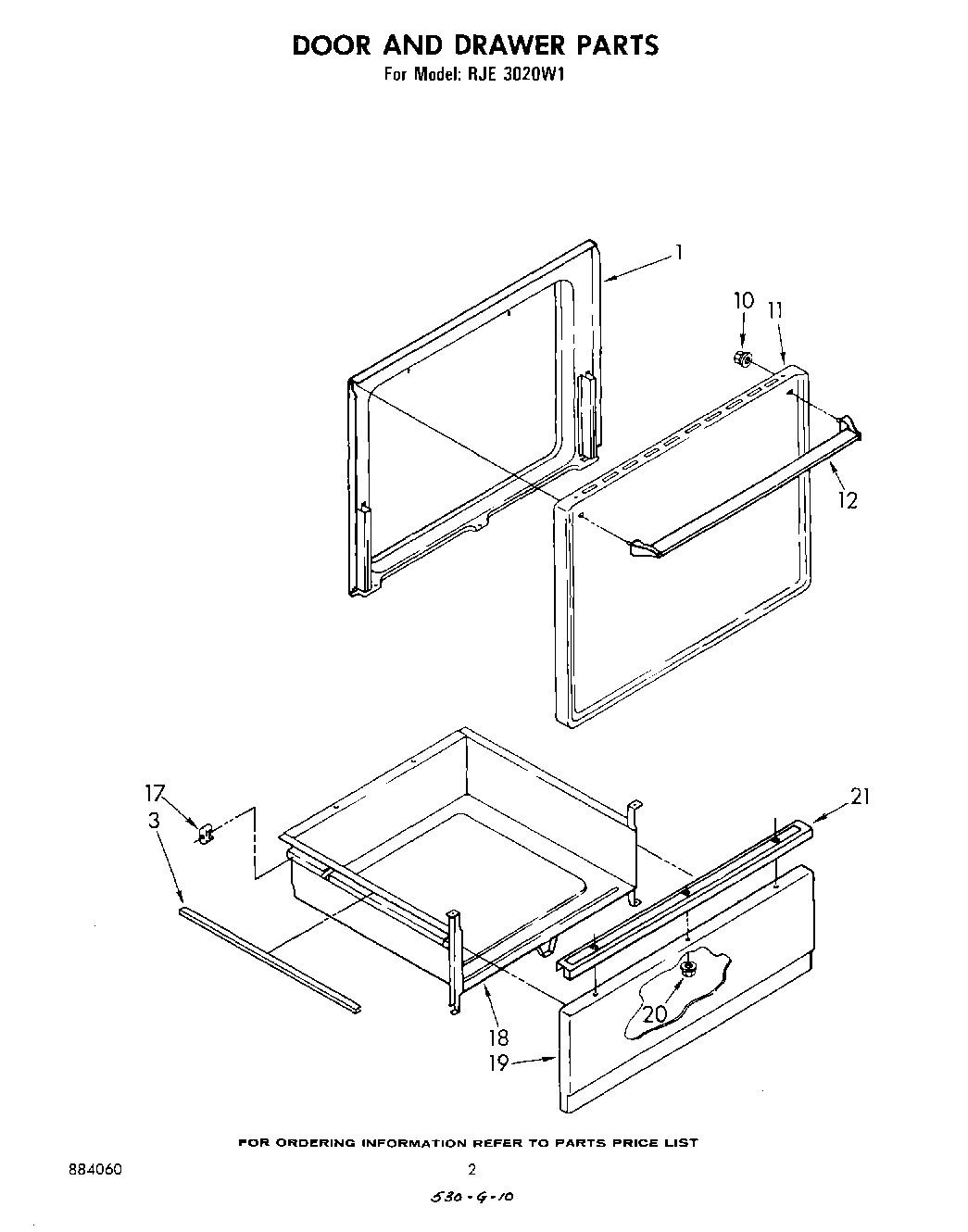

02 - DOOR AND DRAWER

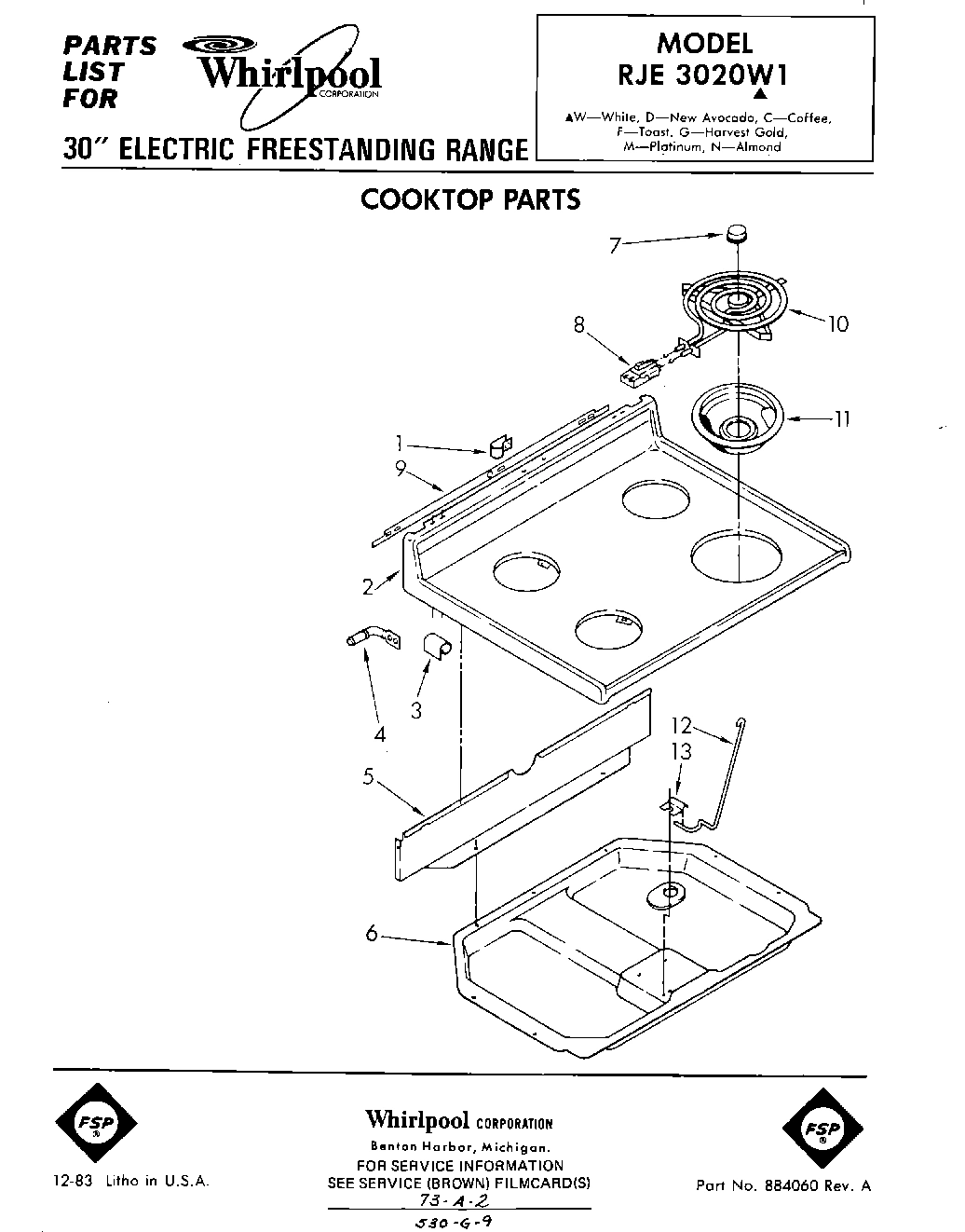

01 - COOKTOP

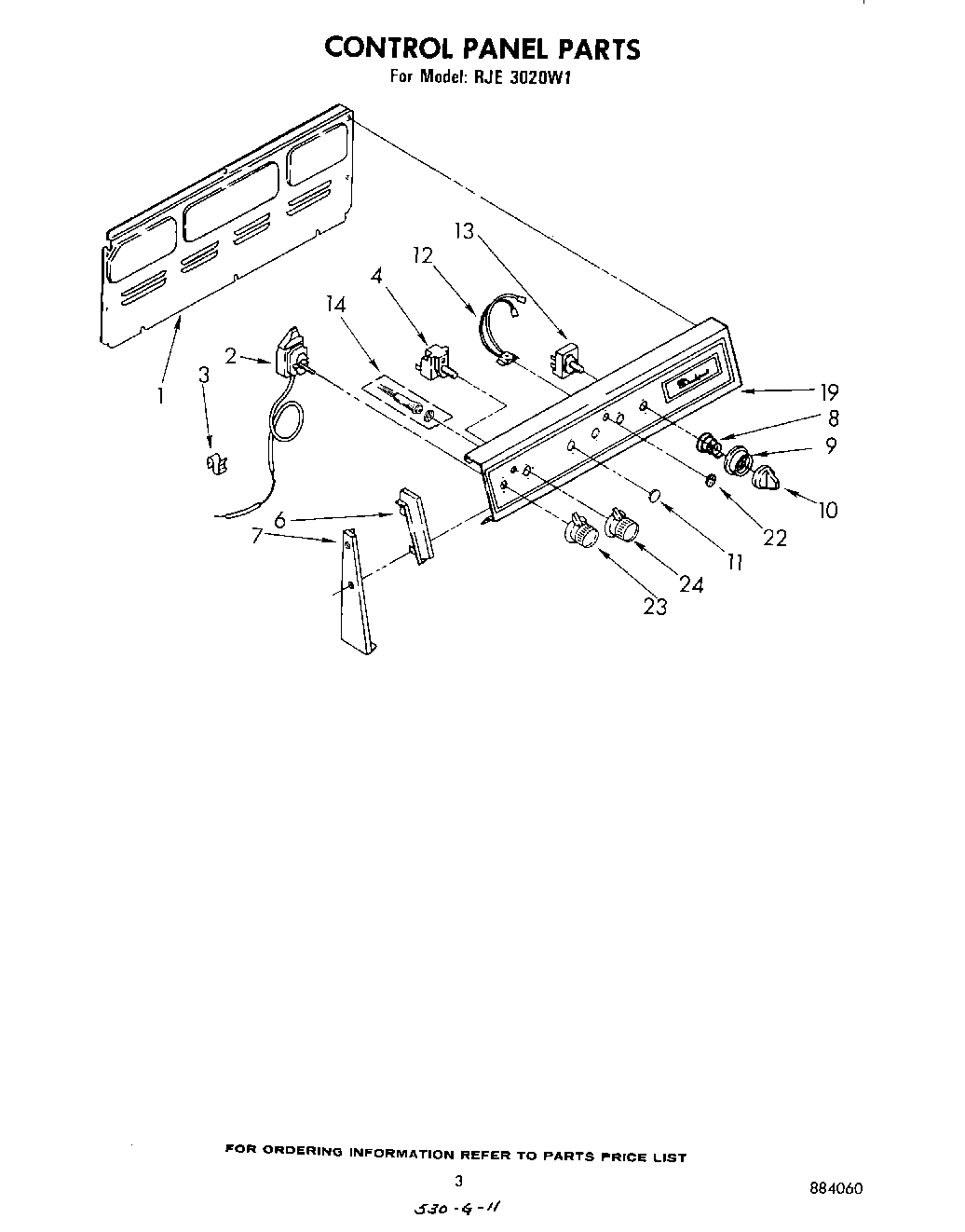

03 - CONTROL PANEL

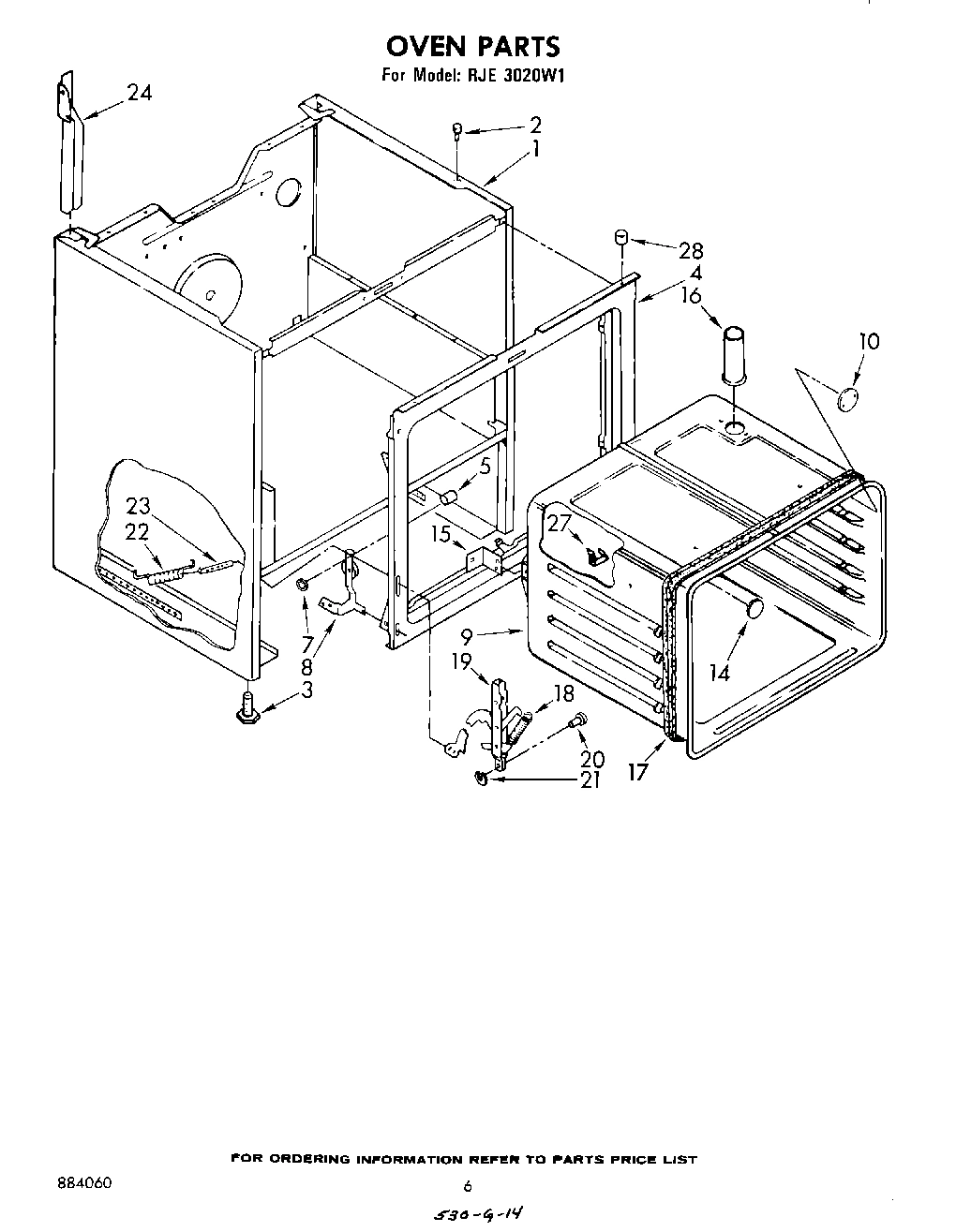

05 - SECTION
Common parts from model Whirlpool RJE3020W1
WPL 799344 WPL 799344 Contact Us For Availability
1
Liner, Door WPL 329688 Contact Us For Availability
1
Cover, Rear WPL 308157 Contact Us For Availability
1
Main Chassis (White) WPL 329962 Contact Us For Availability
1
Main Chassis (New Avocado) WPL 329963 Contact Us For Availability
1
Main Chassis (Coffee) WPL 329964 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 329965 Contact Us For Availability
1
Main Chassis (Almond) WPL 329966 Contact Us For Availability
1
Main Chassis (Toast) WPL 330093 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330094 Contact Us For Availability
2
Cooktop (Harvest Gold) WPL 307867 Contact Us For Availability
2
Cooktop (Coffee) WPL 307868 Contact Us For Availability
2
Cooktop (New Avocado) WPL 307869 Contact Us For Availability
2
Cooktop (White) WPL 307870 Contact Us For Availability
2
Cooktop (Almond) WPL 307872 Contact Us For Availability
2
Cooktop (Toast) WPL 313167 Contact Us For Availability
2
Cooktop (Platinum) WPL 313168 Contact Us For Availability
2
Thermostat, Oven (Alternate) WPL 308483 Contact Us For Availability
2
Thermostat, Oven (Alternate) WPL 308789 Contact Us For Availability
2
Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability
3
Protector, Drawer (2) WPL 309329 Contact Us For Availability
3
Bracket, Cooktop WPL 307965 Contact Us For Availability
3
Clip, Tube WPL 309211 Contact Us For Availability
4
Hinge Pin, Cooktop WPL 307966 Contact Us For Availability
4
Switch, Selector WPL 310348 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
5
Shield, Wiring WPL 307973 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Burner Box WPL 307929 Contact Us For Availability
6
End Cap, R.H. WPL 312864 Contact Us For Availability
6
End Cap, L.H. WPL 312866 Contact Us For Availability
7
Medallion (4) WPL 309926 Contact Us For Availability
7
End Trim (R.H.) WPL 308854 Contact Us For Availability
7
End Trim (L.H.) WPL 308858 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Spring, Bezel (4) WPL 307828 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Bezel, Control Knob (4) WPL 307456 Contact Us For Availability
9
Barrier WPL 309232 Contact Us For Availability
9
Screw (5) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329000 Contact Us For Availability
10
Cover, Plate WPL 308543 Contact Us For Availability
11
Panel, Door (White) WPL 307889 Contact Us For Availability
11
Panel, Door (New Avocado) WPL 307891 Contact Us For Availability
11
Panel, Door (Coffee) WPL 307893 Contact Us For Availability
11
Panel, Door (Harvest Gold) WPL 307895 Contact Us For Availability
11
Panel, Door (Almond) WPL 307897 Contact Us For Availability
11
Panel, Door (Toast) WPL 313177 Contact Us For Availability
11
Panel, Door (Platinum) WPL 313178 Contact Us For Availability
11
Panel, Door (Screw, 8A x 1/2 (2)) WPL 388156 Contact Us For Availability
11
Plug Button WPL 308535 Contact Us For Availability
12
Handle, Oven Door WPL 311563 Contact Us For Availability
12
Rod, Cooktop WPL 307968 Contact Us For Availability
12
Light, Indicator (Surface Unit) (Includes Ill WPL 312861 Contact Us For Availability
13
Retainer, Cooktop WPL 307967 Contact Us For Availability
14
Light, Indicator (Oven) WPL 310393 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Gre WPL 261582 Contact Us For Availability
15
WPL 261810 WPL 261810 Contact Us For Availability
15
WPL 261886 WPL 261886 Contact Us For Availability
15
WPL 261888 WPL 261888 Contact Us For Availability
15
WPL 261890 WPL 261890 Contact Us For Availability
15
WPL 285365 WPL 285365 Contact Us For Availability
15
WPL 285366 WPL 285366 Contact Us For Availability
15
WPL 308172 WPL 308172 Contact Us For Availability
15
WPL 308500 WPL 308500 Contact Us For Availability
15
WPL 310593 WPL 310593 Contact Us For Availability
15
WPL 312718 WPL 312718 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 72112 WPL 72112 Contact Us For Availability
15
WPL 799351 WPL 799351 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 884060 WPL 884060 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 307960 Contact Us For Availability
17
Seal, Oven WPL 309107 Contact Us For Availability
17
Glide, Rear (2) WPL 307980 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Spring, Door Stop WPL 308207 Contact Us For Availability
19
Panel Drawer (White) WPL 307935 Contact Us For Availability
19
Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability
19
Panel, Drawer (Coffee) WPL 307937 Contact Us For Availability
19
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
19
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
19
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
19
Control Panel (White) WPL 312495 Contact Us For Availability
19
Control Panel (New Avocado) WPL 312496 Contact Us For Availability
19
Control Panel (Harvest Gold) WPL 312497 Contact Us For Availability
19
Control Panel (Almond) WPL 312498 Contact Us For Availability
19
Control Panel (Coffee) WPL 312499 Contact Us For Availability
19
Control Panel (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability
19
Control Panel (Toast) WPL 313157 Contact Us For Availability
19
Control Panel (Platinum) WPL 313158 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
21
Handle, Drawer WPL 307956 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Lens, Red WPL 309221 Contact Us For Availability
23
Knob, Thermostat WPL 328709 Contact Us For Availability
24
Knob, Selector WPL 328707 Contact Us For Availability
24
Support, Channel (R.H.) WPL 308131 Contact Us For Availability
24
Support, Channel (L.H.) WPL 308132 Contact Us For Availability
28
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
28
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
× ![]()
