Model Whirlpool RF365BXWN2 – Common Parts &amp; Diagrams

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

WPL LIT3147389 WPL LIT3147389 Contact Us For Availability

WPL LIT3149507 WPL LIT3149507 Contact Us For Availability

WPL LIT3150548 WPL LIT3150548 Contact Us For Availability

WPL LIT3150572 WPL LIT3150572 Contact Us For Availability

WPL LIT884902 WPL LIT884902 Contact Us For Availability

1

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

1

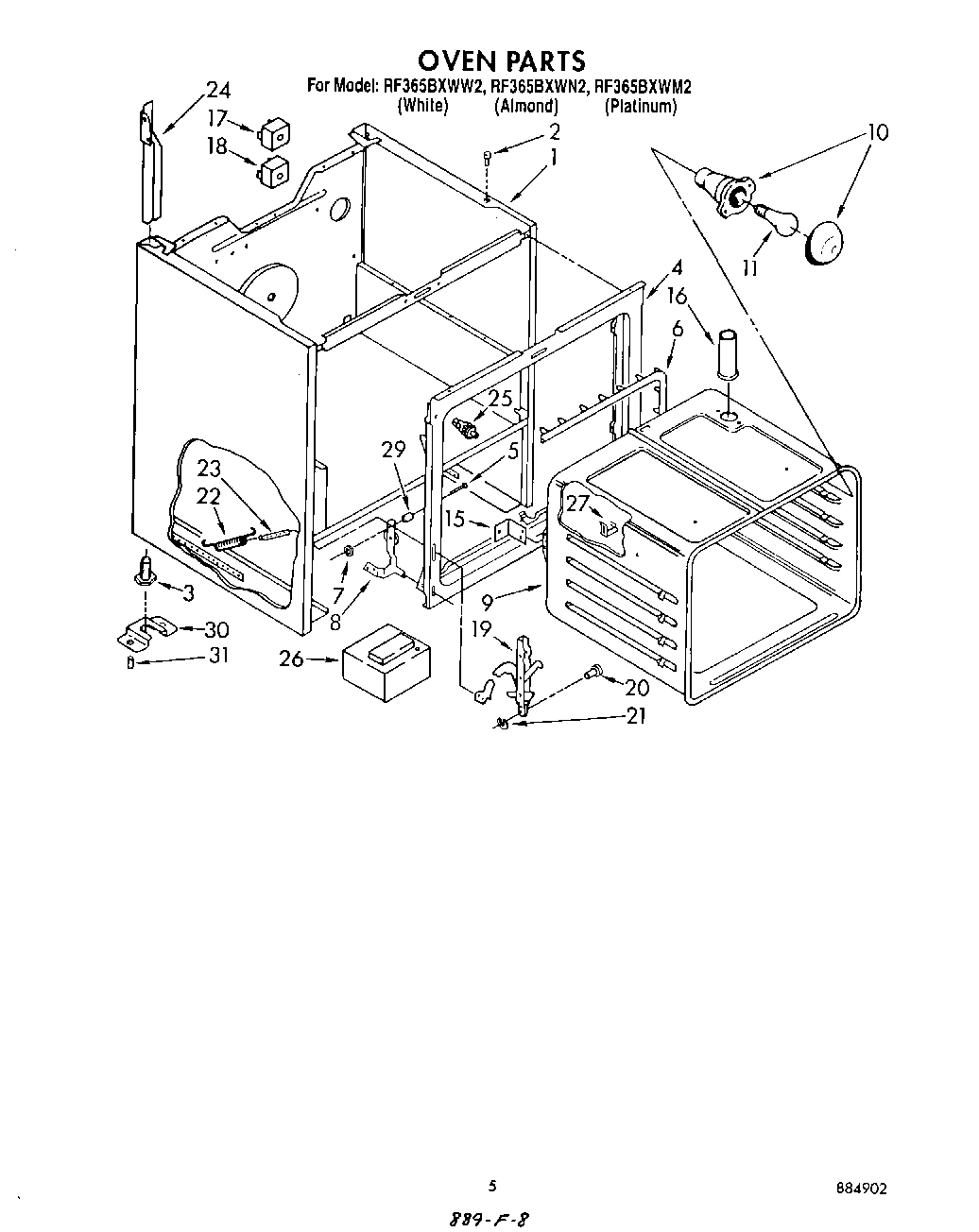

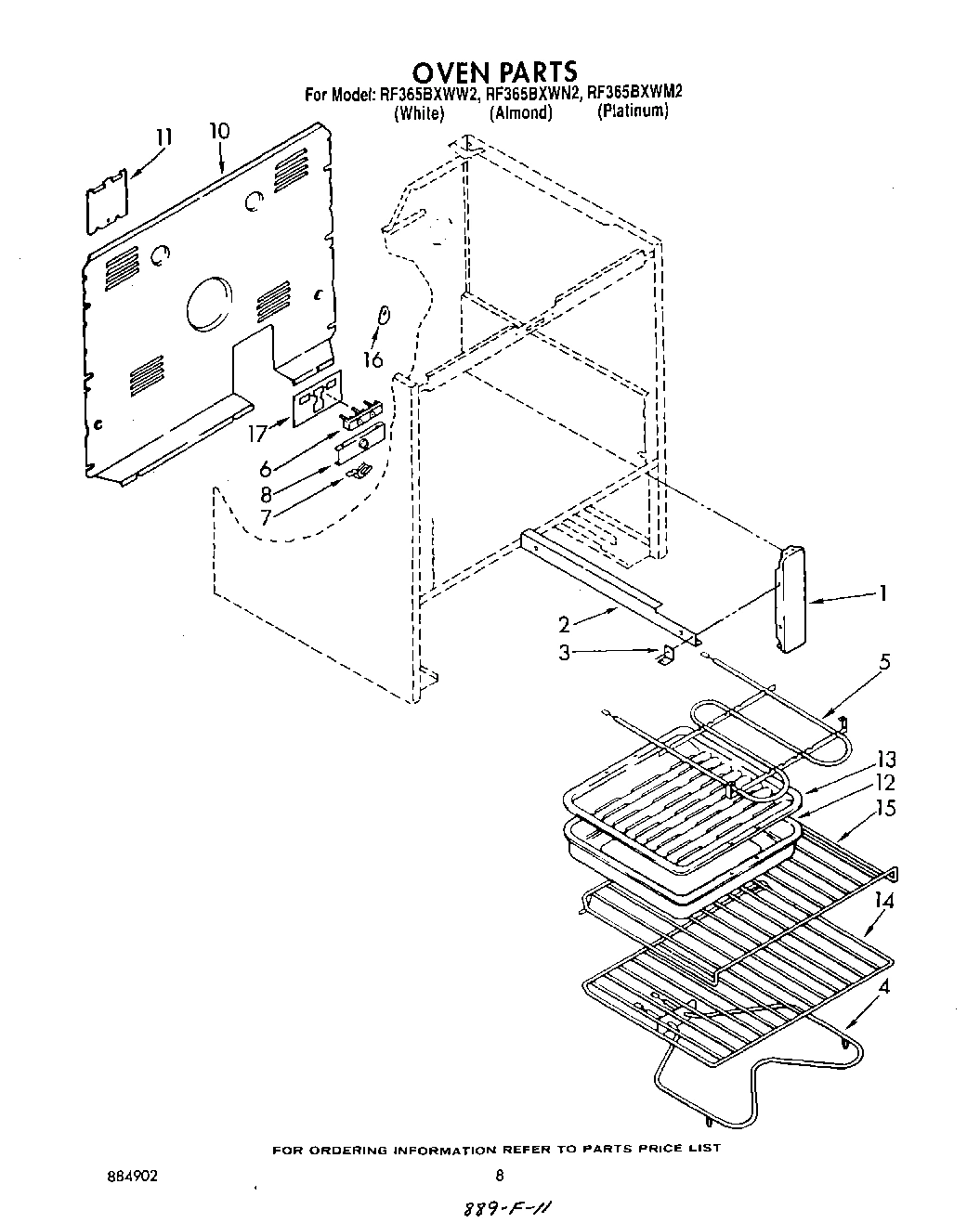

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330092 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

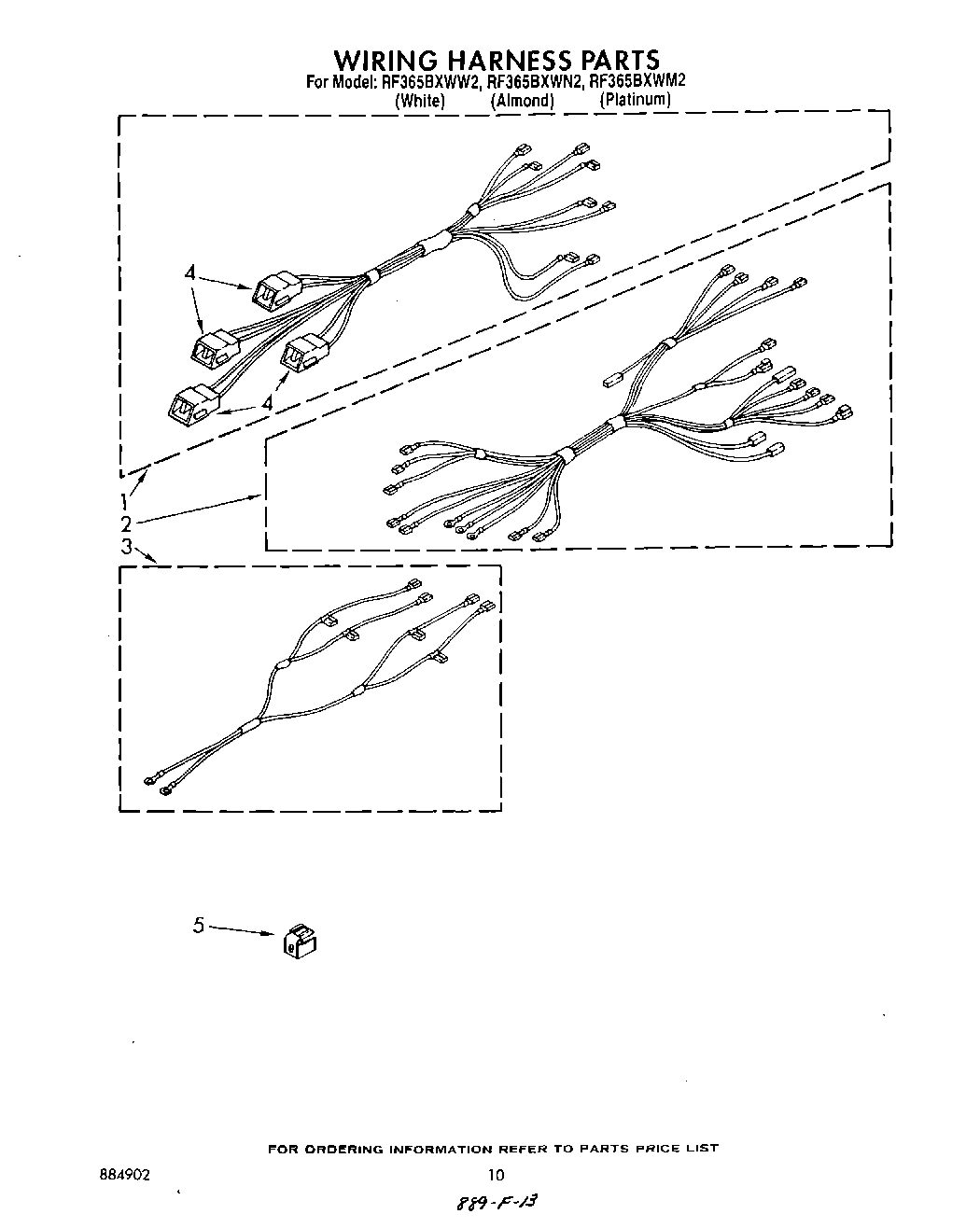

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

End Trim L.H. WPL 313188 Contact Us For Availability

1

End Trim R.H. WPL 313189 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $107.33

2

Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3148778 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.53

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

3

Harness, Wire (Lock Switch) WPL 313346 Contact Us For Availability

4

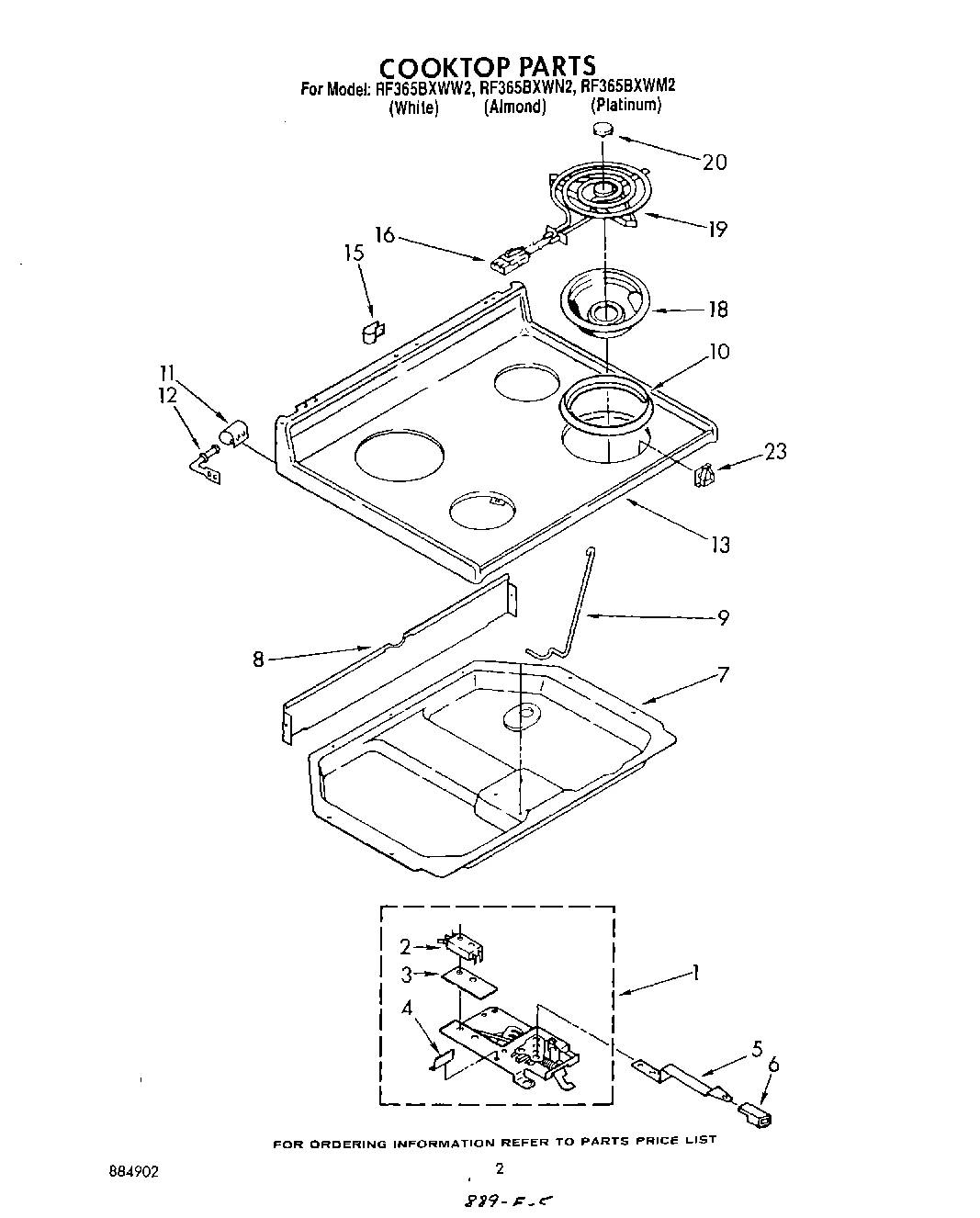

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $12.51

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $27.60

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3172194 Contact Us For Availability

4

Timer, Auto WPL 3149505 Contact Us For Availability

5

242831 Whirlpool Oven Wire Backorder WPL 242831 $423.65

5

285006 Whirlpool Spray In Stock WPL 285006 $31.20

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

5

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

5

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

5

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.68

5

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

5

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

5

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

5

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $39.00

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $72.43

5

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

5

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $34.75

5

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

5

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

5

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

5

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

5

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

5

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

5

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

5

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

5

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

5

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

5

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

5

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

5

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

5

Grease WPL 261582 Contact Us For Availability

5

Coffee WPL 261886 Contact Us For Availability

5

Coffee (Uncut) WPL 261887 Contact Us For Availability

5

New Avocado WPL 261888 Contact Us For Availability

5

New Avocado (Uncut) WPL 261889 Contact Us For Availability

5

Harvest Gold WPL 261890 Contact Us For Availability

5

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

5

Toast WPL 285365 Contact Us For Availability

5

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

5

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

5

Platinum (Uncut) WPL 285368 Contact Us For Availability

5

Terminal, Adapter WPL 3147832 Contact Us For Availability

5

WPL 72108 WPL 72108 Contact Us For Availability

5

WPL 72112 WPL 72112 Contact Us For Availability

5

WPL 799832 WPL 799832 Contact Us For Availability

5

WPL 978883 WPL 978883 Contact Us For Availability

5

Glass, Timer WPL 313513 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $3.46

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.40

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

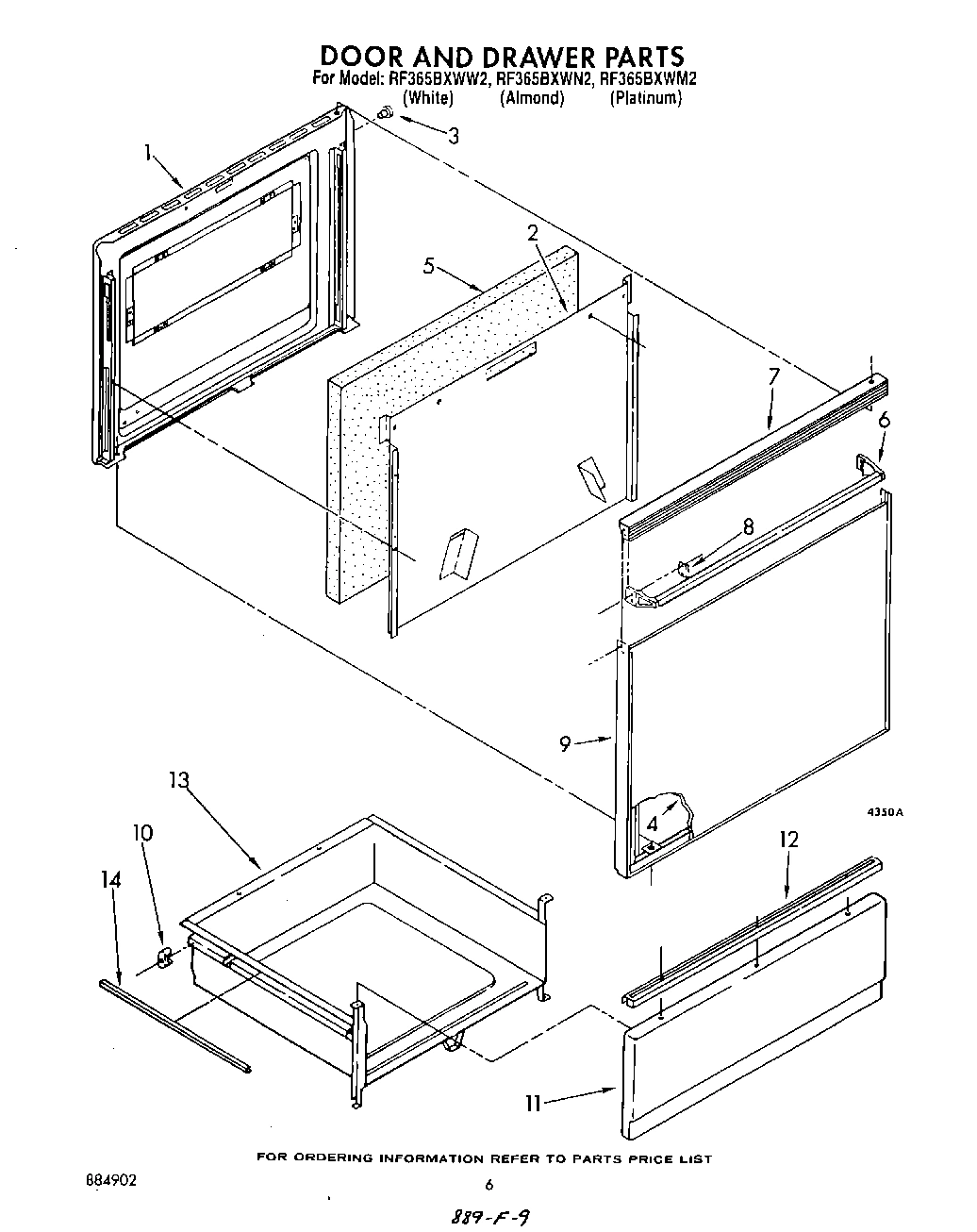

Seal, Door WPL 3148284 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

6

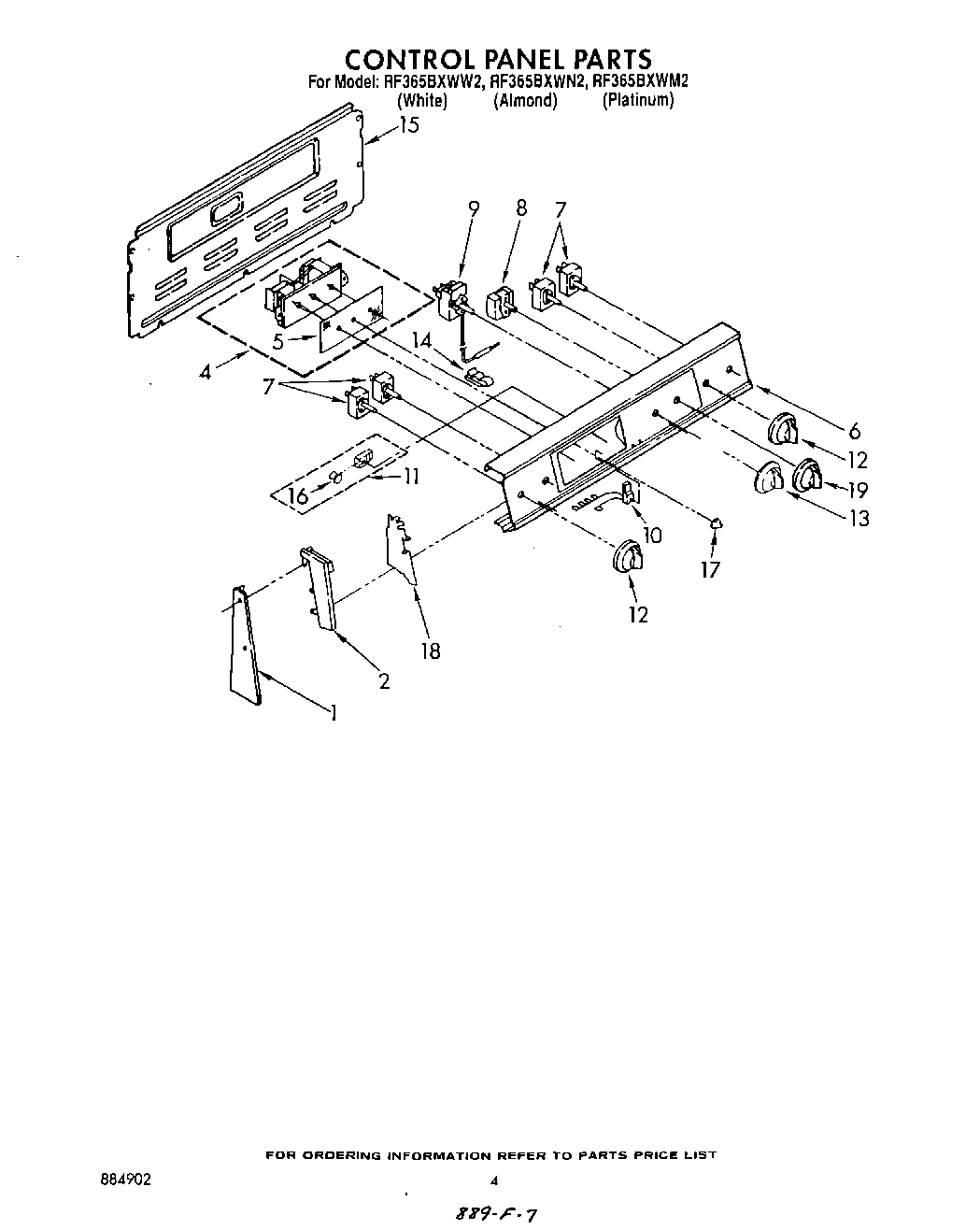

Panel, Control WPL 3150627 Contact Us For Availability

7

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $41.04

7

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $58.05

7

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.98

7

Screw (8) WPL 3149333 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

Clip, Handle (2) WPL 3148282 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability

9

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.59

9

Thermostat, Oven Pyro WPL 3148933 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3172547 Contact Us For Availability

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $36.18

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $37.55

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $50.63

Cover, Rear WPL 3148975 Contact Us For Availability

Light, Indicator (Surface Unit) (Includes Ill WPL 3150647 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

11

Light, Indicator (Oven Heating) (Includes Ill WPL 314031 Contact Us For Availability

11

Cover, Service WPL 307972 Contact Us For Availability

12

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $13.33

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $23.64

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

Cooktop (Platinum) WPL 3170984 Contact Us For Availability

Knob, Thermostat Control WPL 3149988 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Tube Clip WPL 313570 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.50

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Rear Cover Control Panel WPL 313195 Contact Us For Availability

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $5.76

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

Plate, Cover (2) WPL 311982 Contact Us For Availability

Lens, Amber (2) WPL 313101 Contact Us For Availability

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $11.87

Switch, Broil WPL 314209 Contact Us For Availability

Insulation WPL 310433 Contact Us For Availability

Barrier, Shield WPL 3150189 Contact Us For Availability

Spring, Knob WPL 313311 Contact Us For Availability

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $35.75

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $3.38

Pan, Reflector (6`` (2)) WPL 3150198 Contact Us For Availability

Switch, Bake WPL 314210 Contact Us For Availability

Shield, Glass (2) WPL 313608 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $16.59

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $21.72

Knob, Selector WPL 3149986 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $6.70

20

Medallion (4) WPL 309195 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $6.16

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $8.24

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.19

Nut (4) WPL 814102 Contact Us For Availability

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

26

340184 Whirlpool Screw Backorder WPL 340184 $14.93

26

Block, Balance WPL 312804 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $34.75

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $12.67

30

screw (2) WPL 3148604 Contact Us For Availability

31

Anchor, Plastic WPL 3148605 Contact Us For Availability
