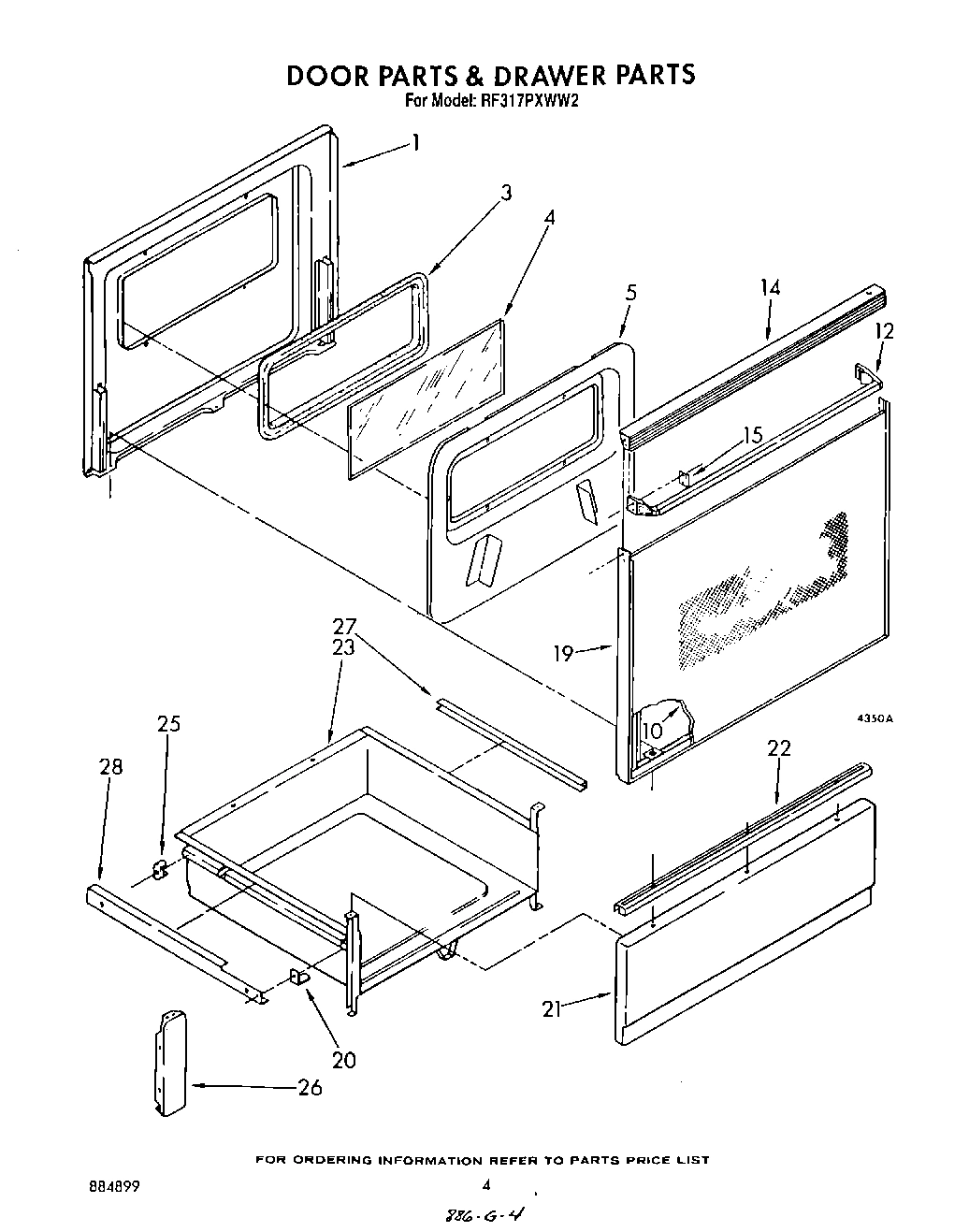

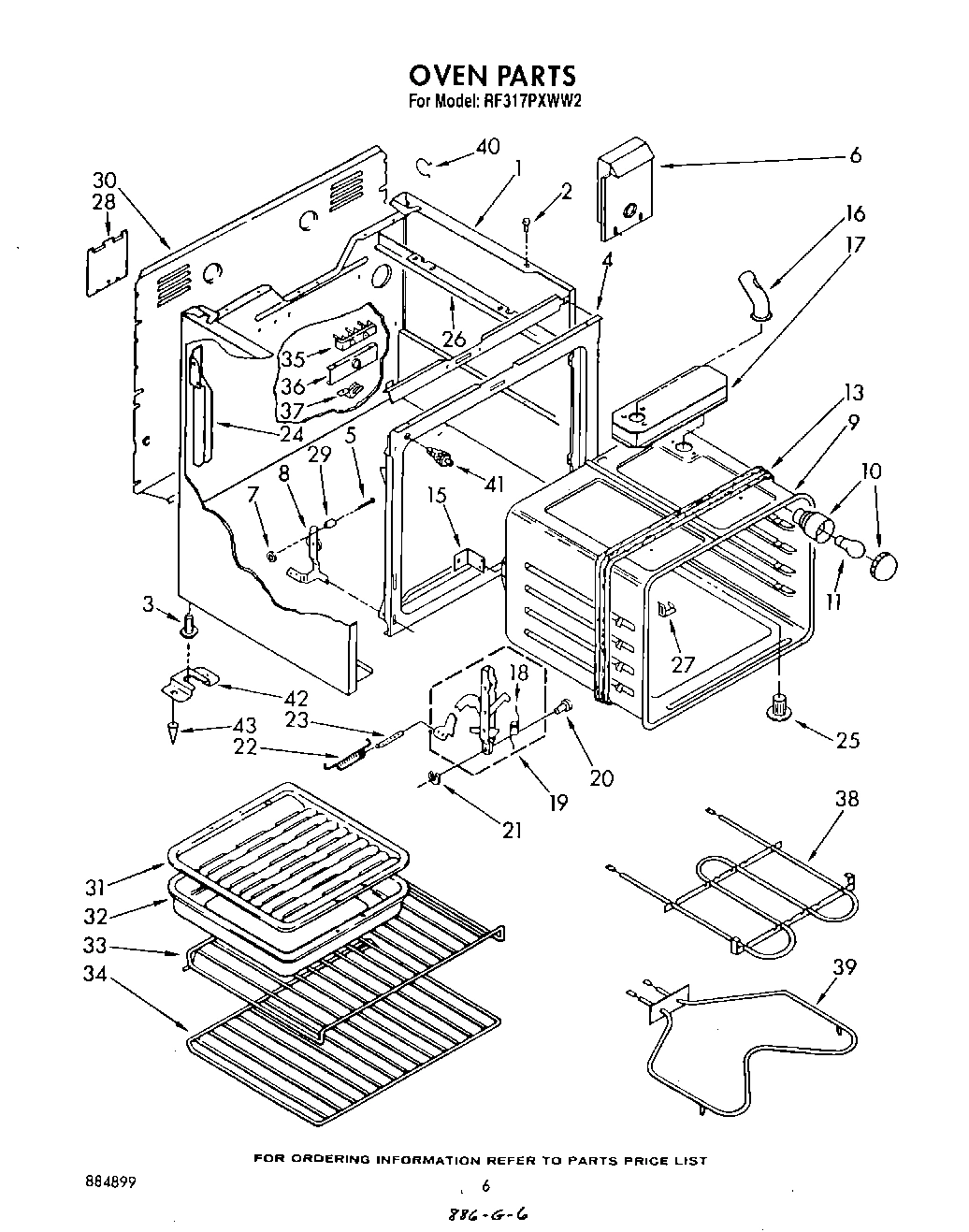

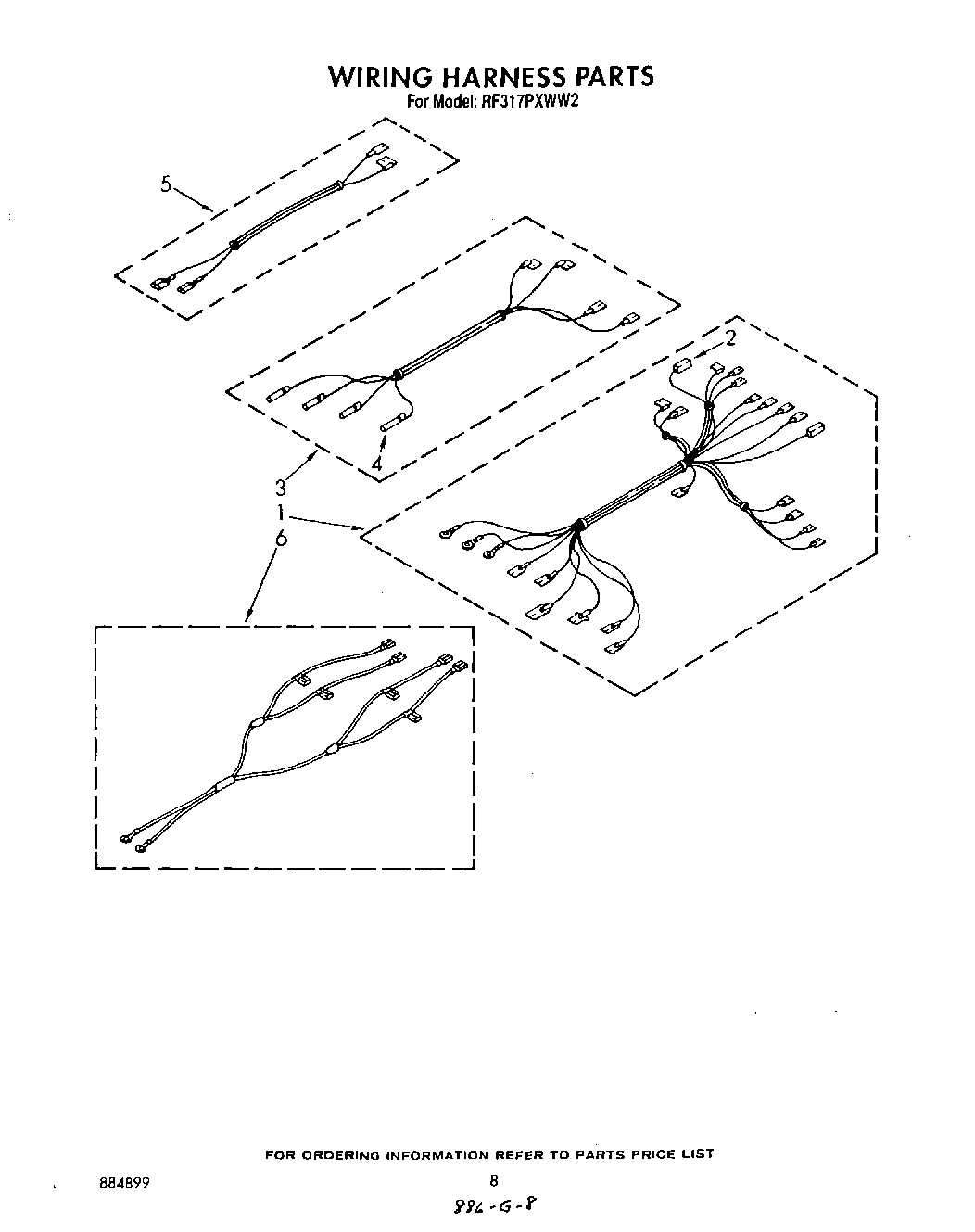

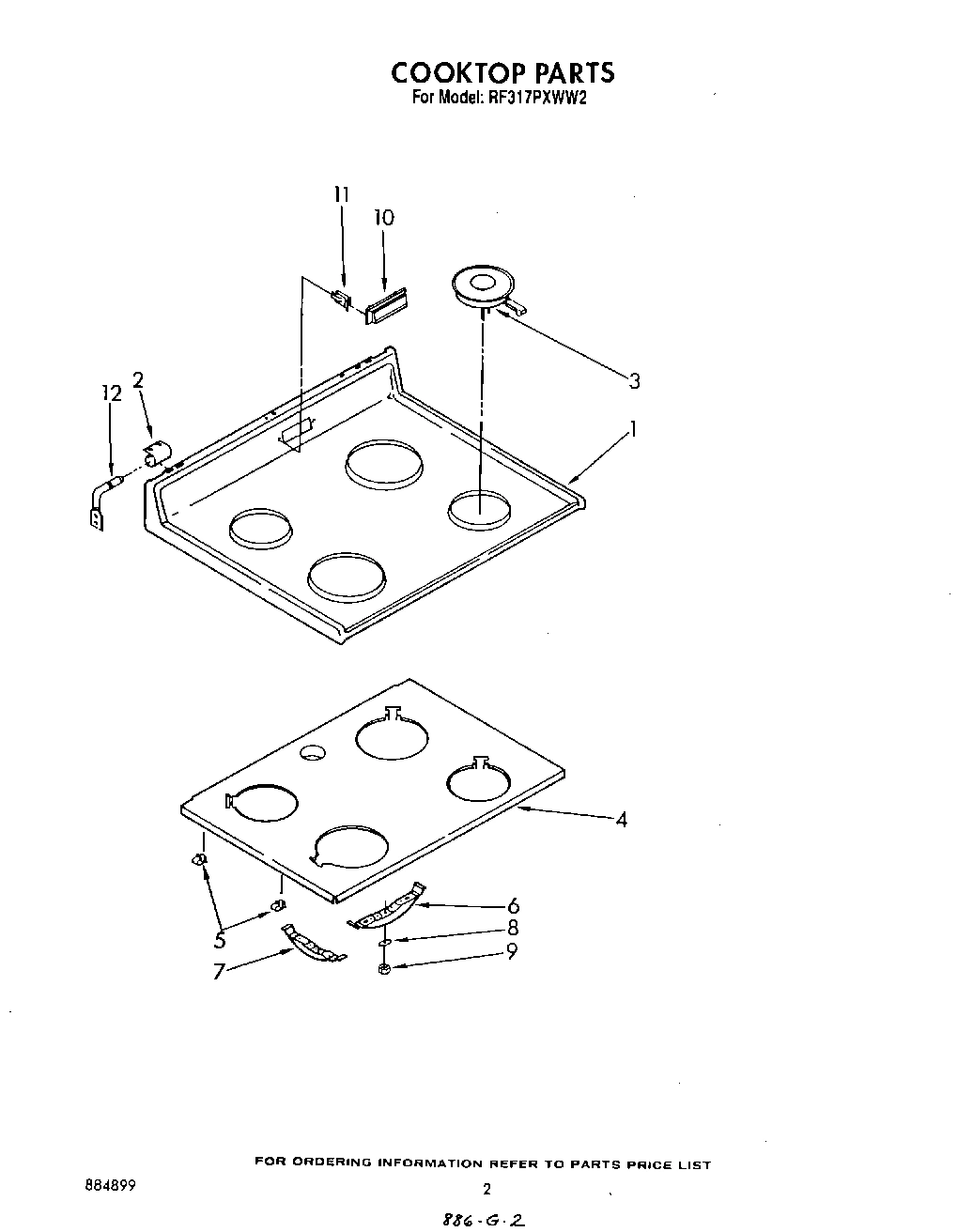

Model Whirlpool RF317PXWN2 – Common Parts &amp; Diagrams

WPL LIT3147389 WPL LIT3147389 Contact Us For Availability

WPL LIT3149507 WPL LIT3149507 Contact Us For Availability

WPL LIT3150546 WPL LIT3150546 Contact Us For Availability

WPL LIT3150566 WPL LIT3150566 Contact Us For Availability

WPL LIT884899 WPL LIT884899 Contact Us For Availability

WPL 3150532 WPL 3150532 Contact Us For Availability

1

Cooktop (White) WPL 3171372 Contact Us For Availability

1

Cooktop (Almond) WPL 3171373 Contact Us For Availability

1

Liner, Door WPL 3172220 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

2

Bracket, Cooktop WPL 307965 Contact Us For Availability

3

WP3147131 Whirlpool Surface Element Backorder WPL WP3147131 $169.11

3

WP3147132 Whirlpool Surface Element Backorder WPL WP3147132 $188.93

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.98

3

Seal, Window WPL 3148183 Contact Us For Availability

4

Cooktop Support WPL 3149261 Contact Us For Availability

4

Glass, Inner WPL 3148179 Contact Us For Availability

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3172204 Contact Us For Availability

5

Clip, Wire (4) WPL 311311 Contact Us For Availability

5

Retainer, Insulation WPL 3148287 Contact Us For Availability

5

Screw (4) WPL 3148443 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

Bracket, Mounting 6``(2) WPL 3147703 Contact Us For Availability

6

Box, Vent WPL 3171381 Contact Us For Availability

7

Bracket, Mounting 8`` (2) WPL 3147704 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $41.49

8

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $56.64

8

Spring, Leaf (4) WPL 3147191 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Nut (4) WPL 3147189 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (Standard) WPL 3172546 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $57.87

Cover, Vent (White) WPL 3149011 Contact Us For Availability

cover, vent (almond) WPL 3149012 Contact Us For Availability

Panel, Glass WPL 3148185 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

Light, Indicator (Oven On) WPL 314031 Contact Us For Availability

Light, Indicator (Surface Unit (2)) WPL 313102 Contact Us For Availability

Clip, Vent (2) WPL 3149190 Contact Us For Availability

12

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

12

Pin, Hinge (2) WPL 307966 Contact Us For Availability

12

Handle, Door WPL 3148228 Contact Us For Availability

13

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $15.56

13

Seal, Heat WPL 309107 Contact Us For Availability

14

Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability

14

Top, Door WPL 3148223 Contact Us For Availability

15

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

16

Vent, Oven WPL 3148906 Contact Us For Availability

17

Box, Vent WPL 3147076 Contact Us For Availability

18

Spring, Door Stop WPL 308207 Contact Us For Availability

19

Frame, Panel WPL 3148235 Contact Us For Availability

19

Channel, Arm (2) WPL 329712 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

20

Glide, Front (2) WPL 3149257 Contact Us For Availability

21

Panel Drawer (White) WPL 307935 Contact Us For Availability

21

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $9.90

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Handle, Drawer WPL 313337 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

23

Drawer, Utility WPL 327887 Contact Us For Availability

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Screw (2) WPL 307748 Contact Us For Availability

25

Glide, Rear (2) WPL 307980 Contact Us For Availability

25

Eliminator, Smoke WPL 3147242 Contact Us For Availability

26

Bracket, Mtg. (2) WPL 307981 Contact Us For Availability

26

screw, 10a x 3/8 WPL 254217 Contact Us For Availability

26

Support, Chassis WPL 3147646 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

27

Protector, Side (2) WPL 309329 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, Splicing 25` 14 Ga. 150~c (White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Splicing 25` 14 Ga. 150~c (Red 12 Ga. 2 WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Splicing 25` 14 Ga. 150~c (Yellow) WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up Continuous Clean (1 oz.) WPL 261748 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avoca WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 3147861 WPL 3147861 Contact Us For Availability

WPL 3149255 WPL 3149255 Contact Us For Availability

WPL 3149256 WPL 3149256 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Panel, Rear WPL 3148975 Contact Us For Availability

31

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

33

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

34

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

35

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

35

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

35

Screw (2) WPL 98884 Contact Us For Availability

36

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

36

Bracket, Service WPL 3150190 Contact Us For Availability

37

Strap, Ground WPL 308498 Contact Us For Availability

37

Clip WPL 313660 Contact Us For Availability

38

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

39

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

40

16515 Whirlpool Clip Backorder WPL 16515 $12.46

41

Swi WPL 310345 Contact Us For Availability

42

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $23.74

42

WPL 3148604 WPL 3148604 Contact Us For Availability

43

WPL 3148605 WPL 3148605 Contact Us For Availability
