Model Whirlpool NDG6800AWW GAS DRYER – Common Parts & Diagrams

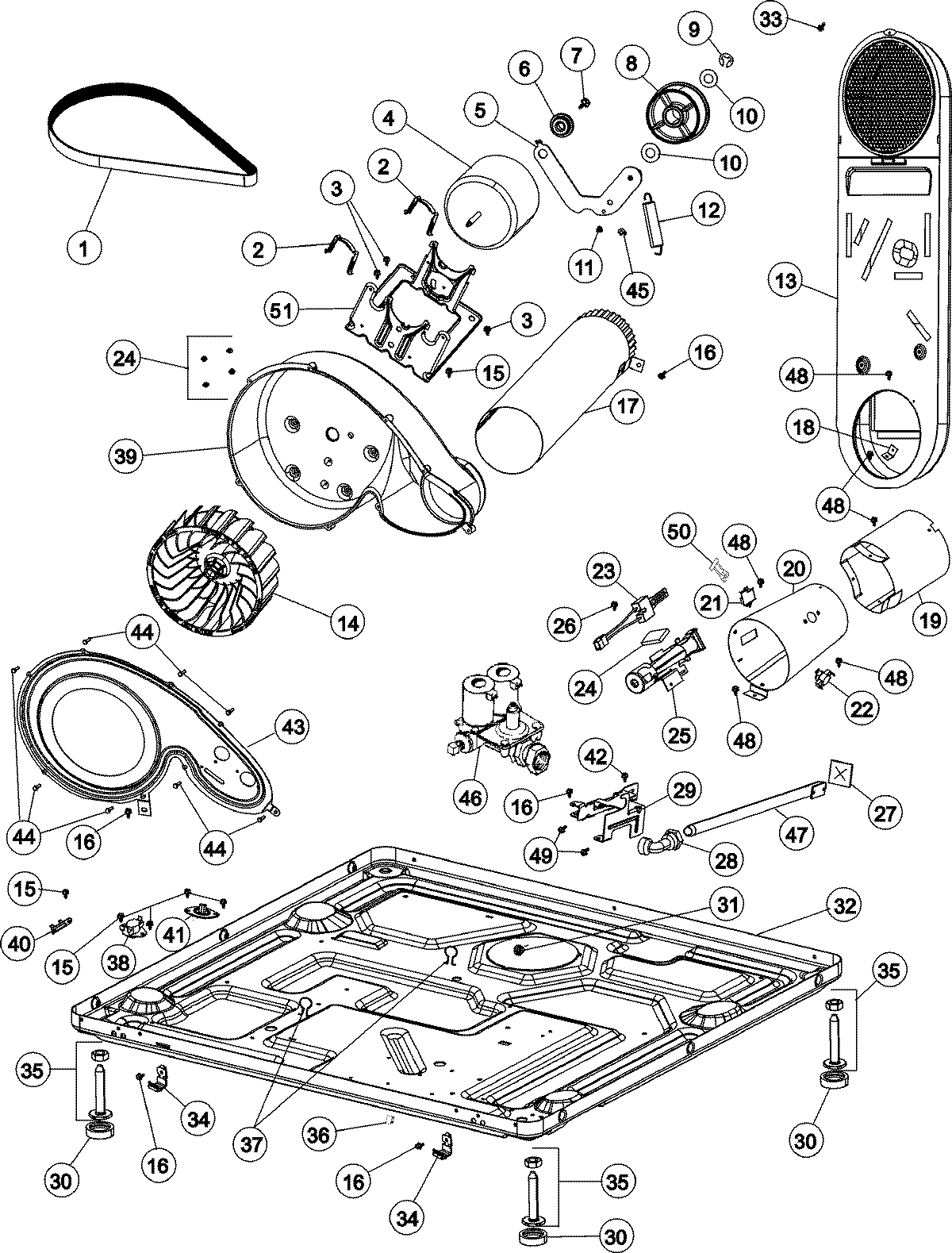

01 - BASE (GAS)
03 - CONTROL PANEL & TOP
08 - WIRING INFORMATION
04 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION
02 - CABINET
05 - TUMBLER
06 - WIRING INFORMATION
Common parts from model Whirlpool NDG6800AWW GAS DRYER
1
TUMBLER WPL 33001889 Contact Us For Availability
1
CONSOLE BACK PANEL WPL 33002893 Contact Us For Availability
1
HARNESS, WIRE WPL 33002614 Contact Us For Availability
1
WIRE HARNESS-LED-GAS WPL 33002934 Contact Us For Availability
1
HARNESS, WIRE LED WPL 33003010 Contact Us For Availability
2
FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability
3
CONTROL BOARD LED AS PK NTD WPL 33002898 Contact Us For Availability
3
LED CONTROL BOARD WPL 33002918 Contact Us For Availability
3
CONTROL BOARD ASSEMBLY WPL 33002959 Contact Us For Availability
3
MANUAL, USE & CARE LED DRYER WPL 2206684 Contact Us For Availability
3
MANUAL, USE & CARE WPL 63901340 Contact Us For Availability
3
MANUAL, USE & CARE WPL Y2201987 Contact Us For Availability
3
PIN, LOCATOR WPL 33002891 Contact Us For Availability
3
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
4
DRYER CONSOLE AS PACK WPL Y2207690 Contact Us For Availability
4
CABINET ASSY. (WHT, AS PK) WPL 22003641 Contact Us For Availability
5
HINGE, PLASTIC WPL 22004095 Contact Us For Availability
6
TOP COVER - AS PACK (WHT) T WPL 33002884 Contact Us For Availability
6
MANUAL, SLOPED-FRONT DRYER WPL 16009968 Contact Us For Availability
7
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
8
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
8
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
9
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
11
GROMMET, IDLER ARM WPL 33002218 Contact Us For Availability
11
DOOR, INNER W/SEAL (WHT) T WPL 33002889 Contact Us For Availability
12
DOOR AS PACK WPL Y2207706 Contact Us For Availability
12
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
13
INLET DUCT ASSEMBLY (GAS) WPL 33002765 Contact Us For Availability
13
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
13
SEAL, BLOWER WPL 33002560 Contact Us For Availability
14
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
14
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
15
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
17
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
17
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
17
SCREW----NA WPL 312311 Contact Us For Availability
18
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
18
SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability
19
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
19
PANEL, CONTROL (BLK) WPL 33001078 Contact Us For Availability
20
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
21
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
21
SCREW WPL 33001871 Contact Us For Availability
22
PANEL, FRONT AS PACK (WHT) T WPL 33002882 Contact Us For Availability
22
HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability
24
IGNITOR SHOCK PAD WPL 33002932 Contact Us For Availability
24
GROMMET, CORD WPL 211881 Contact Us For Availability
24
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
25
LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability
26
SCREW WPL 304971 Contact Us For Availability
26
SEAL, SHROUD WPL 33001767 Contact Us For Availability
27
HOOK, SECURITY WPL 33002597 Contact Us For Availability
27
FLAP, PIPE WPL 33001702 Contact Us For Availability
27
FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability
28
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
29
BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability
29
SHROUD (WHT) WPL 33002033 Contact Us For Availability
31
GROMMET WPL 33002157 Contact Us For Availability
31
BRACKET, HINGE WPL 33001760 Contact Us For Availability
32
BASE, (LWR)----NA WPL 33002465 Contact Us For Availability
33
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
33
SCREW, SHROUD WPL 33001768 Contact Us For Availability
34
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
35
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
36
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
37
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
41
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
42
SCREW WPL Y310632 Contact Us For Availability
43
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
45
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
47
CONTROL, GAS ASSEMBLY WPL 33003029 Contact Us For Availability
48
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
51
MOTOR SUPPORT, OFFSET WPL 33002817 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003450 Contact Us For Availability
× ![]()
