Model Maytag MSD2669KEW00 REFRIGERATOR – Common Parts & Diagrams

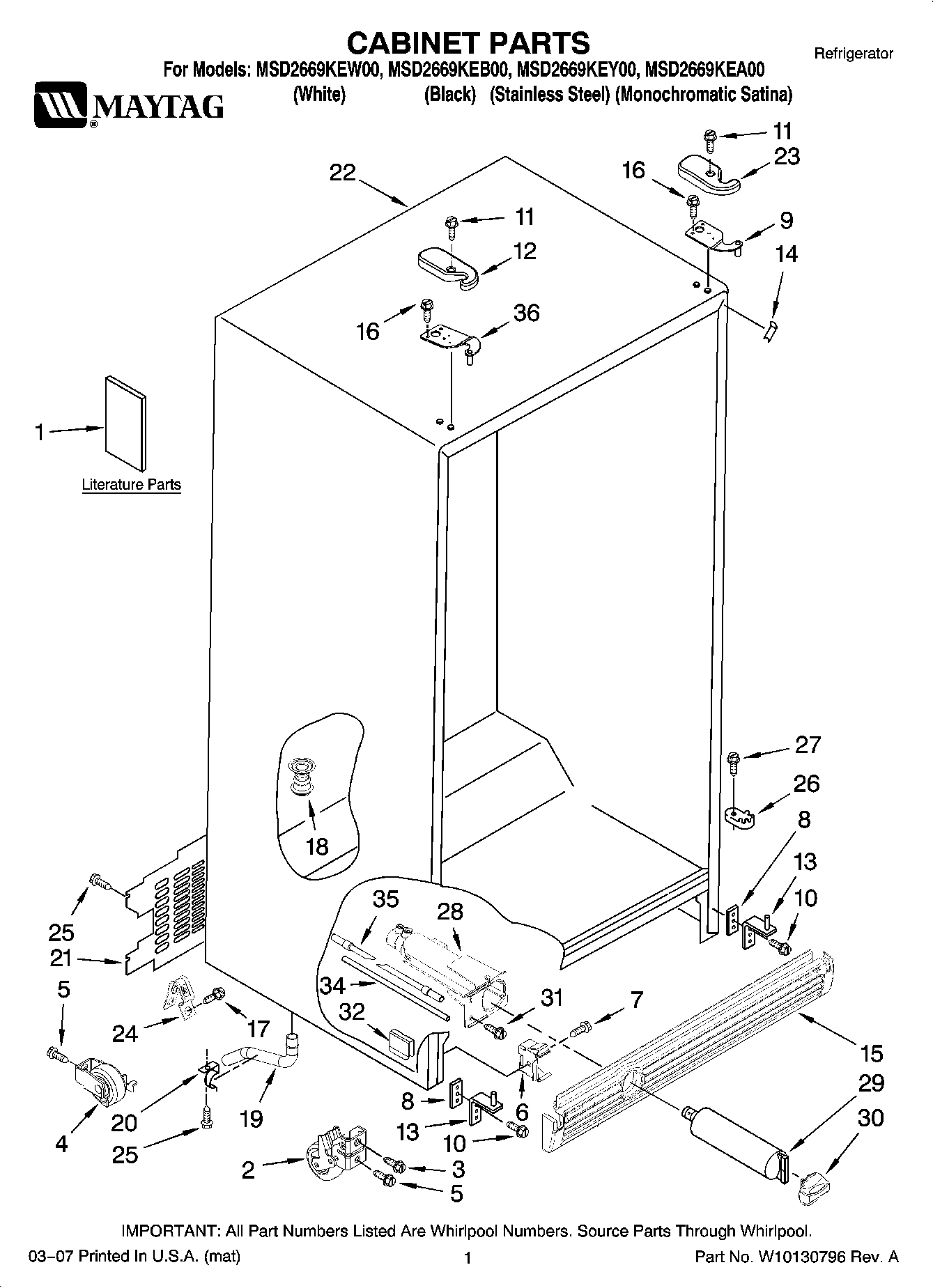

01 - CABINET PARTS

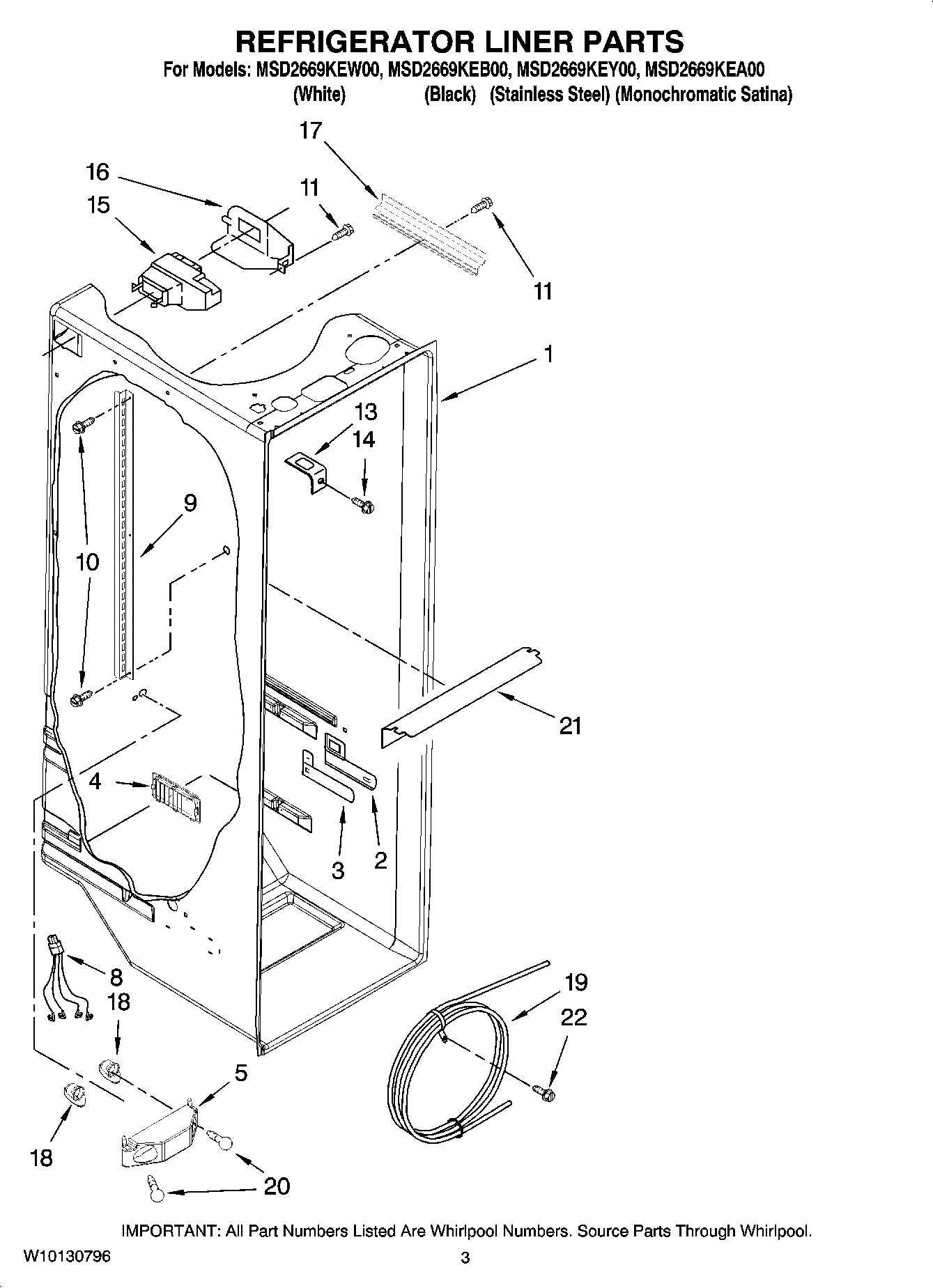

02 - REFRIGERATOR LINER PARTS

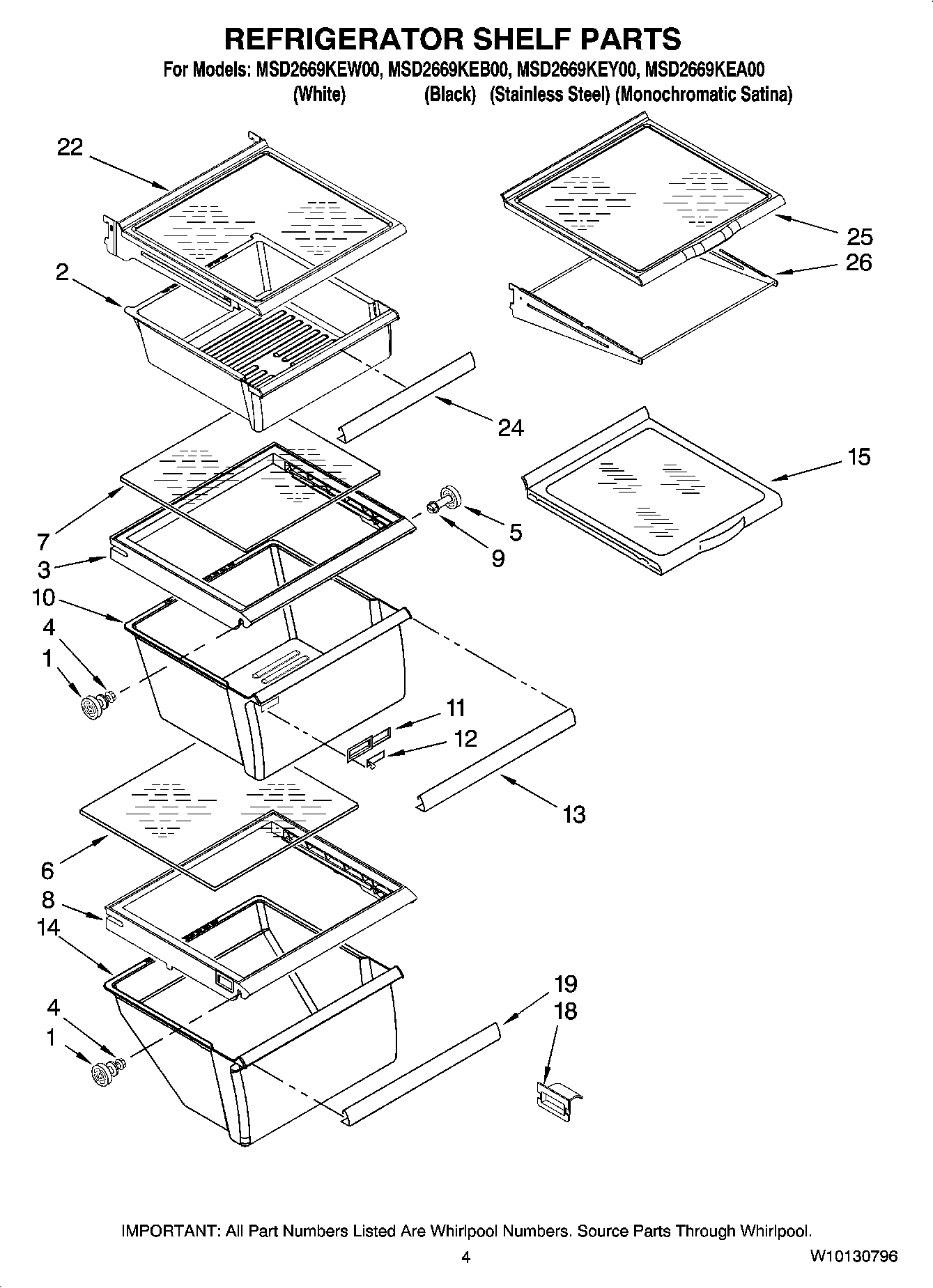

03 - REFRIGERATOR SHELF PARTS

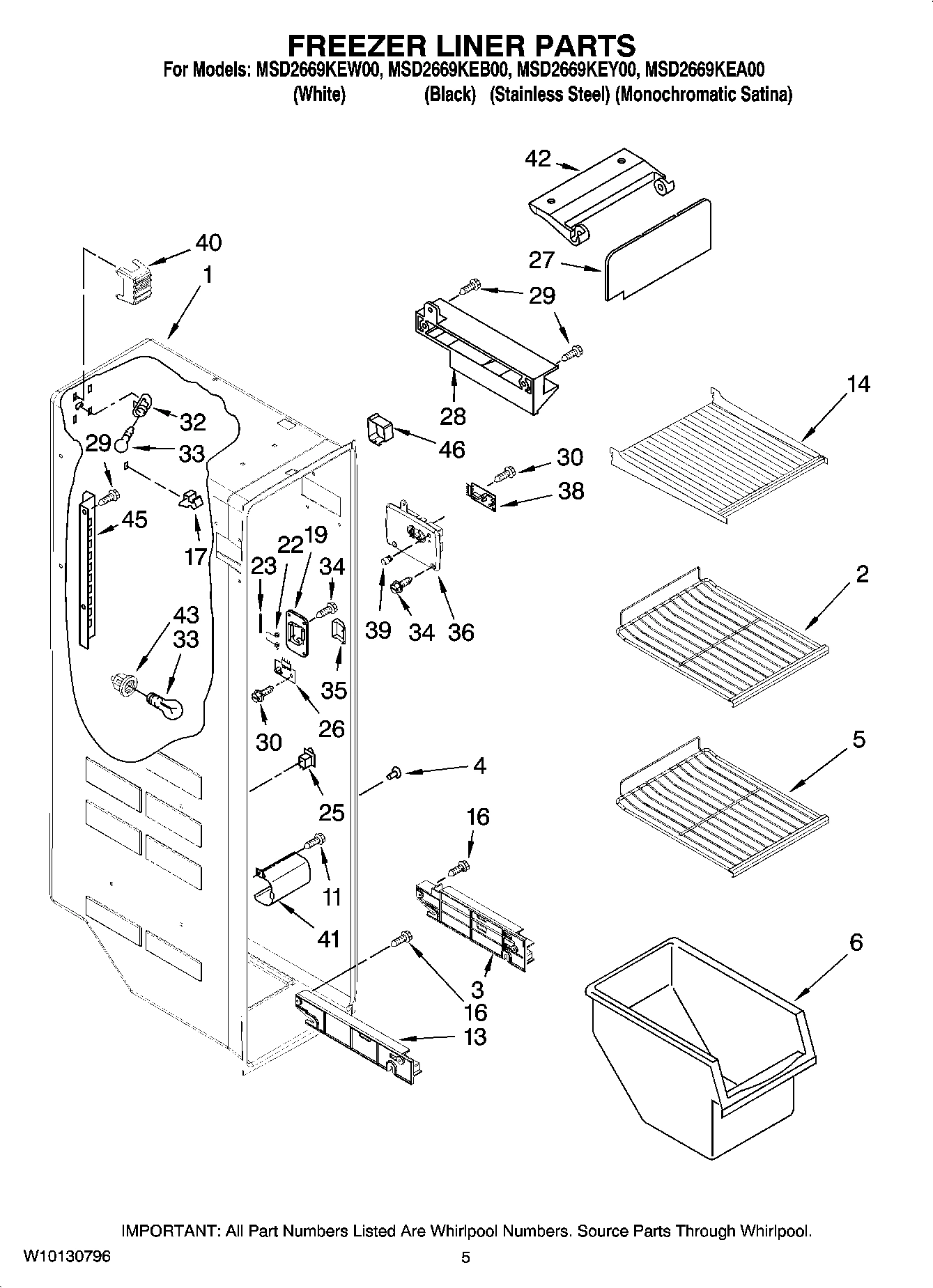

04 - FREEZER LINER PARTS

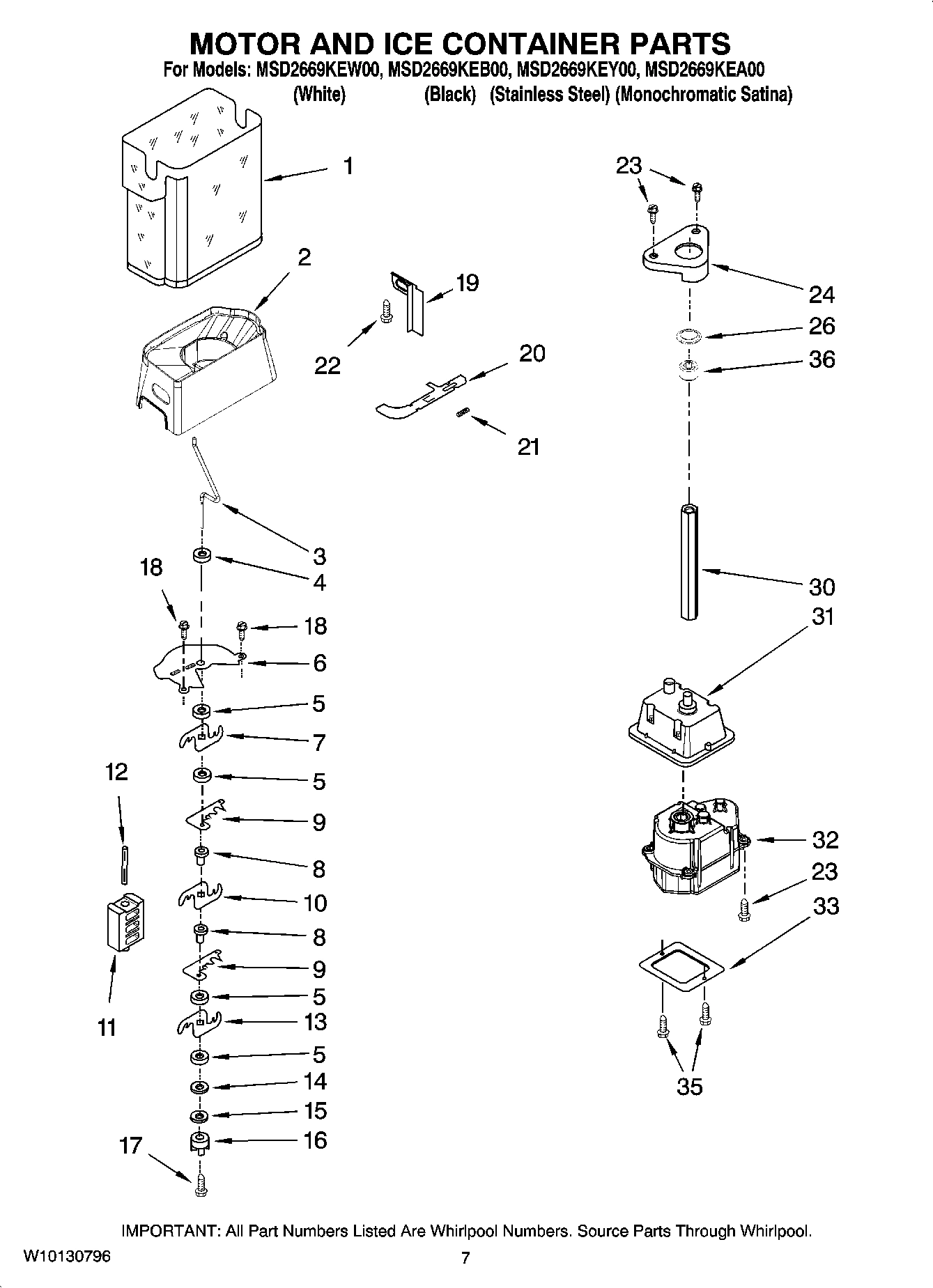

05 - MOTOR AND ICE CONTAINER PARTS

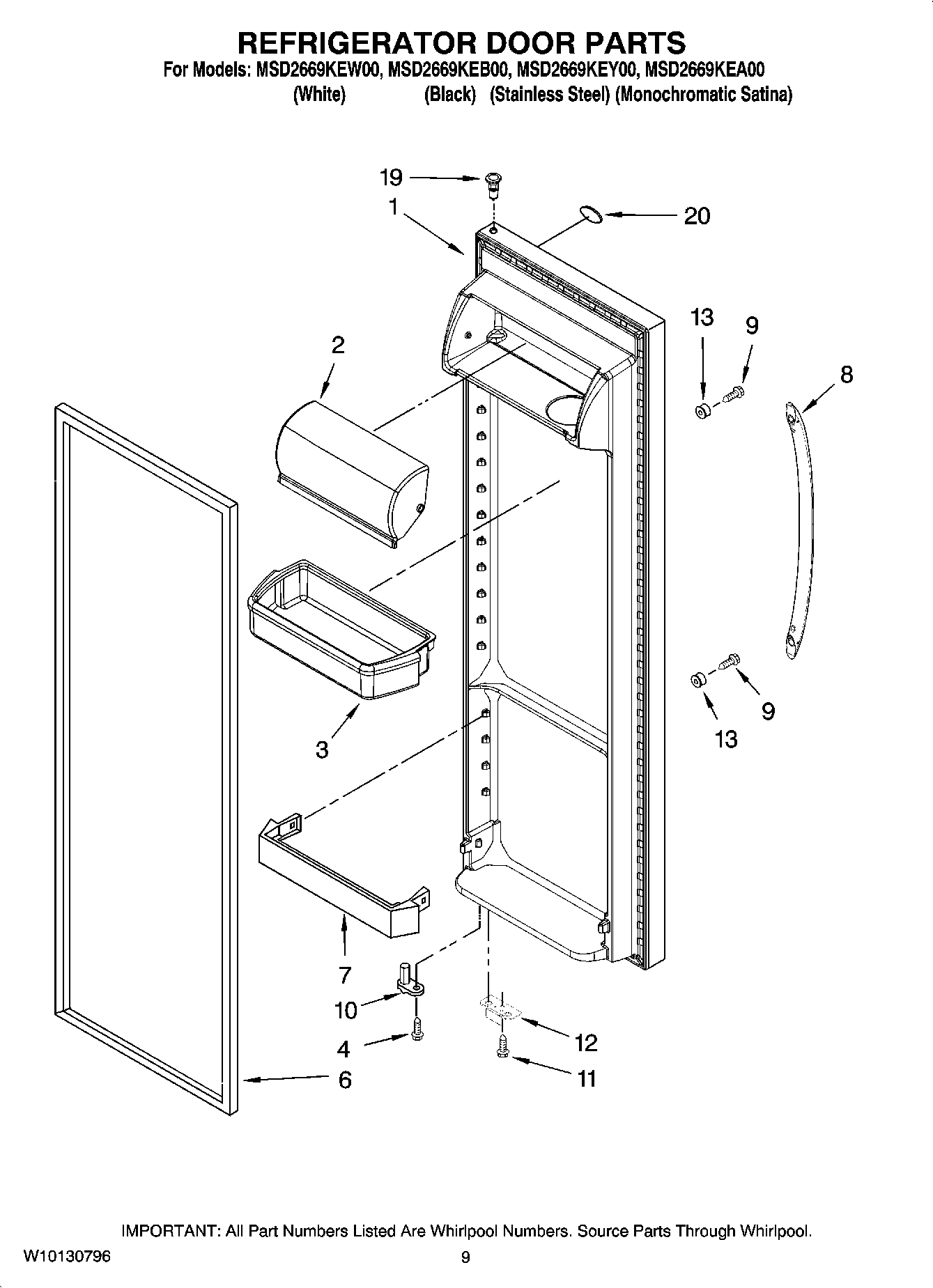

06 - REFRIGERATOR DOOR PARTS

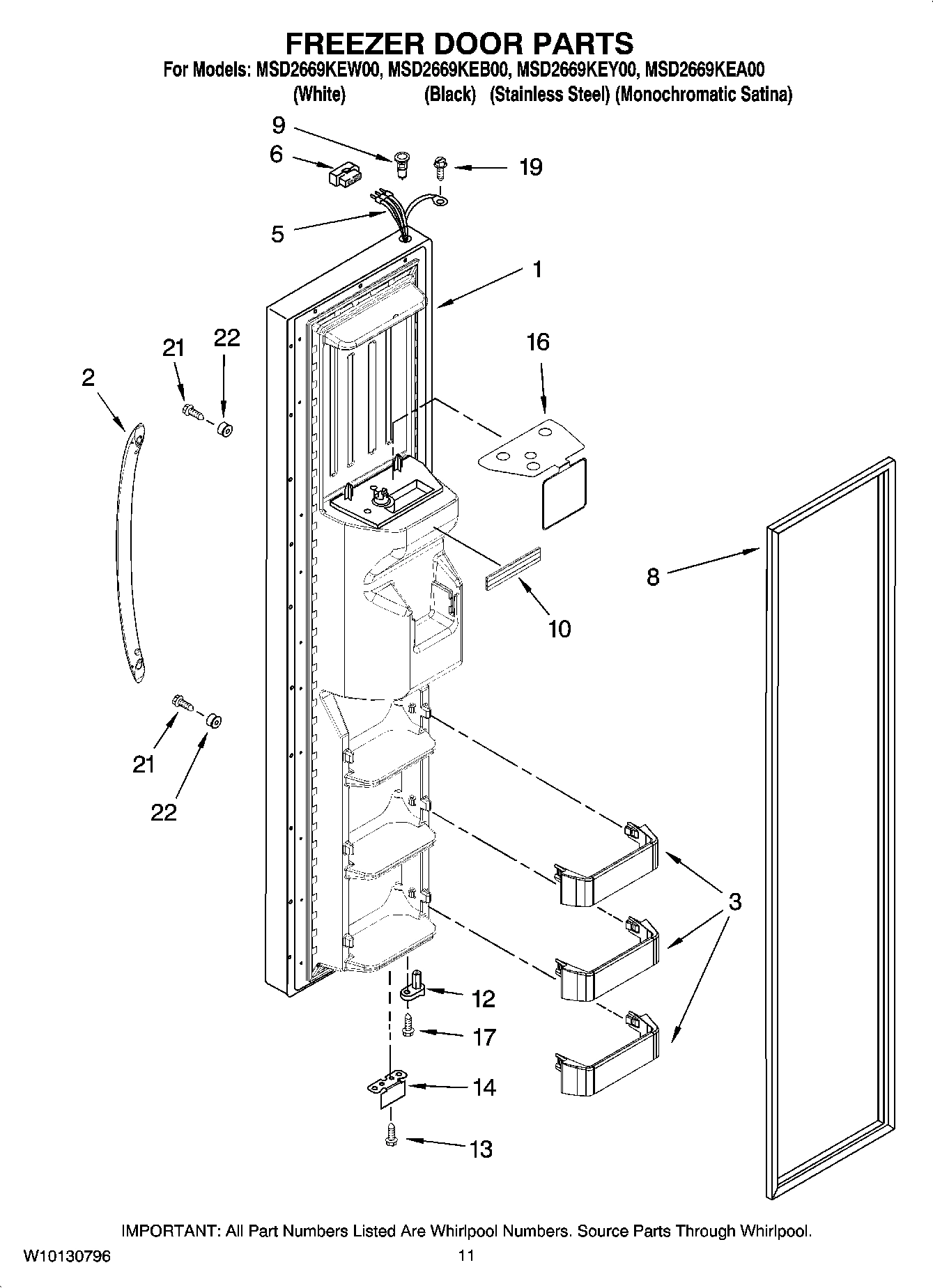

07 - FREEZER DOOR PARTS

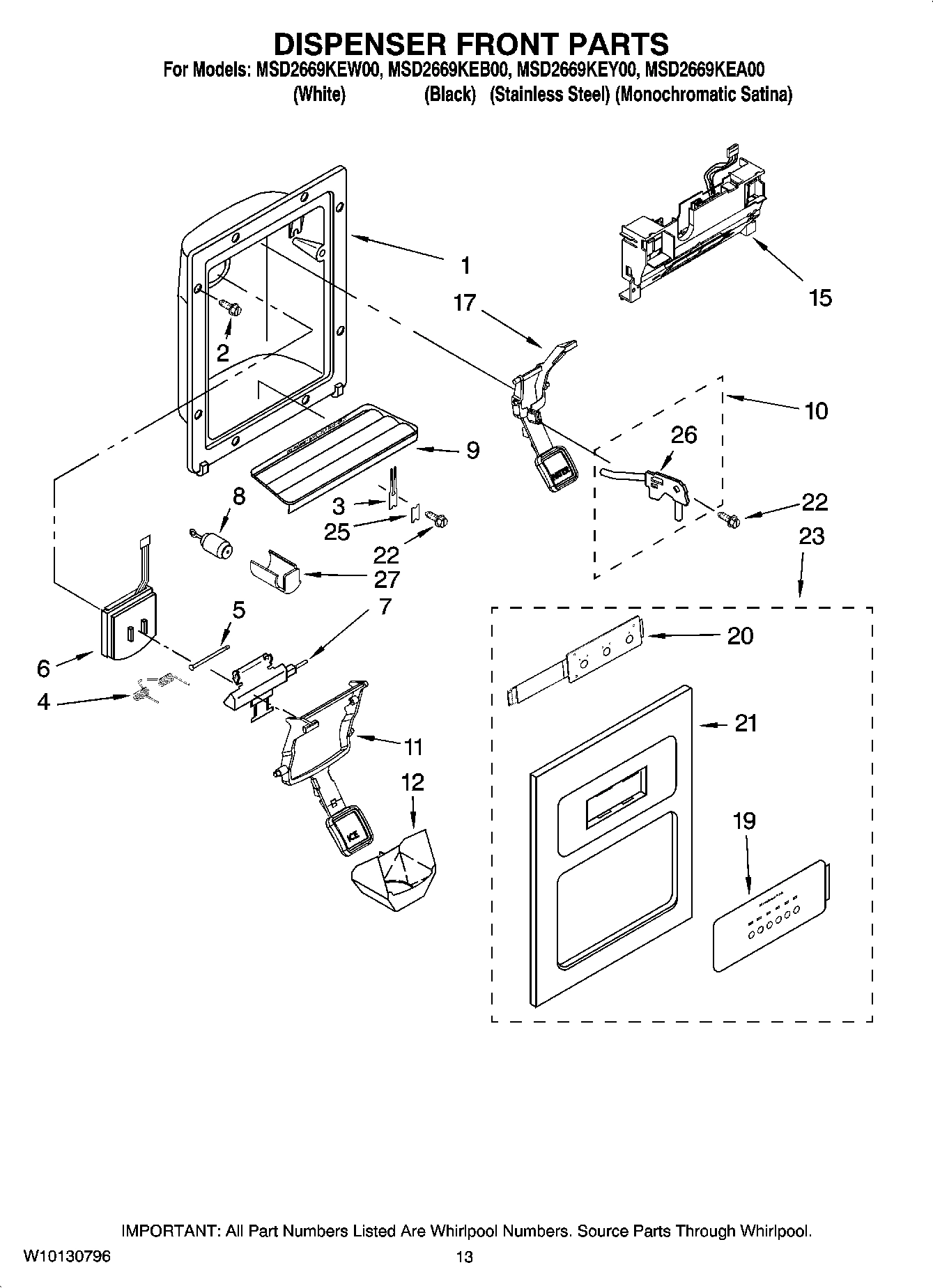

08 - DISPENSER FRONT PARTS

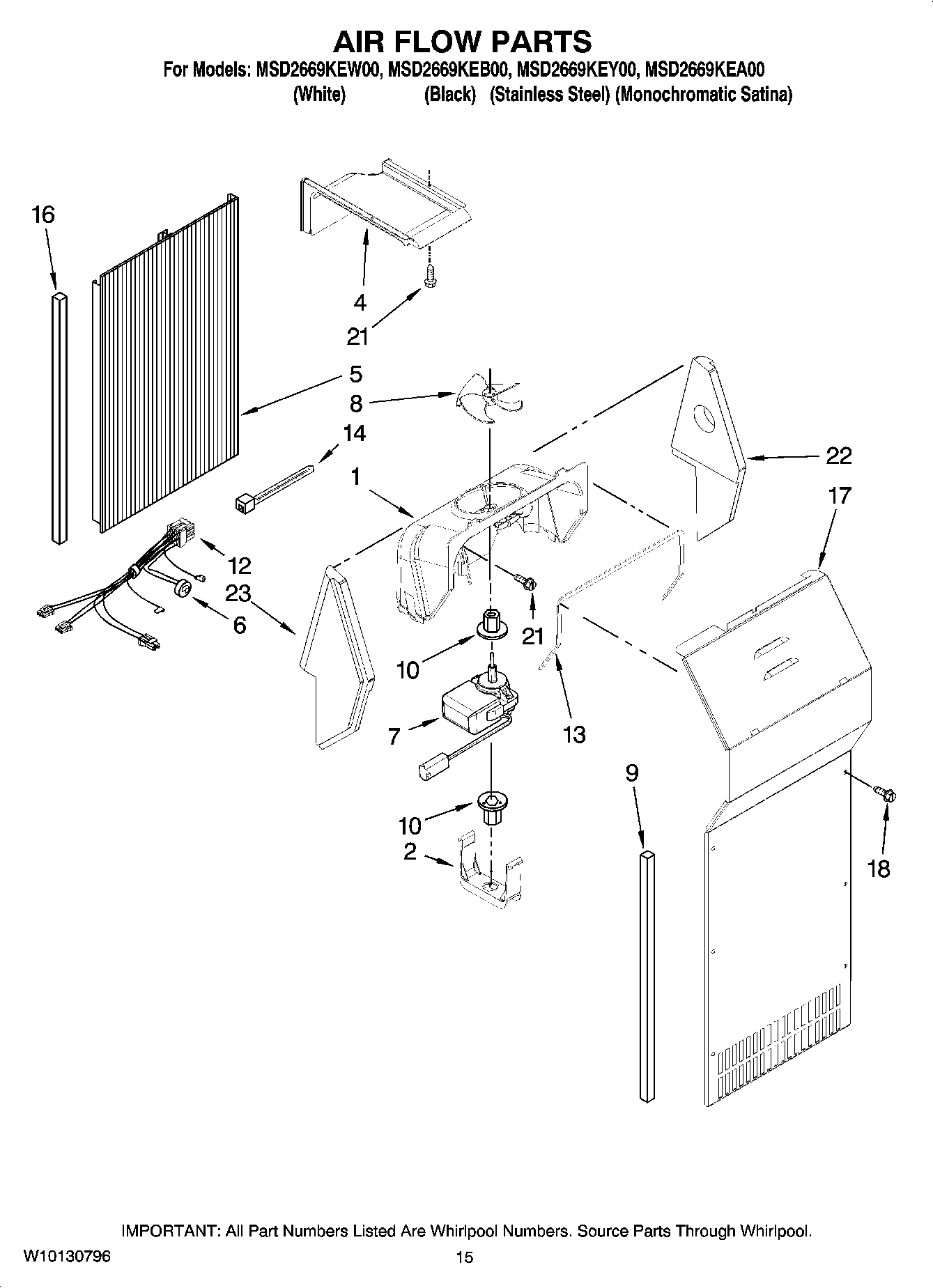

09 - AIR FLOW PARTS

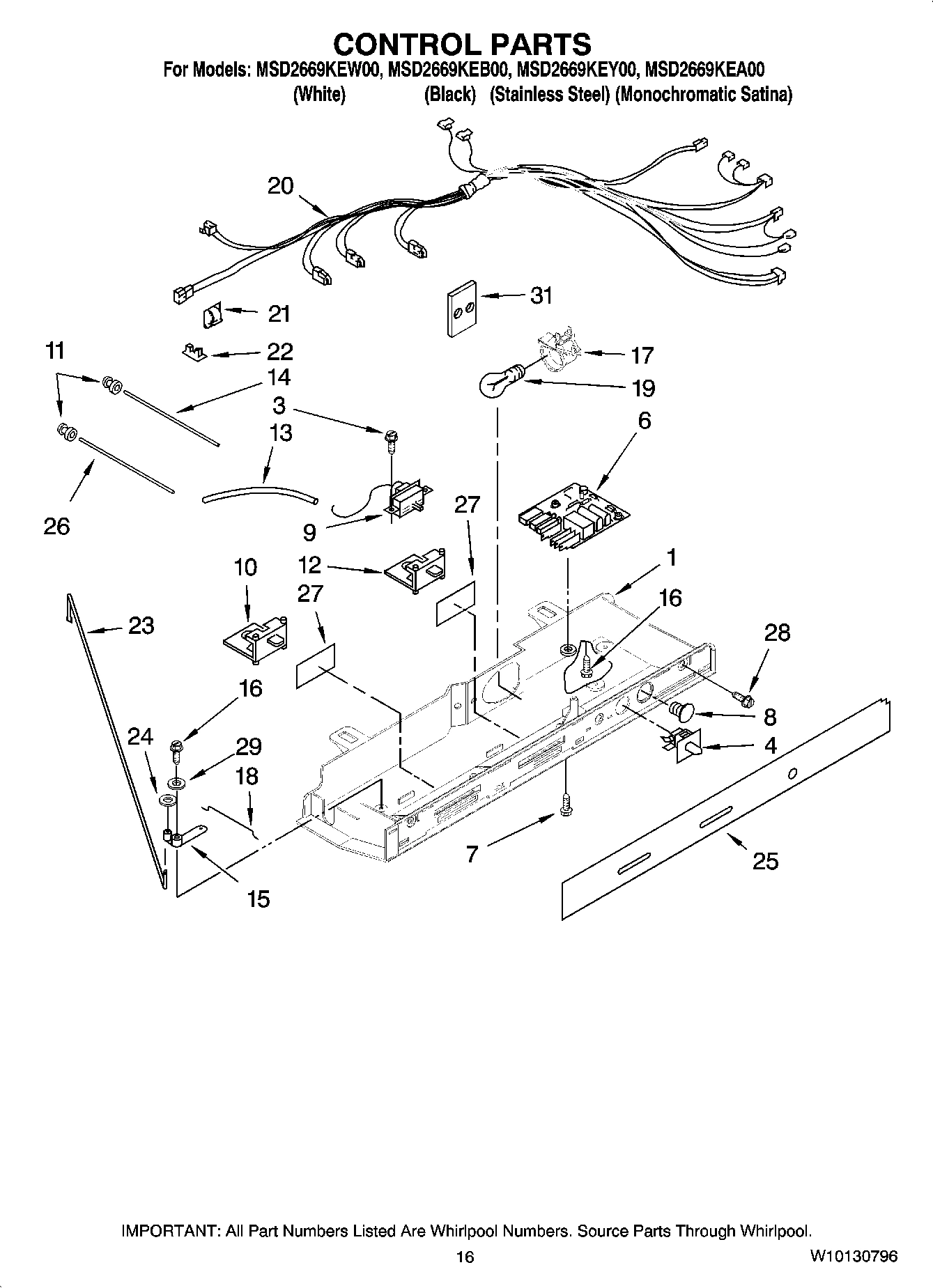

10 - CONTROL PARTS

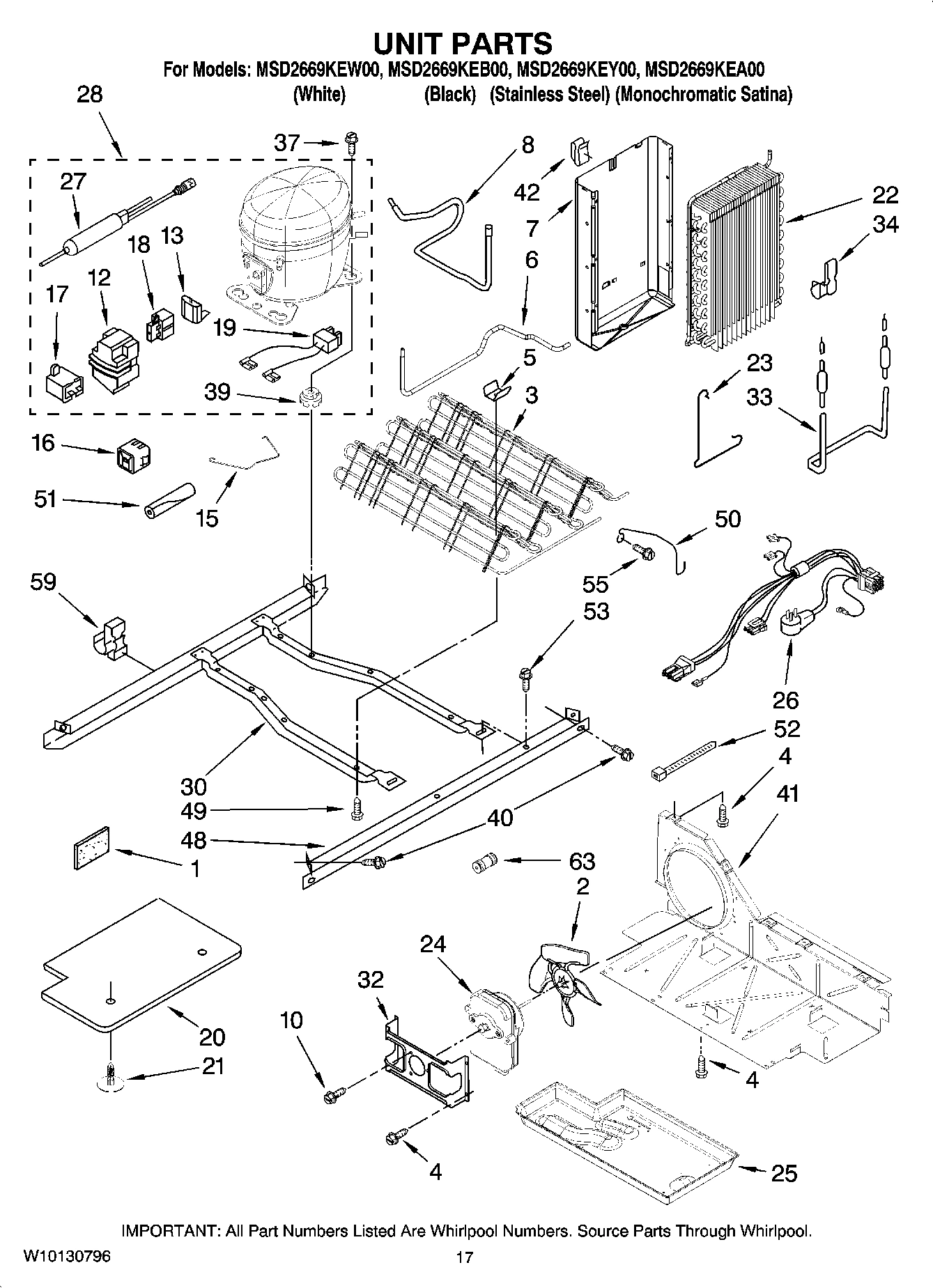

11 - UNIT PARTS

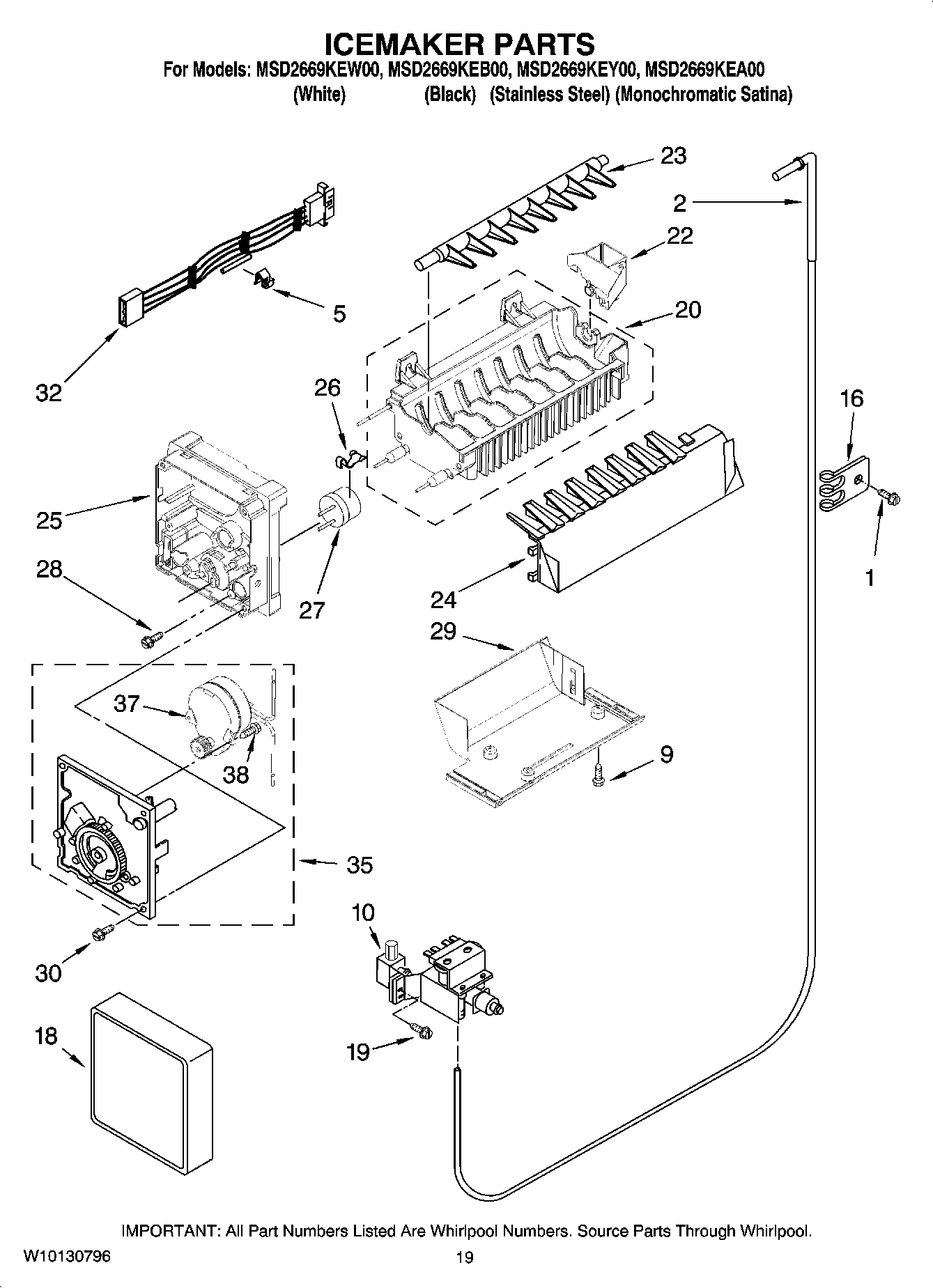

12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2669KEW00 REFRIGERATOR
MAY 1117510 MAY 1117510 Contact Us For Availability
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
PAINT, BULK (1 qt.) (White) MAY 350930 Contact Us For Availability
PAINT, BULK (1 qt.) (Black) MAY 350939 Contact Us For Availability
PAINT, BULK (1 qt.) (Primer, White) MAY 350942 Contact Us For Availability
MAY 4392899 MAY 4392899 Contact Us For Availability
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
PAINT, BULK (1 qt.) (Biscuit) MAY 4392901 Contact Us For Availability
MAY 479502 MAY 479502 Contact Us For Availability
MAY 503695 MAY 503695 Contact Us For Availability
MAY 505587 MAY 505587 Contact Us For Availability
MAY 542638 MAY 542638 Contact Us For Availability
MAY 542639 MAY 542639 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
MAY 80051 MAY 80051 Contact Us For Availability
MAY 8129 MAY 8129 Contact Us For Availability
PAINT, BULK (1 qt.) (Graphite) MAY 8171357 Contact Us For Availability
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
MAY 833938 MAY 833938 Contact Us For Availability
1
MAY 2220407 MAY 2220407 Contact Us For Availability
1
Instruction Sheet, Door Removal MAY 2261037 Contact Us For Availability
1
Service & Wiring Sheet MAY 2303927 Contact Us For Availability
1
Owner`s Manual MAY 2326267 Contact Us For Availability
1
MAY W10120325 MAY W10120325 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
MAY 2196485 MAY 2196485 Contact Us For Availability
1
MAY 2198573 MAY 2198573 Contact Us For Availability
1
MAY 2254938B MAY 2254938B Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) MAY 2254938W Contact Us For Availability
1
MAY W10130783 MAY W10130783 Contact Us For Availability
1
MAY W10130784 MAY W10130784 Contact Us For Availability
1
MAY W10120280 MAY W10120280 Contact Us For Availability
1
MAY W10120281 MAY W10120281 Contact Us For Availability
1
MAY W10120282 MAY W10120282 Contact Us For Availability
1
MAY W10120284 MAY W10120284 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
1
INSULATION, SOUND MAY 2169104 Contact Us For Availability
2
MAY 2254628 MAY 2254628 Contact Us For Availability
2
MAY 2194744 MAY 2194744 Contact Us For Availability
2
Snack Bin (Includes 24) MAY 2188667 Contact Us For Availability
2
Shelf, Slide Out Upper MAY 2211746K Contact Us For Availability
2
Crusher Bin MAY 2326283 Contact Us For Availability
2
MAY 2256101 MAY 2256101 Contact Us For Availability
2
MAY 67006114W MAY 67006114W Contact Us For Availability
2
MAY 67006115B MAY 67006115B Contact Us For Availability
2
MAY 67006391S MAY 67006391S Contact Us For Availability
2
Screw MAY 3196537 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
MAY 2225834 MAY 2225834 Contact Us For Availability
2
Fitting, Water Tube MAY 2256096 Contact Us For Availability
3
MAY W10079910 MAY W10079910 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY 2301291 MAY 2301291 Contact Us For Availability
3
MAY 2301292 MAY 2301292 Contact Us For Availability
3
Screw (2) MAY 489214 Contact Us For Availability
3
MAY 2258222 MAY 2258222 Contact Us For Availability
3
Shelf Bin (3) MAY 2304235K Contact Us For Availability
3
Trivet, FC MAY 2171157K Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY 2304902 MAY 2304902 Contact Us For Availability
4
MAY 2254625 MAY 2254625 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY 3400894 MAY 3400894 Contact Us For Availability
4
MAY 941839 MAY 941839 Contact Us For Availability
4
MAY 2258220 MAY 2258220 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY 2313359 MAY 2313359 Contact Us For Availability
4
Switch, Light MAY 2149705 Contact Us For Availability
5
MAY 2256035 MAY 2256035 Contact Us For Availability
5
MAY 2196483 MAY 2196483 Contact Us For Availability
5
Shelf, Slide Out MAY 2211742K Contact Us For Availability
5
Spacer, Flat (4) MAY 1119007 Contact Us For Availability
5
Dispenser Harness MAY 2187725 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2198580 MAY 2198580 Contact Us For Availability
5
MAY 2216914 MAY 2216914 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Glass, Meat Cover MAY 2179259 Contact Us For Availability
6
MAY 2182971 MAY 2182971 Contact Us For Availability
6
MAY 2255460 MAY 2255460 Contact Us For Availability
6
Door Gasket, Magnetic (Mist Beige) MAY 2221302 Contact Us For Availability
6
Door Gasket, Magnetic (Black) MAY 2221313 Contact Us For Availability
6
Connector MAY 2154473 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 2319914 MAY 2319914 Contact Us For Availability
6
Control Board Assembly MAY 2303824 Contact Us For Availability
6
MAY 2261599 MAY 2261599 Contact Us For Availability
7
MAY 2174150 MAY 2174150 Contact Us For Availability
7
MAY 2257024 MAY 2257024 Contact Us For Availability
7
Shelf Bin MAY 2156022 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
MAY 2217194 MAY 2217194 Contact Us For Availability
8
Shim MAY 2156056 Contact Us For Availability
8
Wire Harness, Dual Crisper MAY 2311637 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
Spacer, Step (2) MAY 1119005 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) MAY 2221303 Contact Us For Availability
8
Door Gasket, Magnetic (Black) MAY 2221314 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 940014 MAY 940014 Contact Us For Availability
8
MAY 2205765 MAY 2205765 Contact Us For Availability
9
MAY 489478 MAY 489478 Contact Us For Availability
9
HINGE TOP RC MAY 2203771 Contact Us For Availability
9
Shelf Ladder MAY 2319866 Contact Us For Availability
9
MAY 8281158 MAY 8281158 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
THIMBLE, TOP MAY 2200086 Contact Us For Availability
9
Grille, Overflow (Apollo Grey) MAY 2207007AP Contact Us For Availability
9
MAY 2207007B MAY 2207007B Contact Us For Availability
9
Grille, Overflow (White) MAY 2207007W Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
Thermostat MAY 2315562 Contact Us For Availability
10
MAY 3400113 MAY 3400113 Contact Us For Availability
10
MAY 2188652 MAY 2188652 Contact Us For Availability
10
MAY 2257023 MAY 2257023 Contact Us For Availability
10
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
10
MAY 2219982 MAY 2219982 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
MAY 8533993 MAY 8533993 Contact Us For Availability
10
MAY 2315534 MAY 2315534 Contact Us For Availability
11
MAY 8281227 MAY 8281227 Contact Us For Availability
11
Body, Humidity Control MAY 2179343 Contact Us For Availability
11
MAY 3400893 MAY 3400893 Contact Us For Availability
11
MAY 2198602 MAY 2198602 Contact Us For Availability
11
MAY 2203562AP MAY 2203562AP Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
Grommet, Light Bar (4) MAY 2172906 Contact Us For Availability
12
Hinge Cover (Apollo Grey) MAY 2203407AP Contact Us For Availability
12
Hinge Cover (Black) MAY 2203407B Contact Us For Availability
12
Hinge Cover (White) MAY 2203407W Contact Us For Availability
12
MAY 2179342 MAY 2179342 Contact Us For Availability
12
MAY 489229 MAY 489229 Contact Us For Availability
12
MAY 2182179 MAY 2182179 Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
Harness, Fan Evaporator (Includes 6) MAY 2310237 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
COVER ((SERVICE ONLY)) MAY 4387731 Contact Us For Availability
13
Hinge Bottom MAY 2304322 Contact Us For Availability
13
MAY 2256085 MAY 2256085 Contact Us For Availability
13
MAY 2326317 MAY 2326317 Contact Us For Availability
13
MAY 2301289 MAY 2301289 Contact Us For Availability
13
MAY 2301290 MAY 2301290 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
MAY 489420 MAY 489420 Contact Us For Availability
13
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
13
Tube Barrier MAY 2196001 Contact Us For Availability
13
Overload (Service Only) MAY 2154697 Contact Us For Availability
14
MAY 2304846 MAY 2304846 Contact Us For Availability
14
MAY 2304848 MAY 2304848 Contact Us For Availability
14
MAY 2315169 MAY 2315169 Contact Us For Availability
14
Screw MAY 489290 Contact Us For Availability
14
MAY 2188654 MAY 2188654 Contact Us For Availability
14
MAY 2205837K MAY 2205837K Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
Bracket, Door Stop (Zinc) MAY 2200082 Contact Us For Availability
14
Bracket, Door Stop (Black) MAY 2200082B Contact Us For Availability
14
MAY 2179920 MAY 2179920 Contact Us For Availability
15
MAY 2198468AP MAY 2198468AP Contact Us For Availability
15
Grille (Black) MAY 2198468B Contact Us For Availability
15
Grille (White) MAY 2198468W Contact Us For Availability
15
MAY 2209753 MAY 2209753 Contact Us For Availability
15
Shelf S/G, S/O MAY 2326318 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
MAY 2323002 MAY 2323002 Contact Us For Availability
15
Pivot Arm MAY 2161306 Contact Us For Availability
15
MAY 2223314 MAY 2223314 Contact Us For Availability
16
MAY 489497 MAY 489497 Contact Us For Availability
16
Screw (8) MAY W10004810 Contact Us For Availability
16
Air Diffuser Cover MAY 2152019 Contact Us For Availability
16
MAY 2188918 MAY 2188918 Contact Us For Availability
16
MAY 2304895 MAY 2304895 Contact Us For Availability
16
MAY 2203876 MAY 2203876 Contact Us For Availability
16
MAY 627068 MAY 627068 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY 2304885 Contact Us For Availability
16
Clip, Tube MAY 2208136 Contact Us For Availability
17
MAY 2150331 MAY 2150331 Contact Us For Availability
17
Light Socket MAY 2162085 Contact Us For Availability
17
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
MAY 3400012 MAY 3400012 Contact Us For Availability
17
MAY 2203561AP MAY 2203561AP Contact Us For Availability
17
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
17
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
17
Cover, Evaporator (Includes 9) MAY 2206314 Contact Us For Availability
17
Capacitor (Service) MAY 1118576 Contact Us For Availability
17
MAY 2169373 MAY 2169373 Contact Us For Availability
18
MAY 2304888 MAY 2304888 Contact Us For Availability
18
MAY 2179350 MAY 2179350 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
Screw (6) MAY 8281159 Contact Us For Availability
18
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
18
Relay (Service Only) MAY 2183454 Contact Us For Availability
18
MAY 2174358 MAY 2174358 Contact Us For Availability
19
Extension Tube MAY 1108438 Contact Us For Availability
19
MAY 2217199 MAY 2217199 Contact Us For Availability
19
MAY 2255743 MAY 2255743 Contact Us For Availability
19
MAY 2326285 MAY 2326285 Contact Us For Availability
19
MAY 2198587 MAY 2198587 Contact Us For Availability
19
MAY 2315403 MAY 2315403 Contact Us For Availability
19
MAY 2200087 MAY 2200087 Contact Us For Availability
19
MAY 488500 MAY 488500 Contact Us For Availability
19
MAY 4387765 MAY 4387765 Contact Us For Availability
19
MAY 488649 MAY 488649 Contact Us For Availability
20
MAY 1108439 MAY 1108439 Contact Us For Availability
20
MAY 2212371 MAY 2212371 Contact Us For Availability
20
MAY 13035001 MAY 13035001 Contact Us For Availability
20
MAY W10163951 MAY W10163951 Contact Us For Availability
20
MAY 2187868 MAY 2187868 Contact Us For Availability
20
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
20
MAY 628228 MAY 628228 Contact Us For Availability
21
MAY 2188735 MAY 2188735 Contact Us For Availability
21
MAY 2209769 MAY 2209769 Contact Us For Availability
21
MAY 2198608 MAY 2198608 Contact Us For Availability
21
Screw MAY 488208 Contact Us For Availability
21
MAY 1115374 MAY 1115374 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
22
Screw MAY 488280 Contact Us For Availability
22
MAY 2206347 MAY 2206347 Contact Us For Availability
22
MAY 2198635 MAY 2198635 Contact Us For Availability
22
MAY 2198671 MAY 2198671 Contact Us For Availability
22
MAY 2326259 MAY 2326259 Contact Us For Availability
22
MAY 489000 MAY 489000 Contact Us For Availability
22
MAY 2203595 MAY 2203595 Contact Us For Availability
22
Clip-Wiring MAY 1115375 Contact Us For Availability
22
Evaporator MAY 2188823 Contact Us For Availability
23
Hinge Cover (Apollo Grey) MAY 2203408AP Contact Us For Availability
23
Hinge Cover (Black) MAY 2203408B Contact Us For Availability
23
Hinge Cover (White) MAY 2203408W Contact Us For Availability
23
MAY 2198634 MAY 2198634 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
MAY W10120292 MAY W10120292 Contact Us For Availability
23
MAY W10120293 MAY W10120293 Contact Us For Availability
23
MAY W10121900 MAY W10121900 Contact Us For Availability
23
MAY 2203596 MAY 2203596 Contact Us For Availability
23
Connecting Rod MAY 2161308 Contact Us For Availability
23
Clip MAY 2161324 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
24
MAY 2179243 MAY 2179243 Contact Us For Availability
24
MAY 2188919 MAY 2188919 Contact Us For Availability
24
Fastner, Push-On MAY 489391 Contact Us For Availability
24
Fan, Motor MAY W10130108 Contact Us For Availability
24
MAY 2198598 MAY 2198598 Contact Us For Availability
25
Shelf Assembly, Spillguard MAY 2188695 Contact Us For Availability
25
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
25
MAY 2195051 MAY 2195051 Contact Us For Availability
25
MAY 2326277 MAY 2326277 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
25
Support MAY 2194712 Contact Us For Availability
26
MAY 2155311 MAY 2155311 Contact Us For Availability
26
Frame, Shelf MAY 2195975 Contact Us For Availability
26
MAY 2220398 MAY 2220398 Contact Us For Availability
26
MAY 2198628 MAY 2198628 Contact Us For Availability
26
MAY 2304673 MAY 2304673 Contact Us For Availability
26
LIGHT BAR FC MAY 2179921 Contact Us For Availability
26
Harness, Unit MAY 2187510 Contact Us For Availability
26
MAY 2315522 MAY 2315522 Contact Us For Availability
27
MAY 489483 MAY 489483 Contact Us For Availability
27
MAY 2326281 MAY 2326281 Contact Us For Availability
27
Sleeve, Mechanism Delay MAY 2252127 Contact Us For Availability
27
MAY 2175513 MAY 2175513 Contact Us For Availability
27
MAY 2317845 MAY 2317845 Contact Us For Availability
27
Thermostat (Also Order 542369 Cement Alumilas MAY 627985 Contact Us For Availability
28
MAY 2186443 MAY 2186443 Contact Us For Availability
28
MAY 2212321 MAY 2212321 Contact Us For Availability
28
MAY 2320138 MAY 2320138 Contact Us For Availability
28
MAY 8533917 MAY 8533917 Contact Us For Availability
29
MAY 8212652 MAY 8212652 Contact Us For Availability
29
Spring Washer MAY 489203 Contact Us For Availability
29
Bracket, Ice Maker Mounting MAY 2303583 Contact Us For Availability
30
MAY 2186494AP MAY 2186494AP Contact Us For Availability
30
Cap, Water Filter (Black) MAY 2186494B Contact Us For Availability
30
Cap, Water Filter (White) MAY 2186494W Contact Us For Availability
30
MAY 2188916 MAY 2188916 Contact Us For Availability
30
MAY 2304904 MAY 2304904 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
MAY 489500 MAY 489500 Contact Us For Availability
31
MAY 2256154 MAY 2256154 Contact Us For Availability
31
MAY 2172931 MAY 2172931 Contact Us For Availability
32
MAY 2186489 MAY 2186489 Contact Us For Availability
32
Dispenser, Motor MAY 2315545 Contact Us For Availability
32
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
32
MAY 2187467 MAY 2187467 Contact Us For Availability
33
MAY 2212305 MAY 2212305 Contact Us For Availability
33
MAY 2188175 MAY 2188175 Contact Us For Availability
34
MAY 2304708 MAY 2304708 Contact Us For Availability
34
MAY 8281185 MAY 8281185 Contact Us For Availability
34
Clip, Heater MAY 2304287 Contact Us For Availability
35
MAY 2319867 MAY 2319867 Contact Us For Availability
35
MAY 2198633 MAY 2198633 Contact Us For Availability
35
Module Assembly (Includes Items 37 & 38) MAY 626691 Contact Us For Availability
36
HINGE TOP, FC MAY 2203770 Contact Us For Availability
36
MAY 2326280 MAY 2326280 Contact Us For Availability
36
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
37
MAY 489373 MAY 489373 Contact Us For Availability
37
MAY 626683 MAY 626683 Contact Us For Availability
38
MAY 2255114 MAY 2255114 Contact Us For Availability
38
Screw MAY 489136 Contact Us For Availability
39
MAY 2198643 MAY 2198643 Contact Us For Availability
39
MAY 1100826 MAY 1100826 Contact Us For Availability
39
MAY 4387558 MAY 4387558 Contact Us For Availability
40
MAY 2198589 MAY 2198589 Contact Us For Availability
40
MAY 489340 MAY 489340 Contact Us For Availability
41
MAY 2212340 MAY 2212340 Contact Us For Availability
41
MAY 2196202 MAY 2196202 Contact Us For Availability
42
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
42
Clip, Heat MAY 2155547 Contact Us For Availability
43
Socket, Light MAY 2155597 Contact Us For Availability
45
MAY 2320024 MAY 2320024 Contact Us For Availability
45
MAY 2320025 MAY 2320025 Contact Us For Availability
46
MAY 2303234 MAY 2303234 Contact Us For Availability
48
MAY 2305374 MAY 2305374 Contact Us For Availability
49
MAY 8281232 MAY 8281232 Contact Us For Availability
50
MAY 2186495 MAY 2186495 Contact Us For Availability
51
MAY 2161302 MAY 2161302 Contact Us For Availability
52
Wire Tie MAY 2172840 Contact Us For Availability
53
MAY 489427 MAY 489427 Contact Us For Availability
59
MAY 2208280 MAY 2208280 Contact Us For Availability
63
MAY 2305227 MAY 2305227 Contact Us For Availability
63
MAY 876764 MAY 876764 Contact Us For Availability
63
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
63
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
63
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
63
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
63
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
63
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
100
Ice Container (Complete) MAY 2326282 Contact Us For Availability
100
Icemaker Assembly MAY 2198597 Contact Us For Availability
× ![]()
