Model Whirlpool MLG23PDAGW ELECTRIC DRYER – Common Parts & Diagrams
02 - CONTROL CENTER

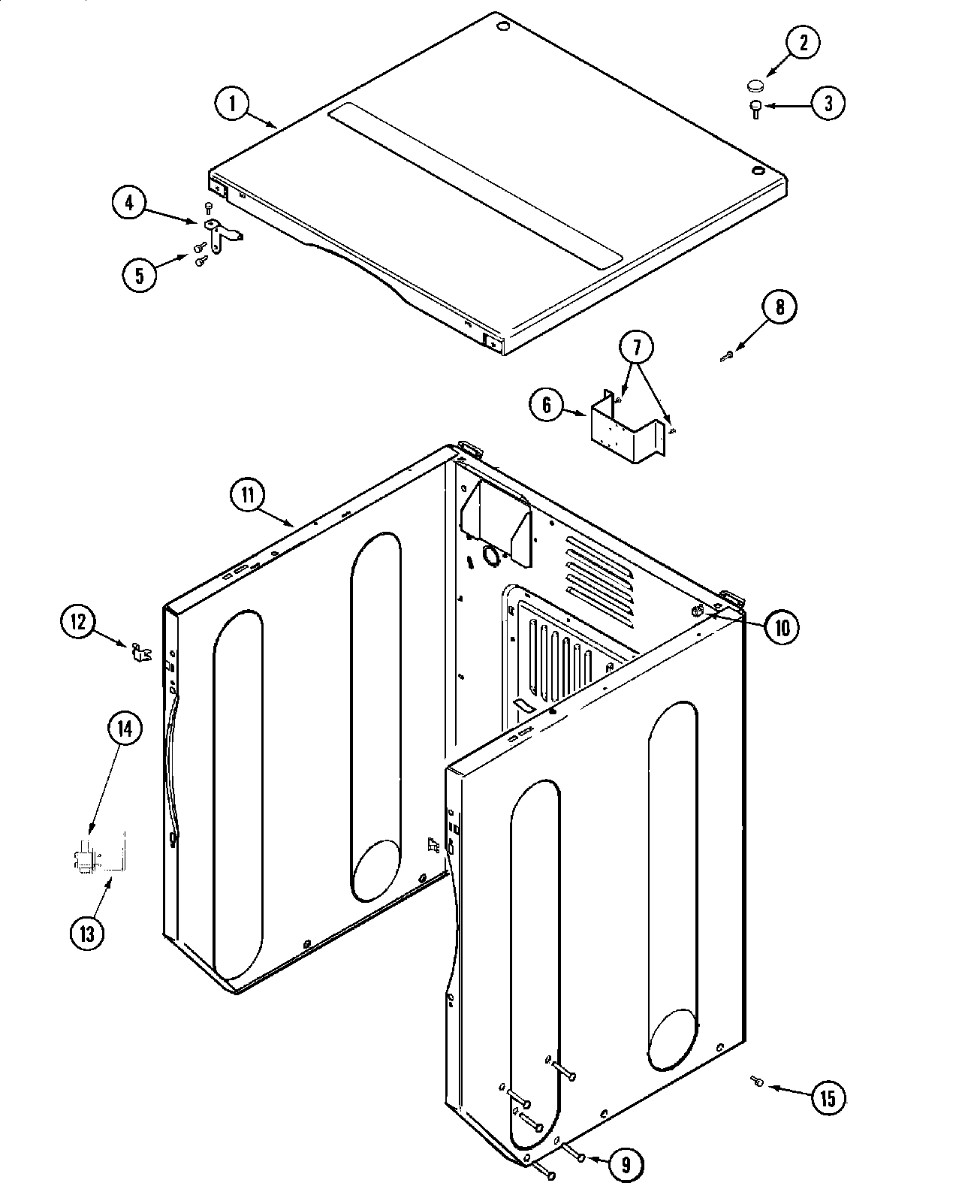

03 - CABINET-FRONT (UPPER)

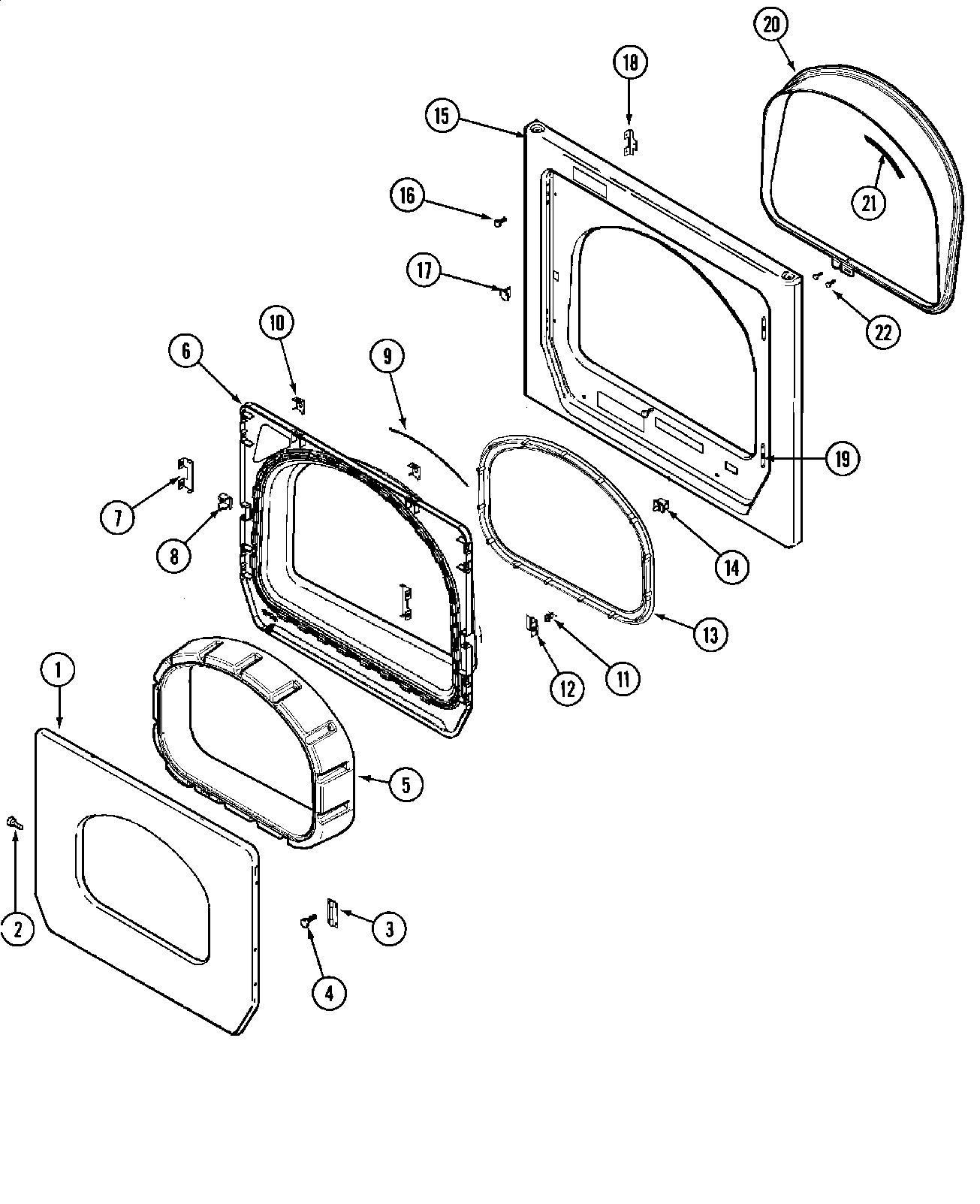

05 - DOOR (UPPER)

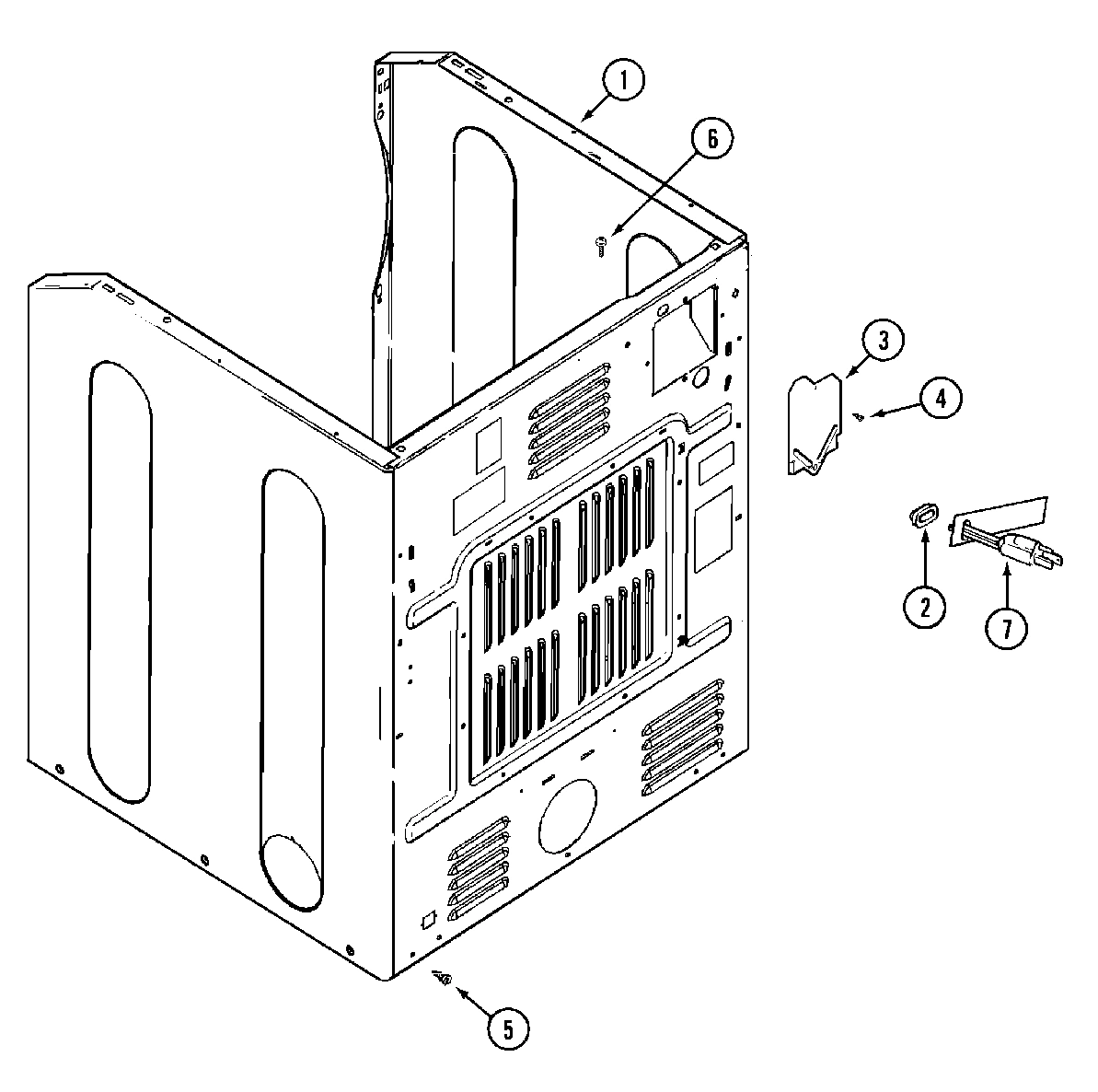

07 - CABINET-REAR

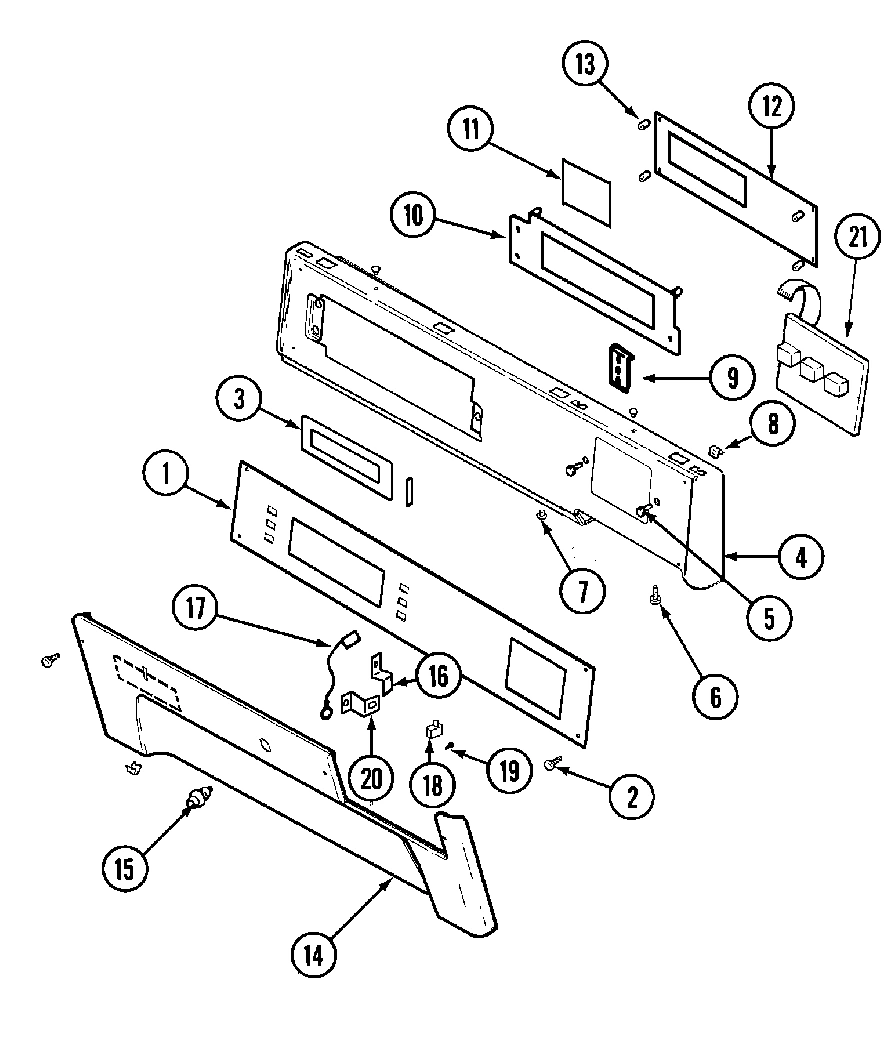

01 - CONTROL PANEL

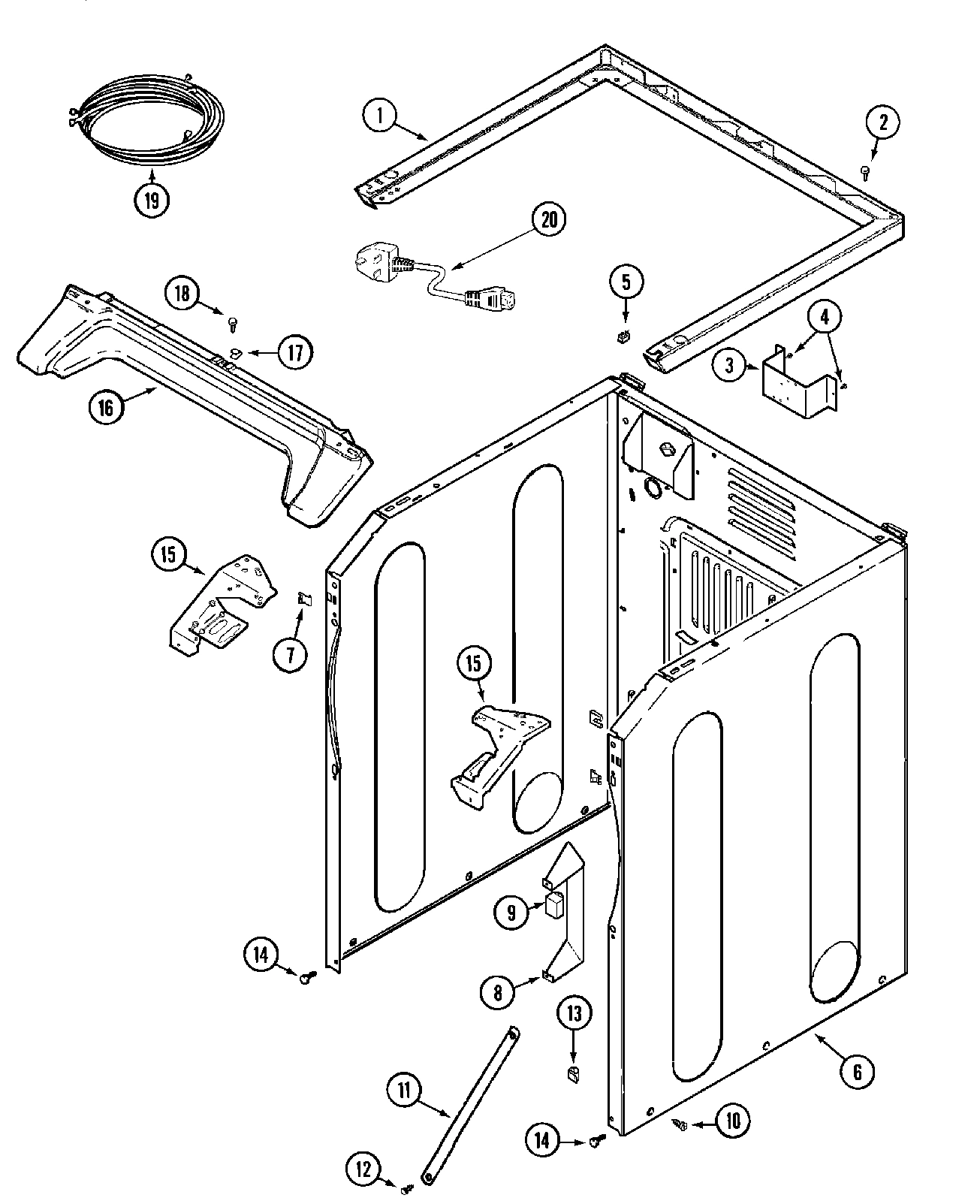

04 - CABINET-FRONT (LOWER)

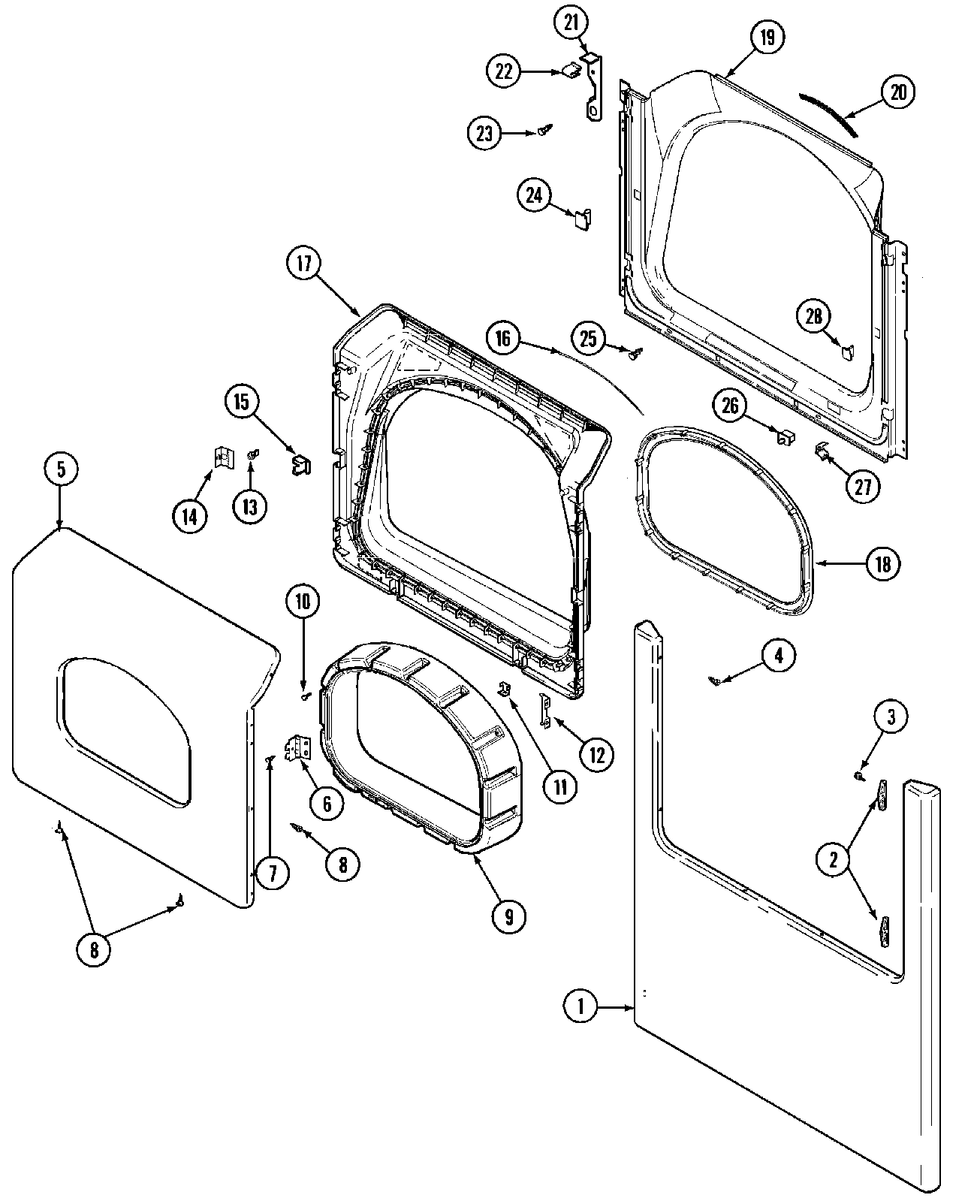

06 - DOOR (LOWER)

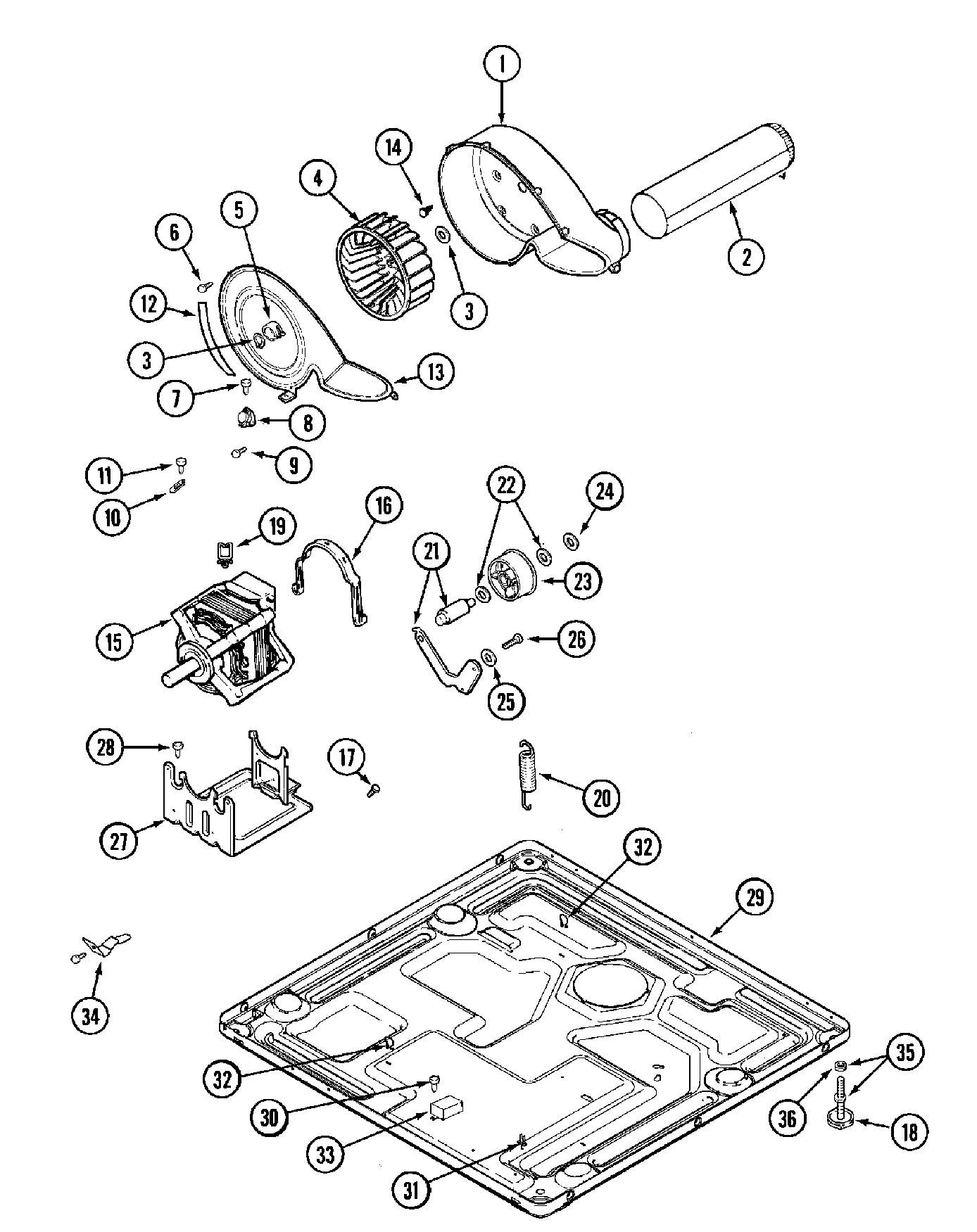

10 - MOTOR DRIVE
12 - SUPPLEMENTAL INFORMATION
09 - GAS VALVE
11 - WIRING INFORMATION

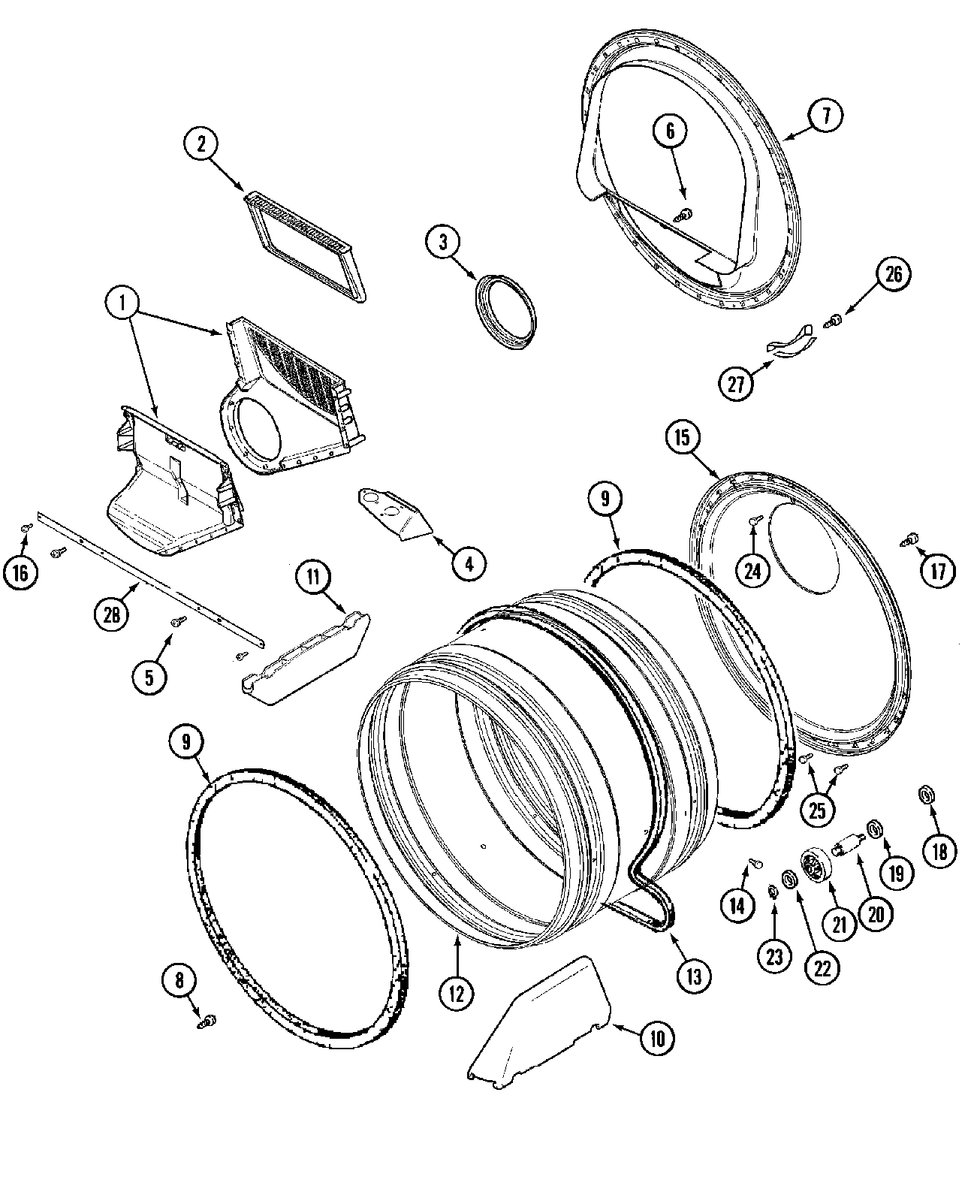

08 - TUMBLER
Common parts from model Whirlpool MLG23PDAGW ELECTRIC DRYER
001
COVER, TOP (WHT) WPL 33001995 Contact Us For Availability
001
CABINET ASSY-UPR (WHT. AS PK) WPL 22003646 Contact Us For Availability
001
OVERLAY, CONTROL PANEL WPL 22003669 Contact Us For Availability
001
SUPPORT (WHT) WPL 33002472 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
MANUAL, OWNERS WPL 33002712 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
002
PLUG, HOLE WPL 33001997 Contact Us For Availability
002
SCREW WPL 22001883 Contact Us For Availability
002
GROMMET, CORD EXPORT WPL 216183 Contact Us For Availability
002
HARNESS, WIRE (EXPORT-UPR) WPL 22003668 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
003
HINGE, DOOR WPL 33002017 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
HARNESS, WIRE (EXPORT-LWR) WPL 22003671 Contact Us For Availability
003
SCREW WPL 304971 Contact Us For Availability
003
SEAL, BLOWER WPL 33002560 Contact Us For Availability
004
BRACKET, TOP COVER (LT) WPL 33001998 Contact Us For Availability
004
BRACKET, TOP COVER (RT) WPL 33001999 Contact Us For Availability
004
PANEL, CONTROL (WHT) WPL 22003667 Contact Us For Availability
004
FASTENER CLIP, CONTROL PANEL WPL 33002003 Contact Us For Availability
004
HARNESS, WIRE (EXPORT-UPR) WPL Y22003672 Contact Us For Availability
004
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
NUT, CARRAGE BOLTS & BRACKET WPL Y052734 Contact Us For Availability
005
DOOR, OUTER (WHT) WPL 33002015 Contact Us For Availability
005
SCREW, CONTROL PANEL WPL 910186 Contact Us For Availability
005
HARNESS, WIRE (EXPORT-LWR) WPL 22003673 Contact Us For Availability
005
SCREW, SHROUD WPL 33001768 Contact Us For Availability
006
SCREW----NA WPL NLA Contact Us For Availability
006
DOOR, INNER (UPR-WHT) WPL 33002080 Contact Us For Availability
006
CABINET ASSY. (WHT AS PK) WPL 22003639 Contact Us For Availability
006
SVC MAN, COMM DRYER ELE/GAS WPL 16022904 Contact Us For Availability
006
GAS VALVE - 120V-50HZ WPL 307927 Contact Us For Availability
006
PLUG, HOLE WPL 33002056 Contact Us For Availability
007
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
007
CHUTE, COIN WPL 314635 Contact Us For Availability
007
ADAPTER, CORD EXPORT WPL 22003705 Contact Us For Availability
007
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
008
SWITCH, VAULT WPL 22002536 Contact Us For Availability
008
PAD, RECIRCULATION PUMP WPL 22003284 Contact Us For Availability
008
SWITCH, SENSOR ASSY. WPL 22003666 Contact Us For Availability
008
SCREW WPL Y310632 Contact Us For Availability
008
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
008
FASTENER, CONTROL PANEL WPL 33001977 Contact Us For Availability
008
RELAY BRACKET WPL 314627 Contact Us For Availability
009
BOLT, CARRIAGE WPL 33001991 Contact Us For Availability
009
SCREW----NA WPL Y313561 Contact Us For Availability
009
RELAY - SPST HEATER WPL 306398 Contact Us For Availability
010
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
010
PLATE, CONTROL MOUNTING WPL 33002155 Contact Us For Availability
010
BRACKET, GAS CONTROL WPL 33002710 Contact Us For Availability
011
RETAINER, WIRE WPL 33001989 Contact Us For Availability
011
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
011
BRACE, CROSS WPL 33002014 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
012
SWITCH, PUSHBUTTON (4 POS-WHT) WPL 22001793 Contact Us For Availability
012
BOARD, CONTROL WPL 33002608 Contact Us For Availability
012
GUIDE WPL 33002044 Contact Us For Availability
012
TUMBLER WPL 33001794 Contact Us For Availability
013
BRACKET, SWITCH (UPR) WPL 33002002 Contact Us For Availability
013
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
013
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
014
PLATE, COIN DROP COVER WPL 33002066 Contact Us For Availability
014
FASTENER, ACCESS PANEL WPL 33001980 Contact Us For Availability
014
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
014
SCREW, RELAY WPL 22001866 Contact Us For Availability
014
PANEL, ACCESS (WHT) WPL 33001978 Contact Us For Availability
014
CLIP, FASTENER WPL 33002004 Contact Us For Availability
014
SCREW WPL 314818 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
015
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
015
PANEL, FRONT (UPR-WHT) WPL 33002023 Contact Us For Availability
015
SCREW, TORX WPL 33002051 Contact Us For Availability
015
BRACKET, CORNER (LT) WPL 33002474 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
016
BRACKET, COIN DROP MOUNT. WPL 33001992 Contact Us For Availability
016
COVER, ACCESS (WHT) WPL 33002011 Contact Us For Availability
016
DUCT ASSY., INLET (GAS) WPL 33001810 Contact Us For Availability
017
WASHER, LOCK WPL 910181 Contact Us For Availability
017
WIRE, GROUND WPL 33001981 Contact Us For Availability
017
FASTENER CLIP, ACCESS COVER WPL 33002013 Contact Us For Availability
017
DOOR, INNER W/SEAL COMMERCIAL WPL 33002949 Contact Us For Availability
018
LENS WPL 33002607 Contact Us For Availability
018
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
018
SWITCH, SENSOR - EXPORT WPL 22003064 Contact Us For Availability
019
SCREW WPL 912012 Contact Us For Availability
019
TIE, CABLE WPL 22002179 Contact Us For Availability
019
ADAPTOR, GAS CONNECTION WPL 33002107 Contact Us For Availability
019
SHROUD (WHT) WPL 33002033 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL 33002040 Contact Us For Availability
020
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
020
SEAL, SHROUD WPL 33001767 Contact Us For Availability
020
CORD, POWER (EXPORT) WPL 22003540 Contact Us For Availability
020
BRACKET, SWITCH MOUNTING WPL 33001982 Contact Us For Availability
020
ADAPTER (AUSTRALIA) 10 AMP WPL 22003541 Contact Us For Availability
020
GROMMET WPL 33002157 Contact Us For Availability
020
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
020
CONE ASSY., COMBUSTION WPL 33001946 Contact Us For Availability
021
KIT, ACCESS COVER HOOK WPL 22002991 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
FASTENER, ACCESS COVER HOOK WPL 33002037 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
023
BRACKET, SECURITY WPL 33002060 Contact Us For Availability
023
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
024
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
025
BRACKET, MOUNTING VAULT WPL 33001990 Contact Us For Availability
025
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
027
BRACKET, HINGE WPL 33001760 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
028
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
029
FASTENER, PUSH WPL 33002048 Contact Us For Availability
029
PROTECTOR, HARNESS WPL 33002050 Contact Us For Availability
029
BASE (UPR) WPL 33002467 Contact Us For Availability
031
RETAINER, WIRE WPL 315471 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
SHIELD, XFMER WPL 315218 Contact Us For Availability
033
TRANSFORMER LWR WPL 33001948 Contact Us For Availability
034
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
034
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
034
BRACKET, RH, BASE TO SUPPORT WPL 33002757 Contact Us For Availability
034
BRACKET, LH, BASE TO SUPPORT WPL 33002758 Contact Us For Availability
× ![]()
