Model Whirlpool MLG15PDAGW ELECTRIC DRYER – Common Parts & Diagrams

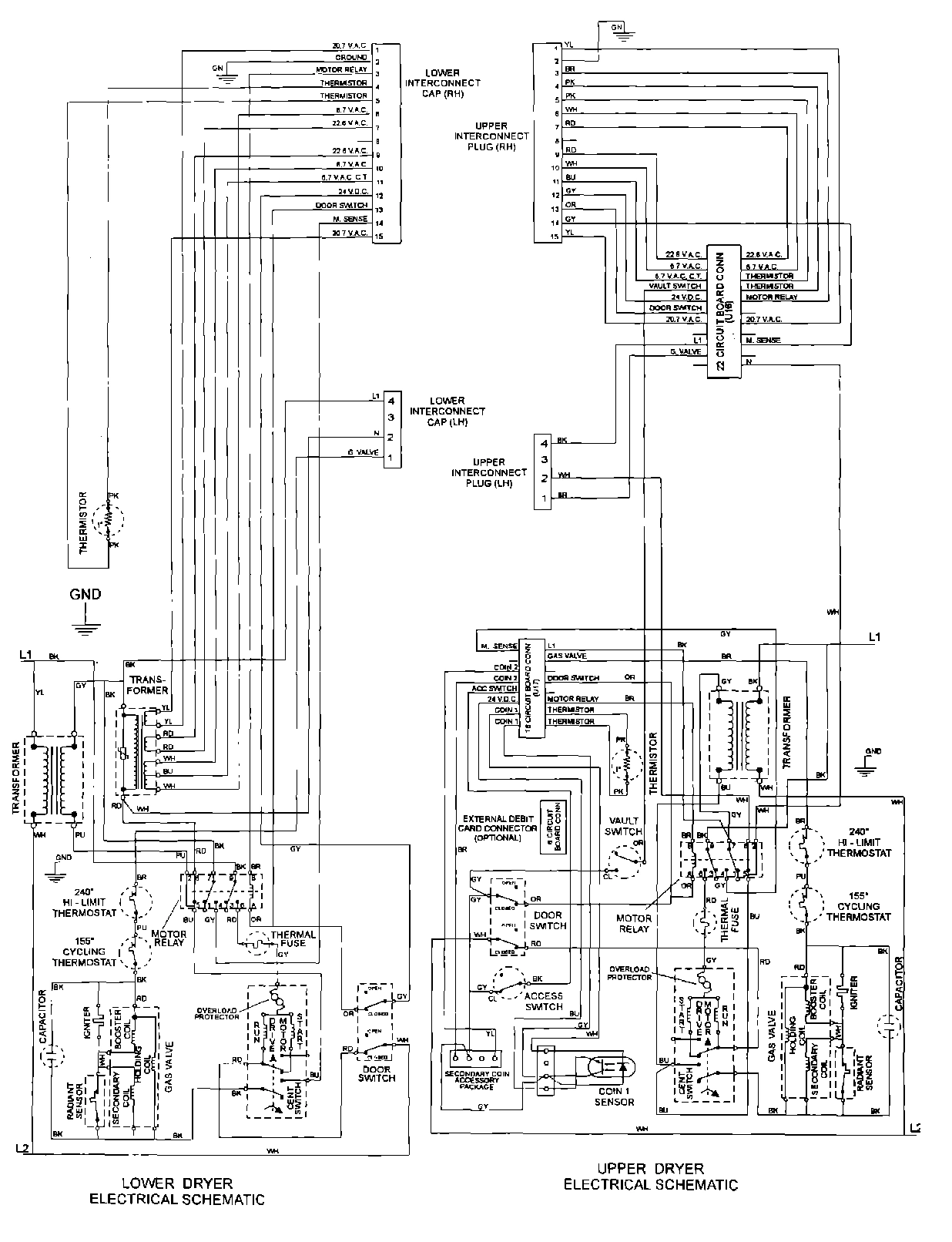

11 - WIRING INFORMATION (GAS)

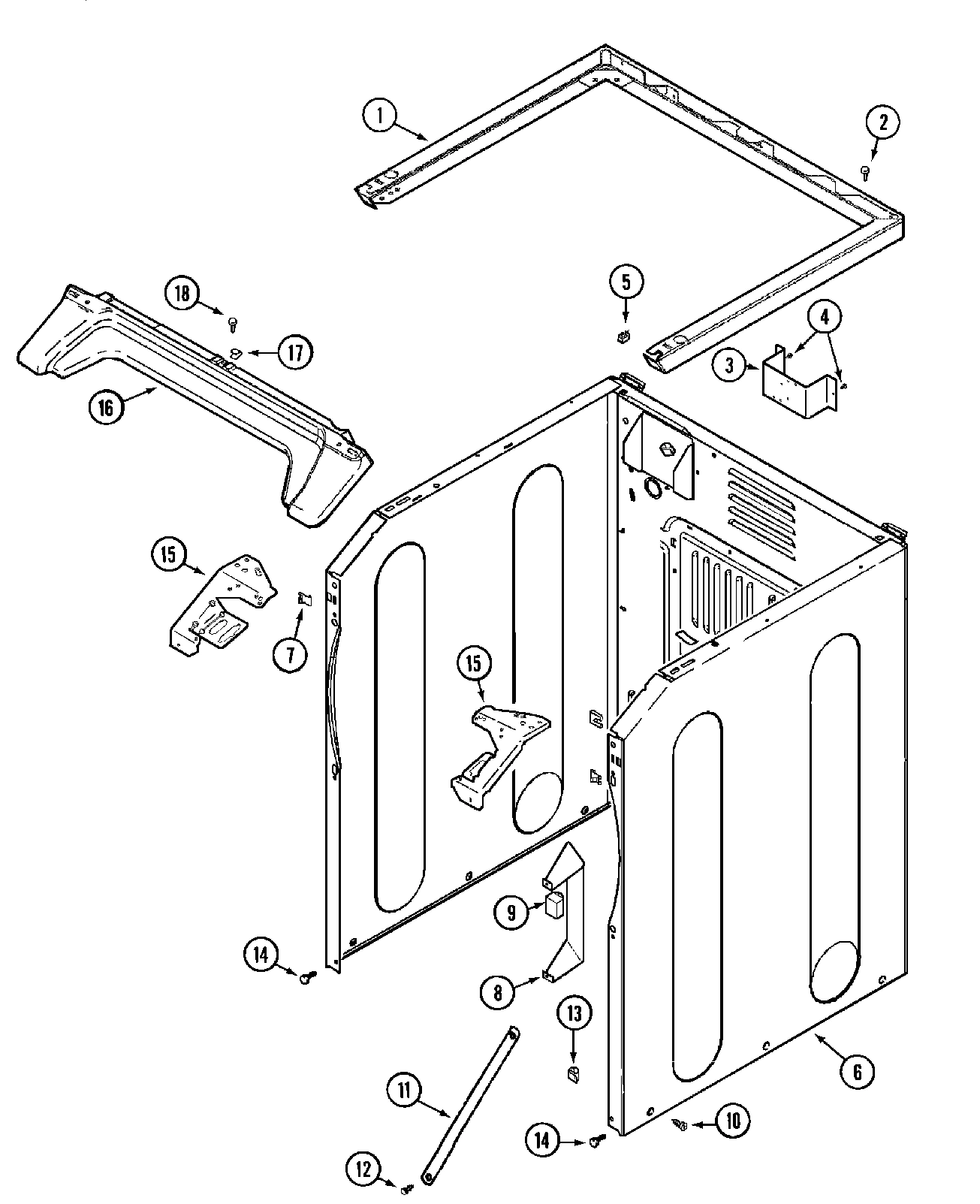

04 - CABINET-FRONT (LOWER)

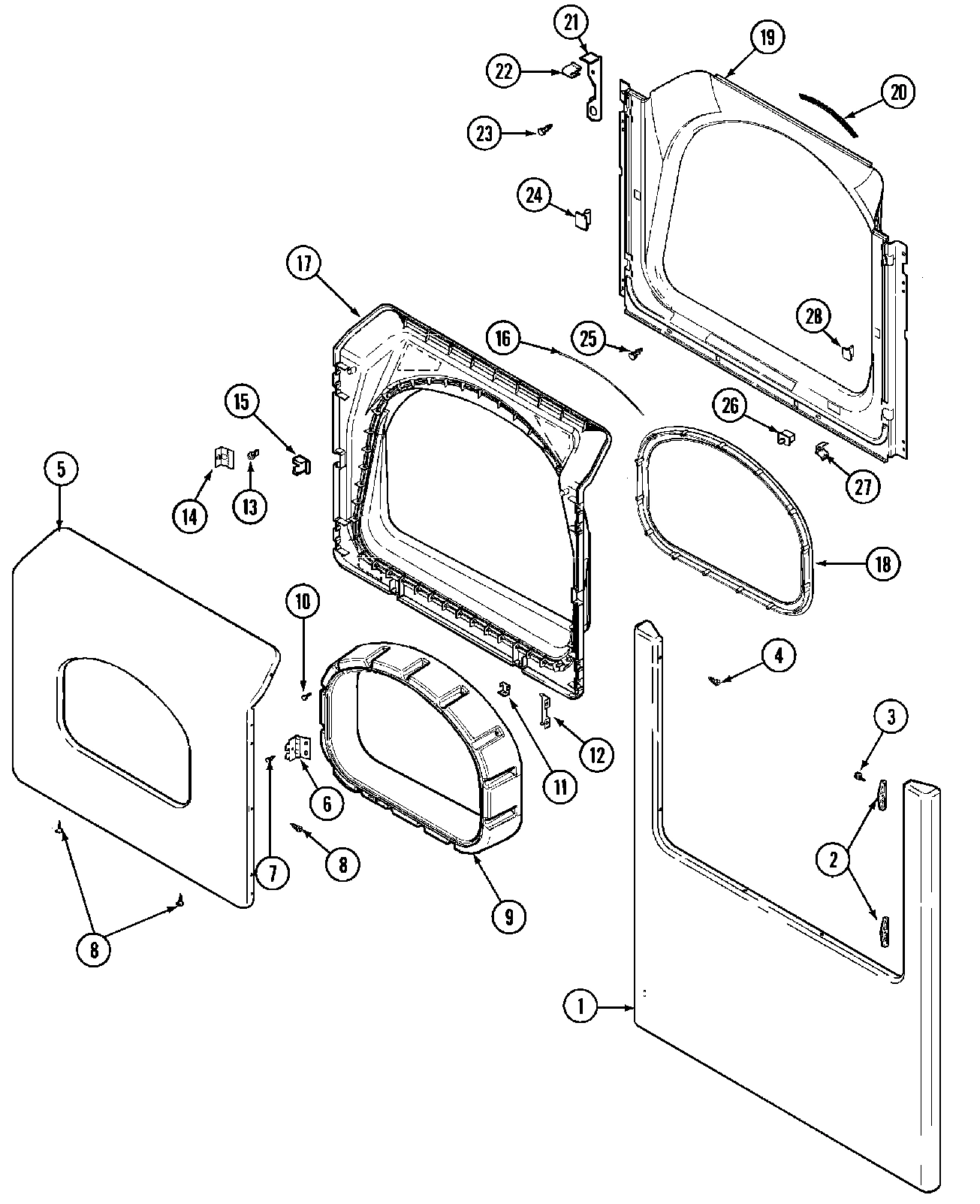

06 - DOOR (LOWER)

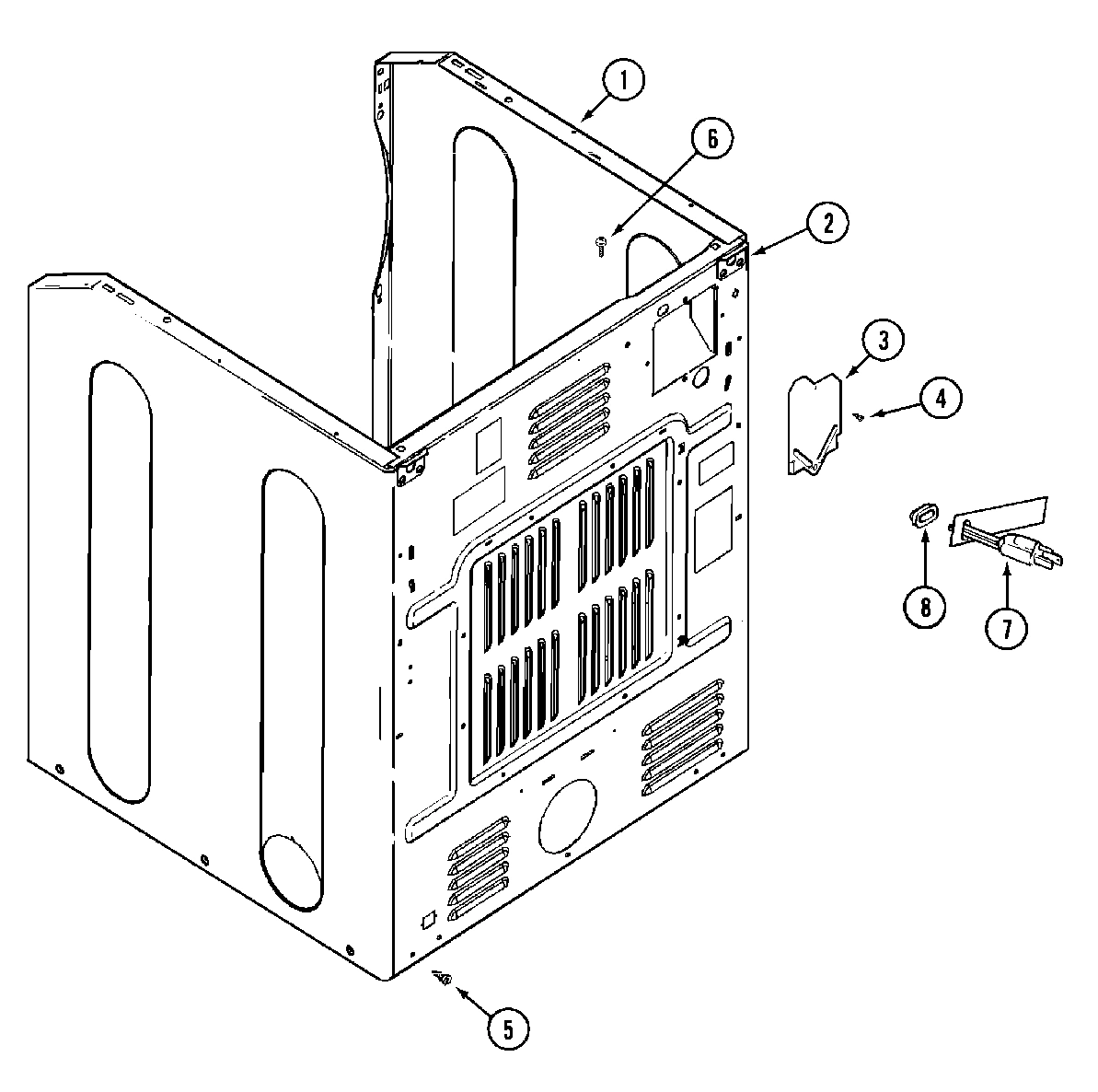

07 - CABINET-REAR
09 - GAS VALVE
02 - CONTROL CENTER (UPPER)

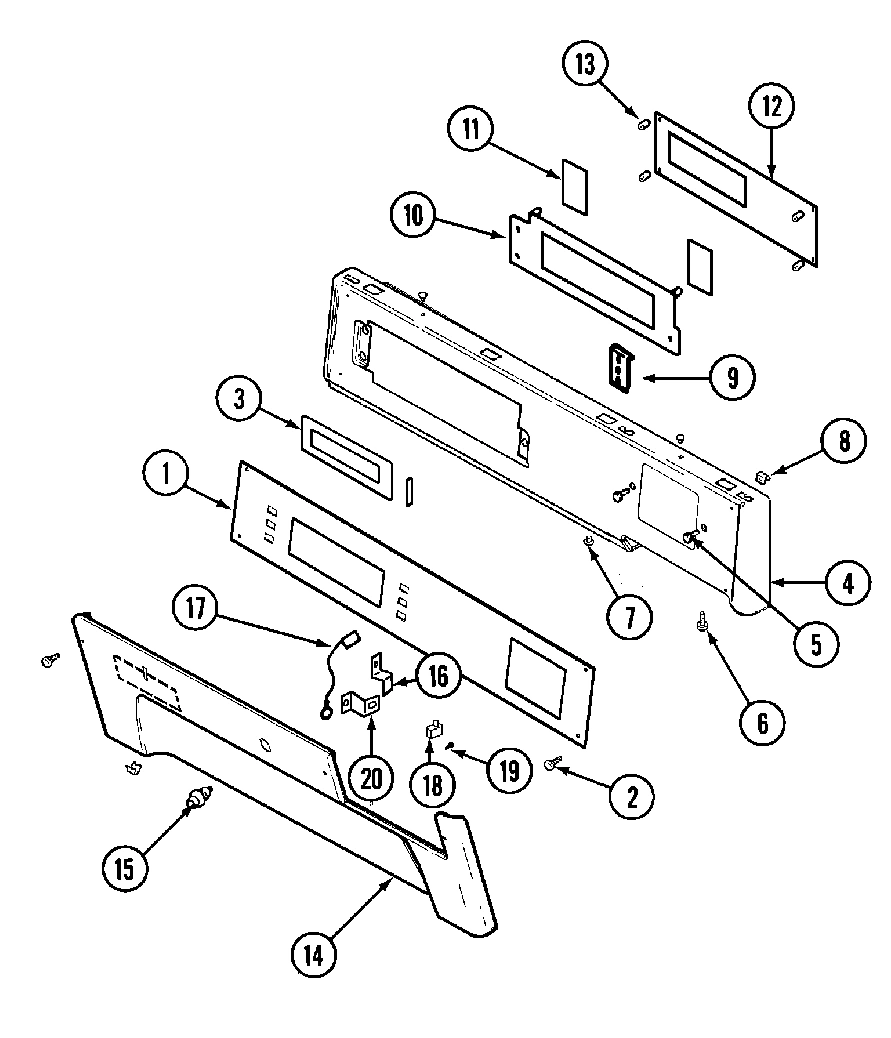

01 - CONTROL PANEL (UPPER)

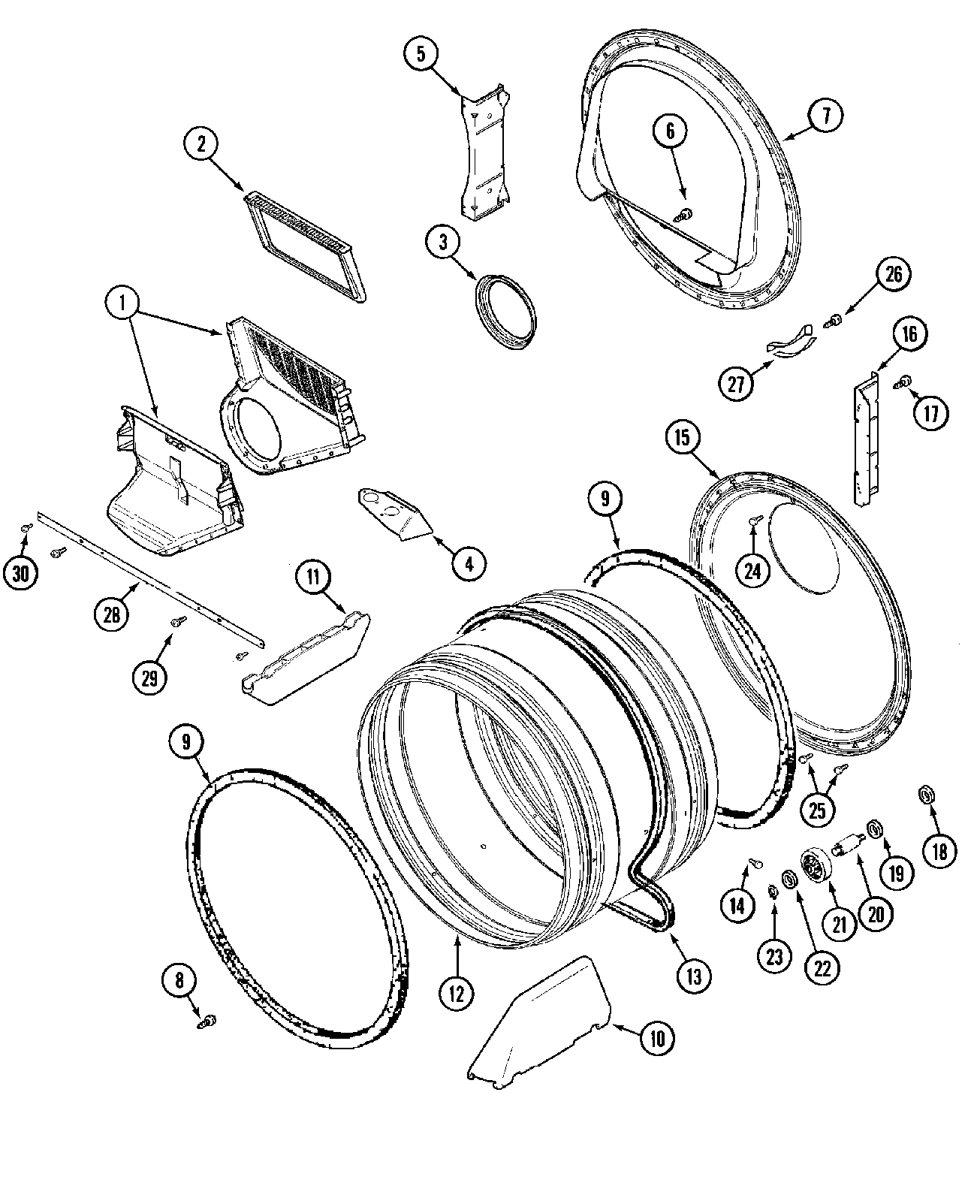

08 - TUMBLER

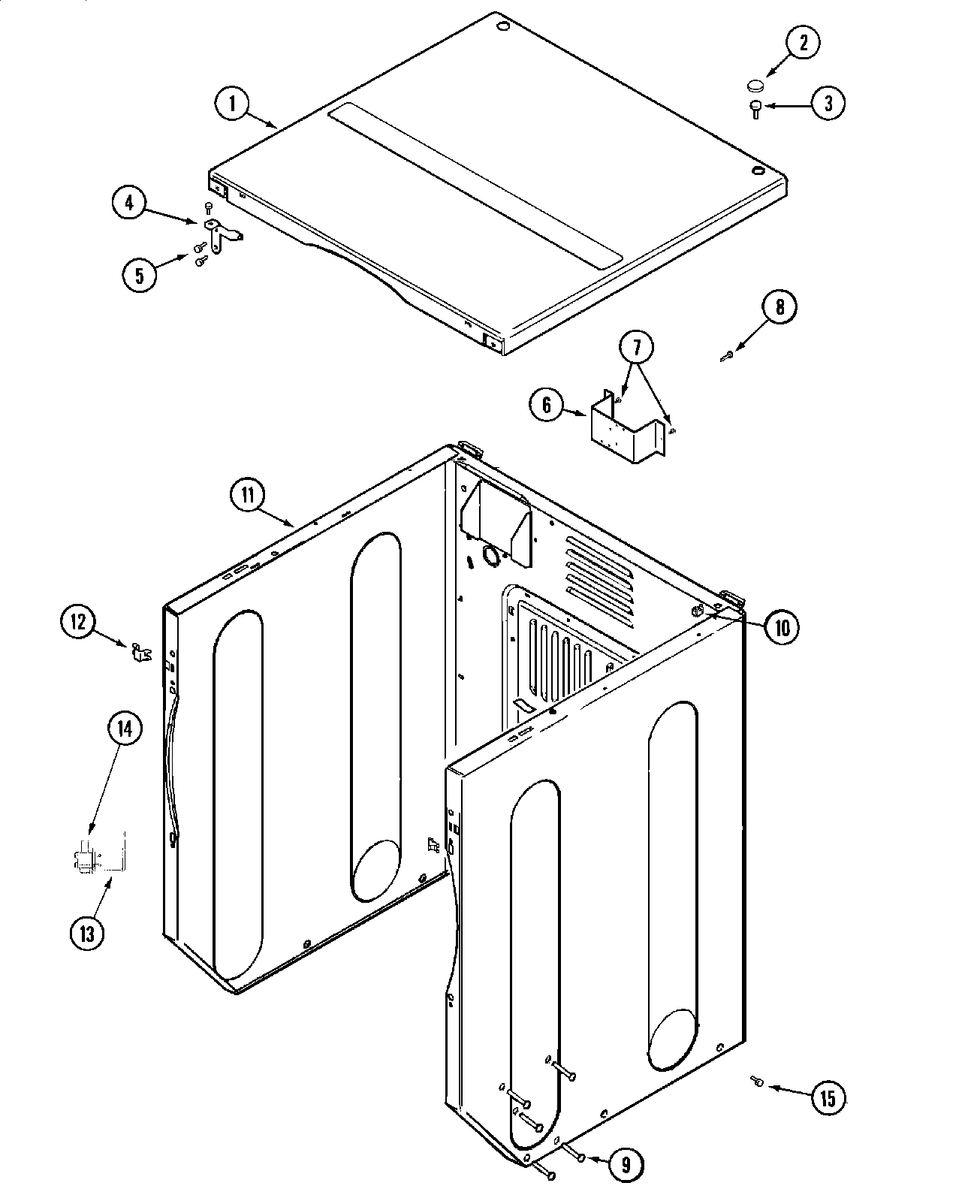

03 - CABINET-FRONT (UPPER)

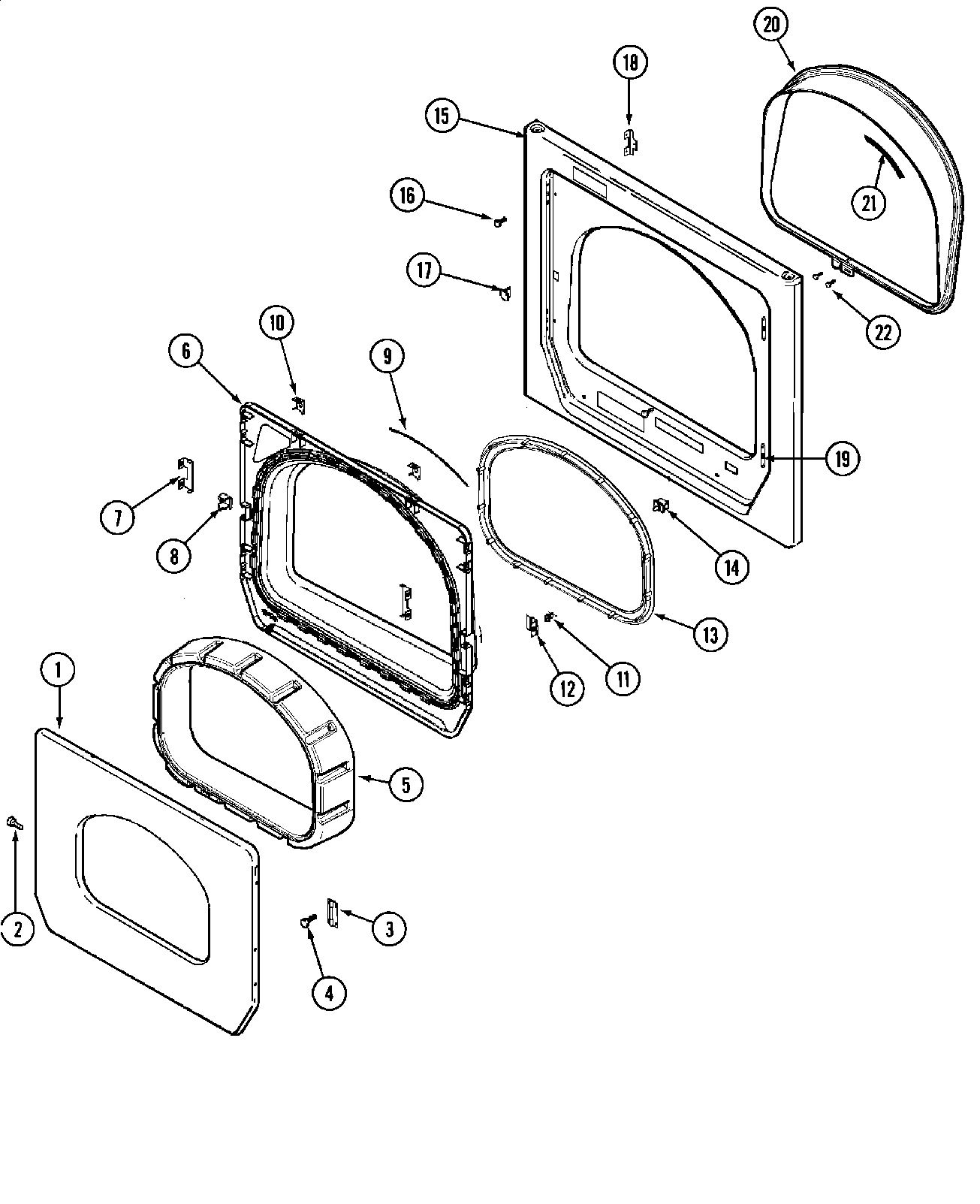

05 - DOOR (UPPER)

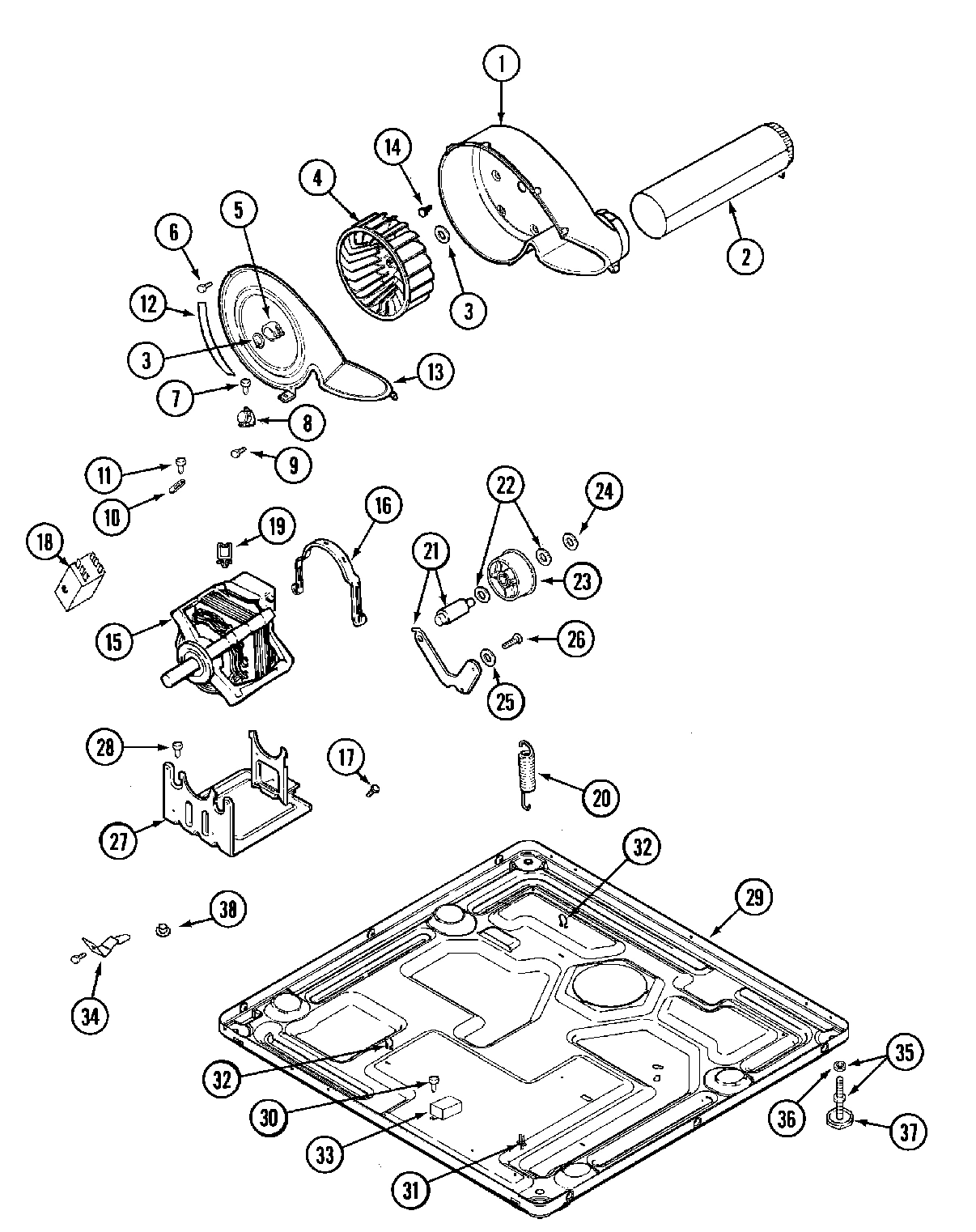

10 - MOTOR DRIVE
Common parts from model Whirlpool MLG15PDAGW ELECTRIC DRYER
001
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
001
BOX, COIN (WHT) WPL Y33001983 Contact Us For Availability
001
OVERLAY, CONTROL PANEL WPL 33001974 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33001995 Contact Us For Availability
001
DOOR, OUTER (WHT) WPL 33002015 Contact Us For Availability
002
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
002
VAULT, COIN (WHT) WPL Y33001986 Contact Us For Availability
002
PLUG, HOLE WPL 33001997 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
COVER, DISPLAY WPL 33001209 Contact Us For Availability
003
SEAL, BLOWER WPL 33001758 Contact Us For Availability
003
SCREW, TOP COVER WPL 22001883 Contact Us For Availability
003
HINGE, DOOR WPL 33002017 Contact Us For Availability
004
PANEL, CONTROL (WHT) WPL 33001975 Contact Us For Availability
004
FASTENER CLIP, CONTROL PANEL WPL 33002003 Contact Us For Availability
004
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
004
BRACKET, TOP COVER (LT) WPL 33001998 Contact Us For Availability
004
(RT) WPL 33001999 Contact Us For Availability
005
DOOR, OUTER (WHT) WPL 33002028 Contact Us For Availability
005
NUT, CARRAGE BOLTS & BRACKET WPL Y052734 Contact Us For Availability
005
SCREW, CONTROL PANEL WPL 910186 Contact Us For Availability
006
VALVE, GAS WPL 307927 Contact Us For Availability
006
PLUG, HOLE (UPR) WPL 33002056 Contact Us For Availability
006
DOOR, INNER (WHT) WPL 33002020 Contact Us For Availability
007
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
007
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
007
CORD, POWER (AS WRAPPED) WPL 33001819 Contact Us For Availability
007
CHUTE, COIN WPL 314635 Contact Us For Availability
007
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
008
BRACKET, RELAY WPL 314627 Contact Us For Availability
008
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
008
GROMMET, CORD WPL 216183 Contact Us For Availability
008
SWITCH, VAULT WPL 22002536 Contact Us For Availability
008
FASTENER, CONTROL PANEL WPL 33001977 Contact Us For Availability
008
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
009
RELAY, HEATER WPL 306398 Contact Us For Availability
010
CLIP, INNER DOOR WPL 22002039 Contact Us For Availability
010
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
010
PLATE, CONTROL MOUNTING WPL 33001201 Contact Us For Availability
011
BRACE, CROSS WPL 22002259 Contact Us For Availability
011
RETAINER, WIRE WPL 33001989 Contact Us For Availability
011
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
012
BRACKET, MOUNTING VAULT WPL 33001990 Contact Us For Availability
012
CIRCUIT BOARD ASSEMBLY WPL 33001747 Contact Us For Availability
012
CLIP, ACCESS PANEL WPL 33001980 Contact Us For Availability
012
TUMBLER WPL 33001794 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
013
LENS WPL 33002022 Contact Us For Availability
013
VALVE, ANGLE GAS WPL 306086 Contact Us For Availability
013
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
013
BRACKET, RELAY (UPR) WPL 33002002 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
RELAY-MOTOR REVERSING WPL 206421 Contact Us For Availability
014
SCREW, RELAY WPL 22001866 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
PLATE, COIN DROP COVER WPL 33002066 Contact Us For Availability
014
PANEL, ACCESS (WHT) WPL 33001978 Contact Us For Availability
014
CLIP, FASTENER WPL 33002004 Contact Us For Availability
014
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BRACKET, CORNER (LT) WPL 33002009 Contact Us For Availability
015
(RT) WPL 33002010 Contact Us For Availability
015
SWITCH, OPTIC WPL 33001985 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
015
NAMEPLATE WPL 33001711 Contact Us For Availability
015
PANEL, FRONT (UPR-WHT) WPL 33002023 Contact Us For Availability
015
SCREW, FRONT PANEL WPL 33002051 Contact Us For Availability
016
COVER, ACCESS (WHT) WPL 33002011 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
016
BOLT, CARRIAGE WPL 33001991 Contact Us For Availability
016
BRACKET, COIN DROP MOUNT. WPL 33001992 Contact Us For Availability
017
FASTENER, ACCESS COVER WPL 33002013 Contact Us For Availability
017
DOOR, INNER (LWR-WHT) WPL 33002030 Contact Us For Availability
017
WASHER, LOCK WPL 910181 Contact Us For Availability
017
WIRE, GROUND WPL 33001981 Contact Us For Availability
018
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
019
WIRE HARNESS, MAIN (LWR) WPL 33002067 Contact Us For Availability
019
WIRE HARNESS, MAIN (LWR) WPL 33002069 Contact Us For Availability
019
SHROUD (WHT) WPL 33002033 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001946 Contact Us For Availability
019
SCREW WPL 912012 Contact Us For Availability
019
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL 33002040 Contact Us For Availability
020
BRACKET, SWITCH MOUNTING WPL 33001982 Contact Us For Availability
020
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
020
GROMMET WPL 33002157 Contact Us For Availability
020
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
021
SEAL, SHROUD WPL 33001767 Contact Us For Availability
021
KIT, ACCESS COVER HOOK WPL 22002991 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
WIRE HARNESS, MAIN (UPR) WPL 33002065 Contact Us For Availability
021
WIRE HARNESS, MAIN (UPR) WPL 33002068 Contact Us For Availability
022
FASTENER, ACCESS COVER HOOK WPL 33002037 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
022
BRACKET, SECURITY WPL 33002060 Contact Us For Availability
023
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
024
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
027
BRACKET, HINGE WPL 33001760 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
028
SCREW, MOTOR SUPPORT WPL Y313561 Contact Us For Availability
028
BRACE, TUMBLER FRONT (UPR) WPL 33002039 Contact Us For Availability
029
BASE (LWR) WPL NLA Contact Us For Availability
029
SCREW, TUMBLER BRACE (UPR) WPL 33001768 Contact Us For Availability
029
BASE (UPR) WPL 33002041 Contact Us For Availability
029
FASTENER, PUSH (UPR) WPL 33002048 Contact Us For Availability
029
PROTECTOR, HARNESS (UPR) WPL 33002050 Contact Us For Availability
029
BASE (UPR) WPL 33002467 Contact Us For Availability
031
RETAINER, WIRE WPL 315471 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
SHIELD, TRANSFORMER (LWR) WPL 315218 Contact Us For Availability
033
TRANSFORMER (LWR) WPL 33001205 Contact Us For Availability
033
TRANSFORMER (LWR) WPL 33001821 Contact Us For Availability
033
TRANSFORMER WPL 33001948 Contact Us For Availability
034
WPL Y310632 WPL Y310632 Contact Us For Availability
034
CLIP, FRONT PANEL (LWR) WPL 22002239 Contact Us For Availability
034
CLIP, GROUNDING (LWR) WPL 22002244 Contact Us For Availability
034
BRAC WPL 33002042 Contact Us For Availability
034
WPL 33002043 WPL 33002043 Contact Us For Availability
038
WPL 33002044 WPL 33002044 Contact Us For Availability
× ![]()
