Model Whirlpool MLE23PDFZW ELECTRIC DRYER – Common Parts & Diagrams

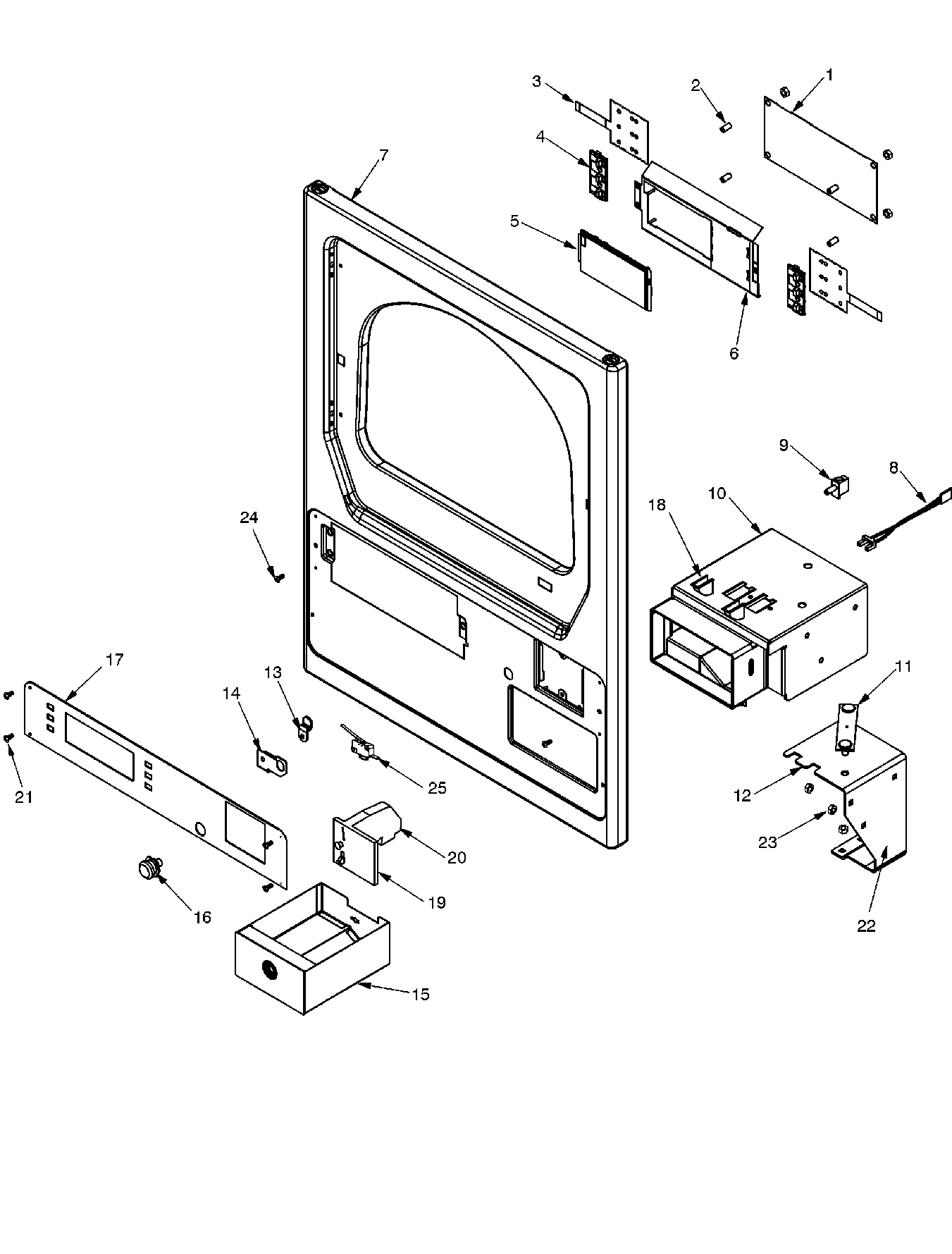

01 - CONTROL PANEL

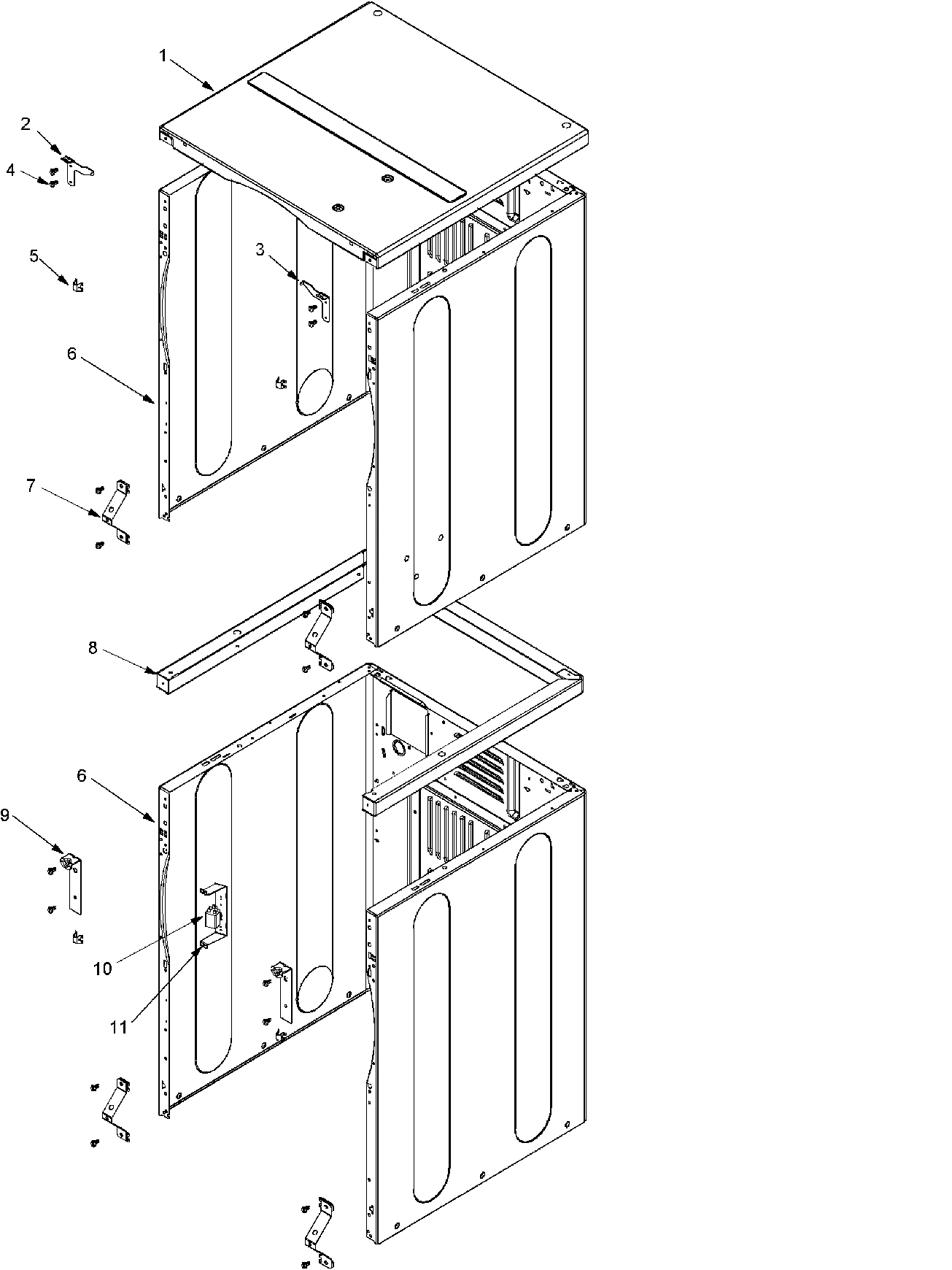

02 - CABINET FRONT

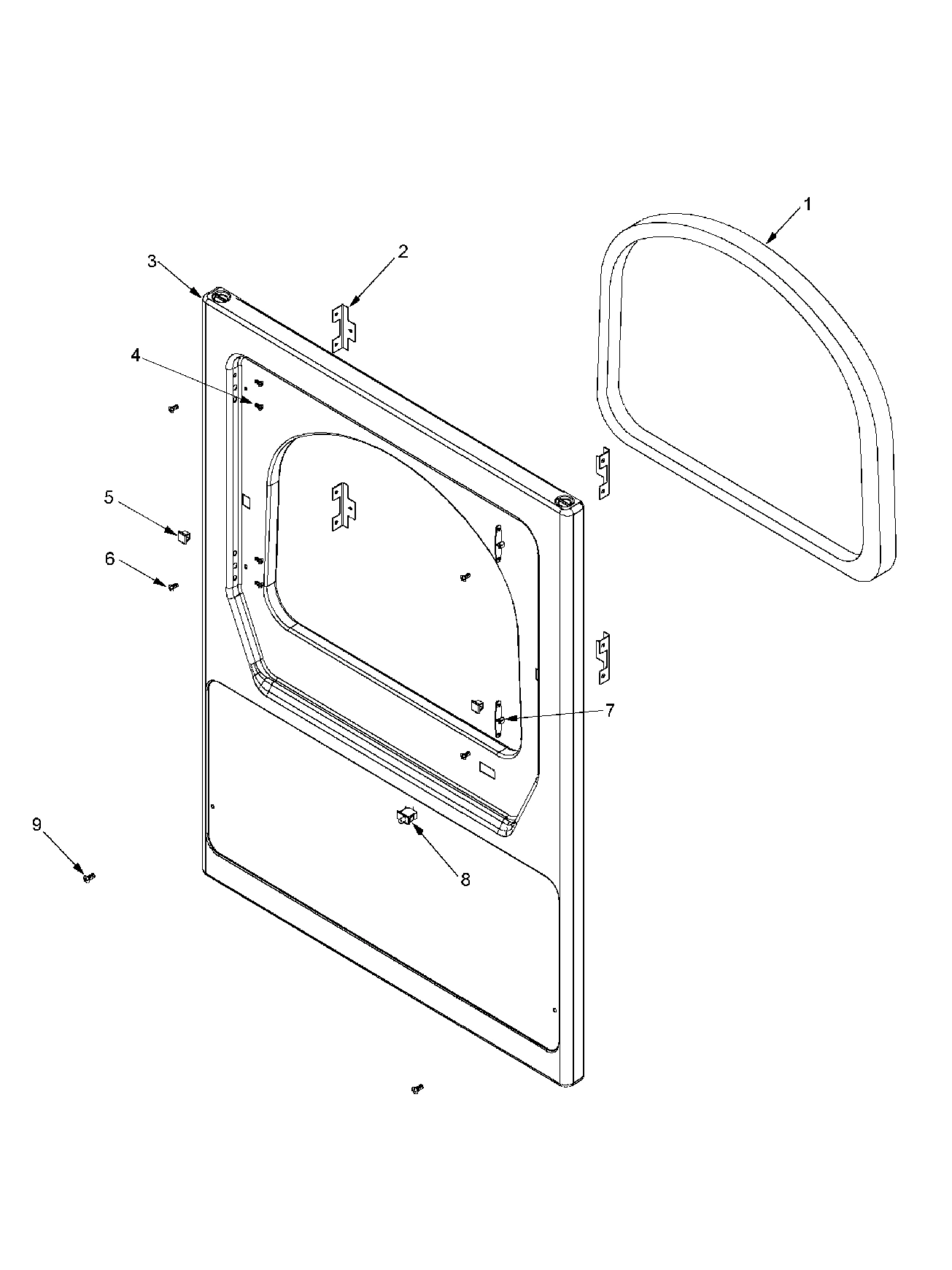

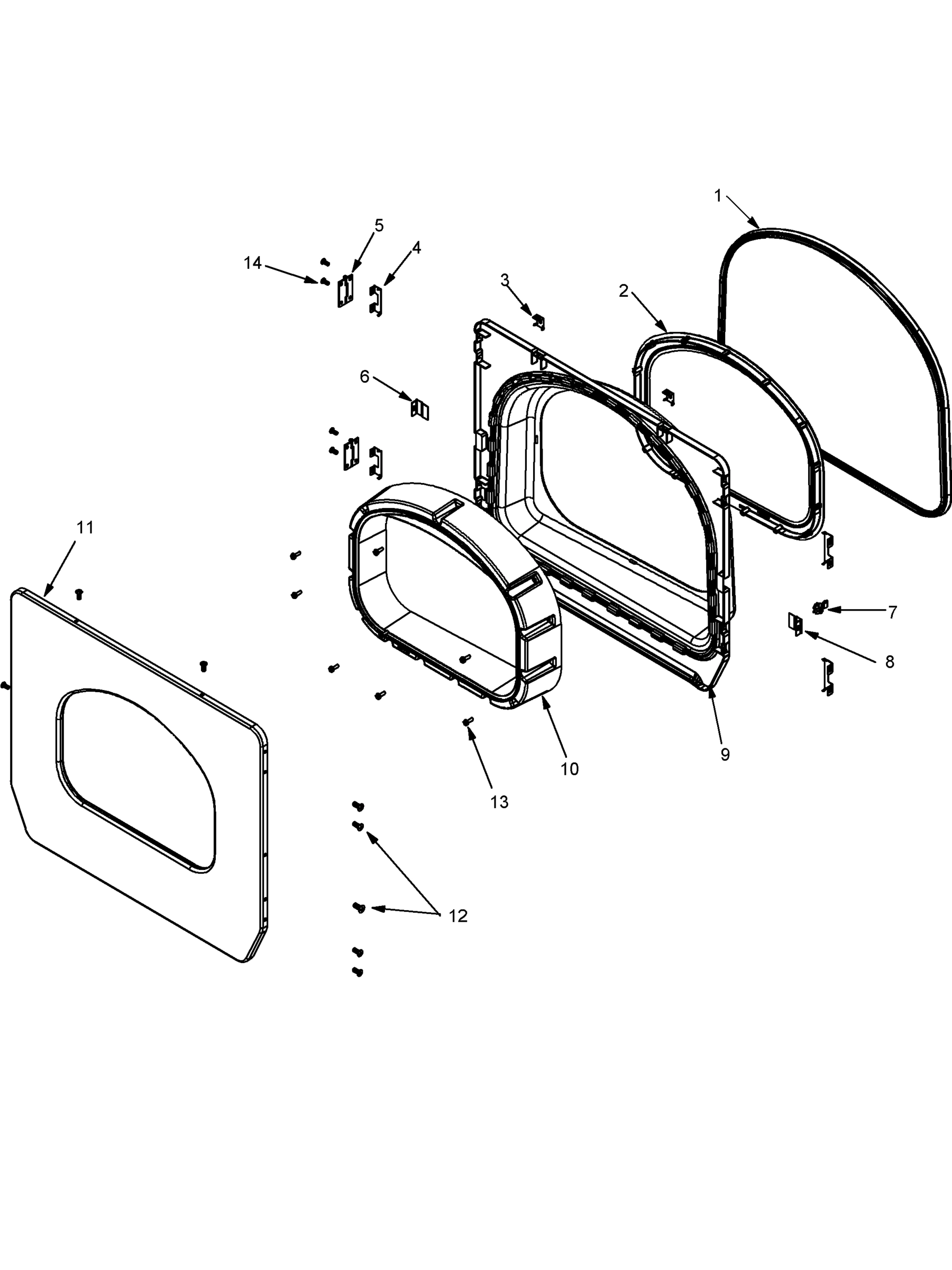

05 - DOOR

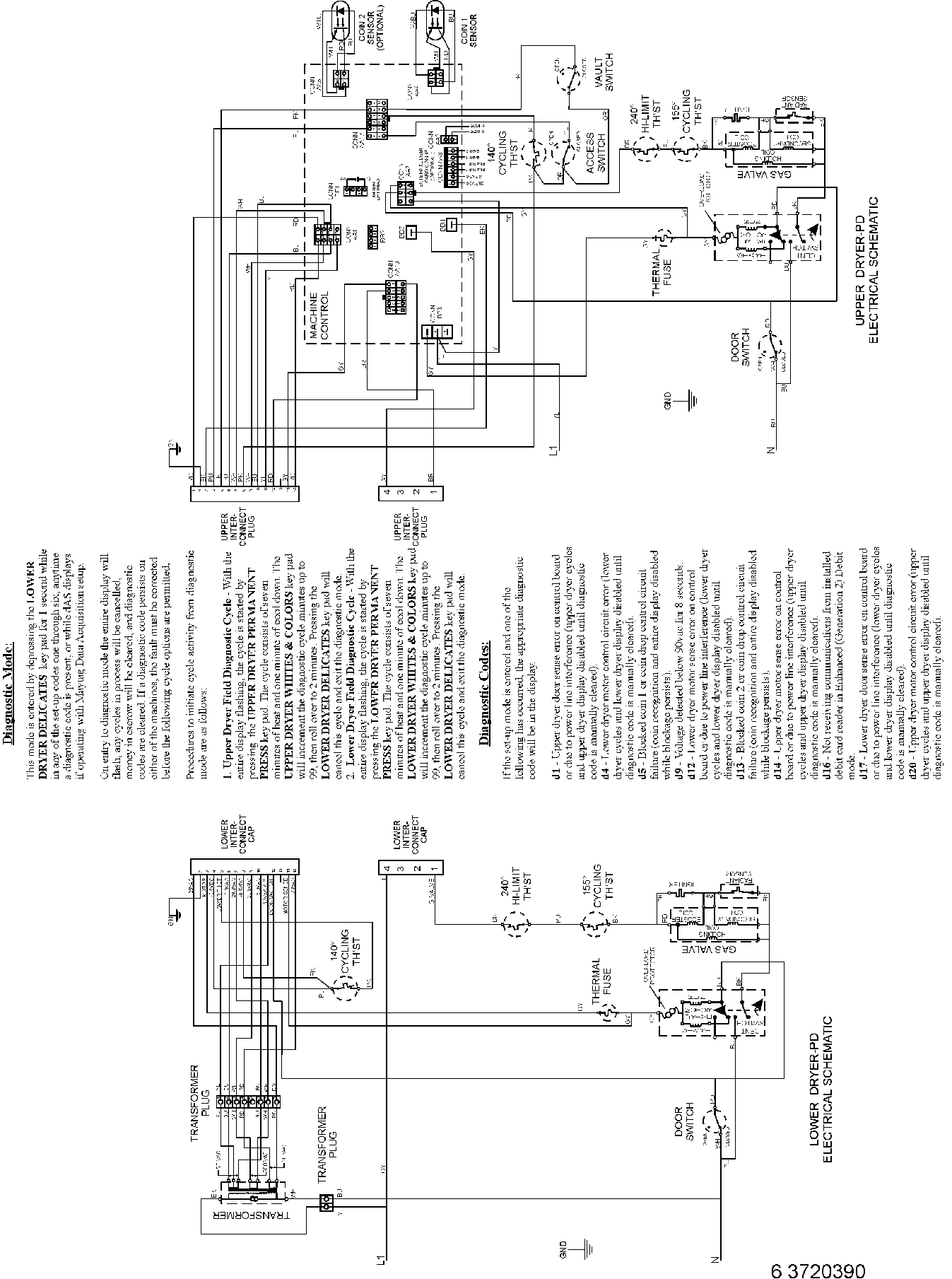

12 - WIRING INFORMATION(GAS)

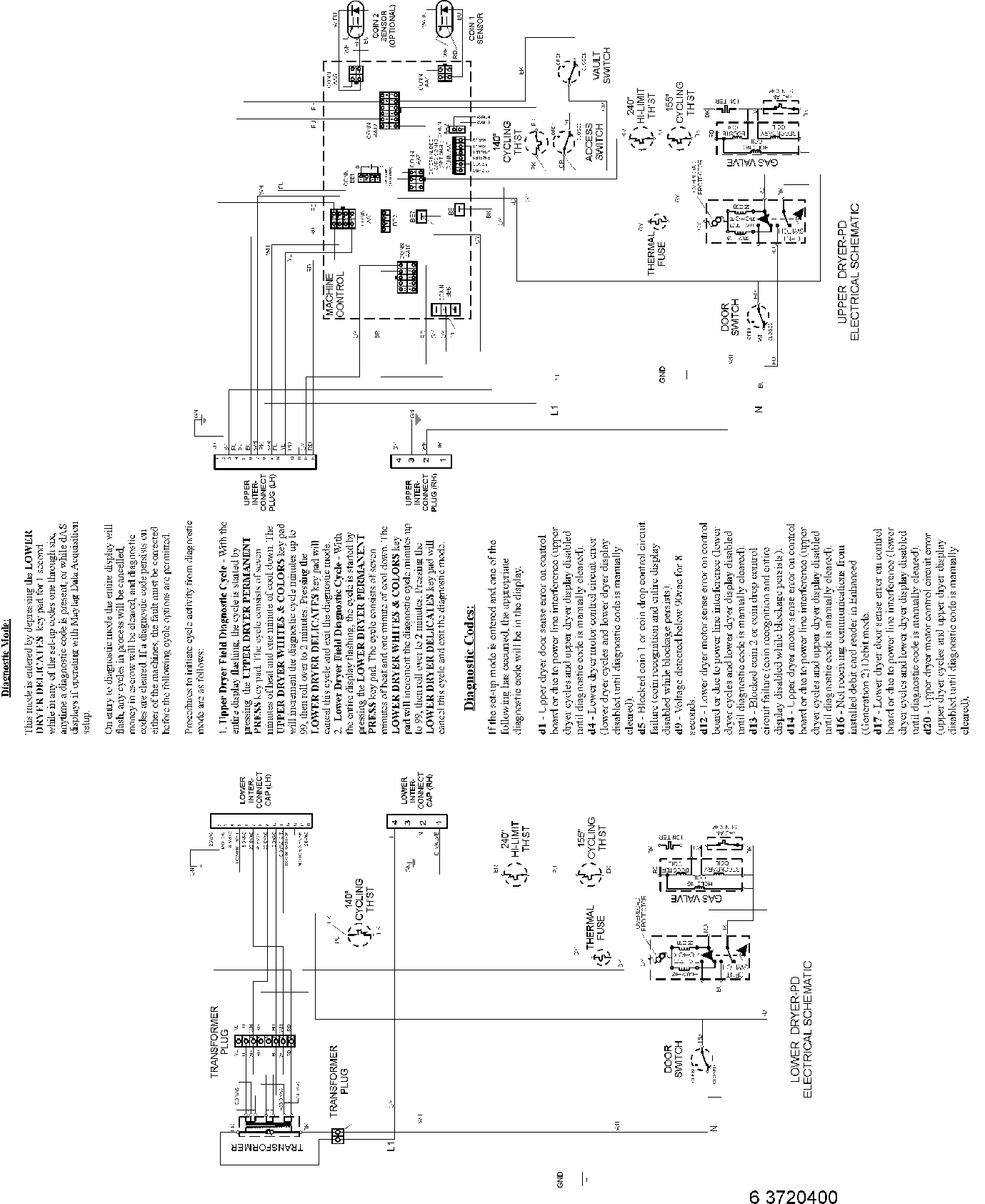

13 - WIRING INFORMATION(GAS)

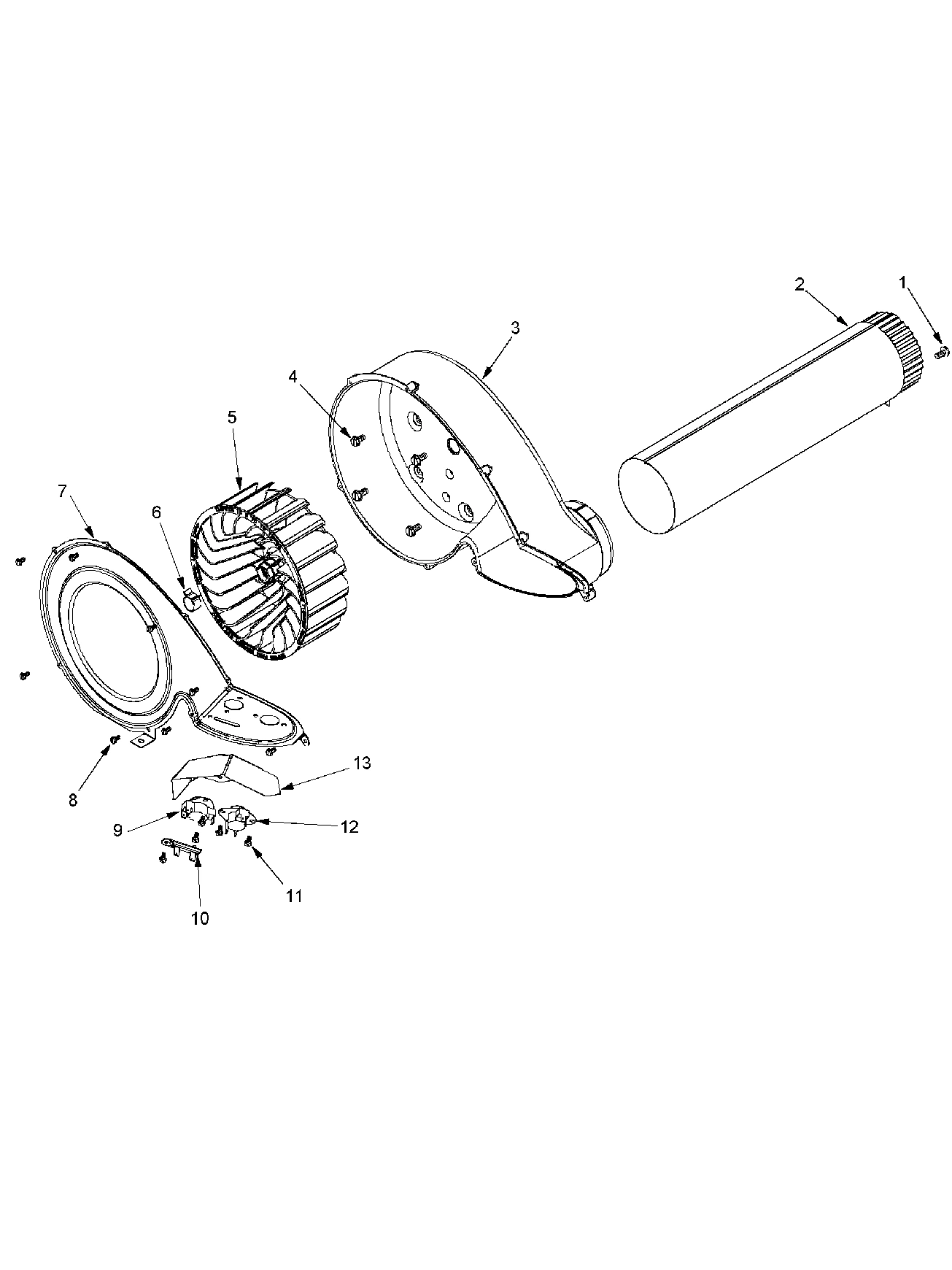

08 - BLOWER
10 - SUPPLEMENTAL INFORMATION
07 - HEATER

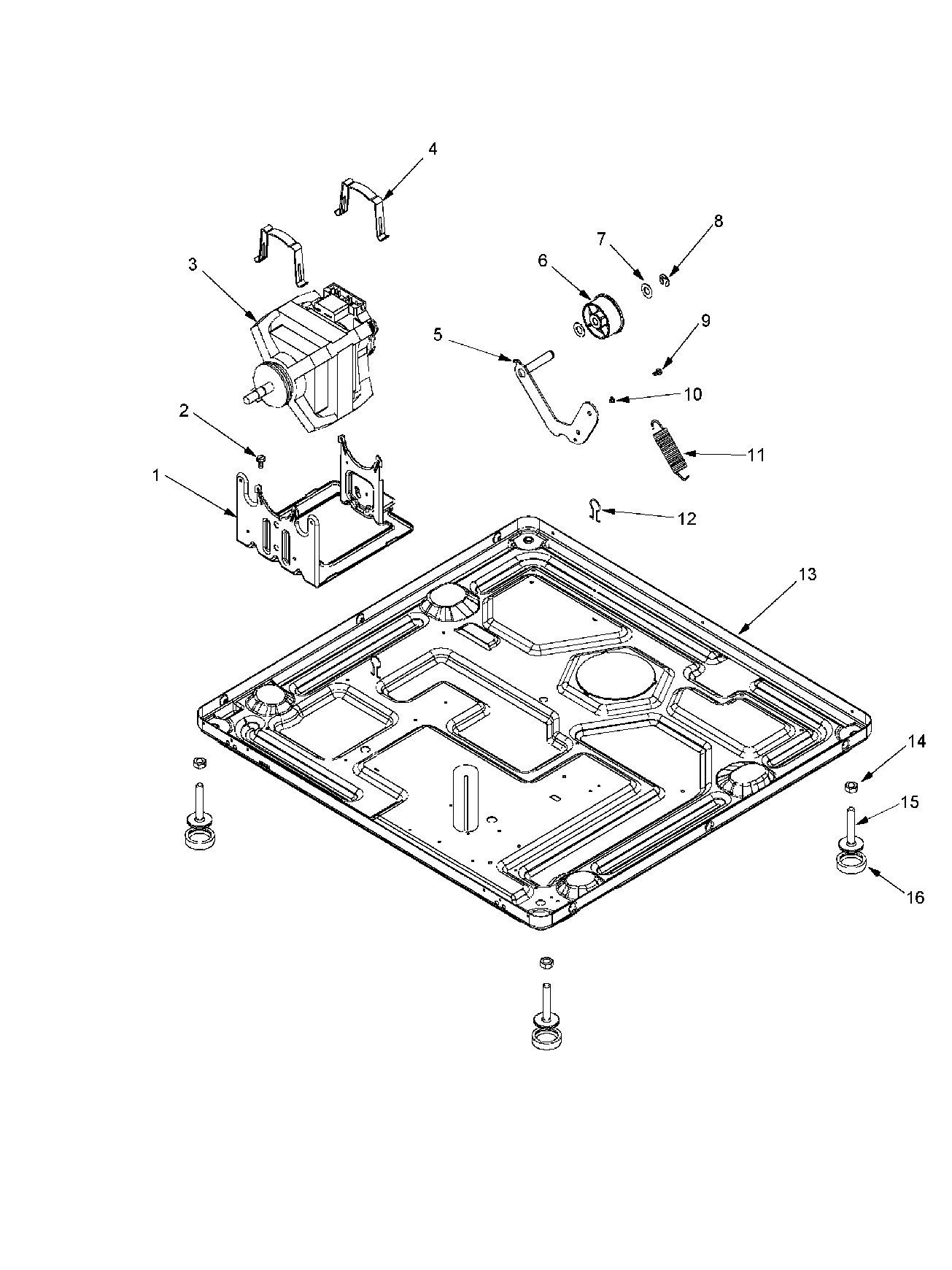

09 - BASE

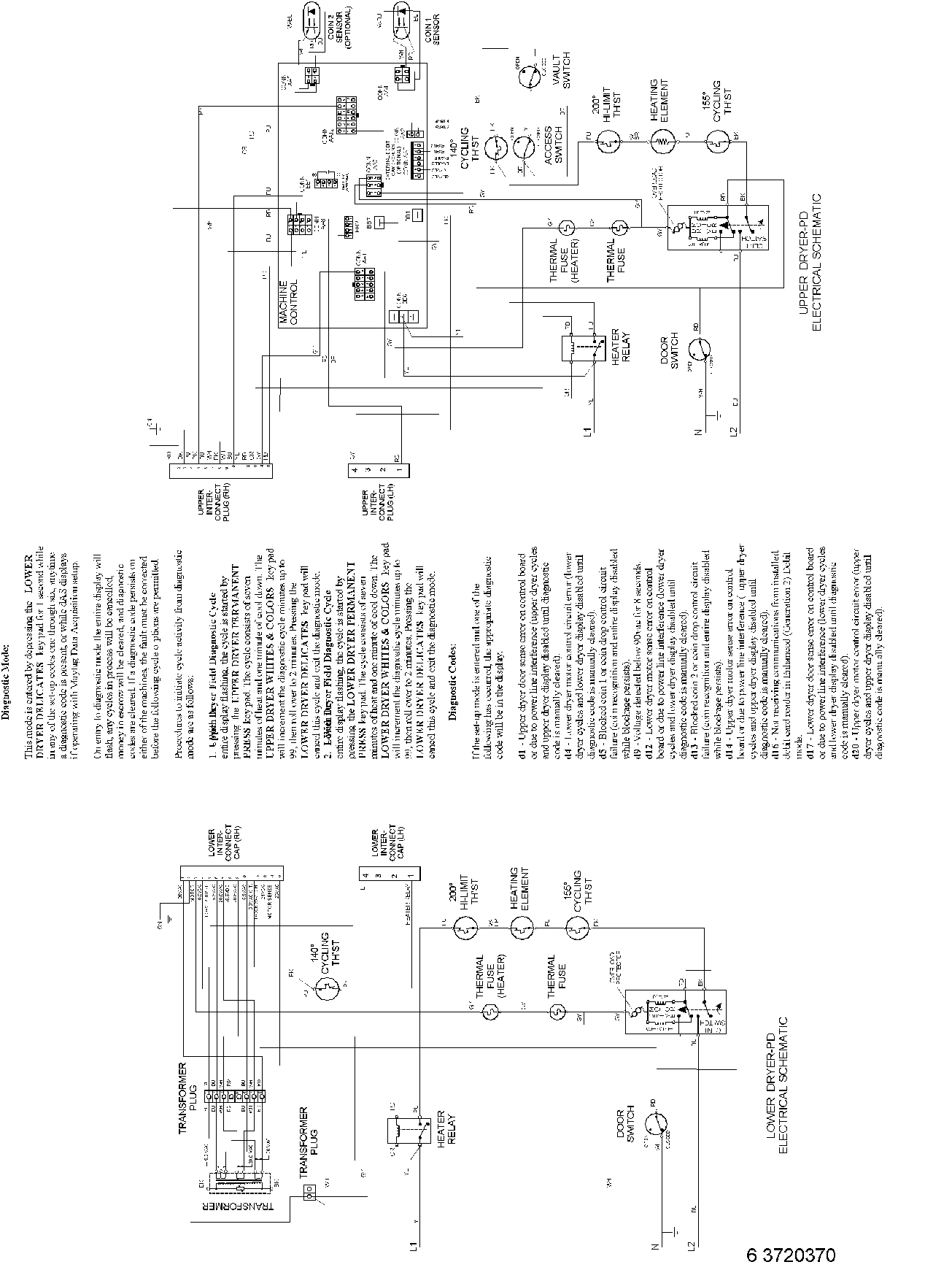

11 - WIRING INFORMATION(ELEC)
04 - FRONT PANEL

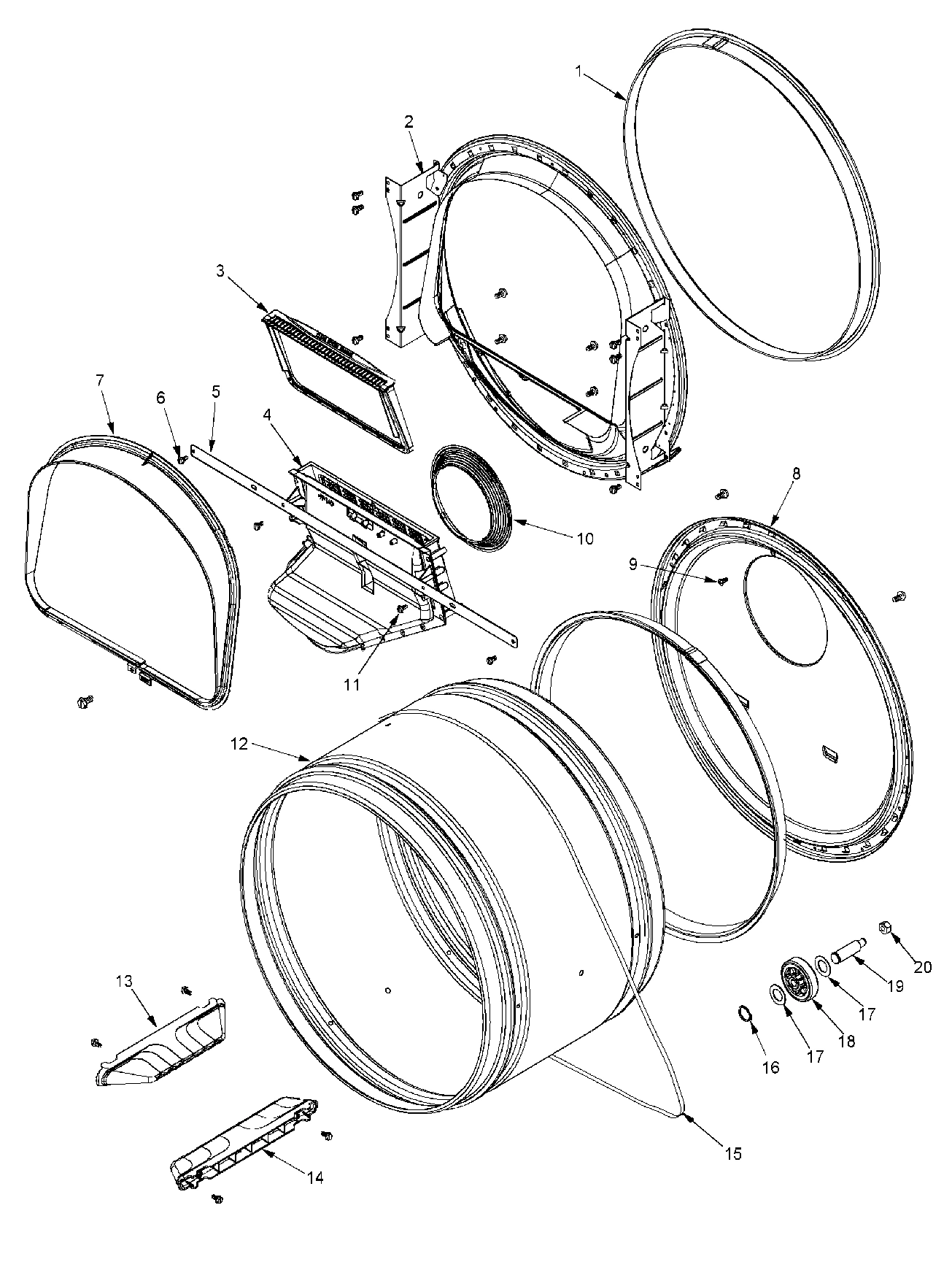

06 - TUMBLER

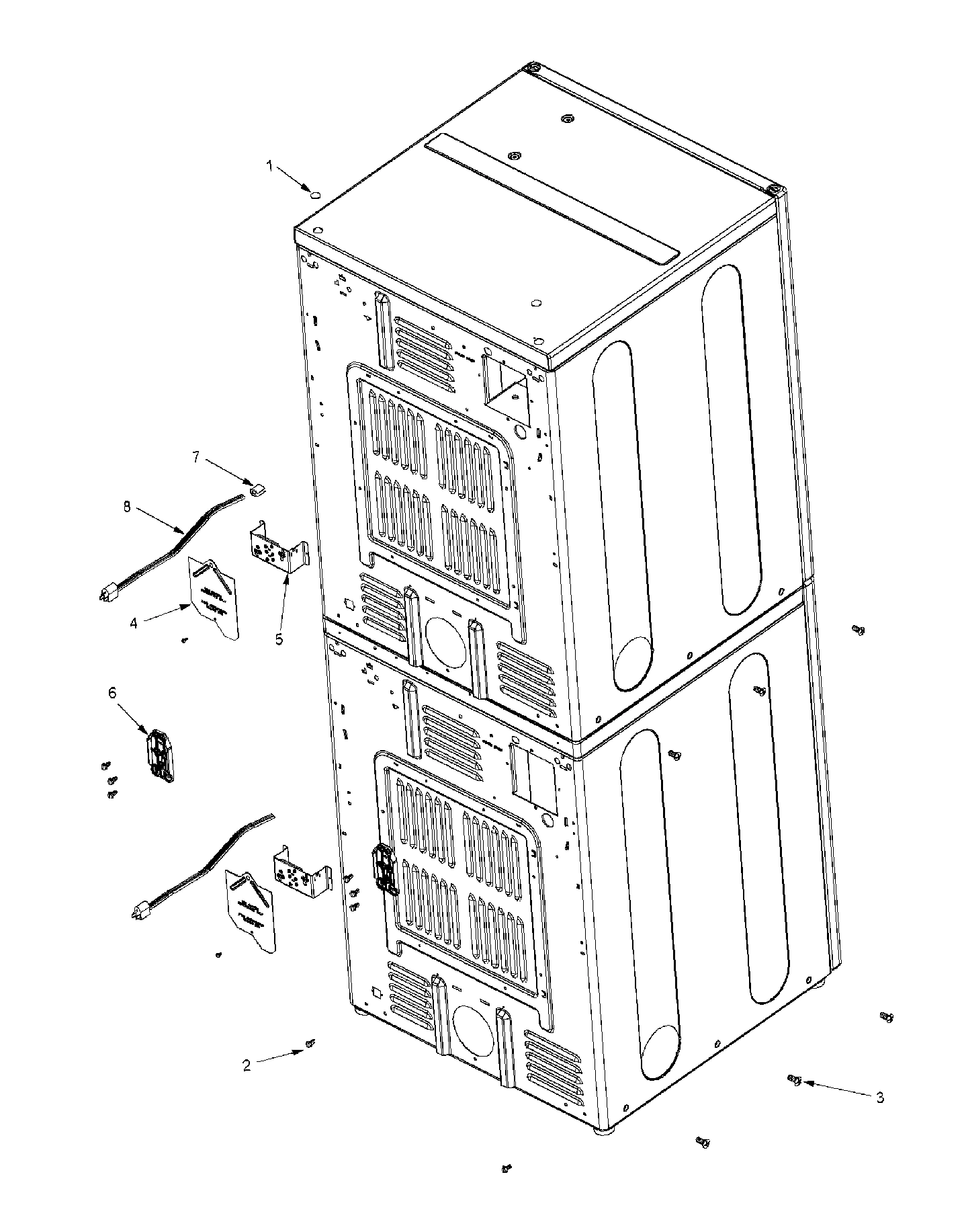

03 - CABINET REAR

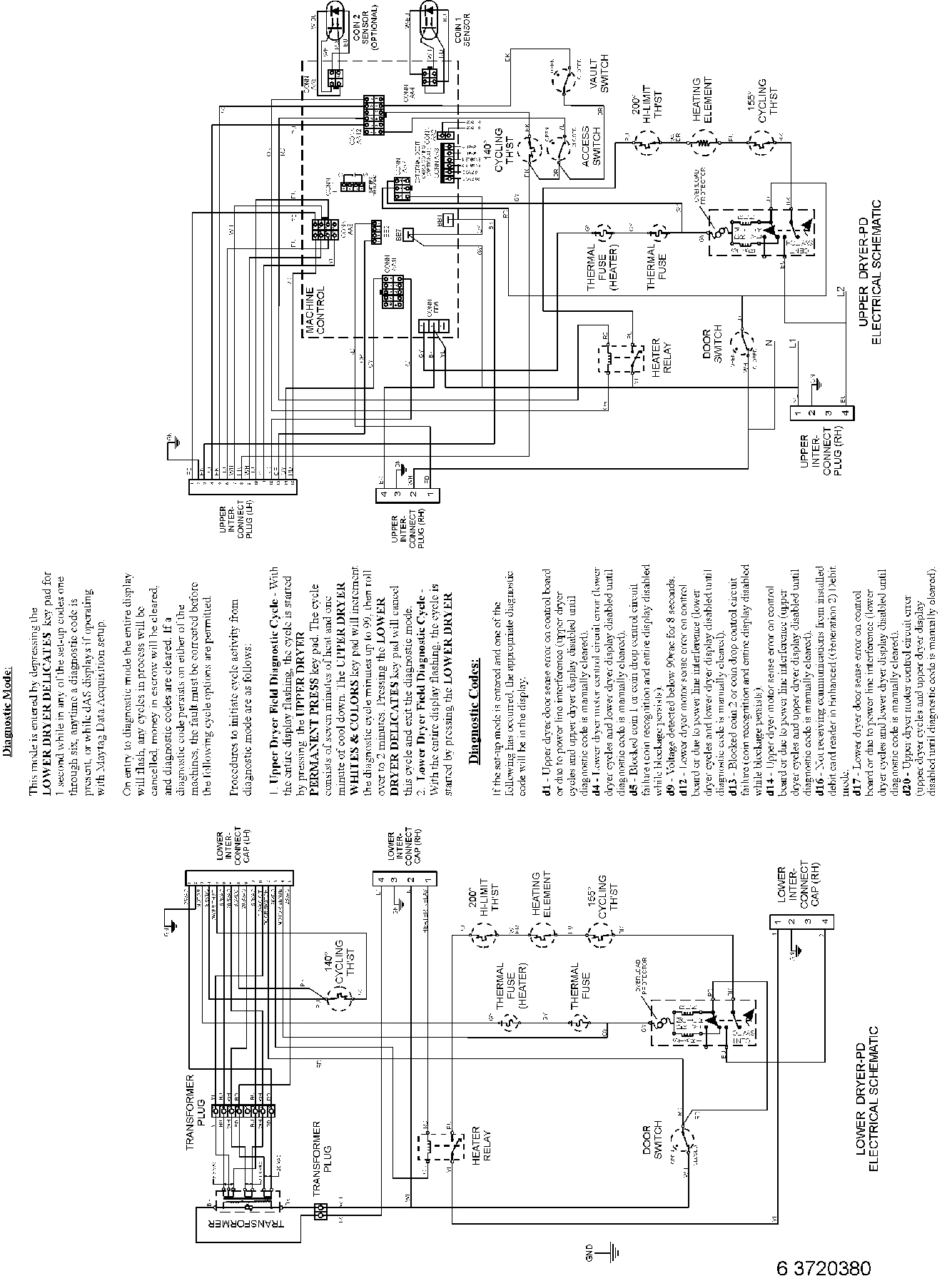

14 - WIRING INFORMATION(ELEC)
Common parts from model Whirlpool MLE23PDFZW ELECTRIC DRYER
001
COVER, TOP (WHT) WPL 33002124 Contact Us For Availability
001
WIRING INFORMATION WPL NLA Contact Us For Availability
001
HARNESS, WIRE UP GAS CAN PD WPL 33002845 Contact Us For Availability
001
HARNESS, WIRE LOW GAS CAN PD WPL 33002846 Contact Us For Availability
001
HARNESS, WIRE UPPER GAS PD WPL 33002847 Contact Us For Availability
001
HARNESS, WIRE LOWER GAS PR/PD WPL 33002848 Contact Us For Availability
001
MOTOR SUPPORT, OFFSET WPL 33002817 Contact Us For Availability
001
SEAL, SHROUD WPL 33001767 Contact Us For Availability
001
PLUG, HOLE WPL 33001997 Contact Us For Availability
002
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
002
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
002
BRACKET, LH UPPER FRONT PANEL WPL 33002818 Contact Us For Availability
002
LENS WPL 33002607 Contact Us For Availability
002
HARNESS, WIRE UPPER PD WPL 33002840 Contact Us For Availability
002
INSTRUCTIONS, INSTALLATION WPL 33002902 Contact Us For Availability
002
INSTRUCTIONS, OPERATING WPL 33002903 Contact Us For Availability
002
INLET DUCT ASSEMBLY (ELECTRIC) WPL 33002767 Contact Us For Availability
002
SCREW----NA WPL Y313561 Contact Us For Availability
002
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
003
PANEL, PD FLAT FRONT WPL 33002823 Contact Us For Availability
003
BRACKET, RH UPPER FRONT PANEL WPL 33002819 Contact Us For Availability
003
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
003
HARNESS, WIRE LOWER PR/PD WPL 33002841 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
003
PANEL, FLAT FRONT LOWER WPL 33002825 Contact Us For Availability
004
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
004
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
004
SCREW WPL Y310632 Contact Us For Availability
004
HARNESS, WIRE UP EL CAN PD SU WPL 33002842 Contact Us For Availability
004
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
004
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
005
CLIP, ACCESS PANEL WPL 33001980 Contact Us For Availability
005
HINGE, DOOR WPL 33002017 Contact Us For Availability
005
HARNESS, WIRE LOW EL CAN PD WPL 33002843 Contact Us For Availability
005
HEATER SUB-ASSEMBLY (208V) WPL 307187 Contact Us For Availability
005
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
006
PLATE, CONTROL MOUNTING WPL 33002155 Contact Us For Availability
006
CABINET, UPPER PD WPL 33002839 Contact Us For Availability
006
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
006
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
006
BRACKET, REAR SUPPORT WPL 33002829 Contact Us For Availability
007
BRACKET, ``V`` WPL 22002425 Contact Us For Availability
007
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
007
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
007
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
007
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
007
GROMMET, CORD WPL 211881 Contact Us For Availability
008
SCREW WPL 22001402 Contact Us For Availability
008
SUPPORT WELD ASS`Y WPL 33002820 Contact Us For Availability
008
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
009
BRACKET, FRONT LOWER PANEL WPL 33002821 Contact Us For Availability
009
DOOR, INNER (WHT) WPL 33002020 Contact Us For Availability
009
HEATER ASSEMBLY (208V) WPL 307181 Contact Us For Availability
010
ASSY, COIN VAULT----NA WPL 22004157 Contact Us For Availability
010
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
010
RELAY, SPST WPL 22004151 Contact Us For Availability
010
DOOR TUNNEL W` HANDLE (WHT) WPL 33002780 Contact Us For Availability
010
GROMMET, IDLER ARM WPL 33002218 Contact Us For Availability
010
SEAL, BLOWER WPL 33002560 Contact Us For Availability
011
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
011
LOCK WASHER WPL 910181 Contact Us For Availability
011
RELAY BRACKET WPL 314627 Contact Us For Availability
011
DOOR, OUTER (WHT) WPL 33002015 Contact Us For Availability
011
SCREW, SHROUD WPL 33001768 Contact Us For Availability
012
VAULT MOUNTING BRACKET WPL 33002763 Contact Us For Availability
012
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
012
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
012
TUMBLER WPL 33001794 Contact Us For Availability
013
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
013
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
013
BASE (UPR) WPL 33002816 Contact Us For Availability
014
BRACKET, SWITCH MOUNTING WPL 33001982 Contact Us For Availability
014
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
015
ASSY, COIN BOX WPL 22004158 Contact Us For Availability
015
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
017
FACIA, COMM. - PD D/D WPL 33002828 Contact Us For Availability
018
COIN CHUTE WPL 314635 Contact Us For Availability
019
DUAL FACEPLATE ASSEMBLY WPL 33002644 Contact Us For Availability
019
SINGLE FACEPLATE ASSEMBLY WPL 33002647 Contact Us For Availability
020
COIN DROP GREENWALD (CAN).25 WPL 22004114 Contact Us For Availability
020
COIN DROP-CANADA (0.25) WPL 33002645 Contact Us For Availability
020
COIN DROP-CANADA (1.00) WPL 33002646 Contact Us For Availability
020
COIN DROP-U.S. (0.25) WPL 33002648 Contact Us For Availability
022
BOLT, CARRIAGE WPL 33001991 Contact Us For Availability
023
NUT WPL Y052734 Contact Us For Availability
024
SCREW, TORX WPL 33002051 Contact Us For Availability
× ![]()
