Model Maytag MHG15PDAWA GAS DRYER – Common Parts & Diagrams
01 - CONTROL PANEL

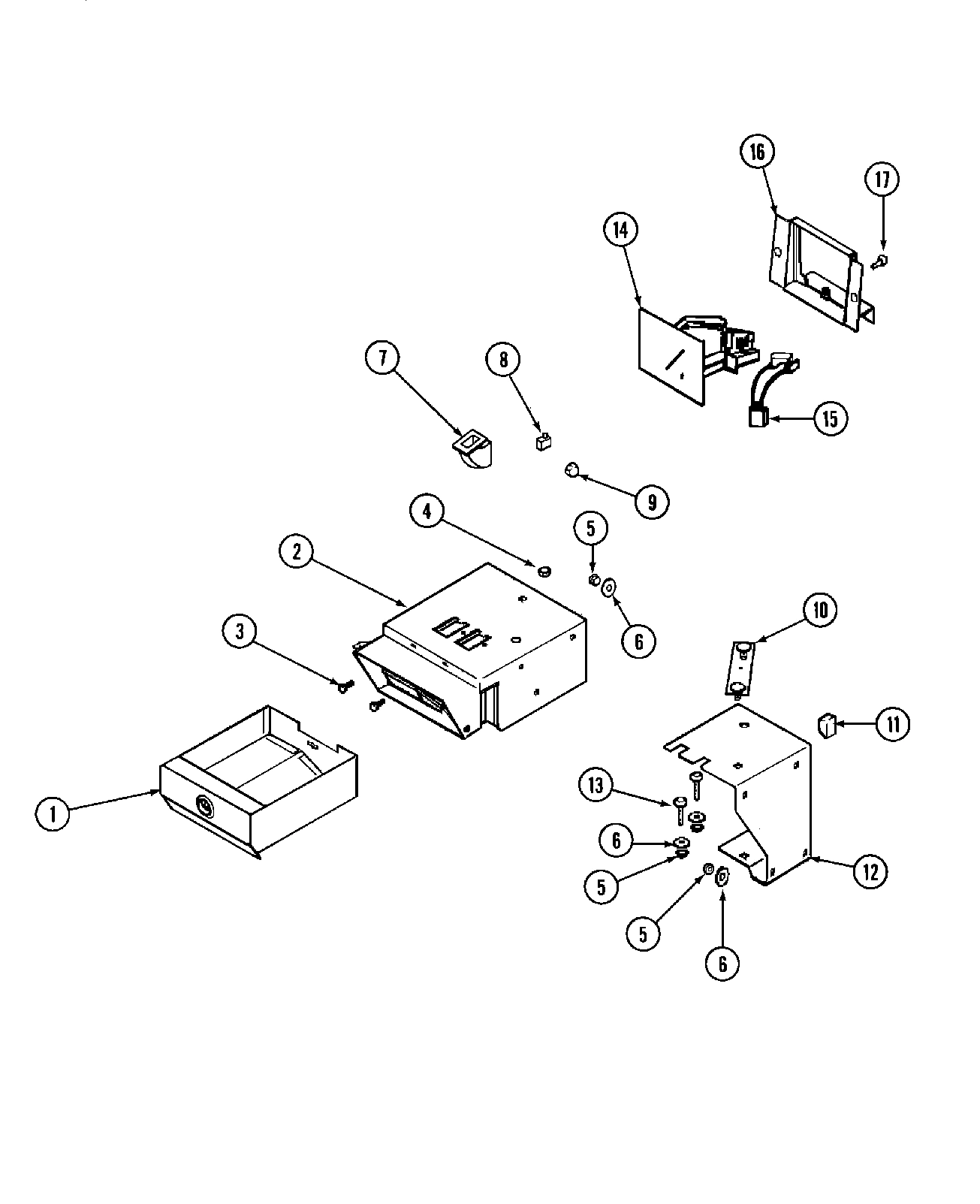

02 - CONTROL CENTER

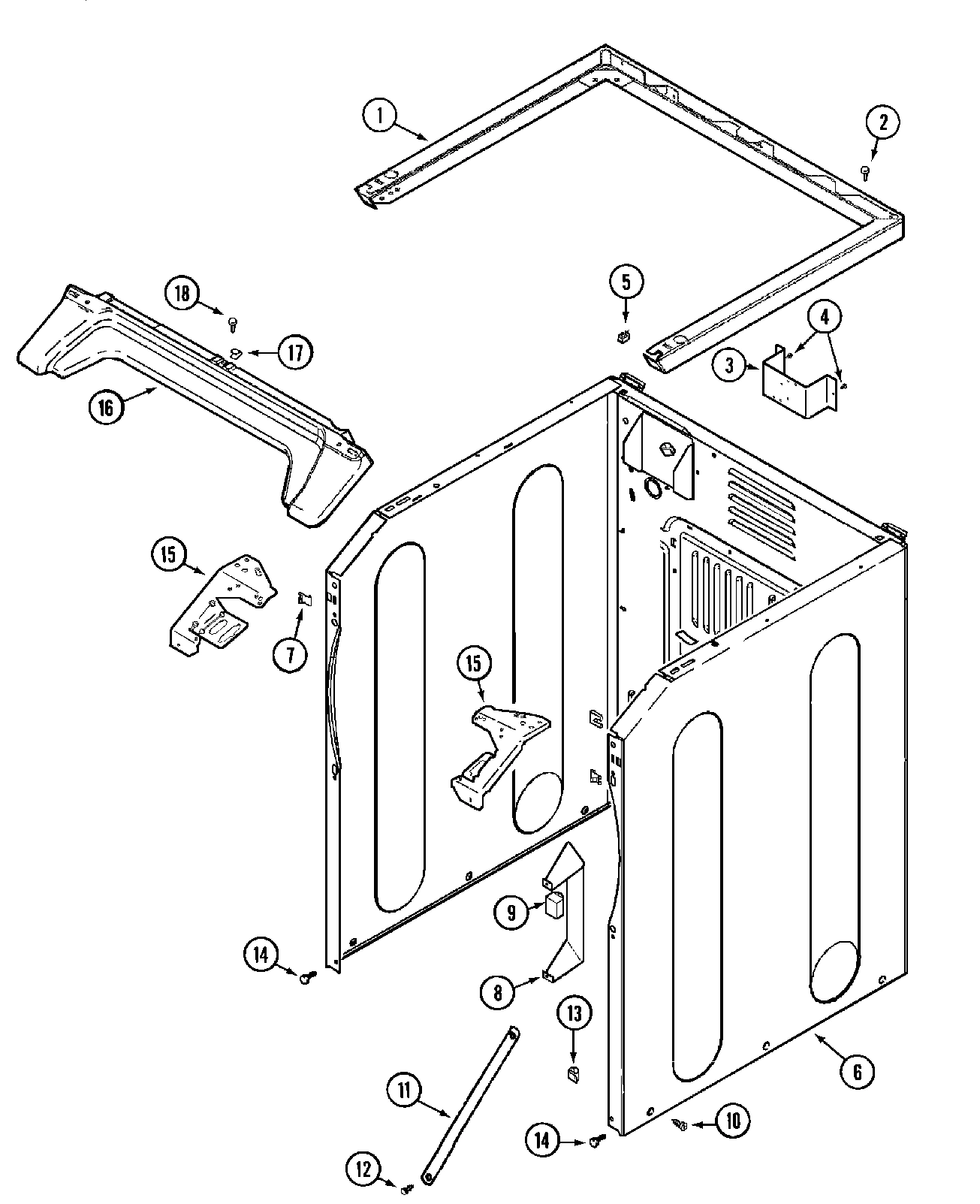

03 - CABINET-FRONT (LOWER)

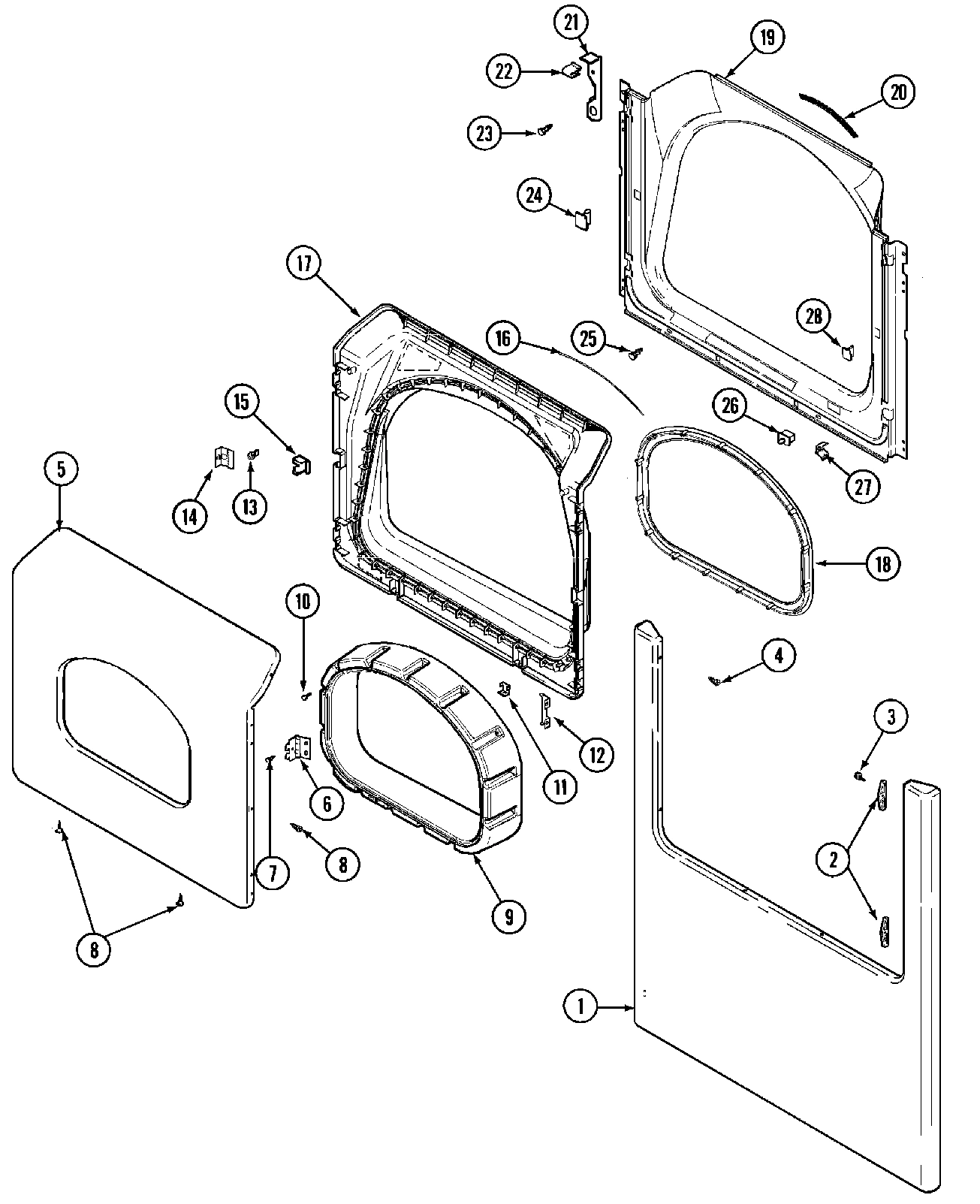

04 - DOOR (LOWER)

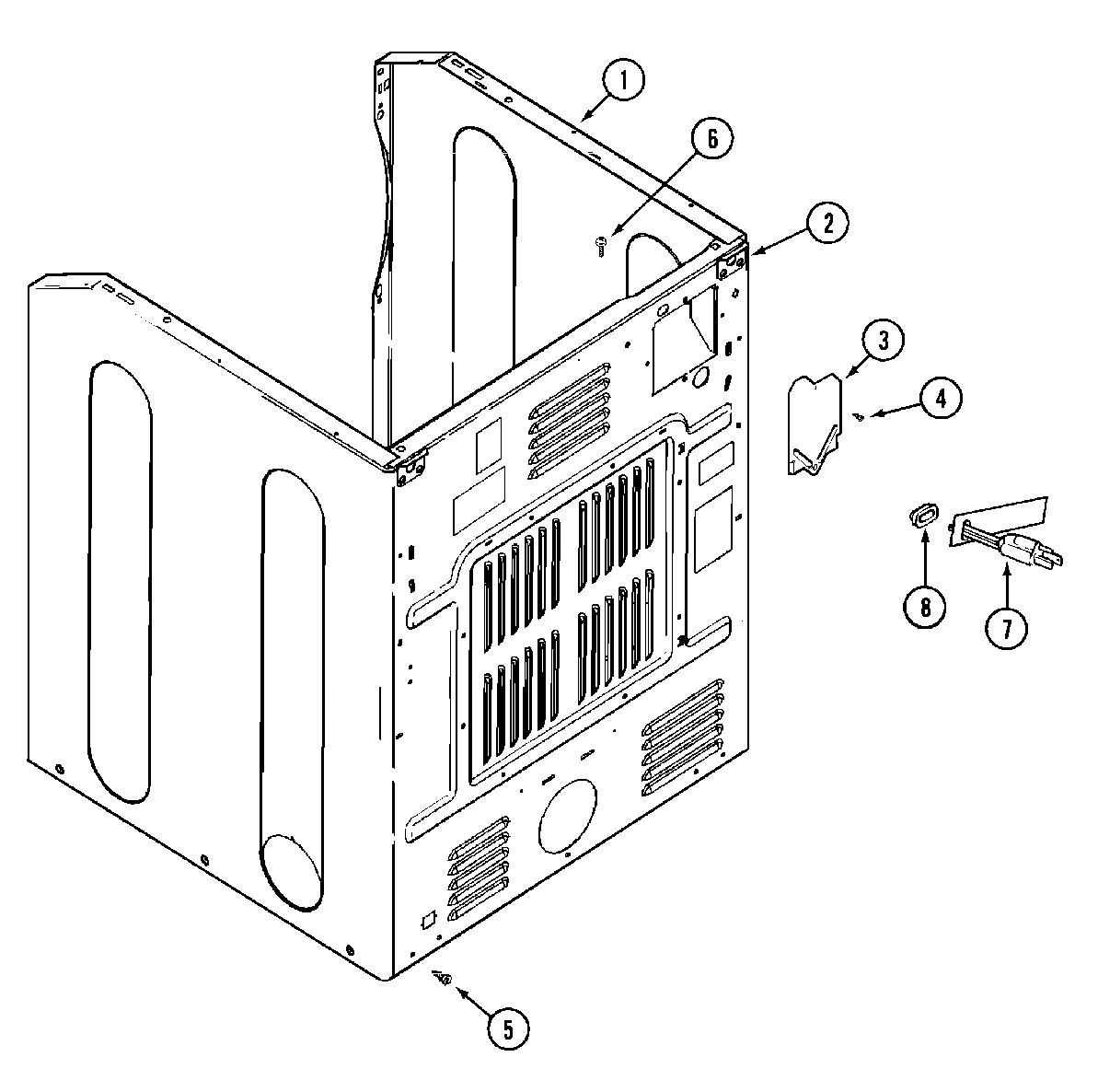

05 - CABINET-REAR

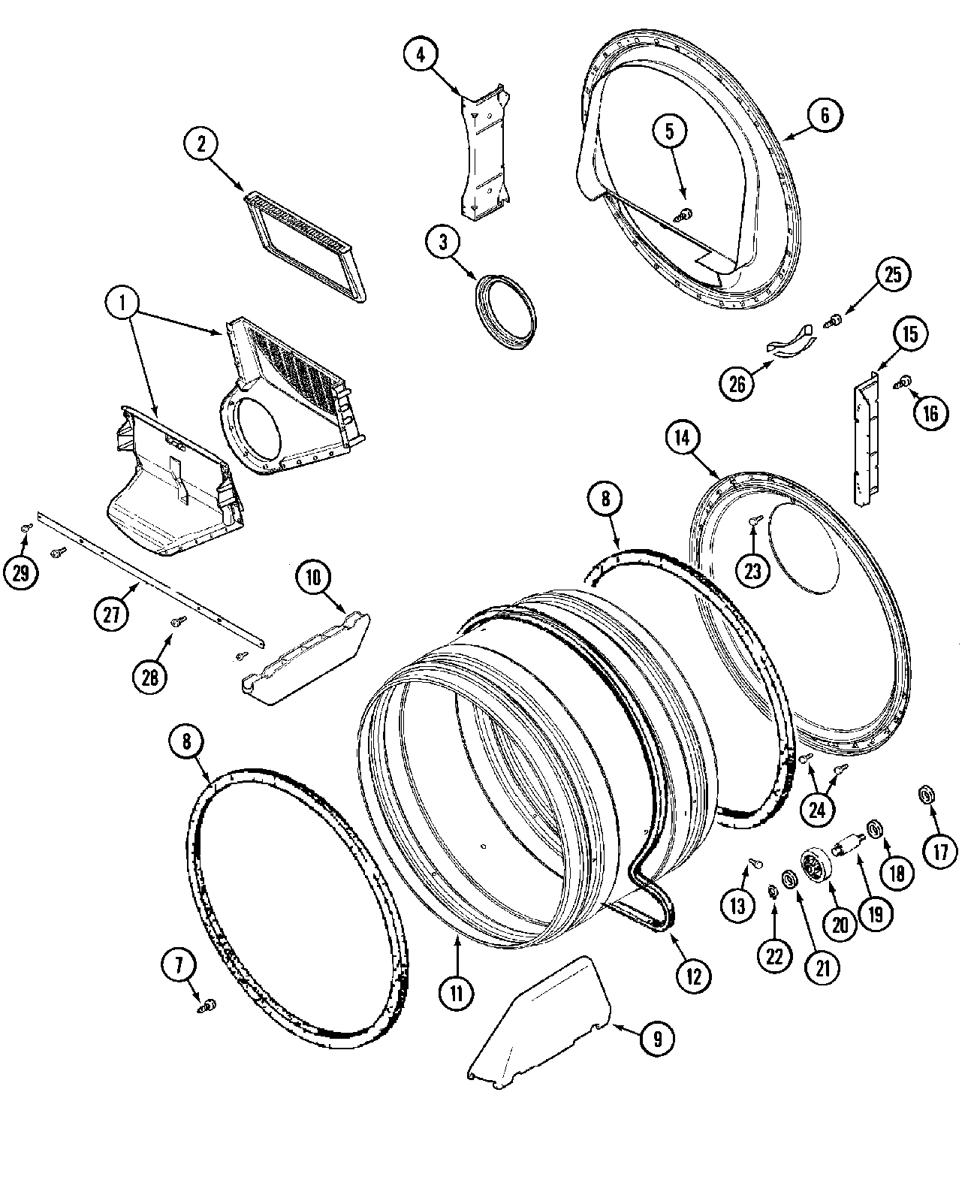

06 - TUMBLER
07 - GAS VALVE

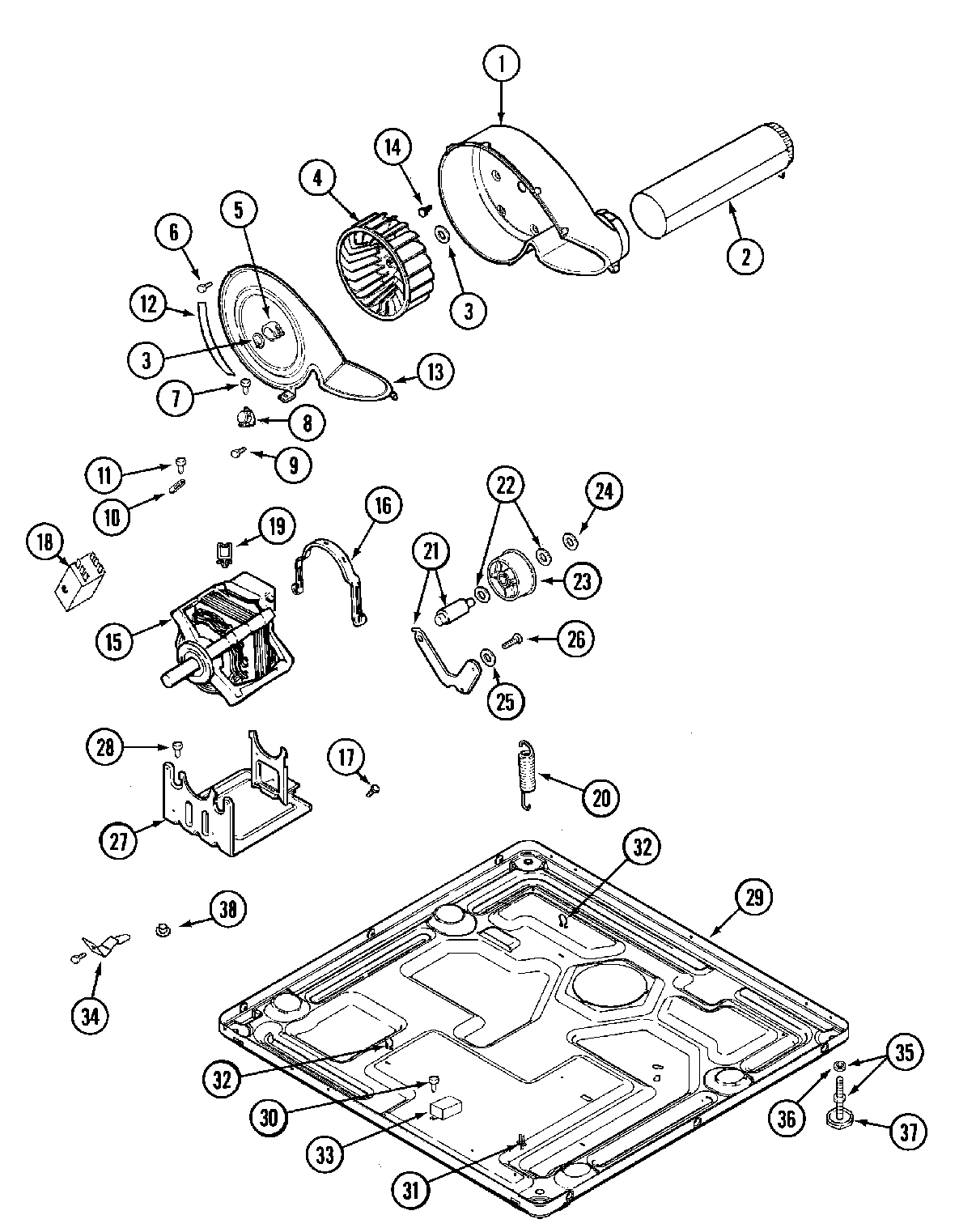

08 - MOTOR DRIVE

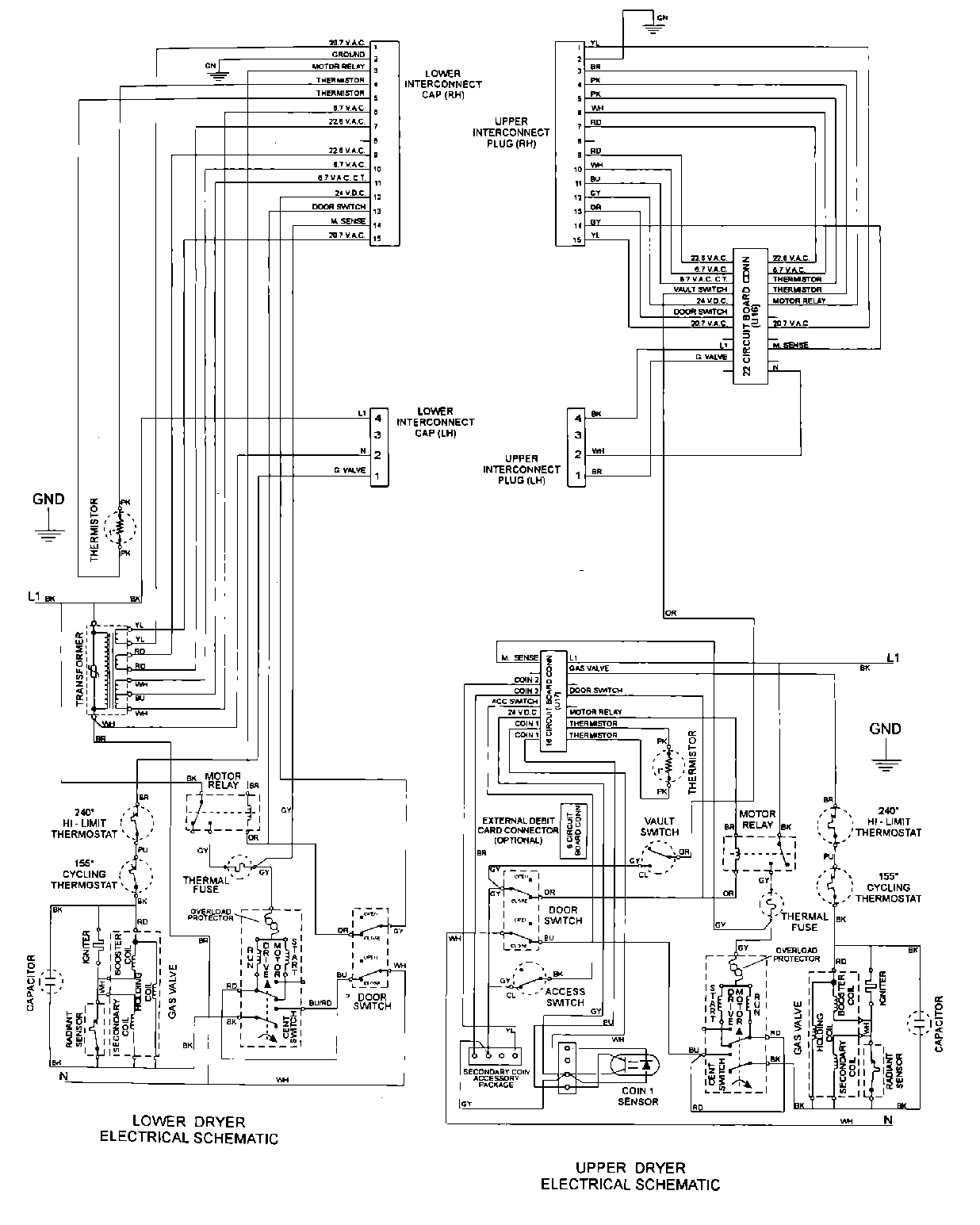

09 - WIRING INFORMATION
Common parts from model Maytag MHG15PDAWA GAS DRYER
001
MAY 33001799 MAY 33001799 Contact Us For Availability
001
MAY 33002005 MAY 33002005 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY Y310376 MAY Y310376 Contact Us For Availability
001
MAY 22002241 MAY 22002241 Contact Us For Availability
001
MAY Y308378 MAY Y308378 Contact Us For Availability
002
MAY 33001764 MAY 33001764 Contact Us For Availability
002
MAY 33001765 MAY 33001765 Contact Us For Availability
002
SCREW, SUPPORT MAY 22001883 Contact Us For Availability
002
MAY Y308377 MAY Y308377 Contact Us For Availability
002
OUTLET DUCT ASSY. MAY 33001800 Contact Us For Availability
002
MAY 33002185 MAY 33002185 Contact Us For Availability
003
MAY 33001795 MAY 33001795 Contact Us For Availability
003
MAY 33001758 MAY 33001758 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
004
SCREW, HINGE MAY 22002243 Contact Us For Availability
005
MAY 33002028 MAY 33002028 Contact Us For Availability
006
MAY 33001802 MAY 33001802 Contact Us For Availability
006
SCREW, POWER CORD GROUND MAY 210186 Contact Us For Availability
006
MAY 33002056 MAY 33002056 Contact Us For Availability
007
MAY 208784 MAY 208784 Contact Us For Availability
008
MAY 307208 MAY 307208 Contact Us For Availability
008
MAY 33001977 MAY 33001977 Contact Us For Availability
008
BRACKET, RELAY MAY 314627 Contact Us For Availability
008
MAY 22002063 MAY 22002063 Contact Us For Availability
008
MAY 211881 MAY 211881 Contact Us For Availability
009
MAY 206824 MAY 206824 Contact Us For Availability
009
MAY 33002019 MAY 33002019 Contact Us For Availability
011
CLIP, INNER DOOR MAY 22002039 Contact Us For Availability
011
BRACE, CROSS MAY 22002259 Contact Us For Availability
011
MAY 33001794 MAY 33001794 Contact Us For Availability
011
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
MAY 22002038 MAY 22002038 Contact Us For Availability
013
MAY 33001761 MAY 33001761 Contact Us For Availability
013
MAY 33001788 MAY 33001788 Contact Us For Availability
013
VALVE, ANGLE GAS MAY 306086 Contact Us For Availability
013
MAY 33001796 MAY 33001796 Contact Us For Availability
014
MAY 33001801 MAY 33001801 Contact Us For Availability
014
MAY 33001735 MAY 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001985 MAY 33001985 Contact Us For Availability
015
MAY 33001763 MAY 33001763 Contact Us For Availability
015
MAY 33002009 MAY 33002009 Contact Us For Availability
015
(RT) MAY 33002010 Contact Us For Availability
015
MAY 33002237 MAY 33002237 Contact Us For Availability
016
MAY 33002011 MAY 33002011 Contact Us For Availability
016
(ALM) MAY 33002012 Contact Us For Availability
016
MAY 33001810 MAY 33001810 Contact Us For Availability
017
MAY 33002030 MAY 33002030 Contact Us For Availability
017
FASTENER, ACCESS COVER MAY 33002013 Contact Us For Availability
017
MAY 33002031 MAY 33002031 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
MAY 33002022 MAY 33002022 Contact Us For Availability
018
MAY 33001854 MAY 33001854 Contact Us For Availability
019
MAY 33002054 MAY 33002054 Contact Us For Availability
019
MAY 33002033 MAY 33002033 Contact Us For Availability
019
MAY 33001835 MAY 33001835 Contact Us For Availability
019
MAY 33002040 MAY 33002040 Contact Us For Availability
020
MAY 33001767 MAY 33001767 Contact Us For Availability
020
RETAINER, WIRE HARNESS MAY 33001989 Contact Us For Availability
020
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
020
MAY Y303841 MAY Y303841 Contact Us For Availability
021
MAY 33002035 MAY 33002035 Contact Us For Availability
021
MAY 33002036 MAY 33002036 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
022
MAY 33002037 MAY 33002037 Contact Us For Availability
022
MAY 33001693 MAY 33001693 Contact Us For Availability
022
MAY Y312527 MAY Y312527 Contact Us For Availability
023
SCREW, INLET DUCT MAY 210932 Contact Us For Availability
026
MAY 33002038 MAY 33002038 Contact Us For Availability
027
MAY 33001760 MAY 33001760 Contact Us For Availability
027
MAY 33002039 MAY 33002039 Contact Us For Availability
027
MAY 33001752 MAY 33001752 Contact Us For Availability
028
SCREW, MOTOR SUPPORT MAY Y313561 Contact Us For Availability
028
SCREW, TUMBLER FRONT BRACE MAY 33001768 Contact Us For Availability
028
MAY Y304578 MAY Y304578 Contact Us For Availability
029
SCREW, HARNESS PROTECTOR MAY 314568 Contact Us For Availability
029
MAY 33002041 MAY 33002041 Contact Us For Availability
029
MAY 33002048 MAY 33002048 Contact Us For Availability
029
MAY 33002049 MAY 33002049 Contact Us For Availability
029
MAY 33002050 MAY 33002050 Contact Us For Availability
031
MAY 315471 MAY 315471 Contact Us For Availability
032
MAY 410490 MAY 410490 Contact Us For Availability
033
MAY 33001205 MAY 33001205 Contact Us For Availability
033
SHIELD, TRANSFORMER MAY 315218 Contact Us For Availability
033
SCREW, TRANSFORMER SHIELD MAY Y313559 Contact Us For Availability
034
MAY 22002239 MAY 22002239 Contact Us For Availability
034
SCREW, FRONT PANEL CLIP MAY Y310632 Contact Us For Availability
034
MAY 22002244 MAY 22002244 Contact Us For Availability
034
MAY 33002042 MAY 33002042 Contact Us For Availability
034
MAY 33002043 MAY 33002043 Contact Us For Availability
038
MAY 33002044 MAY 33002044 Contact Us For Availability
× ![]()
