Model Whirlpool MH1170XSY5 MICROWAVE OVEN 1.7 CU. FT. – Common Parts & Diagrams

Common parts from model Whirlpool MH1170XSY5 MICROWAVE OVEN 1.7 CU. FT.

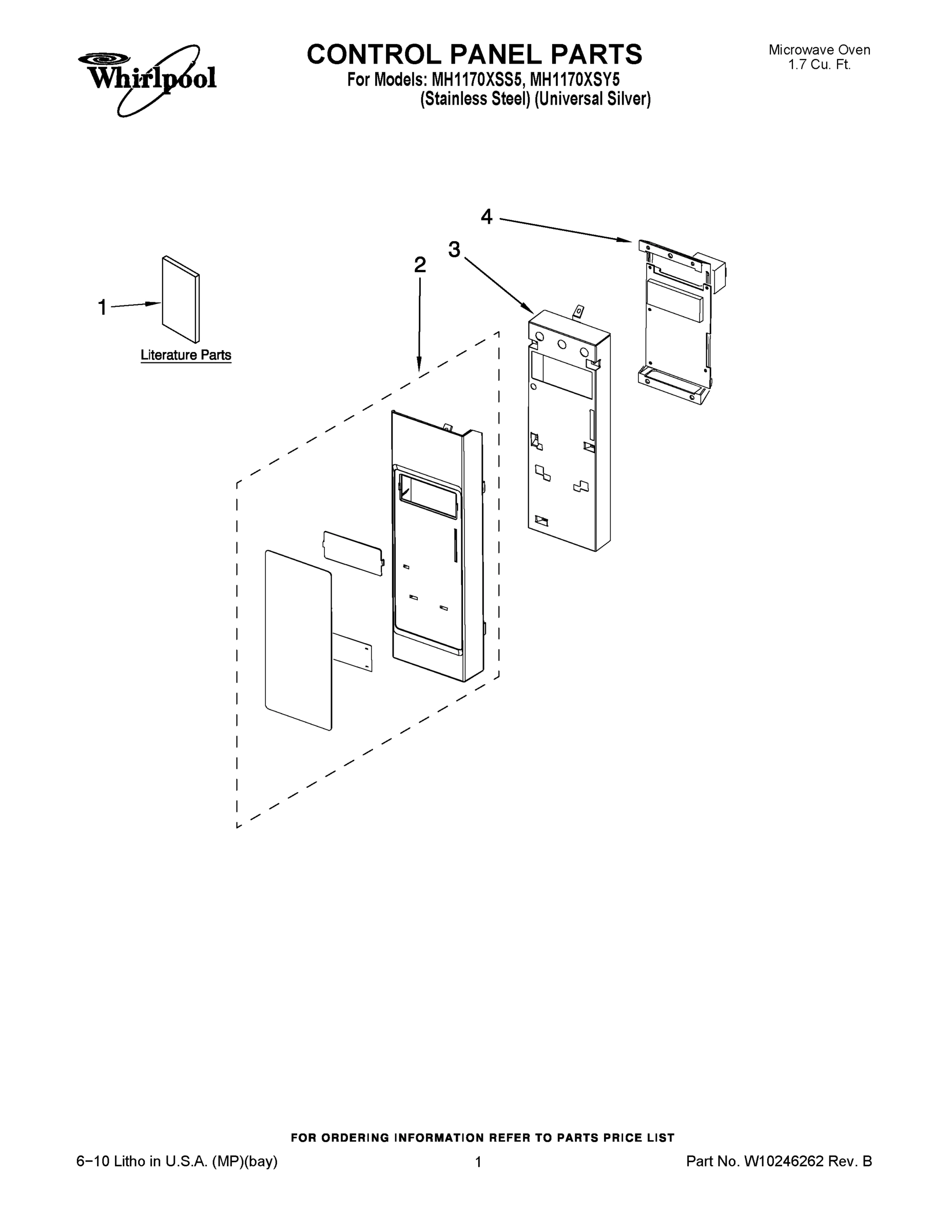

01 - CONTROL PANEL PARTS

Print

• This Diagram
• All Diagrams

1

COMPLETE DOOR (Stainless) WPL 8206396 Contact Us For Availability

View on Model

1

Deflector, Air WPL 8206340 Contact Us For Availability

View on Model

1

Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability

View on Model

2

8206382 Whirlpool Microwave Light Cover Backorder WPL 8206382 View Details $6.87

View on Model

2

8206385 Whirlpool Microwave Wire Clip Backorder WPL 8206385 View Details $24.34

View on Model

2

W10210871 Whirlpool Microwave Lamp Housing In Stock WPL W10210871 View Details $4.53

View on Model

2

Panel Asy, Control Includes Lens and Membrane WPL W10166191 Contact Us For Availability

View on Model

3

W10181505 Whirlpool Grease Filter In Stock WPL W10181505 View Details $9.17

View on Model

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 View Details $50.07

View on Model

3

W11319886 Whirlpool Microwave Stir Rivet Backorder WPL W11319886 View Details $13.77

View on Model

3

Bracket, Control WPL W10156814 Contact Us For Availability

View on Model

4

Turntable WPL 4393799 No Longer Available

View on Model

4

8206388 Whirlpool Microwave Power Cord Backorder WPL 8206388 View Details $61.38

View on Model

4

Microcomputer WPL W10197767 Contact Us For Availability

View on Model

6

W10138797 Whirlpool Microwave Duct Cover Backorder WPL W10138797 View Details $64.14

View on Model

6

Grille, Vent (Universal Silver) WPL 8206393 Contact Us For Availability

View on Model

6

Holder, Glass WPL W10210873 Contact Us For Availability

View on Model

7

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 View Details $32.32

View on Model

7

WPW10466420 Whirlpool Turntable Motor In Stock WPL WPW10466420 View Details $30.23

View on Model

8

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 View Details $19.42

View on Model

9

W10107790 Whirlpool Microwave Washer Backorder WPL W10107790 View Details $60.03

View on Model

9

W10156812 Whirlpool Spring In Stock WPL W10156812 View Details $6.26

View on Model

10

SCREW WPL 8206618 Contact Us For Availability

View on Model

10

Filter WPL 8206624 Contact Us For Availability

View on Model

11

WP8206419 Whirlpool Microwave Top Interlock S In Stock WPL WP8206419 View Details $10.35

View on Model

11

WPW10156813 Whirlpool Microwave Bottom Interl In Stock WPL WPW10156813 View Details $4.85

View on Model

11

WPW10210878 Whirlpool Microwave LMP Housing In Stock WPL WPW10210878 View Details $14.76

View on Model

12

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 View Details $4.51

View on Model

12

W10197758 Whirlpool Microwave Piston Backorder WPL W10197758 View Details $37.24

View on Model

13

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 View Details $14.93

View on Model

15

W10163422 Whirlpool Microwave Thermistor Backorder WPL W10163422 View Details $56.09

View on Model

15

W10754299 Whirlpool Microwave Oven Magnetron In Stock WPL W10754299 View Details $181.58

View on Model

17

W10164716 Whirlpool Microwave Plate Backorder WPL W10164716 View Details $15.79

View on Model

18

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 View Details $28.87

View on Model

19

Holder, Fuse WPL W10117908 Contact Us For Availability

View on Model

20

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 View Details $23.48

View on Model

22

Transformer, H.V. WPL 8206343 Contact Us For Availability

View on Model

24

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 View Details $143.73

View on Model

NI

W10138802 Whirlpool Microwave Screw Backorder WPL W10138802 View Details $7.23

View on Model

NI

W10539842 Whirlpool Microwave Harness Wire Backorder WPL W10539842 View Details $13.48

View on Model

NI

W10821385 Whirlpool Hardware Kit In Stock WPL W10821385 View Details $63.70

View on Model

NI

Template, Upper WPL 8205871 Contact Us For Availability

View on Model

×
