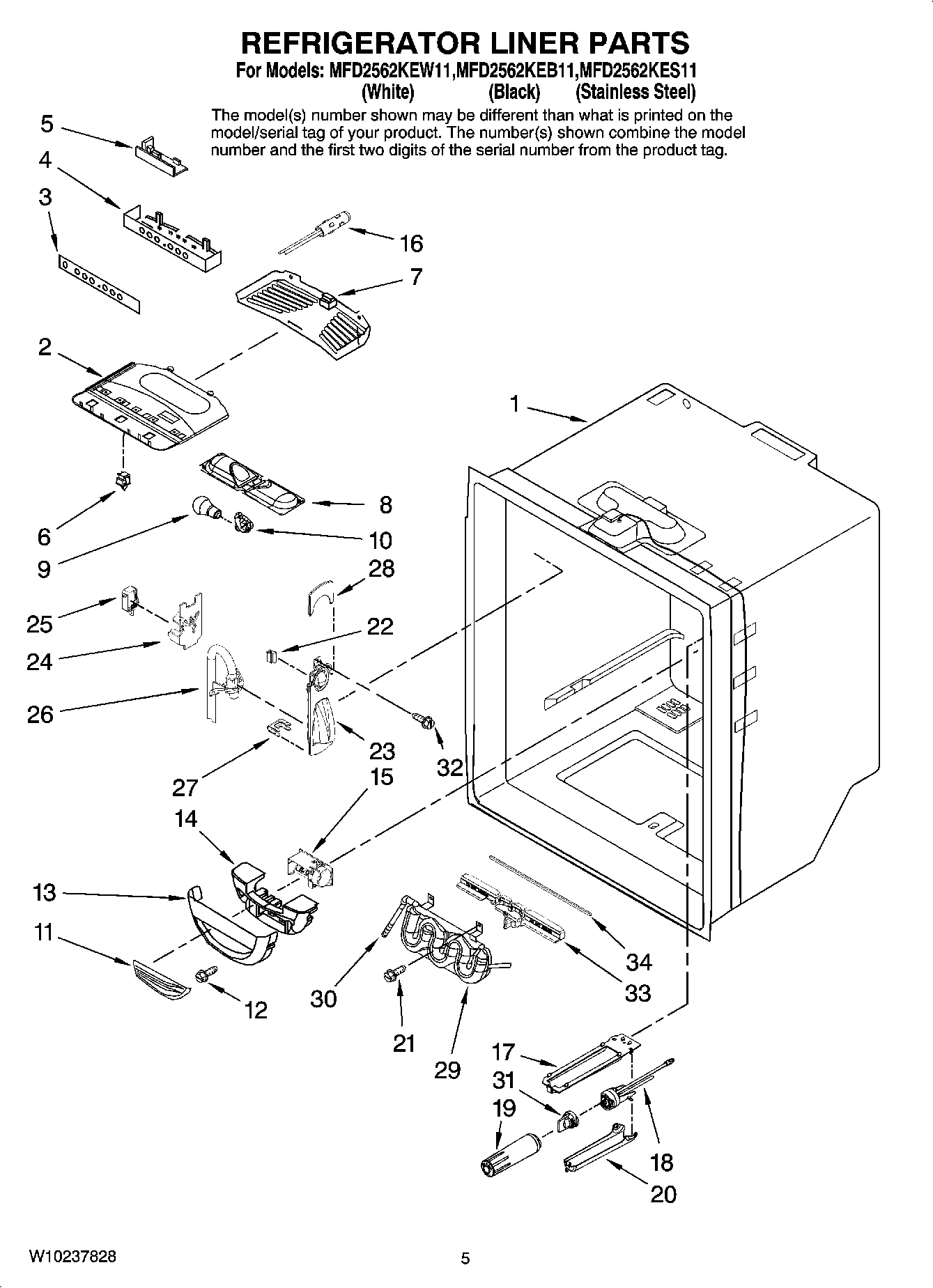

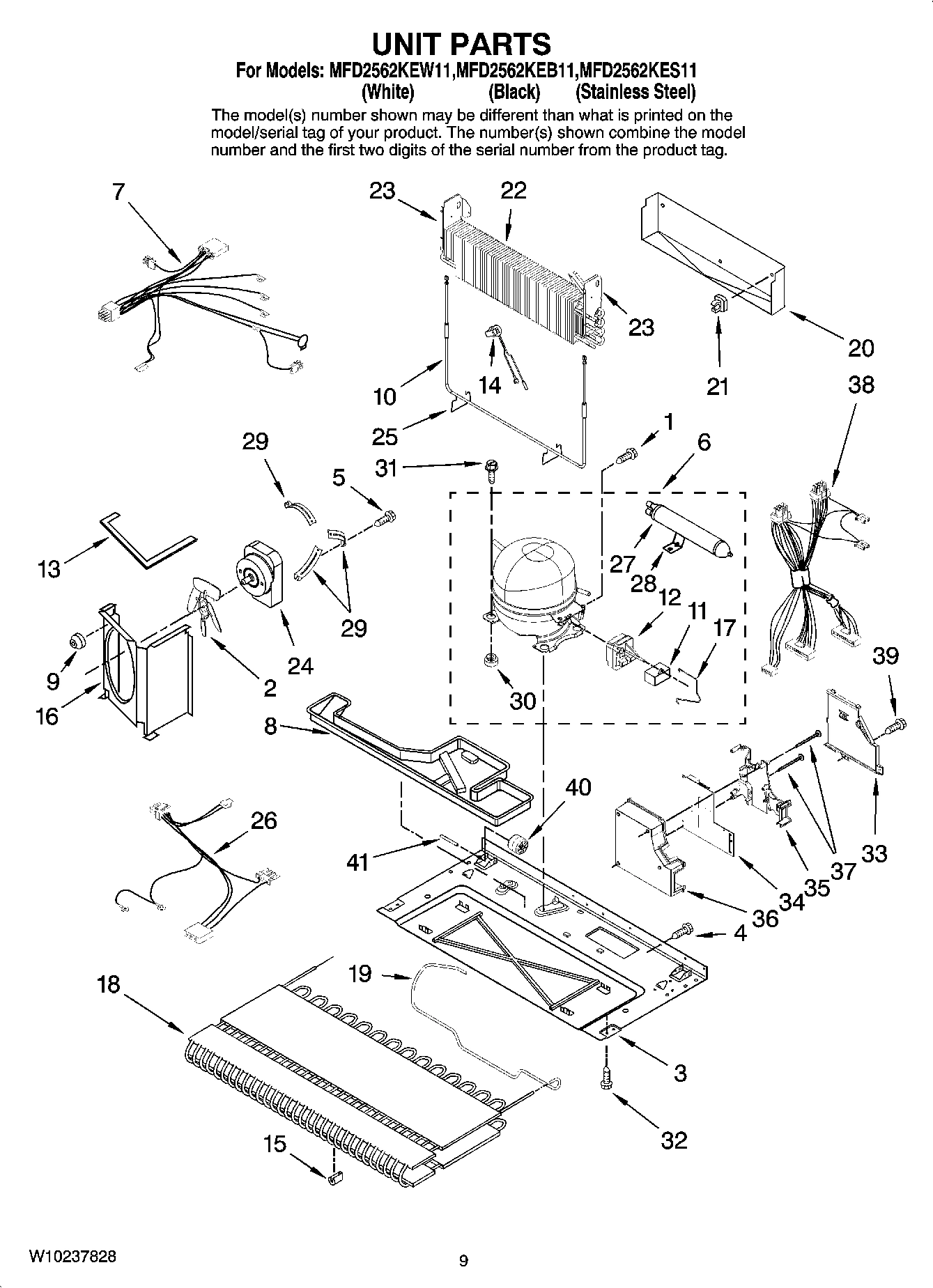

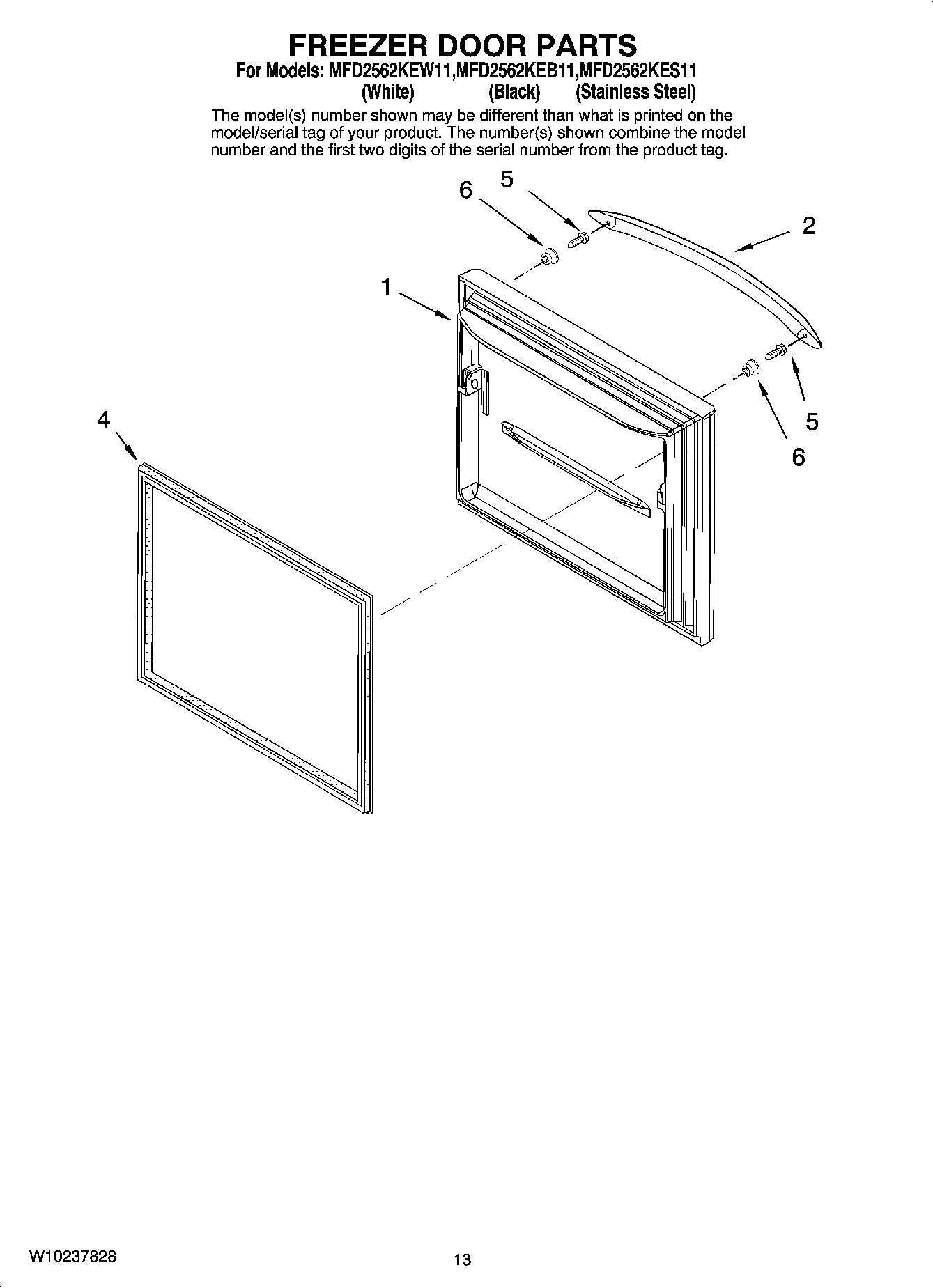

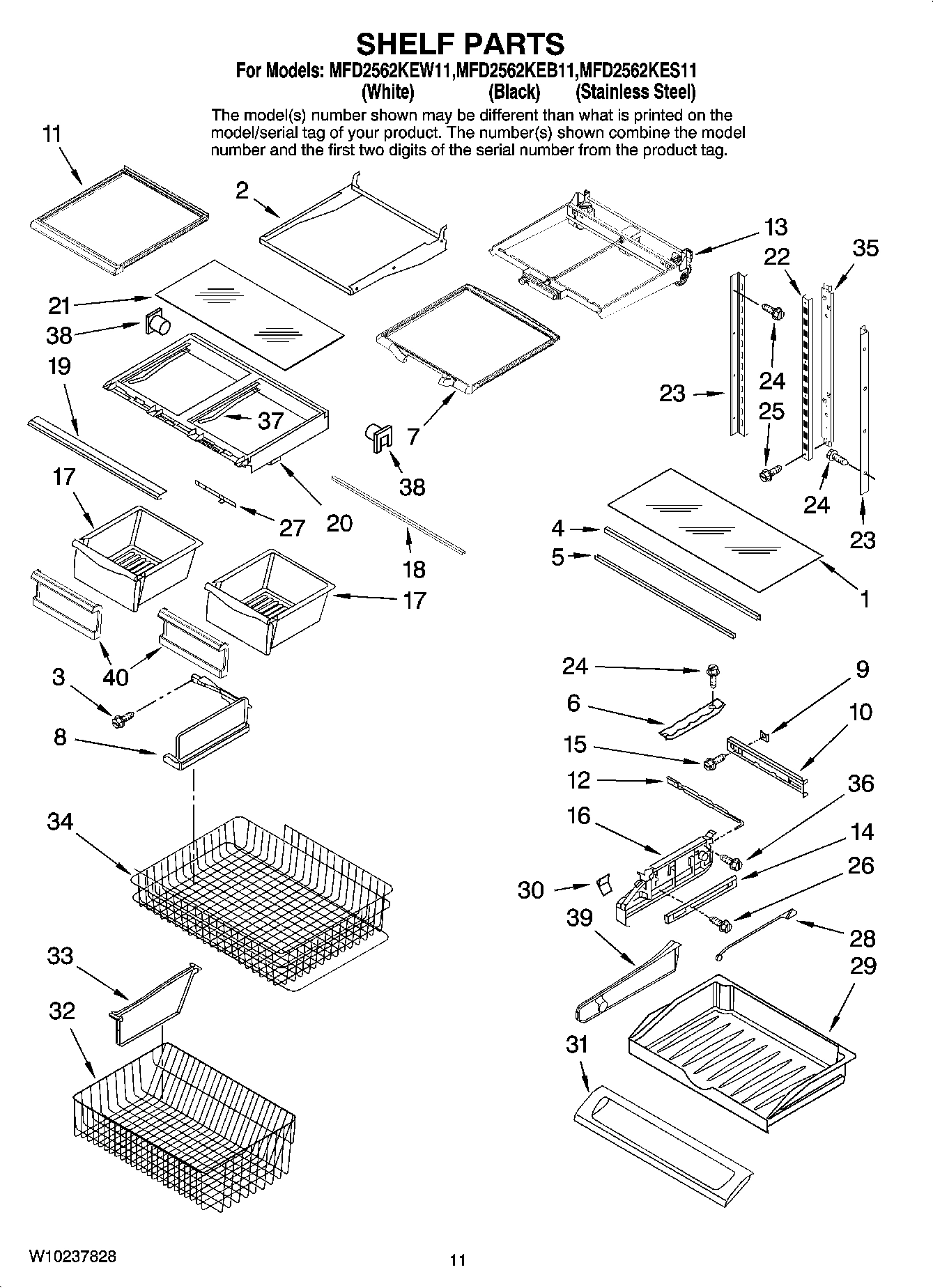

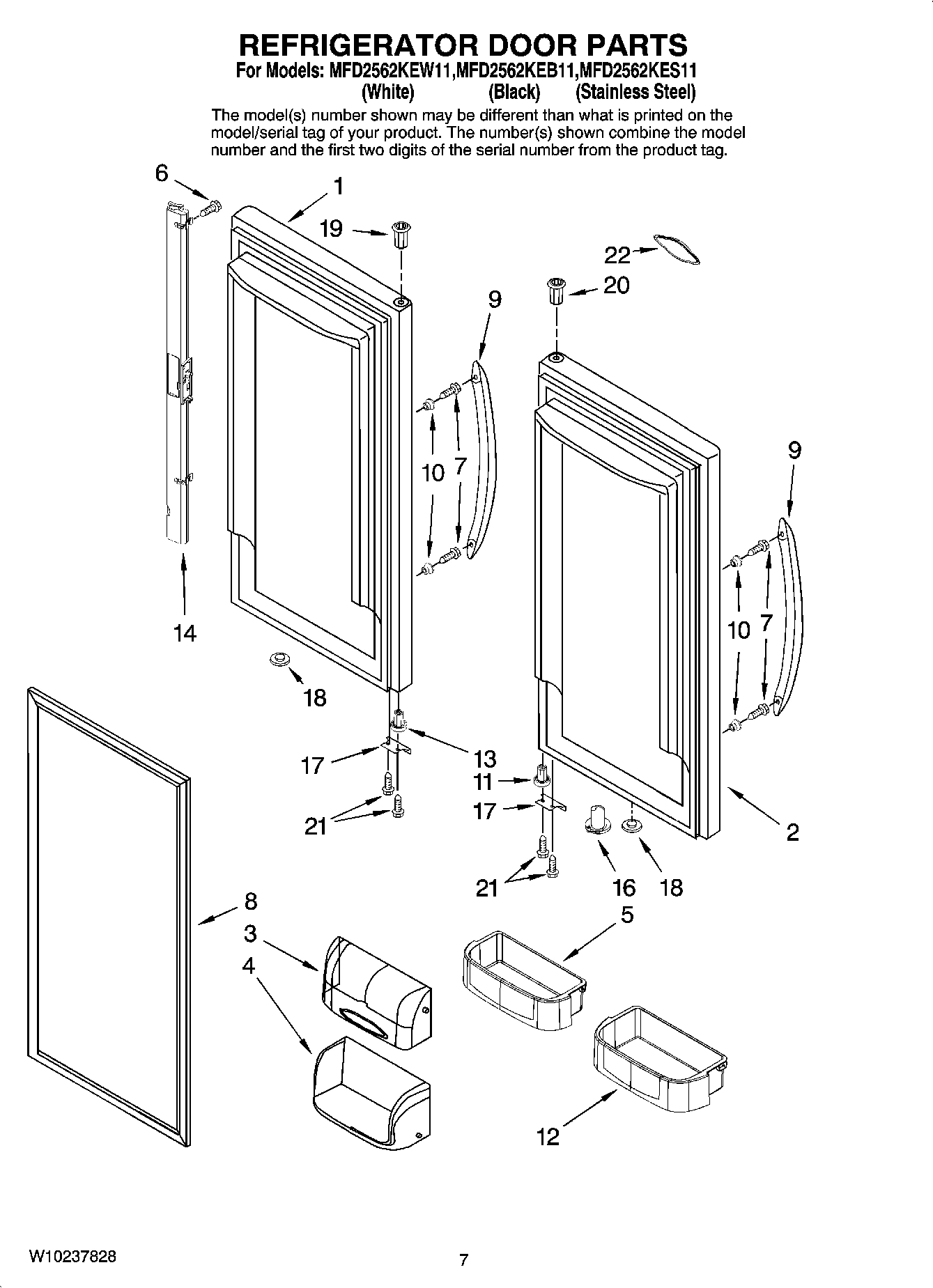

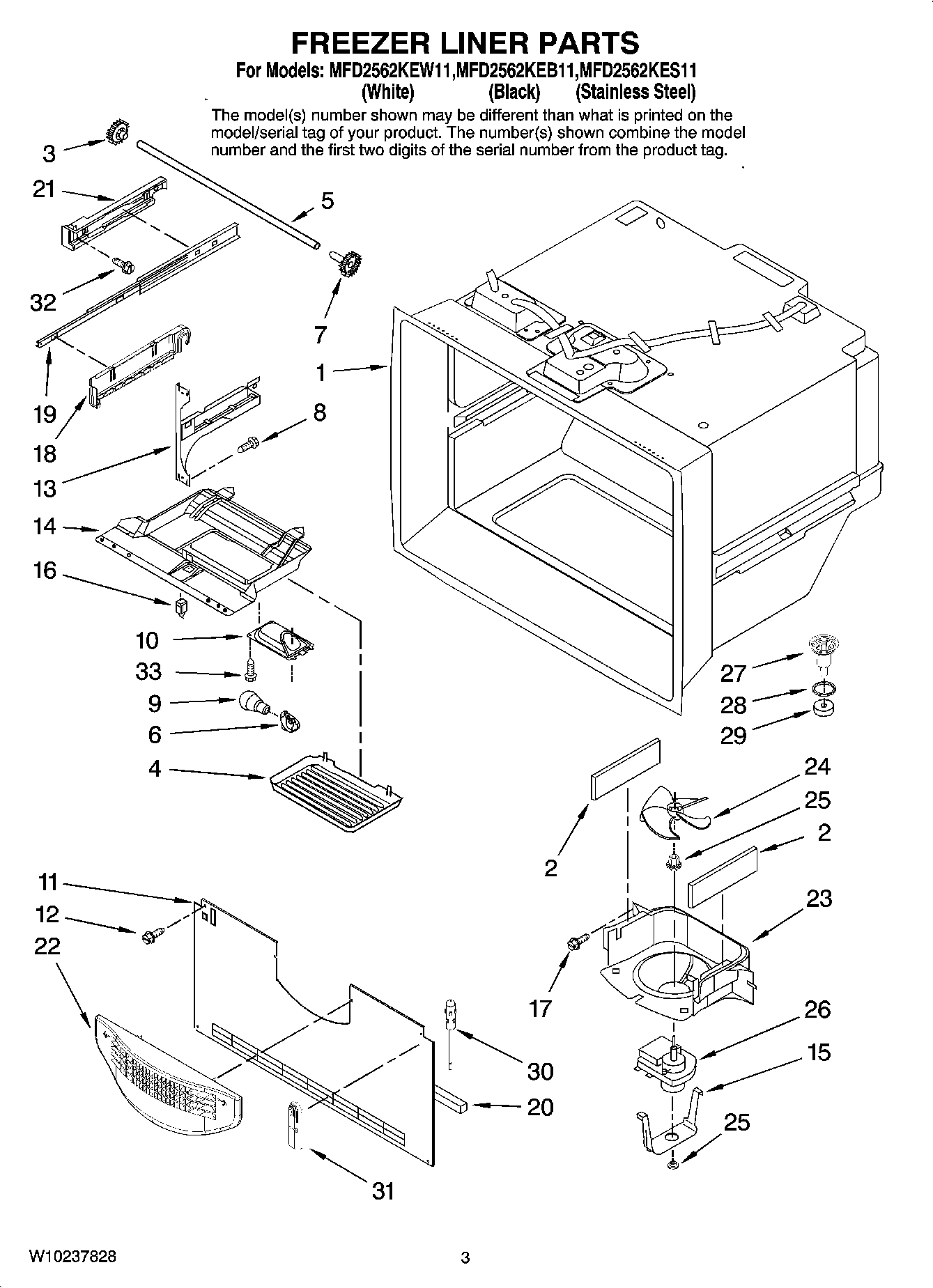

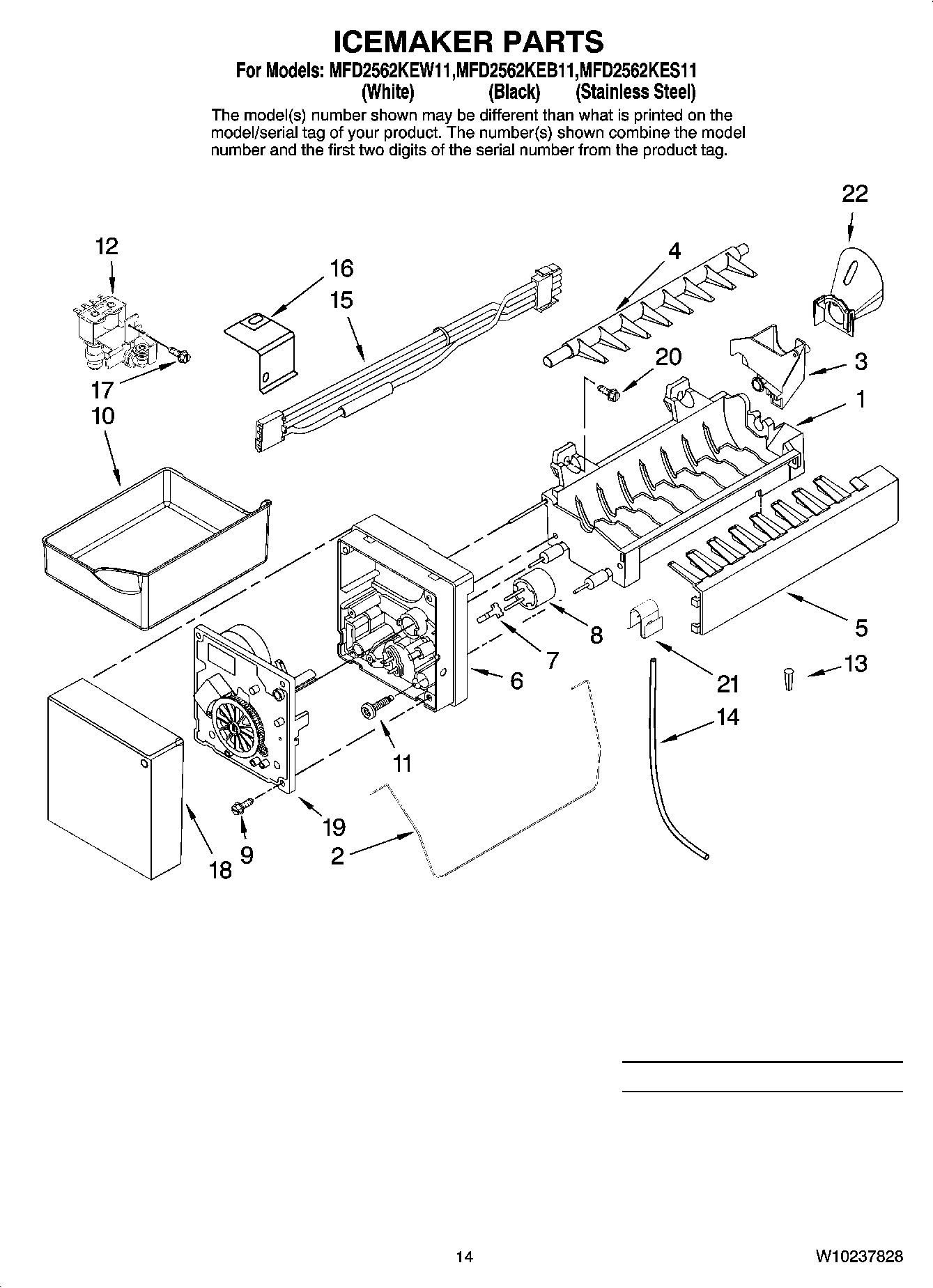

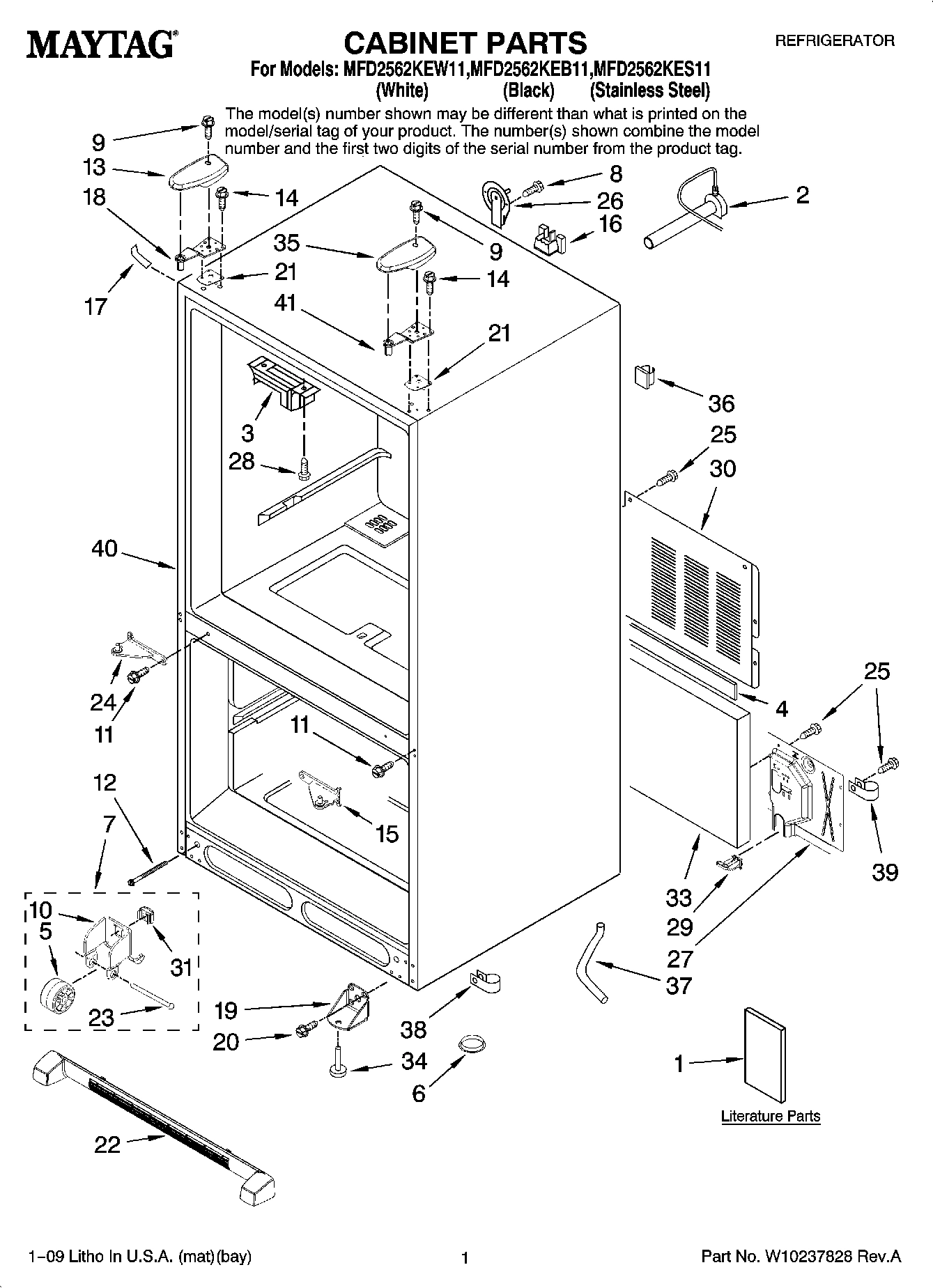

Model Whirlpool MFD2562KES11 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

1

Tech Sheet WPL 67006616 Contact Us For Availability

1

Owners Manual WPL W10175446 Contact Us For Availability

1

Tag, Energy WPL W10183253 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI4798A91 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

2

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $59.65

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.55

2

Door, Right (Stainless Steel) WPL 13024037SQ Contact Us For Availability

2

Bracket, Control and Lights WPL 67004078 Contact Us For Availability

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

3

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $5.30

3

Basepan WPL 12457109 Contact Us For Availability

4

Ejector WPL 951011 Contact Us For Availability

4

Gasket WPL B5759649 Contact Us For Availability

4

Housing, Control WPL W10185585 Contact Us For Availability

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $63.87

5

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.52

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

5

Board, Control WPL W10207861 Contact Us For Availability

5

Ice Stripper WPL 951021 Contact Us For Availability

6

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

6

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

7

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $4.82

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $69.33

7

Roller Assy. (2) WPL 12580304 Contact Us For Availability

7

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

7

HARNESS, EVAP HEATER WPL W10119857 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $75.97

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $124.89

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $207.03

8

THERMOSTAT WPL 950921 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $14.02

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

9

Screw (3) WPL 951061 Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $80.03

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $6.02

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $15.02

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

Shelf, Slide (3) WPL 61002917 Contact Us For Availability

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $52.62

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $140.78

Bin, Shelf (2) (Gallon) WPL 67004641 Contact Us For Availability

67002722 Whirlpool Refrigerator White Door Bu Backorder WPL 67002722 $14.02

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

Frame Assy., Adj. WPL Y61006052 Contact Us For Availability

Cover, Left Hinge (Black) WPL 12684201B Contact Us For Availability

Cover, Left Hinge (White) WPL 12684201W Contact Us For Availability

W11750607 Whirlpool Insulation Backorder WPL W11750607 $32.09

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $52.91

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $215.16

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $37.15

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $169.94

Hinge, Center (RT) (White) WPL 67006379 Contact Us For Availability

16

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $22.88

16

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

16

Shroud WPL 12575309 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $13.22

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $8.63

WP67004515 Whirlpool Crisper Drawer In Stock WPL WP67004515 $109.82

CLIP, CAPACITOR WPL 67007052 Contact Us For Availability

WP12566607ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566607ED $60.57

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $72.75

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $102.41

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $248.87

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $102.30

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $65.34

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $94.87

WPW10231345 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231345 $96.82

Bracket, Foot (2) WPL W10208641 Contact Us For Availability

Tube, Discharge WPL W10183707 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $5.02

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $35.72

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $63.55

WP67003854 Whirlpool Shelf Frame Backorder WPL WP67003854 $173.44

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $146.14

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

Shim, Hinge WPL 12579702 Contact Us For Availability

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $210.45

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $8.16

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $39.08

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $62.51

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $100.63

LADDER, CENTER WPL 67004644 Contact Us For Availability

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $67.69

Ladder, Side WPL 67004645 Contact Us For Availability

Pin WPL M1205302 Contact Us For Availability

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $56.05

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $61.68

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $57.93

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

Motor, Fan WPL 67004432 Contact Us For Availability

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $47.06

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.02

WP67006415 Whirlpool Refrigerator Screw In Stock WPL WP67006415 $4.82

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

Harness, MC WPL 13060202 Contact Us For Availability

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.80

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

Cover, Water Valve WPL 12751509 Contact Us For Availability

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $20.02

WP67003795 Whirlpool Refrigerator Temperature Backorder WPL WP67003795 $4.82

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $8.23

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $75.97

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $114.45

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $18.44

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

Cover, Unit WPL 67006102 Contact Us For Availability

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $8.39

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $130.63

PLUG, BYPASS WPL 67003146 Contact Us For Availability

32

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

32

WPW10503184 Whirlpool Refrigerator Freezer Ba Backorder WPL WPW10503184 $169.77

32

Screw (4) WPL 67006573 Contact Us For Availability

W11714300 Whirlpool Insulation Backorder WPL W11714300 $36.39

Insulation, Sound WPL 67003796 Contact Us For Availability

Divider, Lower Basket WPL 67006644 Contact Us For Availability

COVER, HV BOX WPL 67005421 Contact Us For Availability

34

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.78

34

Gasket WPL W10130483 Contact Us For Availability

34

Board, HV Control (Inc. Inst. Sheet) WPL W10205114 Contact Us For Availability

Adapter, Center Ladder WPL 67003721 Contact Us For Availability

Cover, Right Hinge (Black) WPL 12684202B Contact Us For Availability

Cover, Right Hinge (White) WPL 12684202W Contact Us For Availability

SPACER, HV BOX WPL 67005418 Contact Us For Availability

36

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

36

Box, HV WPL 67004969 Contact Us For Availability

37

W10164397 Whirlpool Refrigerator Drain Tube In Stock WPL W10164397 $9.35

37

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $19.52

37

Screw (2) WPL 67006550 Contact Us For Availability

38

Clip, Drain Tube WPL W10157973 No Longer Available

38

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $59.13

38

Harness, HV WPL 12972902 Contact Us For Availability

39

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $7.06

39

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $35.24

40

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

40

WP67005923 Whirlpool Refrigerator Front Cover In Stock WPL WP67005923 $52.30

40

Cabinet (Not a Servicable Part) WPL ARI4795A23 Contact Us For Availability

41

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

41

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

67005417 Whirlpool Refrigerator Harness F Backorder WPL 67005417 $65.35

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Enamel, White (1 Qt. Uncut) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability

FOLLOWING PA WPL ARI4802A13 Contact Us For Availability

WPL ARI4803A37 WPL ARI4803A37 Contact Us For Availability

WPL ARI4804A85 WPL ARI4804A85 Contact Us For Availability

WPL ARI4805A97 WPL ARI4805A97 Contact Us For Availability

WPL ARI4806A56 WPL ARI4806A56 Contact Us For Availability

WPL ARI4807A69 WPL ARI4807A69 Contact Us For Availability

WPL ARI4808A11 WPL ARI4808A11 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI4799A59 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI4800A25 Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI4801A56 Contact Us For Availability
