Model Whirlpool MDG9206AWA GAS DRYER – Common Parts &amp; Diagrams

1

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

1

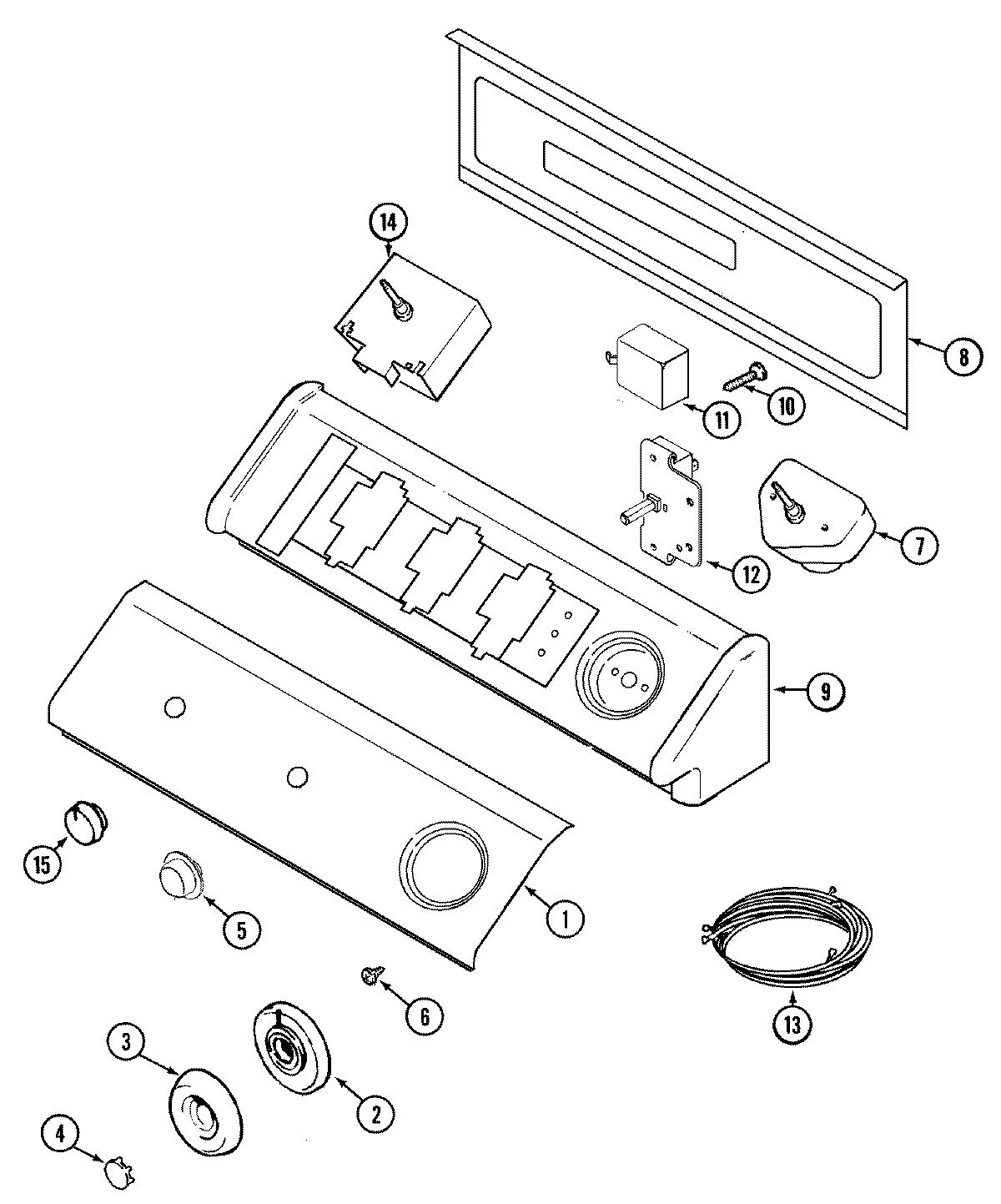

PANEL, CONTROL (ALM) WPL 33001919 Contact Us For Availability

1

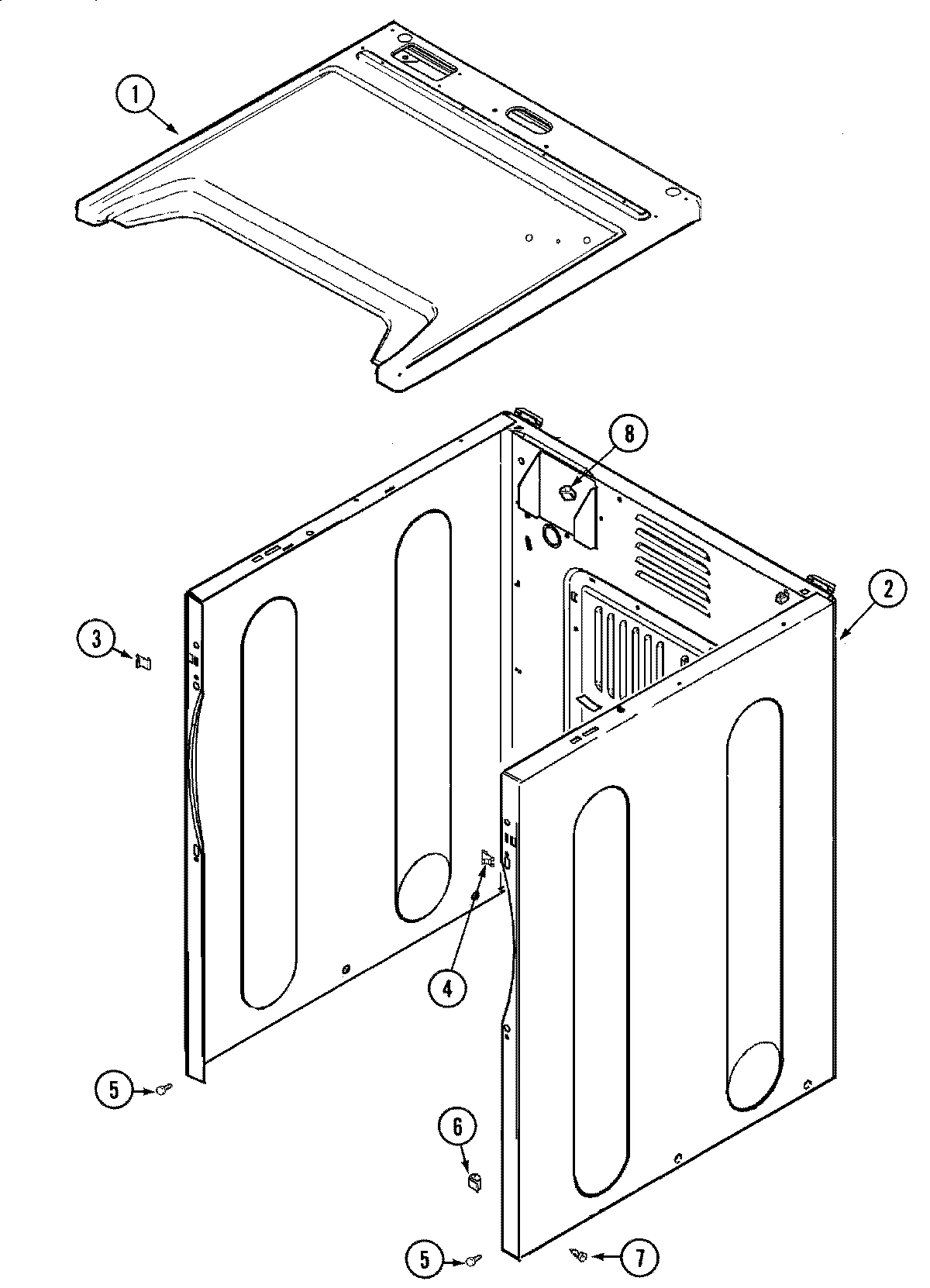

COVER, TOP (ALM)----NA WPL 33001906 Contact Us For Availability

1

SEAL, SHROUD WPL 33001767 Contact Us For Availability

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $39.64

2

WP33002346 Whirlpool Dial Knob Backorder WPL WP33002346 $31.79

2

DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability

2

CABINET (ALM)----NA WPL 33001898 Contact Us For Availability

2

BRACKET, CABINET HINGE WPL 33001827 Contact Us For Availability

2

HOOK, SECURITY WPL 22002247 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $18.86

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

3

SEAL, BLOWER WPL 33001758 Contact Us For Availability

3

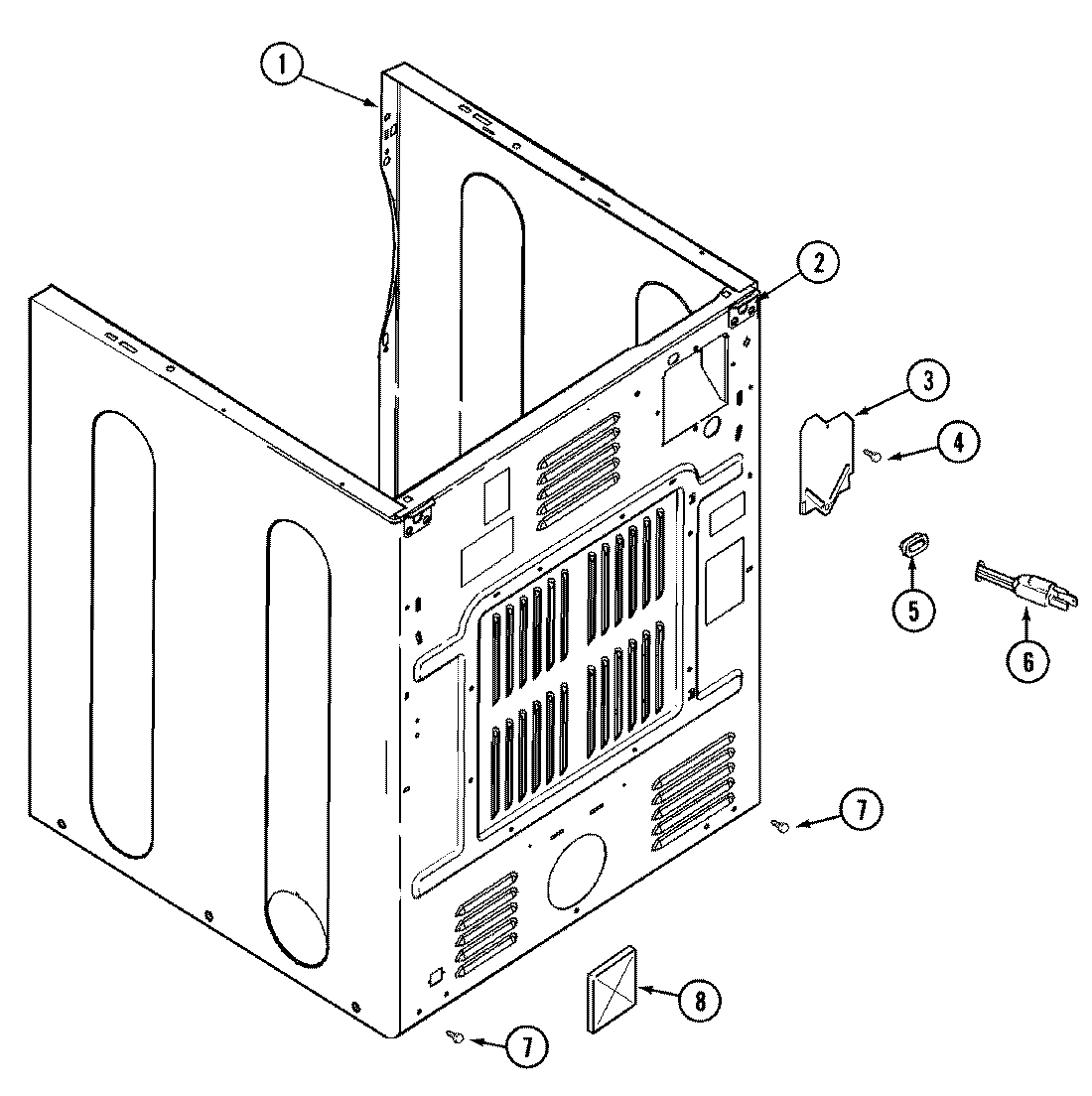

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

3

SHROUD (ALM)----NA WPL 33001907 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.72

4

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

4

INSERT, TIMER KNOB (ALM) WPL 22001665 Contact Us For Availability

4

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

5

GROMMET, CORD WPL 211881 Contact Us For Availability

5

BUTTON, PUSH TO START (ALM) WPL 33001620 Contact Us For Availability

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

6

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

6

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

6

FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability

6

CORD, POWER WPL 33001246 Contact Us For Availability

7

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

7

WP33001624 Whirlpool Timer Backorder WPL WP33001624 $253.40

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

8

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

8

WP307250 Whirlpool Thermostat In Stock WPL WP307250 $55.16

8

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

8

BACK, CONSOLE PANEL WPL 33001806 Contact Us For Availability

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

9

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

9

CONSOLE (ALM) WPL 22002286 Contact Us For Availability

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $39.97

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $90.86

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability

11

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

11

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

11

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $4.82

SCREW----NA WPL 312311 Contact Us For Availability

SEAL, BLOWER COVER WPL 33001772 Contact Us For Availability

SWITCH, PUSH TO START (ALM) WPL 33001862 Contact Us For Availability

3406051 Whirlpool Elbow Backorder WPL 3406051 $68.74

COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability

WIRE HARNESS, MAIN WPL 33001923 Contact Us For Availability

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $12.54

PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability

SCREW WPL 314818 Contact Us For Availability

SWITCH, TEMPERATURE (GAS) WPL 33001643 Contact Us For Availability

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

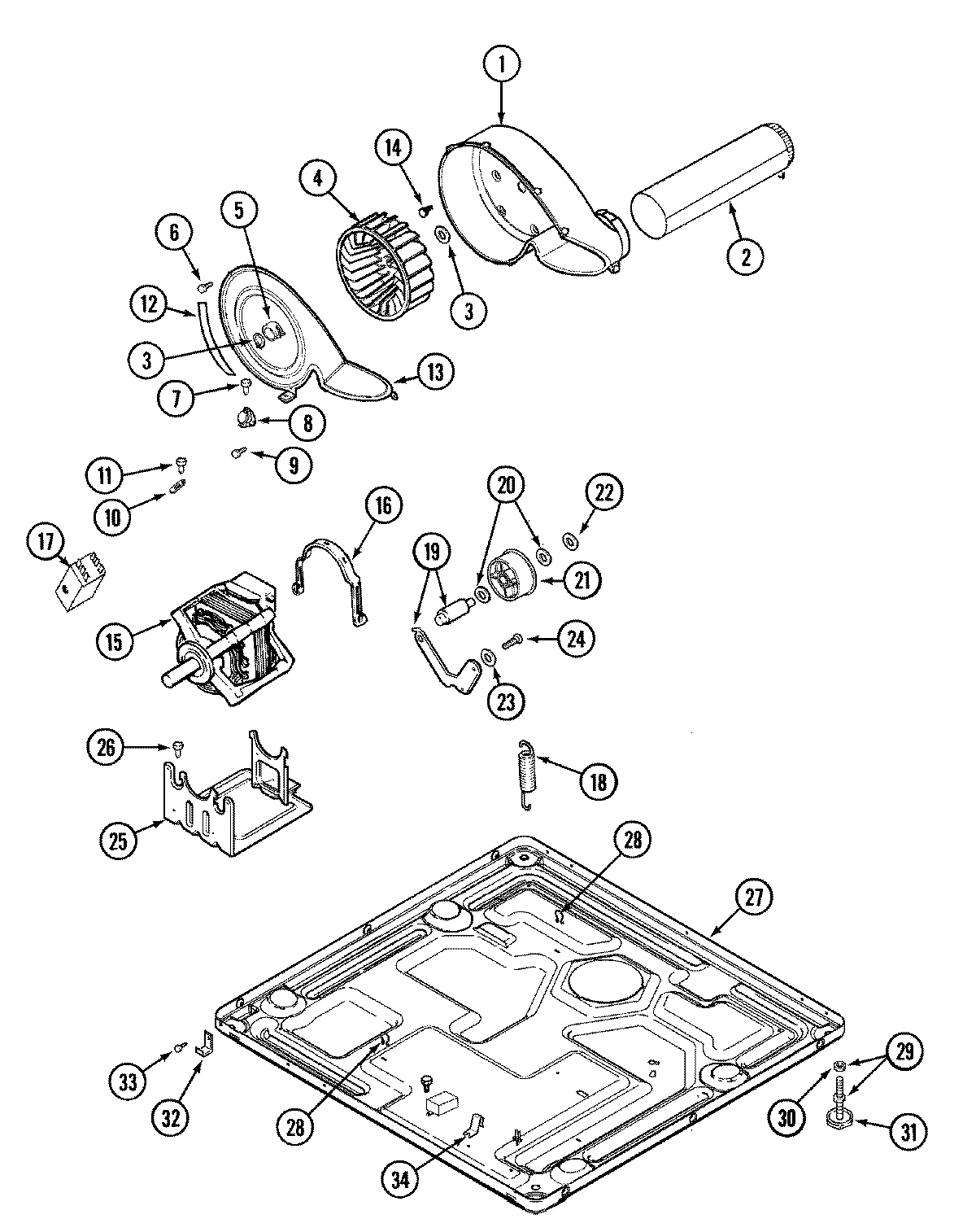

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $123.19

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $21.91

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

KNOB, SELECTOR SWITCH (ALM) WPL 22001667 Contact Us For Availability

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $26.50

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

DUCT ASSY., INLET (GAS) WPL 33001810 Contact Us For Availability

MANUAL, USE & CARE WPL 33002457 Contact Us For Availability

MANUAL, USE & CARE (FRC) WPL 33002531 Contact Us For Availability

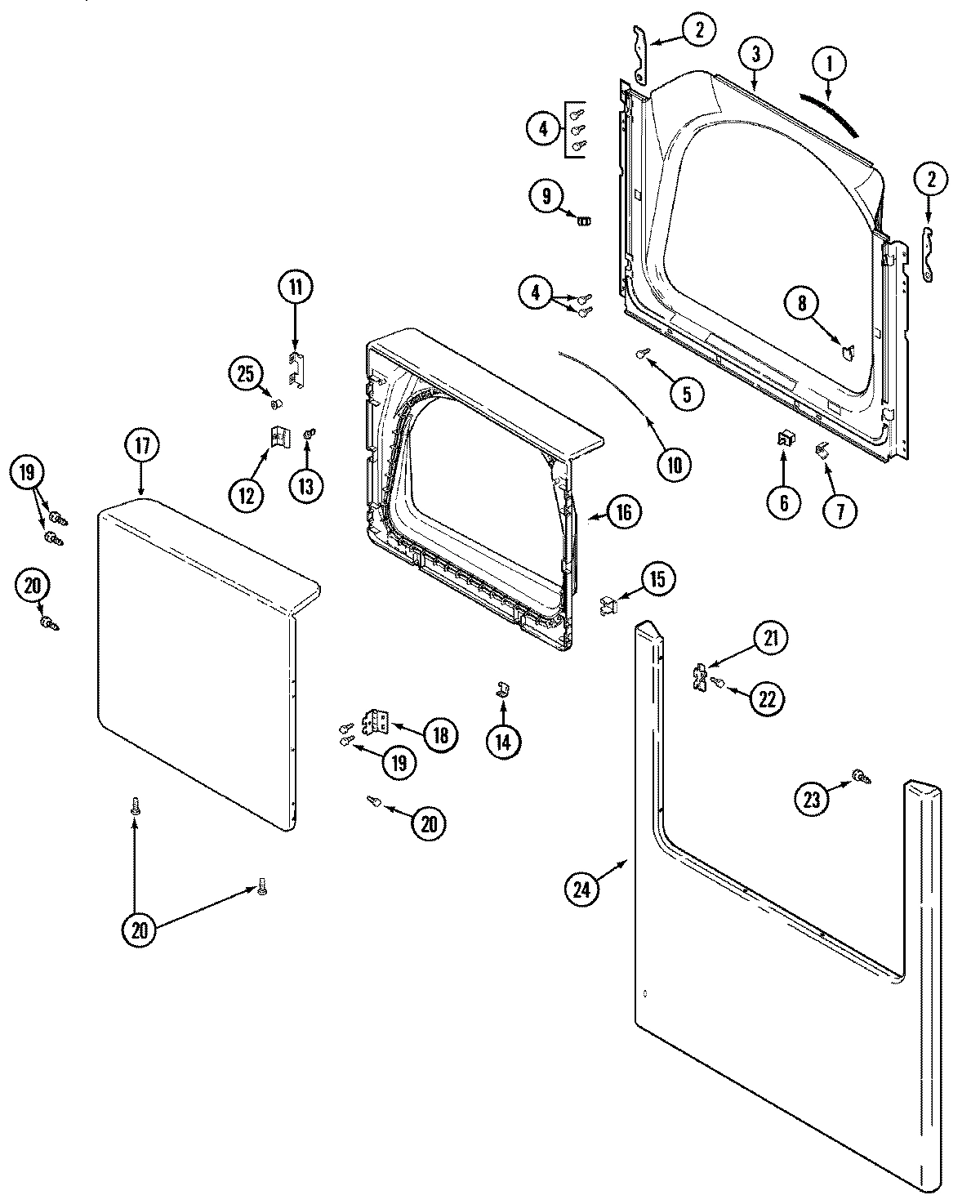

DOOR, INNER (ALM) WPL 33001908 Contact Us For Availability

17

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

17

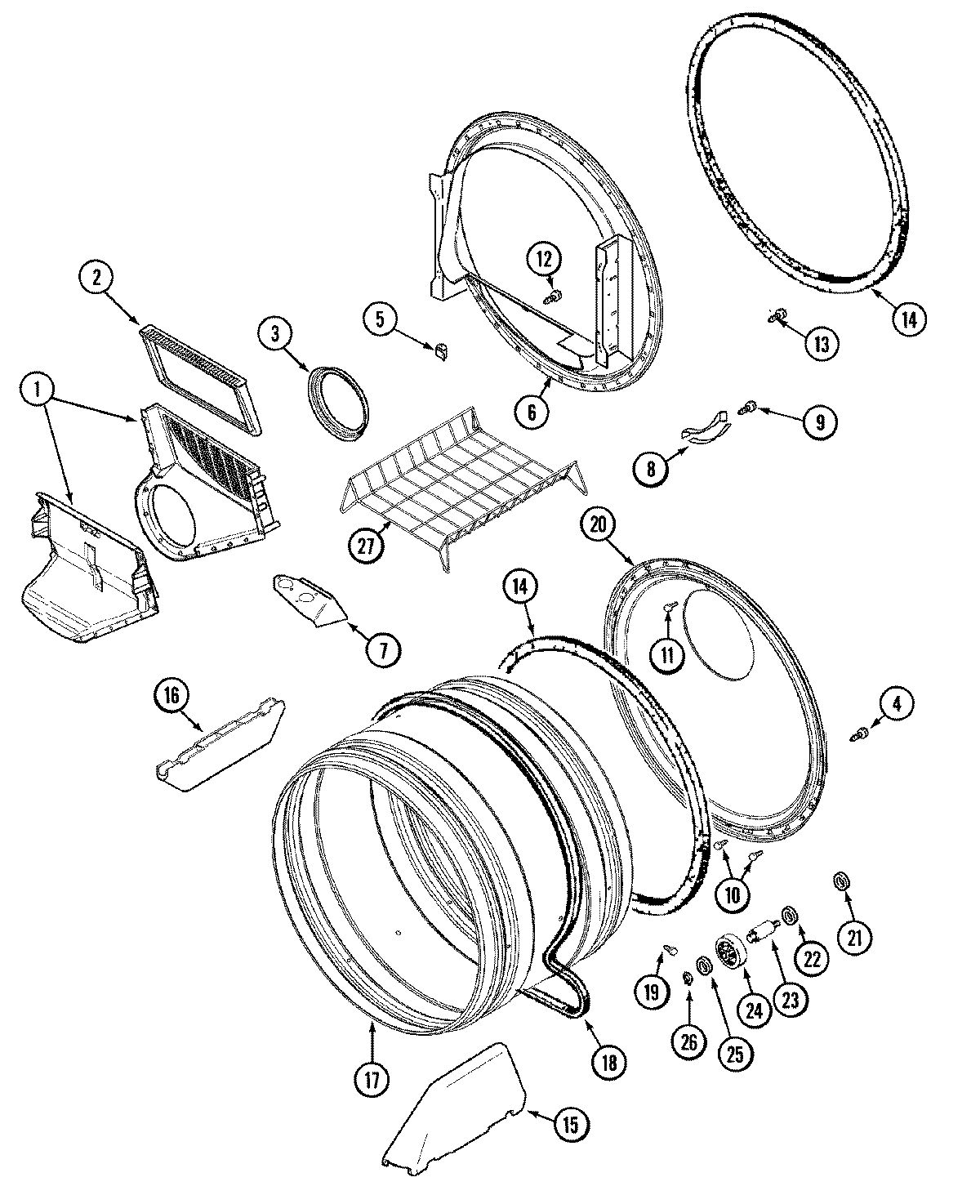

TUMBLER WPL 33001889 Contact Us For Availability

17

DOOR, OUTER (ALM)----NA WPL 33001909 Contact Us For Availability

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $4.82

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $56.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $24.91

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

GROMMET WPL 33002157 Contact Us For Availability

PLUG FOR SPRING WPL 33002461 Contact Us For Availability

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $53.48

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

COVER, HINGE HOLE (ALM) WPL 33001765 Contact Us For Availability

22

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $7.38

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

22

CAP, GAS PIPE WPL 33001693 Contact Us For Availability

23

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

24

PANEL, FRONT (ALM)----NA WPL 33001910 Contact Us For Availability

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

SUPPORT, MOTOR WPL 33001752 Contact Us For Availability

SUPPORT, MOTOR WPL 33002466 Contact Us For Availability

BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability

26

SCREW----NA WPL Y313561 Contact Us For Availability

27

RACK, DRYING WPL 33001917 Contact Us For Availability

27

BASE WPL 33001845 Contact Us For Availability

27

BASE, (LWR)----NA WPL 33002465 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

33

SCREW WPL Y310632 Contact Us For Availability

34

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

NI

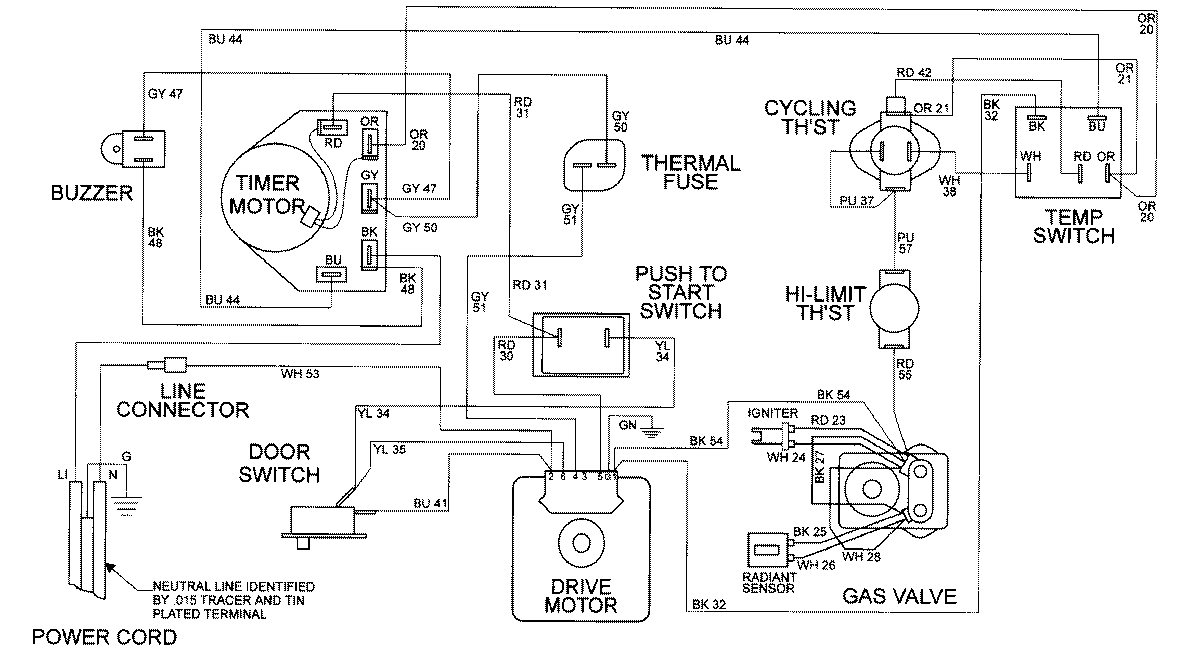

WIRING INFORMATION WPL 15002304 Contact Us For Availability
